Android14 显示系统剖析3 ———— Native App 与 SurfaceFinger 建立 Binder 通信过程分析

阿豪讲Framework
2,776 阅读5分钟

本文基于 android-14.0.0_r15 版本讲解。

接下的章节就会开始逐句分析上一节给出的 Native 程序。

本节主要分析 Native App 与 SurfaceFinger 建立 Binger 通信过程分析。

SurfaceFlinger 对外提供了怎样的 Binder 服务？

在分析代码之前，我们需要知道 SurfaceFlinger 对外提供了怎么样的 Binder 服务？

先看 SurfaceFlinger 的主函数：

// frameworks/native/services/surfaceflinger/main_surfaceflinger.cpp

int main(int, char**) {

    // ......
    sp<SurfaceFlinger> flinger = surfaceflinger::createSurfaceFlinger();

    // .....
    sp<IServiceManager> sm(defaultServiceManager());

    // 注册了一个叫 SurfaceFlinger 的 binder 服务
    sm->addService(String16(SurfaceFlinger::getServiceName()), flinger, false,
                   IServiceManager::DUMP_FLAG_PRIORITY_CRITICAL | IServiceManager::DUMP_FLAG_PROTO);

    // ......
    // publish gui::ISurfaceComposer, the new AIDL interface
    sp<SurfaceComposerAIDL> composerAIDL = sp<SurfaceComposerAIDL>::make(flinger);
    // 注册了一个叫 SurfaceFlingerAIDL 的 binder 服务
    sm->addService(String16("SurfaceFlingerAIDL"), composerAIDL, false,
                   IServiceManager::DUMP_FLAG_PRIORITY_CRITICAL | IServiceManager::DUMP_FLAG_PROTO);

    // ......
}

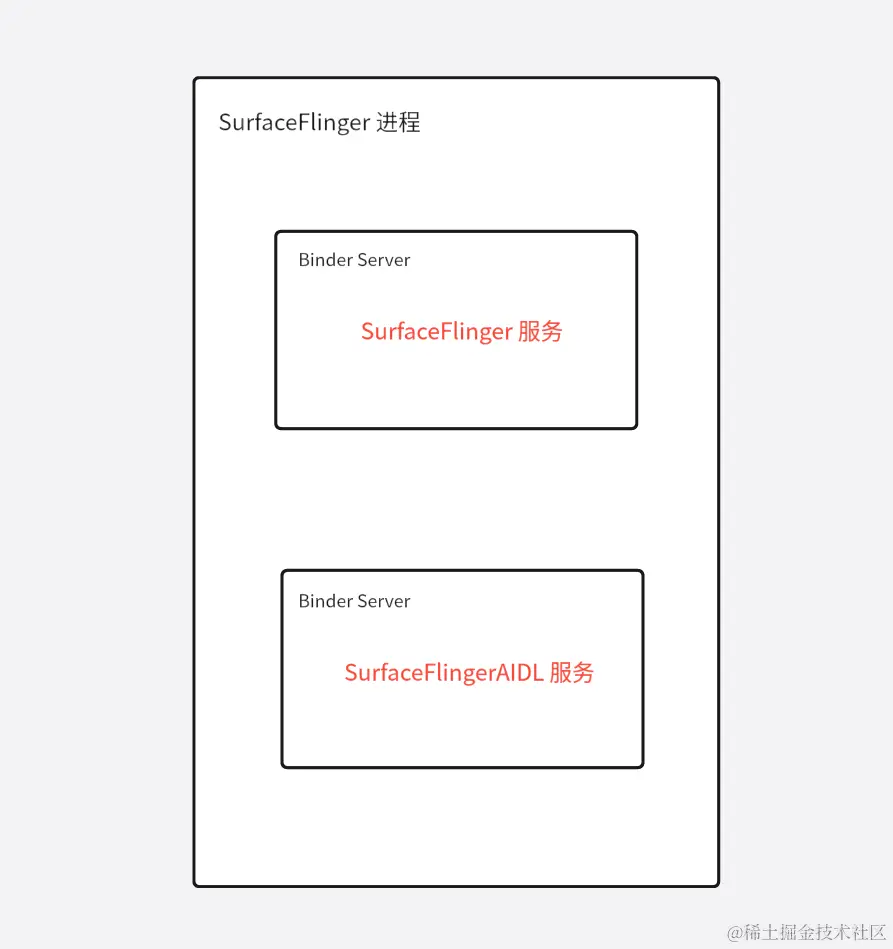

在主函数中注册了 SurfaceFlinger 和 SurfaceComposerAIDL 两个 Binder 服务。

20240528223713

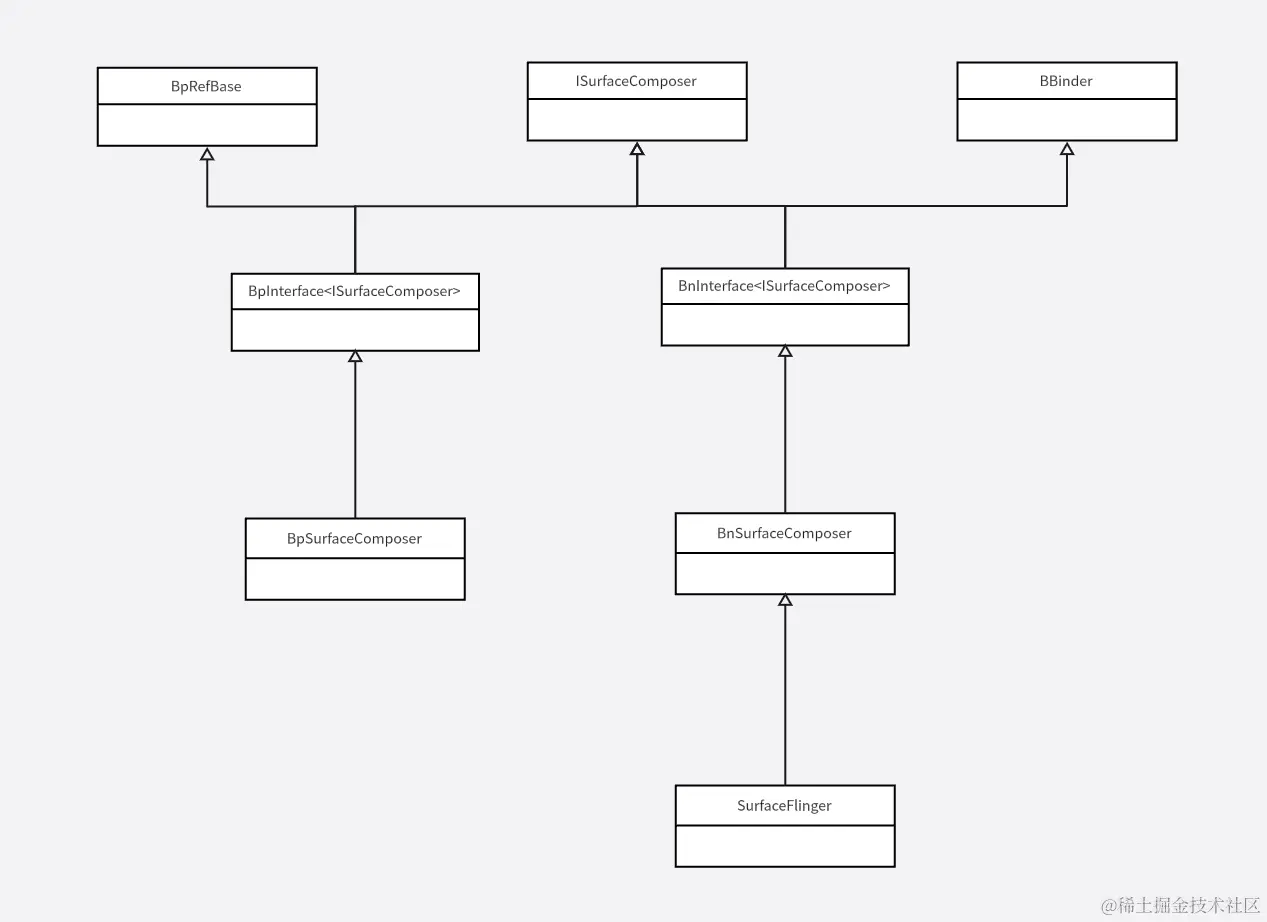

SurfaceFlinger Binder 服务相关类的关系如下图所示：

20240528223801

SurfaceFlinger Binder 服务对应的接口类是 ISurfaceComposer：

class ISurfaceComposer: public IInterface {
public:
    DECLARE_META_INTERFACE(SurfaceComposer)

    // flags for setTransactionState()
    enum {
        eAnimation = 0x02,

        // Explicit indication that this transaction and others to follow will likely result in a
        // lot of layers being composed, and thus, SurfaceFlinger should wake-up earlier to avoid
        // missing frame deadlines. In this case SurfaceFlinger will wake up at
        // (sf vsync offset - debug.sf.early_phase_offset_ns). SurfaceFlinger will continue to be
        // in the early configuration until it receives eEarlyWakeupEnd. These flags are
        // expected to be used by WindowManager only and are guarded by
        // android.permission.WAKEUP_SURFACE_FLINGER
        eEarlyWakeupStart = 0x08,
        eEarlyWakeupEnd = 0x10,
        eOneWay = 0x20
    };

    /* open/close transactions. requires ACCESS_SURFACE_FLINGER permission */
    virtual status_t setTransactionState(
            const FrameTimelineInfo& frameTimelineInfo, Vector<ComposerState>& state,
            const Vector<DisplayState>& displays, uint32_t flags, const sp<IBinder>& applyToken,
            InputWindowCommands inputWindowCommands, int64_t desiredPresentTime,
            bool isAutoTimestamp, const std::vector<client_cache_t>& uncacheBuffer,
            bool hasListenerCallbacks, const std::vector<ListenerCallbacks>& listenerCallbacks,
            uint64_t transactionId, const std::vector<uint64_t>& mergedTransactionIds) = 0;
};

这里只有一个函数 setTransactionState，应该不是 SurfaceFlinger 对外提供服务的主战场。

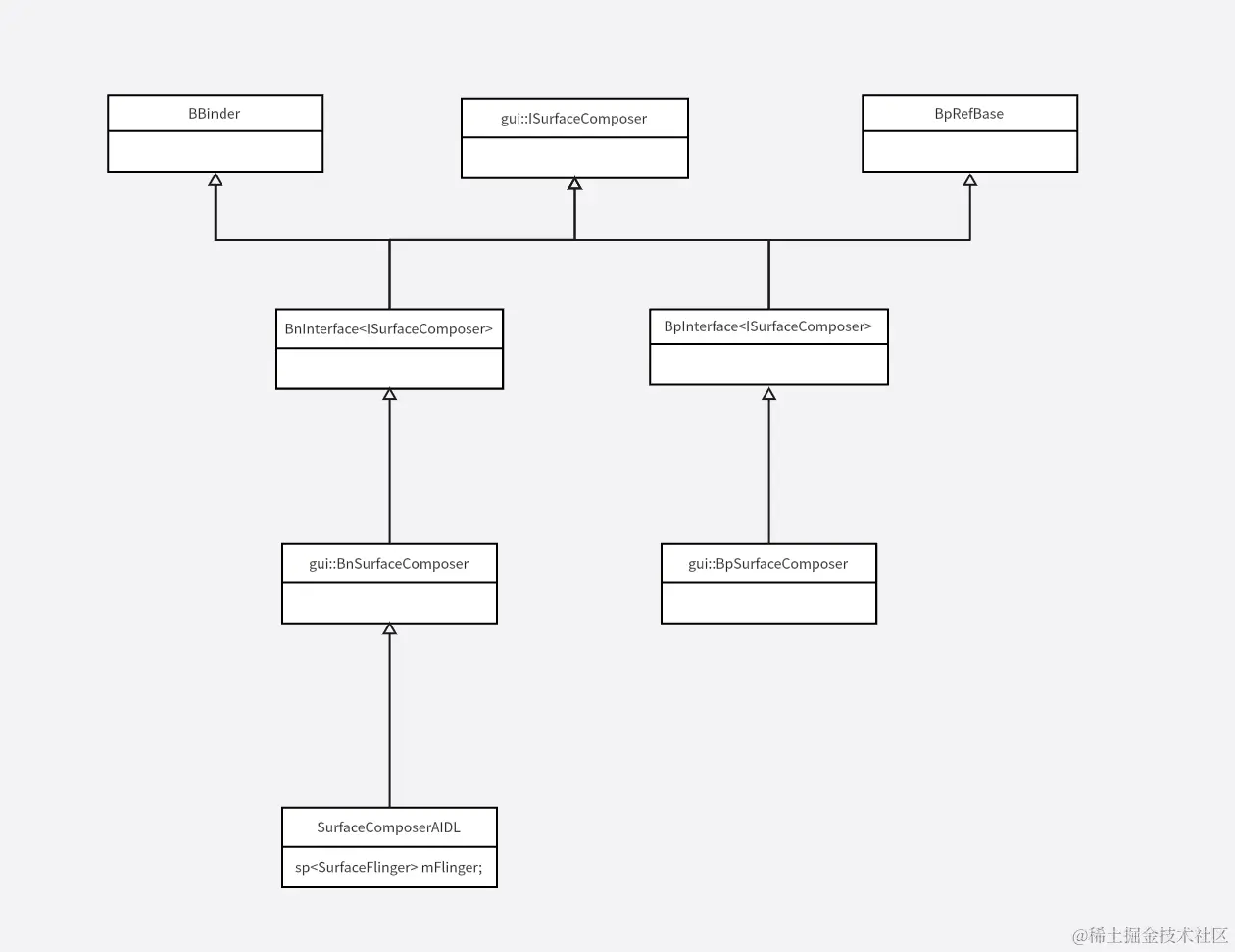

我们接着看 SurfaceComposerAIDL Binder 服务，其相关类关系如下图所示：

20240528223944

从名字就可以看出，SurfaceComposerAIDL 是通过 aidl 辅助实现的 binder 服务。

对应的 aidl 文件是：

// /frameworks/native/libs/gui/aidl/android/gui/ISurfaceComposer.aidl

package android.gui;

// ......

/** @hide */
interface ISurfaceComposer {

    enum VsyncSource {
        eVsyncSourceApp = 0,
        eVsyncSourceSurfaceFlinger = 1
    }

    enum EventRegistration {
        modeChanged = 1 << 0,
        frameRateOverride = 1 << 1,
    }

    void bootFinished();

    @nullable IDisplayEventConnection createDisplayEventConnection(VsyncSource vsyncSource,
            EventRegistration eventRegistration, @nullable IBinder layerHandle);

    @nullable ISurfaceComposerClient createConnection();

    @nullable IBinder createDisplay(@utf8InCpp String displayName, boolean secure,
            float requestedRefreshRate);

    void destroyDisplay(IBinder display);

    long[] getPhysicalDisplayIds();

    @nullable IBinder getPhysicalDisplayToken(long displayId);

    FrameEvent[] getSupportedFrameTimestamps();

    void setPowerMode(IBinder display, int mode);

    DisplayStatInfo getDisplayStats(@nullable IBinder display);

    //......
}

aidl 文件中定义了大量的函数，这里只贴出了部分。

aidl 文件主要生成了以下的类：

  • gui::ISurfaceComposer：描述 binder 服务的接口
  • gui::BnSurfaceComposer：binder 服务端对象
  • gui::BpSurfaceComposer：binder 代理端对象

该服务提供了大量的函数供客户端调用。

App 与 SurfaceFlinger 之间的 Binder 通信通道建立

在了解了 SurfaceFlinger 中的 Binder 服务以后，我们就可以开始分析代码了。

int main(int argc, char ** argv) {
    sp<SurfaceComposerClient> surfaceComposerClient = new SurfaceComposerClient;
    status_t err = surfaceComposerClient->initCheck();
    if (err != OK) {
        ALOGD("SurfaceComposerClient::initCheck error: %#x\n", err);
        return;
    }

    // ......
}

我们 new 一个 SurfaceComposerClient 对象，SurfaceComposerClient 是 App 与 SurfaceFlinger 通信的辅助类，其构造函数如下：

// frameworks/native/libs/gui/SurfaceComposerClient.cpp
SurfaceComposerClient::SurfaceComposerClient() : mStatus(NO_INIT) {}

构造函数，除了给 mStatus 成员初始化一个值，就没了。

SurfaceComposerClient 中还定义了 onFirstRef 函数，在首次引用时，会被调用：

void SurfaceComposerClient::onFirstRef() {
    sp<gui::ISurfaceComposer> sf(ComposerServiceAIDL::getComposerService());
    if (sf != nullptr && mStatus == NO_INIT) {
        sp<ISurfaceComposerClient> conn;
        binder::Status status = sf->createConnection(&conn);
        if (status.isOk() && conn != nullptr) {
            mClient = conn;
            mStatus = NO_ERROR;
        }
    }
}

onFirstRef 函数会先调用到 ComposerServiceAIDL::getComposerService()：

// frameworks/native/libs/gui/include/private/gui/ComposerServiceAIDL.h
class ComposerServiceAIDL : public Singleton<ComposerServiceAIDL> {

    sp<gui::ISurfaceComposer> mComposerService;
    sp<IBinder::DeathRecipient> mDeathObserver;
    mutable std::mutex mMutex;

    ComposerServiceAIDL();
    bool connectLocked();
    void composerServiceDied();
    friend class Singleton<ComposerServiceAIDL>;

public:
    // Get a connection to the Composer Service.  This will block until
    // a connection is established. Returns null if permission is denied.
    static sp<gui::ISurfaceComposer> getComposerService();
};

// /frameworks/native/libs/gui/SurfaceComposerClient.cpp

/*static*/ sp<gui::ISurfaceComposer> ComposerServiceAIDL::getComposerService() {
    // 获取单例对象
    ComposerServiceAIDL& instance = ComposerServiceAIDL::getInstance();
    std::scoped_lock lock(instance.mMutex);
    if (instance.mComposerService == nullptr) {
        // 调用 connectLocked 获取 binder 服务
        if (ComposerServiceAIDL::getInstance().connectLocked()) {
            ALOGD("ComposerServiceAIDL reconnected");
            WindowInfosListenerReporter::getInstance()->reconnect(instance.mComposerService);
        }
    }
    return instance.mComposerService;
}

getComposerService 函数中会去获取到 ComposerServiceAIDL 单例对象，然后调用 ComposerServiceAIDL 单例对象的 connectLocked 方法去获取 SurfaceFlingerAIDL binder 服务：

bool ComposerServiceAIDL::connectLocked() {
    const String16 name("SurfaceFlingerAIDL");
    // 向 sm 获取到 SurfaceFlingerAIDL binder 服务代理端
    mComposerService = waitForService<gui::ISurfaceComposer>(name);
    if (mComposerService == nullptr) {
        return false; // fatal error or permission problem
    }

    // Create the death listener.
    class DeathObserver : public IBinder::DeathRecipient {
        ComposerServiceAIDL& mComposerService;
        virtual void binderDied(const wp<IBinder>& who) {
            ALOGW("ComposerService aidl remote (surfaceflinger) died [%p]", who.unsafe_get());
            mComposerService.composerServiceDied();
        }

    public:
        explicit DeathObserver(ComposerServiceAIDL& mgr) : mComposerService(mgr) {}
    };

    // 注册死亡通知
    mDeathObserver = new DeathObserver(*const_cast<ComposerServiceAIDL*>(this));
    IInterface::asBinder(mComposerService)->linkToDeath(mDeathObserver);
    return true;
}

connectLocked 获取到名为 SurfaceFlingerAIDL 的 binder 服务代理端 sp<gui::ISurfaceComposer> mComposerService，这个和上一节的分析相吻合。

接着通过这个代理端对象远程调用 createConnection 函数，获取到 sp<ISurfaceComposerClient> conn 匿名 Binder 服务。

找到 SurfaceFlingerAIDL 服务端 createConnection 函数的实现：

// /frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp

binder::Status SurfaceComposerAIDL::createConnection(sp<gui::ISurfaceComposerClient>* outClient) {
    const sp<Client> client = sp<Client>::make(mFlinger);
    if (client->initCheck() == NO_ERROR) {
        *outClient = client;
        return binder::Status::ok();
    } else {
        *outClient = nullptr;
        return binderStatusFromStatusT(BAD_VALUE);
    }
}

new 一个 Client 然后通过参数返回

那这个 Client 又是啥呢？找到 Client 的实现：

// /frameworks/native/services/surfaceflinger/Client.h

class Client : public gui::BnSurfaceComposerClient {
public:
    explicit Client(const sp<SurfaceFlinger>& flinger);
    ~Client() = default;

    status_t initCheck() const;

private:
    // ISurfaceComposerClient interface

    binder::Status createSurface(const std::string& name, int32_t flags, const sp<IBinder>& parent,
                                 const gui::LayerMetadata& metadata,
                                 gui::CreateSurfaceResult* outResult) override;

    binder::Status clearLayerFrameStats(const sp<IBinder>& handle) override;

    binder::Status getLayerFrameStats(const sp<IBinder>& handle,
                                      gui::FrameStats* outStats) override;

    binder::Status mirrorSurface(const sp<IBinder>& mirrorFromHandle,
                                 gui::CreateSurfaceResult* outResult) override;

    binder::Status mirrorDisplay(int64_t displayId, gui::CreateSurfaceResult* outResult) override;

    // constant
    sp<SurfaceFlinger> mFlinger;

    // thread-safe
    mutable Mutex mLock;
};

Client 是一个 binder 服务端类，内部持有一个 SurfaceFlinger 的指针，指针的值通过构造函数传入。

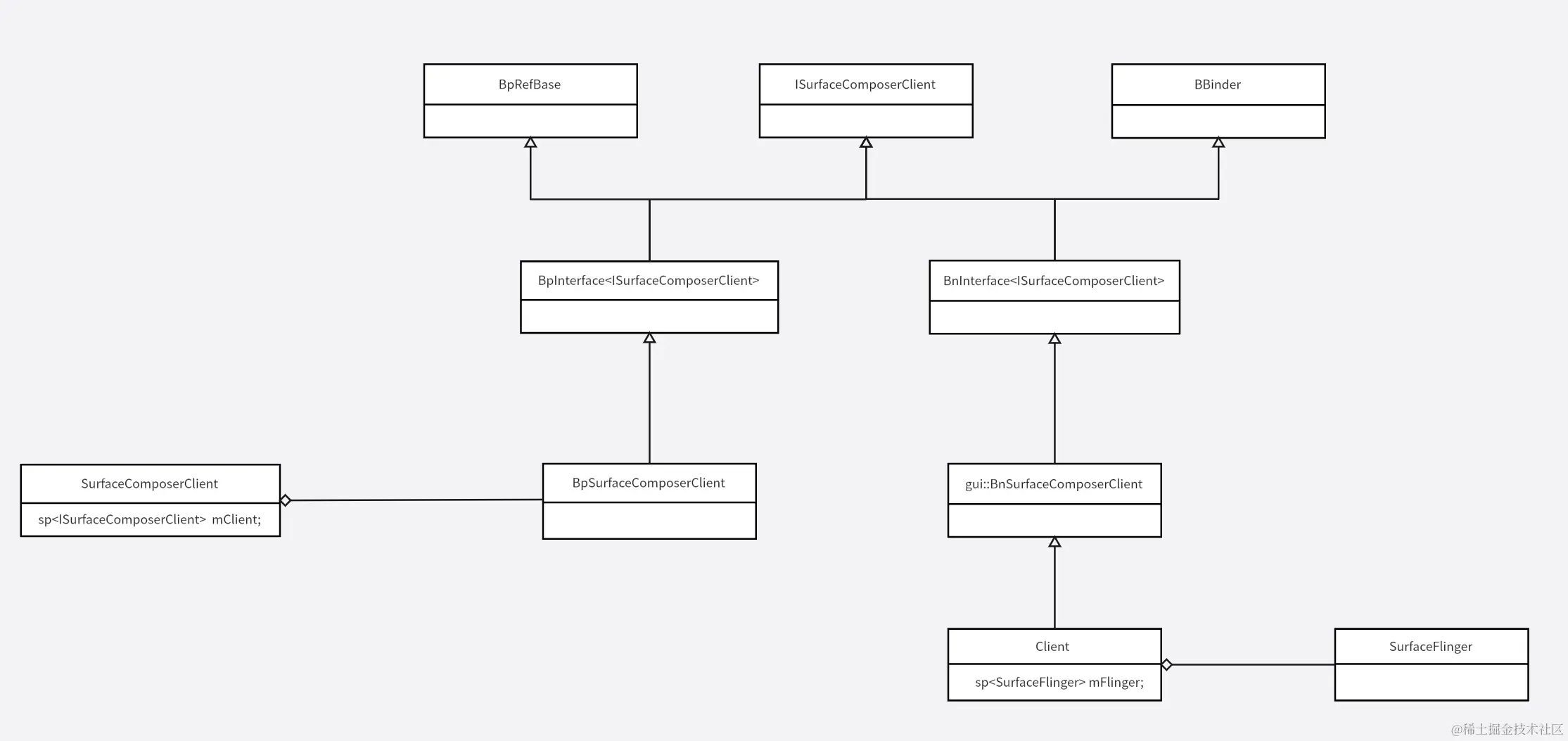

该匿名 Binder 服务相关类的关系如图所示：

20240609172340

可以看出，Client 实际就是一个匿名 Binder 服务。

总结

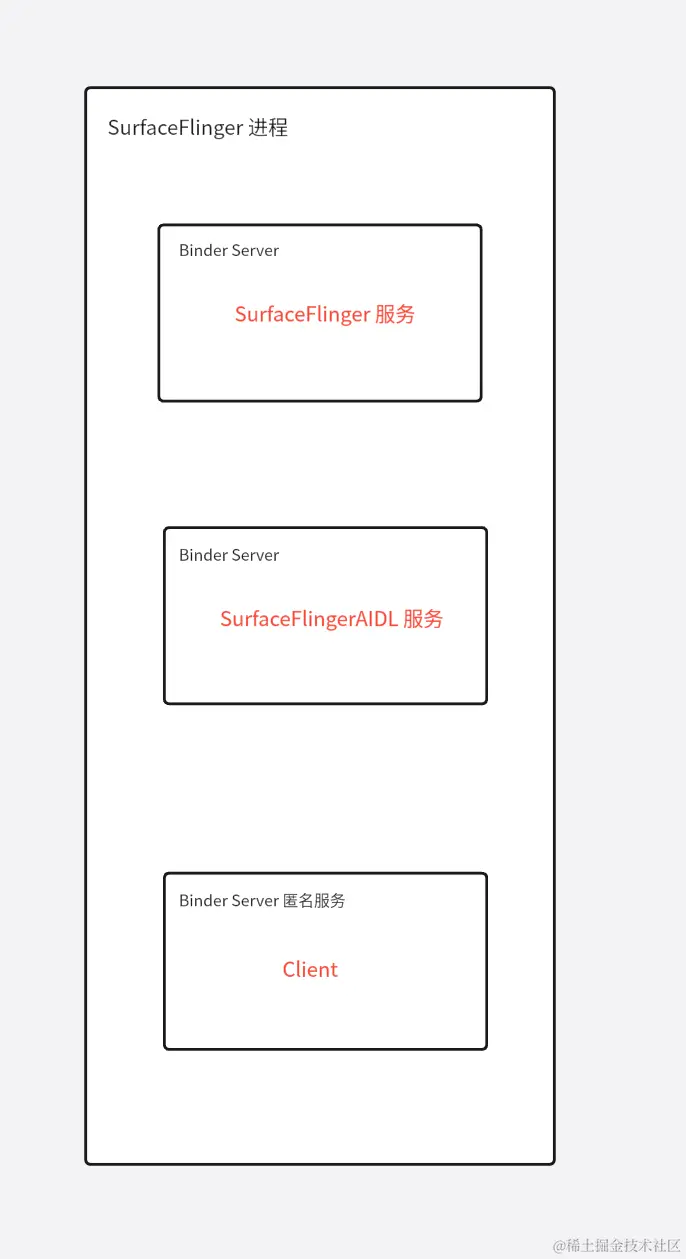

  • SurfaceFlinger 进程中提供了 SurfaceFlinger Binder 服务，SurfaceFlingerAIDL Binder 服务和一个名为 Client 的匿名 Binder 服务

20240528230736

整个 binder 通信通道的建立过程：

  • App 向 ServiceManager 查询 SurfaceFlingerAIDL 服务，获取到服务的代理端对象
  • 接着远程调用 SurfaceFlingerAIDL 服务的 createConnection 函数，获取到 Client 匿名服务的代理端对象
  • App 想要调用 SurfaceFlinger 相关的功能，可以远程调用 Client 服务，Client 服务中具体的功能再委托给 SurfaceFlinger 来实现。
