K8s源码阅读-kubelet-获取pod变更

Pod资源来源

• API Server
  K8s集群使用者创建的Pod
• File
  K8s静态Pod，默认在每个节点/etc/kubernetes/manifests路径
• URL
  远程Http Server存放的Pod资源

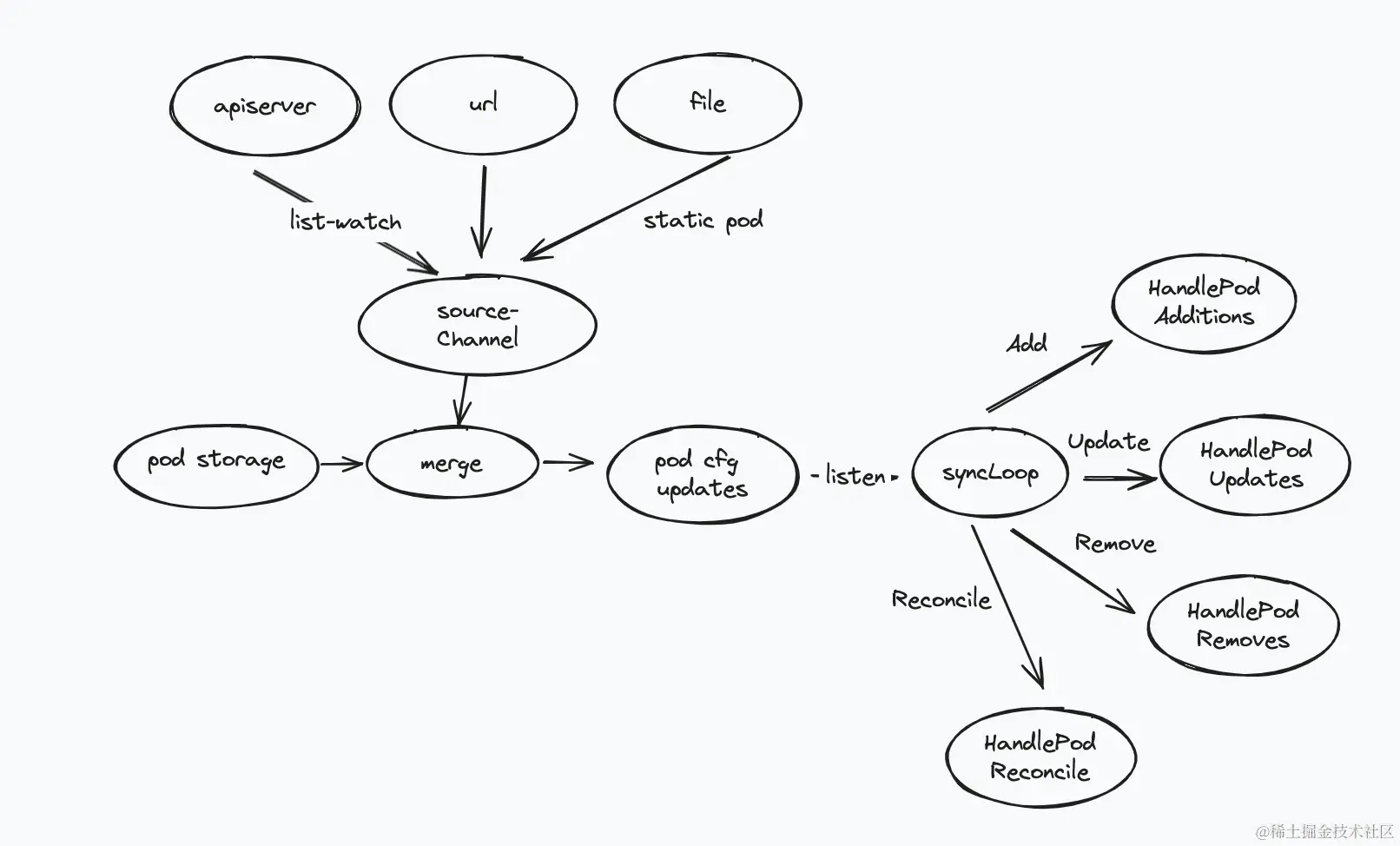

流程图

核心代码分析

从kubelet启动主函数入手，存在很多初始化的操作，先排除其他干扰项

汇总处理Pod变更的逻辑入口
// syncLoopIteration reads from various channels and dispatches pods to the
// given handler.
//
// Arguments:
// 1. configCh: a channel to read config events from
// 2. handler: the SyncHandler to dispatch pods to
// 3. syncCh: a channel to read periodic sync events from
// 4. housekeepingCh: a channel to read housekeeping events from
// 5. plegCh: a channel to read PLEG updates from
//
// Events are also read from the kubelet liveness manager's update channel.
//
// The workflow is to read from one of the channels, handle that event, and
// update the timestamp in the sync loop monitor.
//
// Here is an appropriate place to note that despite the syntactical
// similarity to the switch statement, the case statements in a select are
// evaluated in a pseudorandom order if there are multiple channels ready to
// read from when the select is evaluated. In other words, case statements
// are evaluated in random order, and you can not assume that the case
// statements evaluate in order if multiple channels have events.
//
// With that in mind, in truly no particular order, the different channels
// are handled as follows:
//
// - configCh: dispatch the pods for the config change to the appropriate
// handler callback for the event type
// - plegCh: update the runtime cache; sync pod
// - syncCh: sync all pods waiting for sync
// - housekeepingCh: trigger cleanup of pods
// - health manager: sync pods that have failed or in which one or more
// containers have failed health checks
//
// 处理pod的所有变更逻辑(ADD、UPDATE、REMOVE、DELETE、RECONCILE)
func (kl *Kubelet) syncLoopIteration(ctx context.Context, configCh <-chan kubetypes.PodUpdate, handler SyncHandler,
syncCh <-chan time.Time, housekeepingCh <-chan time.Time, plegCh <-chan *pleg.PodLifecycleEvent) bool {
select {
    // pod 变更
case u, open := <-configCh:
    // Update from a config source; dispatch it to the right handler
    // callback.
    if !open {
    klog.ErrorS(nil, "Update channel is closed, exiting the sync loop")
        return false
    }
switch u.Op {
case kubetypes.ADD:
    klog.V(2).InfoS("SyncLoop ADD", "source", u.Source, "pods", klog.KObjSlice(u.Pods))
    // After restarting, kubelet will get all existing pods through
    // ADD as if they are new pods. These pods will then go through the
    // admission process and *may* be rejected. This can be resolved
    // once we have checkpointing.
    handler.HandlePodAdditions(u.Pods)
case kubetypes.UPDATE:
    klog.V(2).InfoS("SyncLoop UPDATE", "source", u.Source, "pods", klog.KObjSlice(u.Pods))
    handler.HandlePodUpdates(u.Pods)
case kubetypes.REMOVE:
    klog.V(2).InfoS("SyncLoop REMOVE", "source", u.Source, "pods", klog.KObjSlice(u.Pods))
     handler.HandlePodRemoves(u.Pods)
case kubetypes.RECONCILE:
     klog.V(4).InfoS("SyncLoop RECONCILE", "source", u.Source, "pods",klog.KObjSlice(u.Pods))
    handler.HandlePodReconcile(u.Pods)
case kubetypes.DELETE:
    klog.V(2).InfoS("SyncLoop DELETE", "source", u.Source, "pods", klog.KObjSlice(u.Pods))
    // DELETE is treated as a UPDATE because of graceful deletion.
    handler.HandlePodUpdates(u.Pods)
case kubetypes.SET:
    // TODO: Do we want to support this?
    klog.ErrorS(nil, "Kubelet does not support snapshot update")
default:
    klog.ErrorS(nil, "Invalid operation type received", "operation", u.Op)
}
...
...
...

return true
}
