什么是aop,什么是spring aop?
- aop是面向切面编程，是oop(面向对象编程)的补充；在传统的OOP编程中，逻辑是自上而下的，所以在这个过程会产生很多横行性的问题并散落在各个地方（比如权限校验，日志打印）；aop就是为分散对象提供了一种公共行为的抽象，降低了代码的重复率以及降低了模块间的耦合；
- spring aop是对aop编程的具体实现，是在程序运行阶段完成对方法的增强。主要原理通过动态代理的方式以及spring内置的一些BeanPostProcessor完成对方法的横切增强;spring aop也支持@AspectJ风格的编码支持，及借助了AspectJ包下的一些注解（@AspectJ也是aop的实现，主要在编译阶段完成aop增强。）

spring中的动态代理

spring aop支持两种动态代理，JDK动态代理，cglib动态代理字节码增强技术，spring对存在接口的bean采用jdk动态代理。在bean的生命周期中，通过BeanPostProcessor完成生成代理对象；
JDK动态代理只能对实现了的接口的类生成代理（内部利用反射机制实现代理接口的匿名类，在调用具体方法前调用InvokeHandler来处理），是一种委托机制，创建对象效率高，执行效率比较低
cglib是针对类实现代理，主要是对指定类生成一个子类，覆盖其中的方法（利用ASM字节码增强技术，操作字节码，所以不能代理final修饰的类），是一种继承机制，创建效率低，执行效率更高
静态AOP: 在编译阶段对源程序代码进行修改，生成了静态的AOP代理类，生成的.class文件是已经修改过了，比如Aspect静态AOP框架；
JDK动态代理
- JDK动态代理会对接口中所有的方法进行代理增强

public class JDKProxy implements InvocationHandler {
    private   Object targetObject;

    public Object newProxy(Object target){
        this.targetObject = target;
        return Proxy.newProxyInstance(targetObject.getClass().getClassLoader(), targetObject.getClass().getInterfaces(), this);
    }

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        //进行动态代理的增强处理
        print();
        return method.invoke(targetObject, args);
    }

    public void print(){
        System.out.println("JDK实现动态代理");
    }
}

cglib动态代理
- cglib动态代理可以通过设置Enhancer的CallbackFilters完成对不同方法进行拦截增强

public class CglibProxy implements MethodInterceptor {

    private Object targetObject;

    public Object createProxyObject(Object targetObject){
        this.targetObject = targetObject;
        Enhancer enhancer = new Enhancer();
        enhancer.setSuperclass(targetObject.getClass());
        enhancer.setCallback(this);
        return enhancer.create();
    }
    @Override
    public Object intercept(Object o, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {
        //代理增强方法
        check();
        return method.invoke(targetObject, args);
    }
    private void check() {
        System.out.println("检查权限：check()!");
    }
}

spring aop重要的几个概念
- AOP中相关的概念： Aspect(切面)，JointPoint(连接点)，Advice(通知)，Pointcut(切入点)，引入（Introduction）,织入（Weaving）；
  - Aspect(切面)：切面是通知和切点的结合，被@Aspect修饰的类，主要包括：1.通知的内容即需要增强的业务逻辑实现；2:通知的时机-Before，AfterReturning,AfterThrowing,After,Around;3通知的目标，即需要通知执行的切点上的所有连接点上。
- JointPoint(连接点)：连接点表示应用执行过程中能够插入切面的一个点，是一个结果；在Spring AOP中，连接点总是方法的调用。
- Pointcut(切入点)：一组连接点的集合，可以对连接点进行分组。所以每一组就是一个切点。
  - 连接点的匹配规则，execution，within，this，target，args，@target，@args，@annotation，并且可以通过表达式组合，即利用上述的表达式通过逻辑运算，与，或，非，组合在一起。
  - execution 可以精确到某个类中的某个方法
  - within：只能精确到某个类
  - args: args表达式的作用是匹配指定参数类型和指定参数数量的方法，与包名和类名无关
  - this: 代理对象是否继承或实现了对应类
  - target: 目标对象是否继承或实现了对应接口，与this不一样的是二者关注的对象不同，一个是代理对象，一个是目标对象
- Advice(通知): 通知描述了切面何时以及如何执行增强处理,在spring中 xml与注解版本中After与AfterReturning的执行时机有区别，注解版本中AfterReturning优先于After，但在xml中与定义通知的顺序有关；并且可以指定通知的优先顺序order与
  - @Before:在目标方法之前执行
  - @After:在目标方法之后执行
  - @Around:在目标方法前后执行
  - @AfterReturning:在目标方法返回执行
  - @AfterThrowing:在目标方法异常执行
- 引入（Introduction）: spring aop可以不再修改代码的情况下，让某个类实现某个接口，并指定接口的默认实现方法，允许我们向现有类添加新的方法或者属性；
- 织入（Weaving）：将增强处理添加到目标对象，并创建一个被增强的对象，这过程就是织入；

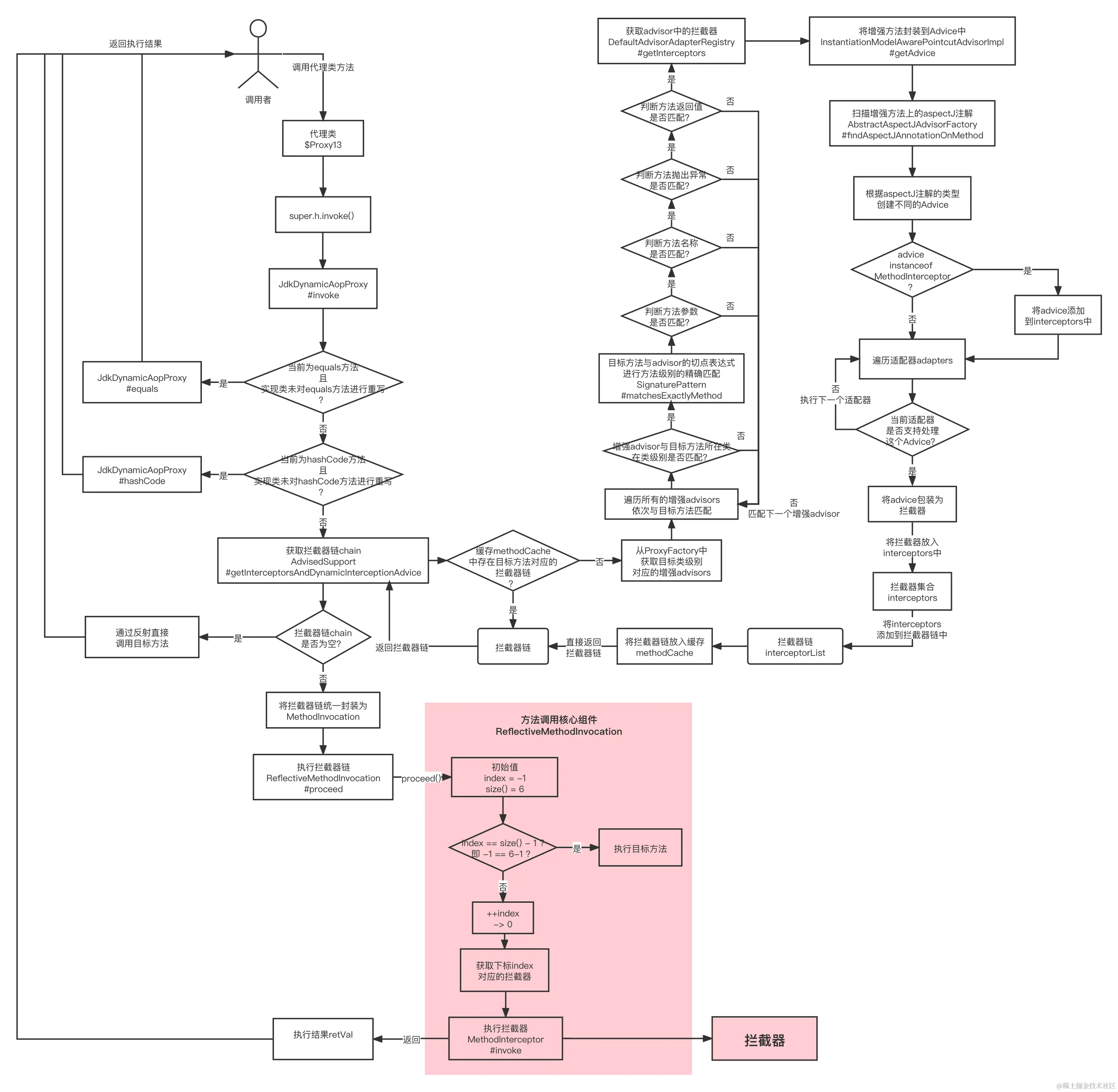

spring aop流程解析

在sping bean的生命周期中，执行initializeBean方法中会执行所有BeanPostProcessor的生命周期初始化的后置回调方法BeanPostProcessor.postProcessAfterInitialization方法；其中有一个BeanPostProcessor叫做AnnotationAwareAspectJAutoProxyCreator，完成了spring中的aop，注意所有的bean都会执行该方法;
找到容器中所有的切面（遍历容器中所有的BeanDefition或单例池，是否存在@Aspect注解），并将切面中的通知方法，转换成Advisor列表；执行连接点匹配规则，spring底层复用了AspectJ的规则来过滤出作用在当前Bean的Advisor列表，然后进行排序（Order,PriorityOrder）排序；
通过ProxyFactory代理工厂，设置对应的TargetResources对象，通过 DefaultAopProxyFactory.createAopProxy创建动态代理工厂(JdkDynamicAopProxy或ObjenesisCglibAopProxy），最后通过动态代理工厂对象，完成动态代理的对象的生成；
代理对象执行对应的方法时，会调用JdkDynamicAopProxy中.invoke方法或者ObjenesisCglibAopProxy.DynamicAdvisedInterceptor内部类的intercept方法，判断过滤当前方法上的通知advice列表，形成责任链，来完成spring aop的增强逻辑
spring aop的通知adive逻辑实际是通过责任链模式完成各种通知的逻辑增强，当所有的责任链都执行完后，会执行目标对象的方法;
- @Around注解对应AspectJAroundAdvice，他会执行对应的方法然后通过调用 ProceedingJoinPoint.proceed方法完成责任链的方法调用的传递；
- @Before注解对应MethodBeforeAdviceInterceptor，他会优先调用BeforeAdvice前置通知后，在执行责任链的下一个Advice
- @After注解对应AspectJAfterAdvice,会在finally代码块完成通知方法的调用
- @AfterReturning注解对应AfterReturningAdviceInterceptor，他会先执行调用链的方法，然后执行通知方法
- @AfterThrowing注解对应AspectJAfterThrowingAdvice会在catch异常块中执行具体的通知

public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {

   //spring aop 代理对象真正执行的方法
   Object oldProxy = null;
   boolean setProxyContext = false;

   TargetSource targetSource = this.advised.targetSource;
   Object target = null;

   try {
      if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
         // The target does not implement the equals(Object) method itself.
         return equals(args[0]);
      }
      else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
         // The target does not implement the hashCode() method itself.
         return hashCode();
      }
      else if (method.getDeclaringClass() == DecoratingProxy.class) {
         // There is only getDecoratedClass() declared -> dispatch to proxy config.
         return AopProxyUtils.ultimateTargetClass(this.advised);
      }
      else if (!this.advised.opaque && method.getDeclaringClass().isInterface() &&
            method.getDeclaringClass().isAssignableFrom(Advised.class)) {
         // Service invocations on ProxyConfig with the proxy config...
         return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
      }

      Object retVal;

      if (this.advised.exposeProxy) {
         // Make invocation available if necessary.
         oldProxy = AopContext.setCurrentProxy(proxy);
         setProxyContext = true;
      }

      // Get as late as possible to minimize the time we "own" the target,
      // in case it comes from a pool.
      //获取目标对象
      target = targetSource.getTarget();
      Class<?> targetClass = (target != null ? target.getClass() : null);

      // Get the interception chain for this method.
      //目标对象target（targetSource返回）的方法配置增强的advisor列表，并构建拦截器链chain
      List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

      // Check whether we have any advice. If we don't, we can fall back on direct
      // reflective invocation of the target, and avoid creating a MethodInvocation.
      if (chain.isEmpty()) {
         // We can skip creating a MethodInvocation: just invoke the target directly
         // Note that the final invoker must be an InvokerInterceptor so we know it does
         // nothing but a reflective operation on the target, and no hot swapping or fancy proxying.
         Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
         retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
      }
      else {
         // We need to create a method invocation...
         MethodInvocation invocation =
               new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
         // Proceed to the joinpoint through the interceptor chain.

         //执行通知链上所有通知
         retVal = invocation.proceed();
      }

      // Massage return value if necessary.
      Class<?> returnType = method.getReturnType();
      if (retVal != null && retVal == target &&
            returnType != Object.class && returnType.isInstance(proxy) &&
            !RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
         // Special case: it returned "this" and the return type of the method
         // is type-compatible. Note that we can't help if the target sets
         // a reference to itself in another returned object.
         retVal = proxy;
      }
      else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
         throw new AopInvocationException(
               "Null return value from advice does not match primitive return type for: " + method);
      }
      return retVal;
   }
   finally {
      if (target != null && !targetSource.isStatic()) {
         // Must have come from TargetSource.
         targetSource.releaseTarget(target);
      }
      if (setProxyContext) {
         // Restore old proxy.
         AopContext.setCurrentProxy(oldProxy);
      }
   }
}


spring中的默认的通知ExposeInvocationInterceptor
- ExposeInvocationInterceptor拦截器的代码，执行invoke()方法的入参mi，其实就是ReflectiveMethodInvocation实例，而ReflectiveMethodInvocation中是包含了拦截器链，通过当前的ReflectiveMethodInvocation实例变量放入了ThreadLocal中，这样在同一个线程中，通过ThreadLocal来共享拦截器链；

自定义编码完成springaop

public static void test(){
    ProxyFactory pf = new ProxyFactory();
    pf.setInterfaces(LogApi.class);
    pf.setTarget(new LogApiImpl());
    pf.addAdvice(new BeforeAdvice());
    LogApi proxy = (LogApi)pf.getProxy();
    proxy.printLog();

}

//手动实现了BeforeAdvice
@Slf4j
public class BeforeAdvice implements MethodInterceptor {

@Override
public Object invoke(MethodInvocation methodInvocation) throws Throwable {
    log.error("--------BeforeAdvice-----before");
    return methodInvocation.proceed();
}
}

spring aop源码解析

执行postProcessAfterInitialization方法，调用wrapIfNecessary方法对增强类，创建代理对象；

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
  if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
     return bean;
  }
  if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
     return bean;
  }
  if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
     this.advisedBeans.put(cacheKey, Boolean.FALSE);
     return bean;
  }

  // Create proxy if we have advice.
  //遍历容器中所有切面，过滤筛选作用在当前bean的advice列表
  Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
  if (specificInterceptors != DO_NOT_PROXY) {
     this.advisedBeans.put(cacheKey, Boolean.TRUE);

     //spring aop -创建代理工厂,spring aop代理对象是根据TargetSource有关，和目标对象无关
     Object proxy = createProxy(
           bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
     this.proxyTypes.put(cacheKey, proxy.getClass());
     return proxy;
  }

  this.advisedBeans.put(cacheKey, Boolean.FALSE);
  return bean;
}

执行AbstractAdvisorAutoProxyCreator.findEligibleAdvisors方法查找容器中所有切面，并过滤筛选出作用在当前bean的adviceor列表（并进行排序）

protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
   //获取容器中所有切面的Advisor,包括事务通知BeanFactoryTransactionAttributeSourceAdvisor
   List<Advisor> candidateAdvisors = findCandidateAdvisors();

   //过滤出作用在当前bean 上的Advisor列表（执行连接点的匹配规则,底层采用了aspectj包的匹配功能），注解版本的并完成排序
   List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);

   extendAdvisors(eligibleAdvisors);
   if (!eligibleAdvisors.isEmpty()) {
      //对Advisor进行排序，切面可以实现Ordered，PriorityOrder接口
      eligibleAdvisors = sortAdvisors(eligibleAdvisors);
   }
   return eligibleAdvisors;
}

调用BeanFactoryAspectJAdvisorsBuilder.buildAspectJAdvisors方法找到容器中所有的advice通知列表

public List<Advisor> buildAspectJAdvisors() {
   List<String> aspectNames = this.aspectBeanNames;

   if (aspectNames == null) {
      synchronized (this) {
         aspectNames = this.aspectBeanNames;
         if (aspectNames == null) {
            List<Advisor> advisors = new ArrayList<>();
            aspectNames = new ArrayList<>();
            //获取spring容器中所有的bean与beanDefinition的名称
            String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
                  this.beanFactory, Object.class, true, false);
            for (String beanName : beanNames) {
               //判断是否为合格的bean
               if (!isEligibleBean(beanName)) {
                  continue;
               }
               // We must be careful not to instantiate beans eagerly as in this case they
               // would be cached by the Spring container but would not have been weaved.
               Class<?> beanType = this.beanFactory.getType(beanName, false);
               if (beanType == null) {
                  continue;
               }
               //判断当前bean是否是切面 被@Aspect注解
               if (this.advisorFactory.isAspect(beanType)) {
                  aspectNames.add(beanName);
                  AspectMetadata amd = new AspectMetadata(beanType, beanName);
                  if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {
                     MetadataAwareAspectInstanceFactory factory = new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);

                     //获取切面中所有的Advise通知的方法（会排除@Pontcut方法），并且转换成Advisor
                     List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);

                     //判断是否为单例bean
                     if (this.beanFactory.isSingleton(beanName)) {
                        //设置缓存
                        this.advisorsCache.put(beanName, classAdvisors);
                     }
                     else {
                        //设置解析工厂对象缓存
                        this.aspectFactoryCache.put(beanName, factory);
                     }
                     advisors.addAll(classAdvisors);
                  }
                  else {
                     // Per target or per this.
                     if (this.beanFactory.isSingleton(beanName)) {
                        throw new IllegalArgumentException("Bean with name '" + beanName +
                              "' is a singleton, but aspect instantiation model is not singleton");
                     }
                     MetadataAwareAspectInstanceFactory factory =
                           new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
                     this.aspectFactoryCache.put(beanName, factory);
                     advisors.addAll(this.advisorFactory.getAdvisors(factory));
                  }
               }
            }
            this.aspectBeanNames = aspectNames;
            return advisors;
         }
      }
   }

   if (aspectNames.isEmpty()) {
      return Collections.emptyList();
   }
   List<Advisor> advisors = new ArrayList<>();
   for (String aspectName : aspectNames) {
      List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);
      if (cachedAdvisors != null) {
         advisors.addAll(cachedAdvisors);
      }
      else {
         MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);
         advisors.addAll(this.advisorFactory.getAdvisors(factory));
      }
   }
   return advisors;
}

调用ReflectiveAspectJAdvisorFactory.getAdvisor方法判断是否添加了Pointcut.class, Around.class, Before.class, After.class, AfterReturning.class, AfterThrowing.class，并为通知方法构建advisor对象InstantiationModelAwarePointcutAdvisorImpl

public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory,
      int declarationOrderInAspect, String aspectName) {

   validate(aspectInstanceFactory.getAspectMetadata().getAspectClass());

   //private static final Class<?>[] ASPECTJ_ANNOTATION_CLASSES = new Class<?>[] {
   //       Pointcut.class, Around.class, Before.class, After.class, AfterReturning.class, AfterThrowing.class};
   //从增强方法获取切点信息，判断方法是否存在以上注解
   AspectJExpressionPointcut expressionPointcut = getPointcut(
         candidateAdviceMethod, aspectInstanceFactory.getAspectMetadata().getAspectClass());
   if (expressionPointcut == null) {
      return null;
   }

   //为增强方法构建Advisor对象
   return new InstantiationModelAwarePointcutAdvisorImpl(expressionPointcut, candidateAdviceMethod,
         this, aspectInstanceFactory, declarationOrderInAspect, aspectName);
}

调用JdkDynamicAopProxy或CglibAopProxy的getProxy方法创建代理对象

//JdkDynamicAopProxy.getProxy创建代理对象
public Object getProxy(@Nullable ClassLoader classLoader) {
   if (logger.isTraceEnabled()) {
      logger.trace("Creating JDK dynamic proxy: " + this.advised.getTargetSource());
   }
   return Proxy.newProxyInstance(determineClassLoader(classLoader), this.proxiedInterfaces, this);
}

//CglibAopProxy.getProxy,cglib实现动态代理
public Object getProxy(@Nullable ClassLoader classLoader) {
   if (logger.isTraceEnabled()) {
      logger.trace("Creating CGLIB proxy: " + this.advised.getTargetSource());
   }

   try {
      Class<?> rootClass = this.advised.getTargetClass();
      Assert.state(rootClass != null, "Target class must be available for creating a CGLIB proxy");

      Class<?> proxySuperClass = rootClass;
      if (rootClass.getName().contains(ClassUtils.CGLIB_CLASS_SEPARATOR)) {
         proxySuperClass = rootClass.getSuperclass();
         Class<?>[] additionalInterfaces = rootClass.getInterfaces();
         for (Class<?> additionalInterface : additionalInterfaces) {
            this.advised.addInterface(additionalInterface);
         }
      }

      // Validate the class, writing log messages as necessary.
      validateClassIfNecessary(proxySuperClass, classLoader);

      // Configure CGLIB Enhancer...
      Enhancer enhancer = createEnhancer();
      if (classLoader != null) {
         enhancer.setClassLoader(classLoader);
         if (classLoader instanceof SmartClassLoader &&
               ((SmartClassLoader) classLoader).isClassReloadable(proxySuperClass)) {
            enhancer.setUseCache(false);
         }
      }
      enhancer.setSuperclass(proxySuperClass);
      enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));
      enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
      enhancer.setStrategy(new ClassLoaderAwareGeneratorStrategy(classLoader));

      //设置spring aop中方法的的增强执行
      Callback[] callbacks = getCallbacks(rootClass);
      Class<?>[] types = new Class<?>[callbacks.length];
      for (int x = 0; x < types.length; x++) {
         types[x] = callbacks[x].getClass();
      }
      // fixedInterceptorMap only populated at this point, after getCallbacks call above
      enhancer.setCallbackFilter(new ProxyCallbackFilter(
            this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset));
      enhancer.setCallbackTypes(types);

      // Generate the proxy class and create a proxy instance.
      return createProxyClassAndInstance(enhancer, callbacks);
   }
   catch (CodeGenerationException | IllegalArgumentException ex) {
      throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +
            ": Common causes of this problem include using a final class or a non-visible class",
            ex);
   }
   catch (Throwable ex) {
      // TargetSource.getTarget() failed
      throw new AopConfigException("Unexpected AOP exception", ex);
   }
}

执行代理对象的方法，会执行对应的方法调用

public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {

   //spring aop 代理对象真正执行的方法
   Object oldProxy = null;
   boolean setProxyContext = false;

   TargetSource targetSource = this.advised.targetSource;
   Object target = null;

   try {
      if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
         // The target does not implement the equals(Object) method itself.
         return equals(args[0]);
      }
      else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
         // The target does not implement the hashCode() method itself.
         return hashCode();
      }
      else if (method.getDeclaringClass() == DecoratingProxy.class) {
         // There is only getDecoratedClass() declared -> dispatch to proxy config.
         return AopProxyUtils.ultimateTargetClass(this.advised);
      }
      else if (!this.advised.opaque && method.getDeclaringClass().isInterface() &&
            method.getDeclaringClass().isAssignableFrom(Advised.class)) {
         // Service invocations on ProxyConfig with the proxy config...
         return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
      }

      Object retVal;

      if (this.advised.exposeProxy) {
         // Make invocation available if necessary.
         oldProxy = AopContext.setCurrentProxy(proxy);
         setProxyContext = true;
      }

      // Get as late as possible to minimize the time we "own" the target,
      // in case it comes from a pool.
      //获取目标对象，目标对象是通过targetSource获取的，所以spring aop是和TargetSource有关
      target = targetSource.getTarget();
      Class<?> targetClass = (target != null ? target.getClass() : null);

      // Get the interception chain for this method.
      //目标对象target（targetSource返回）的方法配置增强的advisor列表，并构建拦截器链chain
      List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

      // Check whether we have any advice. If we don't, we can fall back on direct
      // reflective invocation of the target, and avoid creating a MethodInvocation.
      if (chain.isEmpty()) {
         // We can skip creating a MethodInvocation: just invoke the target directly
         // Note that the final invoker must be an InvokerInterceptor so we know it does
         // nothing but a reflective operation on the target, and no hot swapping or fancy proxying.
         Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
         retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
      }
      else {
         // We need to create a method invocation...
         MethodInvocation invocation =
               new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
         // Proceed to the joinpoint through the interceptor chain.

         //执行通知链上所有通知
         retVal = invocation.proceed();
      }

      // Massage return value if necessary.
      Class<?> returnType = method.getReturnType();
      if (retVal != null && retVal == target &&
            returnType != Object.class && returnType.isInstance(proxy) &&
            !RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
         // Special case: it returned "this" and the return type of the method
         // is type-compatible. Note that we can't help if the target sets
         // a reference to itself in another returned object.
         retVal = proxy;
      }
      else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
         throw new AopInvocationException(
               "Null return value from advice does not match primitive return type for: " + method);
      }
      return retVal;
   }
   finally {
      if (target != null && !targetSource.isStatic()) {
         // Must have come from TargetSource.
         targetSource.releaseTarget(target);
      }
      if (setProxyContext) {
         // Restore old proxy.
         AopContext.setCurrentProxy(oldProxy);
      }
   }
}

spring aop通知执行的逻辑是通过ReflectiveMethodInvocation.proceed方法执行拦截器链，cglib会执行对应的Interceptor方法，然后通过DynamicAdvisedInterceptor对方法进行aop增强，获取过滤当前方法的advice列表，构建CglibMethodInvocation继承了ReflectiveMethodInvocation方法，来执行拦截器链上的链路执行，具体的流程是一样的；

public Object proceed() throws Throwable {
   // We start with an index of -1 and increment early.

   //判断拦截器链是否已经全部执行
   if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
      //执行后目标对象的方法（通过反射）
      return invokeJoinpoint();
   }

   //依次获取拦截器链上的通知
   Object interceptorOrInterceptionAdvice =
         this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
   if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
      // Evaluate dynamic method matcher here: static part will already have
      // been evaluated and found to match.
      InterceptorAndDynamicMethodMatcher dm =
            (InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
      Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
      if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
         return dm.interceptor.invoke(this);
      }
      else {
         // Dynamic matching failed.
         // Skip this interceptor and invoke the next in the chain.
         return proceed();
      }
   }
   else {
      // It's an interceptor, so we just invoke it: The pointcut will have
      // been evaluated statically before this object was constructed.
      //执行链上的通知
      return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
   }
}

spring中事务
spring框架提供了事务管理的功能，允许用户定义事务的边界和行为等(定义事务的传播行为，隔离级别等)，以确保数据的完整性和一致。spring提供了两种事务管理机制，声明式事务管理和编程式事务管理。spring声明事务管理是基于spring aop实现的；
- 声明式事务管理
  - 基于注解@Transactional + @EnableTransactionManagement（开启事务管理）
  - 基于XML实现，在Spring的XML配置文件中，你可以使用<tx:advice>和<aop:config>标签来定义事务通知和切点
- 编程事务管理
  - 使用TransactionTemplate管理事务，如果有返回值，采用TransactionCallback；如果没有返回值，采用TransactionCallbackWithoutResult；
  - 使用PlatformTransactionManager管理事务

@Configuration
public class DataSourceConfiguration {


    /**
     * datasource:
     *     url:
     *     username: root
     *     password: 123456
     *     driverClassName: com.mysql.cj.jdbc.Driver
     * @return
     */
    @Bean
    public DataSource dataSource(){
        DriverManagerDataSource dataSource = new DriverManagerDataSource();
        dataSource.setDriverClassName("com.mysql.cj.jdbc.Driver");
        dataSource.setPassword("123456");
        dataSource.setUrl("");
        dataSource.setUsername("root");
        return dataSource;
    }

    @Bean
    public JdbcTemplate jdbcTemplate(){
        return new JdbcTemplate(dataSource());
    }


    @Bean
    public PlatformTransactionManager transactionManager(){
        DataSourceTransactionManager dataSourceTransactionManager = new DataSourceTransactionManager();
        dataSourceTransactionManager.setDataSource(dataSource());
        return dataSourceTransactionManager;
    }

    @Bean
    public TransactionTemplate transactionTemplate(){
        return new TransactionTemplate(transactionManager());
    }
}
/**
 * spring事务
 * <p>
 * 1。编程式事务管理
 * <p>
 * 2。声明式事务管理
 */
@Slf4j
@Component("SpringTransaction")
@EnableTransactionManagement
public class SpringTransaction {

    @Autowired
    private TransactionTemplate transactionTemplate;

    @Autowired
    private PlatformTransactionManager transactionManager;

    @Autowired
    private JdbcTemplate jdbcTemplate;


    /**
     * 使用TransactionTemplate，实现编程式事务
     * 1.如果有返回值，采用TransactionCallback；
     * 2.如果没有返回值，采用TransactionCallbackWithoutResult；
     */
    public void testTransactionTemplate() {

        Integer count = transactionTemplate.execute(new TransactionCallback<Integer>() {
            @Override
            public Integer doInTransaction(TransactionStatus transactionStatus) {
                try {
                    return testUpdate("testTransactionTemplate");
                } catch (Exception e) {
                    log.error("testTransactionTemplate异常{}", e.getMessage(), e);
                    transactionStatus.setRollbackOnly();
                    return -1;
                }
            }
        });

        log.info("testTransactionTemplate执行结果：{}", count);
    }





    /**
     * 利用PlatformTransactionManager完成编程式事务
     * 1.定义事务配置（事务隔离级别，传播级别，事务名称等），通过PlatformTransactionManager获取事务状态TransactionStatus
     * 主要通过对应的TransactionManager获取对应的ConnectionHolder,并将TransactionSynchronizationManager事务同步管理器，
     *
     *
     */
    public void testPlatformTransactionManager() {
        DefaultTransactionDefinition transactionDefinition = new DefaultTransactionDefinition();
        transactionDefinition.setName("testPlatformTransactionManager");
        TransactionStatus transactionStatus = transactionManager.getTransaction(transactionDefinition);
        Integer count = null;
        try {
            count = testUpdateWithPropagation("testPlatformTransactionManager.testUpdateWithPropagation");
            transactionManager.commit(transactionStatus);
        } catch (Exception e) {
            log.error("testTransactionTemplate异常{}", e.getMessage(), e);
            transactionManager.rollback(transactionStatus);
        }
        log.info("testPlatformTransactionManager执行结果：{}", count);
    }

    public int testUpdateWithPropagation(String message) {
        DefaultTransactionDefinition transactionDefinition = new DefaultTransactionDefinition();
        transactionDefinition.setName("testUpdateWithPropagation");
        transactionDefinition.setPropagationBehavior(TransactionDefinition.PROPAGATION_NEVER);
        TransactionStatus transactionStatus = transactionManager.getTransaction(transactionDefinition);
        try {
            int count = jdbcTemplate.update("update  t_cu_wyr_bank set core_cust_id = '" + message + "' where core_mer_no = 'myId1711190640426'");
            log.info("更新条数：{}", count);
            transactionManager.commit(transactionStatus);
            //int i = 1/0;
            return count;
        } catch (Exception e) {
            log.error("testUpdateWithPropagation{}", e.getMessage(), e);
            transactionManager.rollback(transactionStatus);
            return -1;
        }

    }


    /**
     * ProxyTransactionManagementConfiguration
     * <p>
     * org.springframework.transaction.config.internalTransactionAdvisor   ------> BeanFactoryTransactionAttributeSourceAdvisor
     * <p>
     * TransactionAttributeSourcePointcut的内部类TransactionAttributeSourceClassFilter.match方法匹配bean上的每个方法，
     * 采用SpringTransactionAnnotationParser.isCandidateClass方法是否添加了@Transactional注解
     * <p>
     * <p>
     * TransactionInterceptor 执行事务增强逻辑
     *
     *
     *
     * TransactionSynchronizationManager spring中管理事务同步的核心类，主要通过TreadLocal来进行不同线程之间的数据隔离，以及相同线程之间的事务同步共享
     * 它负责管理每个线程的数据库连接资源和事务同步，确保事务在多线程环境下的正确执行
     *
     * @EnableTransactionManagement开启spring注解声明式事务；
     * @Transactional 事务注解
     */
    @Transactional
    public void testTransactionalAnnotation() {
        testUpdate("testTransactionalAnnotation222222");
    }


    public int testUpdate(String message) {
        int count = jdbcTemplate.update("update  t_cu_wyr_bank set core_cust_id = '" + message + "' where core_mer_no = 'myId1711190640426'");
        log.info("更新条数：{}", count);
        //int i = 1/0;
        return count;
    }


}

spring事务解析流程


spring自定义事务流程解析

spring事务是基于spring aop来实现的。所以当@EnableTransactionManagement开启事务时， @Import({TransactionManagementConfigurationSelector.class})在spring扫描的时候，会将TransactionManagementConfigurationSelector作为一个配置类注册到单例池中，由于它实现了ImportSelector，所以会调用其的selectImports方法，向容器中注册BeanFactoryTransactionAttributeSourceAdvisor对象以及TransactionInterceptor对象

@Configuration(
    proxyBeanMethods = false
)
@Role(2)
public class ProxyTransactionManagementConfiguration extends AbstractTransactionManagementConfiguration {
    public ProxyTransactionManagementConfiguration() {
    }

    @Bean(
        name = {"org.springframework.transaction.config.internalTransactionAdvisor"}
    )
    @Role(2)
    public BeanFactoryTransactionAttributeSourceAdvisor transactionAdvisor(TransactionAttributeSource transactionAttributeSource, TransactionInterceptor transactionInterceptor) {
        BeanFactoryTransactionAttributeSourceAdvisor advisor = new BeanFactoryTransactionAttributeSourceAdvisor();
        advisor.setTransactionAttributeSource(transactionAttributeSource);
        advisor.setAdvice(transactionInterceptor);
        if (this.enableTx != null) {
            advisor.setOrder((Integer)this.enableTx.getNumber("order"));
        }

        return advisor;
    }

    @Bean
    @Role(2)
    public TransactionAttributeSource transactionAttributeSource() {
        return new AnnotationTransactionAttributeSource();
    }

    @Bean
    @Role(2)
    public TransactionInterceptor transactionInterceptor(TransactionAttributeSource transactionAttributeSource) {
        TransactionInterceptor interceptor = new TransactionInterceptor();
        interceptor.setTransactionAttributeSource(transactionAttributeSource);
        if (this.txManager != null) {
            interceptor.setTransactionManager(this.txManager);
        }

        return interceptor;
    }
}

当spring在bean的生命周期中，执行spring aop的AnnotationAwareAspectJAutoProxyCreator.postProcessAfterInitialization的方法时，去筛选对应的；因为spring的扫描时机在bean的生命周期之前完成的。所以在advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(this.beanFactory, Advisor.class, true, false)会将BeanFactoryTransactionAttributeSourceAdvisor加到Advisor列表中；

/**
 * Find all candidate Advisors to use in auto-proxying.
 * @return the List of candidate Advisors
 */
protected List<Advisor> findCandidateAdvisors() {
   Assert.state(this.advisorRetrievalHelper != null, "No BeanFactoryAdvisorRetrievalHelper available");

   //当spring采用了声明式事务的话，会有一个BeanFactoryTransactionAttributeSourceAdvisor
   return this.advisorRetrievalHelper.findAdvisorBeans();
}



public List<Advisor> findAdvisorBeans() {
   // Determine list of advisor bean names, if not cached already.
   String[] advisorNames = this.cachedAdvisorBeanNames;
   if (advisorNames == null) {
      // Do not initialize FactoryBeans here: We need to leave all regular beans
      // uninitialized to let the auto-proxy creator apply to them!
      advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
            this.beanFactory, Advisor.class, true, false);
      this.cachedAdvisorBeanNames = advisorNames;
   }
   if (advisorNames.length == 0) {
      return new ArrayList<>();
   }

   List<Advisor> advisors = new ArrayList<>();
   for (String name : advisorNames) {
      if (isEligibleBean(name)) {
         if (this.beanFactory.isCurrentlyInCreation(name)) {
            if (logger.isTraceEnabled()) {
               logger.trace("Skipping currently created advisor '" + name + "'");
            }
         }
         else {
            try {
               advisors.add(this.beanFactory.getBean(name, Advisor.class));
            }
            catch (BeanCreationException ex) {
               Throwable rootCause = ex.getMostSpecificCause();
               if (rootCause instanceof BeanCurrentlyInCreationException) {
                  BeanCreationException bce = (BeanCreationException) rootCause;
                  String bceBeanName = bce.getBeanName();
                  if (bceBeanName != null && this.beanFactory.isCurrentlyInCreation(bceBeanName)) {
                     if (logger.isTraceEnabled()) {
                        logger.trace("Skipping advisor '" + name +
                              "' with dependency on currently created bean: " + ex.getMessage());
                     }
                     // Ignore: indicates a reference back to the bean we're trying to advise.
                     // We want to find advisors other than the currently created bean itself.
                     continue;
                  }
               }
               throw ex;
            }
         }
      }
   }
   return advisors;
}

在执行AbstractAdvisorAutoProxyCreator.findAdvisorsThatCanApply筛选过滤作用在当前bean的List列表，最终调用到AopUtils.canApply方法判断该Advisor是否作用到当前bean上；在类级别过滤筛选时，最终会调用SpringTransactionAnnotationParser.isCandidateClass方法，判断类上是否添加@Transactional注解；在方法级别过滤时，调用TransactionAttributeSourcePointcut.matchs方法，最终调用 AnnotationTransactionAttributeSource.getTransactionAttribute方法判断方法是否添加@Transactional注解

public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
   Assert.notNull(pc, "Pointcut must not be null");

   //先在类级别进行匹配，如果不匹配，那么直接返回false
   if (!pc.getClassFilter().matches(targetClass)) {
      return false;
   }

   MethodMatcher methodMatcher = pc.getMethodMatcher();
   if (methodMatcher == MethodMatcher.TRUE) {
      // No need to iterate the methods if we're matching any method anyway...
      return true;
   }

   IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
   if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
      introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;
   }

   Set<Class<?>> classes = new LinkedHashSet<>();
   if (!Proxy.isProxyClass(targetClass)) {
      classes.add(ClassUtils.getUserClass(targetClass));
   }
   classes.addAll(ClassUtils.getAllInterfacesForClassAsSet(targetClass));

   //遍历处理目标类和目标类的接口
   for (Class<?> clazz : classes) {
      Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
      for (Method method : methods) {
         //
         if (introductionAwareMethodMatcher != null ?
               introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions) :
               methodMatcher.matches(method, targetClass)) {
            return true;
         }
      }
   }

   return false;
}


public TransactionAttribute getTransactionAttribute(Method method, @Nullable Class<?> targetClass) {
   if (method.getDeclaringClass() == Object.class) {
      return null;
   }

   // First, see if we have a cached value.
   Object cacheKey = getCacheKey(method, targetClass);
   TransactionAttribute cached = this.attributeCache.get(cacheKey);
   if (cached != null) {
      // Value will either be canonical value indicating there is no transaction attribute,
      // or an actual transaction attribute.
      if (cached == NULL_TRANSACTION_ATTRIBUTE) {
         return null;
      }
      else {
         return cached;
      }
   }
   else {
      // We need to work it out.
      TransactionAttribute txAttr = computeTransactionAttribute(method, targetClass);
      // Put it in the cache.
      if (txAttr == null) {
         this.attributeCache.put(cacheKey, NULL_TRANSACTION_ATTRIBUTE);
      }
      else {
         String methodIdentification = ClassUtils.getQualifiedMethodName(method, targetClass);
         if (txAttr instanceof DefaultTransactionAttribute) {
            DefaultTransactionAttribute dta = (DefaultTransactionAttribute) txAttr;
            dta.setDescriptor(methodIdentification);
            dta.resolveAttributeStrings(this.embeddedValueResolver);
         }
         if (logger.isTraceEnabled()) {
            logger.trace("Adding transactional method '" + methodIdentification + "' with attribute: " + txAttr);
         }
         this.attributeCache.put(cacheKey, txAttr);
      }
      return txAttr;
   }
}

执行代理方法时完成spring事务增强，TransactionInterceptor.invoke完成声明式事务管理

public Object invoke(MethodInvocation invocation) throws Throwable {
   // Work out the target class: may be {@code null}.
   // The TransactionAttributeSource should be passed the target class
   // as well as the method, which may be from an interface.
   Class<?> targetClass = (invocation.getThis() != null ? AopUtils.getTargetClass(invocation.getThis()) : null);

   //传入一个回调函数，让advice通知责任链继续执行
   return invokeWithinTransaction(invocation.getMethod(), targetClass, new CoroutinesInvocationCallback() {
      @Override
      @Nullable
      public Object proceedWithInvocation() throws Throwable {
         return invocation.proceed();
      }
      @Override
      public Object getTarget() {
         return invocation.getThis();
      }
      @Override
      public Object[] getArguments() {
         return invocation.getArguments();
      }
   });
}

执行编程式事务PlatformTransactionManager执行流程，创建TransactionInfo事务对象信息后，继续执行拦截器链上的通知以及目标方法后，出现异常调用completeTransactionAfterThrowing进行事务回滚或提交；执行commitTransactionAfterReturning进行事务提交；

protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
      final InvocationCallback invocation) throws Throwable {

   // If the transaction attribute is null, the method is non-transactional.
   //获取TransactionAttributeSource对象，用于从类或者方法上事务注解分析相应的事务属性，如果是注解版本AnnotationTransactionAttributeSource对象
   TransactionAttributeSource tas = getTransactionAttributeSource();

   //获取方法或类上获取事务属性信息（事务回滚策略，事务传播机制，隔离级别等）---RuleBasedTransactionAttribute
   final TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);

   //获取TransactionManager事务管理对象，
   final TransactionManager tm = determineTransactionManager(txAttr);

   //spring 5.2版本引入的反应式事务编程管理，主要用于异步处理
   if (this.reactiveAdapterRegistry != null && tm instanceof ReactiveTransactionManager) {
      boolean isSuspendingFunction = KotlinDetector.isSuspendingFunction(method);
      boolean hasSuspendingFlowReturnType = isSuspendingFunction &&
            COROUTINES_FLOW_CLASS_NAME.equals(new MethodParameter(method, -1).getParameterType().getName());
      if (isSuspendingFunction && !(invocation instanceof CoroutinesInvocationCallback)) {
         throw new IllegalStateException("Coroutines invocation not supported: " + method);
      }
      CoroutinesInvocationCallback corInv = (isSuspendingFunction ? (CoroutinesInvocationCallback) invocation : null);

      ReactiveTransactionSupport txSupport = this.transactionSupportCache.computeIfAbsent(method, key -> {
         Class<?> reactiveType =
               (isSuspendingFunction ? (hasSuspendingFlowReturnType ? Flux.class : Mono.class) : method.getReturnType());
         ReactiveAdapter adapter = this.reactiveAdapterRegistry.getAdapter(reactiveType);
         if (adapter == null) {
            throw new IllegalStateException("Cannot apply reactive transaction to non-reactive return type [" +
                  method.getReturnType() + "] with specified transaction manager: " + tm);
         }
         return new ReactiveTransactionSupport(adapter);
      });

      InvocationCallback callback = invocation;
      if (corInv != null) {
         callback = () -> CoroutinesUtils.invokeSuspendingFunction(method, corInv.getTarget(), corInv.getArguments());
      }
      Object result = txSupport.invokeWithinTransaction(method, targetClass, callback, txAttr, (ReactiveTransactionManager) tm);
      if (corInv != null) {
         Publisher<?> pr = (Publisher<?>) result;
         return (hasSuspendingFlowReturnType ? KotlinDelegate.asFlow(pr) :
               KotlinDelegate.awaitSingleOrNull(pr, corInv.getContinuation()));
      }
      return result;
   }

   //将编程式事务管理器PlatformTransactionManager
   PlatformTransactionManager ptm = asPlatformTransactionManager(tm);
   final String joinpointIdentification = methodIdentification(method, targetClass, txAttr);

   if (txAttr == null || !(ptm instanceof CallbackPreferringPlatformTransactionManager)) {
      // Standard transaction demarcation with getTransaction and commit/rollback calls.

      //
      TransactionInfo txInfo = createTransactionIfNecessary(ptm, txAttr, joinpointIdentification);

      Object retVal;
      try {
         // This is an around advice: Invoke the next interceptor in the chain.
         // This will normally result in a target object being invoked.、
         //继续执行拦截链上的通知
         retVal = invocation.proceedWithInvocation();
      }
      catch (Throwable ex) {
         // target invocation exception
         //目标方法出现异常，事务进行回滚或提交
         completeTransactionAfterThrowing(txInfo, ex);
         throw ex;
      }
      finally {
         //事务缓存清理
         cleanupTransactionInfo(txInfo);
      }

      if (retVal != null && vavrPresent && VavrDelegate.isVavrTry(retVal)) {
         // Set rollback-only in case of Vavr failure matching our rollback rules...
         TransactionStatus status = txInfo.getTransactionStatus();
         if (status != null && txAttr != null) {
            retVal = VavrDelegate.evaluateTryFailure(retVal, txAttr, status);
         }
      }
      //事务提交
      commitTransactionAfterReturning(txInfo);
      return retVal;
   }

   else {
      Object result;
      final ThrowableHolder throwableHolder = new ThrowableHolder();

      //CallbackPreferringPlatformTransactionManager，通过回调（Callback）来处理事务，比较依赖回调方法；
      // 事务管理策略和代码逻辑与回调机制相协调
      // It's a CallbackPreferringPlatformTransactionManager: pass a TransactionCallback in.
      try {
         result = ((CallbackPreferringPlatformTransactionManager) ptm).execute(txAttr, status -> {
            TransactionInfo txInfo = prepareTransactionInfo(ptm, txAttr, joinpointIdentification, status);
            try {
               Object retVal = invocation.proceedWithInvocation();
               if (retVal != null && vavrPresent && VavrDelegate.isVavrTry(retVal)) {
                  // Set rollback-only in case of Vavr failure matching our rollback rules...
                  retVal = VavrDelegate.evaluateTryFailure(retVal, txAttr, status);
               }
               return retVal;
            }
            catch (Throwable ex) {
               if (txAttr.rollbackOn(ex)) {
                  // A RuntimeException: will lead to a rollback.
                  if (ex instanceof RuntimeException) {
                     throw (RuntimeException) ex;
                  }
                  else {
                     throw new ThrowableHolderException(ex);
                  }
               }
               else {
                  // A normal return value: will lead to a commit.
                  throwableHolder.throwable = ex;
                  return null;
               }
            }
            finally {
               cleanupTransactionInfo(txInfo);
            }
         });
      }
      catch (ThrowableHolderException ex) {
         throw ex.getCause();
      }
      catch (TransactionSystemException ex2) {
         if (throwableHolder.throwable != null) {
            logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
            ex2.initApplicationException(throwableHolder.throwable);
         }
         throw ex2;
      }
      catch (Throwable ex2) {
         if (throwableHolder.throwable != null) {
            logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
         }
         throw ex2;
      }

      // Check result state: It might indicate a Throwable to rethrow.
      if (throwableHolder.throwable != null) {
         throw throwableHolder.throwable;
      }
      return result;
   }
}

PlatformTransactionManager.getTransaction获取事务状态信息DefaultTransactionStatus； 构建对应的TransactionInfo对象（它持有事务的状态信息，事务嵌套关系，以及事务的调用链表oldTransactionInfo<链表的头指针>）与当前线程绑定；

/**
 * 获取当前事务状态TransactionStatus
 *
 * 1.获取当前事务的ConnectionHolder链接对象
 * 2.事务的传播属性验证(传播属性规则)
 * 2.1 若存在事务时，判断事务传播属性，判断是否抛异常，是否需要挂起当前事务后（创建新事物或非事务运行），是否支持嵌套事务（创建事务保存点），或者加入当前事务或者以非事务执行
 * 2.2 若创建新事务时，隔离级别，timeout ,ConnectionHolder等配置并绑定到当前线程

 */
@Override
public final TransactionStatus getTransaction(@Nullable TransactionDefinition definition)
      throws TransactionException {

   // Use defaults if no transaction definition given.
   TransactionDefinition def = (definition != null ? definition : TransactionDefinition.withDefaults());

   //获取当前线程缓存在threadLocal里面的ConnectionHolder, 如果没有 ,DataSourceTransactionObject里的ConnectionHolder为null
   Object transaction = doGetTransaction();

   boolean debugEnabled = logger.isDebugEnabled();

   //判断当前是否存在事务，当前DataSourceTransactionObject里的ConnectionHolder不为空且transactionActive为true
   if (isExistingTransaction(transaction)) {
      // Existing transaction found -> check propagation behavior to find out how to behave.
      return handleExistingTransaction(def, transaction, debugEnabled);
   }

   // Check definition settings for new transaction.
   //事务的超时设置验证
   if (def.getTimeout() < TransactionDefinition.TIMEOUT_DEFAULT) {
      throw new InvalidTimeoutException("Invalid transaction timeout", def.getTimeout());
   }

   // No existing transaction found -> check propagation behavior to find out how to proceed.
   //当前事务传播机制为TransactionDefinition.PROPAGATION_MANDATORY==2；但当前没有事务，所以抛出异常
   if (def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_MANDATORY) {
      throw new IllegalTransactionStateException(
            "No existing transaction found for transaction marked with propagation 'mandatory'");
   }
   //当前不存在事务，创建新的事务执行
   else if (def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED ||
         def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW ||
         def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {

      //事务挂起，传null,不会做任何操作
      SuspendedResourcesHolder suspendedResources = suspend(null);
      if (debugEnabled) {
         logger.debug("Creating new transaction with name [" + def.getName() + "]: " + def);
      }
      try {
         //创建一个新的事务
         return startTransaction(def, transaction, debugEnabled, suspendedResources);
      }
      catch (RuntimeException | Error ex) {
         resume(null, suspendedResources);
         throw ex;
      }
   }
   else {
      // Create "empty" transaction: no actual transaction, but potentially synchronization.
      //以非事务方式执行，但隔离级别不为默认，会抛出一个warn日志
      if (def.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT && logger.isWarnEnabled()) {
         logger.warn("Custom isolation level specified but no actual transaction initiated; " +
               "isolation level will effectively be ignored: " + def);
      }
      boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
      return prepareTransactionStatus(def, null, true, newSynchronization, debugEnabled, null);
   }
}

private TransactionStatus handleExistingTransaction(
      TransactionDefinition definition, Object transaction, boolean debugEnabled)
      throws TransactionException {

   //当前存在事务，但是传播属性PROPAGATION_NEVER  所以会抛异常
   if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NEVER) {
      throw new IllegalTransactionStateException(
            "Existing transaction found for transaction marked with propagation 'never'");
   }

   if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NOT_SUPPORTED) {
      if (debugEnabled) {
         logger.debug("Suspending current transaction");
      }
      //当前存在事务，挂起当前事务-suspendedResources = SuspendedResourcesHolder
      Object suspendedResources = suspend(transaction);
      boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
      //并以非事务运行
      return prepareTransactionStatus(
            definition, null, false, newSynchronization, debugEnabled, suspendedResources);
   }

   if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW) {
      if (debugEnabled) {
         logger.debug("Suspending current transaction, creating new transaction with name [" +
               definition.getName() + "]");
      }
      //当前存在事务，挂起当前事务
      SuspendedResourcesHolder suspendedResources = suspend(transaction);
      try {
         //创建一个新的事务运行
         return startTransaction(definition, transaction, debugEnabled, suspendedResources);
      }
      catch (RuntimeException | Error beginEx) {
         resumeAfterBeginException(transaction, suspendedResources, beginEx);
         throw beginEx;
      }
   }

   if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
      if (!isNestedTransactionAllowed()) {
         throw new NestedTransactionNotSupportedException(
               "Transaction manager does not allow nested transactions by default - " +
               "specify 'nestedTransactionAllowed' property with value 'true'");
      }
      if (debugEnabled) {
         logger.debug("Creating nested transaction with name [" + definition.getName() + "]");
      }
      if (useSavepointForNestedTransaction()) {
         // Create savepoint within existing Spring-managed transaction,
         // through the SavepointManager API implemented by TransactionStatus.
         // Usually uses JDBC 3.0 savepoints. Never activates Spring synchronization.

         //transaction  DataSourceTransactionObject
         DefaultTransactionStatus status =
               prepareTransactionStatus(definition, transaction, false, false, debugEnabled, null);

         //创建事务保存点-----底层通过transaction（DataSourceTransactionObject）中的ConnectionHolder的
         //Connection去创建保存点（底层是JDBC的封装）
         status.createAndHoldSavepoint();
         return status;
      }
      else {
         // Nested transaction through nested begin and commit/rollback calls.
         // Usually only for JTA: Spring synchronization might get activated here
         // in case of a pre-existing JTA transaction.

         return startTransaction(definition, transaction, debugEnabled, null);
      }
   }

   // Assumably PROPAGATION_SUPPORTS or PROPAGATION_REQUIRED.
   if (debugEnabled) {
      logger.debug("Participating in existing transaction");
   }
   if (isValidateExistingTransaction()) {

      //判断隔离级别非默认
      if (definition.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT) {
         Integer currentIsolationLevel = TransactionSynchronizationManager.getCurrentTransactionIsolationLevel();
         if (currentIsolationLevel == null || currentIsolationLevel != definition.getIsolationLevel()) {
            Constants isoConstants = DefaultTransactionDefinition.constants;
            throw new IllegalTransactionStateException("Participating transaction with definition [" +
                  definition + "] specifies isolation level which is incompatible with existing transaction: " +
                  (currentIsolationLevel != null ?
                        isoConstants.toCode(currentIsolationLevel, DefaultTransactionDefinition.PREFIX_ISOLATION) :
                        "(unknown)"));
         }
      }
      if (!definition.isReadOnly()) {
         if (TransactionSynchronizationManager.isCurrentTransactionReadOnly()) {
            throw new IllegalTransactionStateException("Participating transaction with definition [" +
                  definition + "] is not marked as read-only but existing transaction is");
         }
      }
   }
   boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);

   //当前存在事务，则加入事务
   return prepareTransactionStatus(definition, transaction, false, newSynchronization, debugEnabled, null);
}

事务提交与回滚
事务的提交与回滚都是JDBC的connection来进行事务提交和回滚


private void processCommit(DefaultTransactionStatus status) throws TransactionException {
   try {
      boolean beforeCompletionInvoked = false;

      try {
         boolean unexpectedRollback = false;

         //用于在事务提交之前进行准备工作和触发前置回调-在事务提交之前进行准备工作，如资源锁定、日志记录等1
         //扩展方法
         prepareForCommit(status);

         //扩展机制
         triggerBeforeCommit(status);

         //扩展机制
         triggerBeforeCompletion(status);

         beforeCompletionInvoked = true;

         //当前事务提交的时候，存在事务保存点（嵌套事务），则释放保存点，无须提交事务
         if (status.hasSavepoint()) {
            if (status.isDebug()) {
               logger.debug("Releasing transaction savepoint");
            }
            unexpectedRollback = status.isGlobalRollbackOnly();
            //释放持有的回滚点
            status.releaseHeldSavepoint();
         }
         //新的事务，调用子类doCommit提交事务
         else if (status.isNewTransaction()) {
            if (status.isDebug()) {
               logger.debug("Initiating transaction commit");
            }
            unexpectedRollback = status.isGlobalRollbackOnly();

            //提交事务-DataSourceTransactionManager，
            //获取DefaultTransactionStatus中的DataSourceTransactionObject中ConnectionHolder中的Connection去提交事务
            doCommit(status);
         }
         else if (isFailEarlyOnGlobalRollbackOnly()) {
            unexpectedRollback = status.isGlobalRollbackOnly();
         }

         // Throw UnexpectedRollbackException if we have a global rollback-only
         // marker but still didn't get a corresponding exception from commit.
         //判断是否标记了 全局回滚，RollbackOnly=true(当前的ConnectionHolder的RollbackOnly属性)
         if (unexpectedRollback) {
            throw new UnexpectedRollbackException(
                  "Transaction silently rolled back because it has been marked as rollback-only");
         }
      }
      catch (UnexpectedRollbackException ex) {
         // can only be caused by doCommit
         //事务回滚成功后-扩展点
         triggerAfterCompletion(status, TransactionSynchronization.STATUS_ROLLED_BACK);
         throw ex;
      }
      catch (TransactionException ex) {
         // can only be caused by doCommit
         if (isRollbackOnCommitFailure()) {
            //异常回滚
            doRollbackOnCommitException(status, ex);
         }
         else {
            //当前事务状态未知--扩展点
            triggerAfterCompletion(status, TransactionSynchronization.STATUS_UNKNOWN);
         }
         throw ex;
      }
      catch (RuntimeException | Error ex) {
         if (!beforeCompletionInvoked) {
            triggerBeforeCompletion(status);
         }
         //异常回滚
         doRollbackOnCommitException(status, ex);
         throw ex;
      }

      // Trigger afterCommit callbacks, with an exception thrown there
      // propagated to callers but the transaction still considered as committed.
      try {
         //事务提交成功后-扩展点
         triggerAfterCommit(status);
      }
      finally {
         //事务提交成功后-扩展机制
         triggerAfterCompletion(status, TransactionSynchronization.STATUS_COMMITTED);
      }

   }
   finally {
      //完成后清除事务信息，清除当前ThreadLocal中的信息，释放connection，恢复挂起的事务
      cleanupAfterCompletion(status);
   }
}

/**
 * This implementation of rollback handles participating in existing
 * transactions. Delegates to {@code doRollback} and
 * {@code doSetRollbackOnly}.
 * @see #doRollback
 * @see #doSetRollbackOnly
 */
@Override
public final void rollback(TransactionStatus status) throws TransactionException {
   if (status.isCompleted()) {
      throw new IllegalTransactionStateException(
            "Transaction is already completed - do not call commit or rollback more than once per transaction");
   }

   DefaultTransactionStatus defStatus = (DefaultTransactionStatus) status;
   processRollback(defStatus, false);
}

/**
 * Process an actual rollback.
 * The completed flag has already been checked.
 * @param status object representing the transaction
 * @throws TransactionException in case of rollback failure
 */
private void processRollback(DefaultTransactionStatus status, boolean unexpected) {
   try {
      boolean unexpectedRollback = unexpected;

      try {

         //扩展点
         triggerBeforeCompletion(status);

         //判读是否存在事务保存点
         if (status.hasSavepoint()) {
            if (status.isDebug()) {
               logger.debug("Rolling back transaction to savepoint");
            }
            //事务回滚---回滚至事务保存点
            status.rollbackToHeldSavepoint();
         }
         else if (status.isNewTransaction()) {
            if (status.isDebug()) {
               logger.debug("Initiating transaction rollback");
            }
            //进行事务回滚
            doRollback(status);
         }
         else {
            // Participating in larger transaction
            // 存在事务-但不是新事物（加入的事务）
            if (status.hasTransaction()) {
               if (status.isLocalRollbackOnly() || isGlobalRollbackOnParticipationFailure()) {
                  if (status.isDebug()) {
                     logger.debug("Participating transaction failed - marking existing transaction as rollback-only");
                  }
                  //设置事务回滚
                  doSetRollbackOnly(status);
               }
               else {
                  if (status.isDebug()) {
                     logger.debug("Participating transaction failed - letting transaction originator decide on rollback");
                  }
               }
            }
            else {
               logger.debug("Should roll back transaction but cannot - no transaction available");
            }
            // Unexpected rollback only matters here if we're asked to fail early
            if (!isFailEarlyOnGlobalRollbackOnly()) {
               unexpectedRollback = false;
            }
         }
      }
      catch (RuntimeException | Error ex) {
         triggerAfterCompletion(status, TransactionSynchronization.STATUS_UNKNOWN);
         throw ex;
      }

      triggerAfterCompletion(status, TransactionSynchronization.STATUS_ROLLED_BACK);

      // Raise UnexpectedRollbackException if we had a global rollback-only marker
      if (unexpectedRollback) {
         throw new UnexpectedRollbackException(
               "Transaction rolled back because it has been marked as rollback-only");
      }
   }
   finally {
      cleanupAfterCompletion(status);
   }
}

用户显示调用提交将事务进行事务回滚在事务执行过程中，由于某种原因，事务中的代码显式地请求事务回滚的操作，可以直接调用TransactionAspectSupport.currentTransactionStatus().setRollbackOnly();将当前线程中的事务进行回滚。

spring事务传播机制
spring事务传播机制共有7种以及对象的特性
- spring默认的事务传播机制，TransactionDefinition.PROPAGATION_REQUIRED = 0; 如果当前存在事务则加入该事务，如果当前没有事务，则创建一个新的事务；
- TransactionDefinition.PROPAGATION_SUPPORTS = 1; 如果当前存在事务则加入该事务如果当前没有事务则以非事务的方式继续运行；
- TransactionDefinition.PROPAGATION_MANDATORY = 2;如果当前存在事务则加入该事务如果当前没有事务则抛出异常；
- TransactionDefinition.PROPAGATION_REQUIRES_NEW = 3; 创建一个新的事务如果当前存在事务则把当前事务挂起；
- TransactionDefinition.PROPAGATION_NOT_SUPPORTED = 4; 以非事务方式运行如果当前存在事务则把当前事务挂起；
- TransactionDefinition.PROPAGATION_NEVER = 5;以非事务方式运行如果当前存在事务则抛出异常；
- TransactionDefinition.PROPAGATION_NESTED = 6;如果当前存在事务则创建一个事务作为当前事务的嵌套事务来运行，如果不存在则创建一个新的事务；
  - 嵌套事务，对于JDBC来说，嵌套事务是通过事务保存点来实现的；当子事务提交，只会释放对应的保存点；子事务回滚，只会回滚至保存点；而父事务能控制所有子事务的提交与回滚的特性；
spring事务原理
- 事务执行流程
  - spring事务是通过PlatformTransactionManager事务管理器来实现的；
  - 当@EnableTransactionManagement开启声明式事务时，spring进行扫描的时候会向容器中注入三个Bean分别是BeanFactoryTransactionAttrubuteSourceAdvisor，TransactionInterceptor， AnnotationTransactionAttributeSource;当spring执行bean的生命周期初始化回调的后置方法postProcessAfterInitialization方法时，会扫描当前类上或者方法中添加@Transactional注解；来创建代理对象，并构建对应的拦截器链；
  - 当调用代理对象的增强方法时，会执行对应的拦截器链上的通知，会执行TransactionInterceptor.invoke方法，完成事务增强；
- spring事务-DataSourceTransactionManager事务管理原理
  - 获取方法上或类上的事务信息TransactionAttribute,并构建获取TransactionStatus事务状态信息。
  - 通过TransactionSynchronizationManager获取当前线程中ConnectionHolder无事务，则为空；创建新事务时startTransaction，会创建ConnectionHolder并与当前线程做绑定；如果以非事务执行时，就不会创建ConnectionHolder对象，进行事务管理；如果需要挂起当前事务时，解除线程绑定的ConnectionHolder，以及重置TransactionSynchronizationManager事务同步管理器中，当前线程的事务属性信息；如果是嵌套事务则，调用JDBC的底层接口，创建事务保存点即可；对于加入该事务时，执行共有同一个ConnectionHolder对象，并设置相应的事务属性即可；
spring声明式事务失效的场景
- 方法权限问题导致@Transactional失效-声明式事务是基于spring aop来实现的
  - 方法必须是public,非final,不能调用this.方法（即方法必须被代理增强，可以通过获取当前bean的代理增强对象，调用对应的方法即可），未被spring管理
- 多线程调用
  - DataSourceTransactionManager事务管理是基于Connection连接来实现的，而数据源以及对应的连接是与线程绑定的；（ConnectionHolder是TransactionSynchronizationManager里ThreadLocal中）
- 数据库不支持事务
- spring事务回滚失效的几个场景
  - 当前事务回滚的异常不支持或者手动吃了（以及嵌套事务未手动处理子事务的异常）
spring事务中，重要的几个组件
- TransactionStatus用于保存当前事物状态，比如是否只能回滚、是否包含回滚点、是否只读，其实现类内部包含事物操作对象transaction事物操作对象transaction包含不同的实现,比如JDBC的DataSourceTransactionObject、Hibernate的HibernateTransactionObject等
- BeanFactoryTransactionAttrubuteSourceAdvisor
- TransactionInterceptor
- AnnotationTransactionAttributeSource
- DataSourceTransactionManager
- TransactionSynchronizationManager
- TransactionStatus（DefaultTransactionStatus）
- ConnectionHolder
- DataSourceUtils ：主要用于从当前事务上下文中获取绑定的JDBC连接，并支持Spring的事务管理，并于数据访问技术框架集成；

spring-aop以及事务的解析

什么是aop,什么是spring aop?

spring中的动态代理

JDK动态代理

cglib动态代理

spring aop重要的几个概念

spring aop流程解析

spring中的默认的通知ExposeInvocationInterceptor

自定义编码完成springaop

spring中事务

spring事务解析流程

spring自定义事务流程解析

事务提交与回滚

spring事务传播机制

spring事务传播机制共有7种以及对象的特性

spring事务原理

事务执行流程

spring事务-DataSourceTransactionManager事务管理原理

spring声明式事务失效的场景

方法权限问题导致@Transactional失效-声明式事务是基于spring aop来实现的

多线程调用

数据库不支持事务

spring事务回滚失效的几个场景

spring事务中，重要的几个组件
