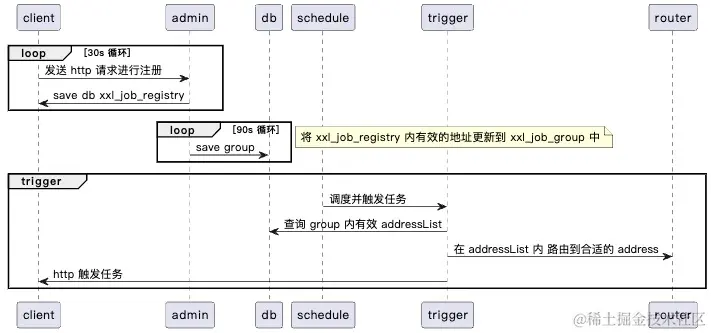

先放架构图

如果执行器服务，example 宕机了，admin 是如何感知的呢，这个方案就是心跳检测。

心跳维护流程

这个流程大概就是

client 发送注册信息到 admin，admin 将注册信息维护到 xxl_job_registry 表，然后 admin 定时将 xxl_job_registry 内有效的地址维护到 group 表。

上代码

client

package registry

import (
	"log"
	"time"
	"xin-job/client/cbiz"
	"xin-job/client/sconf"
	"xin-job/core/biz"
)

var instance = &ExecutorRegistry{
	Client: cbiz.GetBizClient(),
	Stop: make(chan struct{}),
}

func GetExecutorRegistry() *ExecutorRegistry {
	return instance
}

// ExecutorRegistry 执行器注册器
type ExecutorRegistry struct {
	Client *cbiz.BizClient
	Stop chan struct{} // 标记是否停机
}

func (r *ExecutorRegistry) Start(appName, address string) {
	if appName == "" {
		log.Panicln(">>>>>>>>>>> xxl-job, executor registry config fail, appname is null.")
		return
	}

	go func() {
		for {
			registryParam := biz.RegistryParam{
				RegistryGroup: "EXECUTOR",
				RegistryKey: appName,
				RegistryValue: address,
			}

			select {
				case <-r.Stop:
					// 停机，取消注册
					if len(sconf.ServerConf.AdminAddressList) > 0 {
						for _, adminAddressUrl := range sconf.ServerConf.AdminAddressList {
							r.Client.AdminAddressUrl = adminAddressUrl
							// 向调度中心发起取消注册
						registryResult := r.Client.RegistryRemove(registryParam)

							if registryResult.Code == 200 {
								// log
								break
							} else {
								// log
							}
						}
					}

			default:
				if len(sconf.ServerConf.AdminAddressList) > 0 {
					for _, adminAddressUrl := range sconf.ServerConf.AdminAddressList {
			r.Client.AdminAddressUrl = adminAddressUrl

						// 向调度中心发起注册
						registryResult := r.Client.Registry(registryParam)
						if registryResult.Code == 200 {
							// 向其中一个调度中心注册完成
							// log
						} else {
							// log
						}
						}
					// 睡眠 30 s
					// 维持心跳
					time.Sleep(30 * time.Second)
				}
		}
	}()
}

代码很简单，就是一个协程里面，每 30s 向 admin 注册一次。

admin

func (r *RegistryHelper) Registry(registryParam biz.RegistryParam) biz.Return[string] {

	go func() {
		ret := dao.RegistryUpdate(registryParam.RegistryGroup, registryParam.RegistryKey, registryParam.RegistryValue)

		if ret < 1 {
			// 新增
			dao.RegistrySave(registryParam.RegistryGroup, registryParam.RegistryKey, registryParam.RegistryValue)
		}
	}()
	return biz.Return[string]{Code: 200}
}



func (r *RegistryHelper) RegistryRemove(registryParam biz.RegistryParam) biz.Return[string] {

	go func() {
		dao.RegistryDel(registryParam.RegistryGroup, registryParam.RegistryKey, registryParam.RegistryValue)
	}()
	return biz.Return[string]{Code: 200}
}

admin 接收到 client 请求后，将信息维护到 xxl_job_registry 表中。

接收 client 方法的定义在 main.go 中

package registry

import (
	"slices"
	"time"
	"xin-job/admin/dao"
	"xin-job/core/biz"
)

var instance *RegistryHelper

func init() {
	instance = &RegistryHelper{}
}

func GetRegistryHelper() *RegistryHelper {
	return instance
}

type RegistryHelper struct {
	Stop chan struct{}
}

// Start 维护心跳
func (r *RegistryHelper) Start() {
	go func() {
		for {
			select {
				case <-r.Stop:
					// TODO 停机
				default:
					// 查询所有自动注册的执行器
					groups := dao.FindByAddressType(0)
					if len(groups) > 0 {
						// 查询过期的执行器
						ids := dao.FindDead(90, time.Now())
						if len(ids) > 0 {
							// 删除过期心跳
							dao.RemoveDead(ids)
						}
						// 查询未过期的执行器
						registryList := dao.FindAll(90, time.Now())
						appAddressMap := make(map[string][]string)
						if len(registryList) > 0 {
							for _, item := range registryList {
								if item.RegistryGroup == "EXECUTOR" { // 自动注册
									appName := item.RegistryKey
									registryList, ok := appAddressMap[appName]
									if !ok {
										registryList = make([]string, 0)
									}

									if !slices.Contains(registryList, item.RegistryValue) {
										registryList = append(registryList, item.RegistryValue)
									}
									appAddressMap[appName] = registryList

								}
							}
						}

						for _, item := range groups {
							registryList := appAddressMap[item.AppName]
							if len(registryList) > 0 {
								var addressListStr string
								for i, address := range registryList {
									addressListStr = addressListStr + address
									if i < len(registryList)-1 {
										addressListStr = addressListStr + ","
									}
								}
								item.AddressList = addressListStr
								item.UpdateTime = time.Now()
								dao.UpdateGroup(&item)

							}
						}
					}

				// 睡眠30s
				time.Sleep(30 * time.Second)
			}
		}
	}()
}

代码很简单，就是维护 xxl_job_registry 表与 xxl_job_group 表。

xxl_job_registry，删除过期的记录，90s 都没注册的执行器 xxl_job_group，将有效的执行器地址，维护到 addressList 字段。

路由对接

package trigger

import (
	"encoding/json"
	"fmt"
	"log"
	"xin-job/admin/dao"
	"xin-job/admin/router"
	"xin-job/core/biz"
	"xin-job/core/httpclient"
)


// trigger 触发任务
// jobId 任务ID
// triggerType 触发的类型
// failRetryCount 失败重试次数
// executorShardingParam 分片参数
// executorShardingParam 执行器方法参数
// addressList 执行器的地址列表
func AddTrigger(jobId int,
	triggerType string,
	failRetryCount int,
	executorShardingParam string,
	executorParam string,
	addressList string) {
	go func() {
		defer func() {
			if err := recover(); err != nil {
				log.Printf("trigger err %v\n", err)
			}
		}()

		job := dao.LoadJobInfoById(jobId)
		group := dao.LoadGroup(job.JobGroup)

		// 获取路由
		route := router.GetRouter(job.ExecutorBlockStrategy)
		address, err := route.Router(jobId, group.GetRegistryList())
		if err != nil {
			log.Printf("调度失败: jobId=%d err:%s\n", jobId, err.Error())
			return
		}

		p := biz.TriggerParam{
			JobId: jobId,
			ExecutorHandler: job.ExecutorHandler,
		}
		body, err := json.Marshal(p)
		if err != nil {
			log.Printf("trigger err %v\n", err)
			return
		}
		resp, err := httpclient.GetHttpclient().Url(address + "/run").Body(body).Post()

		if err != nil {
			log.Printf("http post err %v\n", err)
			return
		}
		// TODO log update db
		fmt.Printf("resp code: %d Content:%v \n", resp.StatusCode, resp.Content)
	}()
}

有效的路由地址从 xxl_job_group 表中查到，并通过路由策略，查找合适的执行器，进行触发定时任务。
