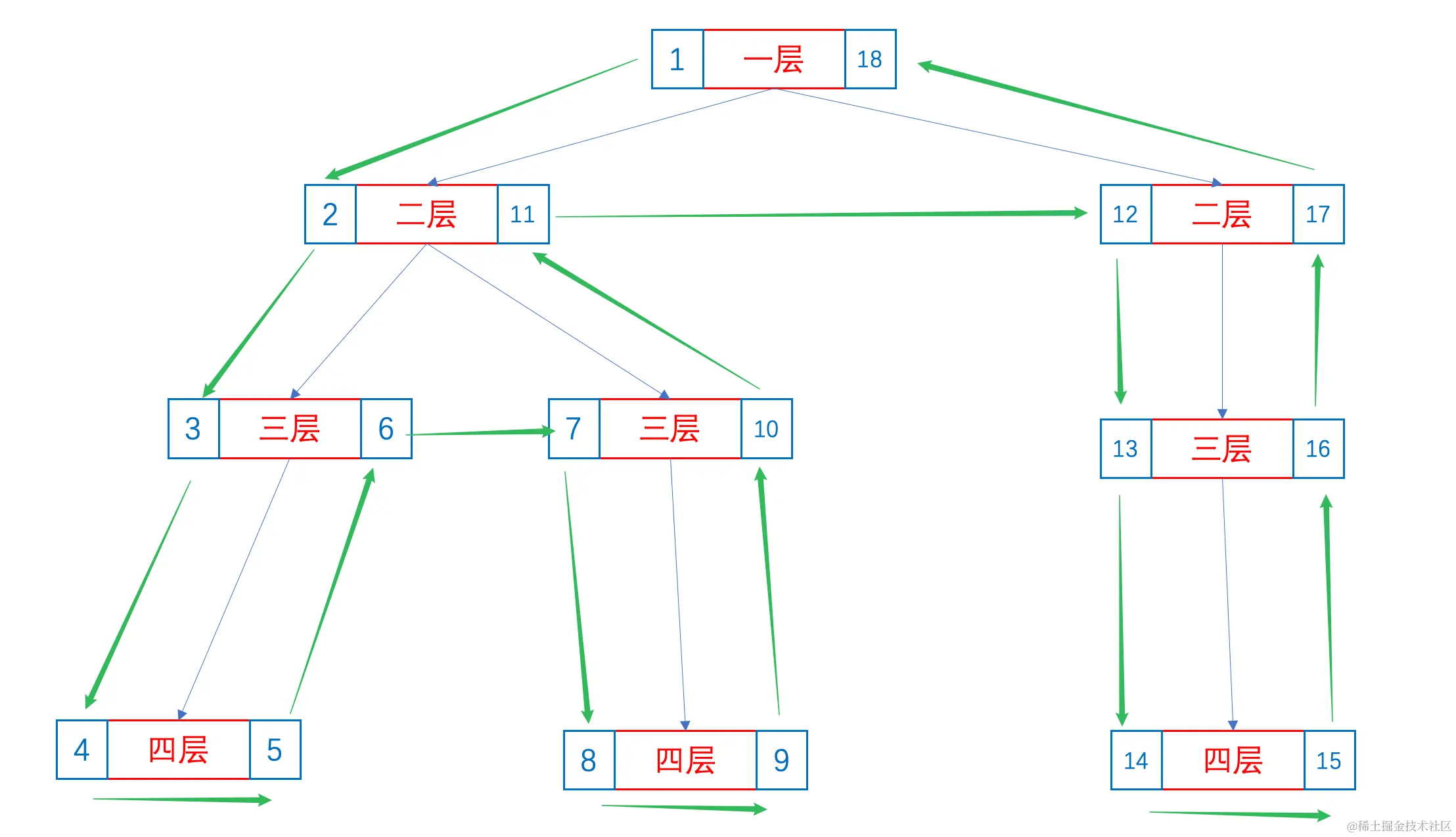

该工具类主要用于对二叉树结构的新增和删除节点做更新左右值。
目前个人测试没问题，分为两个工具类：
BinaryTreeUtil：用于操作二叉树结构节点的新增删除和查询。
BinaryTreeConfig：用于对二叉树结构的配置，例如：指定左值字段名称，顶层ID等，可自行进行配置的重构。
设计思想：
- 1：根据一个配置类，来指定二叉树的结构，左值字段，右值字段，id字段等；
- 2：工具类使用反射机制，对需要添加的对象进行字段的获取，校验，获取配置类中定义的字段；
- 3：工具类中使用mybatis-plus的mapper进行全局数据查询，依托QueryWapper进行数据查询字段拼接；
- 4：全程使用未定义出具体的操作对象类，使用T,R,P等泛型进行指定，使用反射工具类进行获取；
话不多说，上代码：
BinaryTreeConfig：
import lombok.Data;
import lombok.experimental.Accessors;
import java.io.Serializable;
/**
* 类名：二叉树修改配置项
*
* @author a-xin
* @date 2024/5/27 10:36
*/
@Data
@Accessors(chain = true)
public class BinaryTreeConfig<T> implements Serializable {
private static final long serialVersionUID = -6306806910289247396L;
/**
* 主键ID字段名称
*/
private String id = "id";
/**
* 父级ID字段名称
*/
private String pId = "pId";
/**
* 顶层元素id值,必须设置，否则报错
*/
private T topId;
/**
* 左值字段名称
*/
private String lft = "lft";
/**
* 右值字段名称
*/
private String rgt = "rgt";
/**
* 获取默认二叉树结构配置项，顶层id为 -1
*
* @return 默认二叉树结构配置项
*/
public static BinaryTreeConfig<String> getDefaultConfig() {
BinaryTreeConfig<String> config = new BinaryTreeConfig<>();
config.setTopId("-1");
return config;
}
}
BinaryTreeUtil：
import cn.hutool.core.collection.CollUtil;
import cn.hutool.core.text.CharSequenceUtil;
import cn.hutool.core.util.ObjectUtil;
import com.axin229913.constant.util.AssertUtil;
import com.axin229913.exception.enums.CommonExceptionEnum;
import com.axin229913.exception.exceptions.CommonException;
import com.axin229913.mybatis.base.SuperMapper;
import com.axin229913.mybatis.binaryTree.config.BinaryTreeConfig;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.core.toolkit.IdWorker;
import lombok.extern.slf4j.Slf4j;
import org.springframework.lang.NonNull;
import org.springframework.lang.Nullable;
import org.springframework.stereotype.Component;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import java.util.*;
/**
* 类名：二叉树左右值更新工具类
*
* @author a-xin
* @date 2024/5/24 16:58
*/
@Slf4j
@Component
public class BinaryTreeUtil {
/**
* 获取元素所有的子级
*
* @param id 元素ID
* @param mapper 修改数据mapper
* @param config 二叉树配置
* @param <M> mapper代理类型
* @param <R> mapper元素类型
* @param <P> 查询元素ID类型
* @return 所有子级元素
*/
public static <M extends SuperMapper<R>, R, P> List<R> getAllChild(@NonNull P id,
@NonNull M mapper,
@NonNull BinaryTreeConfig<P> config) {
return getAllChild(id, mapper, config, new HashMap<>());
}
/**
* 获取元素所有的子级
*
* @param id 元素ID
* @param mapper 修改数据mapper
* @param config 二叉树配置
* @param params 查询额外参数
* @param <M> mapper代理类型
* @param <R> mapper元素类型
* @param <P> 查询元素ID类型
* @return 所有子级元素
*/
public static <M extends SuperMapper<R>, R, P> List<R> getAllChild(@NonNull P id,
@NonNull M mapper,
@NonNull BinaryTreeConfig<P> config,
@Nullable Map<String, Object> params) {
R element = mapper.selectOne(new QueryWrapper<R>().eq(config.getId(), id));
Map<String, Object> elementFieldMap = getElementField(element);
checkConfigField(elementFieldMap, config);
QueryWrapper<R> queryWrapper = new QueryWrapper<>();
queryWrapper.lt(config.getRgt(), elementFieldMap.get(config.getRgt()))
.gt(config.getLft(), elementFieldMap.get(config.getLft()));
AssertUtil.functionIfPre(params, CollUtil::isNotEmpty, () -> params.forEach(queryWrapper::eq));
return mapper.selectList(queryWrapper);
}
/**
* 获取元素所有的父级
*
* @param id 元素ID
* @param mapper 修改数据mapper
* @param config 二叉树配置
* @param <M> mapper代理类型
* @param <R> mapper元素类型
* @param <P> 查询元素ID类型
* @return 所有父级元素
*/
public static <M extends SuperMapper<R>, R, P> List<R> getAllParent(@NonNull P id,
@NonNull M mapper,
@NonNull BinaryTreeConfig<P> config) {
return getAllParent(id, mapper, config, new HashMap<>());
}
/**
* 获取元素所有的父级
*
* @param id 元素ID
* @param mapper 修改数据mapper
* @param config 二叉树配置
* @param params 查询额外参数
* @param <M> mapper代理类型
* @param <R> mapper元素类型
* @param <P> 查询元素ID类型
* @return 所有父级元素
*/
public static <M extends SuperMapper<R>, R, P> List<R> getAllParent(@NonNull P id,
@NonNull M mapper,
@NonNull BinaryTreeConfig<P> config,
@Nullable Map<String, Object> params) {
R element = mapper.selectOne(new QueryWrapper<R>().eq(config.getId(), id));
Map<String, Object> elementFieldMap = getElementField(element);
checkConfigField(elementFieldMap, config);
QueryWrapper<R> queryWrapper = new QueryWrapper<>();
queryWrapper.gt(config.getRgt(), elementFieldMap.get(config.getRgt()))
.lt(config.getLft(), elementFieldMap.get(config.getLft()));
AssertUtil.functionIfPre(params, CollUtil::isNotEmpty, () -> params.forEach(queryWrapper::eq));
return mapper.selectList(queryWrapper);
}
/**
* 获取当前树结构层级
*
* @param id 元素ID
* @param mapper 修改数据mapper
* @param config 二叉树配置
* @param <M> mapper代理类型
* @param <R> mapper元素类型
* @param <P> 查询元素ID类型
* @return 所在层级
*/
public static <M extends SuperMapper<R>, R, P> Long getLevel(@NonNull P id,
@NonNull M mapper,
@NonNull BinaryTreeConfig<P> config) {
return getLevel(id, mapper, config, new HashMap<>());
}
/**
* 获取当前树结构层级
*
* @param id 元素ID
* @param mapper 修改数据mapper
* @param config 二叉树配置
* @param params 查询额外参数
* @param <M> mapper代理类型
* @param <R> mapper元素类型
* @param <P> 查询元素ID类型
* @return 所在层级
*/
public static <M extends SuperMapper<R>, R, P> Long getLevel(@NonNull P id,
@NonNull M mapper,
@NonNull BinaryTreeConfig<P> config,
@Nullable Map<String, Object> params) {
return AssertUtil.functionIf(!ObjectUtil.equal(id, config.getTopId()), () -> {
R element = mapper.selectOne(new QueryWrapper<R>().eq(config.getId(), id));
Map<String, Object> elementFieldMap = getElementField(element);
checkConfigField(elementFieldMap, config);
QueryWrapper<R> queryWrapper = new QueryWrapper<>();
queryWrapper.ge(config.getRgt(), elementFieldMap.get(config.getRgt()))
.le(config.getLft(), elementFieldMap.get(config.getLft()));
AssertUtil.functionIfPre(params, CollUtil::isNotEmpty, () -> params.forEach(queryWrapper::eq));
return mapper.selectCount(queryWrapper);
}, 1L);
}
/**
* 二叉树新增元素
*
* @param mapper 修改数据mapper
* @param element 新增元素，需要包含父级ID
* @param config 二叉树配置
* @param <M> mapper代理类型
* @param <R> 新增元素类型
* @param <P> 新增元素ID类型
* @return 新增元素
*/
public static <M extends SuperMapper<R>, R, P> R addElement(@NonNull M mapper,
@NonNull R element,
@NonNull BinaryTreeConfig<P> config) {
return addElement(mapper, element, config, new HashMap<>());
}
/**
* 二叉树新增元素
*
* @param mapper 修改数据mapper
* @param element 新增元素，需要包含父级ID
* @param config 二叉树配置
* @param params 查询额外参数
* @param <M> mapper代理类型
* @param <R> 新增元素类型
* @param <P> 新增元素ID类型
* @return 新增元素
*/
public static <M extends SuperMapper<R>, R, P> R addElement(@NonNull M mapper,
@NonNull R element,
@NonNull BinaryTreeConfig<P> config,
@Nullable Map<String, Object> params) {
Map<String, Object> elementFieldMap = getElementField(element);
String idField = config.getId();
String lftField = config.getLft();
String rgtField = config.getRgt();
String pIdField = config.getPId();
Object pId = elementFieldMap.get(pIdField);
if (ObjectUtil.equal(pId, config.getTopId())) {
return addTopElement(mapper, element, config);
}
checkConfigField(elementFieldMap, config);
QueryWrapper<R> parentQueryWrapper = new QueryWrapper<R>()
.eq(config.getId(), pId);
AssertUtil.functionIfPre(params, CollUtil::isNotEmpty, () -> params.forEach(parentQueryWrapper::eq));
List<R> pIdElementList = mapper.selectList(parentQueryWrapper);
CommonExceptionEnum.NORMAL_EXCEPTION.exceptionIf(CollUtil.isEmpty(pIdElementList) || pIdElementList.size() > 1,
"The parent element is abnormal!");
R parentElement = pIdElementList.get(0);
Map<String, Object> parentElementFieldMap = getElementField(parentElement);
checkConfigField(parentElementFieldMap, config);
int parentRgt = Integer.parseInt(String.valueOf(parentElementFieldMap.get(rgtField)));
int parentLft = Integer.parseInt(String.valueOf(parentElementFieldMap.get(lftField)));
//如果父级的右值比左值大1，则说明该父级没有子级，直接左值+1，右值+2
AssertUtil.functionIf(parentRgt - parentLft == 1, () -> {
try {
Method setLft = element.getClass().getMethod("set" + CharSequenceUtil.upperFirst(lftField), Integer.class);
setLft.setAccessible(Boolean.TRUE);
setLft.invoke(element, parentLft + 1);
Method setRgt = element.getClass().getMethod("set" + CharSequenceUtil.upperFirst(rgtField), Integer.class);
setRgt.setAccessible(Boolean.TRUE);
setRgt.invoke(element, parentLft + 2);
} catch (NoSuchMethodException | InvocationTargetException | IllegalAccessException e) {
throw new CommonException(e.getMessage());
}
}, () -> {//走这里则说明该父级存在子级，获取父级右值-1的子级，利用子级的右值进行+1，+2
QueryWrapper<R> maxChildQueryWrapper = new QueryWrapper<R>()
.eq(config.getRgt(), parentRgt - 1);
AssertUtil.functionIfPre(params, CollUtil::isNotEmpty, () -> params.forEach(maxChildQueryWrapper::eq));
R maxChildElement = mapper.selectOne(maxChildQueryWrapper);
Map<String, Object> maxChildElementFieldMap = getElementField(maxChildElement);
checkConfigField(maxChildElementFieldMap, config);
int maxChildRgt = Integer.parseInt(String.valueOf(maxChildElementFieldMap.get(rgtField)));
try {
Method setLft = element.getClass().getMethod("set" + CharSequenceUtil.upperFirst(lftField), Integer.class);
setLft.setAccessible(Boolean.TRUE);
setLft.invoke(element, maxChildRgt + 1);
Method setRgt = element.getClass().getMethod("set" + CharSequenceUtil.upperFirst(rgtField), Integer.class);
setRgt.setAccessible(Boolean.TRUE);
setRgt.invoke(element, maxChildRgt + 2);
} catch (NoSuchMethodException | InvocationTargetException | IllegalAccessException e) {
throw new CommonException(e.getMessage());
}
});
try {
Method setPid = element.getClass().getMethod("set" + CharSequenceUtil.upperFirst(pIdField), config.getTopId().getClass());
setPid.setAccessible(Boolean.TRUE);
setPid.invoke(element, pId);
Method setId = element.getClass().getMethod("set" + CharSequenceUtil.upperFirst(idField), config.getTopId().getClass());
setId.setAccessible(Boolean.TRUE);
setId.invoke(element, IdWorker.getIdStr());
Method setParentRgt = parentElement.getClass().getMethod("set" + CharSequenceUtil.upperFirst(rgtField), Integer.class);
setParentRgt.setAccessible(Boolean.TRUE);
setParentRgt.invoke(parentElement, parentRgt + 2);
} catch (NoSuchMethodException | InvocationTargetException | IllegalAccessException e) {
throw new CommonException(e.getMessage());
}
//查询出比父级右值大的所有其他元素进行更新
QueryWrapper<R> queryWrapper = new QueryWrapper<R>()
.and(qw -> qw.gt(lftField, parentRgt)
.or()
.gt(rgtField, parentRgt));
AssertUtil.functionIfPre(params, CollUtil::isNotEmpty, () -> params.forEach(queryWrapper::eq));
List<R> otherElementList = mapper.selectList(queryWrapper);
Object parentElementId = parentElementFieldMap.get(idField);
List<R> updateList = new ArrayList<>();
AssertUtil.functionIfPre(otherElementList, CollUtil::isNotEmpty, () -> otherElementList.stream().forEach(otherElement -> {
try {
Map<String, Object> otherElementFieldMap = getElementField(otherElement);
Object otherElementId = otherElementFieldMap.get(idField);
int otherElementRgt = Integer.parseInt(String.valueOf(otherElementFieldMap.get(rgtField)));
int otherElementLft = Integer.parseInt(String.valueOf(otherElementFieldMap.get(lftField)));
//如果id与父级一致，则不更新，因为上面已经更新了
if (ObjectUtil.equal(parentElementId, otherElementId)) {
return;
}
//如果左值和右值都大于父级的右值，则左值和右值都+2
if (otherElementRgt > parentRgt && otherElementLft > parentRgt) {
Method setOtherRgt = otherElement.getClass().getMethod("set" + CharSequenceUtil.upperFirst(rgtField), Integer.class);
setOtherRgt.setAccessible(Boolean.TRUE);
setOtherRgt.invoke(otherElement, otherElementRgt + 2);
Method setOtherLft = otherElement.getClass().getMethod("set" + CharSequenceUtil.upperFirst(lftField), Integer.class);
setOtherLft.setAccessible(Boolean.TRUE);
setOtherLft.invoke(otherElement, otherElementLft + 2);
updateList.add(otherElement);
return;
}
//如果左值小于父级的右值，右值大于父级的右值，则只需要右值+2即可
if (otherElementLft < parentRgt && otherElementRgt > parentRgt) {
Method setOtherRgt = otherElement.getClass().getMethod("set" + CharSequenceUtil.upperFirst(rgtField), Integer.class);
setOtherRgt.setAccessible(Boolean.TRUE);
setOtherRgt.invoke(otherElement, otherElementRgt + 2);
updateList.add(otherElement);
}
} catch (NoSuchMethodException | InvocationTargetException | IllegalAccessException e) {
throw new CommonException(e.getMessage());
}
}));
//更行其余数据左右值
AssertUtil.functionIfPre(updateList, CollUtil::isNotEmpty, () -> mapper.updateBatch(updateList));
//更新父级右值
mapper.updateById(parentElement);
//新增元素入库
mapper.insert(element);
return element;
}
/**
* 二叉树删除元素
*
* @param mapper 修改数据mapper
* @param element 删除元素，需要包含父级ID
* @param config 二叉树配置
* @param <M> mapper代理类型
* @param <R> 删除元素类型
* @param <P> 删除元素ID类型
*/
public static <M extends SuperMapper<R>, R, P> void deleteElement(@NonNull M mapper,
@NonNull R element,
@NonNull BinaryTreeConfig<P> config) {
deleteElement(mapper, element, config, new HashMap<>());
}
/**
* 二叉树删除元素
*
* @param mapper 修改数据mapper
* @param element 删除元素，需要包含父级ID
* @param config 二叉树配置
* @param params 查询额外参数
* @param <M> mapper代理类型
* @param <R> 删除元素类型
* @param <P> 删除元素ID类型
*/
public static <M extends SuperMapper<R>, R, P> void deleteElement(@NonNull M mapper,
@NonNull R element,
@NonNull BinaryTreeConfig<P> config,
@Nullable Map<String, Object> params) {
mapper.deleteById(element);
Map<String, Object> elementFieldMap = getElementField(element);
String lftField = config.getLft();
String rgtField = config.getRgt();
checkConfigField(elementFieldMap, config);
int rgt = Integer.parseInt(String.valueOf(elementFieldMap.get(rgtField)));
int lft = Integer.parseInt(String.valueOf(elementFieldMap.get(lftField)));
CommonExceptionEnum.NORMAL_EXCEPTION.exceptionIf(rgt - lft > 1,
"There are subclasses below the node and cannot be deleted!");
//查询出比右值大的所有其他元素进行更新
QueryWrapper<R> queryWrapper = new QueryWrapper<R>()
.and(qw -> qw.gt(lftField, rgt)
.or()
.gt(rgtField, lft));
AssertUtil.functionIfPre(params, CollUtil::isNotEmpty, () -> params.forEach(queryWrapper::eq));
List<R> otherElementList = mapper.selectList(queryWrapper);
List<R> updateList = new ArrayList<>();
AssertUtil.functionIfPre(otherElementList, CollUtil::isNotEmpty, () -> otherElementList.stream().forEach(otherElement -> {
try {
Map<String, Object> otherElementFieldMap = getElementField(otherElement);
int otherElementRgt = Integer.parseInt(String.valueOf(otherElementFieldMap.get(rgtField)));
int otherElementLft = Integer.parseInt(String.valueOf(otherElementFieldMap.get(lftField)));
//如果左值和右值都大于父级的右值，则左值和右值都+2
if (otherElementRgt > rgt && otherElementLft > rgt) {
Method setOtherRgt = otherElement.getClass().getMethod("set" + CharSequenceUtil.upperFirst(rgtField), Integer.class);
setOtherRgt.setAccessible(Boolean.TRUE);
setOtherRgt.invoke(otherElement, otherElementRgt - 2);
Method setOtherLft = otherElement.getClass().getMethod("set" + CharSequenceUtil.upperFirst(lftField), Integer.class);
setOtherLft.setAccessible(Boolean.TRUE);
setOtherLft.invoke(otherElement, otherElementLft - 2);
updateList.add(otherElement);
return;
}
//如果左值小于父级的右值，右值大于父级的右值，则只需要右值+2即可
if (otherElementLft < rgt && otherElementRgt > rgt) {
Method setOtherRgt = otherElement.getClass().getMethod("set" + CharSequenceUtil.upperFirst(rgtField), Integer.class);
setOtherRgt.setAccessible(Boolean.TRUE);
setOtherRgt.invoke(otherElement, otherElementRgt - 2);
updateList.add(otherElement);
}
} catch (NoSuchMethodException | InvocationTargetException | IllegalAccessException e) {
throw new CommonException(e.getMessage());
}
}));
//更行其余数据左右值
AssertUtil.functionIfPre(updateList, CollUtil::isNotEmpty, () -> mapper.updateBatch(updateList));
}
/**
* 构建二叉树结构顶层元素
*
* @param mapper 修改数据mapper
* @param element 新增元素，需要包含父级ID
* @param config 二叉树配置
* @param <M> mapper代理类型
* @param <R> 新增元素类型
* @param <P> 新增元素ID类型
* @return 新增元素
*/
public static <M extends SuperMapper<R>, R, P> R addTopElement(@NonNull M mapper,
@NonNull R element,
@NonNull BinaryTreeConfig<P> config) {
String idField = config.getId();
String lftField = config.getLft();
String rgtField = config.getRgt();
String pIdField = config.getPId();
try {
Method[] methods = element.getClass().getMethods();
System.out.println(Arrays.toString(methods));
Method setPid = element.getClass().getMethod("set" + CharSequenceUtil.upperFirst(pIdField), config.getTopId().getClass());
setPid.setAccessible(Boolean.TRUE);
setPid.invoke(element, config.getTopId());
Method setId = element.getClass().getMethod("set" + CharSequenceUtil.upperFirst(idField), config.getTopId().getClass());
setId.setAccessible(Boolean.TRUE);
setId.invoke(element, IdWorker.getIdStr());
Method setLft = element.getClass().getMethod("set" + CharSequenceUtil.upperFirst(lftField), Integer.class);
setLft.setAccessible(Boolean.TRUE);
setLft.invoke(element, 1);
Method setRgt = element.getClass().getMethod("set" + CharSequenceUtil.upperFirst(rgtField), Integer.class);
setRgt.setAccessible(Boolean.TRUE);
setRgt.invoke(element, 2);
//新增元素入库
mapper.insert(element);
} catch (NoSuchMethodException | InvocationTargetException | IllegalAccessException e) {
throw new CommonException(e.getMessage());
}
return element;
}
/**
* 获取对象字段信息与字段值
*
* @param element 对象参数
* @param <R> 对象类型
* @return 字段名称和字段值
*/
private static <R> Map<String, Object> getElementField(@NonNull R element) {
Field[] declaredFields = element.getClass().getDeclaredFields();
Map<String, Object> elementFieldMap = new HashMap<>();
try {
for (Field field : declaredFields) {
field.setAccessible(Boolean.TRUE);
Object value = field.get(element);
String name = field.getName();
elementFieldMap.put(name, value);
}
return elementFieldMap;
} catch (IllegalAccessException e) {
throw new RuntimeException(e);
}
}
/**
* 校验添加元素的字段是否与配置类匹配
*
* @param elementFieldMap 添加元素存在字段
* @param config 字段信息配置类
*/
private static <P> void checkConfigField(@NonNull Map<String, Object> elementFieldMap,
@NonNull BinaryTreeConfig<P> config) {
String id = config.getId();
String pId = config.getPId();
String lft = config.getLft();
String rgt = config.getRgt();
CommonExceptionEnum.NORMAL_EXCEPTION.exceptionIf(!elementFieldMap.containsKey(id),
"The [{}] field does not exist for the element to be added!", id);
CommonExceptionEnum.NORMAL_EXCEPTION.exceptionIf(!elementFieldMap.containsKey(pId),
"The [{}] field does not exist for the element to be added!", pId);
CommonExceptionEnum.NORMAL_EXCEPTION.exceptionIf(!elementFieldMap.containsKey(lft),
"The [{}] field does not exist for the element to be added!", lft);
CommonExceptionEnum.NORMAL_EXCEPTION.exceptionIf(!elementFieldMap.containsKey(rgt),
"The [{}] field does not exist for the element to be added!", rgt);
}
}
代码中的SupperMapper类可以更换成自己定义的mapper类，继承BaseMapper就行，这里不贴代码。
操作指南：

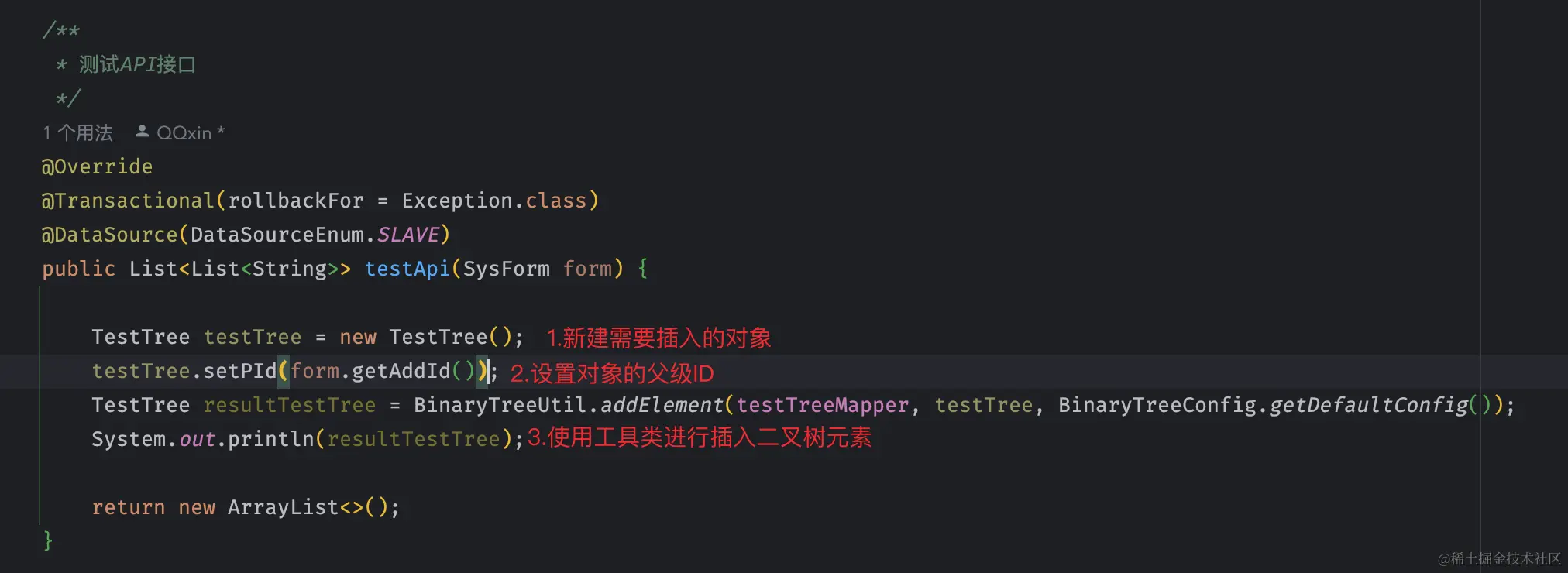

1：代码：

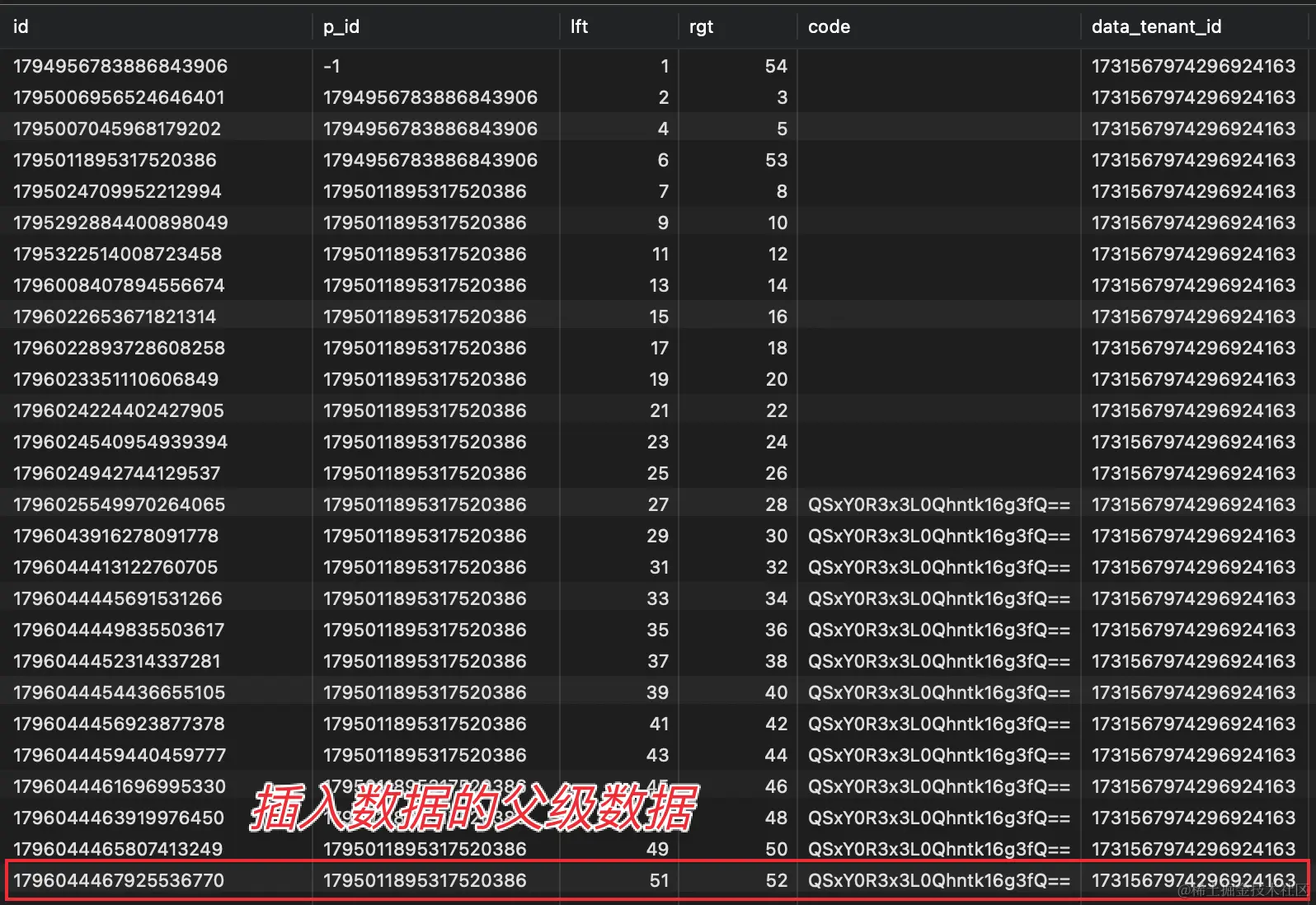

2：数据库：
3：进行数据添加：
4：数据库查看：
如有问题，请联系：QQxin7045
