在Polly库中,进行断路分析(Circuit Breaker)的目的是当系统的一部分出现故障时,快速失败(fail fast)以避免进一步对系统造成压力。断路器会在检测到一定数量的连续失败之后打开(进入断路状态),阻止对故障服务的进一步调用,并在一段时间后尝试恢复服务调用。
以下是使用Polly库进行断路分析的一个基本示例:
首先,确保已经安装了Polly库。你可以通过NuGet包管理器来安装它:
bash
Install-Package Polly
然后,你可以创建一个断路器策略并使用它:
csharp
using System;
using Polly;
using Polly.CircuitBreaker;
public class CircuitBreakerExample
{
private static readonly IAsyncPolicy<HttpResponseMessage> _circuitBreakerPolicy = Policy<HttpResponseMessage>
.Handle<Exception>() // 可以指定更具体的异常类型
.CircuitBreakerAsync(
handledEventsAllowedBeforeBreaking: 5, // 在断路器跳闸前允许通过的失败事件数
durationOfBreak: TimeSpan.FromSeconds(30), // 断路器跳闸后保持打开的时间
onBreak: (ex, breakTimeout) => // 当断路器跳闸时执行的回调
{
Console.WriteLine("The circuit is now open. Calls to the service will not be made for the next " +
breakTimeout.TotalSeconds + " seconds.");
},
onReset: () => // 当断路器从跳闸状态恢复时执行的回调
{
Console.WriteLine("The circuit is now closed. Calls to the service are allowed again.");
},
onHalfOpen: () => // 当断路器从关闭状态变为半开状态时执行的回调
{
Console.WriteLine("The circuit is now half-open. Allowing a single call to see if the service is available.");
}
);
public async Task CallServiceWithCircuitBreakerAsync()
{
// 假设HttpCallAsync是一个异步方法,它调用某个远程服务并返回HttpResponseMessage
// 在这里我们使用一个模拟的异步方法来代替
Func<Task<HttpResponseMessage>> httpCallAsync = async () =>
{
// 模拟服务调用可能会失败
if (DateTime.Now.Second % 2 == 0) // 例如,每两秒失败一次
{
throw new Exception("Service call failed!");
}
// 模拟成功的服务响应
return new HttpResponseMessage(System.Net.HttpStatusCode.OK);
};
// 使用断路器策略来调用服务
await _circuitBreakerPolicy.ExecuteAsync(httpCallAsync);
}
// 主方法或其他启动点
public static void Main()
{
var example = new CircuitBreakerExample();
// 假设我们多次调用服务
for (int i = 0; i < 10; i++)
{
example.CallServiceWithCircuitBreakerAsync().Wait();
// 等待一段时间以便观察断路器的行为
System.Threading.Thread.Sleep(1000);
}
}
}
在上面的示例中,CircuitBreakerAsync
方法配置了一个断路器策略。当连续发生5次失败时,断路器会跳闸,并在接下来的30秒内阻止对服务的调用。当断路器跳闸时,它会执行onBreak
回调。当断路器从跳闸状态恢复时,它会执行onReset
回调。在断路器从关闭状态变为半开状态时,它会执行onHalfOpen
回调。
请注意,上面的示例使用了一个模拟的异步服务调用httpCallAsync
。在实际应用中,你应该替换为调用远程服务的真实代码。
此外,由于ExecuteAsync
是一个异步方法,你应该在异步上下文中调用它,例如在一个async
方法中。在上面的Main
方法中,我使用了.Wait()
来等待异步操作完成,但这通常不是推荐的做法,因为它会阻塞调用线程。在真实的应用程序中,你应该使用async
和await
关键字来避免阻塞。

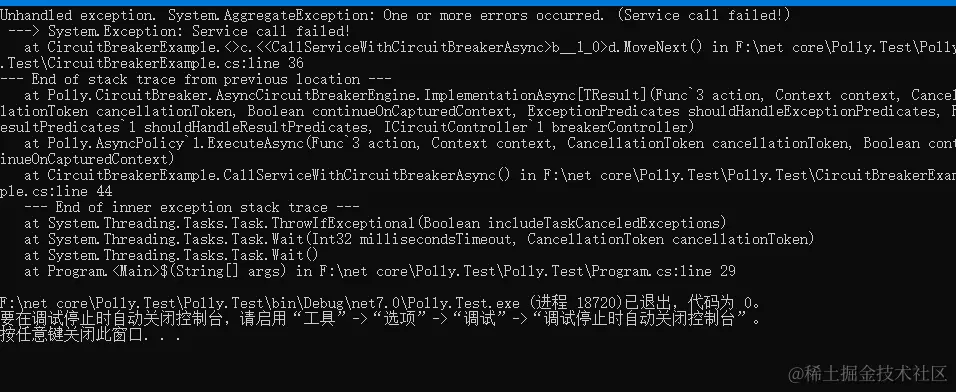

结果:
这个AggregateException
异常是在你尝试等待一个或多个异步操作的结果时发生的,其中一个或多个操作抛出了异常。在你的例子中,CallServiceWithCircuitBreakerAsync
方法内部调用了一个模拟的服务调用 httpCallAsync
,它有时会抛出一个 Service call failed!
的异常。由于这个异常没有被捕获或处理,它最终导致了 AggregateException
。
当你使用 .Wait()
来等待一个异步方法完成时,如果该异步方法抛出了异常,那么异常会被封装在 AggregateException
中。这是.NET Framework和.NET Core中处理异步异常的方式。
要正确处理这个异常,你应该在异步上下文中使用 await
关键字,而不是 .Wait()
。同时,你可以使用 try-catch
语句来捕获并处理异常。下面是一个修改后的示例,展示了如何在异步方法中使用 await
和 try-catch
:
csharp
using System;
using System.Net.Http;
using System.Threading.Tasks;
using Polly;
using Polly.CircuitBreaker;
public class CircuitBreakerExample
{
private static readonly IAsyncPolicy<HttpResponseMessage> _circuitBreakerPolicy = Policy<HttpResponseMessage>
.Handle<Exception>()
.CircuitBreakerAsync(
handledEventsAllowedBeforeBreaking: 5,
durationOfBreak: TimeSpan.FromSeconds(30),
onBreak: (ex, breakTimeout) =>
{
Console.WriteLine("The circuit is now open. Calls to the service will not be made for the next " +
breakTimeout.TotalSeconds + " seconds.");
},
onReset: () =>
{
Console.WriteLine("The circuit is now closed. Calls to the service are allowed again.");
},
onHalfOpen: () =>
{
Console.WriteLine("The circuit is now half-open. Allowing a single call to see if the service is available.");
}
);
public async Task CallServiceWithCircuitBreakerAsync()
{
// 假设HttpCallAsync是一个异步方法,它调用某个远程服务并返回HttpResponseMessage
Func<Task<HttpResponseMessage>> httpCallAsync = async () =>
{
// 模拟服务调用可能会失败
if (DateTime.Now.Second % 2 == 0) // 例如,每两秒失败一次
{
throw new Exception("Service call failed!");
}
// 模拟成功的服务响应
return new HttpResponseMessage(System.Net.HttpStatusCode.OK);
};
try
{
// 使用断路器策略来调用服务
await _circuitBreakerPolicy.ExecuteAsync(httpCallAsync);
}
catch (BrokenCircuitException ex)
{
// 处理断路器跳闸的异常
Console.WriteLine("Circuit is broken: " + ex.Message);
}
catch (Exception ex)
{
// 处理其他异常
Console.WriteLine("An error occurred: " + ex.Message);
}
}
public static async Task Main() // 注意这里使用了async Main
{
var example = new CircuitBreakerExample();
// 假设我们多次调用服务
for (int i = 0; i < 10; i++)
{
await example.CallServiceWithCircuitBreakerAsync();
// 等待一段时间以便观察断路器的行为
await Task.Delay(1000);
}
}
}
请注意,我修改了 Main
方法以使用 async Task Main
,这是C# 7.1及更高版本支持的特性,它允许你编写返回 Task
或 Task<T>
的 Main
方法。如果你的环境不支持这一点,你可以将 Main
方法保持为同步的,并使用 .GetAwaiter().GetResult()
来等待异步操作,但这通常不是推荐的做法,因为它可能导致死锁和其他问题。
