qq音乐sign逆向

星云之上是故乡
37 阅读4分钟

qq音乐sign参数逆向

1.概览

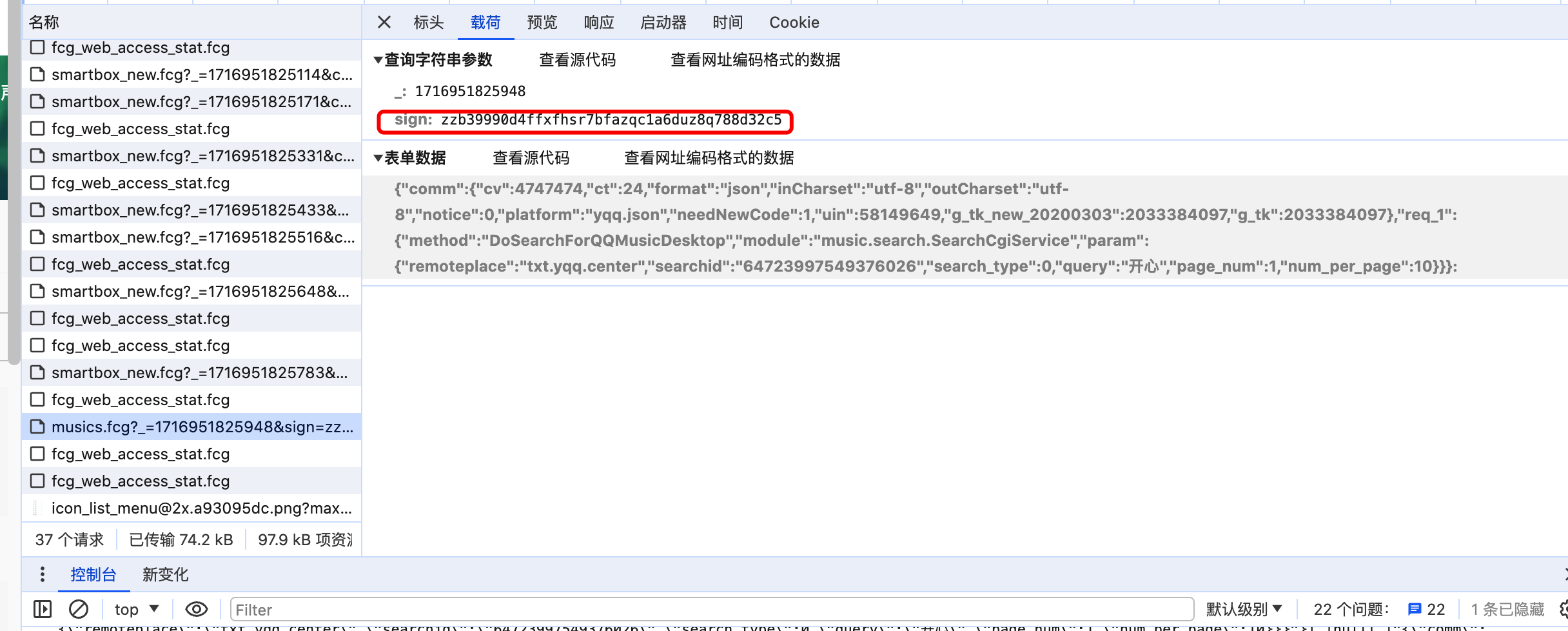

image-20240529110411618

参数sign长度40

多次调试发现，前缀zzb不变

2.打日志

跟站发现是vpm，在apply调用打上日志断点：

image-20240529110644850

连蒙带猜知道，最终字符串四部分构成，zzb 24DC2798 HI0TvE4tOMqzN4w88oZCjQ EE0A88FE


1.把请求的body参数直接MD5得到c8a043f88d8e9b012eeb72673ec92a8b
2.利用固定数组[21, 4, 9, 26, 16, 20, 27, 30]和上面结果，使用charat得到字符串：
		24DC2798
		EE0A88FE
3.中间的HI0TvE4tOMqzN4w88oZCjQ，我们分析这个

HI0TvE4tOMqzN4w88oZCjQ来源：

把vmp的栈打印，在位运算的地方打上日志点：

发现两个固定东西：

    let fmap = {"0":0,"1":1,"2":2,"3":3,"4":4,"5":5,"6":6,"7":7,"8":8,"9":9,"A":10,"B":11,"C":12,"D":13,"E":14,"F":15}
    let arr  = [212,45,80,68,195,163,163,203,157,220,254,91,204,79,104,6];

需要参与运算,运算日志如下：

E1EFCB705902FAD5BFD7F8C3CA904EF0   ->data的md5值
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:54 '-' 38 '=>' 16
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 14 '*' 16 '=>' 224
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 0 '*' 2 '=>' 0
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 0 '+' 1 '=>' 1
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 224 '+' 1 '=>' 225
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 225 '^' 212 '=>' 53
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 this-> [] args-> [53]

vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 0 '+' 1 '=>' 1
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 0 '|' 0 '=>' 0
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 19 '-' 3 '=>' 16
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 1 '*' 2 '=>' 2

vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 54 '-' 38 '=>' 16
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 14 '*' 16 '=>' 224
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 1 '*' 2 '=>' 2
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 2 '+' 1 '=>' 3
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 224 '+' 15 '=>' 239
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 239 '^' 45 '=>' 194
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 this-> [53] args-> [194]

vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 1 '+' 1 '=>' 2
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 0 '|' 1 '=>' 1
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 19 '-' 3 '=>' 16
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 2 '*' 2 '=>' 4

vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 54 '-' 38 '=>' 16
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 12 '*' 16 '=>' 192
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 2 '*' 2 '=>' 4
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 4 '+' 1 '=>' 5
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 192 '+' 11 '=>' 203
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 203 '^' 80 '=>' 155
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 this-> (2) [53, 194] args-> [155]
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 2 '+' 1 '=>' 3
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 0 '|' 2 '=>' 2
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 19 '-' 3 '=>' 16
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 3 '*' 2 '=>' 6

vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 54 '-' 38 '=>' 16
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 7 '*' 16 '=>' 112
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 3 '*' 2 '=>' 6
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 6 '+' 1 '=>' 7
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 112 '+' 0 '=>' 112
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 112 '^' 68 '=>' 52
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 this-> (3) [53, 194, 155] args-> [52]

可以发现，

第0组：

vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:14 '*' 16 '=>' 224
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 0 '*' 2 '=>' 0
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 0 '+' 1 '=>' 1
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 224 '+' 1 '=>' 225
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 225 '^' 212 '=>' 53

我们记let md5v = E1EFCB705902FAD5BFD7F8C3CA904EF0

16是每组都一样的固定值：

14是fmap[md5v[0]]

1是fmap[md5v[0+1]]

212是arr[0]

第1组：

vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 54 '-' 38 '=>' 16
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 14 '*' 16 '=>' 224
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 1 '*' 2 '=>' 2
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 2 '+' 1 '=>' 3
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 224 '+' 15 '=>' 239
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 239 '^' 45 '=>' 194
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 this-> [53] args-> [194]

我们记let md5v = E1EFCB705902FAD5BFD7F8C3CA904EF0

16是每组都一样的固定值：

14是fmap[md5v[2]]

15是fmap[md5v[2+1]]

45是arr[1]

第2组：

vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 54 '-' 38 '=>' 16
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 12 '*' 16 '=>' 192
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 2 '*' 2 '=>' 4
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 4 '+' 1 '=>' 5
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 192 '+' 11 '=>' 203
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 203 '^' 80 '=>' 155
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 this-> (2) [53, 194] args-> [155]

我们记let md5v = E1EFCB705902FAD5BFD7F8C3CA904EF0

16是每组都一样的固定值：

12是fmap[md5v[4]]

11是fmap[md5v[4+1]]

80是arr[2]

第3组：

vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 7 '*' 16 '=>' 112
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 3 '*' 2 '=>' 6
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 6 '+' 1 '=>' 7
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 112 '+' 0 '=>' 112
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 112 '^' 68 '=>' 52
vendor.chunk.b71d8ba4d37617cb2e8d.js?max_age=2592000:1 this-> (3) [53, 194, 155] args-> [52]

我们记let md5v = E1EFCB705902FAD5BFD7F8C3CA904EF0

16是每组都一样的固定值：

7是fmap[md5v[6]]

0是fmap[md5v[6+1]]

68是arr[3]

那么，第i组：

(fmap[md5v[i*2]] * 16 + fmap[md5v[i*2+1]]) ^ arr[i]

js代码为：

function get_arr_16(str32){
    let ans = [];
    let fmap = {"0":0,"1":1,"2":2,"3":3,"4":4,"5":5,"6":6,"7":7,"8":8,"9":9,"A":10,"B":11,"C":12,"D":13,"E":14,"F":15}
    let arr  = [212,45,80,68,195,163,163,203,157,220,254,91,204,79,104,6];
    for (let i = 0; i < 16; i++) {
        ans.push((fmap[str32[i*2]]*16 + fmap[str32[i*2+1]])^arr[i])
    }
    console.log(ans)
    return ans;
}

综上所有逻辑结束。

3.验证：

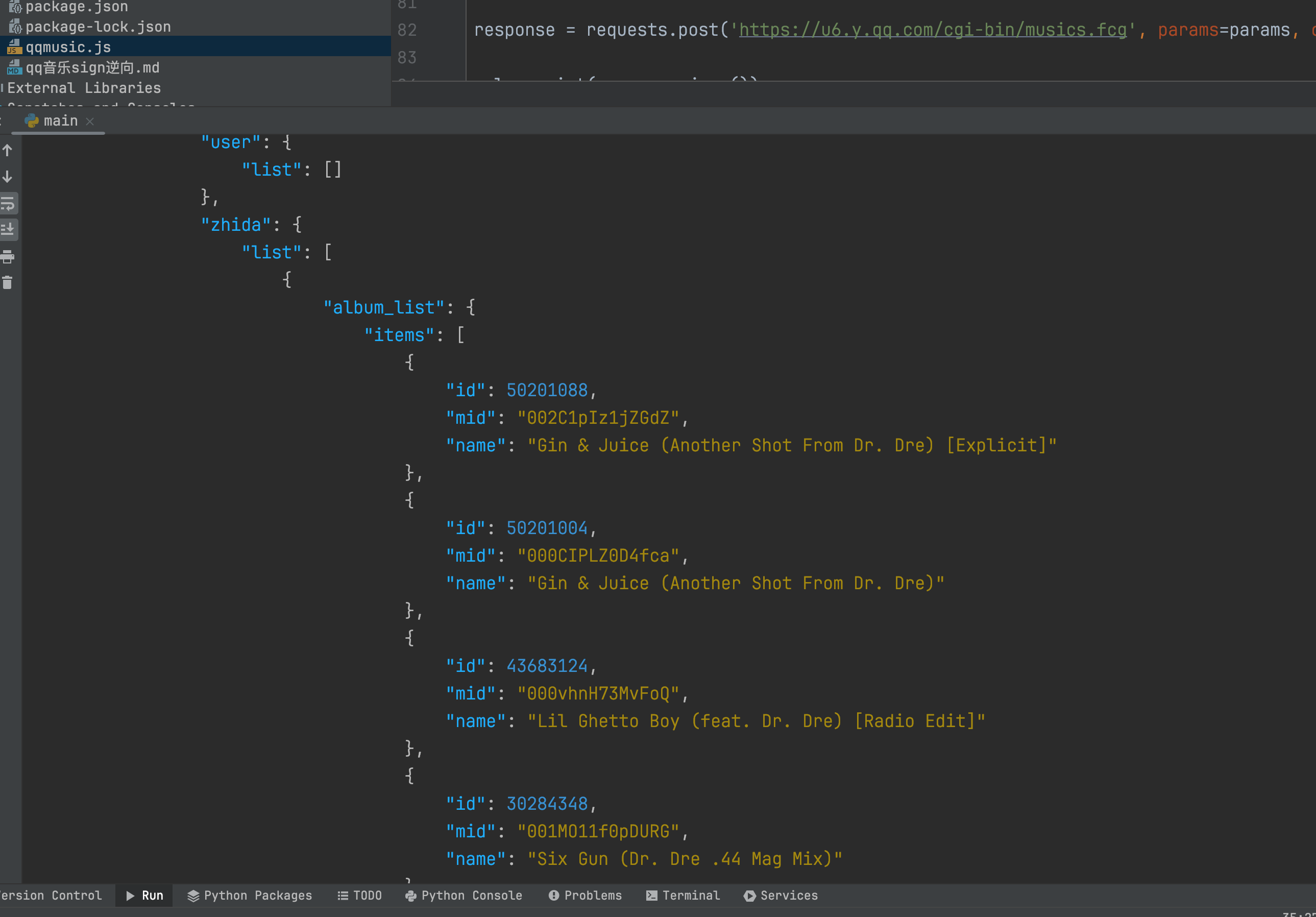

image-20240529114622246
