vue2.7源码解析上

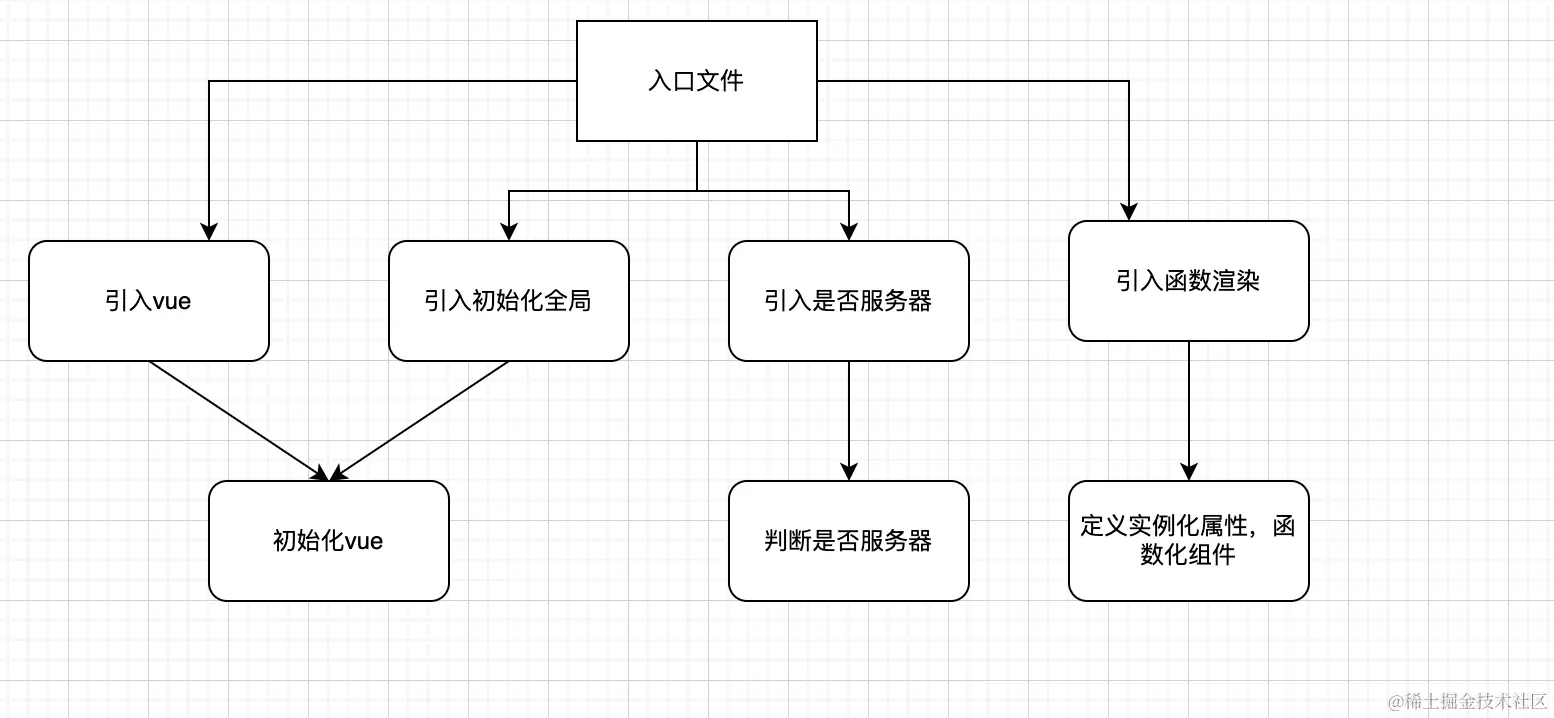

vue 入口文件 vue/src/core/index.ts

1.初始化initGlobalAPI(Vue) 2.定义实例属性 Vue.prototype.$isServer 3.定义实例属性 Vue.prototype.$ssrContext 4.定义实例属性 FunctionalRenderContext 5.定义vue版本

// 封装类型的入口
import Vue from './instance/index'
import { initGlobalAPI } from './global-api/index'
import { isServerRendering } from 'core/util/env'
import { FunctionalRenderContext } from 'core/vdom/create-functional-component'
import { version } from 'v3'

// 初始化
initGlobalAPI(Vue)

//定义实例属性 Vue.prototype.$isServer
// 用于当前判断vue 是否服务器运行
Object.defineProperty(Vue.prototype, '$isServer', {
  get: isServerRendering
})
// 定义实例属性 Vue.prototype.$ssrContext
// 服务器渲染内容
Object.defineProperty(Vue.prototype, '$ssrContext', {
  get() {
    /* istanbul ignore next */
    return this.$vnode && this.$vnode.ssrContext
  }
})

// expose FunctionalRenderContext for ssr runtime helper installation
//定义实例属性 函数化组件
Object.defineProperty(Vue, 'FunctionalRenderContext', {
  value: FunctionalRenderContext
})

Vue.version = version

export default Vue

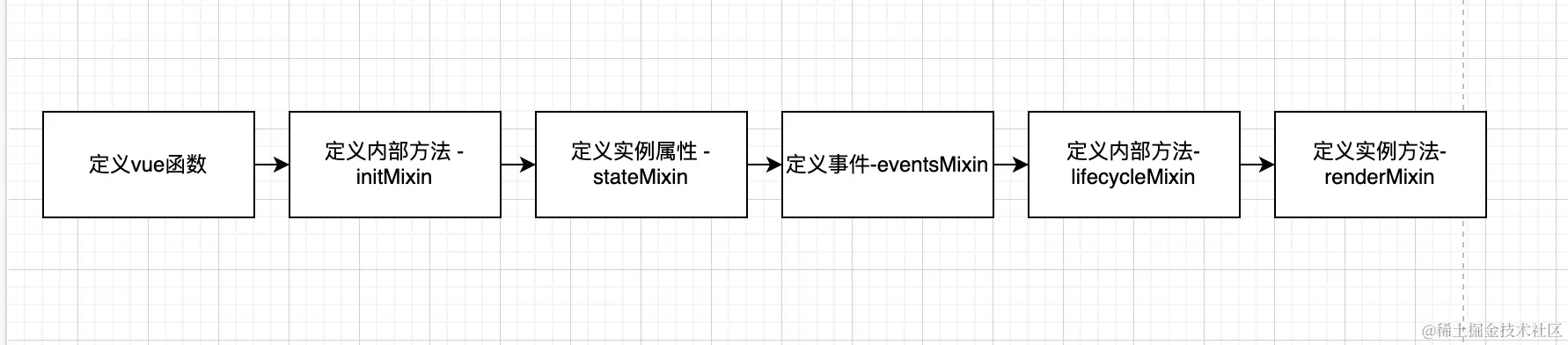

一、进阶看 vue对象 vue/src/core/instance/index.ts

import { initMixin } from './init'
import { stateMixin } from './state'
import { renderMixin } from './render'
import { eventsMixin } from './events'
import { lifecycleMixin } from './lifecycle'
import { warn } from '../util/index'
import type { GlobalAPI } from 'types/global-api'

// Vue 本体
function Vue(options) {
  // 使用性的校验
  if (__DEV__ && !(this instanceof Vue)) {
    warn('Vue is a constructor and should be called with the `new` keyword')
  }

  // 初始化 Vue.prototype._init
  this._init(options)
}

// 初始化vue主要模块
//@ts-expect-error Vue has function type
// 定义内部方法_init：Vue.prototype._init
initMixin(Vue)
//@ts-expect-error Vue has function type
//定义实例属性：Vue.prototype.$data, $props;实例方法：$set，$delete，$watch
stateMixin(Vue)
//@ts-expect-error Vue has function type
//定义关于事件的实例方法：Vue.prototype.$on Vue.prototype.$off Vue.prototype.$once Vue.prototype.$emit
eventsMixin(Vue)
//@ts-expect-error Vue has function type
 // 定义内部方法_update；定义实例方法：$forceUpdate $destroy
lifecycleMixin(Vue)
//@ts-expect-error Vue has function type
// 定义实例方法$nextTick 、内部方法_render
renderMixin(Vue)

export default Vue as unknown as GlobalAPI

先看一下 initMixin吧 vue/src/core/instance/init.ts

1. uid => 节点的索引自增1，每个组件初始化做的唯一标识
2. 性能检测
3. 全局配置合并 options
4. 定义实例私有属性 vm._self = vm
5. 执行initLifecycle(vm) 确认组件的父子关系；初始化实例属性vm.$parent、 vm.$root 、vm.$children、 vm.$refs；初识化内部相关属性
6. 执行initEvents(vm) 将父组件的自定义事件传递给子组件；初始化实例内部属性_events（事件中心）、_hasHookEvent；
7. 执行initRender(vm) 提供将render函数转为vnode的方法；初始化实例属性$slots、$scopedSlots；定义实例方法$createElement；定义响应式属性：$attrs、$listeners；
8. 调用callHook(vm, 'beforeCreate', undefined, false /* setContext */) ， 执行组件的beforeCreate钩子
9. initInjections(vm)
10. initState(vm)，对实例的选项props、data、computed、watch、methods初始化
11. initProvide(vm)
12. callHook(vm, 'created')

import config from '../config'
import { initProxy } from './proxy'
import { initState } from './state'
import { initRender } from './render'
import { initEvents } from './events'
import { mark, measure } from '../util/perf'
import { initLifecycle, callHook } from './lifecycle'
import { initProvide, initInjections } from './inject'
import { extend, mergeOptions, formatComponentName } from '../util/index'
import type { Component } from 'types/component'
import type { InternalComponentOptions } from 'types/options'
import { EffectScope } from 'v3/reactivity/effectScope'

let uid = 0

export function initMixin(Vue: typeof Component) {
  Vue.prototype._init = function (options?: Record<string, any>) {
    const vm: Component = this
    // uid => 节点的索引
    vm._uid = uid++

    // 性能检测
    let startTag, endTag
    /* istanbul ignore if */
    if (__DEV__ && config.performance && mark) {
      startTag = `vue-perf-start:${vm._uid}`
      endTag = `vue-perf-end:${vm._uid}`
      mark(startTag)
    }

    // a flag to mark this as a Vue instance without having to do instanceof
    // check
    vm._isVue = true
    // avoid instances from being observed
    vm.__v_skip = true
    // effect scope
    vm._scope = new EffectScope(true /* detached */)
    vm._scope._vm = true
    // 全局配置合并进入
    if (options && options._isComponent) {
      // optimize internal component instantiation
      // since dynamic options merging is pretty slow, and none of the
      // internal component options needs special treatment.
      initInternalComponent(vm, options as any)
    } else {
      vm.$options = mergeOptions(
        resolveConstructorOptions(vm.constructor as any),
        options || {},
        vm
      )
    }
    /* istanbul ignore else */
    if (__DEV__) {
      initProxy(vm)
    } else {
      vm._renderProxy = vm
    }


    vm._self = vm
    initLifecycle(vm)
    initEvents(vm)
    initRender(vm)

    callHook(vm, 'beforeCreate', undefined, false /* setContext */)

    initInjections(vm)
    initState(vm)
    initProvide(vm)

    callHook(vm, 'created')

    /* istanbul ignore if */
    if (__DEV__ && config.performance && mark) {
      vm._name = formatComponentName(vm, false)
      mark(endTag)
      measure(`vue ${vm._name} init`, startTag, endTag)
    }

    if (vm.$options.el) {
      vm.$mount(vm.$options.el)
    }
  }
}

export function initInternalComponent(
  vm: Component,
  options: InternalComponentOptions
) {
  const opts = (vm.$options = Object.create((vm.constructor as any).options))
  // doing this because it's faster than dynamic enumeration.
  const parentVnode = options._parentVnode
  opts.parent = options.parent
  opts._parentVnode = parentVnode

  const vnodeComponentOptions = parentVnode.componentOptions!
  opts.propsData = vnodeComponentOptions.propsData
  opts._parentListeners = vnodeComponentOptions.listeners
  opts._renderChildren = vnodeComponentOptions.children
  opts._componentTag = vnodeComponentOptions.tag

  if (options.render) {
    opts.render = options.render
    opts.staticRenderFns = options.staticRenderFns
  }
}

export function resolveConstructorOptions(Ctor: typeof Component) {
  let options = Ctor.options
  if (Ctor.super) {
    const superOptions = resolveConstructorOptions(Ctor.super)
    const cachedSuperOptions = Ctor.superOptions
    if (superOptions !== cachedSuperOptions) {
      // super option changed,
      // need to resolve new options.
      Ctor.superOptions = superOptions
      // check if there are any late-modified/attached options (#4976)
      const modifiedOptions = resolveModifiedOptions(Ctor)
      // update base extend options
      if (modifiedOptions) {
        extend(Ctor.extendOptions, modifiedOptions)
      }
      options = Ctor.options = mergeOptions(superOptions, Ctor.extendOptions)
      if (options.name) {
        options.components[options.name] = Ctor
      }
    }
  }
  return options
}

function resolveModifiedOptions(
  Ctor: typeof Component
): Record<string, any> | null {
  let modified
  const latest = Ctor.options
  const sealed = Ctor.sealedOptions
  for (const key in latest) {
    if (latest[key] !== sealed[key]) {
      if (!modified) modified = {}
      modified[key] = latest[key]
    }
  }
  return modified
}

vue2.6.12源码学习

二、查看一下 initGlobalAPI vue/src/core/global-api/index.ts

1. 劫持Vue.config => 获取到config同时提供告警，警告不要直接对config进行改动
2. 完善了vue核心工具和生态 Vue.util = { warn, extend, mergeOptions, defineReactive }
3. 定义全局 set、delete、nextTick
4. 定义全局observable
5. 定义全局 options，Vue.options.components   Vue.options.directives    Vue.options.filters
6. 全局钩子的初始化 initUse(Vue) initMixin(Vue) initExtend(Vue) initAssetRegisters(Vue)

import config from '../config'
import { initUse } from './use'
import { initMixin } from './mixin'
import { initExtend } from './extend'
import { initAssetRegisters } from './assets'
import { set, del } from '../observer/index'
import { ASSET_TYPES } from 'shared/constants'
import builtInComponents from '../components/index'
import { observe } from 'core/observer/index'

import {
  warn,
  extend,
  nextTick,
  mergeOptions,
  defineReactive
} from '../util/index'
import type { GlobalAPI } from 'types/global-api'

// 对于除去vue本身能力之外进行了全局api的挂载
export function initGlobalAPI(Vue: GlobalAPI) {
  // config
  const configDef: Record<string, any> = {}
  configDef.get = () => config
  if (__DEV__) {
    configDef.set = () => {
      warn(
        'Do not replace the Vue.config object, set individual fields instead.'
      )
    }
  }

  // 劫持Vue.config => 获取到config同时提供告警，警告不要直接对config进行改动
  Object.defineProperty(Vue, 'config', configDef)

  // exposed util methods.
  // NOTE: these are not considered part of the public API - avoid relying on
  // them unless you are aware of the risk.
  // 完善了vue核心工具和生态
  Vue.util = {
    warn,
    extend,
    mergeOptions,
    defineReactive
  }

  Vue.set = set
  Vue.delete = del
  Vue.nextTick = nextTick

  // 2.6 explicit observable API
  Vue.observable = <T>(obj: T): T => {
    observe(obj)
    return obj
  }

  Vue.options = Object.create(null)
  ASSET_TYPES.forEach(type => {
    Vue.options[type + 's'] = Object.create(null)
  })

  // this is used to identify the "base" constructor to extend all plain-object
  // components with in Weex's multi-instance scenarios.
  Vue.options._base = Vue

  extend(Vue.options.components, builtInComponents)

  // 全局钩子的初始化
  initUse(Vue)
  initMixin(Vue)
  initExtend(Vue)
  initAssetRegisters(Vue)
}

查看一下 observe vue/src/core/observer/index.ts

import Dep from './dep'
import VNode from '../vdom/vnode'
import { arrayMethods } from './array'
import {
  def,
  warn,
  hasOwn,
  isArray,
  hasProto,
  isPlainObject,
  isPrimitive,
  isUndef,
  isValidArrayIndex,
  isServerRendering,
  hasChanged,
  noop
} from '../util/index'
import { isReadonly, isRef, TrackOpTypes, TriggerOpTypes } from '../../v3'

const arrayKeys = Object.getOwnPropertyNames(arrayMethods)

const NO_INIITIAL_VALUE = {}

/**
 * In some cases we may want to disable observation inside a component's
 * update computation.
 */
export let shouldObserve: boolean = true

export function toggleObserving(value: boolean) {
  shouldObserve = value
}

// ssr mock dep
const mockDep = {
  notify: noop,
  depend: noop,
  addSub: noop,
  removeSub: noop
} as Dep

/**
 * Observer class that is attached to each observed
 * object. Once attached, the observer converts the target
 * object's property keys into getter/setters that
 * collect dependencies and dispatch updates.
 */
export class Observer {
  dep: Dep
  vmCount: number // number of vms that have this object as root $data

  constructor(public value: any, public shallow = false, public mock = false) {
    // this.value = value
    this.dep = mock ? mockDep : new Dep()
    this.vmCount = 0
    def(value, '__ob__', this)
    if (isArray(value)) {
      if (!mock) {
        if (hasProto) {
          /* eslint-disable no-proto */
          ;(value as any).__proto__ = arrayMethods
          /* eslint-enable no-proto */
        } else {
          for (let i = 0, l = arrayKeys.length; i < l; i++) {
            const key = arrayKeys[i]
            def(value, key, arrayMethods[key])
          }
        }
      }
      if (!shallow) {
        this.observeArray(value)
      }
    } else {
      /**
       * Walk through all properties and convert them into
       * getter/setters. This method should only be called when
       * value type is Object.
       */
      const keys = Object.keys(value)
      for (let i = 0; i < keys.length; i++) {
        const key = keys[i]
        defineReactive(value, key, NO_INIITIAL_VALUE, undefined, shallow, mock)
      }
    }
  }

  /**
   * Observe a list of Array items.
   */
  observeArray(value: any[]) {
    for (let i = 0, l = value.length; i < l; i++) {
      observe(value[i], false, this.mock)
    }
  }
}

// helpers

/**
 * Attempt to create an observer instance for a value,
 * returns the new observer if successfully observed,
 * or the existing observer if the value already has one.
 */
export function observe(
  value: any,
  shallow?: boolean,
  ssrMockReactivity?: boolean
): Observer | void {
  if (value && hasOwn(value, '__ob__') && value.__ob__ instanceof Observer) {
    return value.__ob__
  }
  if (
    shouldObserve &&
    (ssrMockReactivity || !isServerRendering()) &&
    (isArray(value) || isPlainObject(value)) &&
    Object.isExtensible(value) &&
    !value.__v_skip /* ReactiveFlags.SKIP */ &&
    !isRef(value) &&
    !(value instanceof VNode)
  ) {
    return new Observer(value, shallow, ssrMockReactivity)
  }
}

/**
 * Define a reactive property on an Object.
 */
export function defineReactive(
  obj: object,
  key: string,
  val?: any,
  customSetter?: Function | null,
  shallow?: boolean,
  mock?: boolean
) {
  // 依赖维护
  const dep = new Dep()

  const property = Object.getOwnPropertyDescriptor(obj, key)
  if (property && property.configurable === false) {
    return
  }

  // cater for pre-defined getter/setters
  const getter = property && property.get
  const setter = property && property.set
  if (
    (!getter || setter) &&
    (val === NO_INIITIAL_VALUE || arguments.length === 2)
  ) {
    val = obj[key]
  }

  // obj.name = 'zhaowa'

  let childOb = !shallow && observe(val, false, mock)
  Object.defineProperty(obj, key, {
    enumerable: true,
    configurable: true,
    get: function reactiveGetter() {
      const value = getter ? getter.call(obj) : val
      if (Dep.target) {
        if (__DEV__) {
          dep.depend({
            target: obj,
            type: TrackOpTypes.GET,
            key
          })
        } else {
          dep.depend()
        }
        if (childOb) {
          childOb.dep.depend()
          if (isArray(value)) {
            dependArray(value)
          }
        }
      }
      return isRef(value) && !shallow ? value.value : value
    },
    set: function reactiveSetter(newVal) {
      const value = getter ? getter.call(obj) : val
      if (!hasChanged(value, newVal)) {
        return
      }
      if (__DEV__ && customSetter) {
        customSetter()
      }
      if (setter) {
        setter.call(obj, newVal)
      } else if (getter) {
        // #7981: for accessor properties without setter
        return
      } else if (!shallow && isRef(value) && !isRef(newVal)) {
        value.value = newVal
        return
      } else {
        val = newVal
      }
      childOb = !shallow && observe(newVal, false, mock)
      if (__DEV__) {
        dep.notify({
          type: TriggerOpTypes.SET,
          target: obj,
          key,
          newValue: newVal,
          oldValue: value
        })
      } else {
        dep.notify()
      }
    }
  })

  return dep
}

/**
 * Set a property on an object. Adds the new property and
 * triggers change notification if the property doesn't
 * already exist.
 */
export function set<T>(array: T[], key: number, value: T): T
export function set<T>(object: object, key: string | number, value: T): T
export function set(
  target: any[] | Record<string, any>,
  key: any,
  val: any
): any {
  if (__DEV__ && (isUndef(target) || isPrimitive(target))) {
    warn(
      `Cannot set reactive property on undefined, null, or primitive value: ${target}`
    )
  }
  if (isReadonly(target)) {
    __DEV__ && warn(`Set operation on key "${key}" failed: target is readonly.`)
    return
  }
  const ob = (target as any).__ob__
  if (isArray(target) && isValidArrayIndex(key)) {
    target.length = Math.max(target.length, key)
    target.splice(key, 1, val)
    // when mocking for SSR, array methods are not hijacked
    if (ob && !ob.shallow && ob.mock) {
      observe(val, false, true)
    }
    return val
  }
  if (key in target && !(key in Object.prototype)) {
    target[key] = val
    return val
  }
  if ((target as any)._isVue || (ob && ob.vmCount)) {
    __DEV__ &&
      warn(
        'Avoid adding reactive properties to a Vue instance or its root $data ' +
          'at runtime - declare it upfront in the data option.'
      )
    return val
  }
  if (!ob) {
    target[key] = val
    return val
  }
  defineReactive(ob.value, key, val, undefined, ob.shallow, ob.mock)
  if (__DEV__) {
    ob.dep.notify({
      type: TriggerOpTypes.ADD,
      target: target,
      key,
      newValue: val,
      oldValue: undefined
    })
  } else {
    ob.dep.notify()
  }
  return val
}

/**
 * Delete a property and trigger change if necessary.
 */
export function del<T>(array: T[], key: number): void
export function del(object: object, key: string | number): void
export function del(target: any[] | object, key: any) {
  if (__DEV__ && (isUndef(target) || isPrimitive(target))) {
    warn(
      `Cannot delete reactive property on undefined, null, or primitive value: ${target}`
    )
  }
  if (isArray(target) && isValidArrayIndex(key)) {
    target.splice(key, 1)
    return
  }
  const ob = (target as any).__ob__
  if ((target as any)._isVue || (ob && ob.vmCount)) {
    __DEV__ &&
      warn(
        'Avoid deleting properties on a Vue instance or its root $data ' +
          '- just set it to null.'
      )
    return
  }
  if (isReadonly(target)) {
    __DEV__ &&
      warn(`Delete operation on key "${key}" failed: target is readonly.`)
    return
  }
  if (!hasOwn(target, key)) {
    return
  }
  delete target[key]
  if (!ob) {
    return
  }
  if (__DEV__) {
    ob.dep.notify({
      type: TriggerOpTypes.DELETE,
      target: target,
      key
    })
  } else {
    ob.dep.notify()
  }
}

/**
 * Collect dependencies on array elements when the array is touched, since
 * we cannot intercept array element access like property getters.
 */
function dependArray(value: Array<any>) {
  for (let e, i = 0, l = value.length; i < l; i++) {
    e = value[i]
    if (e && e.__ob__) {
      e.__ob__.dep.depend()
    }
    if (isArray(e)) {
      dependArray(e)
    }
  }
}

进阶查看一下 Dep vue/src/core/observer/dep.ts

import config from '../config'
import { DebuggerOptions, DebuggerEventExtraInfo } from 'v3'

let uid = 0

const pendingCleanupDeps: Dep[] = []

export const cleanupDeps = () => {
  for (let i = 0; i < pendingCleanupDeps.length; i++) {
    const dep = pendingCleanupDeps[i]
    dep.subs = dep.subs.filter(s => s)
    dep._pending = false
  }
  pendingCleanupDeps.length = 0
}

/**
 * @internal
 */
export interface DepTarget extends DebuggerOptions {
  id: number
  addDep(dep: Dep): void
  update(): void
}

/**
 * A dep is an observable that can have multiple
 * directives subscribing to it.
 * @internal
 */
// Dep存储依赖集合
// target - 当前正在处理的目标
export default class Dep {
  static target?: DepTarget | null
  id: number
  subs: Array<DepTarget | null>
  // pending subs cleanup
  _pending = false

  constructor() {
    // id索引
    this.id = uid++
    // sub存储依赖项目
    this.subs = []
  }

  addSub(sub: DepTarget) {
    this.subs.push(sub)
  }

  removeSub(sub: DepTarget) {
    // #12696 deps with massive amount of subscribers are extremely slow to
    // clean up in Chromium
    // to workaround this, we unset the sub for now, and clear them on
    // next scheduler flush.
    this.subs[this.subs.indexOf(sub)] = null
    if (!this._pending) {
      this._pending = true
      pendingCleanupDeps.push(this)
    }
  }

  // 依赖的添加挂载
  depend(info?: DebuggerEventExtraInfo) {
    if (Dep.target) {
      Dep.target.addDep(this)
      if (__DEV__ && info && Dep.target.onTrack) {
        Dep.target.onTrack({
          effect: Dep.target,
          ...info
        })
      }
    }
  }

  // 更新
  notify(info?: DebuggerEventExtraInfo) {
    // stabilize the subscriber list first
    const subs = this.subs.filter(s => s) as DepTarget[]
    if (__DEV__ && !config.async) {
      // subs aren't sorted in scheduler if not running async
      // we need to sort them now to make sure they fire in correct
      // order
      subs.sort((a, b) => a.id - b.id)
    }
    // 遍历所有依赖
    for (let i = 0, l = subs.length; i < l; i++) {
      const sub = subs[i]
      if (__DEV__ && info) {
        sub.onTrigger &&
          sub.onTrigger({
            effect: subs[i],
            ...info
          })
      }
      sub.update()
    }
  }
}

// The current target watcher being evaluated.
// This is globally unique because only one watcher
// can be evaluated at a time.
Dep.target = null
const targetStack: Array<DepTarget | null | undefined> = []

export function pushTarget(target?: DepTarget | null) {
  targetStack.push(target)
  Dep.target = target
}

export function popTarget() {
  targetStack.pop()
  Dep.target = targetStack[targetStack.length - 1]
}
