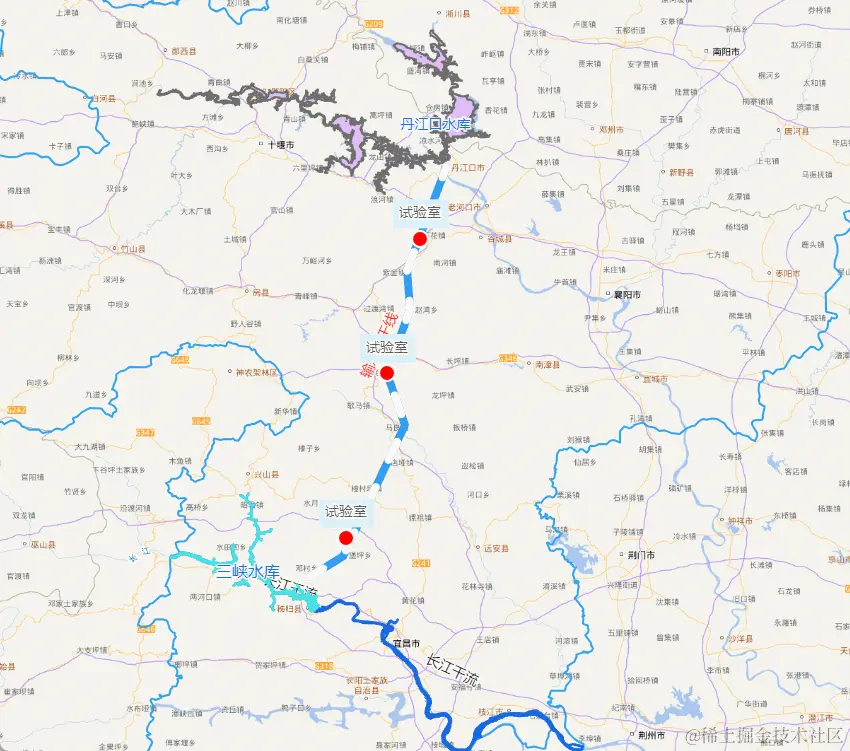

效果展示
openlayers引入天地图
使用openlayers加载天地图，并初始化地图
const projection = get('EPSG:4326');
const projectionExtent = projection.getExtent();
const size = getWidth(projectionExtent) / 256;
const resolutions = [];
for (let z = 2; z < 19; ++z) {
resolutions[z] = size / Math.pow(2, z);
}
// 初始化创建地图
initMap(layerType) {
const TIANDI_KEY = '使用自己的天地图tk';
const layerTypeMap = {
SL: ['vec', 'cva'], // [矢量底图, 矢量注记]
YX: ['img', 'cia'], // [影像底图, 影像注记]
DX: ['ter', 'cta'] // [地形晕渲, 地形注记]
};
// c: 经纬度投影 w: 球面墨卡托投影
const matrixSet = 'c';
// 底图
const baseMap = new TileLayer({
source: new WMTS({
url: `http://t{0-6}.tianditu.com/${layerTypeMap[layerType][0]}_${matrixSet}/wmts?tk=${TIANDI_KEY}`,
layer: layerTypeMap[layerType][0],
matrixSet: matrixSet,
style: 'default',
crossOrigin: 'anonymous', // 解决跨域问题 如无该需求可不添加
format: 'tiles',
wrapX: true,
tileGrid: new WMTSTileGrid({
origin: getTopLeft(projectionExtent),
resolutions: resolutions,
matrixIds: ['0', '1', '2', '3', '4', '5', '6', '7', '8', '9', '10', '11', '12', '13', '14']
})
})
});
// 标注
const labelMap = new TileLayer({
source: new WMTS({
url: `http://t{0-6}.tianditu.com/${layerTypeMap[layerType][1]}_${matrixSet}/wmts?tk=${TIANDI_KEY}`,
layer: layerTypeMap[layerType][1],
matrixSet: matrixSet,
style: 'default',
crossOrigin: 'anonymous', // 解决跨域问题 如无该需求可不添加
format: 'tiles',
wrapX: true,
tileGrid: new WMTSTileGrid({
origin: getTopLeft(projectionExtent),
resolutions: resolutions,
matrixIds: ['0', '1', '2', '3', '4', '5', '6', '7', '8', '9', '10', '11', '12', '13', '14']
})
})
});
// 视图
const viewMap = new View({
center: [111.85891, 31.70299],
projection: projection,
zoom: 8.5,
maxZoom: 14,
minZoom: 1
});
this.gisMap = new Map({
target: this.$refs.map,
layers: [baseMap, labelMap],
view: viewMap
});
this.drawGCBoundary();
this.drawCJ();
this.drawSX();
this.drawDJK();
PointLonLat.forEach(item => {
this.createPoint(item);
});
}
openlayers绘制坐标点
// 绘制试验室坐标点
createPoint(value) {
const { name, lonLat } = value;
const style = new Style({
image: new CircleStyle({
radius: 8,
fill: new Fill({ color: 'red' }),
stroke: new Stroke({ color: 'white', width: 2 })
}),
text: new Text({
text: name,
overflow: true,
offsetY: -25,
fill: new Fill({ color: '#5d5d5c' }),
stroke: new Stroke({ color: '#fff', width: 2 }),
backgroundFill: new Fill({ color: '#dcf1f8' }),
padding: [5, 5, 5, 5],
font: '14px Calibri,sans-serif',
textAlign: 'center',
textBaseline: 'middle'
})
});
const pointFeature = new Feature({
geometry: new Point(lonLat)
});
const vectorSource = new VectorSource({
features: [pointFeature]
});
const vectorLayer = new VectorLayer({
source: vectorSource,
zIndex: 1000,
style
});
this.gisMap.addLayer(vectorLayer);
}
openlayers绘制线
createVectorSource、drawVectorLayer可以通用于线、面绘制中将图层添加到地图上面。
// 创建矢量数据
createVectorSource(geojsonData) {
const vectorSource = new VectorSource({
features: new GeoJSON().readFeatures(geojsonData)
});
return vectorSource;
},
// 绘制矢量数据图层
drawVectorLayer(data, style) {
const vectorLayer = new VectorLayer({
source: this.createVectorSource(data),
style
});
this.gisMap.addLayer(vectorLayer);
},
// 绘制工程边界
drawGCBoundary() {
const style = new Style({
stroke: new Stroke({ color: '#32a3f0', width: 2 })
});
this.drawVectorLayer(GCBoundary, style);
},
openlayers绘制面
// 绘制三峡水库图层
drawSX() {
const style = new Style({
fill: new Fill({ color: '#48e4e5' }),
stroke: new Stroke({ color: '#48e4e5', width: 2 }),
text: new Text({
text: '三峡水库',
overflow: true,
offsetX: 15,
offsetY: 20,
fill: new Fill({ color: '#2068de' }),
stroke: new Stroke({ color: '#fff', width: 2 }),
font: '16px Calibri,sans-serif',
textAlign: 'center',
textBaseline: 'middle'
})
});
this.drawVectorLayer(SX, style);
},
// 绘制丹江口水库图层
drawDJK() {
const style = new Style({
fill: new Fill({ color: '#e1bcf7' }),
stroke: new Stroke({ color: '#6e6e6e', width: 2 }),
text: new Text({
text: '丹江口水库',
overflow: true,
placement: 'line',
fill: new Fill({ color: '#2068de' }),
stroke: new Stroke({ color: '#fff', width: 2 }),
font: '14px Calibri,sans-serif',
textAlign: 'center',
textBaseline: 'middle'
})
});
this.drawVectorLayer(DJK, style);
},
// 绘制长江干流图层
drawCJ() {
const style = new Style({
fill: new Fill({ color: '#1769e2' }),
stroke: new Stroke({ color: '#1769e2', width: 2 }),
text: new Text({
text: '长江干流',
overflow: true,
placement: 'line',
fill: new Fill({ color: '#000' }),
stroke: new Stroke({ color: '#fff', width: 2 }),
font: '14px Calibri,sans-serif',
textAlign: 'center',
textBaseline: 'middle'
})
});
this.drawVectorLayer(CJ, style);
}
openlayers实现流线效果
绘制两个线，一个是底部的固定的线，一个是流动的管道线，再使用动画效果实现管道线偏移，实现流动的效果
drawYJBHLine() {
const style = new Style({
stroke: new Stroke({ color: '#349ef4', width: 8 }),
text: new Text({
text: '文本',
overflow: true,
rotation: -20,
offsetX: 30,
offsetY: -25,
fill: new Fill({ color: '#fe2114' }),
stroke: new Stroke({ color: '#fff', width: 2 }),
font: '14px Calibri,sans-serif',
textAlign: 'center',
textBaseline: 'middle'
})
});
this.drawVectorLayer(YJBH, style);
},
// 绘制流动线
drawFlowLine() {
const vectorLayer = new VectorLayer({
source: this.createVectorSource(YJBH),
zIndex: 900,
style: new Style({
stroke: new Stroke({
color: 'rgba(255,255,255,1)',
width: 8,
lineDash: [20, 30], // 虚线模式
lineDashOffset: 0
})
})
});
this.gisMap.addLayer(vectorLayer);
this.animationLine(vectorLayer);
},
// 线动画效果
animationLine(flowLineLayer) {
const feature = flowLineLayer.getSource().getFeatures()[0];
setInterval(() => {
const style = feature.getStyle();
if (!style) {
feature.setStyle(
new Style({
stroke: new Stroke({
color: 'rgba(255,255,255,1)',
width: 8,
lineDash: [20, 30], // 虚线模式
lineDashOffset: 0
})
})
);
} else {
const lineDashOffset = feature.getStyle().getStroke().getLineDashOffset();
feature.setStyle(
new Style({
stroke: new Stroke({
color: 'rgba(255,255,255,1)',
width: 8,
lineDash: [20, 30], // 虚线模式
lineDashOffset: lineDashOffset - 0.2 // 可以控制移动的速度,（上负下正的方向移动）
})
})
);
}
});
},
