问题解读
VChart 如何设置坐标轴宽度？
问题描述

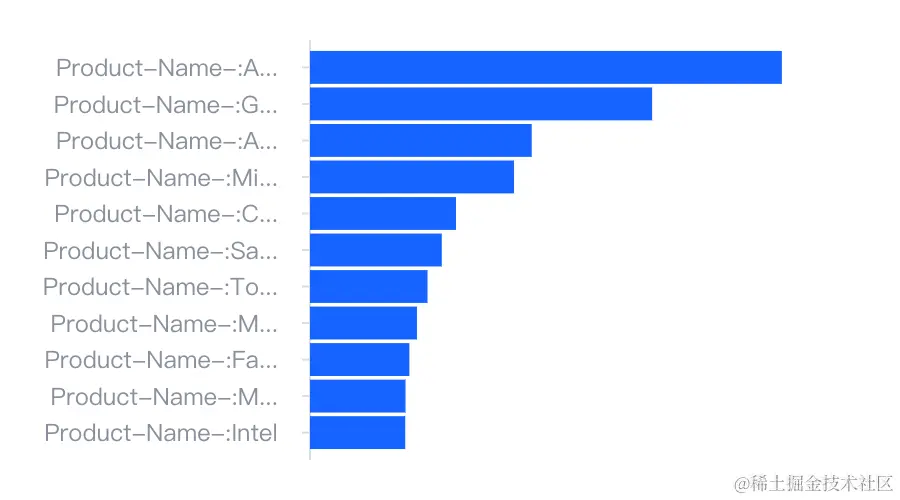

图表中坐标轴文字标签比较长，希望能增加一下坐标轴宽度，让文字显示的更多一点，该怎么配置？
解决方案
你可以配置 axes.width 来设置轴组件的宽度：
width: `50%`：配置百分比字符串，代表布局时组件宽度占图表的一半
axes: [
{
orient: 'left',
width: `50%`
}
],
width: 100：配置固定数值，代表布局时组件宽度的像素宽度

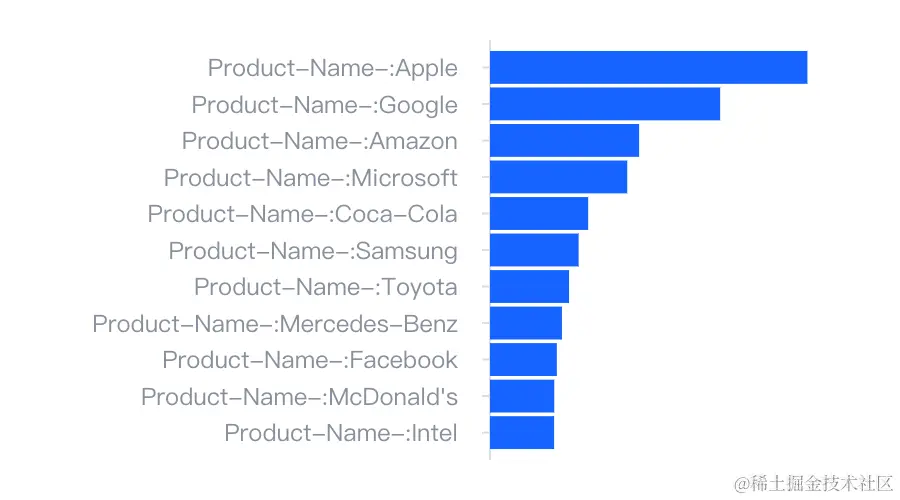

代码示例
🔔 下面的代码，可以复制粘贴到编辑器中查看效果
const spec = {
type: 'bar',
width:450,
height: 250,
data: [
{
id: 'barData',
values: [
{
"name": "Product-Name-:Apple",
"value": 214480
},
{
"name": "Product-Name-:Google",
"value": 155506
},
{
"name": "Product-Name-:Amazon",
"value": 100764
},
{
"name": "Product-Name-:Microsoft",
"value": 92715
},
{
"name": "Product-Name-:Coca-Cola",
"value": 66341
},
{
"name": "Product-Name-:Samsung",
"value": 59890
},
{
"name": "Product-Name-:Toyota",
"value": 53404
},
{
"name": "Product-Name-:Mercedes-Benz",
"value": 48601
},
{
"name": "Product-Name-:Facebook",
"value": 45168
},
{
"name": "Product-Name-:McDonald's",
"value": 43417
},
{
"name": "Product-Name-:Intel",
"value": 43293
},
]
}
],
direction: 'horizontal',
xField: 'value',
yField: 'name',
axes: [
{
orient: 'bottom',
visible: false
},
{
orient: 'left',
width: `50%`
}
],
label: {
}
};
const vchart = new VChart(spec, { dom: CONTAINER_ID });
vchart.renderSync();
// Just for the convenience of console debugging, DO NOT COPY!
window['vchart'] = vchart;
