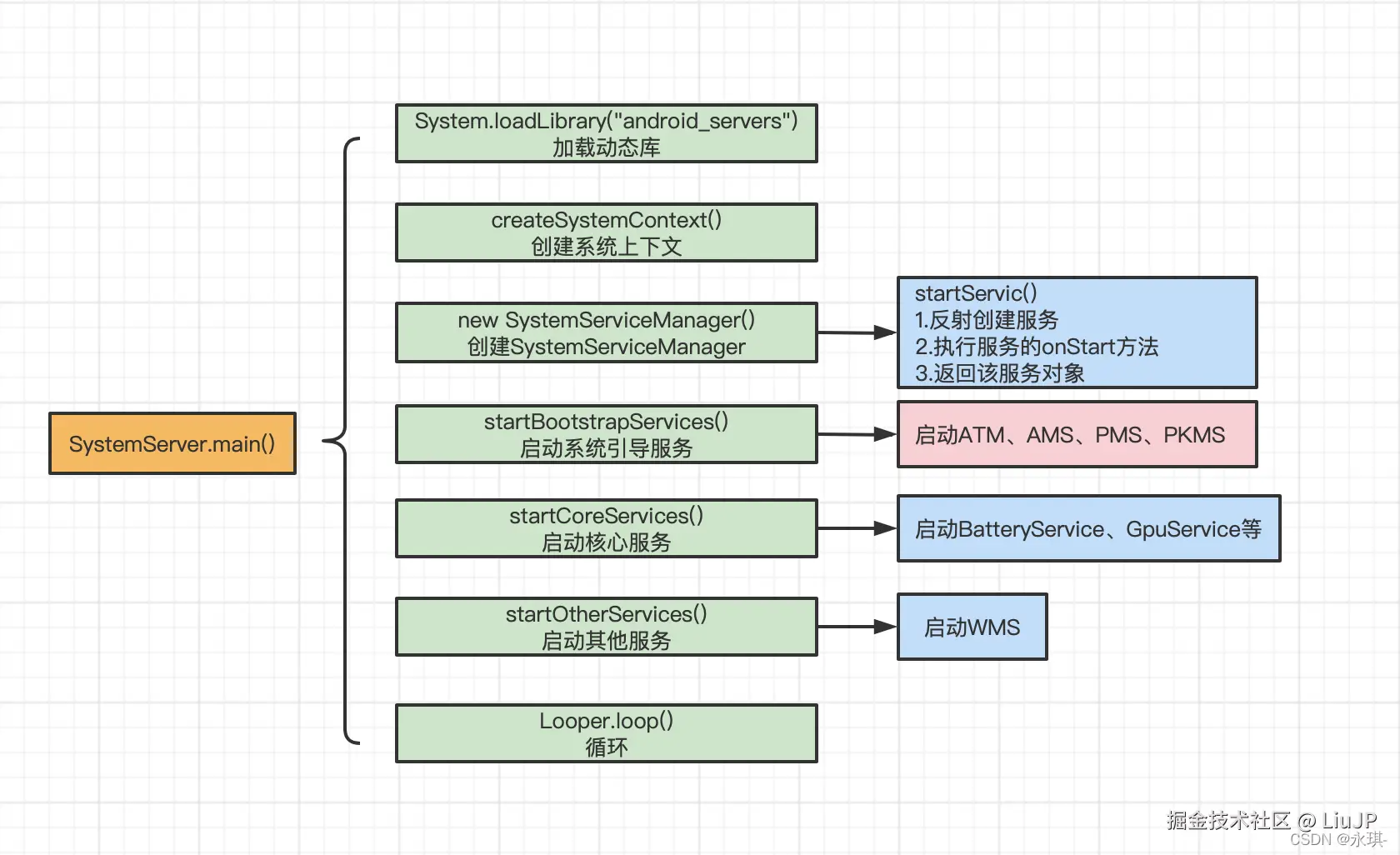

SystemServer 启动服务的流程
- AMS
管理生命周期，和用户进程；
- ATMS
ATMS 和 AMS 启动
// step 1 通过反射调用 Lifecycle 构造方法
ActivityTaskManagerService atm =
mSystemServiceManager.startService(ActivityTaskManagerService.Lifecycle.class)
.getService();
// step 2
mActivityManagerService =
ActivityManagerService.Lifecycle.startService(mSystemServiceManager, atm);
// step 3
mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
// step 4
mActivityManagerService.setInstaller(installer);
// setp 5 设置 meminfo gfxinfo dbinfo cpuinfo permission processinfo
// Set up the Application instance for the system process and get started.
t.traceBegin("SetSystemProcess");
mActivityManagerService.setSystemProcess();
t.traceEnd();
1、mSystemServiceManager.startService 通过反射调用构造方法的实现过程
/**
* Starts a service by class name.
*
* @return The service instance.
*/
public SystemService startService(String className) {
final Class<SystemService> serviceClass = loadClassFromLoader(className,
this.getClass().getClassLoader());
return startService(serviceClass);
}
/**
* Creates and starts a system service. The class must be a subclass of
* { @link com.android.server.SystemService}.
*
* @param serviceClass A Java class that implements the SystemService interface.
* @return The service instance, never null.
* @throws RuntimeException if the service fails to start.
*/
public <T extends SystemService> T startService(Class<T> serviceClass) {
try {
final String name = serviceClass.getName();
Slog.i(TAG, "Starting " + name);
Trace.traceBegin(Trace.TRACE_TAG_SYSTEM_SERVER, "StartService " + name);
// Create the service.
if (!SystemService.class.isAssignableFrom(serviceClass)) {
throw new RuntimeException("Failed to create " + name
+ ": service must extend " + SystemService.class.getName());
}
final T service;
try {
Constructor<T> constructor = serviceClass.getConstructor(Context.class);
service = constructor.newInstance(mContext);
} catch (InstantiationException ex) {
throw new RuntimeException("Failed to create service " + name
+ ": service could not be instantiated", ex);
} catch (IllegalAccessException ex) {
throw new RuntimeException("Failed to create service " + name
+ ": service must have a public constructor with a Context argument", ex);
} catch (NoSuchMethodException ex) {
throw new RuntimeException("Failed to create service " + name
+ ": service must have a public constructor with a Context argument", ex);
} catch (InvocationTargetException ex) {
throw new RuntimeException("Failed to create service " + name
+ ": service constructor threw an exception", ex);
}
startService(service);
return service;
} finally {
Trace.traceEnd(Trace.TRACE_TAG_SYSTEM_SERVER);
}
}
public void startService(@NonNull final SystemService service) {
// Register it.
mServices.add(service);
// Start it.
long time = SystemClock.elapsedRealtime();
try {
service.onStart();
} catch (RuntimeException ex) {
throw new RuntimeException("Failed to start service " + service.getClass().getName()
+ ": onStart threw an exception", ex);
}
warnIfTooLong(SystemClock.elapsedRealtime() - time, service, "onStart");
}
Lifecycle 构造方式里面创建 ATMS 服务
public static final class Lifecycle extends SystemService {
private final ActivityTaskManagerService mService;
public Lifecycle(Context context) {
super(context);
mService = new ActivityTaskManagerService(context);
}
@Override
public void onStart() {
// 把 atms 发布到 ServiceManager
publishBinderService(Context.ACTIVITY_TASK_SERVICE, mService);
mService.start();
}
@Override
public void onUnlockUser(int userId) {
synchronized (mService.getGlobalLock()) {
mService.mStackSupervisor.onUserUnlocked(userId);
}
}
@Override
public void onCleanupUser(int userId) {
synchronized (mService.getGlobalLock()) {
mService.mStackSupervisor.mLaunchParamsPersister.onCleanupUser(userId);
}
}
public ActivityTaskManagerService getService() {
return mService;
}
}
ATMS 构造方法里 创建生命周期管理类 ClientLifecycleManager
@VisibleForTesting(visibility = VisibleForTesting.Visibility.PACKAGE)
public ActivityTaskManagerService(Context context) {
mContext = context;
mFactoryTest = FactoryTest.getMode();
mSystemThread = ActivityThread.currentActivityThread();
mUiContext = mSystemThread.getSystemUiContext();
mLifecycleManager = new ClientLifecycleManager();
mInternal = new LocalService();
GL_ES_VERSION = SystemProperties.getInt("ro.opengles.version", GL_ES_VERSION_UNDEFINED);
mWindowOrganizerController = new WindowOrganizerController(this);
mTaskOrganizerController = mWindowOrganizerController.mTaskOrganizerController;
}
2、ActivityManagerService.Lifecycle.startService(mSystemServiceManager, atm);
ATM.initialize 又进入ATM
public void initialize(IntentFirewall intentFirewall, PendingIntentController intentController,
Looper looper) {
mH = new H(looper);
mUiHandler = new UiHandler();
mIntentFirewall = intentFirewall;
final File systemDir = SystemServiceManager.ensureSystemDir();
mAppWarnings = createAppWarnings(mUiContext, mH, mUiHandler, systemDir);
mCompatModePackages = new CompatModePackages(this, systemDir, mH);
mPendingIntentController = intentController;
mStackSupervisor = createStackSupervisor();
mTaskChangeNotificationController =
new TaskChangeNotificationController(mGlobalLock, mStackSupervisor, mH);
mLockTaskController = new LockTaskController(mContext, mStackSupervisor, mH);
mActivityStartController = new ActivityStartController(this);
setRecentTasks(new RecentTasks(this, mStackSupervisor));
mVrController = new VrController(mGlobalLock);
mKeyguardController = mStackSupervisor.getKeyguardController();
}

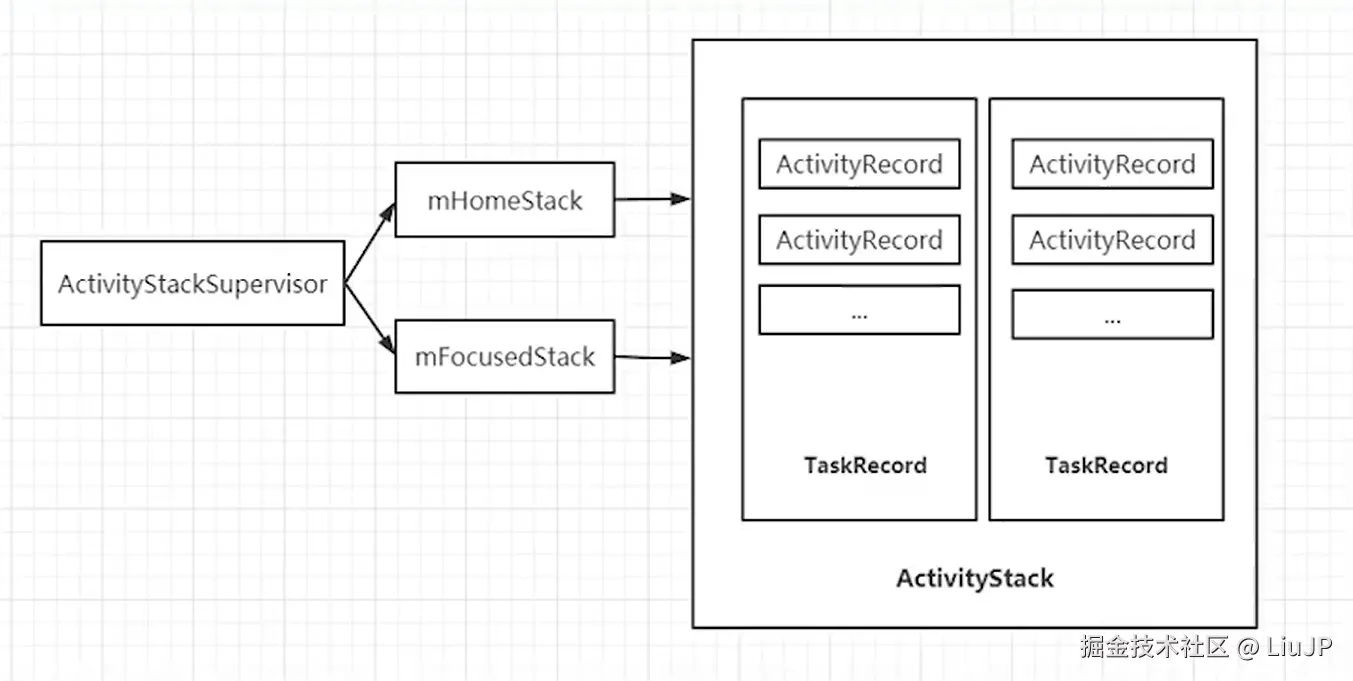

createStackSupervisor Activity栈管理
setRecentTasks 设置当前任务栈
3、mAMS.setSystemServiceManager(mSystemServiceManager);
4、mAMS.setInstaller(installer);
5、mAMS.setSystemProcess();
添加一个系统调用的 binder
public void setSystemProcess() {
try {
ServiceManager.addService(Context.ACTIVITY_SERVICE, this, /* allowIsolated= */ true,
DUMP_FLAG_PRIORITY_CRITICAL | DUMP_FLAG_PRIORITY_NORMAL | DUMP_FLAG_PROTO);
ServiceManager.addService(ProcessStats.SERVICE_NAME, mProcessStats);
ServiceManager.addService("meminfo", new MemBinder(this), /* allowIsolated= */ false,
DUMP_FLAG_PRIORITY_HIGH);
ServiceManager.addService("gfxinfo", new GraphicsBinder(this));
ServiceManager.addService("dbinfo", new DbBinder(this));
if (MONITOR_CPU_USAGE) {
ServiceManager.addService("cpuinfo", new CpuBinder(this),
/* allowIsolated= */ false, DUMP_FLAG_PRIORITY_CRITICAL);
}
ServiceManager.addService("permission", new PermissionController(this));
ServiceManager.addService("processinfo", new ProcessInfoService(this));
ServiceManager.addService("cacheinfo", new CacheBinder(this));
ApplicationInfo info = mContext.getPackageManager().getApplicationInfo(
"android", STOCK_PM_FLAGS | MATCH_SYSTEM_ONLY);
mSystemThread.installSystemApplicationInfo(info, getClass().getClassLoader());
synchronized (this) {
ProcessRecord app = mProcessList.newProcessRecordLocked(info, info.processName,
false,
0,
new HostingRecord("system"));
app.setPersistent(true);
app.pid = MY_PID;
app.getWindowProcessController().setPid(MY_PID);
app.maxAdj = ProcessList.SYSTEM_ADJ;
app.makeActive(mSystemThread.getApplicationThread(), mProcessStats);
addPidLocked(app);
mProcessList.updateLruProcessLocked(app, false, null);
updateOomAdjLocked(OomAdjuster.OOM_ADJ_REASON_NONE);
}
} catch (PackageManager.NameNotFoundException e) {
throw new RuntimeException(
"Unable to find android system package", e);
}
// Start watching app ops after we and the package manager are up and running.
mAppOpsService.startWatchingMode(AppOpsManager.OP_RUN_IN_BACKGROUND, null,
new IAppOpsCallback.Stub() {
@Override public void opChanged(int op, int uid, String packageName) {
if (op == AppOpsManager.OP_RUN_IN_BACKGROUND && packageName != null) {
if (getAppOpsManager().checkOpNoThrow(op, uid, packageName)
!= AppOpsManager.MODE_ALLOWED) {
runInBackgroundDisabled(uid);
}
}
}
});
final int[] cameraOp = {AppOpsManager.OP_CAMERA};
mAppOpsService.startWatchingActive(cameraOp, new IAppOpsActiveCallback.Stub() {
@Override
public void opActiveChanged(int op, int uid, String packageName, boolean active) {
cameraActiveChanged(uid, active);
}
});
}
