1. 打印层的尺寸时，我们只看到8个结果，而不是11个结果。剩余的3层信息去哪了？

Sequential(
  (0): Sequential(
    (0): Conv2d(1, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (1): ReLU()
    (2): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (1): Sequential(
    (0): Conv2d(16, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (1): ReLU()
    (2): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (2): Sequential(
    (0): Conv2d(32, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (1): ReLU()
    (2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (3): ReLU()
    (4): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (3): Sequential(
    (0): Conv2d(64, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (1): ReLU()
    (2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (3): ReLU()
    (4): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (4): Sequential(
    (0): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (1): ReLU()
    (2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (3): ReLU()
    (4): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (5): Flatten(start_dim=1, end_dim=-1)
  (6): Linear(in_features=6272, out_features=4096, bias=True)
  (7): ReLU()
  (8): Dropout(p=0.5, inplace=False)
  (9): Linear(in_features=4096, out_features=4096, bias=True)
  (10): ReLU()
  (11): Dropout(p=0.5, inplace=False)
  (12): Linear(in_features=4096, out_features=10, bias=True)
)

Sequential output shape:	 torch.Size([1, 64, 112, 112])
Sequential output shape:	 torch.Size([1, 128, 56, 56])
Sequential output shape:	 torch.Size([1, 256, 28, 28])
Sequential output shape:	 torch.Size([1, 512, 14, 14])
Sequential output shape:	 torch.Size([1, 512, 7, 7])
Flatten output shape:	 torch.Size([1, 25088])
Linear output shape:	 torch.Size([1, 4096])
ReLU output shape:	 torch.Size([1, 4096])
Dropout output shape:	 torch.Size([1, 4096])
Linear output shape:	 torch.Size([1, 4096])
ReLU output shape:	 torch.Size([1, 4096])
Dropout output shape:	 torch.Size([1, 4096])
Linear output shape:	 torch.Size([1, 10])

2. 与AlexNet相比，VGG的计算要慢得多，而且它还需要更多的显存。分析出现这种情况的原因。

与AlexNet相比，VGG的计算要慢得多，而且它还需要更多的显存。出现这种情况的主要原因如下：

  1. 网络结构复杂性：

    • 层数更多：VGG网络的层数比AlexNet多得多。VGG通常有16或19层卷积和全连接层，而AlexNet只有8层。这意味着VGG在每次前向传播和反向传播时都需要进行更多的计算。
    • 卷积层设计：VGG使用了多个3x3的小卷积核来代替AlexNet中的较大卷积核（例如11x11和5x5）。虽然3x3卷积核的计算量相对较小，但由于层数更多，总的计算量累积起来就非常大。

  2. 参数数量：

    • 更多的参数：由于VGG网络层数多，且每层的卷积核数量较大，VGG的参数总量远大于AlexNet。更多的参数意味着更多的计算和内存开销。具体来说，VGG-16有大约138百万个参数，而AlexNet大约有60百万个参数。

  3. 内存使用：

    • 激活图尺寸：由于VGG网络的层数多，每一层的激活图（feature map）都需要存储在显存中，尤其是在进行反向传播时，需要存储中间层的激活值以计算梯度。这显著增加了显存的需求。
    • 存储需求：VGG的每层卷积操作需要存储更多的中间结果，这也进一步增加了显存需求。例如，在相同的输入尺寸下，VGG的3x3卷积核需要更多的中间存储空间来完成计算。

  4. 计算效率：

    • 计算冗余：多个3x3卷积核虽然能提取更多的细节特征，但也带来了更多的计算冗余。相比之下，AlexNet使用较少的卷积层和较大的卷积核，减少了计算冗余的情况。
    • 并行化能力：AlexNet的结构相对简单，容易进行计算上的并行优化。而VGG由于层数多，卷积操作频繁，导致并行化效率相对较低。

总结起来，VGG网络的计算速度慢、显存需求高，主要是因为其更深的网络结构、更多的参数、以及更复杂的计算过程。这些设计虽然提高了模型的表达能力和性能，但也带来了更高的计算和内存开销。

3. 尝试将Fashion-MNIST数据集图像的高度和宽度从224改为96。这对实验有什么影响？

lr, num_epochs, batch_size = 0.05, 10, 128
train_iter, test_iter = d2l.load_data_fashion_mnist(batch_size, resize=224)
d2l.train_ch6(net, train_iter, test_iter, num_epochs, lr, d2l.try_gpu())

loss 0.178, train acc 0.934, test acc 0.921
2559.7 examples/sec on cuda:0

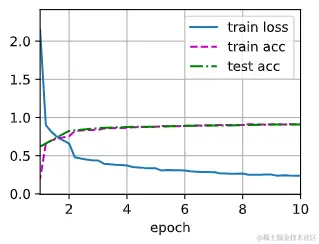

lr, num_epochs, batch_size = 0.05, 10, 128
train_iter, test_iter = d2l.load_data_fashion_mnist(batch_size, resize=96)
d2l.train_ch6(net, train_iter, test_iter, num_epochs, lr, d2l.try_gpu())

loss 0.225, train acc 0.916, test acc 0.911
14241.5 examples/sec on cuda:0

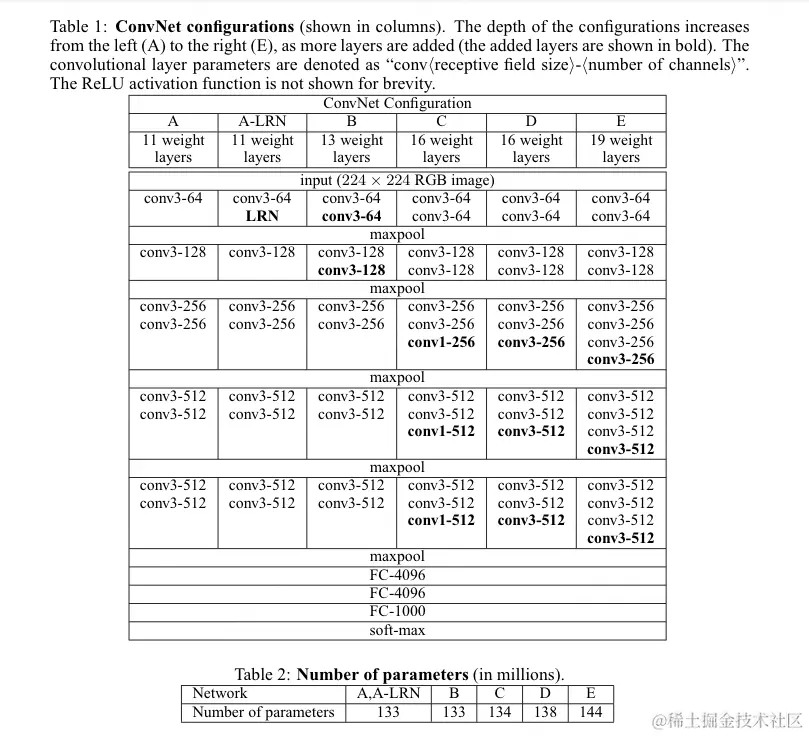

4. 请参考VGG论文 :cite:Simonyan.Zisserman.2014中的表1构建其他常见模型，如VGG-16或VGG-19。

Simonyan & Zisserman, 2014: Simonyan, K., & Zisserman, A. (2014). Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556.


VGG-19

conv_arch = ((2, 64), (2, 128), (4, 256), (4, 512), (4, 512))

import torch
from torch import nn
from d2l import torch as d2l


def vgg_block(num_convs, in_channels, out_channels):
    layers = []
    for _ in range(num_convs):
        layers.append(nn.Conv2d(in_channels, out_channels,
                                kernel_size=3, padding=1))
        layers.append(nn.ReLU())
        in_channels = out_channels
    layers.append(nn.MaxPool2d(kernel_size=2, stride=2))
    return nn.Sequential(*layers)

def vgg(conv_arch):
    conv_blks = []
    in_channels = 1
    # 卷积层部分
    for (num_convs, out_channels) in conv_arch:
        conv_blks.append(vgg_block(num_convs, in_channels, out_channels))
        in_channels = out_channels

    return nn.Sequential(
        *conv_blks, nn.Flatten(),
        # 全连接层部分
        nn.Linear(out_channels * 7 * 7, 4096), nn.ReLU(), nn.Dropout(0.5),
        nn.Linear(4096, 4096), nn.ReLU(), nn.Dropout(0.5),
        nn.Linear(4096, 10))

net = vgg(conv_arch)

ratio = 4
small_conv_arch = [(pair[0], pair[1] // ratio) for pair in conv_arch]
net = vgg(small_conv_arch)
conv_arch, small_conv_arch

print(net)

Sequential(
  (0): Sequential(
    (0): Conv2d(1, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (1): ReLU()
    (2): Conv2d(16, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (3): ReLU()
    (4): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (1): Sequential(
    (0): Conv2d(16, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (1): ReLU()
    (2): Conv2d(32, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (3): ReLU()
    (4): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (2): Sequential(
    (0): Conv2d(32, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (1): ReLU()
    (2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (3): ReLU()
    (4): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (5): ReLU()
    (6): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (7): ReLU()
    (8): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (3): Sequential(
    (0): Conv2d(64, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (1): ReLU()
    (2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (3): ReLU()
    (4): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (5): ReLU()
    (6): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (7): ReLU()
    (8): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (4): Sequential(
    (0): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (1): ReLU()
    (2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (3): ReLU()
    (4): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (5): ReLU()
    (6): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    (7): ReLU()
    (8): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  )
  (5): Flatten(start_dim=1, end_dim=-1)
  (6): Linear(in_features=6272, out_features=4096, bias=True)
  (7): ReLU()
  (8): Dropout(p=0.5, inplace=False)
  (9): Linear(in_features=4096, out_features=4096, bias=True)
  (10): ReLU()
  (11): Dropout(p=0.5, inplace=False)
  (12): Linear(in_features=4096, out_features=10, bias=True)
)

X = torch.randn(size=(1, 1, 224, 224))
for blk in net:
    X = blk(X)
    print(blk.__class__.__name__,'output shape:\t',X.shape)

Sequential output shape:	 torch.Size([1, 16, 112, 112])
Sequential output shape:	 torch.Size([1, 32, 56, 56])
Sequential output shape:	 torch.Size([1, 64, 28, 28])
Sequential output shape:	 torch.Size([1, 128, 14, 14])
Sequential output shape:	 torch.Size([1, 128, 7, 7])
Flatten output shape:	 torch.Size([1, 6272])
Linear output shape:	 torch.Size([1, 4096])
ReLU output shape:	 torch.Size([1, 4096])
Dropout output shape:	 torch.Size([1, 4096])
Linear output shape:	 torch.Size([1, 4096])
ReLU output shape:	 torch.Size([1, 4096])
Dropout output shape:	 torch.Size([1, 4096])
Linear output shape:	 torch.Size([1, 10])

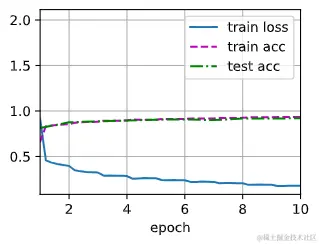

lr, num_epochs, batch_size = 0.02, 10, 128
train_iter, test_iter = d2l.load_data_fashion_mnist(batch_size, resize=224)
d2l.train_ch6(net, train_iter, test_iter, num_epochs, lr, d2l.try_gpu())

loss 0.239, train acc 0.912, test acc 0.907
1261.3 examples/sec on cuda:0
