手撸XXL-JOB（四）——远程调用定时任务

Java Socket网络编程

网络编程是Java编程中的重要组成部分，包括服务端和客户端两部分内容。Socket是Java网络编程的基本组件之一，用于在应用程序之间提供双向通信，Socket提供了一种标准的接口，允许应用程序通过网络发送和接收数据，在Java中，Socket可以分为客户端Socket和服务端Socket两种类型。 客户端Socket：客户端 Socket 用于与服务端 Socket 进行通信。客户端 Socket 通过指定服务端的 IP 地址和端口号，连接到服务端 Socket，然后发送数据到服务端 Socket。 服务端Socket：服务端 Socket 用于接收来自客户端 Socket 的连接请求，并在连接成功后，与客户端 Socket 进行通信。服务端 Socket 首先需要创建一个 ServerSocket 对象，并通过 bind 方法绑定到一个本地端口，然后等待客户端 Socket 的连接请求。 下面是Socket的一个示例： 服务端：

package org.example.demo1;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.ServerSocket;
import java.net.Socket;

public class Server {
    public static void main(String[] args) {
        try {
            ServerSocket serverSocket = new ServerSocket(8000);
            System.out.println("Server started, waiting for client...");

            Socket socket = serverSocket.accept();
            System.out.println("Client connected.");

            BufferedReader in = new BufferedReader(new InputStreamReader(socket.getInputStream()));
            PrintWriter out = new PrintWriter(socket.getOutputStream(), true);

            String message;
            while ((message = in.readLine()) != null) {
                System.out.println("Client:" + message);
                out.println("Server received message:" + message);
            }

            in.close();
            out.close();
            socket.close();
            serverSocket.close();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

客户端：

package org.example.demo1;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.Socket;

public class Client {
    public static void main(String[] args) {
        try {
            Socket socket = new Socket("localhost", 8000);
            System.out.println("Connected to server.");

            BufferedReader in = new BufferedReader(new InputStreamReader(socket.getInputStream()));
            PrintWriter out = new PrintWriter(socket.getOutputStream(), true);

            BufferedReader consoleIn = new BufferedReader(new InputStreamReader(System.in));
            String message;
            while ((message = consoleIn.readLine()) != null) {
                out.println(message);
                System.out.println("Server:" + in.readLine());
            }
            consoleIn.close();
            in.close();
            out.close();
            socket.close();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

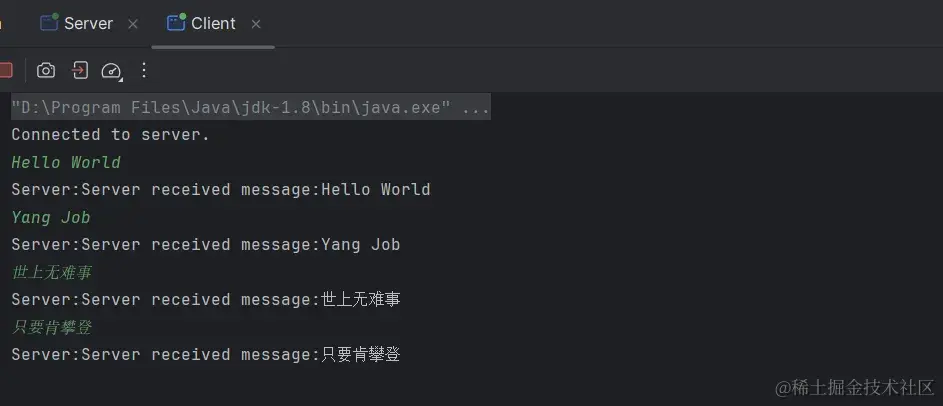

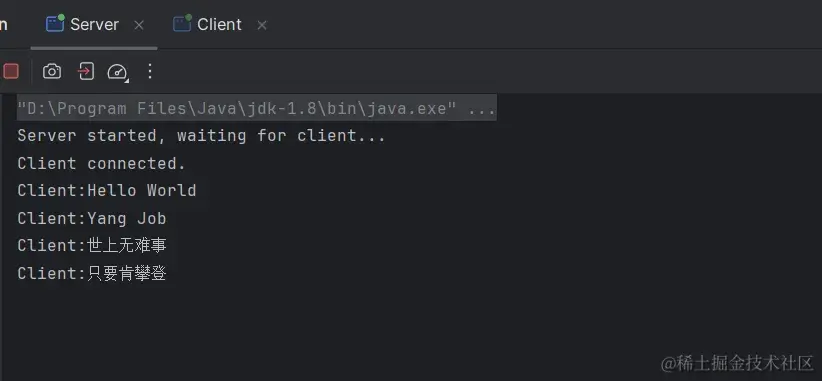

首先启动服务端，然后启动客户端，在客户端的控制台，输入数据，服务端能接收到数据并返回对应的响应。

远程调用定时任务

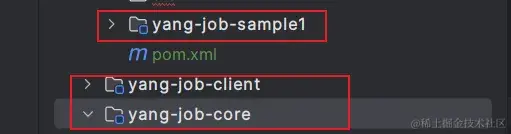

首先，我们创建两个模块，core模块包含yang-job的一些核心内容，比如IJobExecutor执行器、JobExecuteRequest执行器请求等；client模块依赖core模块，并封装和socket客户端调用相关的一些内容。 然后创建一个sample1模块，用于演示。

core模块

core目前定义了定时任务执行类和其入参、出参等信息，其中，YangJobTransferDTO包含任务类路径和任务请求，如下所示：

package com.yang.job.dto;

import com.yang.job.execute.YangJobExecuteRequest;

import java.io.Serializable;

public class YangJobTransferDTO implements Serializable {
    private String className;

    private YangJobExecuteRequest yangJobExecuteRequest;

    public String getClassName() {
        return className;
    }

    public void setClassName(String className) {
        this.className = className;
    }

    public YangJobExecuteRequest getYangJobExecuteRequest() {
        return yangJobExecuteRequest;
    }

    public void setYangJobExecuteRequest(YangJobExecuteRequest yangJobExecuteRequest) {
        this.yangJobExecuteRequest = yangJobExecuteRequest;
    }
}

client模块

client模块定义了客户端所需要的一些类，其中，YangJob为注解类，对于每一个定时任务，需要加上YangJob注解，才能被正确调用。

package com.yang.job.client.annotations;

import java.lang.annotation.*;

@Documented
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
public @interface YangJob {
}

YangJobClientProperty为配置信息类，目前需要两个配置信息，客户端socket的ip和端口号

package com.yang.job.client.configuration;


import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

@Component
public class YangJobClientProperty {
    @Value("${yang-job.executor.port}")
    private Integer port;

    @Value("${yang-job.executor.ip}")
    private String ip;


    public Integer getPort() {
        return port;
    }

    public void setPort(Integer port) {
        this.port = port;
    }

    public String getIp() {
        return ip;
    }

    public void setIp(String ip) {
        this.ip = ip;
    }
}

YangJobClientPostProcessor在SpringBoot加载完毕后，扫描bean，将实现IYongJobExecutor的bean，注册到YangJobClientManager的map中，方便后续调用

package com.yang.job.client.schema;


import com.yang.job.client.annotations.YangJob;
import com.yang.job.client.YangJobClientManager;
import com.yang.job.execute.IYangJobExecutor;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanPostProcessor;

public class YangJobClientPostProcessor implements BeanPostProcessor {
    public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
        if (!(bean instanceof IYangJobExecutor)) {
            return bean;
        }
        YangJob annotation = bean.getClass().getAnnotation(YangJob.class);
        if (annotation == null) {
            return bean;
        }
        YangJobClientManager.putJobExecutor(bean.getClass().getName(), (IYangJobExecutor) bean);
        return bean;
    }
}

YangJobClientManager负责监听端口和管理定时任务的执行，它会监听我们配置的yang-job.execute.port端口号，然后当接收到消息时，将消息转为入参，并取出对应的定时任务执行类，执行对应的代码。

package com.yang.job.client;


import com.alibaba.fastjson.JSONObject;
import com.yang.job.client.dto.YangJobClientPropertyDTO;
import com.yang.job.core.dto.YangJobTransferDTO;
import com.yang.job.core.dto.ResultT;
import com.yang.job.core.execute.IYangJobExecutor;
import com.yang.job.core.execute.YangJobExecuteRequest;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.ServerSocket;
import java.net.Socket;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

public class YangJobClientManager {
    private static Map<String, IYangJobExecutor> className2JobExecutorMap = new ConcurrentHashMap<>();

    private YangJobClientPropertyDTO yangJobClientPropertyDTO;

    private ServerSocket serverSocket;

    public YangJobClientManager(YangJobClientPropertyDTO yangJobClientPropertyDTO) {
        this.yangJobClientPropertyDTO = yangJobClientPropertyDTO;
    }

    public void init() {
        Integer port = this.yangJobClientPropertyDTO.getPort();
        try {
            this.serverSocket = new ServerSocket(port);
        } catch (IOException e) {
            throw new RuntimeException(e);
        }
        System.out.println("init success============");
        new Thread(() -> {
            while (true) {
                try {
                    Socket socket = serverSocket.accept();
                    BufferedReader bufferedReader = new BufferedReader(new InputStreamReader(socket.getInputStream()));
                    PrintWriter printWriter = new PrintWriter(socket.getOutputStream(), true);
                    String params = bufferedReader.readLine();
                    YangJobTransferDTO yangJobTransferDTO = JSONObject.parseObject(params, YangJobTransferDTO.class);
                    System.out.println(yangJobTransferDTO);
                    String className = yangJobTransferDTO.getClassName();
                    YangJobExecuteRequest yangJobExecuteRequest = yangJobTransferDTO.getYangJobExecuteRequest();
                    IYangJobExecutor jobExecutor = getJobExecutor(className);
                    if (jobExecutor != null) {
                        ResultT response = jobExecutor.execute(yangJobExecuteRequest);
                        printWriter.println(JSONObject.toJSONString(response));
                    }
                    bufferedReader.close();
                    printWriter.close();
                    socket.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
                if (serverSocket.isClosed() || serverSocket == null) {
                    break;
                }
            }
        }).start();
    }

    public void shutdown() {
        if (this.serverSocket != null) {
            try {
                this.serverSocket.close();
            } catch (IOException e) {
                throw new RuntimeException(e);
            }
        }
    }

    public YangJobClientPropertyDTO getYangJobPropertyDTO() {
        return this.yangJobClientPropertyDTO;
    }

    public static void putJobExecutor(String className, IYangJobExecutor iJobExecutor) {
        className2JobExecutorMap.put(className, iJobExecutor);
    }

    public static IYangJobExecutor getJobExecutor(String className) {
        return className2JobExecutorMap.get(className);
    }

}

YangJobClientContext为客户端的上下文，负责监听SpringBoot刷新消息和关闭消息，并执行对应的操作。

package com.yang.job.client;


import com.yang.job.client.utils.SpringContextUtils;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationListener;
import org.springframework.context.event.ApplicationContextEvent;
import org.springframework.context.event.ContextClosedEvent;
import org.springframework.context.event.ContextRefreshedEvent;

public class YangJobClientContext implements ApplicationListener<ApplicationContextEvent> {
    private static YangJobClientContext instance;

    private ApplicationContext applicationContext;

    @Override
    public void onApplicationEvent(ApplicationContextEvent event) {
        if (event instanceof ContextRefreshedEvent) {
            System.out.println("刷新了=========");
            YangJobClientContext.instance = this;
            instance.applicationContext = applicationContext;
            init();
        } else if (event instanceof ContextClosedEvent) {
            System.out.println("销毁了=========");
            shutdown();
        }
    }

    private void init() {
        YangJobClientManager yangJobClientManager = SpringContextUtils.getBeanOfType(YangJobClientManager.class);
        yangJobClientManager.init();
    }

    private void shutdown() {
        YangJobClientManager yangJobClientManager = SpringContextUtils.getBeanOfType(YangJobClientManager.class);
        yangJobClientManager.shutdown();
    }
}

YangJobClientConfiguration为配置类，负责对YangJobClientPostProcessor、YangJobClientManager和YangJobClientContext的统一配置管理。

package com.yang.job.client.configuration;


import com.yang.job.client.YangJobClientManager;
import com.yang.job.client.YangJobClientContext;
import com.yang.job.client.dto.YangJobClientPropertyDTO;
import com.yang.job.client.schema.YangJobClientPostProcessor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class YangJobClientConfiguration {
    @Autowired
    private YangJobClientProperty yangJobClientProperty;

    @Bean
    public YangJobClientPostProcessor yangJobPostProcessor() {
        return new YangJobClientPostProcessor();
    }

    @Bean
    public YangJobClientManager yangJobClientManager() {
        YangJobClientPropertyDTO yangJobClientPropertyDTO = new YangJobClientPropertyDTO();
        yangJobClientPropertyDTO.setIp(yangJobClientProperty.getIp());
        yangJobClientPropertyDTO.setPort(yangJobClientProperty.getPort());
        return new YangJobClientManager(yangJobClientPropertyDTO);
    }

    @Bean
    public YangJobClientContext yangJobContext() {
        return new YangJobClientContext();
    }
}

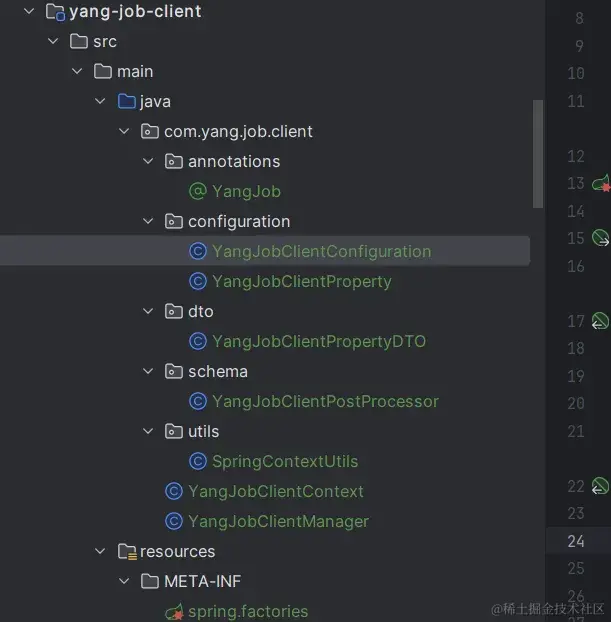

最后，为了使引入client依赖的应用，能自动装配我们提供的bean，我们在resources目录下创建META-INF目录，在该目录下创建spring.factories文件，文件内容如下：

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
  com.yang.job.client.utils.SpringContextUtils,\
  com.yang.job.client.configuration.YangJobClientProperty,\
  com.yang.job.client.configuration.YangJobClientConfiguration

sample1

我们创建一个sample1项目，引入spring-boot-starter-web依赖和yang-client，yang-core的依赖

  <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>com.yang</groupId>
            <artifactId>yang-job-core</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.yang</groupId>
            <artifactId>yang-job-client</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

创建启动类

package com.yang.job.sample1;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class YangJobSample1App {
    public static void main(String[] args) {
        SpringApplication.run(YangJobSample1App.class, args);
    }
}

创建一个任务类：

package com.yang.job.sample1.task;

import com.yang.job.client.annotations.YangJob;
import com.yang.job.dto.ResultT;
import com.yang.job.execute.IYangJobExecutor;
import com.yang.job.execute.YangJobExecuteRequest;
import org.springframework.stereotype.Component;

@Component
@YangJob
public class TestTask1 implements IYangJobExecutor {
    @Override
    public ResultT execute(YangJobExecuteRequest yangJobExecuteRequest) {
        System.out.println("开启定时任务了，入参为:" + yangJobExecuteRequest);
        return ResultT.success();
    }
}

添加配置文件，因为client模块的YangJobClientProperty需要有yang-job.executor.port和yang-job.executor.ip这两个配置，如果我们的配置文件中，缺少这些配置，会导致报错，无法启动项目。

spring:
  application:
    name: YangJobSample1App
yang-job:
  executor:
    port: 9999
    ip: 127.0.0.1
server:
  port: 8001

测试

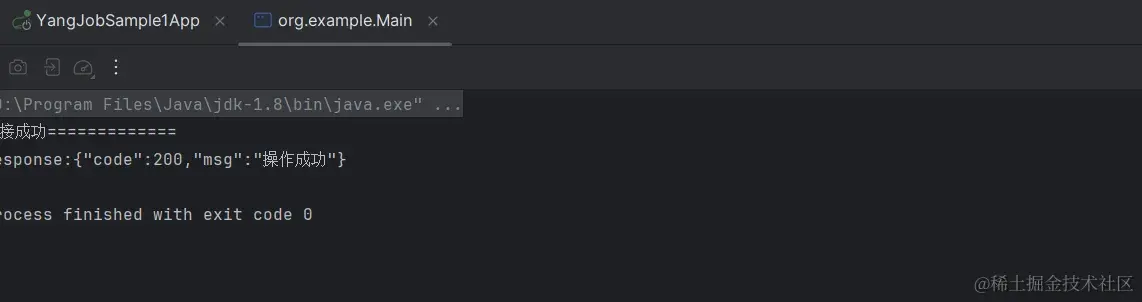

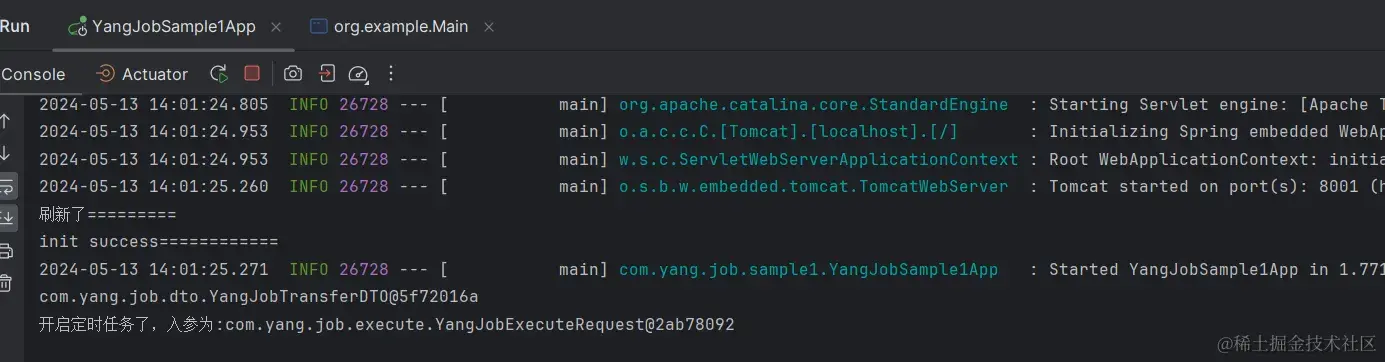

我们先启动刚才的sample1项目，然后执行下列代码，来远程调用TestTask1方法执行类。

 public static void main(String[] args) {
        try {
            Socket socket = new Socket("127.0.0.1", 9999);
            System.out.println("链接成功=============");
            PrintWriter printWriter = new PrintWriter(socket.getOutputStream(), true);
            BufferedReader bufferedReader = new BufferedReader(new InputStreamReader(socket.getInputStream()));
            YangJobExecuteRequest yangJobExecuteRequest = new YangJobExecuteRequest();
            yangJobExecuteRequest.setJobId("1");
            yangJobExecuteRequest.addParam("num", "1");
            YangJobTransferDTO yangJobTransferDTO = new YangJobTransferDTO();
            yangJobTransferDTO.setClassName("com.yang.job.sample1.task.TestTask1");
            yangJobTransferDTO.setYangJobExecuteRequest(yangJobExecuteRequest);

            printWriter.println(JSONObject.toJSONString(yangJobTransferDTO));
            System.out.println("response:" + bufferedReader.readLine());
            bufferedReader.close();
            printWriter.close();
            socket.close();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

执行结果如下，说明我们能成功地进行远程调用。

添加远程任务

domain层

在上一篇文章中，我们操作的任务，都是本地任务，现在我们需要对远程任务进行操作，为了区分任务类型，我们首先在domain层添加一个任务类型枚举

package com.yang.job.admin.domain.enums;

public enum JobTypeEnum {
    LOCAL("local", "本地任务"),
    REMOTE("remote", "远程任务");

    private String name;

    private String description;

    JobTypeEnum(String name, String description) {
        this.name = name;
        this.description = description;
    }

    public String getName() {
        return name;
    }

    public String getDescription() {
        return description;
    }

    public static JobTypeEnum getJobTypeByName(String name) {
        for (JobTypeEnum value : values()) {
            if (value.getName().equals(name)) {
                return value;
            }
        }
        return null;
    }
}

然后修改YangJobModel，添加上任务类型枚举和远程任务信息

package com.yang.job.admin.domain.model;


import com.yang.job.admin.client.dto.common.BusinessException;
import com.yang.job.admin.client.dto.common.ErrorCode;
import com.yang.job.admin.domain.enums.JobExecuteStrategyEnum;
import com.yang.job.admin.domain.enums.JobTypeEnum;
import com.yang.job.admin.domain.event.SaveJobPostEvent;
import com.yang.job.admin.domain.event.SubmitJobPostEvent;
import com.yang.job.admin.domain.event.UpdateJobPostEvent;
import com.yang.job.admin.domain.valueobject.RemoteExecutorMessage;
import com.yang.job.admin.infra.event.EventCenter;
import com.yang.job.admin.infra.job.YangJobManager;
import com.yang.job.admin.infra.job.request.YangJobSubmitParam;
import com.yang.job.admin.infra.utils.CronUtils;
import com.yang.job.admin.infra.utils.SpringContextUtils;
import lombok.Data;

import java.io.Serializable;
import java.time.ZonedDateTime;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;

@Data
public class YangJobModel implements Serializable {
    private Integer jobId;

    private String jobName;

    private String description;

    private String cron;

    private String executeClassPath;

    private Runnable runnable;

    private JobExecuteStrategyEnum executeStrategy;

    private JobTypeEnum jobType;

    private RemoteExecutorMessage remoteExecutorMessage;

    private Integer enable;

    private Integer open;

    private Date createTime;

    private Date updateTime;

    private Map<String, String> featureMap = new HashMap<>();

    private Map<String, String> executeParamMap = new HashMap<>();

    public boolean isEnable() {
        if (this.enable == null) {
            return false;
        }
        return this.enable == 1;
    }

    public boolean isOpen() {
        if (!isEnable()) {
            return false;
        }
        if (this.open == null) {
            return false;
        }
        return this.open == 1;
    }

    public boolean isClose() {
        return !isOpen();
    }

    public boolean isLocalJob() {
        return JobTypeEnum.LOCAL == this.jobType;
    }

    public boolean isRemoteJob() {
        return JobTypeEnum.REMOTE == this.jobType;
    }

    public void setExecuteStrategy(JobExecuteStrategyEnum jobExecuteStrategyEnum) {
        if (jobExecuteStrategyEnum == null) {
            throw new BusinessException(ErrorCode.EXECUTE_STRATEGY_NO_EXIST);
        }
        this.executeStrategy = jobExecuteStrategyEnum;
    }


    public void submitJob() {
        YangJobSubmitParam yangJobSubmitParam = convert2YangJobSubmitParam();
        YangJobManager yangJobManager = getYangJobManager();
        yangJobManager.submitJob(yangJobSubmitParam);
        // 提交任务后，发送提交任务后置事件
        SubmitJobPostEvent submitJobPostEvent = new SubmitJobPostEvent(yangJobSubmitParam);
        getEventCenter().postEvent(submitJobPostEvent);
    }

    public void cancelJob() {
        YangJobManager yangJobManager = getYangJobManager();
        yangJobManager.cancelJob(this.jobId);
    }

    private YangJobSubmitParam convert2YangJobSubmitParam() {
        YangJobSubmitParam yangJobBuildParam = new YangJobSubmitParam();
        yangJobBuildParam.setJobId(this.jobId);
        yangJobBuildParam.setRunnable(this.runnable);
        ZonedDateTime nextExecutionTime = CronUtils.nextExecutionTime(this.cron, ZonedDateTime.now());
        ZonedDateTime nextNextExecutionTime = CronUtils.nextExecutionTime(this.cron, nextExecutionTime);
        long nowEochMill = ZonedDateTime.now().toInstant().toEpochMilli();
        long executeEochMill = nextExecutionTime.toInstant().toEpochMilli();
        long secondExecuteEochMill = nextNextExecutionTime.toInstant().toEpochMilli();
        yangJobBuildParam.setInitialDelay((int)(executeEochMill - nowEochMill) / 1000);
        yangJobBuildParam.setPeriod((int)(secondExecuteEochMill - executeEochMill) / 1000);
        yangJobBuildParam.setJobExecuteStrategy(this.executeStrategy);
        return yangJobBuildParam;
    }

    public void postSaveJobEvent() {
        SaveJobPostEvent saveJobPostEvent = new SaveJobPostEvent(this.jobId);
        getEventCenter().asyncPostEvent(saveJobPostEvent);
    }

    public void postUpdateJobEvent() {
        UpdateJobPostEvent updateJobPostEvent = new UpdateJobPostEvent(this.jobId);
        getEventCenter().asyncPostEvent(updateJobPostEvent);
    }

    public void postDeleteJobEvent() {
        UpdateJobPostEvent updateJobPostEvent = new UpdateJobPostEvent(this.jobId);
        getEventCenter().asyncPostEvent(updateJobPostEvent);
    }

    private YangJobManager getYangJobManager() {
        return SpringContextUtils.getBeanOfType(YangJobManager.class);
    }

    private EventCenter getEventCenter() {
        return SpringContextUtils.getBeanOfType(EventCenter.class);
    }

}

远程任务信息类：

package com.yang.job.admin.domain.valueobject;

import lombok.Data;

import java.io.Serializable;

@Data
public class RemoteExecutorMessage implements Serializable {
    private String ip;

    private Integer port;
}

接着我们添加一个features枚举，用于记录映射features字段中各个key表示的含义，因为我们现在表的设计中没有任务类型字段和远程信息相关的字段，所以会将这些信息添加到features字段中

package com.yang.job.admin.domain.enums;

public enum JobModelFeatureEnum {
    JOB_TYPE("jobType", "任务类型"),
    REMOTE_EXECUTOR_IP("executorIp", "执行器ip"),
    REMOTE_EXECUTOR_PORT("executorPort", "执行器端口"),
    REMOTE_EXECUTOR_MESSAGE("r_executor_m", "远程执行器的信息");

    private String name;

    private String description;

    JobModelFeatureEnum(String name, String description) {
        this.name = name;
        this.description = description;
    }


    public String getName() {
        return name;
    }

    public String getDescription() {
        return description;
    }
}

client层

我们修改原先的NewYangJobCommand类，加上任务类型属性

package com.yang.job.admin.client.dto.command;


import lombok.Data;

import java.io.Serializable;
import java.util.HashMap;
import java.util.Map;

@Data
public class NewYangJobCommand implements Serializable {
    private String jobName;

    private String description;

    private String cron;

    private String executeStrategy;

    private String jobType;

    private String executeClassPath;

    private Integer open;

    private Map<String, String> params = new HashMap<>();
}

然后修改YangJobDTO类，也加上jobType属性

package com.yang.job.admin.client.dto;


import lombok.Data;

import java.io.Serializable;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;

@Data
public class YangJobDTO implements Serializable {
    private Integer jobId;

    private String jobName;

    private String description;

    private String cron;

    private String executeStrategy;

    private String executeClassPath;

    private String jobType;

    private Integer enable;

    private Integer open;

    private Date createTime;

    private Date updateTime;

    private Map<String, String> featureMap = new HashMap<>();

    private Map<String, String> executeParamMap = new HashMap<>();
}

application层

接着修改YangJobApplicationService类的convertYangJobModel方法，将jobType任务类型和远程任务信息添加到YangJobModel中

 private YangJobModel convert2YangJobModel(NewYangJobCommand newYangJobCommand) {
        String jobType = newYangJobCommand.getJobType();
        JobTypeEnum jobTypeEnum = JobTypeEnum.getJobTypeByName(jobType);
        if (jobType == null) {
            throw new BusinessException(ErrorCode.PARAM_VALID_ERROR);
        }
        YangJobModel yangJobModel = new YangJobModel();
        yangJobModel.setJobName(newYangJobCommand.getJobName());
        yangJobModel.setDescription(newYangJobCommand.getDescription());
        yangJobModel.setCron(newYangJobCommand.getCron());
        yangJobModel.setOpen(newYangJobCommand.getOpen());
        yangJobModel.setExecuteStrategy(JobExecuteStrategyEnum.getJobExecuteStrategyByName(newYangJobCommand.getExecuteStrategy()));
        yangJobModel.setExecuteClassPath(newYangJobCommand.getExecuteClassPath());
        yangJobModel.setExecuteParamMap(newYangJobCommand.getParams());
        yangJobModel.setJobType(jobTypeEnum);
        if (jobTypeEnum == JobTypeEnum.REMOTE) {
            String ip = newYangJobCommand.getParams().get(JobModelFeatureEnum.REMOTE_EXECUTOR_IP.getName());
            String port = newYangJobCommand.getParams().get(JobModelFeatureEnum.REMOTE_EXECUTOR_PORT.getName());
            if (ip == null || port == null) {
                throw new BusinessException(ErrorCode.PARAM_VALID_ERROR);
            }
            RemoteExecutorMessage remoteExecutorMessage = new RemoteExecutorMessage();
            remoteExecutorMessage.setIp(ip);
            remoteExecutorMessage.setPort(Integer.valueOf(port));
            yangJobModel.setRemoteExecutorMessage(remoteExecutorMessage);
        } else {
            if (yangJobModel.getExecuteClassPath() == null || yangJobModel.getExecuteClassPath().isEmpty()) {
                throw new BusinessException(ErrorCode.UN_LEGAL_CLASS_PATH);
            }
            try {
                Class.forName(yangJobModel.getExecuteClassPath());
            } catch (ClassNotFoundException e) {
                e.printStackTrace();
                throw new BusinessException(ErrorCode.UN_LEGAL_CLASS_PATH);
            }
        }
        return yangJobModel;
    }

infra层

最后修改基础设施层，首先修改YangJobModelConvertor类，将RemoteMessage和JobType转化到features中，以及从features中取出

package com.yang.job.admin.infra.gatewayimpl.repository.convertor;

import com.alibaba.fastjson.JSONObject;
import com.yang.job.admin.domain.enums.JobExecuteStrategyEnum;
import com.yang.job.admin.domain.enums.JobModelFeatureEnum;
import com.yang.job.admin.domain.enums.JobTypeEnum;
import com.yang.job.admin.domain.model.YangJobModel;
import com.yang.job.admin.domain.valueobject.RemoteExecutorMessage;
import com.yang.job.admin.infra.data.YangJobData;
import com.yang.job.admin.infra.job.thread.RemoteJobExecuteThread;
import com.yang.job.admin.infra.utils.FeaturesUtils;
import com.yang.job.core.dto.YangJobTransferDTO;
import com.yang.job.core.execute.IYangJobExecutor;
import com.yang.job.core.execute.YangJobExecuteRequest;
import org.springframework.stereotype.Component;

import java.util.Map;

@Component
public class YangJobModelConvertor {
    public YangJobData convert2Data(YangJobModel yangJobModel) {
        if (yangJobModel == null) {
            return null;
        }
        YangJobData yangJobData = new YangJobData();
        yangJobData.setJobId(yangJobModel.getJobId());
        yangJobData.setJobName(yangJobModel.getJobName());
        yangJobData.setDescription(yangJobModel.getDescription());
        yangJobData.setCron(yangJobModel.getCron());
        yangJobData.setExecuteClassPath(yangJobModel.getExecuteClassPath());
        yangJobData.setEnable(yangJobModel.getEnable());
        yangJobData.setOpen(yangJobModel.getOpen());
        yangJobData.setCreateTime(yangJobModel.getCreateTime());
        yangJobData.setUpdateTime(yangJobModel.getUpdateTime());
        Map<String, String> featureMap = yangJobModel.getFeatureMap();
        featureMap.put(JobModelFeatureEnum.JOB_TYPE.getName(), yangJobModel.getJobType().getName());
        featureMap.put(JobModelFeatureEnum.REMOTE_EXECUTOR_MESSAGE.getName(), JSONObject.toJSONString(yangJobModel.getRemoteExecutorMessage()));
        yangJobData.setFeatures(FeaturesUtils.convert2Features(featureMap));
        yangJobData.setExecuteParams(FeaturesUtils.convert2Features(yangJobModel.getExecuteParamMap()));
        yangJobData.setExecuteStrategy(yangJobModel.getExecuteStrategy().getName());
        return yangJobData;
    }

    public YangJobModel convert2Model(YangJobData yangJobData) {
        if (yangJobData == null) {
            return null;
        }
        YangJobModel yangJobModel = new YangJobModel();
        yangJobModel.setJobId(yangJobData.getJobId());
        yangJobModel.setDescription(yangJobData.getDescription());
        yangJobModel.setCron(yangJobData.getCron());
        yangJobModel.setJobName(yangJobData.getJobName());
        yangJobModel.setExecuteClassPath(yangJobData.getExecuteClassPath());
        yangJobModel.setEnable(yangJobData.getEnable());
        yangJobModel.setOpen(yangJobData.getOpen());
        yangJobModel.setCreateTime(yangJobData.getCreateTime());
        yangJobModel.setUpdateTime(yangJobData.getUpdateTime());
        yangJobModel.setFeatureMap(FeaturesUtils.convert2FeatureMap(yangJobData.getFeatures()));
        yangJobModel.setExecuteParamMap(FeaturesUtils.convert2FeatureMap(yangJobData.getExecuteParams()));
        JobExecuteStrategyEnum executeStrategy = JobExecuteStrategyEnum.getJobExecuteStrategyByName(yangJobData.getExecuteStrategy());
        if (executeStrategy == null) {
            throw new RuntimeException("执行策略有误!");
        }

        JobTypeEnum jobType = JobTypeEnum.getJobTypeByName(yangJobModel.getFeatureMap().get(JobModelFeatureEnum.JOB_TYPE.getName()));
        yangJobModel.setJobType(jobType);
        String remoteMessageStr = yangJobModel.getFeatureMap().get(JobModelFeatureEnum.REMOTE_EXECUTOR_MESSAGE.getName());
        RemoteExecutorMessage remoteExecutorMessage = JSONObject.parseObject(remoteMessageStr, RemoteExecutorMessage.class);
        yangJobModel.setRemoteExecutorMessage(remoteExecutorMessage);

        yangJobModel.setExecuteStrategy(executeStrategy);
        yangJobModel.setRunnable(buildRunnable(yangJobModel));

        return yangJobModel;
    }

    private Runnable buildRunnable(YangJobModel yangJobModel) {
        if (yangJobModel.isLocalJob()) {
            String executeClassPath = yangJobModel.getExecuteClassPath();
            try {
                Class<?> aClass = Class.forName(executeClassPath);
                if (!IYangJobExecutor.class.isAssignableFrom(aClass)) {
                    throw new RuntimeException("该类必须实现IYangJobExecutor接口");
                }
                IYangJobExecutor executor = (IYangJobExecutor) aClass.newInstance();
                YangJobExecuteRequest yangJobExecuteRequest = convert2YangJobExecuteRequest(yangJobModel);
                Runnable runnable = () -> executor.execute(yangJobExecuteRequest);
                return runnable;
            } catch (InstantiationException | IllegalAccessException e) {
                e.printStackTrace();
            } catch (ClassNotFoundException e) {
                System.out.println(String.format("%s 类路径对应的类不存在", executeClassPath));
                e.printStackTrace();
            }
        } else {
            RemoteExecutorMessage remoteExecutorMessage = yangJobModel.getRemoteExecutorMessage();
            String executeClassPath = yangJobModel.getExecuteClassPath();

            YangJobTransferDTO yangJobTransferDTO = new YangJobTransferDTO();
            yangJobTransferDTO.setClassName(executeClassPath);

            YangJobExecuteRequest yangJobExecuteRequest = convert2YangJobExecuteRequest(yangJobModel);
            yangJobTransferDTO.setYangJobExecuteRequest(yangJobExecuteRequest);

            return new RemoteJobExecuteThread(remoteExecutorMessage, yangJobTransferDTO);
        }
        return null;
    }

    private static YangJobExecuteRequest convert2YangJobExecuteRequest(YangJobModel yangJobModel) {
        YangJobExecuteRequest yangJobExecuteRequest = new YangJobExecuteRequest();
        yangJobExecuteRequest.setJobId(yangJobModel.getJobId().toString());
        yangJobExecuteRequest.setParams(yangJobModel.getExecuteParamMap());
        return yangJobExecuteRequest;
    }
}

然后添加一个RemoteJobExecuteThread类，该类实现runnable接口，当我们的任务类型为远程调用时，其YangJobModel的runnable属性为remoteJobExecuteThread类

package com.yang.job.admin.infra.job.thread;

import com.alibaba.fastjson.JSONObject;
import com.yang.job.admin.domain.valueobject.RemoteExecutorMessage;
import com.yang.job.core.dto.YangJobTransferDTO;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.Socket;
import java.net.UnknownHostException;

public class RemoteJobExecuteThread implements Runnable {
    private YangJobTransferDTO yangJobTransferDTO;

    private RemoteExecutorMessage remoteExecutorMessage;

    public RemoteJobExecuteThread(RemoteExecutorMessage remoteExecutorMessage, YangJobTransferDTO yangJobTransferDTO) {
        this.remoteExecutorMessage = remoteExecutorMessage;
        this.yangJobTransferDTO = yangJobTransferDTO;
    }

    @Override
    public void run() {
        try {
            String ip = remoteExecutorMessage.getIp();
            Integer port = remoteExecutorMessage.getPort();
            Socket socket = new Socket(ip, port);
            PrintWriter printWriter = new PrintWriter(socket.getOutputStream(), true);
            BufferedReader bufferedReader = new BufferedReader(new InputStreamReader(socket.getInputStream()));

            printWriter.println(JSONObject.toJSONString(yangJobTransferDTO));

            bufferedReader.close();
            printWriter.close();
            socket.close();
        } catch (UnknownHostException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

测试

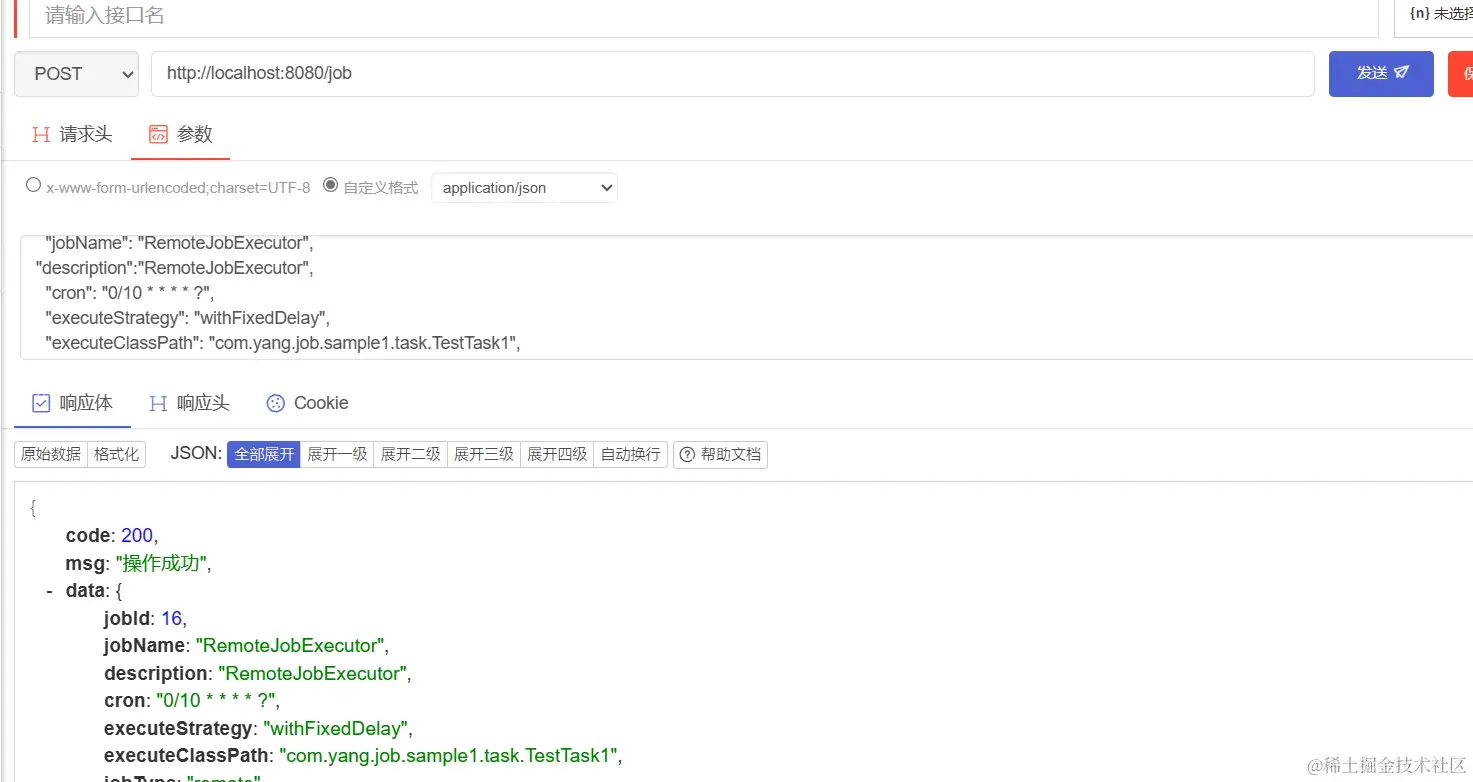

我们先启动之前的sample1项目，然后启动yang-job-admin，调用http://localhost:8080/job添加任务，请求体如下：

{
  "jobName": "RemoteJobExecutor",
"description":"RemoteJobExecutor",
  "cron": "0/10 * * * * ?",
  "executeStrategy": "withFixedDelay",
  "executeClassPath": "com.yang.job.sample1.task.TestTask1",
"open":1,
"jobType":"remote",
"params":{
"executorIp":"127.0.0.1",
"executorPort":"9999"
}
}

添加成功后，我们查看Sample1项目的控制台，可以看到，每10秒，这个TestTask1任务会被调用一次

参考文章

www.yihuo.tech/programming…
