VChart 如何配置出相关性散点图问题标题如何配置出相关性散点图问题描述期望散点图能配置出下面这样的效果解决方

问题标题

如何配置出相关性散点图

问题描述

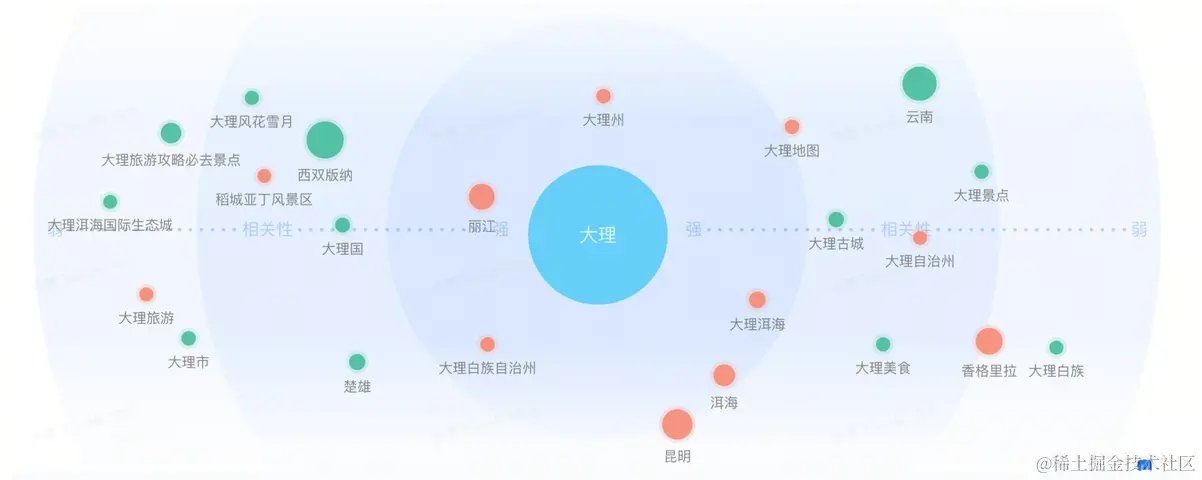

期望散点图能配置出下面这样的效果

解决方案

VChart 在1.3.0版本之后，支持了散点相关性图：correlation ，它的关键配置如下：

categoryField 属性声明为节点名称字段配置
valueField 属性声明为相关性数据字段配置
sizeField 属性声明为节点尺寸数据字段配置
sizeRange 属性声明为节点尺寸映射范围
correlationChart.innerRadius: 节点分布内半径
correlationChart.outerRadius: 节点分布外半径

代码示例

const spec = {
  type: 'correlation',
  data: [
    {
      values: [
        { word: '输入法哪个好用', pv: 15952, ratio: 94, sim: 3932 },
        { word: '谷歌拼音输入法', pv: 11032, ratio: 97, sim: 2799 },
        { word: '讯飞输入法', pv: 107908, ratio: 102, sim: 2645 },
        { word: 'QQ输入法', pv: 74912, ratio: 99, sim: 2189 },
        { word: '百度输入法', pv: 193624, ratio: 121, sim: 2100 },
        { word: '搜狗输入法', pv: 835168, ratio: 88, sim: 2050 },
        { word: '谷歌输入法', pv: 14140, ratio: 96, sim: 1953 },
        { word: '手心输入法', pv: 19236, ratio: 97, sim: 1870 },
        { word: '输入法不见了', pv: 1968, ratio: 109, sim: 1705 },
        { word: '输入法哪个最好用', pv: 812, ratio: 150, sim: 1567 },
        { word: '必应输入法', pv: 4602, ratio: 91, sim: 1522 },
        { word: '章鱼输入法', pv: 18262, ratio: 97, sim: 1486 },
        { word: '输入法下载', pv: 34186, ratio: 91, sim: 1278 },
        { word: '拼音输入法', pv: 7186, ratio: 86, sim: 1009 },
        { word: 'SHURUFA', pv: 13418, ratio: 102, sim: 924 },
        { word: '微软输入法', pv: 4680, ratio: 88, sim: 804 },
        { word: 'GOOGLE输入法', pv: 2206, ratio: 97, sim: 800 },
        { word: '输入法切换不出来', pv: 15112, ratio: 85, sim: 764 },
        { word: '章鱼输入法下载', pv: 8204, ratio: 135, sim: 754 },
        { word: '讯飞输入法下载', pv: 5590, ratio: 106, sim: 609 },
        { word: '输入法搜狗', pv: 352, ratio: 132, sim: 593 },
        { word: '输入法皮肤', pv: 2476, ratio: 103, sim: 540 },
        { word: '紫光输入法', pv: 1582, ratio: 86, sim: 538 },
        { word: '输入法设置', pv: 1298, ratio: 75, sim: 527 },
        { word: '搜狗输入法下载安装', pv: 126182, ratio: 102, sim: 521 },
        { word: '微软拼音输入法', pv: 3442, ratio: 88, sim: 510 },
        { word: 'QQ拼音输入法', pv: 24912, ratio: 98, sim: 478 },
        { word: '输入发', pv: 150, ratio: 125, sim: 465 },
        { word: 'SOUGOU输入法', pv: 264, ratio: 89, sim: 452 },
        { word: '微软拼音', pv: 2772, ratio: 93, sim: 443 }
      ]
    }
  ],

  categoryField: 'word',
  valueField: 'sim',

  sizeField: 'pv',
  sizeRange: [12, 30],

  innerRadius: '25%',
  outerRadius: '95%',

  nodePoint: {
    state: {
      hover: {
        lineWidth: 8,
        strokeOpacity: 0.2
      }
    }
  },

  centerPoint: {
    state: {
      hover: {
        lineWidth: 8,
        strokeOpacity: 0.2
      }
    }
  },

  centerLabel: {
    visible: true,
    position: 'center',
    style: {
      fill: 'white',
      text: '输入法'
    }
  },

  label: {
    visible: true,
    position: 'bottom',
    style: {
      fill: 'black'
    }
  }
};

const vchart = new VChart(spec, { dom: CONTAINER_ID });
vchart.renderSync();

// Just for the convenience of console debugging, DO NOT COPY!
window['vchart'] = vchart;

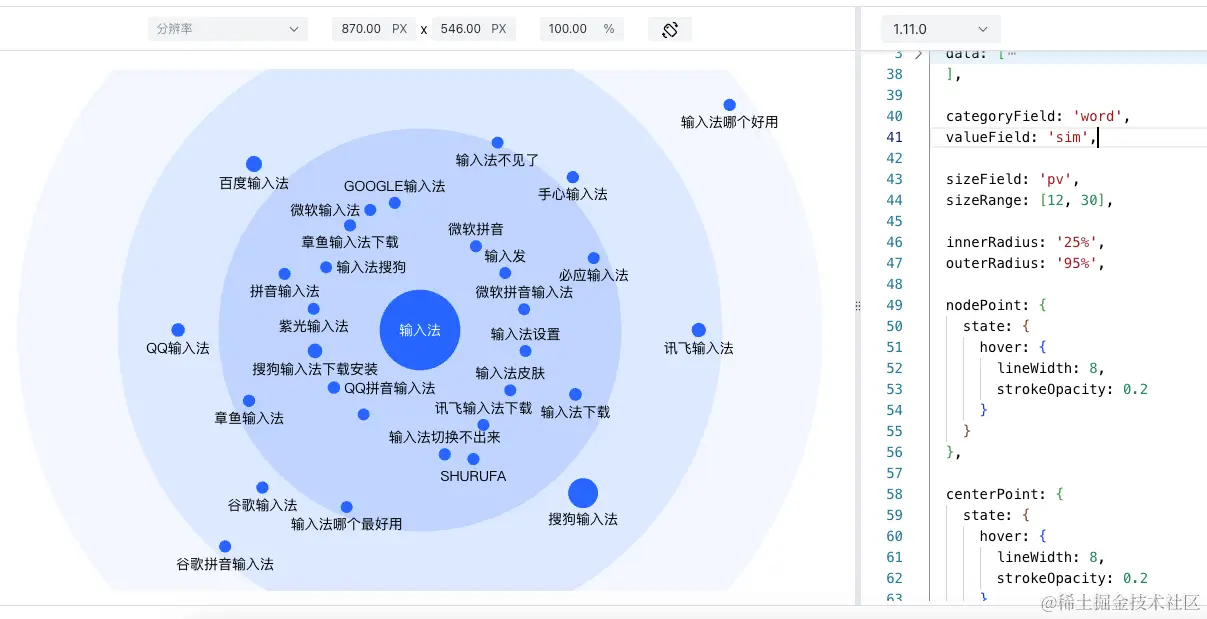

结果展示

Demo: www.visactor.io/vchart/demo…
