vue实现杜邦分析图

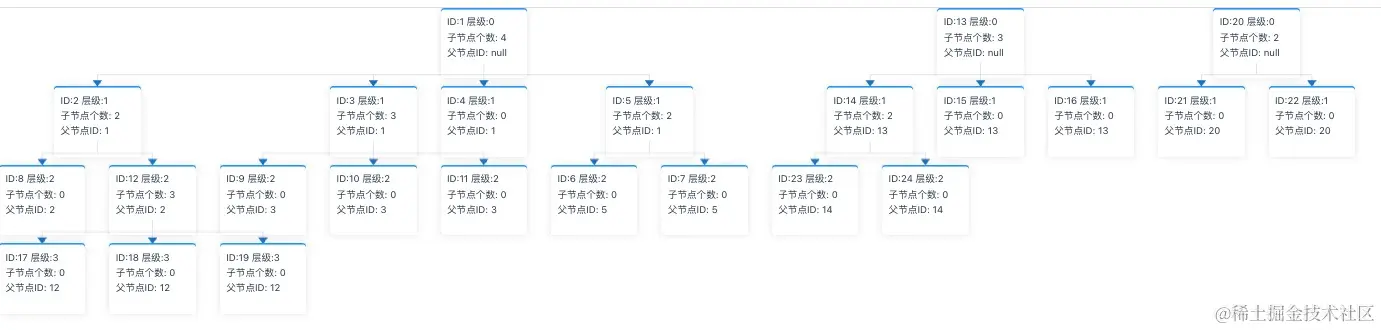

图例
算法实现
- 实现数据组装，将二维数组转换成树型结构，建立节点之间的关系
const indexs = [
{ label: "0-1", top: 0, left: 0, key: "1", parent: null, level: null, offset: 0, children: [] },
{ label: "1-2", top: 0, left: 0, key: "2", parent: "1", level: null, offset: 0, children: [] },
{ label: "1-3", top: 0, left: 0, key: "3", parent: "1", level: null, offset: 0, children: [] },
{ label: "1-4", top: 0, left: 0, key: "4", parent: "1", level: null, offset: 0, children: [] },
{ label: "1-5", top: 0, left: 0, key: "5", parent: "1", level: null, offset: 0, children: [] },
{ label: "2-6", top: 0, left: 0, key: "6", parent: "5", level: null, offset: 0, children: [] },
{ label: "2-7", top: 0, left: 0, key: "7", parent: "5", level: null, offset: 0, children: [] },
{ label: "2-8", top: 0, left: 0, key: "8", parent: "2", level: null, offset: 0, children: [] },
{ label: "2-9", top: 0, left: 0, key: "9", parent: "3", level: null, offset: 0, children: [] },
{ label: "2-10", top: 0, left: 0, key: "10", parent: "3", level: null, offset: 0, children: [] },
{ label: "2-11", top: 0, left: 0, key: "11", parent: "3", level: null, offset: 0, children: [] },
{ label: "2-12", top: 0, left: 0, key: "12", parent: "2", level: null, offset: 0, children: [] },
{ label: "0-13", top: 0, left: 0, key: "13", parent: null, level: null, offset: 0, children: [] },
{ label: "1-14", top: 0, left: 0, key: "14", parent: "13", level: null, offset: 0, children: [] },
{ label: "1-15", top: 0, left: 0, key: "15", parent: "13", level: null, offset: 0, children: [] },
{ label: "1-16", top: 0, left: 0, key: "16", parent: "13", level: null, offset: 0, children: [] },
{ label: "3-17", top: 0, left: 0, key: "17", parent: "12", level: null, offset: 0, children: [] },
{ label: "3-18", top: 0, left: 0, key: "18", parent: "12", level: null, offset: 0, children: [] },
{ label: "3-19", top: 0, left: 0, key: "19", parent: "12", level: null, offset: 0, children: [] },
{ label: "3-20", top: 0, left: 0, key: "20", parent: null, level: null, offset: 0, children: [] },
{ label: "3-21", top: 0, left: 0, key: "21", parent: "20", level: null, offset: 0, children: [] },
{ label: "3-22", top: 0, left: 0, key: "22", parent: "20", level: null, offset: 0, children: [] },
{ label: "1-23", top: 0, left: 0, key: "23", parent: "14", level: null, offset: 0, children: [] },
{ label: "1-24", top: 0, left: 0, key: "24", parent: "14", level: null, offset: 0, children: [] },
] as any[]
treeList.forEach((e: any) => {
if (e.parent) {
const parent = treeList.find((p: any) => p.key == e.parent)
if (parent) {
e.parentProto = parent
parent.children.push(e)
e.delete = true
}
}
})
treeList = treeList.filter((e: any) => !e.delete)
- 设置每个元素的布局, 并且通过树的子节点计算偏移量，最后在计算树的偏移量
const uilist = [] as any[]
//初步设置布局
const loop = (list: any[], parent?: any) => {
if (parent) {
parent.offset = parent.left - ((list.length * (boxWidth + boxMargin)) / 2) + (boxWidth + boxMargin) / 2
parent.subCount = list.length
}
list.forEach((e: any) => {
if (parent) {
e.level = parent.level + 1
e.left = parent.offset
parent.offset = parent.offset + boxWidth + boxMargin
} else {
e.level = 0
}
if (e.children) loop(e.children, e)
e.top = e.level * (boxHeight + boxMargin)
uilist.push(e)
})
}
loop(treeList)
//控制偏移量
const setOffset = (list: any[], offset: any) => {
list.forEach((e: any) => {
e.left = e.left - offset
if (e.children) {
setOffset(e.children, offset)
}
})
}
//获取子节点的最左或者最后位置
const getChildLeft = (list: any[], cur: any, position: 'left' | 'right') => {
if (list?.length > 0) {
if (position === 'left') {
return list[0].left
} else {
return list[list.length - 1].left + boxWidth + boxMargin
}
}
return null
}
//获取最右边的节点位置
const getMaxRight = (list: any[]) => {
let max = null as any
list.forEach((e: any) => {
const right = getChildLeft(e.children, e, 'right')
if (right > max) {
max = right
}
})
return max
}
//控制元素偏移
const loopOffset = (list: any[], parent?: any) => {
if (parent) {
let offset = 0
let pre_list = [] as any[]
list.forEach((e: any, index: number) => {
const pre_most_right = getMaxRight(pre_list)
const next = (index === list.length - 1) ? null : list[index + 1]
const next_left = getChildLeft(next?.children, next, 'left')
if (pre_most_right != null && next_left != null && pre_most_right > next_left) {
offset = pre_most_right - next_left
e.left = e.left - offset
setOffset(e.children, offset)
setOffset(pre_list, offset)
}
if (e.children?.length > 0) {
if (parent) {
if (next?.children?.length > 0) {
const cur_right = getChildLeft(e.children, e, 'right')
if (cur_right > next_left) {
offset = cur_right - next_left
e.left = e.left - offset
setOffset(e.children, offset)
setOffset(pre_list, offset)
}
}
}
}
pre_list.push(e)
})
}
list.forEach((e: any) => {
if (e.children) {
loopOffset(e.children, e)
}
})
}
loopOffset(treeList)
let min_left = 0
uilist.forEach((e: any) => {
if (min_left > e.left) {
min_left = e.left
}
})
//获取树的最大宽度
const getTreeSizeWidth = (list: any, size: any, cur?: any) => {
if (list?.length > 0) {
list?.forEach((e: any) => {
if (size.most_left == null) {
size.most_left = e.left
}
if (size.most_right == null) {
size.most_right = e.left + boxWidth + boxMargin
}
if (e.left + boxWidth + boxMargin > size.most_right) {
size.most_right = e.left + boxWidth + boxMargin
}
if (e.left < size.most_left) {
size.most_left = e.left
}
if (e.children) {
getTreeSizeWidth(e.children, size)
}
})
} else if (cur) {
size.most_left = cur.left
size.most_right = cur.left + boxWidth + boxMargin
}
}
let pre_most_width = null as any
//控制树最外层的偏移量
treeList.forEach((e: any) => {
const size = { most_left: null, most_right: null } as any
getTreeSizeWidth(e.children, size, e)
let tree_size_width = size.most_right - size.most_left
if (pre_most_width != null) {
let half_width = e.left - size.most_left //头部节点到最左节点的距离
min_left = - pre_most_width - half_width
}
setOffset([e], min_left)
pre_most_width = pre_most_width + tree_size_width
})
let max_width = 0
let max_height = 0
uilist.forEach((e: any) => {
if (e.left + boxWidth + boxMargin > max_width) {
max_width = e.left + boxWidth + boxMargin
}
if (e.top + boxHeight + boxMargin > max_height) {
max_height = e.top + boxHeight + boxMargin
}
})
state.width = max_width
state.height = max_height
state.list = uilist
if (uilist.length > 0) drawLine(uilist)
3.绘制父子节点的线条
function drawLine(list: any[]) {
const pen = canvasRef.value.getContext("2d");
const devicePixelRatio = window.devicePixelRatio || 1
const backingStoreRatio = pen.webkitBackingStorePixelRatio || 1
const ratio = devicePixelRatio / backingStoreRatio
canvasRef.value.width = state.width * ratio
canvasRef.value.height = state.height * ratio
pen.scale(ratio, ratio)
pen.clearRect(0, 0, state.width, state.height);
pen.strokeStyle = "#DCDFE6";
pen.lineWidth = 1
list.forEach((e: any) => {
if (e.parentProto) {
pen.beginPath();
pen.moveTo(e.left + boxWidth / 2, e.top);
pen.lineTo(e.left + boxWidth / 2, e.top - boxMargin / 2);
pen.lineTo(e.parentProto.left + boxWidth / 2, e.parentProto.top + boxHeight + boxMargin / 2);
pen.lineTo(e.parentProto.left + boxWidth / 2, e.parentProto.top + boxHeight);
pen.stroke();
pen.closePath();
pen.beginPath();
pen.moveTo(e.left + boxWidth / 2, e.top);
pen.lineTo(e.left + boxWidth / 2 - 6, e.top - 8);
pen.lineTo(e.left + boxWidth / 2 + 6, e.top - 8);
pen.closePath();
pen.fillStyle = "#337ECC";
pen.fill();
}
})
}
