背景

在商品展示类页面开发时,图片是经常要打交道的地方,当数量不多的时候,人为调整还是可以, 但是遇到十几甚至是上百张图片时候,就需要借助工具解决如:

拿到的图片是命名不规则的(有些带有空格有些带有横杆不统一)
拿到的图片命名大小写没有区分
拿到的图片格式不一致, 有些是png, 有些是jpg, 有些是jpeg
拿到的图片需要的seo优化, 要把把文件命名为有意义的名称, 包括标签 alt title 等命名
页面上需要重复写入的<img>很多而且需要一定的格式

优化思路

先把图片素材通过工具,统一格式化所有图片命名和后缀
通过脚本实现自动化填补<img>

工具篇

mac系统自带

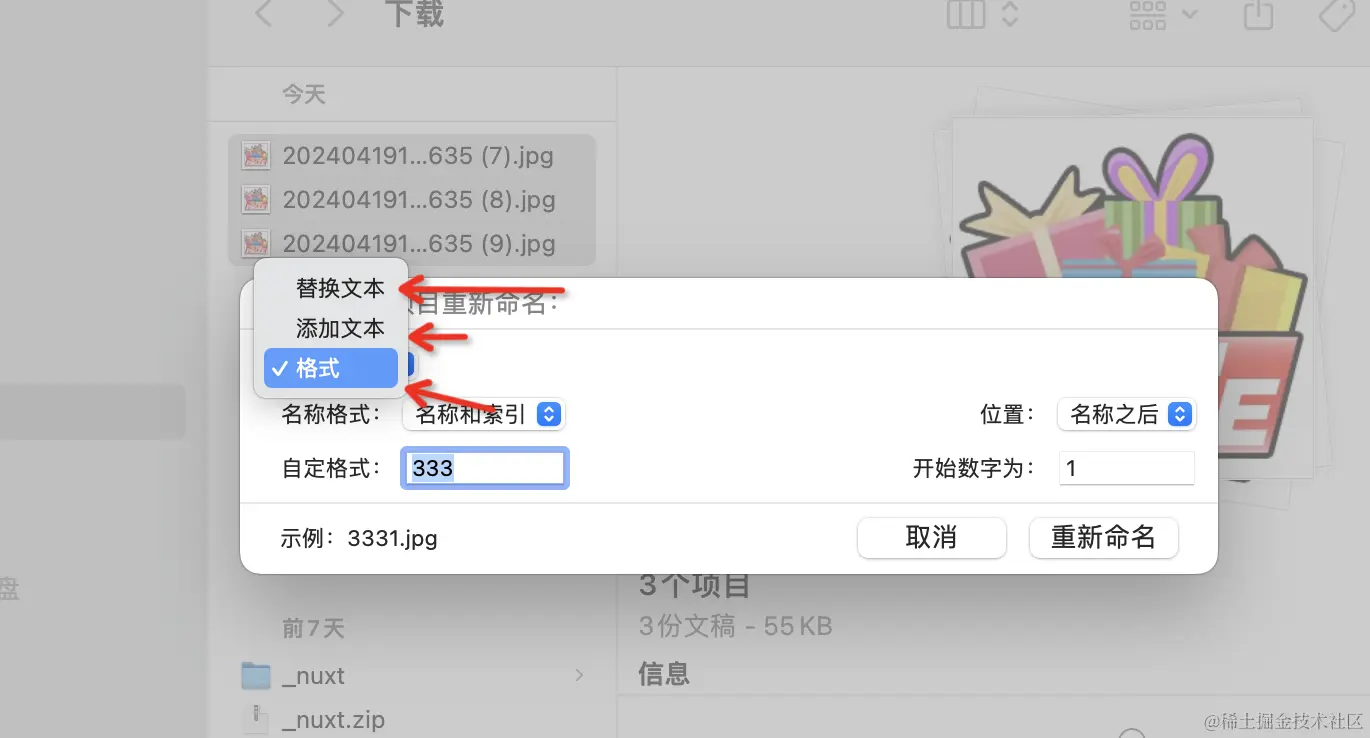

多选需要操作的图片, 选择重新命名

mac系统支持替换文本, 添加文本和修改格式

第三方软件

这里推荐使用Bluk File Rename工具(mac系统)

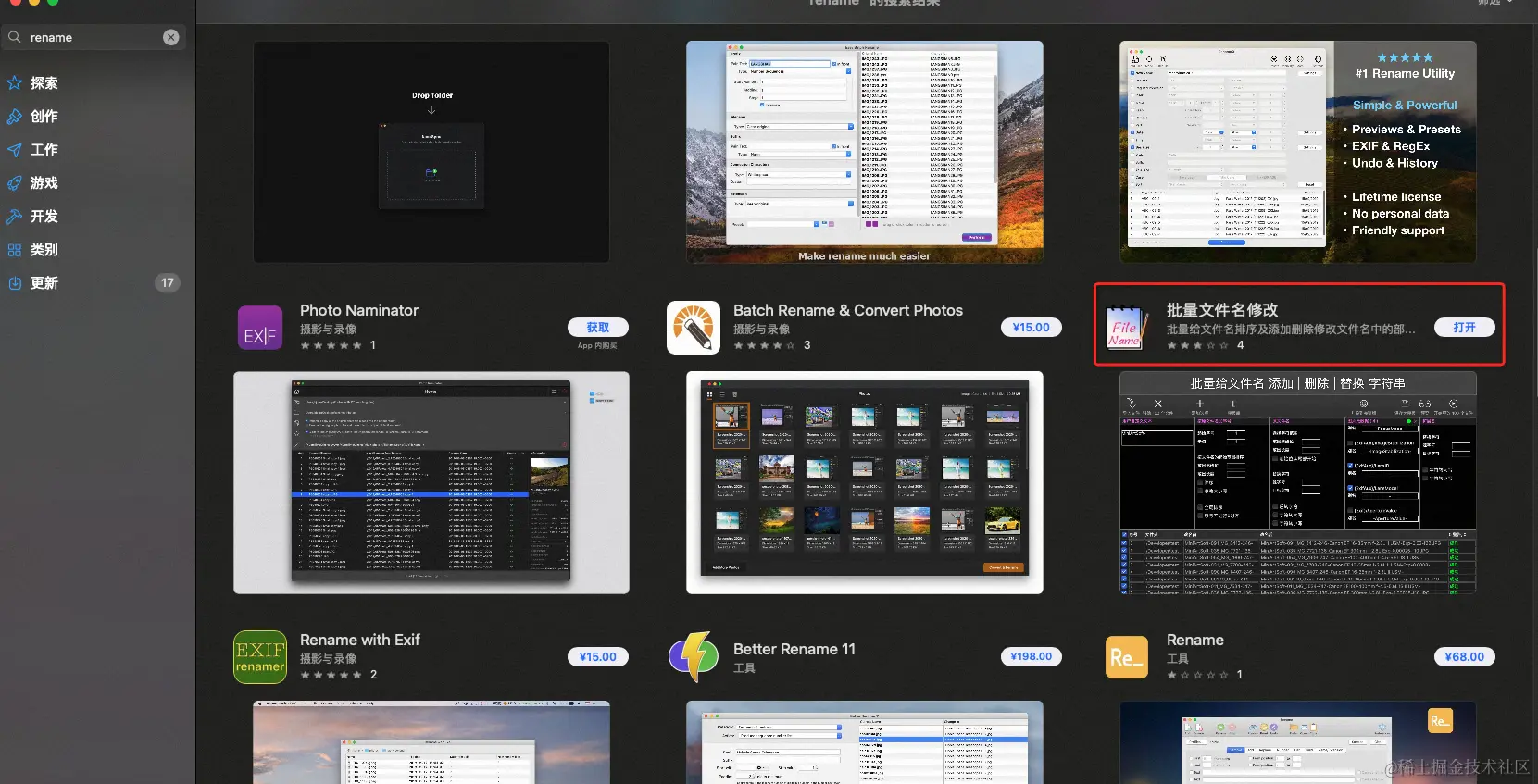

下载方式: 在appstore 搜索 rename 安装“批量文件名修改”

使用流程: 通过配置规则可以实现批量重命名，大写转小写，去空格去横杆，去掉多余前缀

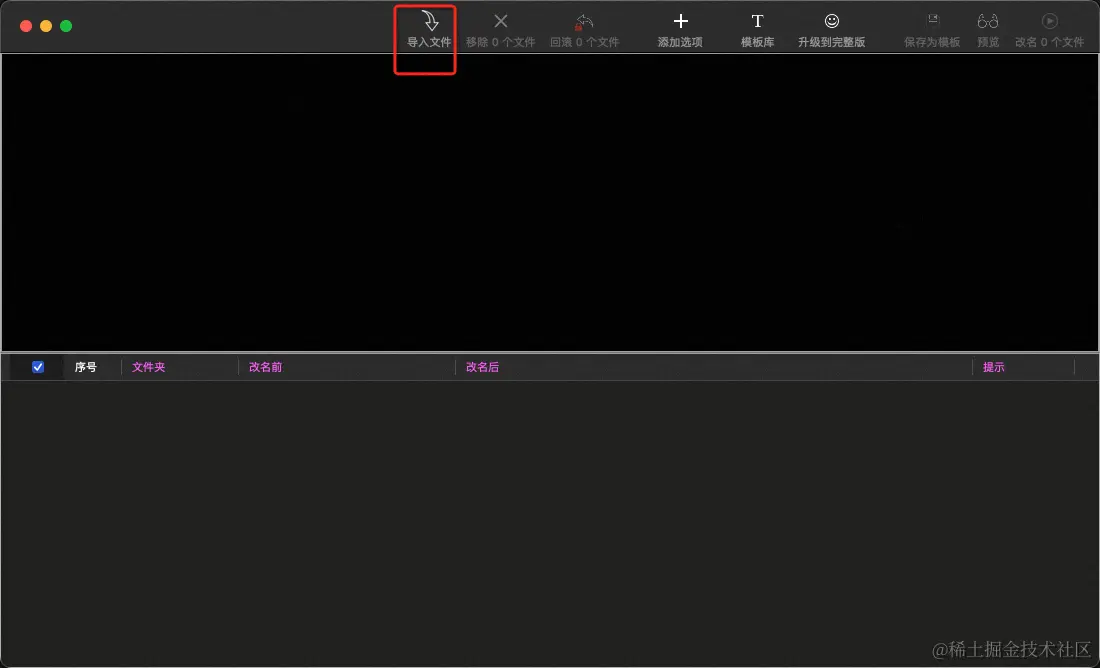

导入

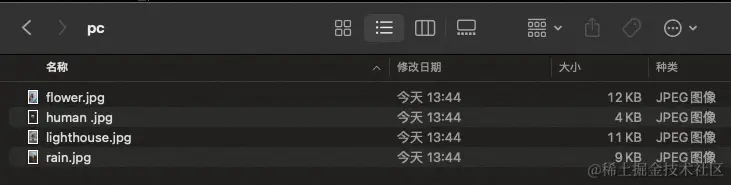

我们以这几张图片为例, (有些包含- 有些有空格有些开头大写)

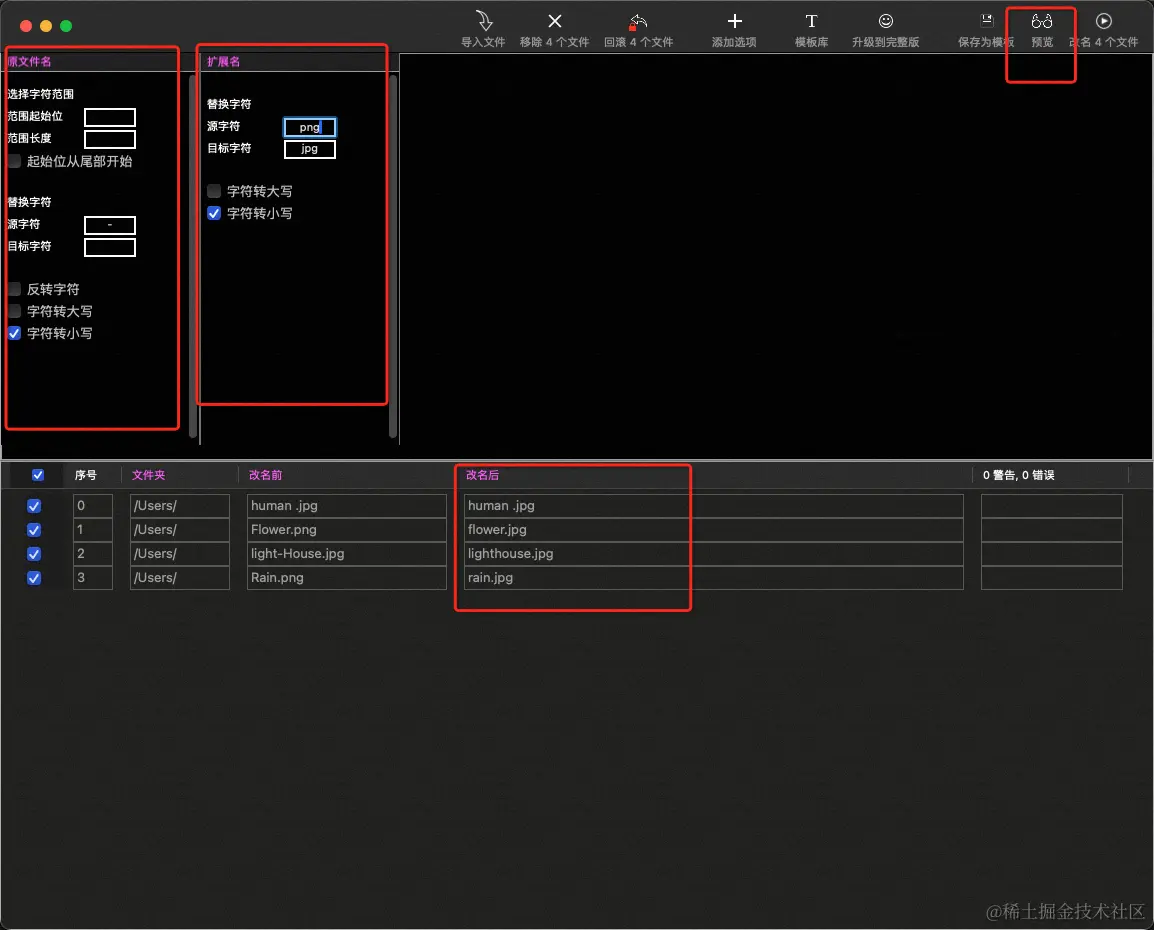

设置规则

这里只需要配置原文件名和扩展名这两个属性就可以实现规范化的命名

生成结果

点击预览即可在下面看到改名后的所有结果

点击右上角的改名4个文件就会默认覆盖原有路径文件

生成结果, 当然human .jpg没有处理好,可以重复导入再设置规则,这里就不再叙述.

代码篇

1.vscode 快捷指令

vscode 提供简单高效的快捷指令如:

ul.piclist>li*6>a[href=#]>img[src=https://picsum.photos/200/300?random\=$]

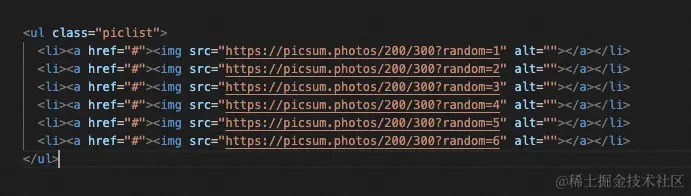

回车后自动生成

这里picsum.photos/200/300 会动态返回不同的图片

2.node + ejs模版输出

源码地址(github.com/mjsong07/in…)

实现:

本地文件夹的资源遍历
遍历出来的变量结合ejs模版实现不同定制逻辑页面需求

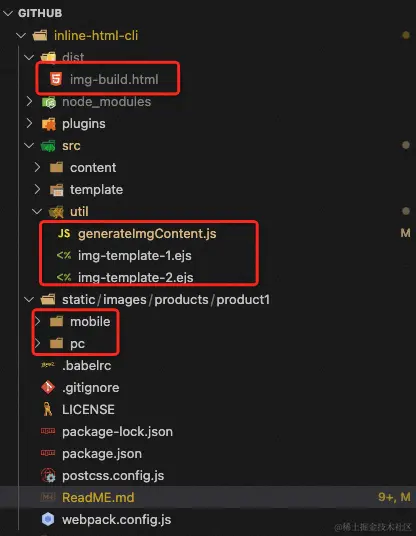

项目结构

使用方法

启动命令

  "scripts": {
    "img-build-1": "node ./src/util/generateImgContent.js  --ejs_path=./img-template-1.ejs --imgPath=static/images/products/product1/pc/*  --cdn=http://cdn/",
    "img-build-2": "node ./src/util/generateImgContent.js  --ejs_path=./img-template-2.ejs --imgPath=static/images/products/product1/mobile/*  --cdn=../static/images/products/product1/mobile/"
  },

直接运行

npm run img-build-1

img-build-1 会执行generateImgContent.js代码
遍历文件夹路径static/images/products/product1/pc/* 所有图片,输出变量
同时读取img-template-1.ejs 模版
把变量和模版内容混合输出在dist输出img-build.html文件

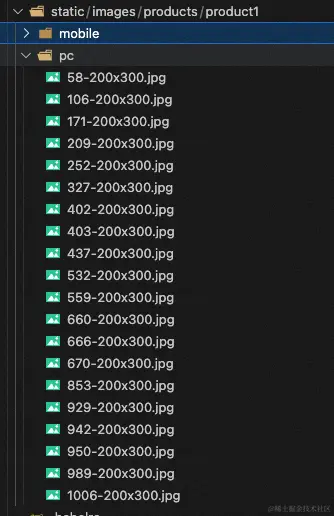

读取的文件夹图片列表

输出内容

<div class="floor-container">
  <h1>pc</h1>
  <div class="swiper-container">
    <div class="swiper-wrapper">
      <!-- 这里根据实际的情况 修改对应的模板内容 -->
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/1006-200x300.jpg" alt="1006 200x300" title="1006 200x300">
            <p>"1006 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/106-200x300.jpg" alt="106 200x300" title="106 200x300">
            <p>"106 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/171-200x300.jpg" alt="171 200x300" title="171 200x300">
            <p>"171 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/209-200x300.jpg" alt="209 200x300" title="209 200x300">
            <p>"209 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/252-200x300.jpg" alt="252 200x300" title="252 200x300">
            <p>"252 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/327-200x300.jpg" alt="327 200x300" title="327 200x300">
            <p>"327 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/402-200x300.jpg" alt="402 200x300" title="402 200x300">
            <p>"402 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/403-200x300.jpg" alt="403 200x300" title="403 200x300">
            <p>"403 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/437-200x300.jpg" alt="437 200x300" title="437 200x300">
            <p>"437 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/532-200x300.jpg" alt="532 200x300" title="532 200x300">
            <p>"532 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/559-200x300.jpg" alt="559 200x300" title="559 200x300">
            <p>"559 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/58-200x300.jpg" alt="58 200x300" title="58 200x300">
            <p>"58 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/660-200x300.jpg" alt="660 200x300" title="660 200x300">
            <p>"660 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/666-200x300.jpg" alt="666 200x300" title="666 200x300">
            <p>"666 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/670-200x300.jpg" alt="670 200x300" title="670 200x300">
            <p>"670 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/853-200x300.jpg" alt="853 200x300" title="853 200x300">
            <p>"853 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/929-200x300.jpg" alt="929 200x300" title="929 200x300">
            <p>"929 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/942-200x300.jpg" alt="942 200x300" title="942 200x300">
            <p>"942 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/950-200x300.jpg" alt="950 200x300" title="950 200x300">
            <p>"950 200x300"</p>
        </div>
      </div>
      <div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/989-200x300.jpg" alt="989 200x300" title="989 200x300">
            <p>"989 200x300"</p>
        </div>
      </div>

    </div>
  </div>
  <div class="swiper-button-prev"></div>
  <div class="swiper-button-next"></div>
</div>

支持参数

  "scripts": {
    "img-build-1": "node ./src/util/generateImgContent.js  --ejs_path=./img-template-1.ejs --imgPath=static/images/products/product1/pc/*  --cdn=http://cdn/",
    "img-build-2": "node ./src/util/generateImgContent.js  --ejs_path=./img-template-2.ejs --imgPath=static/images/products/product1/mobile/*  --cdn=../static/images/products/product1/mobile/"
  },

- ejs_path : "./img-template-1.ejs"; //这里为对应要输出的模板
- imgPath : "static/images/products/product1/pc/*"; //这里为遍历的图片文件夹路径
- cdn : "http://cdn/"; //这里替换为实际的业务地址, 本地调试可以使用相对地址 ../static/images/products/product1/mobile/

模版文件

img-template-1.ejs

<div class="floor-container">
  <h1>pc</h1>
  <div class="swiper-container">
    <div class="swiper-wrapper">
      <!-- 这里根据实际的情况 修改对应的模板内容 -->
      <% lists.forEach(function(file){%><div class="swiper-wrapper"><div class="swiper-slide">
            <img src="../static/images/products/product1/pc/<%= file.fileNameAndExt %>" alt="<%= file.fileName %>" title="<%= file.fileName %>">
            <p>"<%= file.fileName %>"</p>
        </div>
      </div>
      <% })%>
    </div>
  </div>
  <div class="swiper-button-prev"></div>
  <div class="swiper-button-next"></div>
</div>

img-template-2.ejs

<div class="floor-container">
  <div class="row">
      <p class="title animation-item animation">mobile </p>
      <div class="product-text">
        <% lists.forEach(function(file){%><img src="<%= file.cdn %><%= file.fileNameAndExt %>" alt="<%= file.fileName %>">
          <% })%>
      </div>
      <div class="product-img pc">
        <% lists.forEach(function(file){%><img src="<%= file.cdn %><%= file.fileNameAndExt %>" alt="<%= file.fileName %>">
        <% })%>
      </div>
      <div class="product-img mobile">
        <% lists.forEach(function(file){%><img src="<%= file.cdn %><%= file.fileNameAndExt %>" alt="<%= file.fileName %>">
        <% })%>
      </div>
      <div class="product-icon">
        <% lists.forEach(function(file){%><img src="<%= file.cdn %><%= file.fileNameAndExt %>" alt="<%= file.fileName %>">
        <% })%>
      </div>
  </div>
</div>

主要逻辑代码

generateImgContent.js

// 动态根据图片资源生成图片以及标签内容 包括 alt src 地址， title 名称
"use strict";
const glob = require("glob");
const path = require("path");
const ejs = require("ejs");
const fs = require("fs");

let imgTemplatePath = require('minimist')(process.argv.slice(2))['ejs_path']  //"./img-template-1.ejs"; //这里为对应要输出的模板
let imgPath =require('minimist')(process.argv.slice(3))['imgPath']  // "static/images/products/product1/pc/*"; //这里为遍历的图片文件夹路径
let cdn =require('minimist')(process.argv.slice(4))['cdn']  // "http://cdn/"; //这里替换为实际的业务地址, 本地调试可以使用相对地址 ../static/images/products/product1/mobile/
console.log("imgTemplatePath",imgTemplatePath)
console.log("imgPath",imgPath)
console.log("cdn",cdn)

const entryFiles = glob.sync(
  imgPath
);

console.log("entryFiles", entryFiles);

// 写入文件夹操作
const writeToFile = (pathName, result) => {
  //先判断文件夹是否存在，不存在则创建
  const dirname = path.dirname(pathName);
  if(!fs.existsSync(dirname)){
      fs.mkdirSync(dirname);
  }
  // path: 目标文件夹的绝对路径（只支持绝对路径）
  return fs.promises.writeFile(pathName, result);
};

const getCompilerTxt = async (templateName, lists) => {
  // 根据用户执行的命令，拿到指定路径的模板，进行渲染创建
  const templateCurrentPath = `./${templateName}`;
  const templateAbsolutePath = path.resolve(__dirname, templateCurrentPath);
  // 读取HTML 标签
  return new Promise((resolve, reject) => {
    ejs.renderFile(templateAbsolutePath, { lists }, {}, (err, result) => {
      if (err) {
        reject(err);
        return;
      }
      resolve(result);
    });
  });
};

let outerList = [];
Object.keys(entryFiles).map(async (index) => {
  const entryFile = entryFiles[index];
  const fileInfo = path.parse(entryFile);
  let fileName = fileInfo.name;
  fileName = fileName.replaceAll("-", " ");
  const fileNameAndExt = fileInfo.base;
  let file = {
    fileNameAndExt,
    fileName,
    cdn,
  };
  outerList.push(file);
});
async function run() {
  let html = await getCompilerTxt(imgTemplatePath, outerList);
    const targetPath = path.resolve("./dist", `img-build.html`);
    await writeToFile(targetPath, html);
}
run();
