ET框架新起一个服务及实现服务之间的消息通讯

​



ET框架是熊猫大大写的双端框架，游戏客户端和服务端都是用C#语言来编写

新起一个服务名比如叫做Activity

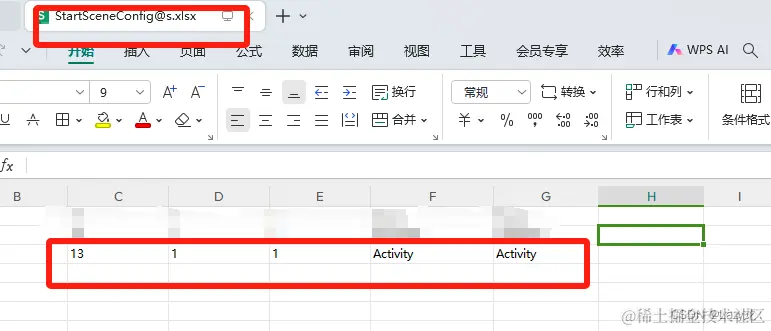

1.配置文件StartSceneConfig

​

2. SceneFactory

switch (scene.SceneType)
{
     case SceneType.Activity:
     break;
}

定义SceneType枚举类型

public enum SceneType: uint
{
	Activity = 66,
}

3.在InnerMessage.proto文件中定义消息

//ResponseType Activity2Other_Test
message Other2Activity_Test     //IActorRequest
{
    int32 RpcId = 90;
	string testMessage = 1;
}

message Activity2Other_Test     // IActorResponse
{
     int32 RpcId = 90;
     int32 Error    = 91;
     string Message = 92;
	 string responseMessage = 2;
}

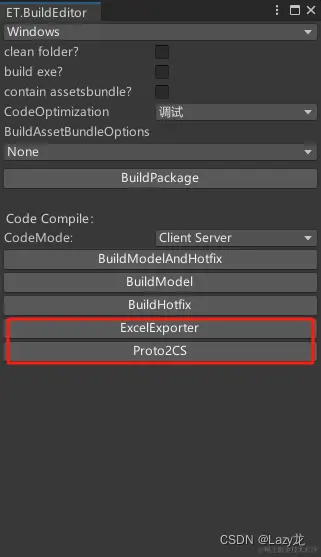

4.导入配置文件和Proto文件

​

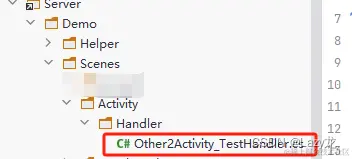

5.发送消息及编写消息的处理类

StartSceneConfig startSceneConfig = StartSceneConfigCategory.Instance.GetBySceneName(unit.DomainZone(), "Activity");
Activity2Other_Test test = (Activity2Other_Test)await ActorMessageSenderComponent.Instance.Call(startSceneConfig.InstanceId, new Other2Activity_Test() { testMessage="12345" });
Log.Debug("###############" + test.responseMessage);

​

namespace ET.Server
{
    [ActorMessageHandler(SceneType.Activity)]
    public class Other2Activity_TestHandler: AMActorRpcHandler<Scene,Other2Activity_Test,Activity2Other_Test>
    {
        protected override async ETTask Run(Scene scene, Other2Activity_Test request, Activity2Other_Test response)
        {
            Log.Debug("%%%%%%%%%%%%$$$$$####@@@@@@@@@@@"+request.testMessage);
            Log.Debug("&&"+scene.Name);
            response.responseMessage = "67890";
            await ETTask.CompletedTask;
        }
    }
}

6.打印输出结果

​

​
