条形进度图分段展示

问题标题

如何将条形进度图分段展示

问题描述

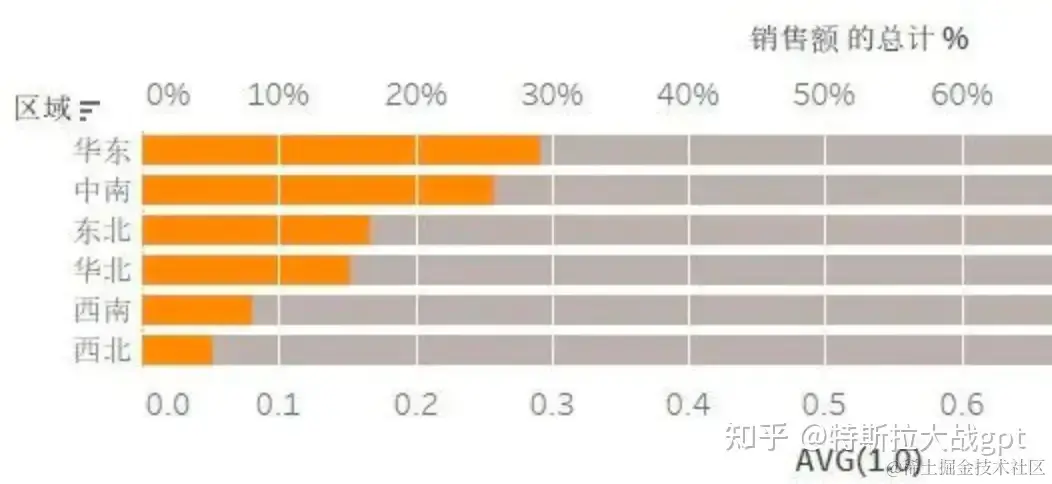

请问如何将条形进度图分段展示，如下图一样呢？

解决方案

VChart 中可以用扩展图元来显示这每一段中的分割线

代码示例

const spec = {
  type: "linearProgress",
  data: [
    {
      id: "id0",
      values: [
        {
          type: "Tradition Industries",
          value: 0.85,
          goal: 0.7,
          text: "79.5%"
        }
      ]
    }
  ],
  direction: "horizontal",
  xField: "value",
  yField: "type",
  seriesField: "type",
  height: 80,
  cornerRadius: 20,
  progress: {
    style: {
      cornerRadius: 0
    }
  },
  bandWidth: 30,
  axes: [
    {
      orient: "right",
      type: "band",
      domainLine: { visible: false },
      tick: { visible: false },
      label: {
        formatMethod: (val) => "随便写点啥",
        style: {
          fontSize: 16
        }
      }
    },
    {
      orient: "bottom",
      type: "linear",
      visible: true,
      grid: {
        visible: false
      },
      label: {
        formatMethod: (val) => `${val * 100}%`,
        flush: true
      }
    }
  ],
  extensionMark: [
    {
      type: "rule",
      dataId: "id0",
      visible: true,
      style: {
        x: (datum, ctx, elements, dataView) => {
          return ctx.valueToX([1 / 3]);
        },
        y: (datum, ctx, elements, dataView) => {
          return ctx.valueToY([datum.type]) - 15;
        },
        x1: (datum, ctx, elements, dataView) => {
          return ctx.valueToX([1 / 3]);
        },
        y1: (datum, ctx, elements, dataView) => {
          return ctx.valueToY([datum.type]) + 15;
        },
        stroke: "#fff",
        lineWidth: 4,
        zIndex: 1
      }
    },
    {
      type: "rule",
      dataId: "id0",
      visible: true,
      style: {
        x: (datum, ctx, elements, dataView) => {
          return ctx.valueToX([2 / 3]);
        },
        y: (datum, ctx, elements, dataView) => {
          return ctx.valueToY([datum.type]) - 15;
        },
        x1: (datum, ctx, elements, dataView) => {
          return ctx.valueToX([2 / 3]);
        },
        y1: (datum, ctx, elements, dataView) => {
          return ctx.valueToY([datum.type]) + 15;
        },
        stroke: "#fff",
        lineWidth: 4,
        zIndex: 1
      }
    }
  ]
};

const vchart = new VChart(spec, { dom: CONTAINER_ID, disableTriggerEvent: true });
vchart.renderSync();

// Just for the convenience of console debugging, DO NOT COPY!
window['vchart'] = vchart;

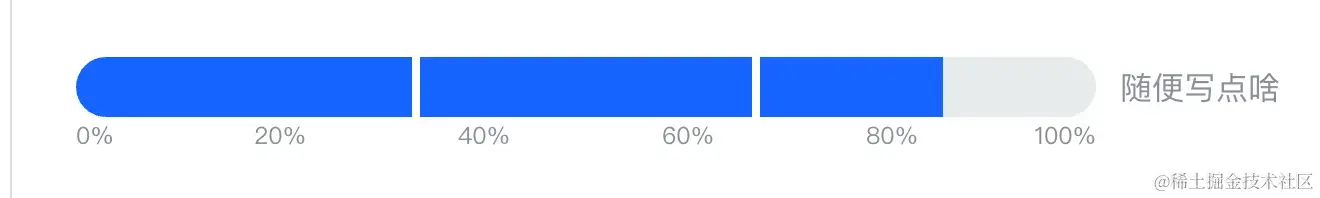

结果展示

Demo: codesandbox.io/p/sandbox/s…

相关文档

Demo：codesandbox.io/p/sandbox/s…

API：

• 扩展mark：visactor.io/vchart/opti…

Github：github.com/VisActor/VC…
