个人学习记录
反正是一路暴力卷积过来了。。。
准确率在90左右波动
import warnings
import torch
import torch.nn as nn
from torch.utils.data import DataLoader, random_split
from torchvision import transforms, datasets
from PIL import Image
import matplotlib.pyplot as plt
channel_size = 3
batch_size = 8
print_iter = 20 * batch_size
train_size = 20000
test_size = 5000
epochs = 15
sum_loss = 0
device = "cuda" if torch.cuda.is_available() else "cpu"
acc_list = list()
plt_loss = list()
def to_device(batch):
inputs, labels = zip(*batch)
return (torch.stack(inputs).to(device).float(),
torch.tensor(labels).to(device).float())
def loader(path):
try:
with Image.open(path).convert("RGB") as image:
warnings.simplefilter("ignore", category=UserWarning)
image.load()
return image
except (IOError, OSError):
# print(f"Warning: Could not load image {path}")
return Image.new('RGB', (256, 256), 'black')
transform = transforms.Compose([
transforms.Resize((256, 256)),
transforms.RandomRotation(degrees=(-15, 15)),
transforms.RandomHorizontalFlip(),
transforms.ToTensor(),
transforms.Grayscale(num_output_channels=channel_size),
])
ImgData = datasets.ImageFolder("PetImages", transform=transform, loader=loader)
train_set, test_set = random_split(ImgData, [train_size, test_size])
train_loader = DataLoader(dataset=train_set, shuffle=True, batch_size=batch_size, collate_fn=to_device)
test_loader = DataLoader(dataset=test_set, shuffle=True, batch_size=batch_size, collate_fn=to_device)
model = nn.Sequential(
nn.BatchNorm2d(num_features=channel_size),
nn.Conv2d(channel_size, 32, kernel_size=3, stride=1),
nn.MaxPool2d(kernel_size=2, stride=2),
nn.Conv2d(32, 64, kernel_size=3, stride=1),
nn.MaxPool2d(kernel_size=2, stride=2),
nn.Conv2d(64, 64, kernel_size=3, stride=1),
nn.MaxPool2d(kernel_size=2, stride=2),
nn.BatchNorm2d(num_features=64),
nn.Conv2d(64, 64, kernel_size=3, stride=1),
nn.MaxPool2d(kernel_size=2, stride=2),
nn.Conv2d(64, 128, kernel_size=3, stride=1),
nn.MaxPool2d(kernel_size=2, stride=2),
nn.Conv2d(128, 128, kernel_size=3, stride=1),
nn.MaxPool2d(kernel_size=2, stride=2),
nn.BatchNorm2d(num_features=128),
nn.Flatten(),
nn.Linear(in_features=512, out_features=16),
nn.LeakyReLU(),
nn.Linear(in_features=16, out_features=1),
nn.Sigmoid()
).to(device)
optimizer = torch.optim.Adam(model.parameters())
criterion = torch.nn.BCELoss()
for epoch in range(epochs):
it = 0
for img, label in train_loader:
img = img.view(batch_size, channel_size, 256, 256)
label = label.view(batch_size, 1)
optimizer.zero_grad()
output = model(img)
loss = criterion(output, label)
sum_loss += loss.item()
loss.backward()
optimizer.step()
if not it % print_iter:
print(f"epoch{epoch:>3} train iter {it:>5}/{train_size} "
f"loss {sum_loss:>.3f}")
plt_loss.append(sum_loss)
sum_loss = 0
it += batch_size
it, correct, total = 0, 0, 0
with torch.no_grad():
for img, label in test_loader:
img = img.view(batch_size, channel_size, 256, 256)
label = label.view(batch_size, -1)
outputs = model(img)
hit: torch.tensor = (abs(outputs - label) < 0.5)
correct += hit.sum().item()
total += batch_size
if not it % print_iter:
print(f"test iter {it:>5}/{test_size}")
it += batch_size
accuracy = correct / total
acc_list.append(accuracy)
print(accuracy)
torch.save(model, 'DogCatRcg_model.pth')
plt.figure()
plt.plot([i for i in range(len(plt_loss))], plt_loss, label='loss')
plt.figure()
plt.plot([i for i in range(len(acc_list))], acc_list, label='accuracy')
plt.show()

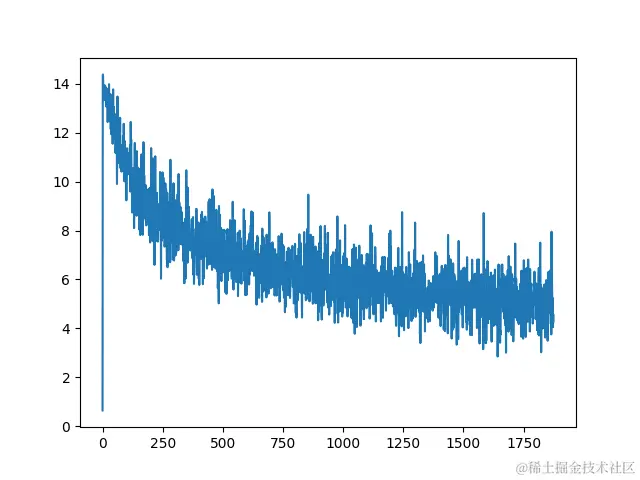

loss:

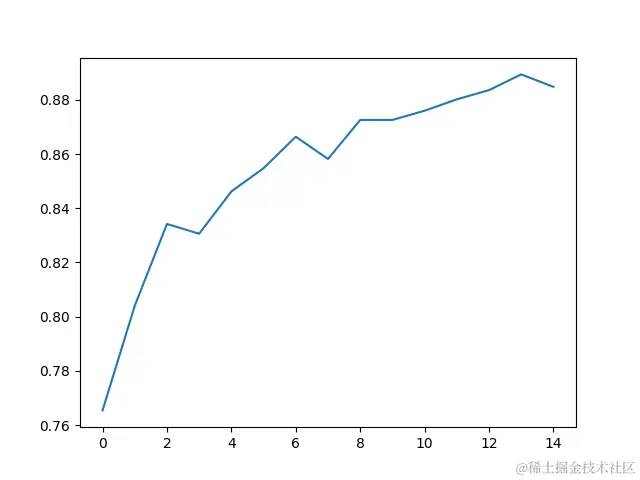

acc:
模型调用所需的代码
import warnings
import torch
from PIL import Image
from torch.utils.data import DataLoader, random_split
from torchvision import transforms, datasets
channel_size = 3
batch_size = 100
print_iter = 200
train_size = 20000
test_size = 5000
device = "cuda" if torch.cuda.is_available() else "cpu"
def to_device(batch):
inputs, labels = zip(*batch)
return (torch.stack(inputs).to(device).float(),
torch.tensor(labels).to(device).float())
def loader(path):
try:
with Image.open(path).convert("RGB") as image:
warnings.simplefilter("ignore", category=UserWarning)
image.load()
return image
except (IOError, OSError) as e:
print(f"Warning: Could not load image {path}")
return Image.new('RGB', (256, 256), 'black')
transform = transforms.Compose([
transforms.Resize((256, 256)),
transforms.RandomRotation(degrees=(-15, 15)),
transforms.RandomHorizontalFlip(),
transforms.ToTensor(),
transforms.Grayscale(num_output_channels=channel_size),
])
ImgData = datasets.ImageFolder("PetImages", transform=transform, loader=loader)
train_set, test_set = random_split(ImgData, [train_size, test_size])
train_loader = DataLoader(dataset=train_set, shuffle=True, batch_size=batch_size, collate_fn=to_device)
test_loader = DataLoader(dataset=test_set, shuffle=True, batch_size=batch_size, collate_fn=to_device)
model = torch.load(r"DogCatRcg_model.pth").to(device)
print(model)
optimizer = torch.optim.Adam(model.parameters())
criterion = torch.nn.BCELoss()
it, correct, total = 0, 0, 0
with torch.no_grad():
for img, label in test_loader:
img = img.view(batch_size, channel_size, 256, 256)
label = label.view(batch_size, -1)
outputs = model(img)
hit: torch.tensor = (abs(outputs - label) < 0.5)
correct += hit.sum().item()
total += batch_size
if not it % print_iter:
print(f"test iter {it:>5}/{test_size}")
it += batch_size
accuracy = correct / total
print(accuracy)
单张图片的加载
import warnings
import torch
from PIL import Image
from torchvision import transforms
channel_size = 3
device = "cuda" if torch.cuda.is_available() else "cpu"
transform = transforms.Compose([
transforms.Resize((256, 256)),
transforms.ToTensor(),
transforms.Grayscale(num_output_channels=channel_size),
])
def load_img(img_path):
try:
with Image.open(img_path).convert("RGB") as image:
warnings.simplefilter("ignore", category=UserWarning)
image.load()
return transform(image).to(device)
except (IOError, OSError):
# print(f"Warning: Could not load image {path}")
return Image.new('RGB', (256, 256), 'black')
path = r'E:\PycharmProjects\torchlibs\PetImages\Cat\10028.jpg'
model = torch.load('DogCatRcg_model.pth').to(device)
z = model(load_img(path).view(1, channel_size, 256, 256))
print(z)
