前言

学习知识确实最有效的方法就是实践,就如同通过制作一个有意思的时钟来掌握前端三件套的知识。

在这个过程中,我们不仅仅是在机械地完成一个任务,更是在亲身体验和探索中深入理解每一个技术点的应用。从构建时钟的结构开始,用 HTML搭建起框架;运用 CSS赋予其美观的外观和布局;再通过 JavaScript赋予其灵动的生命,让时间实时跳动。

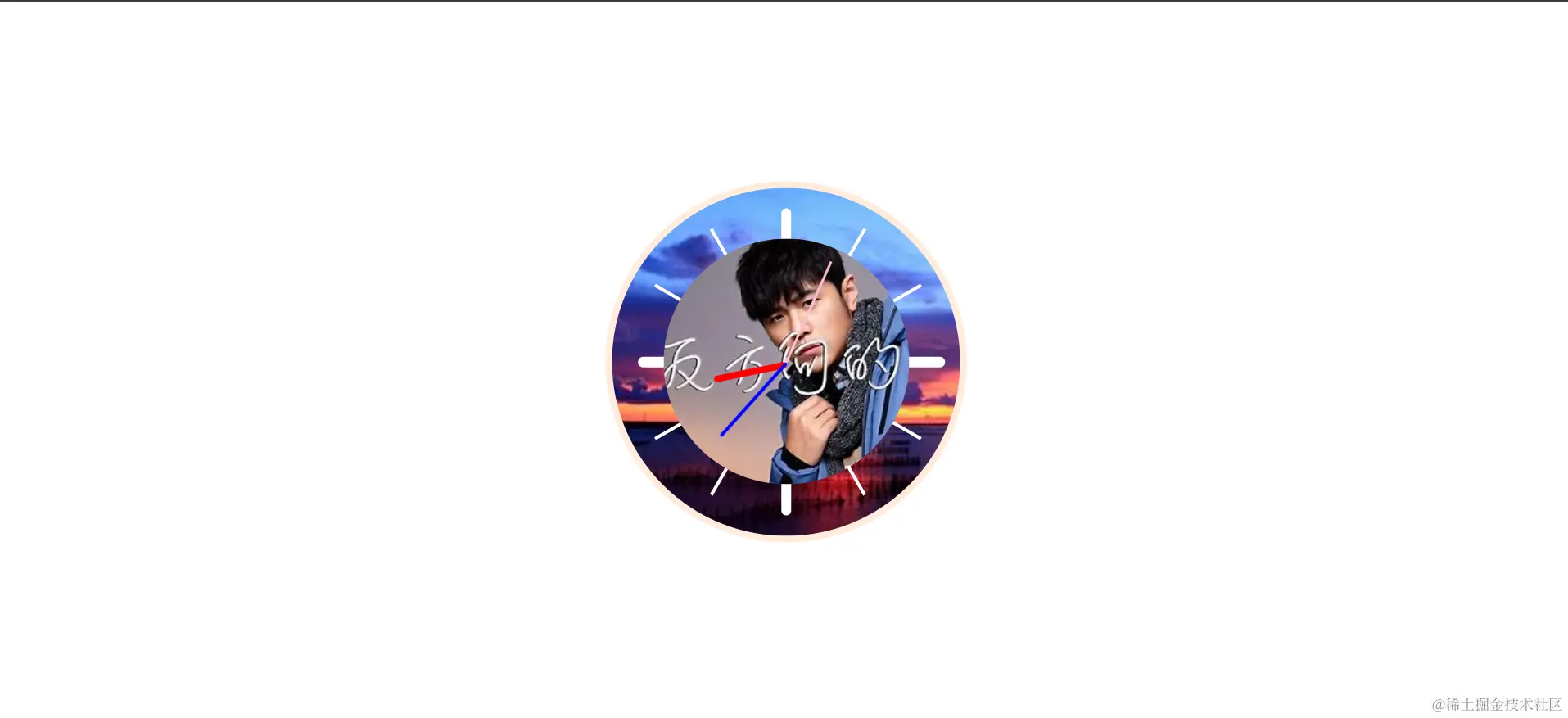

实操效果

屏幕截图 2024-04-20 203720.png

实操部分

html部分

首先时钟由一个上表面、一个下表面、六条时刻线和时针分针秒针组成。

  • clock盒子包括两个表面

    • outer-clock-face(下表面)

      • marking marking-one(时刻线)
      • marking marking-two(时刻线)
      • marking marking-three(时刻线)
      • marking marking-four(时刻线)
      • 伪元素::before(时刻线)
      • 伪元素::after(时刻线)
    • inner-clock-face(上表面)

      • hand hour-hand(时钟)
      • hand min-hand(分钟)
      • hand second-hand(秒针)

通过上面的分析我们可以清楚的写出html结构框架

<div class="clock">
    <div class="outer-clock-face">
        <div class="marking marking-one"></div>
        <div class="marking marking-two"></div>
        <div class="marking marking-three"></div>
        <div class="marking marking-four"></div>
        <div class="inner-clock-face">
            <div class="hand hour-hand"></div>
            <div class="hand min-hand"></div>
            <div class="hand second-hand"></div>
        </div>
    </div>
</div>

css部分

为什么有一些div盒子有两个类名而且还有一个共同的类名呢?

这是为了简化css代码也便于修改代码。可以用一个共同拥有的类名写一些共同具有的样式,再用不同的类名写一些不一样的样式。

主要部分:

  • 用border-radius: 50%;生成圆形

  • 通过绝对定位居中

    position: absolute;
    left: 50%;
    top: 50%;
    transform: translate(-50%, -50%);

  • 伪元素,用于创建一个时钟的外观

    .outer-clock-face::before,
    .outer-clock-face::after {
         /* 指定了伪元素的内容,将内容设置为空字符串,因为我们可能会使用其他方式来添加时钟的指针或数字 */
        content: '';
        width: 10px;
        height: 100%;
        background: white;
        /* 因为伪元素是行内元素,为了布局改成块级元素 */
        display: block;
        border-radius: 10px;
        /* 居中操作*/
        position: absolute;
        left: 50%;
        transform: translate(-50%);
    }
    .outer-clock-face::after {
        /* 绕z轴旋转90度 */
        transform: rotate(90deg);
        /* 旋转基点 */
        transform-origin: center center;
    }


JavaScript部分

  • 首先获取.second-hand元素、.min-hand元素和.hour-hand元素。

  • 通过Date对象的getSeconds()、getMinutes()和getHours()元素获取当前的时分秒

  • 通过计算得出旋转角度,再用

    style.transform = `rotate(${角度}deg)`


    修改css样式,使指针的旋转角度发生变化

  • 设置一个定时器,一秒刷新一次指针的旋转角度

var secondHand = document.querySelector('.second-hand');
var minHand = document.querySelector('.min-hand');
var hourHand = document.querySelector('.hour-hand');

function setTime() {
    var now = new Date();     //获取到当前时间

    //读取秒针
    var seconds = now.getSeconds()
    var secondsDegrees = seconds * 6 + 90
    secondHand.style.transform = `rotate(${secondsDegrees}deg)`

    //读取分针
    var mins = now.getMinutes()
    var minsDegrees = mins * 6 + 90
    minHand.style.transform = `rotate(${minsDegrees}deg)`

    //读取时针
    var hours = now.getHours()
    var hoursDegrees = hours * 30 + 90 + mins * 0.5
    hourHand.style.transform = `rotate(${hoursDegrees}deg)`
}

//定时器
setInterval(setTime, 1000)

结尾

每一次的调试、改进,都是对知识的巩固和深化。这种实践让理论不再抽象,让我们真正将所学知识融会贯通,并且在解决实际问题时能够得心应手。实践是知识的催化剂,让我们在制作时钟的有趣过程中,不断提升自己的技能和理解能力。
