fork 定义

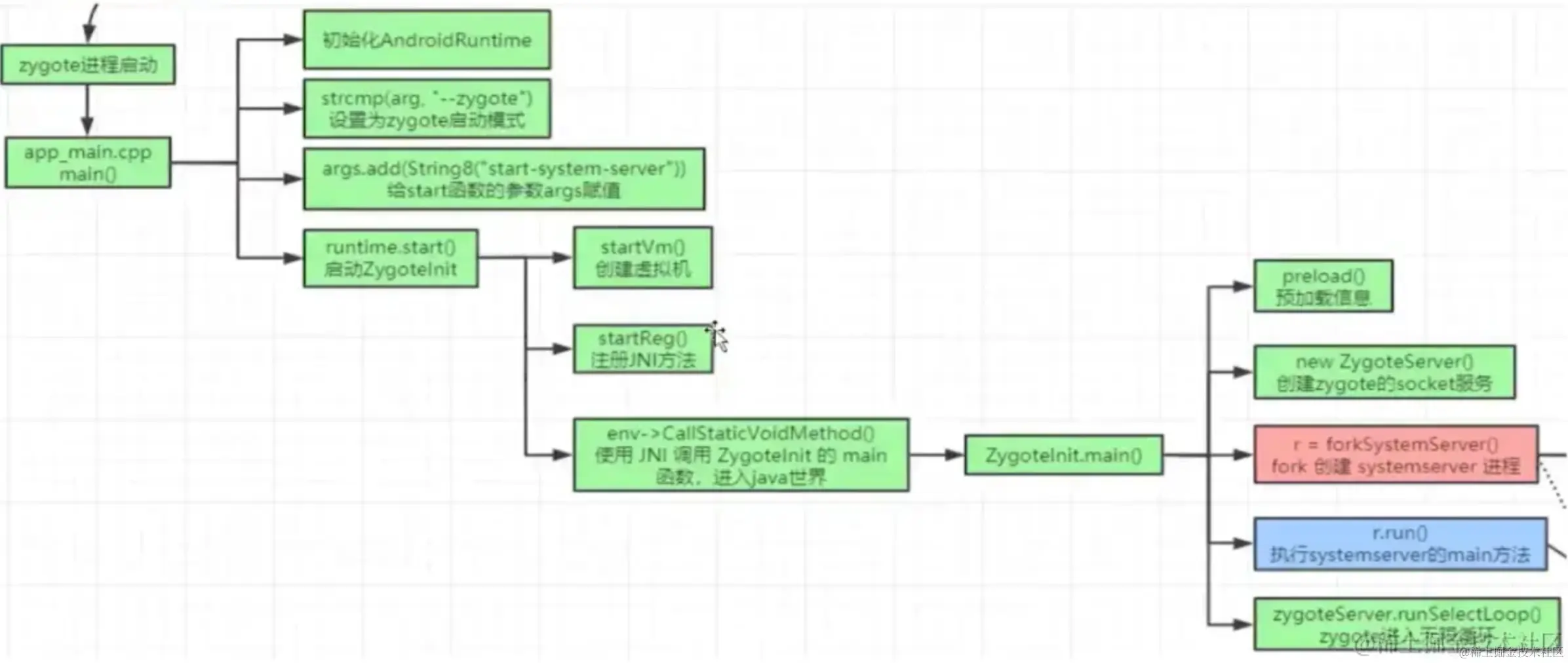

zygote启动流程图解
app_process/app_main.cpp
int main(int argc, char* const argv[])
{
if (!LOG_NDEBUG) {
String8 argv_String;
for (int i = 0; i < argc; ++i) {
argv_String.append(""");
argv_String.append(argv[i]);
argv_String.append("" ");
}
ALOGV("app_process main with argv: %s", argv_String.string());
}
AppRuntime runtime(argv[0], computeArgBlockSize(argc, argv));
// Process command line arguments
// ignore argv[0]
argc--;
argv++;
// Everything up to '--' or first non '-' arg goes to the vm.
//
// The first argument after the VM args is the "parent dir", which
// is currently unused.
//
// After the parent dir, we expect one or more the following internal
// arguments :
//
// --zygote : Start in zygote mode
// --start-system-server : Start the system server.
// --application : Start in application (stand alone, non zygote) mode.
// --nice-name : The nice name for this process.
//
// For non zygote starts, these arguments will be followed by
// the main class name. All remaining arguments are passed to
// the main method of this class.
//
// For zygote starts, all remaining arguments are passed to the zygote.
// main function.
//
// Note that we must copy argument string values since we will rewrite the
// entire argument block when we apply the nice name to argv0.
//
// As an exception to the above rule, anything in "spaced commands"
// goes to the vm even though it has a space in it.
const char* spaced_commands[] = { "-cp", "-classpath" };
// Allow "spaced commands" to be succeeded by exactly 1 argument (regardless of -s).
bool known_command = false;
int i;
for (i = 0; i < argc; i++) {
if (known_command == true) {
runtime.addOption(strdup(argv[i]));
// The static analyzer gets upset that we don't ever free the above
// string. Since the allocation is from main, leaking it doesn't seem
// problematic. NOLINTNEXTLINE
ALOGV("app_process main add known option '%s'", argv[i]);
known_command = false;
continue;
}
for (int j = 0;
j < static_cast<int>(sizeof(spaced_commands) / sizeof(spaced_commands[0]));
++j) {
if (strcmp(argv[i], spaced_commands[j]) == 0) {
known_command = true;
ALOGV("app_process main found known command '%s'", argv[i]);
}
}
if (argv[i][0] != '-') {
break;
}
if (argv[i][1] == '-' && argv[i][2] == 0) {
++i; // Skip --.
break;
}
runtime.addOption(strdup(argv[i]));
// The static analyzer gets upset that we don't ever free the above
// string. Since the allocation is from main, leaking it doesn't seem
// problematic. NOLINTNEXTLINE
ALOGV("app_process main add option '%s'", argv[i]);
}
// Parse runtime arguments. Stop at first unrecognized option.
bool zygote = false;
bool startSystemServer = false;
bool application = false;
String8 niceName;
String8 className;
++i; // Skip unused "parent dir" argument.
while (i < argc) {
const char* arg = argv[i++];
if (strcmp(arg, "--zygote") == 0) {
zygote = true;
niceName = ZYGOTE_NICE_NAME;
} else if (strcmp(arg, "--start-system-server") == 0) {
startSystemServer = true;
} else if (strcmp(arg, "--application") == 0) {
application = true;
} else if (strncmp(arg, "--nice-name=", 12) == 0) {
niceName.setTo(arg + 12);
} else if (strncmp(arg, "--", 2) != 0) {
className.setTo(arg);
break;
} else {
--i;
break;
}
}
Vector<String8> args;
if (!className.isEmpty()) {
// We're not in zygote mode, the only argument we need to pass
// to RuntimeInit is the application argument.
//
// The Remainder of args get passed to startup class main(). Make
// copies of them before we overwrite them with the process name.
args.add(application ? String8("application") : String8("tool"));
runtime.setClassNameAndArgs(className, argc - i, argv + i);
if (!LOG_NDEBUG) {
String8 restOfArgs;
char* const* argv_new = argv + i;
int argc_new = argc - i;
for (int k = 0; k < argc_new; ++k) {
restOfArgs.append(""");
restOfArgs.append(argv_new[k]);
restOfArgs.append("" ");
}
ALOGV("Class name = %s, args = %s", className.string(), restOfArgs.string());
}
} else {
// We're in zygote mode.
maybeCreateDalvikCache();
if (startSystemServer) {
args.add(String8("start-system-server"));
}
char prop[PROP_VALUE_MAX];
if (property_get(ABI_LIST_PROPERTY, prop, NULL) == 0) {
LOG_ALWAYS_FATAL("app_process: Unable to determine ABI list from property %s.",
ABI_LIST_PROPERTY);
return 11;
}
String8 abiFlag("--abi-list=");
abiFlag.append(prop);
args.add(abiFlag);
// In zygote mode, pass all remaining arguments to the zygote
// main() method.
for (; i < argc; ++i) {
args.add(String8(argv[i]));
}
}
if (!niceName.isEmpty()) {
runtime.setArgv0(niceName.string(), true /* setProcName */);
}
if (zygote) {
runtime.start("com.android.internal.os.ZygoteInit", args, zygote);
} else if (className) {
runtime.start("com.android.internal.os.RuntimeInit", args, zygote);
} else {
fprintf(stderr, "Error: no class name or --zygote supplied.\n");
app_usage();
LOG_ALWAYS_FATAL("app_process: no class name or --zygote supplied.");
}
}
main -> AndroidRuntime.start
- bool zygote = false;
- bool startSystemServer = false;
- bool application = false;
AndroidRuntime.cpp
注意：传进来的参数 "com.android.internal.os.ZygoteInit" 最后反射时需要用到；
/*
* Start the Android runtime. This involves starting the virtual machine
* and calling the "static void main(String[] args)" method in the class
* named by "className".
*
* Passes the main function two arguments, the class name and the specified
* options string.
*/
void AndroidRuntime::start(const char* className, const Vector<String8>& options, bool zygote)
{
ALOGD(">>>>>> START %s uid %d <<<<<<\n",
className != NULL ? className : "(unknown)", getuid());
static const String8 startSystemServer("start-system-server");
// Whether this is the primary zygote, meaning the zygote which will fork system server.
bool primary_zygote = false;
/*
* 'startSystemServer == true' means runtime is obsolete and not run from
* init.rc anymore, so we print out the boot start event here.
*/
for (size_t i = 0; i < options.size(); ++i) {
if (options[i] == startSystemServer) {
primary_zygote = true;
/* track our progress through the boot sequence */
const int LOG_BOOT_PROGRESS_START = 3000;
LOG_EVENT_LONG(LOG_BOOT_PROGRESS_START, ns2ms(systemTime(SYSTEM_TIME_MONOTONIC)));
}
}
const char* rootDir = getenv("ANDROID_ROOT");
if (rootDir == NULL) {
rootDir = "/system";
if (!hasDir("/system")) {
LOG_FATAL("No root directory specified, and /system does not exist.");
return;
}
setenv("ANDROID_ROOT", rootDir, 1);
}
const char* artRootDir = getenv("ANDROID_ART_ROOT");
if (artRootDir == NULL) {
LOG_FATAL("No ART directory specified with ANDROID_ART_ROOT environment variable.");
return;
}
const char* i18nRootDir = getenv("ANDROID_I18N_ROOT");
if (i18nRootDir == NULL) {
LOG_FATAL("No runtime directory specified with ANDROID_I18N_ROOT environment variable.");
return;
}
const char* tzdataRootDir = getenv("ANDROID_TZDATA_ROOT");
if (tzdataRootDir == NULL) {
LOG_FATAL("No tz data directory specified with ANDROID_TZDATA_ROOT environment variable.");
return;
}
//const char* kernelHack = getenv("LD_ASSUME_KERNEL");
//ALOGD("Found LD_ASSUME_KERNEL='%s'\n", kernelHack);
/* start the virtual machine */
JniInvocation jni_invocation;
jni_invocation.Init(NULL);
JNIEnv* env;
if (startVm(&mJavaVM, &env, zygote, primary_zygote) != 0) {
return;
}
onVmCreated(env);
/*
* Register android functions.
*/
if (startReg(env) < 0) {
ALOGE("Unable to register all android natives\n");
return;
}
/*
* We want to call main() with a String array with arguments in it.
* At present we have two arguments, the class name and an option string.
* Create an array to hold them.
*/
jclass stringClass;
jobjectArray strArray;
jstring classNameStr;
stringClass = env->FindClass("java/lang/String");
assert(stringClass != NULL);
strArray = env->NewObjectArray(options.size() + 1, stringClass, NULL);
assert(strArray != NULL);
classNameStr = env->NewStringUTF(className);
assert(classNameStr != NULL);
env->SetObjectArrayElement(strArray, 0, classNameStr);
for (size_t i = 0; i < options.size(); ++i) {
jstring optionsStr = env->NewStringUTF(options.itemAt(i).string());
assert(optionsStr != NULL);
env->SetObjectArrayElement(strArray, i + 1, optionsStr);
}
/*
* Start VM. This thread becomes the main thread of the VM, and will
* not return until the VM exits.
*/
char* slashClassName = toSlashClassName(className != NULL ? className : "");
jclass startClass = env->FindClass(slashClassName);
if (startClass == NULL) {
ALOGE("JavaVM unable to locate class '%s'\n", slashClassName);
/* keep going */
} else {
jmethodID startMeth = env->GetStaticMethodID(startClass, "main",
"([Ljava/lang/String;)V");
if (startMeth == NULL) {
ALOGE("JavaVM unable to find main() in '%s'\n", className);
/* keep going */
} else {
env->CallStaticVoidMethod(startClass, startMeth, strArray);
#if 0
if (env->ExceptionCheck())
threadExitUncaughtException(env);
#endif
}
}
free(slashClassName);
ALOGD("Shutting down VM\n");
if (mJavaVM->DetachCurrentThread() != JNI_OK)
ALOGW("Warning: unable to detach main thread\n");
if (mJavaVM->DestroyJavaVM() != 0)
ALOGW("Warning: VM did not shut down cleanly\n");
}
1、如果是 zygote 模式会反射 ZygoteInit.main 最后走到 SystemServer.main
2、如果是 className 有值会反射 RuntimeInit.main
startVm 启动虚拟机
onVmCreated 拓展使用的吧？
void AndroidRuntime::onVmCreated(JNIEnv* env)
{
// If AndroidRuntime had anything to do here, we'd have done it in 'start'.
}
startReg 注册JNI
反射调用 ZygoteInit.java 的 main
ZygoteInit.java
public static void main(String argv[]) {
...
// In some configurations, we avoid preloading resources and classes eagerly.
// In such cases, we will preload things prior to our first fork.
if (!enableLazyPreload) {
bootTimingsTraceLog.traceBegin("ZygotePreload");
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_START,
SystemClock.uptimeMillis());
// step 1 预加载
preload(bootTimingsTraceLog);
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_END,
SystemClock.uptimeMillis());
bootTimingsTraceLog.traceEnd(); // ZygotePreload
}
// Do an initial gc to clean up after startup
bootTimingsTraceLog.traceBegin("PostZygoteInitGC");
// step 2 gc init
gcAndFinalize();
bootTimingsTraceLog.traceEnd(); // PostZygoteInitGC
bootTimingsTraceLog.traceEnd(); // ZygoteInit
Zygote.initNativeState(isPrimaryZygote);
ZygoteHooks.stopZygoteNoThreadCreation();
// step 2 socket
zygoteServer = new ZygoteServer(isPrimaryZygote);
if (startSystemServer) {
// step 3 forkSystemServer
Runnable r = forkSystemServer(abiList, zygoteSocketName, zygoteServer);
// {@code r == null} in the parent (zygote) process, and {@code r != null} in the
// child (system_server) process.
if (r != null) {
r.run();
return;
}
}
Log.i(TAG, "Accepting command socket connections");
// The select loop returns early in the child process after a fork and
// loops forever in the zygote.
caller = zygoteServer.runSelectLoop(abiList);
preLoad();//预加载
static void preload(TimingsTraceLog bootTimingsTraceLog) {
Log.d(TAG, "begin preload");
bootTimingsTraceLog.traceBegin("BeginPreload");
beginPreload();
bootTimingsTraceLog.traceEnd(); // BeginPreload
bootTimingsTraceLog.traceBegin("PreloadClasses");
preloadClasses();
bootTimingsTraceLog.traceEnd(); // PreloadClasses
bootTimingsTraceLog.traceBegin("CacheNonBootClasspathClassLoaders");
cacheNonBootClasspathClassLoaders();
bootTimingsTraceLog.traceEnd(); // CacheNonBootClasspathClassLoaders
bootTimingsTraceLog.traceBegin("PreloadResources");
preloadResources();
bootTimingsTraceLog.traceEnd(); // PreloadResources
Trace.traceBegin(Trace.TRACE_TAG_DALVIK, "PreloadAppProcessHALs");
nativePreloadAppProcessHALs();
Trace.traceEnd(Trace.TRACE_TAG_DALVIK);
Trace.traceBegin(Trace.TRACE_TAG_DALVIK, "PreloadGraphicsDriver");
maybePreloadGraphicsDriver();
Trace.traceEnd(Trace.TRACE_TAG_DALVIK);
preloadSharedLibraries();
preloadTextResources();
// Ask the WebViewFactory to do any initialization that must run in the zygote process,
// for memory sharing purposes.
WebViewFactory.prepareWebViewInZygote();
endPreload();
warmUpJcaProviders();
Log.d(TAG, "end preload");
sPreloadComplete = true;
}
preloadClasses 预加载类
preloadResources 预加载资源
nativePreloadAppProcessHALs 预加载 HAL
maybePreloadGraphicsDriver 预加载图像处理驱动
preloadSharedLibraries 预加载动态链接库(android , compiler_rt )
preloadTextResources 预加载字体文件
WebViewFactory.prepareWebViewInZygote(); 准备 webview
forkSystemServer 启动SystemServer
forkSystemServer ->
handleSystemServerProcess ->
/*
* Pass the remaining arguments to SystemServer.
*/
return ZygoteInit.zygoteInit(parsedArgs.mTargetSdkVersion,
parsedArgs.mDisabledCompatChanges,
parsedArgs.mRemainingArgs, cl);
zygoteInit
/**
* The main function called when started through the zygote process. This could be unified with
* main(), if the native code in nativeFinishInit() were rationalized with Zygote startup.<p>
*
* Current recognized args:
* <ul>
* <li> <code> [--] <start class name> <args>
* </ul>
*
* @param targetSdkVersion target SDK version
* @param disabledCompatChanges set of disabled compat changes for the process (all others
* are enabled)
* @param argv arg strings
*/
public static Runnable zygoteInit(int targetSdkVersion, long[] disabledCompatChanges,
String[] argv, ClassLoader classLoader) {
if (RuntimeInit.DEBUG) {
Slog.d(RuntimeInit.TAG, "RuntimeInit: Starting application from zygote");
}
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ZygoteInit");
RuntimeInit.redirectLogStreams();
RuntimeInit.commonInit();
ZygoteInit.nativeZygoteInit();
return RuntimeInit.applicationInit(targetSdkVersion, disabledCompatChanges, argv,
classLoader);
}
SystemServer.java 反射
反射调用 SystemServer.java 的main
runSelectLoop() 运行 ZygoteServer 等待 fork 消息通过socket 传递过来
zygoteServer = new ZygoteServer(isPrimaryZygote);
...
forkSystemServer
...
zygoteServer.runSelectLoop()
/**
* Runs the zygote process's select loop. Accepts new connections as
* they happen, and reads commands from connections one spawn-request's
* worth at a time.
*/
Runnable runSelectLoop(String abiList) {
ArrayList<FileDescriptor> socketFDs = new ArrayList<>();
ArrayList<ZygoteConnection> peers = new ArrayList<>();
socketFDs.add(mZygoteSocket.getFileDescriptor());
peers.add(null);
mUsapPoolRefillTriggerTimestamp = INVALID_TIMESTAMP;
while (true) {
fetchUsapPoolPolicyPropsWithMinInterval();
mUsapPoolRefillAction = UsapPoolRefillAction.NONE;
int[] usapPipeFDs = null;
StructPollfd[] pollFDs;
// Allocate enough space for the poll structs, taking into account
// the state of the USAP pool for this Zygote (could be a
// regular Zygote, a WebView Zygote, or an AppZygote).
if (mUsapPoolEnabled) {
usapPipeFDs = Zygote.getUsapPipeFDs();
pollFDs = new StructPollfd[socketFDs.size() + 1 + usapPipeFDs.length];
} else {
pollFDs = new StructPollfd[socketFDs.size()];
}
/*
* For reasons of correctness the USAP pool pipe and event FDs
* must be processed before the session and server sockets. This
* is to ensure that the USAP pool accounting information is
* accurate when handling other requests like API blacklist
* exemptions.
*/
int pollIndex = 0;
for (FileDescriptor socketFD : socketFDs) {
pollFDs[pollIndex] = new StructPollfd();
pollFDs[pollIndex].fd = socketFD;
pollFDs[pollIndex].events = (short) POLLIN;
++pollIndex;
}
final int usapPoolEventFDIndex = pollIndex;
if (mUsapPoolEnabled) {
pollFDs[pollIndex] = new StructPollfd();
pollFDs[pollIndex].fd = mUsapPoolEventFD;
pollFDs[pollIndex].events = (short) POLLIN;
++pollIndex;
// The usapPipeFDs array will always be filled in if the USAP Pool is enabled.
assert usapPipeFDs != null;
for (int usapPipeFD : usapPipeFDs) {
FileDescriptor managedFd = new FileDescriptor();
managedFd.setInt$(usapPipeFD);
pollFDs[pollIndex] = new StructPollfd();
pollFDs[pollIndex].fd = managedFd;
pollFDs[pollIndex].events = (short) POLLIN;
++pollIndex;
}
}
int pollTimeoutMs;
if (mUsapPoolRefillTriggerTimestamp == INVALID_TIMESTAMP) {
pollTimeoutMs = -1;
} else {
long elapsedTimeMs = System.currentTimeMillis() - mUsapPoolRefillTriggerTimestamp;
if (elapsedTimeMs >= mUsapPoolRefillDelayMs) {
// Normalize the poll timeout value when the time between one poll event and the
// next pushes us over the delay value. This prevents poll receiving a 0
// timeout value, which would result in it returning immediately.
pollTimeoutMs = -1;
} else if (elapsedTimeMs <= 0) {
// This can occur if the clock used by currentTimeMillis is reset, which is
// possible because it is not guaranteed to be monotonic. Because we can't tell
// how far back the clock was set the best way to recover is to simply re-start
// the respawn delay countdown.
pollTimeoutMs = mUsapPoolRefillDelayMs;
} else {
pollTimeoutMs = (int) (mUsapPoolRefillDelayMs - elapsedTimeMs);
}
}
int pollReturnValue;
try {
pollReturnValue = Os.poll(pollFDs, pollTimeoutMs);
} catch (ErrnoException ex) {
throw new RuntimeException("poll failed", ex);
}
if (pollReturnValue == 0) {
// The poll timeout has been exceeded. This only occurs when we have finished the
// USAP pool refill delay period.
mUsapPoolRefillTriggerTimestamp = INVALID_TIMESTAMP;
mUsapPoolRefillAction = UsapPoolRefillAction.DELAYED;
} else {
boolean usapPoolFDRead = false;
while (--pollIndex >= 0) {
if ((pollFDs[pollIndex].revents & POLLIN) == 0) {
continue;
}
if (pollIndex == 0) {
// Zygote server socket
ZygoteConnection newPeer = acceptCommandPeer(abiList);
peers.add(newPeer);
socketFDs.add(newPeer.getFileDescriptor());
} else if (pollIndex < usapPoolEventFDIndex) {
// Session socket accepted from the Zygote server socket
try {
ZygoteConnection connection = peers.get(pollIndex);
final Runnable command = connection.processOneCommand(this);
// TODO (chriswailes): Is this extra check necessary?
if (mIsForkChild) {
// We're in the child. We should always have a command to run at
// this stage if processOneCommand hasn't called "exec".
if (command == null) {
throw new IllegalStateException("command == null");
}
return command;
} else {
// We're in the server - we should never have any commands to run.
if (command != null) {
throw new IllegalStateException("command != null");
}
// We don't know whether the remote side of the socket was closed or
// not until we attempt to read from it from processOneCommand. This
// shows up as a regular POLLIN event in our regular processing
// loop.
if (connection.isClosedByPeer()) {
connection.closeSocket();
peers.remove(pollIndex);
socketFDs.remove(pollIndex);
}
}
} catch (Exception e) {
if (!mIsForkChild) {
// We're in the server so any exception here is one that has taken
// place pre-fork while processing commands or reading / writing
// from the control socket. Make a loud noise about any such
// exceptions so that we know exactly what failed and why.
Slog.e(TAG, "Exception executing zygote command: ", e);
// Make sure the socket is closed so that the other end knows
// immediately that something has gone wrong and doesn't time out
// waiting for a response.
ZygoteConnection conn = peers.remove(pollIndex);
conn.closeSocket();
socketFDs.remove(pollIndex);
} else {
// We're in the child so any exception caught here has happened post
// fork and before we execute ActivityThread.main (or any other
// main() method). Log the details of the exception and bring down
// the process.
Log.e(TAG, "Caught post-fork exception in child process.", e);
throw e;
}
} finally {
// Reset the child flag, in the event that the child process is a child-
// zygote. The flag will not be consulted this loop pass after the
// Runnable is returned.
mIsForkChild = false;
}
} else {
// Either the USAP pool event FD or a USAP reporting pipe.
// If this is the event FD the payload will be the number of USAPs removed.
// If this is a reporting pipe FD the payload will be the PID of the USAP
// that was just specialized. The `continue` statements below ensure that
// the messagePayload will always be valid if we complete the try block
// without an exception.
long messagePayload;
try {
byte[] buffer = new byte[Zygote.USAP_MANAGEMENT_MESSAGE_BYTES];
int readBytes =
Os.read(pollFDs[pollIndex].fd, buffer, 0, buffer.length);
if (readBytes == Zygote.USAP_MANAGEMENT_MESSAGE_BYTES) {
DataInputStream inputStream =
new DataInputStream(new ByteArrayInputStream(buffer));
messagePayload = inputStream.readLong();
} else {
Log.e(TAG, "Incomplete read from USAP management FD of size "
+ readBytes);
continue;
}
} catch (Exception ex) {
if (pollIndex == usapPoolEventFDIndex) {
Log.e(TAG, "Failed to read from USAP pool event FD: "
+ ex.getMessage());
} else {
Log.e(TAG, "Failed to read from USAP reporting pipe: "
+ ex.getMessage());
}
continue;
}
if (pollIndex > usapPoolEventFDIndex) {
Zygote.removeUsapTableEntry((int) messagePayload);
}
usapPoolFDRead = true;
}
}
if (usapPoolFDRead) {
int usapPoolCount = Zygote.getUsapPoolCount();
if (usapPoolCount < mUsapPoolSizeMin) {
// Immediate refill
mUsapPoolRefillAction = UsapPoolRefillAction.IMMEDIATE;
} else if (mUsapPoolSizeMax - usapPoolCount >= mUsapPoolRefillThreshold) {
// Delayed refill
mUsapPoolRefillTriggerTimestamp = System.currentTimeMillis();
}
}
}
if (mUsapPoolRefillAction != UsapPoolRefillAction.NONE) {
int[] sessionSocketRawFDs =
socketFDs.subList(1, socketFDs.size())
.stream()
.mapToInt(FileDescriptor::getInt$)
.toArray();
final boolean isPriorityRefill =
mUsapPoolRefillAction == UsapPoolRefillAction.IMMEDIATE;
final Runnable command =
fillUsapPool(sessionSocketRawFDs, isPriorityRefill);
if (command != null) {
return command;
} else if (isPriorityRefill) {
// Schedule a delayed refill to finish refilling the pool.
mUsapPoolRefillTriggerTimestamp = System.currentTimeMillis();
}
}
}
}
ZygoteConnection.processOneCommand
/**
* Reads one start command from the command socket. If successful, a child is forked and a
* { @code Runnable} that calls the childs main method (or equivalent) is returned in the child
* process. { @code null} is always returned in the parent process (the zygote).
*
* If the client closes the socket, an { @code EOF} condition is set, which callers can test
* for by calling { @code ZygoteConnection.isClosedByPeer}.
*/
Runnable processOneCommand(ZygoteServer zygoteServer) {
String[] args;
try {
args = Zygote.readArgumentList(mSocketReader);
} catch (IOException ex) {
throw new IllegalStateException("IOException on command socket", ex);
}
// readArgumentList returns null only when it has reached EOF with no available
// data to read. This will only happen when the remote socket has disconnected.
if (args == null) {
isEof = true;
return null;
}
int pid;
FileDescriptor childPipeFd = null;
FileDescriptor serverPipeFd = null;
ZygoteArguments parsedArgs = new ZygoteArguments(args);
if (parsedArgs.mBootCompleted) {
handleBootCompleted();
return null;
}
if (parsedArgs.mAbiListQuery) {
handleAbiListQuery();
return null;
}
if (parsedArgs.mPidQuery) {
handlePidQuery();
return null;
}
if (parsedArgs.mUsapPoolStatusSpecified) {
return handleUsapPoolStatusChange(zygoteServer, parsedArgs.mUsapPoolEnabled);
}
if (parsedArgs.mPreloadDefault) {
handlePreload();
return null;
}
if (parsedArgs.mPreloadPackage != null) {
handlePreloadPackage(parsedArgs.mPreloadPackage, parsedArgs.mPreloadPackageLibs,
parsedArgs.mPreloadPackageLibFileName, parsedArgs.mPreloadPackageCacheKey);
return null;
}
if (canPreloadApp() && parsedArgs.mPreloadApp != null) {
byte[] rawParcelData = Base64.getDecoder().decode(parsedArgs.mPreloadApp);
Parcel appInfoParcel = Parcel.obtain();
appInfoParcel.unmarshall(rawParcelData, 0, rawParcelData.length);
appInfoParcel.setDataPosition(0);
ApplicationInfo appInfo = ApplicationInfo.CREATOR.createFromParcel(appInfoParcel);
appInfoParcel.recycle();
if (appInfo != null) {
handlePreloadApp(appInfo);
} else {
throw new IllegalArgumentException("Failed to deserialize --preload-app");
}
return null;
}
if (parsedArgs.mApiBlacklistExemptions != null) {
return handleApiBlacklistExemptions(zygoteServer, parsedArgs.mApiBlacklistExemptions);
}
if (parsedArgs.mHiddenApiAccessLogSampleRate != -1
|| parsedArgs.mHiddenApiAccessStatslogSampleRate != -1) {
return handleHiddenApiAccessLogSampleRate(zygoteServer,
parsedArgs.mHiddenApiAccessLogSampleRate,
parsedArgs.mHiddenApiAccessStatslogSampleRate);
}
if (parsedArgs.mPermittedCapabilities != 0 || parsedArgs.mEffectiveCapabilities != 0) {
throw new ZygoteSecurityException("Client may not specify capabilities: "
+ "permitted=0x" + Long.toHexString(parsedArgs.mPermittedCapabilities)
+ ", effective=0x" + Long.toHexString(parsedArgs.mEffectiveCapabilities));
}
Zygote.applyUidSecurityPolicy(parsedArgs, peer);
Zygote.applyInvokeWithSecurityPolicy(parsedArgs, peer);
Zygote.applyDebuggerSystemProperty(parsedArgs);
Zygote.applyInvokeWithSystemProperty(parsedArgs);
int[][] rlimits = null;
if (parsedArgs.mRLimits != null) {
rlimits = parsedArgs.mRLimits.toArray(Zygote.INT_ARRAY_2D);
}
int[] fdsToIgnore = null;
if (parsedArgs.mInvokeWith != null) {
try {
FileDescriptor[] pipeFds = Os.pipe2(O_CLOEXEC);
childPipeFd = pipeFds[1];
serverPipeFd = pipeFds[0];
Os.fcntlInt(childPipeFd, F_SETFD, 0);
fdsToIgnore = new int[]{childPipeFd.getInt$(), serverPipeFd.getInt$()};
} catch (ErrnoException errnoEx) {
throw new IllegalStateException("Unable to set up pipe for invoke-with", errnoEx);
}
}
/*
* In order to avoid leaking descriptors to the Zygote child,
* the native code must close the two Zygote socket descriptors
* in the child process before it switches from Zygote-root to
* the UID and privileges of the application being launched.
*
* In order to avoid "bad file descriptor" errors when the
* two LocalSocket objects are closed, the Posix file
* descriptors are released via a dup2() call which closes
* the socket and substitutes an open descriptor to /dev/null.
*/
int [] fdsToClose = { -1, -1 };
FileDescriptor fd = mSocket.getFileDescriptor();
if (fd != null) {
fdsToClose[0] = fd.getInt$();
}
fd = zygoteServer.getZygoteSocketFileDescriptor();
if (fd != null) {
fdsToClose[1] = fd.getInt$();
}
// step 1 fork
pid = Zygote.forkAndSpecialize(parsedArgs.mUid, parsedArgs.mGid, parsedArgs.mGids,
parsedArgs.mRuntimeFlags, rlimits, parsedArgs.mMountExternal, parsedArgs.mSeInfo,
parsedArgs.mNiceName, fdsToClose, fdsToIgnore, parsedArgs.mStartChildZygote,
parsedArgs.mInstructionSet, parsedArgs.mAppDataDir, parsedArgs.mIsTopApp,
parsedArgs.mPkgDataInfoList, parsedArgs.mWhitelistedDataInfoList,
parsedArgs.mBindMountAppDataDirs, parsedArgs.mBindMountAppStorageDirs);
try {
if (pid == 0) {
// in child
zygoteServer.setForkChild();
zygoteServer.closeServerSocket();
IoUtils.closeQuietly(serverPipeFd);
serverPipeFd = null;
return handleChildProc(parsedArgs, childPipeFd, parsedArgs.mStartChildZygote);
} else {
// In the parent. A pid < 0 indicates a failure and will be handled in
// handleParentProc.
IoUtils.closeQuietly(childPipeFd);
childPipeFd = null;
handleParentProc(pid, serverPipeFd);
return null;
}
} finally {
IoUtils.closeQuietly(childPipeFd);
IoUtils.closeQuietly(serverPipeFd);
}
}
Zygote.forkAndSpecialize
static int forkAndSpecialize(int uid, int gid, int[] gids, int runtimeFlags,
int[][] rlimits, int mountExternal, String seInfo, String niceName, int[] fdsToClose,
int[] fdsToIgnore, boolean startChildZygote, String instructionSet, String appDataDir,
boolean isTopApp, String[] pkgDataInfoList, String[] whitelistedDataInfoList,
boolean bindMountAppDataDirs, boolean bindMountAppStorageDirs) {
ZygoteHooks.preFork();
int pid = nativeForkAndSpecialize(
uid, gid, gids, runtimeFlags, rlimits, mountExternal, seInfo, niceName, fdsToClose,
fdsToIgnore, startChildZygote, instructionSet, appDataDir, isTopApp,
pkgDataInfoList, whitelistedDataInfoList, bindMountAppDataDirs,
bindMountAppStorageDirs);
if (pid == 0) {
// Note that this event ends at the end of handleChildProc,
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "PostFork");
// If no GIDs were specified, don't make any permissions changes based on groups.
if (gids != null && gids.length > 0) {
NetworkUtils.setAllowNetworkingForProcess(containsInetGid(gids));
}
}
// Set the Java Language thread priority to the default value for new apps.
Thread.currentThread().setPriority(Thread.NORM_PRIORITY);
ZygoteHooks.postForkCommon();
return pid;
}
ZygoteHooks.preFork
public void preFork() {
Daemons.stop(); //停止4个Daemon子线程
waitUntilAllThreadsStopped(); //等待所有子线程结束
token = nativePreFork(); //完成gc堆的初始化工作
}
nativeForkAndSpecialize
static jint com_android_internal_os_Zygote_nativeForkAndSpecialize(
JNIEnv* env, jclass, jint uid, jint gid, jintArray gids,
jint runtime_flags, jobjectArray rlimits,
jint mount_external, jstring se_info, jstring nice_name,
jintArray managed_fds_to_close, jintArray managed_fds_to_ignore, jboolean is_child_zygote,
jstring instruction_set, jstring app_data_dir, jboolean is_top_app,
jobjectArray pkg_data_info_list, jobjectArray whitelisted_data_info_list,
jboolean mount_data_dirs, jboolean mount_storage_dirs) {
jlong capabilities = CalculateCapabilities(env, uid, gid, gids, is_child_zygote);
if (UNLIKELY(managed_fds_to_close == nullptr)) {
ZygoteFailure(env, "zygote", nice_name, "Zygote received a null fds_to_close vector.");
}
std::vector<int> fds_to_close =
ExtractJIntArray(env, "zygote", nice_name, managed_fds_to_close).value();
std::vector<int> fds_to_ignore =
ExtractJIntArray(env, "zygote", nice_name, managed_fds_to_ignore)
.value_or(std::vector<int>());
std::vector<int> usap_pipes = MakeUsapPipeReadFDVector();
fds_to_close.insert(fds_to_close.end(), usap_pipes.begin(), usap_pipes.end());
fds_to_ignore.insert(fds_to_ignore.end(), usap_pipes.begin(), usap_pipes.end());
fds_to_close.push_back(gUsapPoolSocketFD);
if (gUsapPoolEventFD != -1) {
fds_to_close.push_back(gUsapPoolEventFD);
fds_to_ignore.push_back(gUsapPoolEventFD);
}
if (gSystemServerSocketFd != -1) {
fds_to_close.push_back(gSystemServerSocketFd);
fds_to_ignore.push_back(gSystemServerSocketFd);
}
pid_t pid = ForkCommon(env, false, fds_to_close, fds_to_ignore, true);
if (pid == 0) {
SpecializeCommon(env, uid, gid, gids, runtime_flags, rlimits,
capabilities, capabilities,
mount_external, se_info, nice_name, false,
is_child_zygote == JNI_TRUE, instruction_set, app_data_dir,
is_top_app == JNI_TRUE, pkg_data_info_list,
whitelisted_data_info_list,
mount_data_dirs == JNI_TRUE,
mount_storage_dirs == JNI_TRUE);
}
return pid;
}
postForkCommon
public static void postForkCommon() {
// Notify the runtime before creating new threads.
nativePostZygoteFork();
Daemons.startPostZygoteFork();
}
forkAndSpecialize 总结
-
preFork：停止4个Daemon子线程，初始化GC
-
nativeForkAndSpecialize：调用Linux的fork()子进程，设置新进程的主线程id，重置gc性能数据，设置信号处理函数等功能。
-
在这个函数中子进程分别调用了SetGids、SetRLimits、setresgid、setresuid，设置了组ID和用户ID将自身权限降级。
-
postForkCommon：重新启动四个daemon子线程
-
forkAndSpecialize执行结束，即创建新进程后，会有两次返回，第一次回到ZygoteConnection.runOnce方法，执行子进程 handleChildProc 方法；
-
第二次回到该方法，执行zygote进程的handleParentProc方法
子进程回调 handleChildProc
/**
* Handles post-fork setup of child proc, closing sockets as appropriate,
* reopen stdio as appropriate, and ultimately throwing MethodAndArgsCaller
* if successful or returning if failed.
*
* @param parsedArgs non-null; zygote args
* @param pipeFd null-ok; pipe for communication back to Zygote.
* @param isZygote whether this new child process is itself a new Zygote.
*/
private Runnable handleChildProc(ZygoteArguments parsedArgs,
FileDescriptor pipeFd, boolean isZygote) {
/*
* By the time we get here, the native code has closed the two actual Zygote
* socket connections, and substituted /dev/null in their place. The LocalSocket
* objects still need to be closed properly.
*/
closeSocket();
Zygote.setAppProcessName(parsedArgs, TAG);
// End of the postFork event.
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
if (parsedArgs.mInvokeWith != null) {
WrapperInit.execApplication(parsedArgs.mInvokeWith,
parsedArgs.mNiceName, parsedArgs.mTargetSdkVersion,
VMRuntime.getCurrentInstructionSet(),
pipeFd, parsedArgs.mRemainingArgs);
// Should not get here.
throw new IllegalStateException("WrapperInit.execApplication unexpectedly returned");
} else {
if (!isZygote) {
return ZygoteInit.zygoteInit(parsedArgs.mTargetSdkVersion,
parsedArgs.mDisabledCompatChanges,
parsedArgs.mRemainingArgs, null /* classLoader */);
} else {
return ZygoteInit.childZygoteInit(parsedArgs.mTargetSdkVersion,
parsedArgs.mRemainingArgs, null /* classLoader */);
}
}
}
ZygoteInit.zygoteInit
/**
* The main function called when started through the zygote process. This could be unified with
* main(), if the native code in nativeFinishInit() were rationalized with Zygote startup.<p>
*
* Current recognized args:
* <ul>
* <li> <code> [--] <start class name> <args>
* </ul>
*
* @param targetSdkVersion target SDK version
* @param disabledCompatChanges set of disabled compat changes for the process (all others
* are enabled)
* @param argv arg strings
*/
public static final Runnable zygoteInit(int targetSdkVersion, long[] disabledCompatChanges,
String[] argv, ClassLoader classLoader) {
if (RuntimeInit.DEBUG) {
Slog.d(RuntimeInit.TAG, "RuntimeInit: Starting application from zygote");
}
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ZygoteInit");
RuntimeInit.redirectLogStreams();
RuntimeInit.commonInit();
ZygoteInit.nativeZygoteInit();
return RuntimeInit.applicationInit(targetSdkVersion, disabledCompatChanges, argv,
classLoader);
}
ZygoteInit.nativeZygoteInit();
int register_com_android_internal_os_ZygoteInit_nativeZygoteInit(JNIEnv* env)
{
const JNINativeMethod methods[] = {
{ "nativeZygoteInit", "()V",
(void*) com_android_internal_os_ZygoteInit_nativeZygoteInit },
};
return jniRegisterNativeMethods(env, "com/android/internal/os/ZygoteInit",
methods, NELEM(methods));
}
static void com_android_internal_os_ZygoteInit_nativeZygoteInit(JNIEnv* env, jobject clazz)
{
gCurRuntime->onZygoteInit();
}
ProcessState.startThreadPool();
virtual void onZygoteInit()
{
sp<ProcessState> proc = ProcessState::self();
ALOGV("App process: starting thread pool.\n");
proc->startThreadPool();
}
ProcessState.cpp open_driver
ProcessState::ProcessState(const char *driver)
: mDriverName(String8(driver))
, mDriverFD(open_driver(driver))
, mVMStart(MAP_FAILED)
, mThreadCountLock(PTHREAD_MUTEX_INITIALIZER)
, mThreadCountDecrement(PTHREAD_COND_INITIALIZER)
, mExecutingThreadsCount(0)
, mMaxThreads(DEFAULT_MAX_BINDER_THREADS)
, mStarvationStartTimeMs(0)
, mBinderContextCheckFunc(nullptr)
, mBinderContextUserData(nullptr)
, mThreadPoolStarted(false)
, mThreadPoolSeq(1)
, mCallRestriction(CallRestriction::NONE)
{
// TODO(b/139016109): enforce in build system
#if defined(__ANDROID_APEX__)
LOG_ALWAYS_FATAL("Cannot use libbinder in APEX (only system.img libbinder) since it is not stable.");
#endif
if (mDriverFD >= 0) {
// mmap the binder, providing a chunk of virtual address space to receive transactions.
mVMStart = mmap(nullptr, BINDER_VM_SIZE, PROT_READ, MAP_PRIVATE | MAP_NORESERVE, mDriverFD, 0);
if (mVMStart == MAP_FAILED) {
// *sigh*
ALOGE("Using %s failed: unable to mmap transaction memory.\n", mDriverName.c_str());
close(mDriverFD);
mDriverFD = -1;
mDriverName.clear();
}
}
#ifdef __ANDROID__
LOG_ALWAYS_FATAL_IF(mDriverFD < 0, "Binder driver '%s' could not be opened. Terminating.", driver);
#endif
}
ActivityThread.main 反射调用
回调zygote进程
ZygoteConnection.handleParentProc
/**
* Handles post-fork cleanup of parent proc
*
* @param pid != 0; pid of child if > 0 or indication of failed fork
* if < 0;
* @param pipeFd null-ok; pipe for communication with child.
*/
private void handleParentProc(int pid, FileDescriptor pipeFd) {
if (pid > 0) {
setChildPgid(pid);
}
boolean usingWrapper = false;
if (pipeFd != null && pid > 0) {
int innerPid = -1;
try {
// Do a busy loop here. We can't guarantee that a failure (and thus an exception
// bail) happens in a timely manner.
final int BYTES_REQUIRED = 4; // Bytes in an int.
StructPollfd[] fds = new StructPollfd[] {
new StructPollfd()
};
byte[] data = new byte[BYTES_REQUIRED];
int remainingSleepTime = WRAPPED_PID_TIMEOUT_MILLIS;
int dataIndex = 0;
long startTime = System.nanoTime();
while (dataIndex < data.length && remainingSleepTime > 0) {
fds[0].fd = pipeFd;
fds[0].events = (short) POLLIN;
fds[0].revents = 0;
fds[0].userData = null;
int res = android.system.Os.poll(fds, remainingSleepTime);
long endTime = System.nanoTime();
int elapsedTimeMs =
(int) TimeUnit.MILLISECONDS.convert(
endTime - startTime,
TimeUnit.NANOSECONDS);
remainingSleepTime = WRAPPED_PID_TIMEOUT_MILLIS - elapsedTimeMs;
if (res > 0) {
if ((fds[0].revents & POLLIN) != 0) {
// Only read one byte, so as not to block.
int readBytes = android.system.Os.read(pipeFd, data, dataIndex, 1);
if (readBytes < 0) {
throw new RuntimeException("Some error");
}
dataIndex += readBytes;
} else {
// Error case. revents should contain one of the error bits.
break;
}
} else if (res == 0) {
Log.w(TAG, "Timed out waiting for child.");
}
}
if (dataIndex == data.length) {
DataInputStream is = new DataInputStream(new ByteArrayInputStream(data));
innerPid = is.readInt();
}
if (innerPid == -1) {
Log.w(TAG, "Error reading pid from wrapped process, child may have died");
}
} catch (Exception ex) {
Log.w(TAG, "Error reading pid from wrapped process, child may have died", ex);
}
// Ensure that the pid reported by the wrapped process is either the
// child process that we forked, or a descendant of it.
if (innerPid > 0) {
int parentPid = innerPid;
while (parentPid > 0 && parentPid != pid) {
parentPid = Process.getParentPid(parentPid);
}
if (parentPid > 0) {
Log.i(TAG, "Wrapped process has pid " + innerPid);
pid = innerPid;
usingWrapper = true;
} else {
Log.w(TAG, "Wrapped process reported a pid that is not a child of "
+ "the process that we forked: childPid=" + pid
+ " innerPid=" + innerPid);
}
}
}
try {
mSocketOutStream.writeInt(pid);
mSocketOutStream.writeBoolean(usingWrapper);
} catch (IOException ex) {
throw new IllegalStateException("Error writing to command socket", ex);
}
}
这个方法主要是为了使用 socket 通知 system server 进程，新进程已经创建完成
app_process64 就是 zygote，启动后设置进程名：zygote
/system/bin/app_process64
加载流程具体看这个 RuntimeInit
runtime.start("com.android.internal.os.RuntimeInit", args, zygote);
