QT图形视图框架-弹性节点demo

lhy__
76 阅读18分钟

Elastic Nodes（弹性节点）demo

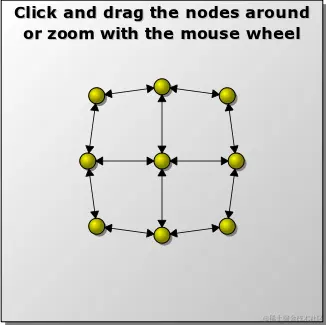

弹性节点示例展示了如何实现图中节点之间的边，以及基本的交互。您可以单击以拖动节点，并使用鼠标滚轮或键盘放大和缩小节点。按空格键将随机化节点。这个例子也是与分辨率无关的;当你放大时，图像仍然清晰。


图形视图提供了QGraphicsScene类，用于管理和交互来自QGraphicsItem类的大量定制2D图形项。以及QGraphicsView小部件，用于可视化这些项，并支持缩放和旋转。

这个例子包括一个Node类、一个Edge类、一个GraphWidget测试和一个main函数：Node类表示网格中可拖动的黄色节点，Edge类表示节点之间的线，GraphWidget类表示应用程序窗口，main()函数创建并显示这个窗口，并运行事件循环。

节点类定义

Node类有三个用途:

  • 画一个黄色渐变的有两种状态的“球”:下沉和上升。

  • 管理与其他节点的连接。

  • 计算网格中节点的拉力和推力。

让我们从Node类声明开始。

class Node : public QGraphicsItem
{
public:
    Node(GraphWidget *graphWidget);

    void addEdge(Edge *edge);
    QList<Edge *> edges() const;

    enum { Type = UserType + 1 };
    int type() const override { return Type; }

    void calculateForces();
    bool advance();

    QRectF boundingRect() const override;
    QPainterPath shape() const override;
    void paint(QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget) override;

protected:
    QVariant itemChange(GraphicsItemChange change, const QVariant &value) override;

    void mousePressEvent(QGraphicsSceneMouseEvent *event) override;
    void mouseReleaseEvent(QGraphicsSceneMouseEvent *event) override;

private:
    QList<Edge *> edgeList;
    QPointF newPos;
    GraphWidget *graph;
};

Node类继承了QGraphicsItem，并重新实现了两个强制函数boundingRect()和paint()，以提供其可视化外观。它还重新实现了shape()，以确保其命中区域具有椭圆形状(而不是默认的边界矩形)。

出于边缘管理的目的，该节点提供了一个简单的API，用于向节点添加边缘，并列出所有连接的边缘。

每当场景的状态前进一步时，就会调用advance()重新实现。调用calculateForces()函数来计算对该节点及其相邻节点施加的推和拉的力。

Node类还重新实现了itemChange()来响应状态变化(在本例中是位置变化)，以及mousePressEvent()和mouseReleaseEvent()来更新项目的视觉外观。

我们将通过查看Node的构造函数来开始回顾Node的实现:

Node::Node(GraphWidget *graphWidget)
    : graph(graphWidget)
{
    setFlag(ItemIsMovable);
    setFlag(ItemSendsGeometryChanges);
    setCacheMode(DeviceCoordinateCache);
    setZValue(-1);
}

在构造函数中，我们设置了ItemIsMovable标志以允许图形项响应鼠标拖动而移动，并设置了ItemSendsGeometryChanges以启用itemChange()通知以通知位置和转换的变化。我们还启用了DeviceCoordinateCache来加速渲染性能。为了确保节点总是堆叠在边的顶部，我们最后将图形项的Z值设置为-1。

Node的构造函数接受一个GraphWidget指针，并将其存储为一个成员变量。稍后我们将重新讨论这个指针。

void Node::addEdge(Edge *edge)
{
    edgeList << edge;
    edge->adjust();
}

QList<Edge *> Node::edges() const
{
    return edgeList;
}

addEdge()函数将输入边添加到附加边列表中。然后调整边缘，使边缘的端点与源节点和目标节点的位置相匹配。

edges()函数只是返回附加边的列表。

void Node::calculateForces()
{
    if (!scene() || scene()->mouseGrabberItem() == this) {
        newPos = pos();
        return;
    }

移动节点有两种方法。calculateForces()函数实现了网格中节点的拉和推的弹性效果。此外，用户可以直接用鼠标移动一个节点。因为我们不希望这两种方法在同一节点上同时操作，所以我们通过检查该节点是否是当前的鼠标抓取项(即QGraphicsScene::mouseGrabberItem())来启动calculateForces()。因为我们需要找到所有邻近的(但不一定是连接的)节点，所以我们也要确保物品是场景的一部分。

    // Sum up all forces pushing this item away
    qreal xvel = 0;
    qreal yvel = 0;
    foreach (QGraphicsItem *item, scene()->items()) {
        Node *node = qgraphicsitem_cast<Node *>(item);
        if (!node)
            continue;

        QPointF vec = mapToItem(node, 0, 0);
        qreal dx = vec.x();
        qreal dy = vec.y();
        double l = 2.0 * (dx * dx + dy * dy);
        if (l > 0) {
            xvel += (dx * 150.0) / l;
            yvel += (dy * 150.0) / l;
        }
    }

“弹性”效应来自于一种应用推和拉力的算法。效果令人印象深刻，而且实现起来出奇地简单。

该算法有两个步骤:第一步是计算将节点分开的力，第二步是减去将节点拉在一起的力。首先，我们需要找到图中的所有节点。我们调用QGraphicsScene::items()来查找场景中的所有图形项，然后使用qgraphicsitem_cast()来查找Node实例。

我们使用mapFromItem()来创建一个临时向量，以本地坐标从这个节点指向其他节点。我们使用这个向量的分解分量来确定应该应用到节点上的力的方向和强度。力累积在每个节点上，然后进行调整，使最近的节点受到最强的力，随着距离的增加，力会迅速退化。所有力的总和存储在xvel (x速度)和yvel (y速度)中。

    // Now subtract all forces pulling items together
    double weight = (edgeList.size() + 1) * 10;
    foreach (Edge *edge, edgeList) {
        QPointF vec;
        if (edge->sourceNode() == this)
            vec = mapToItem(edge->destNode(), 0, 0);
        else
            vec = mapToItem(edge->sourceNode(), 0, 0);
        xvel -= vec.x() / weight;
        yvel -= vec.y() / weight;
    }

节点之间的边表示将节点拉到一起的力。通过访问连接到该节点的每条边，我们可以使用类似于上面的方法来找到所有拉力的方向和强度。这些力从xvel和yvel中减去。

    if (qAbs(xvel) < 0.1 && qAbs(yvel) < 0.1)
        xvel = yvel = 0;

理论上，推力和拉力的总和应该稳定到精确的0。然而，在实践中，他们从来没有这样做过。为了避免数值精度上的误差，当力的总和小于0.1时，我们简单地将其强制为0。

    QRectF sceneRect = scene()->sceneRect();
    newPos = pos() + QPointF(xvel, yvel);
    newPos.setX(qMin(qMax(newPos.x(), sceneRect.left() + 10), sceneRect.right() - 10));
    newPos.setY(qMin(qMax(newPos.y(), sceneRect.top() + 10), sceneRect.bottom() - 10));
}

calculateForces()的最后一步确定节点的新位置。我们将力添加到节点的当前位置。我们还确保新位置在我们定义的边界内。在这个函数中，我们实际上并没有移动项；这是在advance()的单独步骤中完成的。

bool Node::advance()
{
    if (newPos == pos())
        return false;

    setPos(newPos);
    return true;
}

advance()函数的作用是:更新项目的当前位置。它是从GraphWidget::timerEvent()调用的。如果节点的位置改变，函数返回true;否则返回false。

QRectF Node::boundingRect() const
{
    qreal adjust = 2;
    return QRectF( -10 - adjust, -10 - adjust, 23 + adjust, 23 + adjust);
}

节点的边界矩形是一个以原点(0,0)为中心的20x20大小的矩形，在所有方向上调整2个单位来补偿节点的轮廓描边，并在向下和向右调整3个单位来为简单的投影腾出空间。

QPainterPath Node::shape() const
{
    QPainterPath path;
    path.addEllipse(-10, -10, 20, 20);
    return path;
}

形状是一个简单的椭圆。这确保了您必须在节点的椭圆形状内部单击才能拖动它。您可以通过运行示例来测试此效果，并将节点放大到非常大的位置。如果不重新实现shape()，项目的命中区域将与它的边界矩形(即矩形)相同。

void Node::paint(QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *)
{
    painter->setPen(Qt::NoPen);
    painter->setBrush(Qt::darkGray);
    painter->drawEllipse(-7, -7, 20, 20);

    QRadialGradient gradient(-3, -3, 10);
    if (option->state & QStyle::State_Sunken) {
        gradient.setCenter(3, 3);
        gradient.setFocalPoint(3, 3);
        gradient.setColorAt(1, QColor(Qt::yellow).light(120));
        gradient.setColorAt(0, QColor(Qt::darkYellow).light(120));
    } else {
        gradient.setColorAt(0, Qt::yellow);
        gradient.setColorAt(1, Qt::darkYellow);
    }
    painter->setBrush(gradient);

    painter->setPen(QPen(Qt::black, 0));
    painter->drawEllipse(-10, -10, 20, 20);
}

这个函数实现了节点的绘制。我们首先在(-7，-7)处绘制一个简单的深灰色椭圆投影，即(3,3)个单位向下，从椭圆的左上角(-10，-10)向右。

然后我们用径向渐变填充绘制一个椭圆。当凸起时，这个填充是Qt::黄色到Qt::暗黄色，当凹陷时则相反。在下沉状态下，我们还通过(3,3)移动中心和焦点，以强调有东西被向下推的印象。

用渐变绘制填充的椭圆可能很慢，特别是在使用复杂的渐变(如QRadialGradient)时。这就是本例使用DeviceCoordinateCache的原因，这是一种简单而有效的方法，可以防止不必要的重绘。

QVariant Node::itemChange(GraphicsItemChange change, const QVariant &value)
{
    switch (change) {
        case ItemPositionHasChanged:
            foreach (Edge *edge, edgeList)
                edge->adjust();
            graph->itemMoved();
            break;
        default:
            break;
    };

    return QGraphicsItem::itemChange(change, value);
}

我们重新实现itemChange()来调整所有连接边的位置，并通知场景一个图形项已经移动(即，“某事发生了”)。这将触发新的力计算。

此通知是节点需要保留指向GraphWidget的指针的唯一原因。另一种方法可以是使用信号提供这种通知；在这种情况下，Node需要继承QGraphicsObject。

void Node::mousePressEvent(QGraphicsSceneMouseEvent *event)
{
    update();
    QGraphicsItem::mousePressEvent(event);
}

void Node::mouseReleaseEvent(QGraphicsSceneMouseEvent *event)
{
    update();
    QGraphicsItem::mouseReleaseEvent(event);
}

因为我们已经设置了ItemIsMovable标志，所以我们不需要实现根据鼠标输入移动节点的逻辑;这个已经提供给我们了。但是，我们仍然需要重新实现鼠标按下和释放处理程序，以更新节点的视觉外观(即凹陷或凸起)。

边缘类定义

Edge类表示本例中节点之间的箭头线。该类非常简单:它维护源节点和目标节点指针，并提供一个adjust()函数，该函数确保行从源位置开始，在目标位置结束。边是唯一会随着力对节点的拉动和推动而不断变化的项。

让我们看一下类声明:

class Edge : public QGraphicsItem
{
public:
    Edge(Node *sourceNode, Node *destNode);

    Node *sourceNode() const;
    Node *destNode() const;

    void adjust();

    enum { Type = UserType + 2 };
    int type() const override { return Type; }

protected:
    QRectF boundingRect() const override;
    void paint(QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget) override;

private:
    Node *source, *dest;

    QPointF sourcePoint;
    QPointF destPoint;
    qreal arrowSize;
};

Edge继承自QGraphicsItem，因为它是一个简单的类，不使用信号、槽和属性(与QGraphicsObject相比)。

构造函数接受两个节点指针作为输入。这两个指针在本例中都是强制性的。我们还为每个节点提供get函数。

调整()函数重新定位边缘，并且项目还实现了boundingRect()和paint()。

我们现在将审查其执行情况。

Edge::Edge(Node *sourceNode, Node *destNode)
    : arrowSize(10)
{
    setAcceptedMouseButtons(0);
    source = sourceNode;
    dest = destNode;
    source->addEdge(this);
    dest->addEdge(this);
    adjust();
}

Edge构造函数将其arrowSize数据成员初始化为10个单位;这决定了在paint()中绘制的箭头的大小。

在构造函数体中，我们调用setAcceptedMouseButtons(0)。这确保了边缘项根本不考虑鼠标输入(即，您不能单击边缘)。然后，源指针和目标指针被更新，这条边被注册到每个节点，我们调用adjust()来更新这条边的起始和结束位置。

Node *Edge::sourceNode() const
{
    return source;
}

Node *Edge::destNode() const
{
    return dest;
}

源get函数和目标get函数只是返回各自的指针。

void Edge::adjust()
{
    if (!source || !dest)
        return;

    QLineF line(mapFromItem(source, 0, 0), mapFromItem(dest, 0, 0));
    qreal length = line.length();

    prepareGeometryChange();

    if (length > qreal(20.)) {
        QPointF edgeOffset((line.dx() * 10) / length, (line.dy() * 10) / length);
        sourcePoint = line.p1() + edgeOffset;
        destPoint = line.p2() - edgeOffset;
    } else {
        sourcePoint = destPoint = line.p1();
    }
}

在adjust()中，我们定义了两个点:sourcePoint和destPoint，它们分别指向源节点和目标节点的原点。每个点使用局部坐标计算。

我们希望边缘箭头的尖端指向节点的确切轮廓，而不是节点的中心。为了找到这个点，我们首先将从源中心指向目标节点中心的向量分解为X和Y，然后通过除以向量的长度对分量进行归一化。这给了我们一个X和Y的单位增量，当它乘以节点的半径(是10)时，我们得到了必须加到边的一点上并从另一点上减去的偏移量。

如果向量的长度小于20(即，如果两个节点重叠)，那么我们将源和目标指针固定在源节点的中心。在实践中，这种情况很难手动重现，因为两个节点之间的力此时处于最大值

需要注意的是，我们在这个函数中调用了prepareGeometryChange()。原因是绘制时直接使用了变量sourcePoint和destPoint，它们是从boundingRect()重新实现中返回的。在更改boundingRect()返回的内容之前，以及在paint()使用这些变量之前，我们必须始终调用prepareGeometryChange()，以保持图形视图的内部记录整洁。最安全的做法是在修改任何此类变量之前立即调用此函数一次。

QRectF Edge::boundingRect() const
{
    if (!source || !dest)
        return QRectF();

    qreal penWidth = 1;
    qreal extra = (penWidth + arrowSize) / 2.0;

    return QRectF(sourcePoint, QSizeF(destPoint.x() - sourcePoint.x(),
                                    destPoint.y() - sourcePoint.y()))
        .normalized()
        .adjusted(-extra, -extra, extra, extra);
}

边缘的边界矩形定义为包含边缘的起点和终点的最小矩形。因为我们在每条边都画了一个箭头，所以我们还需要在所有方向上调整一半的箭头大小和一半的笔宽来进行补偿。笔用来画箭头的轮廓，我们可以假设一半的轮廓可以画在箭头的区域外，一半画在箭头的区域内。

void Edge::paint(QPainter *painter, const QStyleOptionGraphicsItem *, QWidget *)
{
    if (!source || !dest)
        return;

    QLineF line(sourcePoint, destPoint);
    if (qFuzzyCompare(line.length(), qreal(0.)))
        return;

我们通过检查几个前提条件开始重新实现paint()。首先，如果没有设置源节点或目的节点，则立即返回;没有什么可画的。

同时，我们检查这条边的长度是否近似于0，如果是，那么我们也返回。

    // Draw the line itself
    painter->setPen(QPen(Qt::black, 1, Qt::SolidLine, Qt::RoundCap, Qt::RoundJoin));
    painter->drawLine(line);

我们用有圆连接和帽的笔画线。如果您运行示例，放大并详细研究边缘，您将看到没有尖锐/方形边缘。

    // Draw the arrows
    double angle = ::acos(line.dx() / line.length());
    if (line.dy() >= 0)
        angle = TwoPi - angle;

    QPointF sourceArrowP1 = sourcePoint + QPointF(sin(angle + Pi / 3) * arrowSize,
                                                cos(angle + Pi / 3) * arrowSize);
    QPointF sourceArrowP2 = sourcePoint + QPointF(sin(angle + Pi - Pi / 3) * arrowSize,
                                                cos(angle + Pi - Pi / 3) * arrowSize);
    QPointF destArrowP1 = destPoint + QPointF(sin(angle - Pi / 3) * arrowSize,
                                            cos(angle - Pi / 3) * arrowSize);
    QPointF destArrowP2 = destPoint + QPointF(sin(angle - Pi + Pi / 3) * arrowSize,
                                            cos(angle - Pi + Pi / 3) * arrowSize);

    painter->setBrush(Qt::black);
    painter->drawPolygon(QPolygonF() << line.p1() << sourceArrowP1 << sourceArrowP2);
    painter->drawPolygon(QPolygonF() << line.p2() << destArrowP1 << destArrowP2);
}

我们继续在边缘的两端各画一个箭头。每个箭头绘制为一个多边形与黑色填充。箭头的坐标是用简单的三角函数确定的。

GraphWidget类定义

GraphWidget是QGraphicsView的子类，它为主窗口提供滚动条。

class GraphWidget : public QGraphicsView
{
    Q_OBJECT

public:
    GraphWidget(QWidget *parent = 0);

    void itemMoved();

public slots:
    void shuffle();
    void zoomIn();
    void zoomOut();

protected:
    void keyPressEvent(QKeyEvent *event) override;
    void timerEvent(QTimerEvent *event) override;
#if QT_CONFIG(wheelevent)
    void wheelEvent(QWheelEvent *event) override;
#endif
    void drawBackground(QPainter *painter, const QRectF &rect) override;

    void scaleView(qreal scaleFactor);

private:
    int timerId;
    Node *centerNode;
};

这个类提供了一个初始化场景的基本构造函数，一个itemMoved()函数来通知场景节点图的变化，一些事件处理程序，一个drawBackground()的重新实现，以及一个通过使用鼠标滚轮或键盘缩放视图的辅助函数。

GraphWidget::GraphWidget(QWidget *parent)
    : QGraphicsView(parent), timerId(0)
{
    QGraphicsScene *scene = new QGraphicsScene(this);
    scene->setItemIndexMethod(QGraphicsScene::NoIndex);
    scene->setSceneRect(-200, -200, 400, 400);
    setScene(scene);
    setCacheMode(CacheBackground);
    setViewportUpdateMode(BoundingRectViewportUpdate);
    setRenderHint(QPainter::Antialiasing);
    setTransformationAnchor(AnchorUnderMouse);
    scale(qreal(0.8), qreal(0.8));
    setMinimumSize(400, 400);
    setWindowTitle(tr("Elastic Nodes"));

GraphicsWidget的构造函数创建场景，因为大多数项目在大多数时间都在移动，所以它设置QGraphicsScene::NoIndex。然后场景获得一个固定的场景矩形，并被分配给GraphWidget视图。

视图允许QGraphicsView::CacheBackground缓存其静态的、有点复杂的背景的呈现。由于图形呈现的是一组移动的小项目，因此图形视图没有必要浪费时间寻找准确的更新区域，因此我们设置了QGraphicsView:: boundingrectviewportpdate视图端口更新模式。默认模式可以正常工作，但是对于本例来说，这种模式明显更快。

为了提高渲染质量，我们设置了QPainter::Antialiasing。

转换锚定决定当你转换视图时视图应该如何滚动，或者在我们的例子中，当我们放大或缩小时。我们选择了QGraphicsView::AnchorUnderMouse，它将视图集中在鼠标光标下的点上。这使得它很容易缩放到一个点在场景中移动鼠标，然后滚动鼠标滚轮。

最后，我们给窗口一个最小大小，匹配场景的默认大小，并设置一个合适的窗口标题。

    Node *node1 = new Node(this);
    Node *node2 = new Node(this);
    Node *node3 = new Node(this);
    Node *node4 = new Node(this);
    centerNode = new Node(this);
    Node *node6 = new Node(this);
    Node *node7 = new Node(this);
    Node *node8 = new Node(this);
    Node *node9 = new Node(this);
    scene->addItem(node1);
    scene->addItem(node2);
    scene->addItem(node3);
    scene->addItem(node4);
    scene->addItem(centerNode);
    scene->addItem(node6);
    scene->addItem(node7);
    scene->addItem(node8);
    scene->addItem(node9);
    scene->addItem(new Edge(node1, node2));
    scene->addItem(new Edge(node2, node3));
    scene->addItem(new Edge(node2, centerNode));
    scene->addItem(new Edge(node3, node6));
    scene->addItem(new Edge(node4, node1));
    scene->addItem(new Edge(node4, centerNode));
    scene->addItem(new Edge(centerNode, node6));
    scene->addItem(new Edge(centerNode, node8));
    scene->addItem(new Edge(node6, node9));
    scene->addItem(new Edge(node7, node4));
    scene->addItem(new Edge(node8, node7));
    scene->addItem(new Edge(node9, node8));

    node1->setPos(-50, -50);
    node2->setPos(0, -50);
    node3->setPos(50, -50);
    node4->setPos(-50, 0);
    centerNode->setPos(0, 0);
    node6->setPos(50, 0);
    node7->setPos(-50, 50);
    node8->setPos(0, 50);
    node9->setPos(50, 50);
}

构造函数的最后一部分创建节点和边的网格，并给每个节点一个初始位置。

void GraphWidget::itemMoved()
{
    if (!timerId)
        timerId = startTimer(1000 / 25);
}

GraphWidget通过itemMoved()函数收到节点移动的通知。它的工作只是重新启动主计时器，以防它还没有运行。计时器被设计为在图形稳定时停止，并在图形再次不稳定时启动。

void GraphWidget::keyPressEvent(QKeyEvent *event)
{
    switch (event->key()) {
    case Qt::Key_Up:
        centerNode->moveBy(0, -20);
        break;
    case Qt::Key_Down:
        centerNode->moveBy(0, 20);
        break;
    case Qt::Key_Left:
        centerNode->moveBy(-20, 0);
        break;
    case Qt::Key_Right:
        centerNode->moveBy(20, 0);
        break;
    case Qt::Key_Plus:
        zoomIn();
        break;
    case Qt::Key_Minus:
        zoomOut();
        break;
    case Qt::Key_Space:
    case Qt::Key_Enter:
        shuffle();
        break;
    default:
        QGraphicsView::keyPressEvent(event);
    }
}

这是GraphWidget的关键事件处理程序。箭头键移动中心节点，“+”和“-”键通过调用scaleView()放大和缩小，回车键和空格键随机化节点的位置。所有其他关键事件(例如，页面向上和页面向下)都由QGraphicsView的默认实现处理。

void GraphWidget::timerEvent(QTimerEvent *event)
{
    Q_UNUSED(event);

    QList<Node *> nodes;
    foreach (QGraphicsItem *item, scene()->items()) {
        if (Node *node = qgraphicsitem_cast<Node *>(item))
            nodes << node;
    }

    foreach (Node *node, nodes)
        node->calculateForces();

    bool itemsMoved = false;
    foreach (Node *node, nodes) {
        if (node->advance())
            itemsMoved = true;
    }

    if (!itemsMoved) {
        killTimer(timerId);
        timerId = 0;
    }
}

计时器事件处理程序的工作是将整个力计算机制作为平滑动画运行。每次触发计时器时，处理程序将找到场景中的所有节点，并在每个节点上调用Node::calculateForces()，一次一个。然后，在最后一步中，它将调用Node::advance()将所有节点移动到新位置。通过检查advance()的返回值，我们可以确定网格是否稳定(即没有节点移动)。如果是这样，我们可以停止计时器。

void GraphWidget::wheelEvent(QWheelEvent *event)
{
    scaleView(pow((double)2, -event->delta() / 240.0));
}

在wheel事件处理程序中，我们将鼠标滚轮增量转换为缩放因子，并将该因子传递给scaleView()。这种方法考虑了车轮滚动的速度。滚动鼠标滚轮的速度越快，视图缩放的速度就越快。

void GraphWidget::drawBackground(QPainter *painter, const QRectF &rect)
{
    Q_UNUSED(rect);

    // Shadow
    QRectF sceneRect = this->sceneRect();
    QRectF rightShadow(sceneRect.right(), sceneRect.top() + 5, 5, sceneRect.height());
    QRectF bottomShadow(sceneRect.left() + 5, sceneRect.bottom(), sceneRect.width(), 5);
    if (rightShadow.intersects(rect) || rightShadow.contains(rect))
        painter->fillRect(rightShadow, Qt::darkGray);
    if (bottomShadow.intersects(rect) || bottomShadow.contains(rect))
        painter->fillRect(bottomShadow, Qt::darkGray);

    // Fill
    QLinearGradient gradient(sceneRect.topLeft(), sceneRect.bottomRight());
    gradient.setColorAt(0, Qt::white);
    gradient.setColorAt(1, Qt::lightGray);
    painter->fillRect(rect.intersected(sceneRect), gradient);
    painter->setBrush(Qt::NoBrush);
    painter->drawRect(sceneRect);

    // Text
    QRectF textRect(sceneRect.left() + 4, sceneRect.top() + 4,
                    sceneRect.width() - 4, sceneRect.height() - 4);
    QString message(tr("Click and drag the nodes around, and zoom with the mouse "
                        "wheel or the '+' and '-' keys"));

    QFont font = painter->font();
    font.setBold(true);
    font.setPointSize(14);
    painter->setFont(font);
    painter->setPen(Qt::lightGray);
    painter->drawText(textRect.translated(2, 2), message);
    painter->setPen(Qt::black);
    painter->drawText(textRect, message);
}

视图的背景在QGraphicsView::drawBackground()的重新实现中呈现。我们用线性渐变填充一个大矩形，添加一个投影，然后在顶部渲染文本。文本被渲染两次以获得简单的投影效果。

这种背景渲染是相当昂贵的;这就是视图启用QGraphicsView::CacheBackground的原因。

void GraphWidget::scaleView(qreal scaleFactor)
{
    qreal factor = transform().scale(scaleFactor, scaleFactor).mapRect(QRectF(0, 0, 1, 1)).width();
    if (factor < 0.07 || factor > 100)
        return;

    scale(scaleFactor, scaleFactor);
}

scaleView()辅助函数检查比例因子是否保持在一定的限制范围内(即，您不能放大得太远或太远)，然后将此比例应用于视图。

main()函数

与此示例其余部分的复杂性相比，main()函数非常简单:我们创建一个QApplication实例，使用qsrand()为随机化器播种，然后创建并显示GraphWidget的实例。因为网格中的所有节点最初都是移动的，所以GraphWidget计时器将在控制返回到事件循环后立即启动。

int main(int argc, char **argv)
{
    QApplication app(argc, argv);
    qsrand(QTime(0,0,0).secsTo(QTime::currentTime()));

    GraphWidget *widget = new GraphWidget;

    QMainWindow mainWindow;
    mainWindow.setCentralWidget(widget);

    mainWindow.show();
    return app.exec();
}

完整代码

graphicsview/elasticnodes/edge.cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the examples of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:BSD$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** BSD License Usage
** Alternatively, you may use this file under the terms of the BSD license
** as follows:
**
** "Redistribution and use in source and binary forms, with or without
** modification, are permitted provided that the following conditions are
** met:
**   * Redistributions of source code must retain the above copyright
**     notice, this list of conditions and the following disclaimer.
**   * Redistributions in binary form must reproduce the above copyright
**     notice, this list of conditions and the following disclaimer in
**     the documentation and/or other materials provided with the
**     distribution.
**   * Neither the name of The Qt Company Ltd nor the names of its
**     contributors may be used to endorse or promote products derived
**     from this software without specific prior written permission.
**
**
** THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
** "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
** LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
** A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
** OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
** SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
** LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
** DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
** THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
** (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
** OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE."
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include "edge.h"
#include "node.h"

#include <math.h>

#include <QPainter>

static const double Pi = 3.14159265358979323846264338327950288419717;
static double TwoPi = 2.0 * Pi;

Edge::Edge(Node *sourceNode, Node *destNode)
    : arrowSize(10)
{
    setAcceptedMouseButtons(0);
    source = sourceNode;
    dest = destNode;
    source->addEdge(this);
    dest->addEdge(this);
    adjust();
}

Node *Edge::sourceNode() const
{
    return source;
}

Node *Edge::destNode() const
{
    return dest;
}

void Edge::adjust()
{
    if (!source || !dest)
        return;

    QLineF line(mapFromItem(source, 0, 0), mapFromItem(dest, 0, 0));
    qreal length = line.length();

    prepareGeometryChange();

    if (length > qreal(20.)) {
        QPointF edgeOffset((line.dx() * 10) / length, (line.dy() * 10) / length);
        sourcePoint = line.p1() + edgeOffset;
        destPoint = line.p2() - edgeOffset;
    } else {
        sourcePoint = destPoint = line.p1();
    }
}

QRectF Edge::boundingRect() const
{
    if (!source || !dest)
        return QRectF();

    qreal penWidth = 1;
    qreal extra = (penWidth + arrowSize) / 2.0;

    return QRectF(sourcePoint, QSizeF(destPoint.x() - sourcePoint.x(),
                                    destPoint.y() - sourcePoint.y()))
        .normalized()
        .adjusted(-extra, -extra, extra, extra);
}

void Edge::paint(QPainter *painter, const QStyleOptionGraphicsItem *, QWidget *)
{
    if (!source || !dest)
        return;

    QLineF line(sourcePoint, destPoint);
    if (qFuzzyCompare(line.length(), qreal(0.)))
        return;

    // Draw the line itself
    painter->setPen(QPen(Qt::black, 1, Qt::SolidLine, Qt::RoundCap, Qt::RoundJoin));
    painter->drawLine(line);

    // Draw the arrows
    double angle = ::acos(line.dx() / line.length());
    if (line.dy() >= 0)
        angle = TwoPi - angle;

    QPointF sourceArrowP1 = sourcePoint + QPointF(sin(angle + Pi / 3) * arrowSize,
                                                cos(angle + Pi / 3) * arrowSize);
    QPointF sourceArrowP2 = sourcePoint + QPointF(sin(angle + Pi - Pi / 3) * arrowSize,
                                                cos(angle + Pi - Pi / 3) * arrowSize);
    QPointF destArrowP1 = destPoint + QPointF(sin(angle - Pi / 3) * arrowSize,
                                            cos(angle - Pi / 3) * arrowSize);
    QPointF destArrowP2 = destPoint + QPointF(sin(angle - Pi + Pi / 3) * arrowSize,
                                            cos(angle - Pi + Pi / 3) * arrowSize);

    painter->setBrush(Qt::black);
    painter->drawPolygon(QPolygonF() << line.p1() << sourceArrowP1 << sourceArrowP2);
    painter->drawPolygon(QPolygonF() << line.p2() << destArrowP1 << destArrowP2);
}

graphicsview/elasticnodes/edge.h

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the examples of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:BSD$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** BSD License Usage
** Alternatively, you may use this file under the terms of the BSD license
** as follows:
**
** "Redistribution and use in source and binary forms, with or without
** modification, are permitted provided that the following conditions are
** met:
**   * Redistributions of source code must retain the above copyright
**     notice, this list of conditions and the following disclaimer.
**   * Redistributions in binary form must reproduce the above copyright
**     notice, this list of conditions and the following disclaimer in
**     the documentation and/or other materials provided with the
**     distribution.
**   * Neither the name of The Qt Company Ltd nor the names of its
**     contributors may be used to endorse or promote products derived
**     from this software without specific prior written permission.
**
**
** THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
** "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
** LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
** A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
** OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
** SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
** LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
** DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
** THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
** (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
** OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE."
**
** $QT_END_LICENSE$
**
****************************************************************************/

#ifndef EDGE_H
#define EDGE_H

#include <QGraphicsItem>

class Node;

class Edge : public QGraphicsItem
{
public:
    Edge(Node *sourceNode, Node *destNode);

    Node *sourceNode() const;
    Node *destNode() const;

    void adjust();

    enum { Type = UserType + 2 };
    int type() const override { return Type; }

protected:
    QRectF boundingRect() const override;
    void paint(QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget) override;

private:
    Node *source, *dest;

    QPointF sourcePoint;
    QPointF destPoint;
    qreal arrowSize;
};

#endif // EDGE_H

graphicsview/elasticnodes/graphwidget.cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the examples of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:BSD$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** BSD License Usage
** Alternatively, you may use this file under the terms of the BSD license
** as follows:
**
** "Redistribution and use in source and binary forms, with or without
** modification, are permitted provided that the following conditions are
** met:
**   * Redistributions of source code must retain the above copyright
**     notice, this list of conditions and the following disclaimer.
**   * Redistributions in binary form must reproduce the above copyright
**     notice, this list of conditions and the following disclaimer in
**     the documentation and/or other materials provided with the
**     distribution.
**   * Neither the name of The Qt Company Ltd nor the names of its
**     contributors may be used to endorse or promote products derived
**     from this software without specific prior written permission.
**
**
** THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
** "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
** LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
** A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
** OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
** SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
** LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
** DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
** THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
** (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
** OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE."
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include "graphwidget.h"
#include "edge.h"
#include "node.h"

#include <math.h>

#include <QKeyEvent>

GraphWidget::GraphWidget(QWidget *parent)
    : QGraphicsView(parent), timerId(0)
{
    QGraphicsScene *scene = new QGraphicsScene(this);
    scene->setItemIndexMethod(QGraphicsScene::NoIndex);
    scene->setSceneRect(-200, -200, 400, 400);
    setScene(scene);
    setCacheMode(CacheBackground);
    setViewportUpdateMode(BoundingRectViewportUpdate);
    setRenderHint(QPainter::Antialiasing);
    setTransformationAnchor(AnchorUnderMouse);
    scale(qreal(0.8), qreal(0.8));
    setMinimumSize(400, 400);
    setWindowTitle(tr("Elastic Nodes"));

    Node *node1 = new Node(this);
    Node *node2 = new Node(this);
    Node *node3 = new Node(this);
    Node *node4 = new Node(this);
    centerNode = new Node(this);
    Node *node6 = new Node(this);
    Node *node7 = new Node(this);
    Node *node8 = new Node(this);
    Node *node9 = new Node(this);
    scene->addItem(node1);
    scene->addItem(node2);
    scene->addItem(node3);
    scene->addItem(node4);
    scene->addItem(centerNode);
    scene->addItem(node6);
    scene->addItem(node7);
    scene->addItem(node8);
    scene->addItem(node9);
    scene->addItem(new Edge(node1, node2));
    scene->addItem(new Edge(node2, node3));
    scene->addItem(new Edge(node2, centerNode));
    scene->addItem(new Edge(node3, node6));
    scene->addItem(new Edge(node4, node1));
    scene->addItem(new Edge(node4, centerNode));
    scene->addItem(new Edge(centerNode, node6));
    scene->addItem(new Edge(centerNode, node8));
    scene->addItem(new Edge(node6, node9));
    scene->addItem(new Edge(node7, node4));
    scene->addItem(new Edge(node8, node7));
    scene->addItem(new Edge(node9, node8));

    node1->setPos(-50, -50);
    node2->setPos(0, -50);
    node3->setPos(50, -50);
    node4->setPos(-50, 0);
    centerNode->setPos(0, 0);
    node6->setPos(50, 0);
    node7->setPos(-50, 50);
    node8->setPos(0, 50);
    node9->setPos(50, 50);
}

void GraphWidget::itemMoved()
{
    if (!timerId)
        timerId = startTimer(1000 / 25);
}

void GraphWidget::keyPressEvent(QKeyEvent *event)
{
    switch (event->key()) {
    case Qt::Key_Up:
        centerNode->moveBy(0, -20);
        break;
    case Qt::Key_Down:
        centerNode->moveBy(0, 20);
        break;
    case Qt::Key_Left:
        centerNode->moveBy(-20, 0);
        break;
    case Qt::Key_Right:
        centerNode->moveBy(20, 0);
        break;
    case Qt::Key_Plus:
        zoomIn();
        break;
    case Qt::Key_Minus:
        zoomOut();
        break;
    case Qt::Key_Space:
    case Qt::Key_Enter:
        shuffle();
        break;
    default:
        QGraphicsView::keyPressEvent(event);
    }
}

void GraphWidget::timerEvent(QTimerEvent *event)
{
    Q_UNUSED(event);

    QList<Node *> nodes;
    foreach (QGraphicsItem *item, scene()->items()) {
        if (Node *node = qgraphicsitem_cast<Node *>(item))
            nodes << node;
    }

    foreach (Node *node, nodes)
        node->calculateForces();

    bool itemsMoved = false;
    foreach (Node *node, nodes) {
        if (node->advance())
            itemsMoved = true;
    }

    if (!itemsMoved) {
        killTimer(timerId);
        timerId = 0;
    }
}

#if QT_CONFIG(wheelevent)
void GraphWidget::wheelEvent(QWheelEvent *event)
{
    scaleView(pow((double)2, -event->delta() / 240.0));
}
#endif

void GraphWidget::drawBackground(QPainter *painter, const QRectF &rect)
{
    Q_UNUSED(rect);

    // Shadow
    QRectF sceneRect = this->sceneRect();
    QRectF rightShadow(sceneRect.right(), sceneRect.top() + 5, 5, sceneRect.height());
    QRectF bottomShadow(sceneRect.left() + 5, sceneRect.bottom(), sceneRect.width(), 5);
    if (rightShadow.intersects(rect) || rightShadow.contains(rect))
        painter->fillRect(rightShadow, Qt::darkGray);
    if (bottomShadow.intersects(rect) || bottomShadow.contains(rect))
        painter->fillRect(bottomShadow, Qt::darkGray);

    // Fill
    QLinearGradient gradient(sceneRect.topLeft(), sceneRect.bottomRight());
    gradient.setColorAt(0, Qt::white);
    gradient.setColorAt(1, Qt::lightGray);
    painter->fillRect(rect.intersected(sceneRect), gradient);
    painter->setBrush(Qt::NoBrush);
    painter->drawRect(sceneRect);

    // Text
    QRectF textRect(sceneRect.left() + 4, sceneRect.top() + 4,
                    sceneRect.width() - 4, sceneRect.height() - 4);
    QString message(tr("Click and drag the nodes around, and zoom with the mouse "
                        "wheel or the '+' and '-' keys"));

    QFont font = painter->font();
    font.setBold(true);
    font.setPointSize(14);
    painter->setFont(font);
    painter->setPen(Qt::lightGray);
    painter->drawText(textRect.translated(2, 2), message);
    painter->setPen(Qt::black);
    painter->drawText(textRect, message);
}

void GraphWidget::scaleView(qreal scaleFactor)
{
    qreal factor = transform().scale(scaleFactor, scaleFactor).mapRect(QRectF(0, 0, 1, 1)).width();
    if (factor < 0.07 || factor > 100)
        return;

    scale(scaleFactor, scaleFactor);
}

void GraphWidget::shuffle()
{
    foreach (QGraphicsItem *item, scene()->items()) {
        if (qgraphicsitem_cast<Node *>(item))
            item->setPos(-150 + qrand() % 300, -150 + qrand() % 300);
    }
}

void GraphWidget::zoomIn()
{
    scaleView(qreal(1.2));
}

void GraphWidget::zoomOut()
{
    scaleView(1 / qreal(1.2));
}

graphicsview/elasticnodes/graphwidget.h

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the examples of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:BSD$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** BSD License Usage
** Alternatively, you may use this file under the terms of the BSD license
** as follows:
**
** "Redistribution and use in source and binary forms, with or without
** modification, are permitted provided that the following conditions are
** met:
**   * Redistributions of source code must retain the above copyright
**     notice, this list of conditions and the following disclaimer.
**   * Redistributions in binary form must reproduce the above copyright
**     notice, this list of conditions and the following disclaimer in
**     the documentation and/or other materials provided with the
**     distribution.
**   * Neither the name of The Qt Company Ltd nor the names of its
**     contributors may be used to endorse or promote products derived
**     from this software without specific prior written permission.
**
**
** THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
** "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
** LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
** A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
** OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
** SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
** LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
** DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
** THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
** (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
** OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE."
**
** $QT_END_LICENSE$
**
****************************************************************************/

#ifndef GRAPHWIDGET_H
#define GRAPHWIDGET_H

#include <QGraphicsView>

class Node;

class GraphWidget : public QGraphicsView
{
    Q_OBJECT

public:
    GraphWidget(QWidget *parent = 0);

    void itemMoved();

public slots:
    void shuffle();
    void zoomIn();
    void zoomOut();

protected:
    void keyPressEvent(QKeyEvent *event) override;
    void timerEvent(QTimerEvent *event) override;
#if QT_CONFIG(wheelevent)
    void wheelEvent(QWheelEvent *event) override;
#endif
    void drawBackground(QPainter *painter, const QRectF &rect) override;

    void scaleView(qreal scaleFactor);

private:
    int timerId;
    Node *centerNode;
};

#endif // GRAPHWIDGET_H

graphicsview/elasticnodes/node.cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the examples of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:BSD$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** BSD License Usage
** Alternatively, you may use this file under the terms of the BSD license
** as follows:
**
** "Redistribution and use in source and binary forms, with or without
** modification, are permitted provided that the following conditions are
** met:
**   * Redistributions of source code must retain the above copyright
**     notice, this list of conditions and the following disclaimer.
**   * Redistributions in binary form must reproduce the above copyright
**     notice, this list of conditions and the following disclaimer in
**     the documentation and/or other materials provided with the
**     distribution.
**   * Neither the name of The Qt Company Ltd nor the names of its
**     contributors may be used to endorse or promote products derived
**     from this software without specific prior written permission.
**
**
** THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
** "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
** LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
** A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
** OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
** SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
** LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
** DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
** THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
** (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
** OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE."
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include "edge.h"
#include "node.h"
#include "graphwidget.h"

#include <QGraphicsScene>
#include <QGraphicsSceneMouseEvent>
#include <QPainter>
#include <QStyleOption>

Node::Node(GraphWidget *graphWidget)
    : graph(graphWidget)
{
    setFlag(ItemIsMovable);
    setFlag(ItemSendsGeometryChanges);
    setCacheMode(DeviceCoordinateCache);
    setZValue(-1);
}

void Node::addEdge(Edge *edge)
{
    edgeList << edge;
    edge->adjust();
}

QList<Edge *> Node::edges() const
{
    return edgeList;
}

void Node::calculateForces()
{
    if (!scene() || scene()->mouseGrabberItem() == this) {
        newPos = pos();
        return;
    }

    // Sum up all forces pushing this item away
    qreal xvel = 0;
    qreal yvel = 0;
    foreach (QGraphicsItem *item, scene()->items()) {
        Node *node = qgraphicsitem_cast<Node *>(item);
        if (!node)
            continue;

        QPointF vec = mapToItem(node, 0, 0);
        qreal dx = vec.x();
        qreal dy = vec.y();
        double l = 2.0 * (dx * dx + dy * dy);
        if (l > 0) {
            xvel += (dx * 150.0) / l;
            yvel += (dy * 150.0) / l;
        }
    }

    // Now subtract all forces pulling items together
    double weight = (edgeList.size() + 1) * 10;
    foreach (Edge *edge, edgeList) {
        QPointF vec;
        if (edge->sourceNode() == this)
            vec = mapToItem(edge->destNode(), 0, 0);
        else
            vec = mapToItem(edge->sourceNode(), 0, 0);
        xvel -= vec.x() / weight;
        yvel -= vec.y() / weight;
    }

    if (qAbs(xvel) < 0.1 && qAbs(yvel) < 0.1)
        xvel = yvel = 0;

    QRectF sceneRect = scene()->sceneRect();
    newPos = pos() + QPointF(xvel, yvel);
    newPos.setX(qMin(qMax(newPos.x(), sceneRect.left() + 10), sceneRect.right() - 10));
    newPos.setY(qMin(qMax(newPos.y(), sceneRect.top() + 10), sceneRect.bottom() - 10));
}

bool Node::advance()
{
    if (newPos == pos())
        return false;

    setPos(newPos);
    return true;
}

QRectF Node::boundingRect() const
{
    qreal adjust = 2;
    return QRectF( -10 - adjust, -10 - adjust, 23 + adjust, 23 + adjust);
}

QPainterPath Node::shape() const
{
    QPainterPath path;
    path.addEllipse(-10, -10, 20, 20);
    return path;
}

void Node::paint(QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *)
{
    painter->setPen(Qt::NoPen);
    painter->setBrush(Qt::darkGray);
    painter->drawEllipse(-7, -7, 20, 20);

    QRadialGradient gradient(-3, -3, 10);
    if (option->state & QStyle::State_Sunken) {
        gradient.setCenter(3, 3);
        gradient.setFocalPoint(3, 3);
        gradient.setColorAt(1, QColor(Qt::yellow).light(120));
        gradient.setColorAt(0, QColor(Qt::darkYellow).light(120));
    } else {
        gradient.setColorAt(0, Qt::yellow);
        gradient.setColorAt(1, Qt::darkYellow);
    }
    painter->setBrush(gradient);

    painter->setPen(QPen(Qt::black, 0));
    painter->drawEllipse(-10, -10, 20, 20);
}

QVariant Node::itemChange(GraphicsItemChange change, const QVariant &value)
{
    switch (change) {
    case ItemPositionHasChanged:
        foreach (Edge *edge, edgeList)
            edge->adjust();
        graph->itemMoved();
        break;
    default:
        break;
    };

    return QGraphicsItem::itemChange(change, value);
}

void Node::mousePressEvent(QGraphicsSceneMouseEvent *event)
{
    update();
    QGraphicsItem::mousePressEvent(event);
}

void Node::mouseReleaseEvent(QGraphicsSceneMouseEvent *event)
{
    update();
    QGraphicsItem::mouseReleaseEvent(event);
}

graphicsview/elasticnodes/node.h

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the examples of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:BSD$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** BSD License Usage
** Alternatively, you may use this file under the terms of the BSD license
** as follows:
**
** "Redistribution and use in source and binary forms, with or without
** modification, are permitted provided that the following conditions are
** met:
**   * Redistributions of source code must retain the above copyright
**     notice, this list of conditions and the following disclaimer.
**   * Redistributions in binary form must reproduce the above copyright
**     notice, this list of conditions and the following disclaimer in
**     the documentation and/or other materials provided with the
**     distribution.
**   * Neither the name of The Qt Company Ltd nor the names of its
**     contributors may be used to endorse or promote products derived
**     from this software without specific prior written permission.
**
**
** THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
** "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
** LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
** A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
** OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
** SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
** LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
** DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
** THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
** (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
** OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE."
**
** $QT_END_LICENSE$
**
****************************************************************************/

#ifndef NODE_H
#define NODE_H

#include <QGraphicsItem>
#include <QList>

class Edge;
class GraphWidget;
class QGraphicsSceneMouseEvent;

class Node : public QGraphicsItem
{
public:
    Node(GraphWidget *graphWidget);

    void addEdge(Edge *edge);
    QList<Edge *> edges() const;

    enum { Type = UserType + 1 };
    int type() const override { return Type; }

    void calculateForces();
    bool advance();

    QRectF boundingRect() const override;
    QPainterPath shape() const override;
    void paint(QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget) override;

protected:
    QVariant itemChange(GraphicsItemChange change, const QVariant &value) override;

    void mousePressEvent(QGraphicsSceneMouseEvent *event) override;
    void mouseReleaseEvent(QGraphicsSceneMouseEvent *event) override;

private:
    QList<Edge *> edgeList;
    QPointF newPos;
    GraphWidget *graph;
};

#endif // NODE_H

graphicsview/elasticnodes/main.cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the examples of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:BSD$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** BSD License Usage
** Alternatively, you may use this file under the terms of the BSD license
** as follows:
**
** "Redistribution and use in source and binary forms, with or without
** modification, are permitted provided that the following conditions are
** met:
**   * Redistributions of source code must retain the above copyright
**     notice, this list of conditions and the following disclaimer.
**   * Redistributions in binary form must reproduce the above copyright
**     notice, this list of conditions and the following disclaimer in
**     the documentation and/or other materials provided with the
**     distribution.
**   * Neither the name of The Qt Company Ltd nor the names of its
**     contributors may be used to endorse or promote products derived
**     from this software without specific prior written permission.
**
**
** THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
** "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
** LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
** A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
** OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
** SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
** LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
** DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
** THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
** (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
** OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE."
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include "graphwidget.h"

#include <QApplication>
#include <QTime>
#include <QMainWindow>

int main(int argc, char **argv)
{
    QApplication app(argc, argv);
    qsrand(QTime(0,0,0).secsTo(QTime::currentTime()));

    GraphWidget *widget = new GraphWidget;

    QMainWindow mainWindow;
    mainWindow.setCentralWidget(widget);

    mainWindow.show();
    return app.exec();
}

graphicsview/elasticnodes/elasticnodes.pro

QT += widgets

HEADERS += \
        edge.h \
        node.h \
        graphwidget.h

SOURCES += \
        edge.cpp \
        main.cpp \
        node.cpp \
        graphwidget.cpp

# install
target.path = $$[QT_INSTALL_EXAMPLES]/widgets/graphicsview/elasticnodes
INSTALLS += target
avatar
文章
阅读
粉丝
