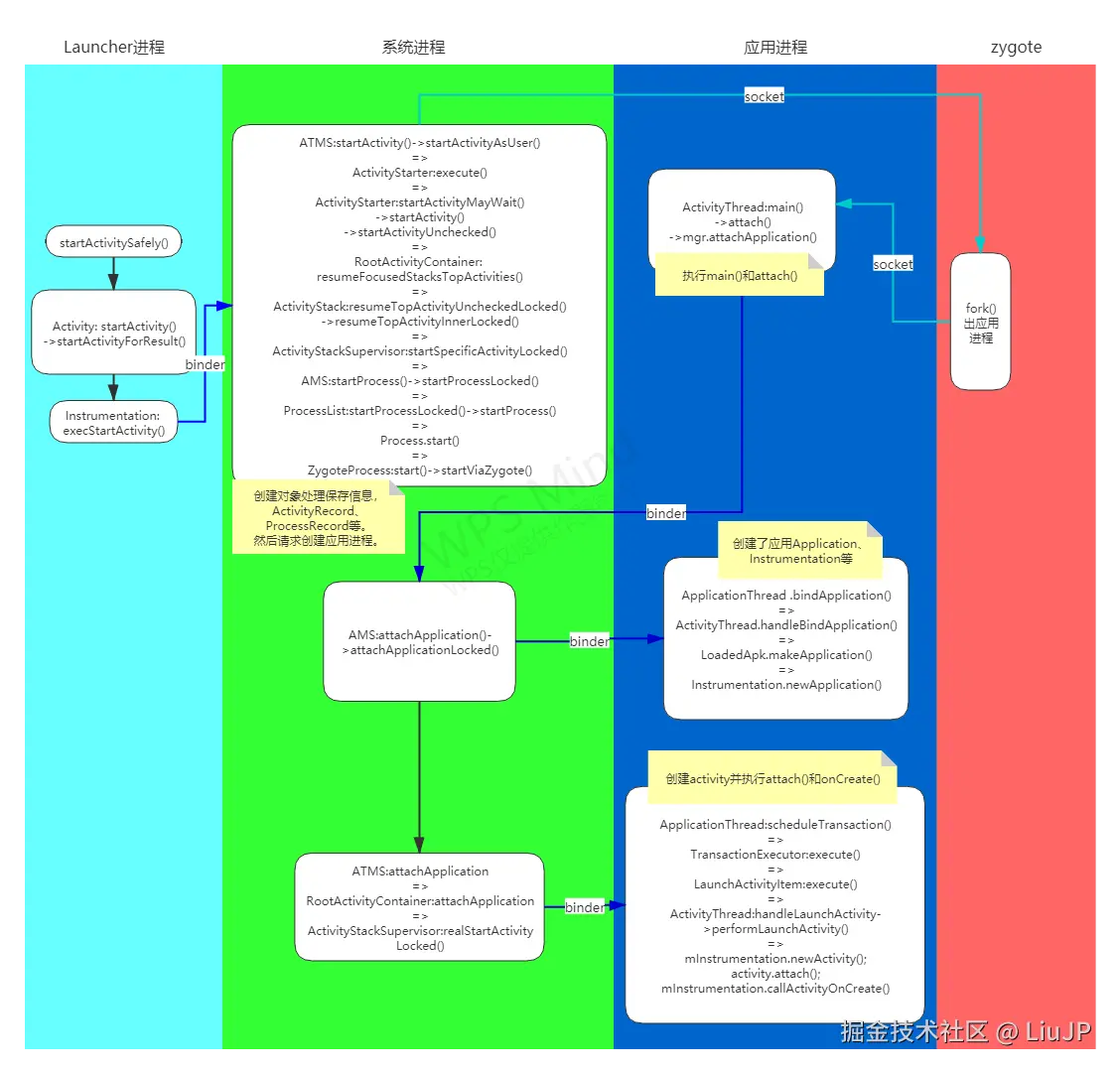

Launcher
/packages/apps/Launcher3/src/com/android/launcher3/Launcher.java
public boolean startActivitySafely(View v, Intent intent, ItemInfo item, String sourceContainer) {
...
//调用父类 BaseDraggingActivity 的 startActivitySafely 方法
boolean success = super.startActivitySafely(v, intent, item, sourceContainer);
...
}
/packages/apps/Launcher3/src/com/android/launcher3/BaseDraggingActivity.java
public boolean startActivitySafely(View v, Intent intent, ItemInfo item, String sourceContainer) {
...
//getActivityLaunchOptions(v).toBundle()，ActivityOptions 存储了 v 的参数，用于启动动画
Bundle optsBundle = (v != null) ? getActivityLaunchOptionsAsBundle(v) : null;
...
//设置 FLAG_ACTIVITY_NEW_TASK，保证 Activity 在新任务栈中运行（后面还会出现）
intent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
...
try {
...
if (isShortcut) {
startShortcutIntentSafely(intent, optsBundle, item, sourceContainer);
} else if (user == null || user.equals(Process.myUserHandle())) {
...
//调用父类 Activity 的 startActivity 方法
startActivity(intent, optsBundle);
...
}
...
}
...
}
/frameworks/base/core/java/android/app/Activity.java
public void startActivity(Intent intent, Bundle options) {
if (options != null) {
//第二个参数为-1表示 launcher 不需要知道返回结果
startActivityForResult(intent, -1, options);
} else {
startActivityForResult(intent, -1);
}
}
public void startActivityForResult(Intent intent, int requestCode, Bundle options) {
//mParent 为 Activity 类型，表示当前 Activity 的父类
if (mParent == null) {
//options == null ? ActivityOptions.fromBundle(ActivityTaskManager.getService().getActivityOptions(mToken)) : options
options = transferSpringboardActivityOptions(options);
// Instrumentation 类用于监控系统和应用程序之间的交互
Instrumentation.ActivityResult ar = mInstrumentation.execStartActivity(
this, mMainThread.getApplicationThread(), mToken, this, intent, requestCode, options);
...
}
...
}
/frameworks/base/core/java/android/app/Instrumentation.java
public ActivityResult execStartActivity( Context who, IBinder contextThread, IBinder token,
Activity target, Intent intent, int requestCode, Bundle options) {
IApplicationThread whoThread = (IApplicationThread) contextThread;
...
try {
...
int result = ActivityTaskManager.getService().startActivity(
whoThread, who.getBasePackageName(), intent, intent.resolveTypeIfNeeded(who.getContentResolver()),
token, target != null ? target.mEmbeddedID : null, requestCode, 0, null, options);
...
}
...
}
ATMS

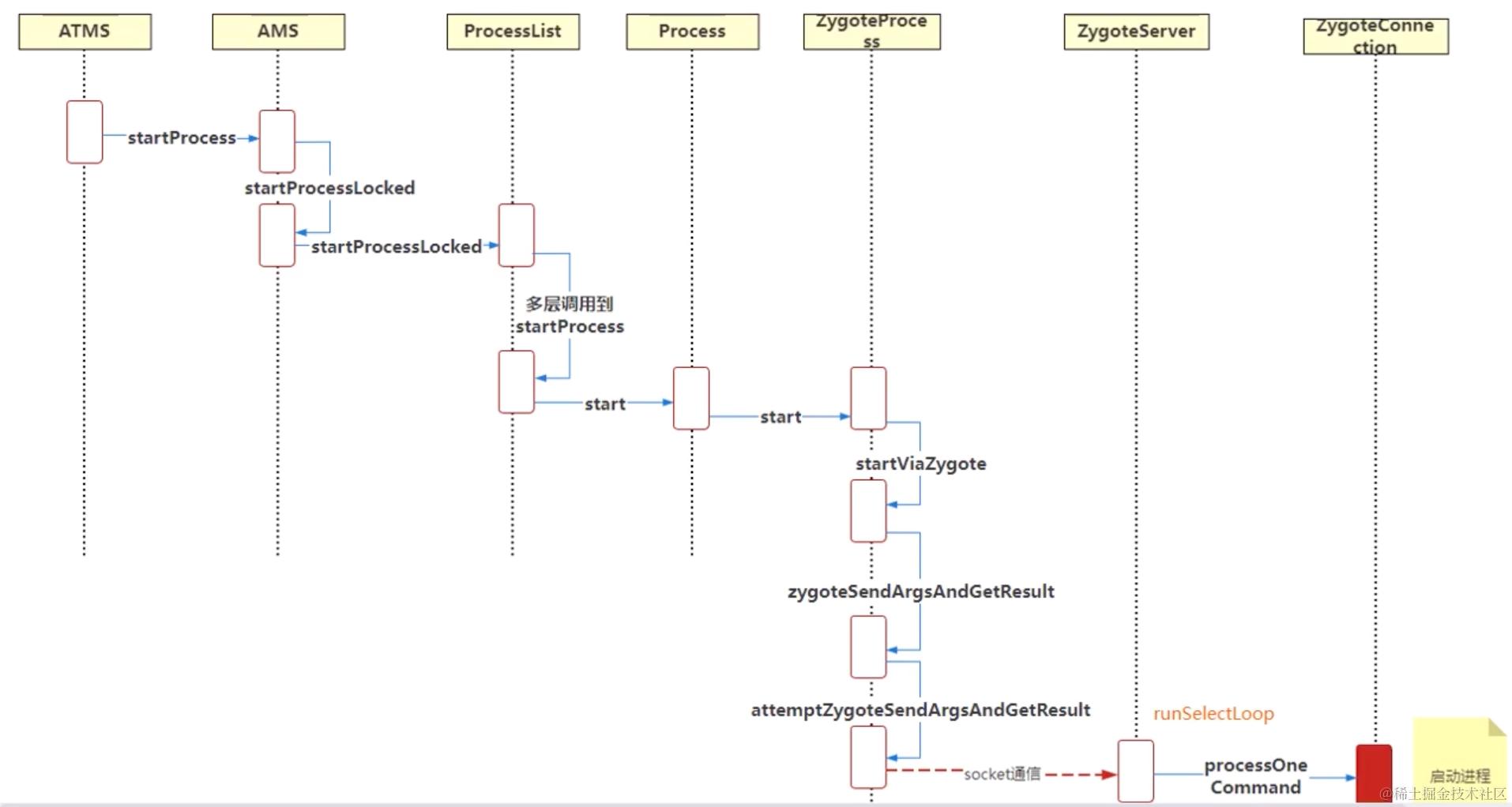

调用 atms 服务启动 activity 然后
发送 socket 给 zygote fork 自己之后开子进程
然后反射调用 ActivityThread.main;
mStackSupervisor.startSpecificActivity(next, true, true);
void startSpecificActivity(ActivityRecord r, boolean andResume, boolean checkConfig) {
// Is this activity's application already running?
final WindowProcessController wpc =
mService.getProcessController(r.processName, r.info.applicationInfo.uid);
boolean knownToBeDead = false;
if (wpc != null && wpc.hasThread()) {
try {
realStartActivityLocked(r, wpc, andResume, checkConfig);
return;
} catch (RemoteException e) {
Slog.w(TAG, "Exception when starting activity "
+ r.intent.getComponent().flattenToShortString(), e);
}
// If a dead object exception was thrown -- fall through to
// restart the application.
knownToBeDead = true;
}
r.notifyUnknownVisibilityLaunchedForKeyguardTransition();
final boolean isTop = andResume && r.isTopRunningActivity();
mService.startProcessAsync(r, knownToBeDead, isTop, isTop ? "top-activity" : "activity");
}
进程存在 -》 realStartActivityLocked 进程不存在 -》 ams 的 mService.startProcessAsync
Zygote.fork
可以查看zygot fork
ActivityThread.main
一个zygote fork 的一个新的进程，最后Looper.loop();
public static void main(String[] args) {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ActivityThreadMain");
// Install selective syscall interception
AndroidOs.install();
// CloseGuard defaults to true and can be quite spammy. We
// disable it here, but selectively enable it later (via
// StrictMode) on debug builds, but using DropBox, not logs.
CloseGuard.setEnabled(false);
Environment.initForCurrentUser();
// Make sure TrustedCertificateStore looks in the right place for CA certificates
final File configDir = Environment.getUserConfigDirectory(UserHandle.myUserId());
TrustedCertificateStore.setDefaultUserDirectory(configDir);
// Call per-process mainline module initialization.
initializeMainlineModules();
Process.setArgV0("<pre-initialized>");
Looper.prepareMainLooper();
// Find the value for {@link #PROC_START_SEQ_IDENT} if provided on the command line.
// It will be in the format "seq=114"
long startSeq = 0;
if (args != null) {
for (int i = args.length - 1; i >= 0; --i) {
if (args[i] != null && args[i].startsWith(PROC_START_SEQ_IDENT)) {
startSeq = Long.parseLong(
args[i].substring(PROC_START_SEQ_IDENT.length()));
}
}
}
ActivityThread thread = new ActivityThread();
thread.attach(false, startSeq);
if (sMainThreadHandler == null) {
sMainThreadHandler = thread.getHandler();
}
if (false) {
Looper.myLooper().setMessageLogging(new
LogPrinter(Log.DEBUG, "ActivityThread"));
}
// End of event ActivityThreadMain.
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
Looper.loop();
throw new RuntimeException("Main thread loop unexpectedly exited");
}
main -> thread.attach(false, startSeq);
ActivityThread thread = new ActivityThread();
thread.attach(false, startSeq);
private void attach(boolean system, long startSeq) {
sCurrentActivityThread = this;
mSystemThread = system;
if (!system) {
android.ddm.DdmHandleAppName.setAppName("<pre-initialized>",
UserHandle.myUserId());
RuntimeInit.setApplicationObject(mAppThread.asBinder());
//step 1 调用 ams 把自己的 binder 注册到 ams ProcessList 中
final IActivityManager mgr = ActivityManager.getService();
try {
mgr.attachApplication(mAppThread, startSeq);
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
// Watch for getting close to heap limit.
BinderInternal.addGcWatcher(new Runnable() {
@Override public void run() {
if (!mSomeActivitiesChanged) {
return;
}
Runtime runtime = Runtime.getRuntime();
long dalvikMax = runtime.maxMemory();
long dalvikUsed = runtime.totalMemory() - runtime.freeMemory();
if (dalvikUsed > ((3*dalvikMax)/4)) {
if (DEBUG_MEMORY_TRIM) Slog.d(TAG, "Dalvik max=" + (dalvikMax/1024)
+ " total=" + (runtime.totalMemory()/1024)
+ " used=" + (dalvikUsed/1024));
mSomeActivitiesChanged = false;
try {
ActivityTaskManager.getService().releaseSomeActivities(mAppThread);
} catch (RemoteException e) {
throw e.rethrowFromSystemServer();
}
}
}
});
} else {
// Don't set application object here -- if the system crashes,
// we can't display an alert, we just want to die die die.
android.ddm.DdmHandleAppName.setAppName("system_process",
UserHandle.myUserId());
try {
//system step 1 Instrumentation 初始化
mInstrumentation = new Instrumentation();
mInstrumentation.basicInit(this);
ContextImpl context = ContextImpl.createAppContext(
this, getSystemContext().mPackageInfo);
//system step 2 new Application 并且 Application.onCreate
mInitialApplication = context.mPackageInfo.makeApplication(true, null);
mInitialApplication.onCreate();
} catch (Exception e) {
throw new RuntimeException(
"Unable to instantiate Application():" + e.toString(), e);
}
}
ViewRootImpl.ConfigChangedCallback configChangedCallback
= (Configuration globalConfig) -> {
synchronized (mResourcesManager) {
// TODO (b/135719017): Temporary log for debugging IME service.
if (Build.IS_DEBUGGABLE && mHasImeComponent) {
Log.d(TAG, "ViewRootImpl.ConfigChangedCallback for IME, "
+ "config=" + globalConfig);
}
// We need to apply this change to the resources immediately, because upon returning
// the view hierarchy will be informed about it.
if (mResourcesManager.applyConfigurationToResourcesLocked(globalConfig,
null /* compat */)) {
updateLocaleListFromAppContext(mInitialApplication.getApplicationContext(),
mResourcesManager.getConfiguration().getLocales());
// This actually changed the resources! Tell everyone about it.
if (mPendingConfiguration == null
|| mPendingConfiguration.isOtherSeqNewer(globalConfig)) {
mPendingConfiguration = globalConfig;
sendMessage(H.CONFIGURATION_CHANGED, globalConfig);
}
}
}
};
ViewRootImpl.addConfigCallback(configChangedCallback);
}
step 1 mgr.attachApplication(mAppThread, startSeq);
把自己 app 的进程 注册到 ams 中
private class ApplicationThread extends IApplicationThread.Stub
...
final ApplicationThread mAppThread = new ApplicationThread();
...
final IActivityManager mgr = ActivityManager.getService();
try {
mgr.attachApplication(mAppThread, startSeq);
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
ApplicationThread 类型的，该类是ActivityThread的内部类，它是一个Binder，
会被注册到AMS（ActivityManagerService）。
启动Activity会涉及跨进程通信（应用进程和AMS所在进程），AMS拿到了应用端的代理Binder就可以跨进程调用应用进程中ApplicationThread类中的业务方法。
在 zygote fork 一个新的 App 的时候，会启动一个 binder 所以每一个 App 在启动后都有一个自己的 binder
并通过 mgr.attachApplication(mAppThread, startSeq); 添加到 ams 中，并交给 ams 管理；
这个 binder 匿名
所以在 ams 中 mProcessList 包含所有 app ApplicationThread；
ams.attachApplication
ams.attachApplication ->
ams.attachApplicationLocked ->
ActivityStackSupervisor.attachApplicationLocked ->
ActivityStackSupervisor.realStartActivityLocked ->
scheduleLaunchActivity
@Override
public final void attachApplication(IApplicationThread thread) {
....
attachApplicationLocked(thread, callingPid);
}
...
private final boolean attachApplicationLocked(IApplicationThread thread,
int pid) {
.....
//1
thread.bindApplication(...);
...
//2
mStackSupervisor.attachApplicationLocked(app)
......
}
boolean attachApplicationLocked(ProcessRecord app) throws RemoteException {
...
//首先拿到要启动的Activity记录。
ActivityRecord hr = stack.topRunningActivityLocked();
....
//
realStartActivityLocked(hr, app, true, true)
}
final boolean realStartActivityLocked(ActivityRecord r, ProcessRecord app,
boolean andResume, boolean checkConfig) throws RemoteException {
...
app.thread.scheduleLaunchActivity(...);
}
app.thread中的thread其实就是应用进程注册到AMS的Binder代理，
AMS 可以通过这个 Binder 代理跨进程和app进程通信，
然后会跨进程调用到应用进程中ActivityThread内部类ApplicationThread的
AMS.scheduleLaunchActivity方法
ActivityThread.performLaunchActivity 反射调用
performLaunchActivity 启动 activity
/** Core implementation of activity launch. */
private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
// step 0 pms 找到需要启动app的 pkgInfo;
ActivityInfo aInfo = r.activityInfo;
if (r.packageInfo == null) {
r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo,
Context.CONTEXT_INCLUDE_CODE);
}
ComponentName component = r.intent.getComponent();
if (component == null) {
component = r.intent.resolveActivity(
mInitialApplication.getPackageManager());
r.intent.setComponent(component);
}
if (r.activityInfo.targetActivity != null) {
component = new ComponentName(r.activityInfo.packageName,
r.activityInfo.targetActivity);
}
ContextImpl appContext = createBaseContextForActivity(r);
Activity activity = null;
try {
//step 1 newActivity 通过classLoader、className、Intent创建一个activity对象
java.lang.ClassLoader cl = appContext.getClassLoader();
activity = mInstrumentation.newActivity(
cl, component.getClassName(), r.intent);
StrictMode.incrementExpectedActivityCount(activity.getClass());
r.intent.setExtrasClassLoader(cl);
r.intent.prepareToEnterProcess();
if (r.state != null) {
r.state.setClassLoader(cl);
}
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to instantiate activity " + component
+ ": " + e.toString(), e);
}
}
try {
//step 2 通过makeApplication 创建出 application
Application app = r.packageInfo.makeApplication(false, mInstrumentation);
if (localLOGV) Slog.v(TAG, "Performing launch of " + r);
if (localLOGV) Slog.v(
TAG, r + ": app=" + app
+ ", appName=" + app.getPackageName()
+ ", pkg=" + r.packageInfo.getPackageName()
+ ", comp=" + r.intent.getComponent().toShortString()
+ ", dir=" + r.packageInfo.getAppDir());
if (activity != null) {
CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
Configuration config = new Configuration(mCompatConfiguration);
if (r.overrideConfig != null) {
config.updateFrom(r.overrideConfig);
}
if (DEBUG_CONFIGURATION) Slog.v(TAG, "Launching activity "
+ r.activityInfo.name + " with config " + config);
Window window = null;
if (r.mPendingRemoveWindow != null && r.mPreserveWindow) {
window = r.mPendingRemoveWindow;
r.mPendingRemoveWindow = null;
r.mPendingRemoveWindowManager = null;
}
// Activity resources must be initialized with the same loaders as the
// application context.
// step 3 初始化activity的资源并设置activity的上下文
appContext.getResources().addLoaders(
app.getResources().getLoaders().toArray(new ResourcesLoader[0]));
appContext.setOuterContext(activity);
// step 4 activity.attach
activity.attach(appContext, this, getInstrumentation(), r.token,
r.ident, app, r.intent, r.activityInfo, title, r.parent,
r.embeddedID, r.lastNonConfigurationInstances, config,
r.referrer, r.voiceInteractor, window, r.configCallback,
r.assistToken);
if (customIntent != null) {
activity.mIntent = customIntent;
}
r.lastNonConfigurationInstances = null;
checkAndBlockForNetworkAccess();
activity.mStartedActivity = false;
int theme = r.activityInfo.getThemeResource();
if (theme != 0) {
activity.setTheme(theme);
}
activity.mCalled = false;
//step 5 callActivityOnCreate
if (r.isPersistable()) {
mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
} else {
mInstrumentation.callActivityOnCreate(activity, r.state);
}
if (!activity.mCalled) {
throw new SuperNotCalledException(
"Activity " + r.intent.getComponent().toShortString() +
" did not call through to super.onCreate()");
}
r.activity = activity;
mLastReportedWindowingMode.put(activity.getActivityToken(),
config.windowConfiguration.getWindowingMode());
}
r.setState(ON_CREATE);
// updatePendingActivityConfiguration() reads from mActivities to update
// ActivityClientRecord which runs in a different thread. Protect modifications to
// mActivities to avoid race.
synchronized (mResourcesManager) {
mActivities.put(r.token, r);
}
} catch (SuperNotCalledException e) {
throw e;
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to start activity " + component
+ ": " + e.toString(), e);
}
}
return activity;
}
step 4 activity.attach
@UnsupportedAppUsage
final void attach(Context context, ActivityThread aThread,
Instrumentation instr, IBinder token, int ident,
Application application, Intent intent, ActivityInfo info,
CharSequence title, Activity parent, String id,
NonConfigurationInstances lastNonConfigurationInstances,
Configuration config, String referrer, IVoiceInteractor voiceInteractor,
Window window, ActivityConfigCallback activityConfigCallback, IBinder assistToken) {
attachBaseContext(context);
mFragments.attachHost(null /*parent*/);
mWindow = new PhoneWindow(this, window, activityConfigCallback);
mWindow.setWindowControllerCallback(mWindowControllerCallback);
mWindow.setCallback(this);
mWindow.setOnWindowDismissedCallback(this);
mWindow.getLayoutInflater().setPrivateFactory(this);
if (info.softInputMode != WindowManager.LayoutParams.SOFT_INPUT_STATE_UNSPECIFIED) {
mWindow.setSoftInputMode(info.softInputMode);
}
if (info.uiOptions != 0) {
mWindow.setUiOptions(info.uiOptions);
}
mUiThread = Thread.currentThread();
mMainThread = aThread;
mInstrumentation = instr;
mToken = token;
mAssistToken = assistToken;
mIdent = ident;
mApplication = application;
mIntent = intent;
mReferrer = referrer;
mComponent = intent.getComponent();
mActivityInfo = info;
mTitle = title;
mParent = parent;
mEmbeddedID = id;
mLastNonConfigurationInstances = lastNonConfigurationInstances;
if (voiceInteractor != null) {
if (lastNonConfigurationInstances != null) {
mVoiceInteractor = lastNonConfigurationInstances.voiceInteractor;
} else {
mVoiceInteractor = new VoiceInteractor(voiceInteractor, this, this,
Looper.myLooper());
}
}
mWindow.setWindowManager(
(WindowManager)context.getSystemService(Context.WINDOW_SERVICE),
mToken, mComponent.flattenToString(),
(info.flags & ActivityInfo.FLAG_HARDWARE_ACCELERATED) != 0);
if (mParent != null) {
mWindow.setContainer(mParent.getWindow());
}
mWindowManager = mWindow.getWindowManager();
mCurrentConfig = config;
mWindow.setColorMode(info.colorMode);
mWindow.setPreferMinimalPostProcessing(
(info.flags & ActivityInfo.FLAG_PREFER_MINIMAL_POST_PROCESSING) != 0);
setAutofillOptions(application.getAutofillOptions());
setContentCaptureOptions(application.getContentCaptureOptions());
}
step 5 mInstrumentation.callActivityOnCreate
if (r.isPersistable()) {
mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
} else {
mInstrumentation.callActivityOnCreate(activity, r.state);
}
mInstrumentation.callActivityOnCreate -> activity.performCreate(icicle, persistentState);
/**
* Perform calling of an activity's { @link Activity#onCreate}
* method. The default implementation simply calls through to that method.
* @param activity The activity being created.
* @param icicle The previously frozen state (or null) to pass through to
* @param persistentState The previously persisted state (or null)
*/
public void callActivityOnCreate(Activity activity, Bundle icicle,
PersistableBundle persistentState) {
prePerformCreate(activity);
activity.performCreate(icicle, persistentState);
postPerformCreate(activity);
}
activity.performCreate -> activity.onCreate
final void performCreate(Bundle icicle) {
performCreate(icicle, null);
}
@UnsupportedAppUsage
final void performCreate(Bundle icicle, PersistableBundle persistentState) {
dispatchActivityPreCreated(icicle);
mCanEnterPictureInPicture = true;
// initialize mIsInMultiWindowMode and mIsInPictureInPictureMode before onCreate
final int windowingMode = getResources().getConfiguration().windowConfiguration
.getWindowingMode();
mIsInMultiWindowMode = inMultiWindowMode(windowingMode);
mIsInPictureInPictureMode = windowingMode == WINDOWING_MODE_PINNED;
restoreHasCurrentPermissionRequest(icicle);
if (persistentState != null) {
onCreate(icicle, persistentState);
} else {
onCreate(icicle);
}
EventLogTags.writeWmOnCreateCalled(mIdent, getComponentName().getClassName(),
"performCreate");
mActivityTransitionState.readState(icicle);
mVisibleFromClient = !mWindow.getWindowStyle().getBoolean(
com.android.internal.R.styleable.Window_windowNoDisplay, false);
mFragments.dispatchActivityCreated();
mActivityTransitionState.setEnterActivityOptions(this, getActivityOptions());
dispatchActivityPostCreated(icicle);
}
