Height Balance:

• maintain the height of the tree is $O(logn)$
• AVL Tree

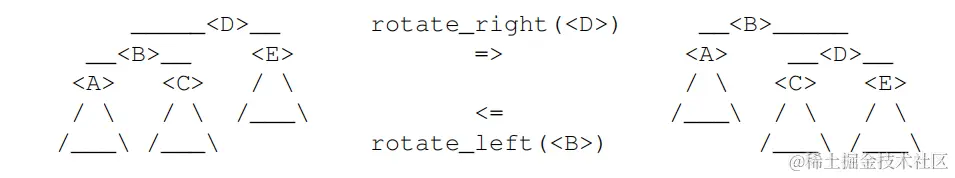

Rotations:

Change the subtree's height without changing the traversal order .

def subtree_rotate_right(D):
    assert D.left
    B, E = D.left, D.right
    A, C = B.left, B.right
    D, B = B, D
    D.item, B.item = B.item, D.item
    B.left, B.right = A, D
    D.left, D.right = C, E
    if A: A.parent = B
    if E: E.parent = D

AVL Trees: hight balance

AVL trees maintain the height-balance,which calls the AVL Property.

• left and right subtree's height differ by most 1

Df:

$F(h)=F(h-1)+F(h-2)+1>F(h-1)+F(h-2)> F(h-2) \cdot 2=2^{h/2}$

$F(h)=2^{\Omega(h)}$

def subtree_rotate_right(D):
    assert D.left
    B, E = D.left, D.right
    A, C = B.left, B.right
    D, B = B, D
    D.item, B.item = B.item, D.item
    B.left, B.right = A, D
    D.left, D.right = C, E
    if A: A.parent = B
    if E: E.parent = D

def skew(A):
    return height(A.right) - height(A.left)


def rebalance(A):
    if skew(A) == 2:
        if A.right.skew() < 0:
            A.right.subtree_rotate_right()
        A.subtree_rotate_left()
    elif skew(A) == -2:
        if A.left.skew() > 0:
            A.left.subtree_rotate_left()
        A.subtree_rotate_right()


def maintain(A):
    A.rebalance
    if A.parent:
        A.parent.maintain()

Height:

If we want to compute the skew of the tree,the heght of the subtree is essential.

And if we want to rebalance the tree in $O(logn)$ time,we need to compute each node's height in $O(1) time$ . Instead of computing each node's height every time we need ,we speed up the computation via augmentation.

def height(A):
    if A is None: return -1
    return 1 + max(height(A.left), height(A.right))


# Why if A is None,we will return -1
# When A is a leaf node(A doesn't have the subtree), we will return " 1+ -1 == 0 "
# the zero results that,we won't plus 1 to the hieght.
# Samely the root node's height is 0.

def height(A):
    if A:
        return height(A)
    else:
        return -1


def subtree_update(A):
    A.height = 1 + max(height(A.left), height(A.right))


Full inplementation with AVL balancing:

def height(A):
    if A:
        return A.height
    else:
        return -1


class Binary_Node():
    def __init__(self, A, x):
        A.item = x
        A.left = None
        A.right = None
        A.parent = None
        A.subtree_update()

    def subtree_update(self, A):
        A.height = 1 + max(height(A.left), height(A.right))

    def skew(self, A):
        return height(A.right) - height(A.left)

    def subtree_iter(selfA):
        if A.left: yield from A.left.subtree_iter()
        yield A
        if A.right: yield from A.right.subtree_iter()


def subtree_first(A):
    if A.left:
        return A.left.subtree_first()
    else:
        return A


def subtree_last(A):
    if A.right:
        return A.right.subtree_last()
    else:
        return A


def successor(A):
    if A.right:
        return A.right.subtree_first
    while A.parent and (A is A.parent.right):
        A = A.parent
    return A.parent


def predecessor(A):
    if A.left:
        return A.left.subtree_last()
    while A.parent and (A is A.parent.left):
        A = A.parent
    return A.parent


def subtree_insert_before(A, B):
    if A.left:
        A = A.left.subtree_last()
        A.right, B.parent = B, A
    else:
        A.left, B.parent = B, A
    A.maintain()


def subtree_insert_after(A, B):
    if A.right:
        A = A.right.subtree_first()
        A.left, B.parent = B, A
    else:
        A.right, B.parent = B, A
    A.maintain()


def subtree_delete(A):
    if A.left or A.right:
        if A.left:
            B = A.predecessor()
        else:
            B = A.successor()
        A.item, B = item = B.item, A.item
        return B.subtree_delete()
    if A.parent:
        if A.parent.left is A:
            A.parent.left is None
        else:
            A.parent.right is None
        A.parent.maintain()
    return A.parent


def subtree_rotate_right(D):
    assert D.left
    B, E = D.left, D.right
    A, C = B.left, B.right
    B, D = D, B
    D.item, B.item = B.item, D.item
    B.left, B.right = A, D
    D.left, D.right = C, E
    if A: A.parent = B
    if E: E.parent = D
    B.subtree_maintain()
    D.subtree_maintain()


def rebalance(A):
    if A.skew() == 2:
        if A.right.skew() < 0:
            A.left.subtree_rotate_right()
        A.subtree_rotate_left()
    elif A.skew == -2:
        if A.left.skew() > 0:
            A.left.subtree_rotate_left()
        A.subtree_rotate_right()


def maintain(A):
    A.rebalance()
    A.subtree_update()
    if A.parent():
        A.parent.maintain()


Sequence Application:

class Size_Node(Binary_Node):
    def subtree_update(self, A):
        super().subtree_update()
        A.size = 1
        if A.left: A.size += A.left.size
        if A.right: A.size += A.right.size

    def subtree_at(self, A, i):
        assert i >= 0
        if A.left:
            L_size = A.left.size
        else:
            L_size = 0
        if i < L_size:
            return A.left.subtree_at(i)
        elif i > L_size:
            return A.right.subtree_at(i - L_i - 1)
        else:
            return A
