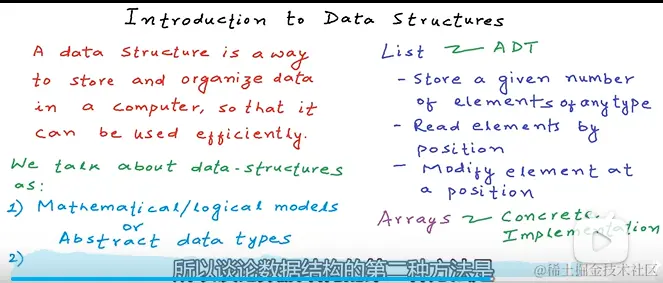

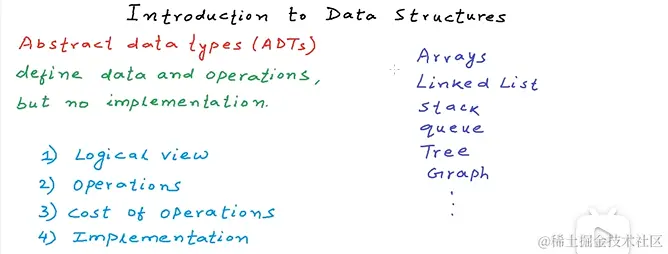

数据结构概论

A data structure is a way

to store and organize data

in a computer, so that it

can be used efficiently.

We talk about data structures as:

1)Mathematical/Logical models OR Abstract data types 2)Implementation

Abstract data types(ADTS)

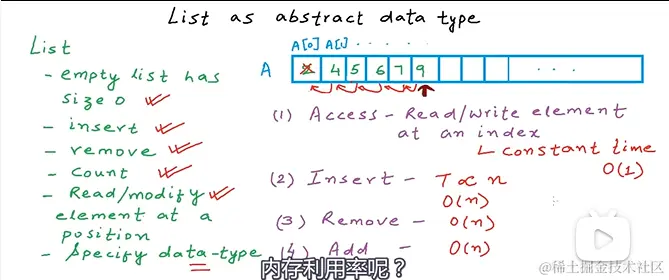

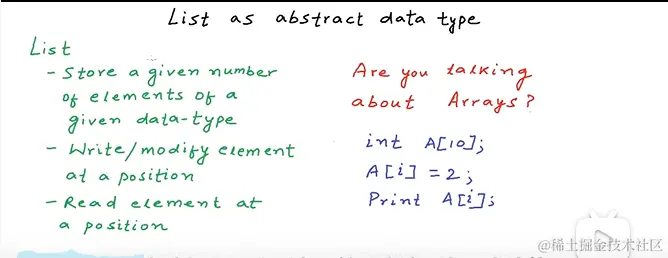

List as abstract data type

List -Store a given number of elments of a given data-type

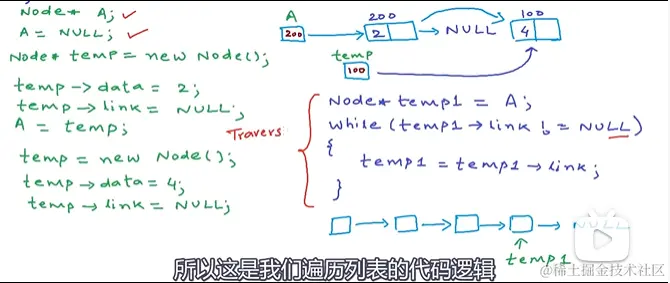

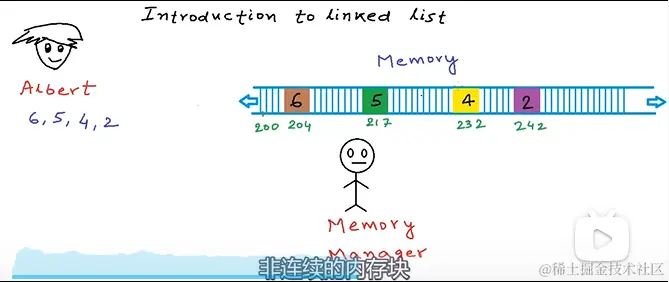

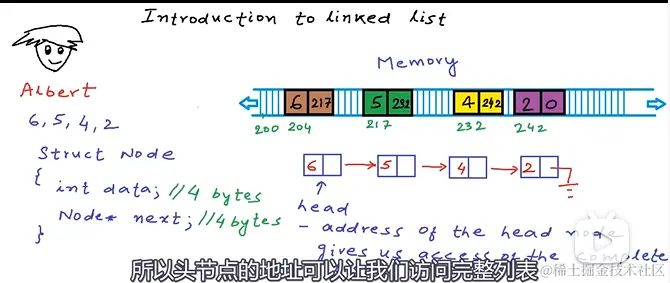

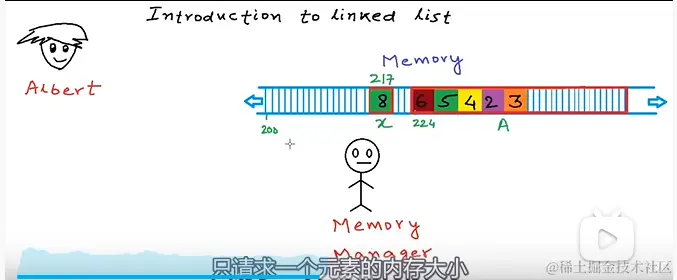

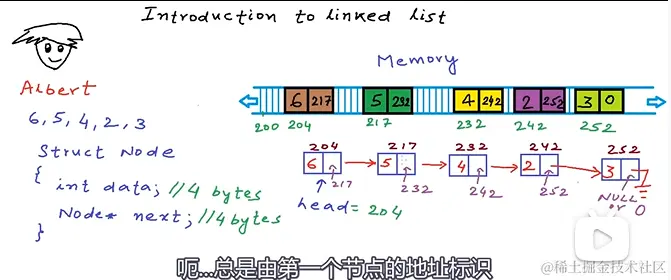

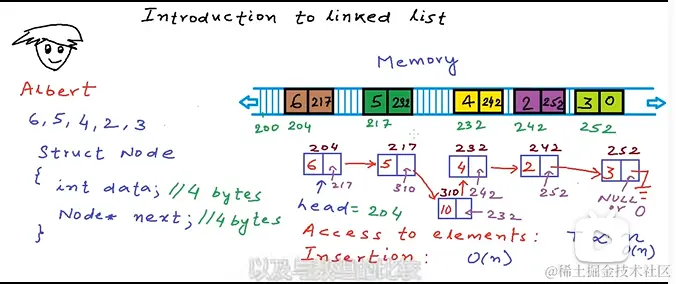

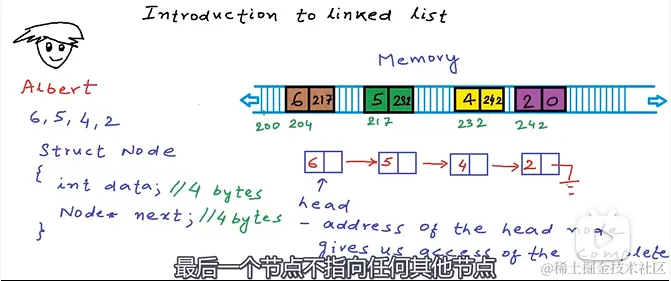

链表数据结构

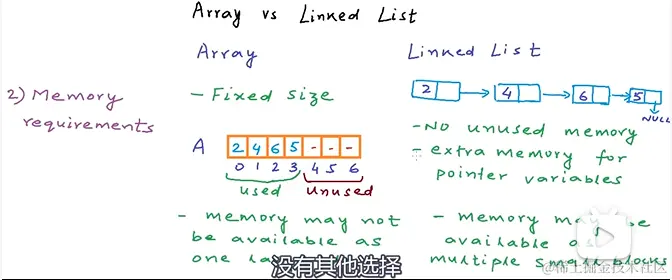

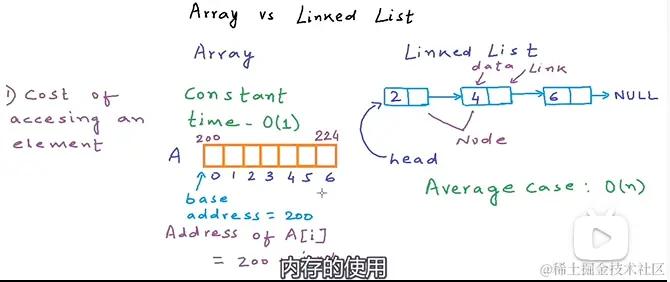

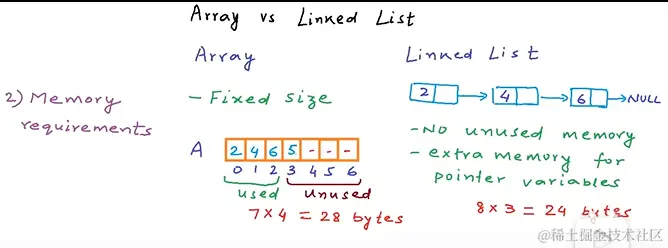

Array VS linked list

时间复杂度

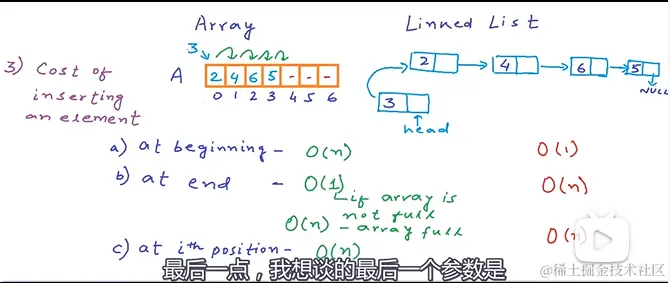

插入/删除元素的时间复杂度

使用简单程度 数组yyds

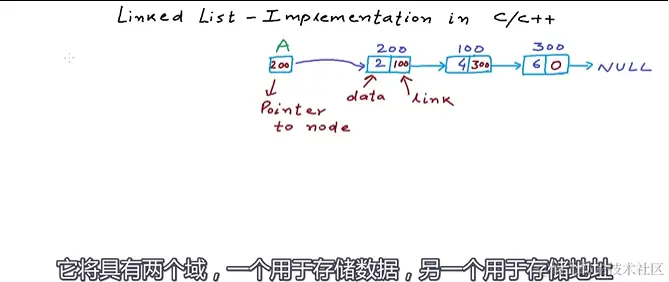

C/C++关于链表的实现

Linked List: Inserting a node at beginning

void InsertHead(int x) {
        struct Node* temp = (struct Node*)malloc(sizeof(struct Node*));
        temp->data = x;
        temp->next = NULL;
        /*if (head != NULL) {
                temp->next = head;
        }*/
        temp->next = head;
        head = temp;

}

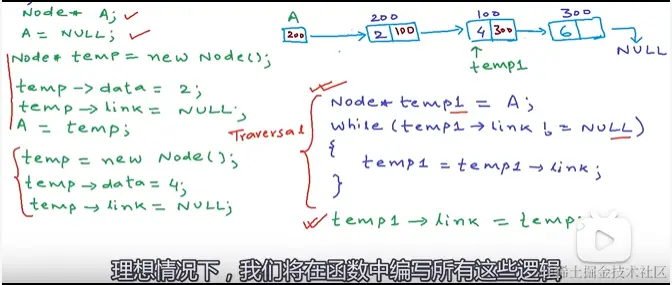

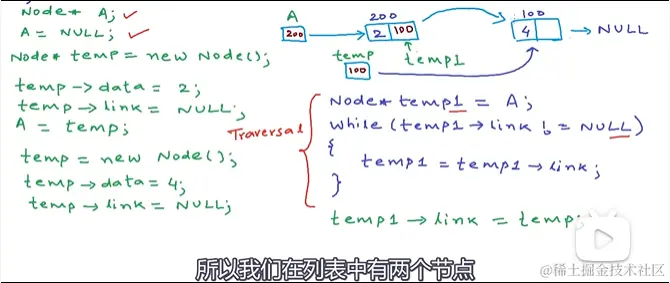

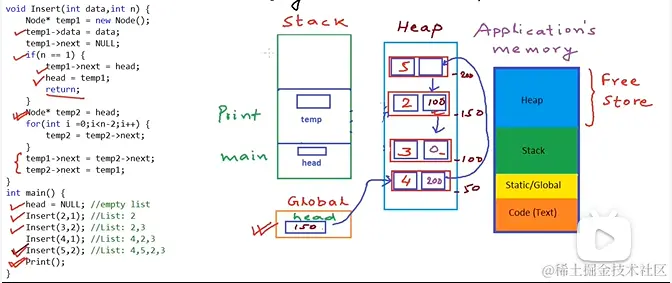

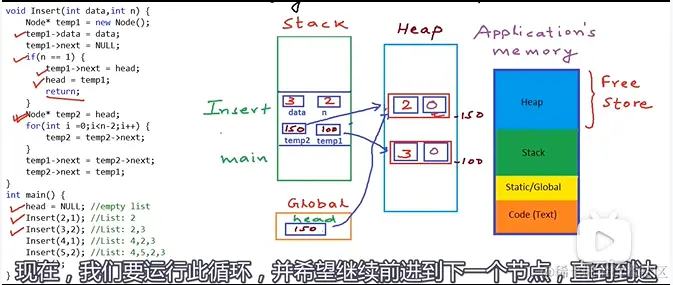

Linked List: Inserting a node at random

#include<stdio.h>
#include<malloc.h>
struct Node {
        int data;
        struct Node* next;
};
struct Node* head;
void Insert (int data, int n) {
        struct Node* temp1 = (struct Node*)malloc(sizeof(struct Node));
        temp1->data = data;
        temp1->next = NULL;
        if (n == 1) {
                temp1->next = head;
                head = temp1;
                return;
        }
        struct Node* temp2 = head;
        for (int i = 0; i < n - 2; i++) {
                temp2 = temp2->next;

        }
        temp1->next = temp2->next;
        temp2->next = temp1;

}
void Print() {
        struct Node* temp = head;
        while (head != NULL) {
                printf("%d ", temp->data);
                temp = temp->next;
        }
        printf("\n");
}
int main() {
        head = NULL;
        Insert(2, 1);//List:2
        Insert(3, 2);//List:2,3
        Insert(4, 1);//List:4,2,3
        Insert(5, 2);//List:4,5,2,3
        Print();


}

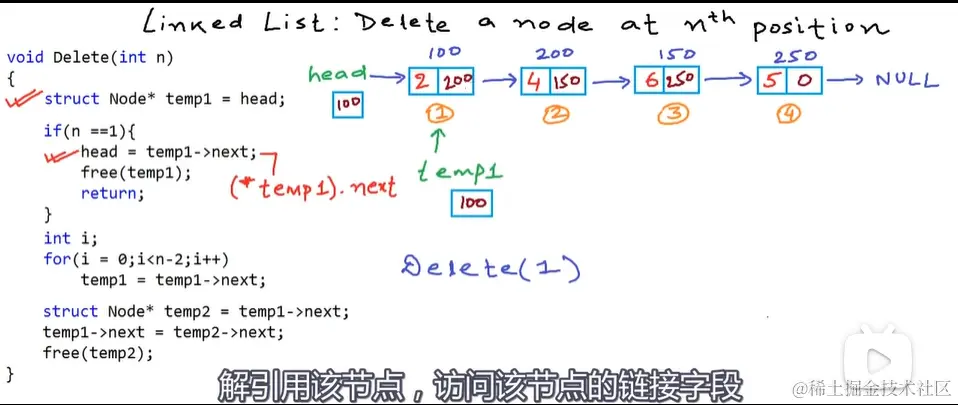

LinkedList:Delete a node at ramdom position

void Delete(struct Node* head, int n) {
        struct Node* temp1 = head;
        if (n == 1) {
                head = temp1->next;
                free(temp1);
                return;
        }
        for (int i = 0; i < n - 2; i++) {
                temp1 = temp1->next;

        }
        struct Node* temp2 = temp1->next;
        temp1->next = temp2->next;
        free(temp2);

}

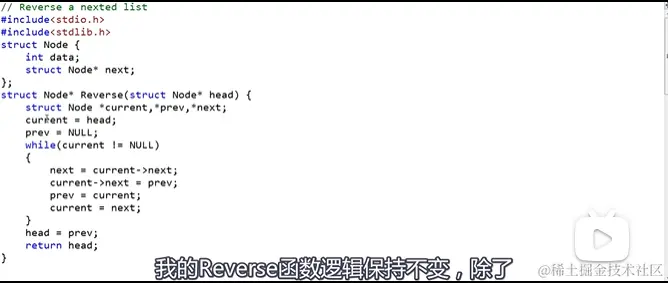

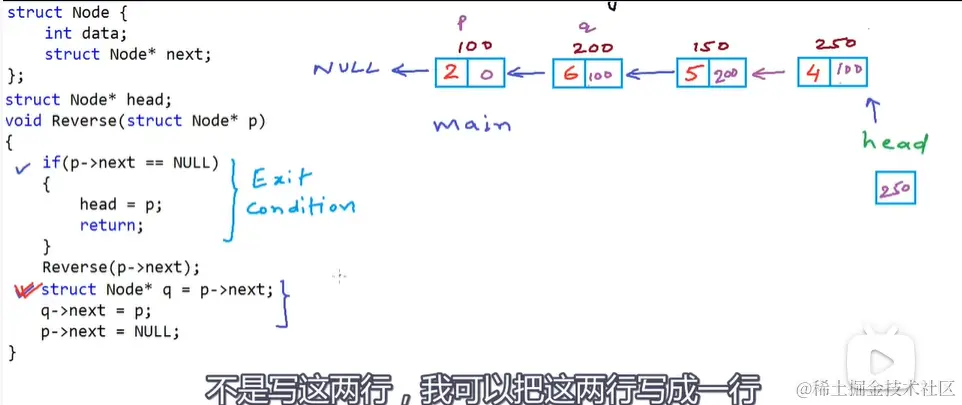

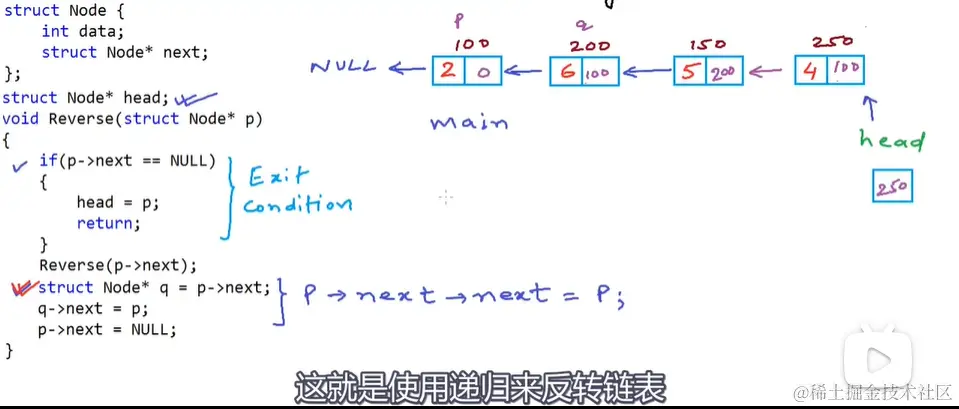

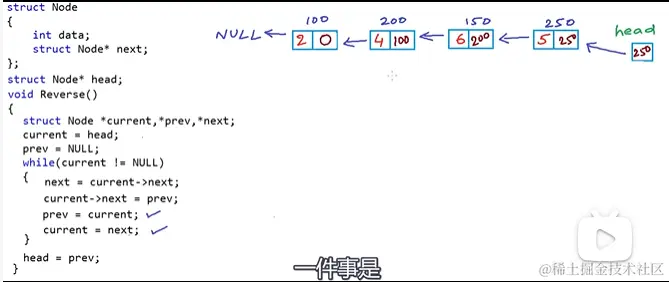

Reverse a linked list

void ReverseList() {
        struct Node* temp= head ,*pre= NULL;
        while (temp != NULL) {
                head = head->next;
                temp->next = pre;
                pre = temp;
                temp = head;
        }
        head = pre;
}

#define _CRT_SECURE_NO_WARNINGS 1
#include<stdio.h>
#include<stdlib.h>
struct Node {
        int data;
        struct Node* next;
};
struct Node* head;

void Insert(int data,int n) {
        struct Node* temp = (struct Node*)malloc(sizeof(struct Node*));
        temp->data = data;
        temp->next = NULL;
        if (n==1) {
                temp->next = head;
                head = temp;
                return;
        }
        struct Node* temp1 = head;
        for (int i = 0; i < n - 2; i++) {
                temp1 = temp1->next;
        }
        temp->next = temp1->next;
        temp1->next = temp;
}

void InsertHead(int data) {
        struct Node* temp = (struct Node*)malloc(sizeof(struct Node));
        temp->data = data;
        //temp->next = NULL;
        ///*if (head != NULL) {
        //	temp->next = head;
        //}*/
        temp->next = head;
        head = temp;
}
void Delete(int n) {
        struct Node* temp = head;
        if (n == 1) {
                head = temp->next;
                free(temp);
                return;
        }
        for (int i = 0; i < n - 2; i++) {
                temp = temp->next;
        }
        struct Node* temp2 = temp->next;
        temp->next = temp2->next;
        free(temp2);
}

void ReverseList() {
        struct Node* temp= head ,*pre= NULL;
        while (temp != NULL) {
                head = head->next;
                temp->next = pre;
                pre = temp;
                temp = head;
        }
        head = pre;
}

void Print() {
        struct Node* temp = head;
        while (temp != NULL) {
                printf("%d ", temp->data);
                temp = temp->next;
        }
        printf("\n");
}
int main() {
        head = NULL;
        int n;
        InsertHead(2);
        /*InsertHead(4);
        InsertHead(6);
        InsertHead(7);*/
        Print();/*
        printf("Press the position want delete:\n");
        scanf("%d", &n);
        Delete(n);*/
        printf("reverse list:\n");
        ReverseList();
        Print();
        return 0;
}

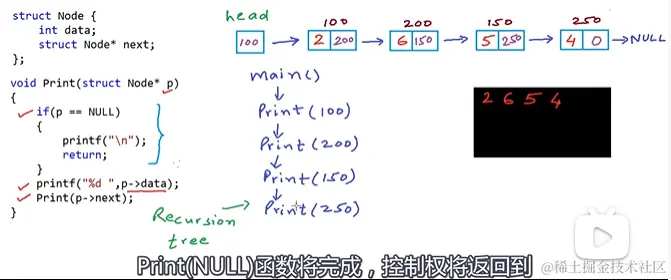

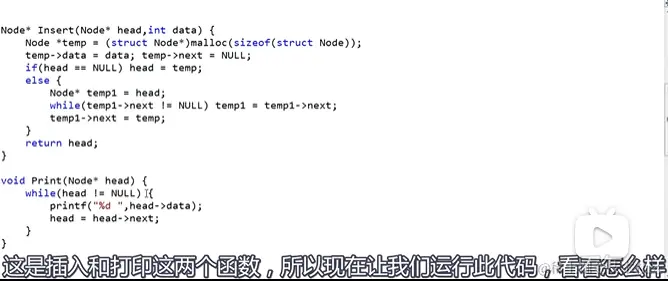

Print linked list using recursion

#include<stdio.h>
#include<stdlib.h>
#include<malloc.h>
struct Node {
        int data;
        struct Node* next;
};
struct Node* Insert(struct Node* head, int data) {
        struct Node* temp = (struct Node*)malloc(sizeof(struct Node));
        temp->data = data;
        temp->next = NULL;
        if (head == NULL) {
                head = temp;
        }
        else {
                struct Node* temp1 = head;
                while (temp1->next!= NULL) {
                        temp1 = temp1->next;
                }
                temp1->next = temp;
        }
        return head;
}
void Print(struct Node* p) {
        if (p == NULL) {
                return;
        }
        Print(p->next);
        printf("%d ", p->data);
}
int main() {
        struct Node* head = NULL;
        head = Insert(head, 2);
        head = Insert(head, 4);
        head = Insert(head, 7);
        head = Insert(head, 8);
        Print(head);
        return 0;
}

正向输出结果的逻辑图

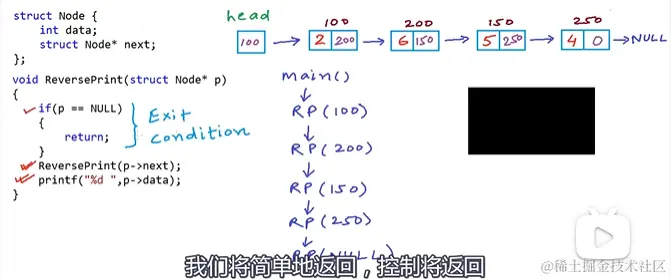

反向输出结果的逻辑图

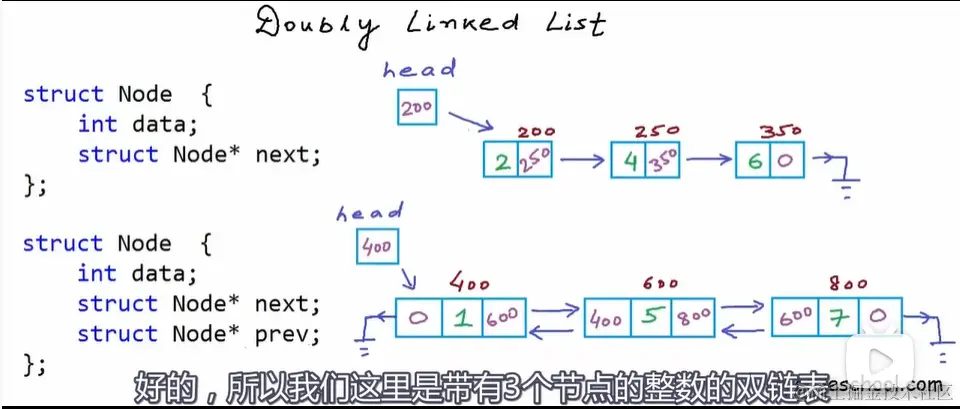

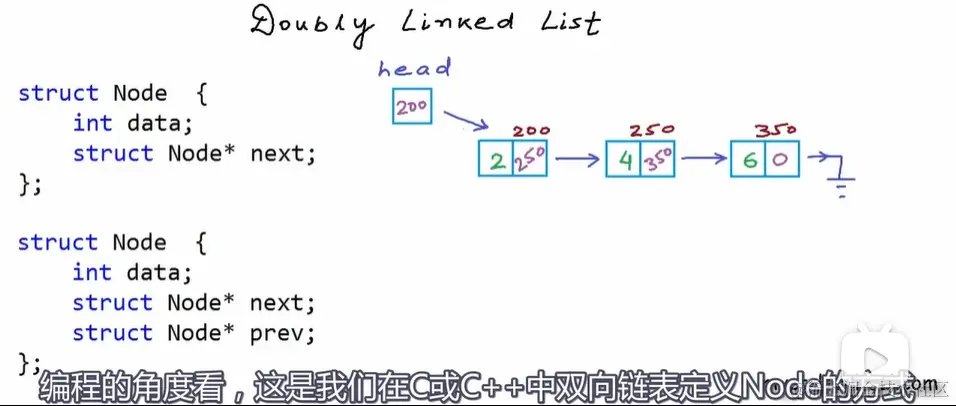

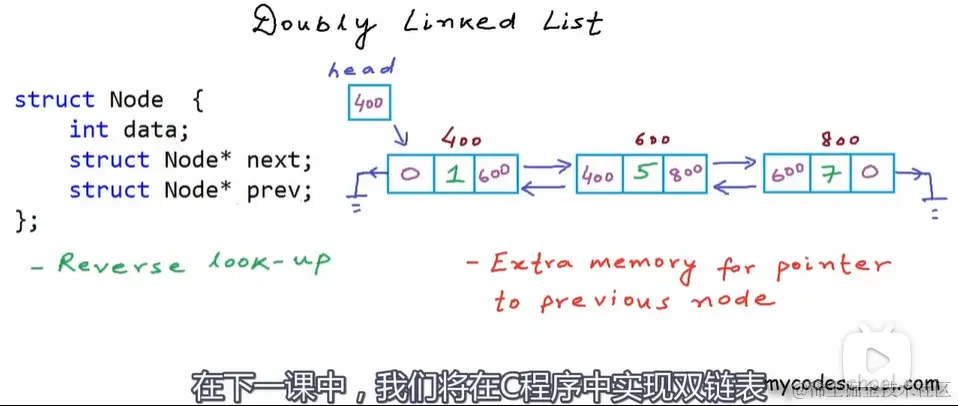

Doubly Linked List

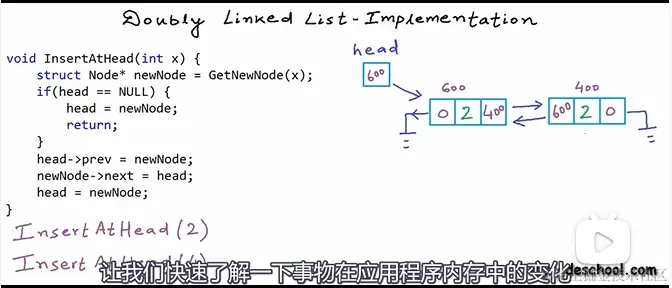

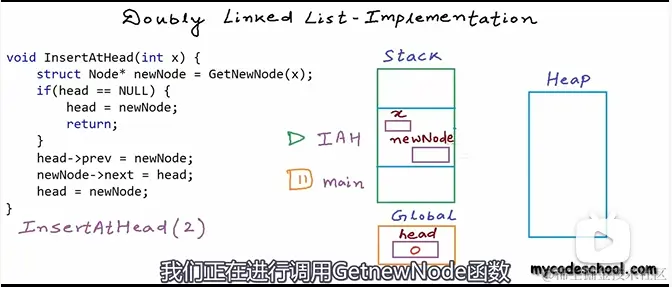

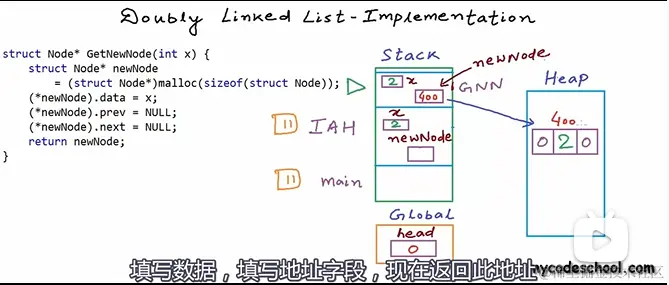

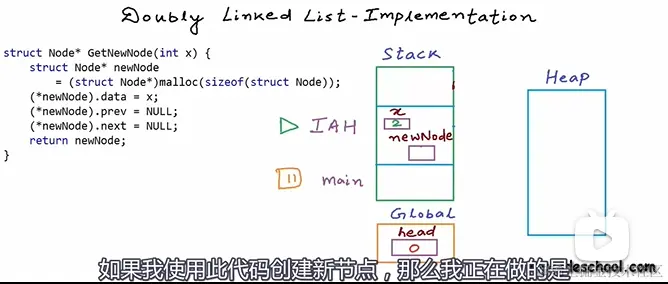

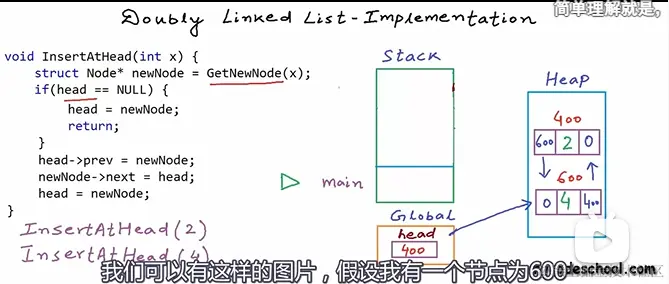

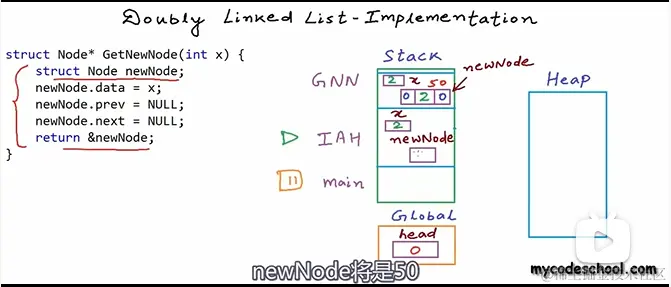

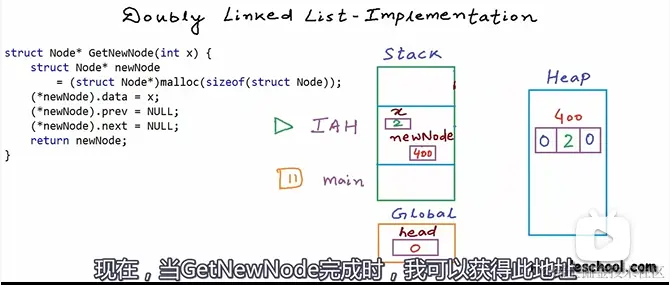

Doubly Linked List Implements

牛逼！！！看视频之前，自己写出来了！！！！！！

#include<stdio.h>
#include<malloc.h>
struct Node {
        int data;
        struct Node* prev;
        struct Node* next;
};
struct Node* head;
void InsertAtHead(int data) {
        struct Node* temp = (struct Node*)malloc(sizeof(struct Node));
        temp->data = data;
        temp->next = NULL;
        temp->prev = NULL;
        if (head == NULL) {
                head = temp;
                return;
        }
        struct Node* temp1 = head;
        temp->next = temp1;
        temp1->prev = temp;
        head = temp;
}
void InsertAtTail(int data) {
        struct Node* temp = (struct Node*)malloc(sizeof(struct Node));
        temp->data = data;
        temp->next = NULL;
        temp->prev = NULL;
        if (head == NULL) {
                head = temp;
                return;
        }
        struct Node* temp1 = head;
        while (temp1->next != NULL) {
                temp1 = temp1->next;
        }
        temp1->next = temp;
        temp->prev = temp1;
}
void Delete() {

}
void Print() {
        if (head == NULL) {
                return;
        }
        struct Node* temp = head;
        while (temp != NULL) {
                printf("%d ",temp->data);
                temp = temp->next;
        }
        printf("\n");
}


int main() {
        head = NULL;
        InsertAtHead(7);
        InsertAtHead(8);
        InsertAtHead(1);
        InsertAtHead(2);
        InsertAtTail(1);
        InsertAtTail(8);
        InsertAtTail(6);
        InsertAtTail(7);

        Print();
}

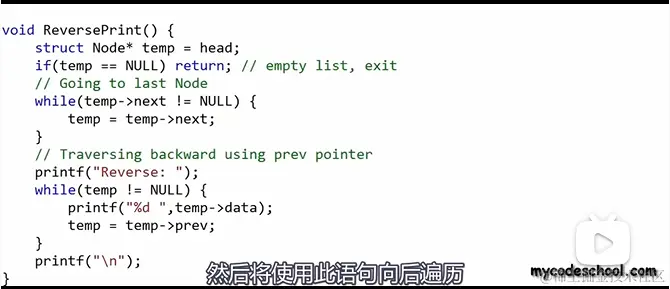

反向输出

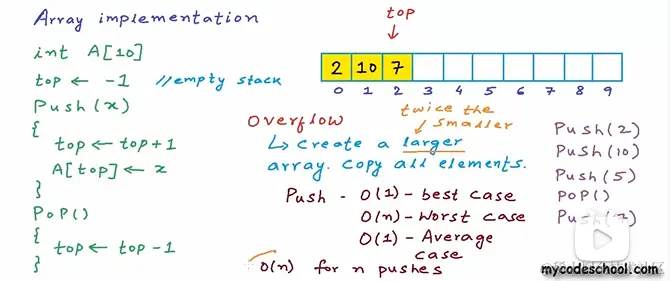

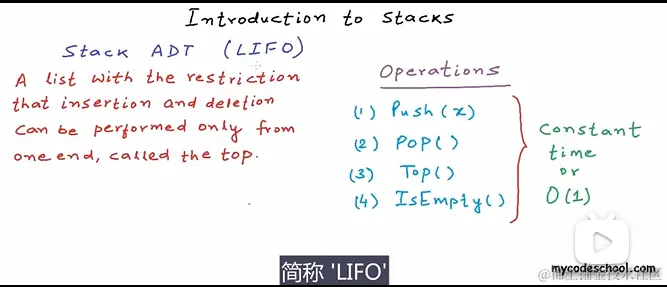

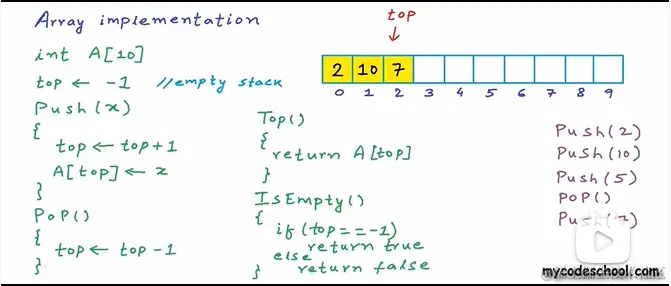

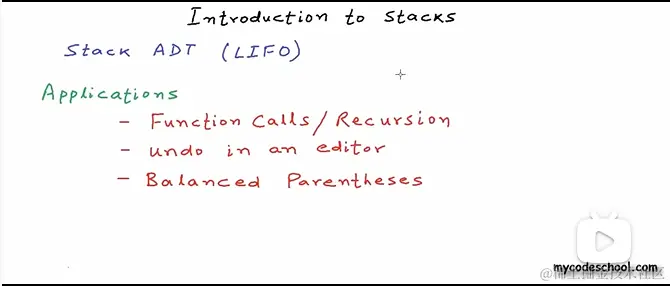

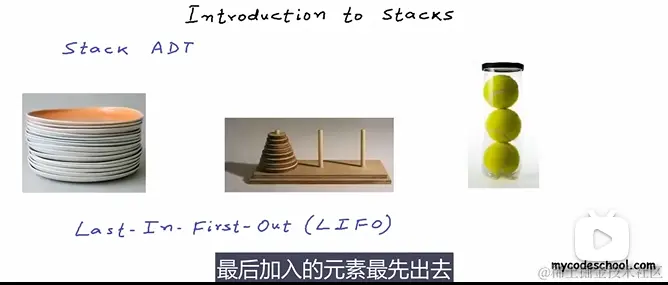

Introduction to Stack

#include<stdio.h>
#include<stdlib.h>
#define MAX_SIZE 101
int A[MAX_SIZE];
int top = -1;
void Push(int x) {
        if (top == MAX_SIZE - 1) {
                printf("Error:stack overflow\n");
                return;
        }
        A[++top] = x;

}
void Pop() {
        if (top == -1) {
                printf("Error:stack is empty\n");
                return;
        }
        top--;
}
int Top() {
        return A[top];
}
void Print() {
        int i;
        printf("Stack list is: ");
        for (i = 0; i <= top; i++) {
                printf("%d ", A[i]);
        }
        printf("\n");
}
int main() {
        Push(2);Push(4);Push(7);Push(9);Push(8);Print();
        Pop();Print();
        Pop(); Print();
        Pop(); Print();
        Pop(); Print();
        Pop(); Print();
}

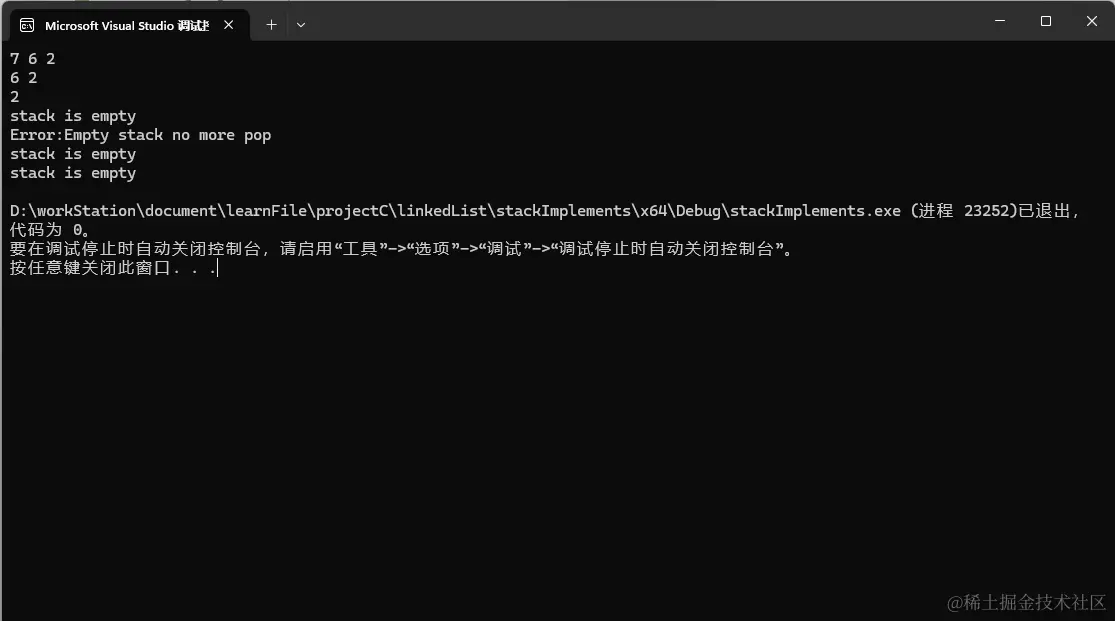

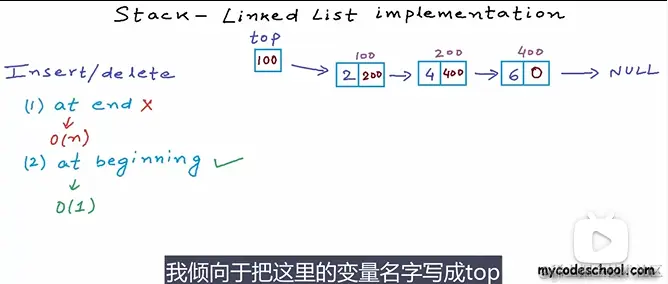

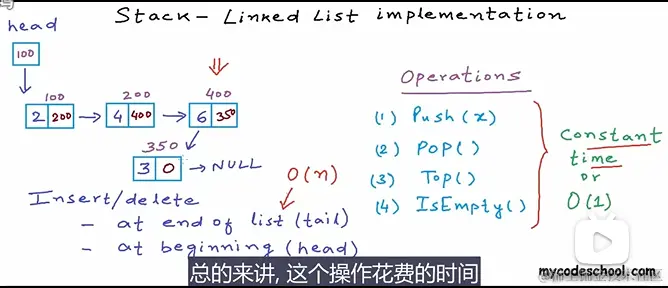

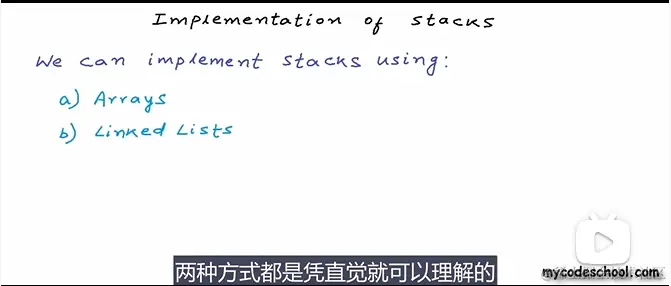

Stack-链表表示方式

耶！又是自己写的，但是好像压栈写的复杂了......

#include<stdio.h>
#include<malloc.h>
#include<stdbool.h>
struct Node {
        int data;
        struct Node* next;
};
struct Node* top=NULL;
void Push(int x) {
        struct Node* temp = (struct Node*)malloc(sizeof(struct Node));
        temp->data = x;
        temp->next = NULL;
        if (top == NULL) {
                top = temp;
                return;
        }
        struct Node* temp2 = top;
        temp->next = temp2;
        top = temp;
}
void Pop() {
        struct Node* temp = top;
        if (temp == NULL) {
                printf("Error:Empty stack no more pop\n");
                return;
        }
        top = temp->next;
        free(temp);
}
int GetTop() {
        if (top == NULL) {
                printf("Stack is empty, no top element");
                return;
        }
        return top->data;
}
bool IsEmpty() {
        if (top == NULL) {
                return true;
        }
        else {
                return false;
        }
}
void Print() {
        if (top == NULL) {
                printf("stack is empty\n");
                return;
        }
        struct Node* temp = top;
        while (temp != NULL) {
                printf("%d ", temp->data);
                temp = temp->next;
        }
        printf("\n");
}
int main() {
        Push(2); Push(6); Push(7); Print();
        Pop(); Print(); GetTop();
        Pop(); Print();
        Pop(); Print();
        Pop(); Print();
        bool empty = IsEmpty();
        if (empty) {
                printf("stack is empty\n");
        }
        else {
                printf("stack is not empty\n");
        }

        return 0;
}

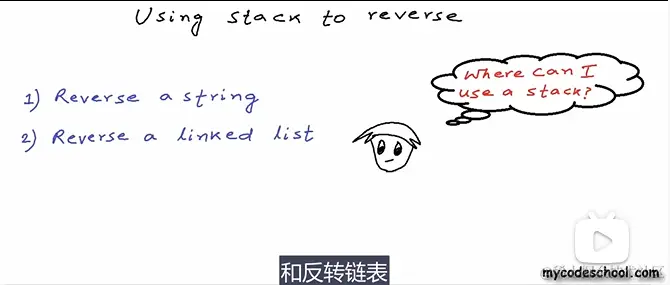

Using Stack to reverse

Reverse a string

#include<iostream>
#include<stack>
#include<cstring>
#include<stdio.h>
using namespace std;
void ReverseString(char C[],int n) {
        stack<char> S;
        for (int i = 0; i < n; i++) {
                S.push(C[i]);
        }
        for (int i = 0; i < n; i++) {
                C[i] = S.top();
                S.pop();
        }
}
int main() {
        char C[51];
        printf("press a string:");
        gets_s(C);
        ReverseString(C,strlen(C));
        printf("Reverse stack is: %s", C);
        return 0;
}

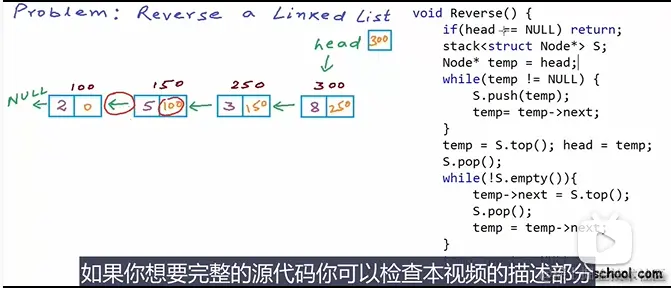

Reverse a linked list

void Reverse() {
        if (head == NULL) {
                return;
        }
        struct Node* temp = head;
        stack<struct Node*> S;
        while (temp != NULL) {
                S.push(temp);
                temp = temp->next;
        }
        temp = S.top();
        head = temp;
        S.pop();
        while (!S.empty()) {
                temp->next = S.top();
                S.pop();
                temp = temp->next;
        }
        temp->next = NULL;
}

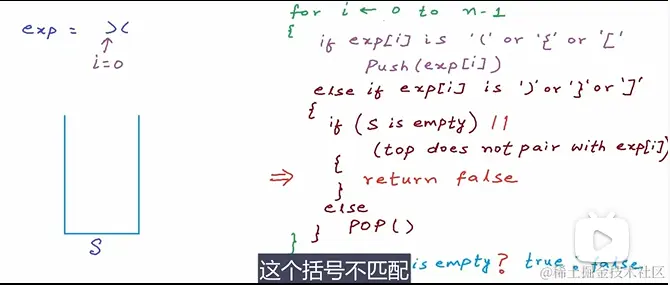

括号匹配

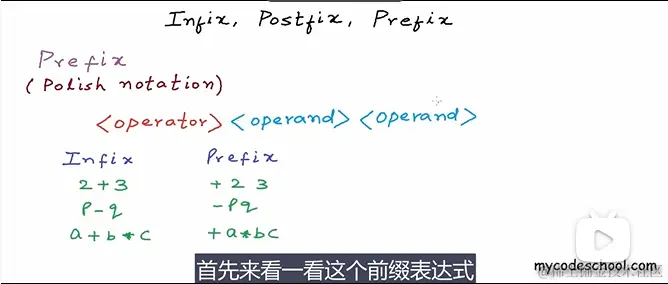

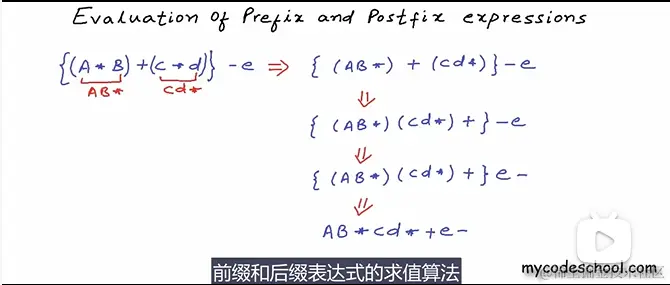

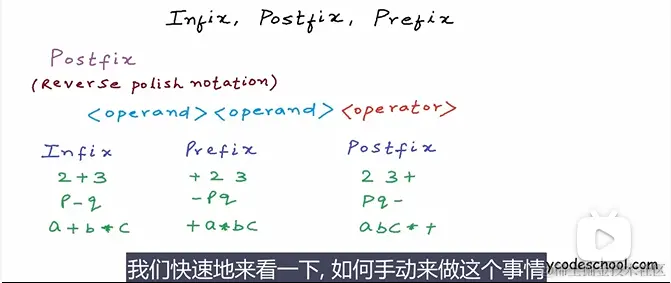

前缀、中缀、后缀

前缀-波兰表达式 后缀-逆波兰表达式（求值的时间和内存的代价最小，最容易实现）

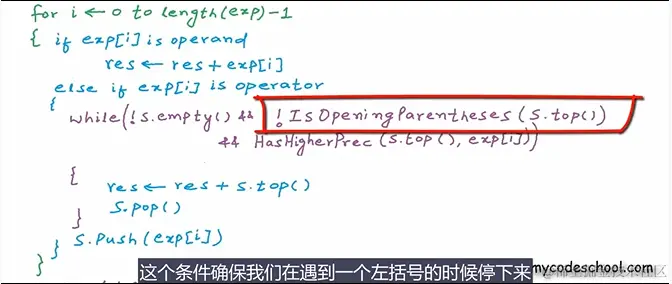

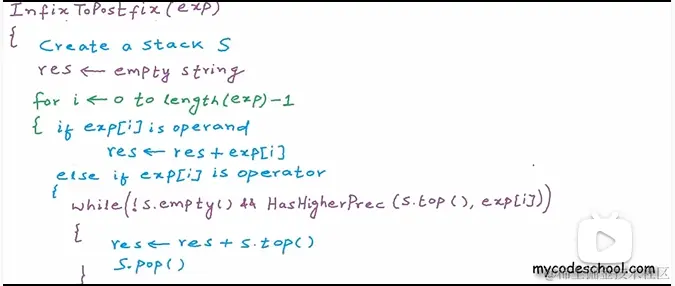

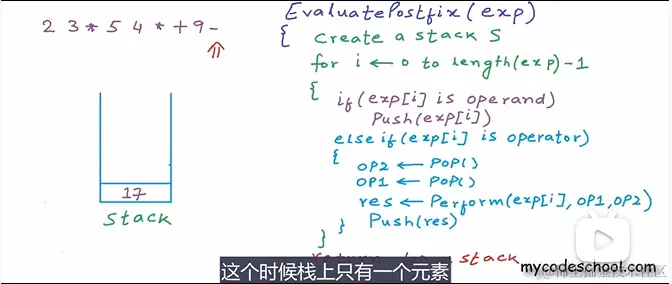

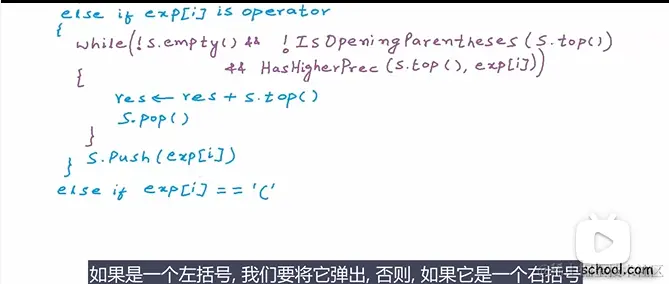

Infix to postfix

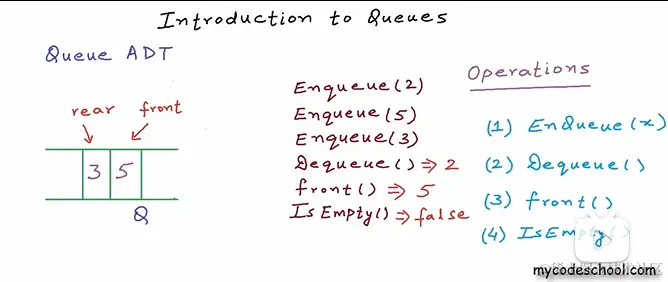

Introduction to Queue

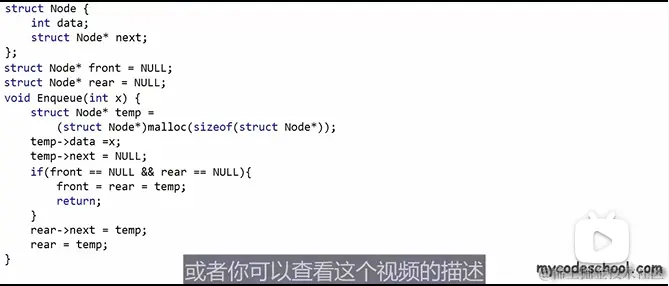

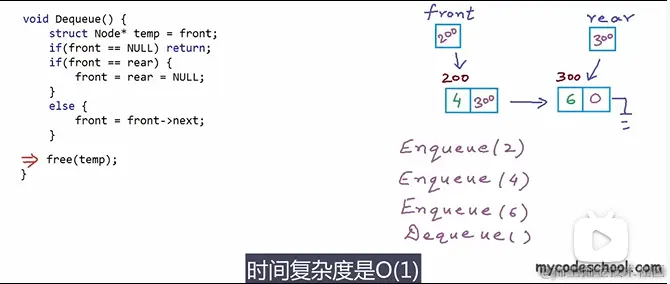

链表的方式实现队列

树

#include<iostream>
using namespace std;
struct BstTree {
        int data;
        BstTree* left;
        BstTree* right;
};
BstTree* CreateNode(int data){
        BstTree* BstNode = new BstTree();
        BstNode->data = data;
        BstNode->left = BstNode->right = NULL;
        return BstNode;
}
BstTree* InsertNode(BstTree* root, int data) {
        if (root == NULL) {
                root = CreateNode(data);
        }
        else if (data < root->data) {
                root->left=InsertNode(root->left, data);
        }
        else {
                root->right = InsertNode(root->right, data);
        }
        return root;
}
bool SearchNode(BstTree* root, int data) {
        if (root == NULL) {
                return false;
        }else if (root->data == data) {
                return true;
        }else if (data < root->data) {
                return SearchNode(root->left, data);
        }
        else {
                return SearchNode(root->right, data);
        }
}

int main() {
        BstTree* root = NULL;
        root = InsertNode(root, 15);
        root = InsertNode(root, 10);
        root = InsertNode(root, 20);
        root = InsertNode(root, 25);
        root = InsertNode(root, 8);
        root = InsertNode(root, 12);
        int number;
        cin >> number;
        if (SearchNode(root, number) == true) {
                cout << "Found!"<<endl;
        }
        else {
                cout << "Not Found" << endl;
        }
        return 0;

}

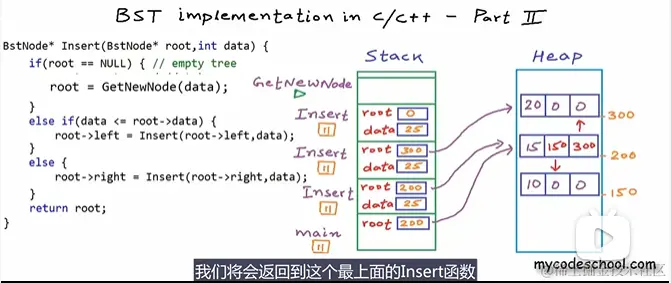

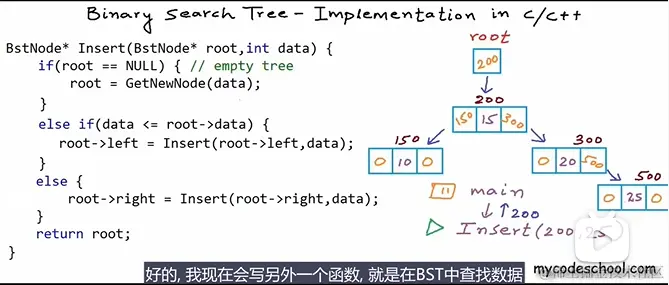

BST递归实现的过程

Find Min and Max element in a BST

//迭代的方式找最小/大元素
int FindMin(BstTree* root) {
        if (root == NULL) {
                cout << "empty tree" << endl;
                return -1;
        }
        while (root->left != NULL) {
                root = root->left;
        }
        return root->data;
}

int FindMax(BstTree* root) {
        if (root == NULL) {
                cout << "empty tree" << endl;
                return -1;
        }
        while (root->right != NULL) {
                root = root->right;
        }
        return root->data;
}
//递归的方式找最小/大的节点
int findMin(BstTree* root) {
        if (root == NULL) {
                cout << "empty tree" << endl;
                return -1;
        }
        else if (root->left == NULL) {
                return root->data;
        }
        return findMin(root->left);
}
int findMax(BstTree* root) {
        if (root == NULL) {
                cout << "empty tree" << endl;
                return -1;
        }
        while (root->right == NULL) {
                return root->data;
        }
        return findMax(root->right);
}

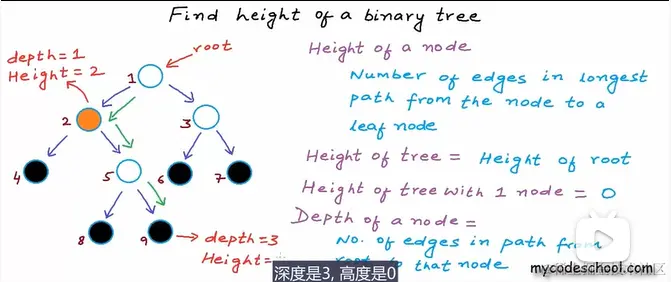

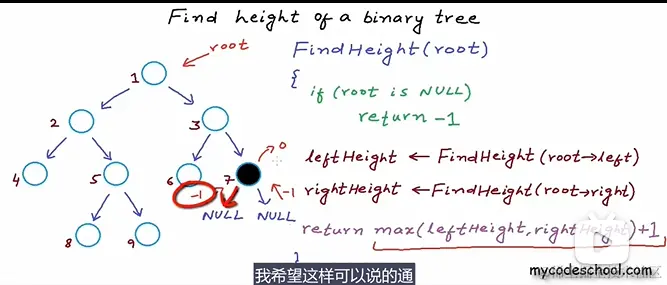

树的高度

//计算树的高度
int FindHeight(BstTree* root) {
        if (root == NULL) {
                return -1;
        }
        return max(FindHeight(root->left), FindHeight(root->right)) + 1;
}

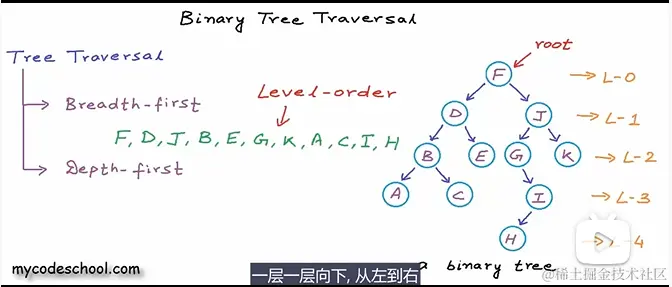

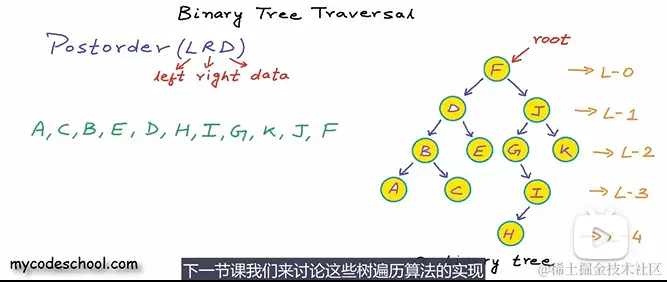

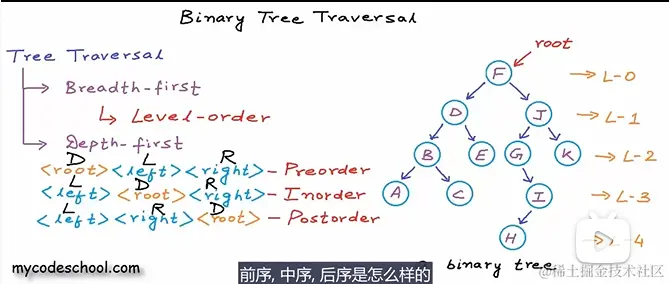

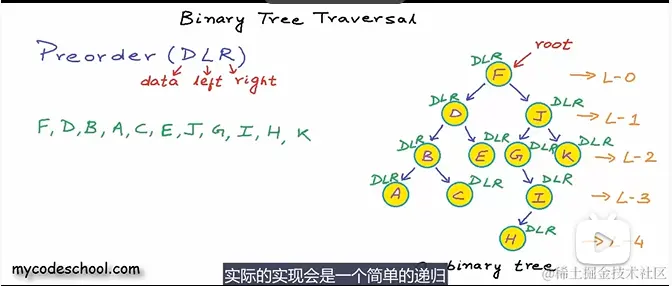

二叉树遍历：深度遍历vs广度遍历

广度遍历：层序遍历

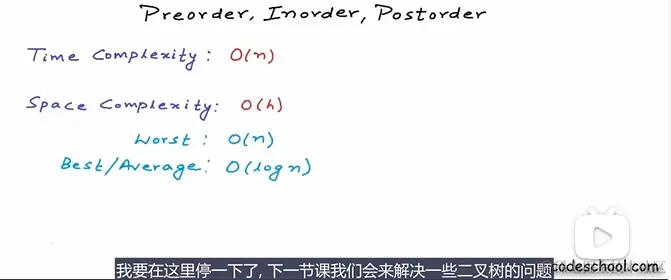

深度遍历： 先序遍历 中序遍历 后序遍历

//广度遍历：层序遍历
void LevelOrder(BstTree* root) {
        if (root == NULL) {
                return;
        }
        queue<BstTree*> Q;
        Q.push(root);
        while (!Q.empty()) {
                BstTree* current = Q.front();
                cout << current->data << " ";
                if (current->left != NULL) Q.push(current->left);
                if (current->right != NULL) Q.push(current->right);
                Q.pop();
        }
}

//深度遍历：前序遍历、中序遍历、后序遍历
void PreOrder(BstTree* root) {
        if (root == NULL) {
                return;
        }
        cout << root->data << " ";
        PreOrder(root->left);
        PreOrder(root->right);
}

void midOrder(BstTree* root) {
        if (root == NULL) {
                return;
        }
        midOrder(root->left);
        cout << root->data << " ";
        midOrder(root->right);

}

void laterOrder(BstTree* root) {
        if (root == NULL) {
                return;
        }
        laterOrder(root->left);
        laterOrder(root->right);
        cout << root->data << " ";
}

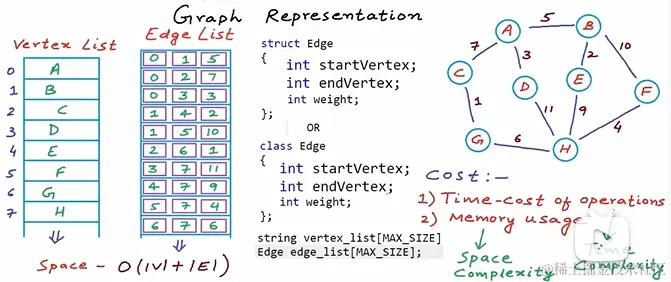

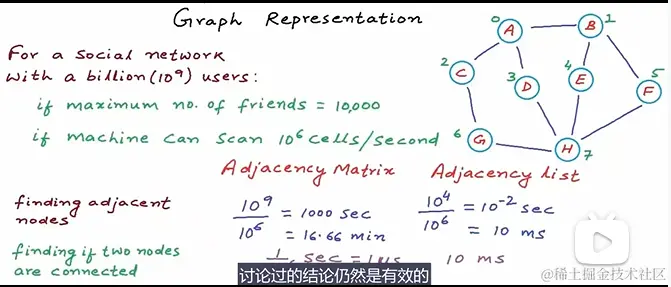

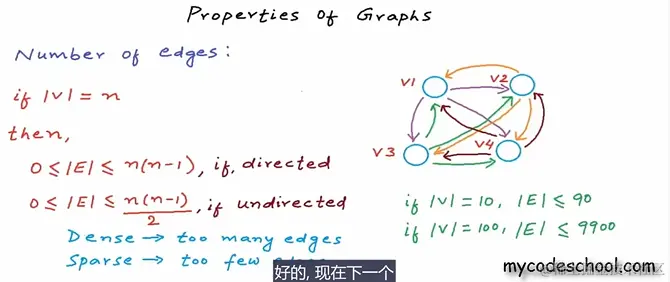

图
