使用OffscreenCanvasRenderingContext2D绘制气泡框
记录如何使用# OffscreenCanvasRenderingContext2D绘制自定义的气泡框
测试项目结构如下：

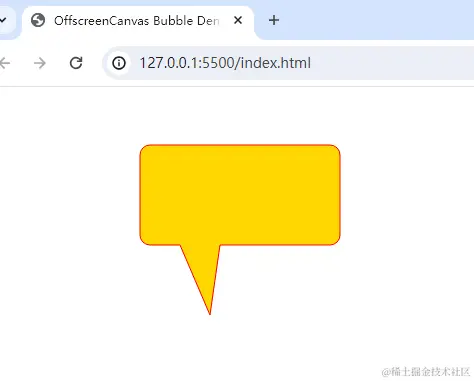

运行效果如下：
index.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>OffscreenCanvas Bubble Demo</title>
<link rel="stylesheet" href="styles.css">
</head>
<body>
<canvas id="mainCanvas" width="800" height="600" backgroundColor='#f0f0f0'></canvas>
<button>Start</button>
<script src="script.js"></script>
</body>
</html>
style.css
body,
html {
margin: 0;
padding: 0;
width: 100%;
height: 100%;
display: flex;
justify-content: center;
align-items: center;
background-color: #f7f7f7;
}
canvas {
border: 1px solid #000;
}
script.js
const canvas = document.getElementById('mainCanvas');
const ctx = canvas.getContext('2d');
// 创建OffscreenCanvas
const offscreenCanvas = new OffscreenCanvas(500, 400);
const offscreenCtx = offscreenCanvas.getContext('2d');
// 定义气泡框的样式
offscreenCtx.fillStyle = '#FFD700'; // 金色填充
offscreenCtx.strokeStyle = 'red'; // 红色边框
// 定义气泡框的大小和圆角半径
const bubbleWidth = 200;
const bubbleHeight = 100;
const cornerRadius = 10;
// 计算气泡框的位置
const bubbleX = (offscreenCanvas.width - bubbleWidth) / 2;
const bubbleY = (offscreenCanvas.height - bubbleHeight) / 2;
// 设置气泡框的角坐标位置
// 开始绘制气泡框
offscreenCtx.beginPath();
// 绘制左下角的圆角
offscreenCtx.arc(bubbleX + cornerRadius, bubbleY - cornerRadius, cornerRadius, Math.PI, Math.PI / 2, true);
// 绘制气泡框的尖角
offscreenCtx.lineTo(bubbleX + 30 + cornerRadius, bubbleY);
offscreenCtx.lineTo(bubbleX + 60 + cornerRadius, bubbleY + 70);
offscreenCtx.lineTo(bubbleX + 70 + cornerRadius, bubbleY);
// 绘制下侧的直线
offscreenCtx.lineTo(bubbleX + bubbleWidth - cornerRadius, bubbleY);
// 绘制右下角的圆角
offscreenCtx.arc(bubbleX + bubbleWidth - cornerRadius, bubbleY - cornerRadius, cornerRadius, Math.PI / 2, 0, true);
// 绘制右侧的直线
offscreenCtx.lineTo(bubbleX + bubbleWidth, bubbleY - bubbleHeight + cornerRadius);
// 绘制右上角的圆角
offscreenCtx.arc(bubbleX + bubbleWidth - cornerRadius, bubbleY - bubbleHeight + cornerRadius, cornerRadius, 0, -Math.PI / 2, true);
// 绘制顶部直线
offscreenCtx.lineTo(bubbleX + cornerRadius, bubbleY - bubbleHeight);
// 绘制左上角的圆角
offscreenCtx.arc(bubbleX + cornerRadius, bubbleY - bubbleHeight + cornerRadius, cornerRadius, -Math.PI / 2, Math.PI, true);
// 关闭路径
offscreenCtx.closePath();
// 填充气泡框
offscreenCtx.fill();
offscreenCtx.stroke();
// 将OffscreenCanvas内容绘制到主Canvas
ctx.drawImage(offscreenCanvas, 0, 0);
