MediaCodec + YUV录像
输入数据
ImageReader设置数据格式为YUV420_888，具体格式由hal层决定，一般情况下是NV21，实测NV12会导致反色。
注：NV12和NV21都属于YUV420SP。格式还有可能是YUV420P，YUV420P包含I420和YV12
从ImageReader获取数据转出byte[]：
/**
* 从ImageReader中获取byte[]数据
*/
public static byte[] getBytesFromImageReader(ImageReader imageReader) {
try (Image image = imageReader.acquireNextImage()) {
final Image.Plane[] planes = image.getPlanes();
ByteBuffer b0 = planes[0].getBuffer();//Y平面，数量为像素个数
ByteBuffer b1 = planes[1].getBuffer();
ByteBuffer b2 = planes[2].getBuffer();
int y = b0.remaining(), u = y >> 2, v = u;
byte[] bytes = new byte[y + u + v];
if(b1.remaining() > u) { // y420sp
b0.get(bytes, 0, b0.remaining());
b1.get(bytes, y, b1.remaining()); // uv
} else { // y420p
b0.get(bytes, 0, b0.remaining());
b1.get(bytes, y, b1.remaining()); // u
b2.get(bytes, y + u, b2.remaining()); // v
}
return bytes;
} catch (Exception e) {
e.printStackTrace();
}
return null;
}
将byte[]插入一个LinkedBlockingQueue ：
private LinkedBlockingQueue<RawData> queue = new LinkedBlockingQueue<>();
queue.offer(new RawData(yuvData, System.nanoTime()));
static class RawData {
byte[] buf;
long timeStamp;
RawData(byte[] buf, long timeStamp) {
this.buf = buf;
this.timeStamp = timeStamp;
}
}
录像
录制时设置好相关参数，分辨率要和ImageReader的宽高匹配！：
private EncoderParams setEncodeParams(int width, int height) {
EncoderParams params = new EncoderParams();
params.setVideoPath(mSavePath); // 视频文件路径
params.setFrameWidth(width); // 分辨率
params.setFrameHeight(height);
params.setBitRate(600000); // 视频编码码率
params.setFrameRate(30);// 视频编码帧率
params.setAudioBitrate(44100); // 音频比特率
params.setAudioSampleRate(AACEncodeConsumer.DEFAULT_SAMPLE_RATE); // 音频采样率
params.setAudioChannelConfig(AACEncodeConsumer.CHANNEL_IN_MONO);// 单声道
params.setAudioChannelCount(AACEncodeConsumer.CHANNEL_COUNT_MONO); // 单声道通道数量
params.setAudioFormat(AACEncodeConsumer.ENCODING_PCM_16BIT); // 采样精度为16位
return params;
}
视频流编码
音视频编码都是耗时操作，放在子线程执行
MediaCodec输入流：
private void feedMediaCodecData(byte[] data, long timeStamp) {
int inputBufferIndex = mVideoEncodec.dequeueInputBuffer(TIMES_OUT);
if (inputBufferIndex >= 0) {
ByteBuffer inputBuffer = mVideoEncodec.getInputBuffer(inputBufferIndex);
if (inputBuffer != null) {
inputBuffer.clear();
inputBuffer.put(data);
}
Log.e(TAG, "video set pts......." + (timeStamp) / 1000 / 1000);
mVideoEncodec.queueInputBuffer(inputBufferIndex, 0, data.length, System.nanoTime() / 1000
, MediaCodec.BUFFER_FLAG_KEY_FRAME);
}
}
MediaCodec输出：
//视频编码输出
MediaCodec.BufferInfo mBufferInfo = new MediaCodec.BufferInfo();
int outputBufferIndex;
do {
outputBufferIndex = mVideoEncodec.dequeueOutputBuffer(mBufferInfo, TIMES_OUT);
if (outputBufferIndex == MediaCodec.INFO_TRY_AGAIN_LATER) {
Log.i(TAG, "INFO_TRY_AGAIN_LATER");
} else if (outputBufferIndex == MediaCodec.INFO_OUTPUT_FORMAT_CHANGED) {
synchronized (H264EncodeConsumer.this) {
newFormat = mVideoEncodec.getOutputFormat();
if (mMuxerRef != null) {
MediaMuxerUtil muxer = mMuxerRef.get();
if (muxer != null) {
muxer.addTrack(newFormat, true);
}
}
}
Log.i(TAG, "编码器输出缓存区格式改变，添加视频轨道到混合器");
} else {
ByteBuffer outputBuffer = mVideoEncodec.getOutputBuffer(outputBufferIndex);
int type = outputBuffer.get(4) & 0x1F;
Log.d(TAG, "------还有数据---->" + type);
if (type == 7 || type == 8) {
Log.d(TAG, "------PPS、SPS帧(非图像数据)，忽略-------");
mBufferInfo.size = 0;
} else if (type == 5) {
if (mMuxerRef != null) {
MediaMuxerUtil muxer = mMuxerRef.get();
if (muxer != null) {
Log.i(TAG, "------编码混合 视频关键帧数据-----" + mBufferInfo.presentationTimeUs / 1000);
muxer.pumpStream(outputBuffer, mBufferInfo, true);
}
isAddKeyFrame = true;
}
} else {
if (isAddKeyFrame) {
if (isAddKeyFrame && mMuxerRef != null) {
MediaMuxerUtil muxer = mMuxerRef.get();
if (muxer != null) {
Log.i(TAG, "------编码混合 视频普通帧数据-----" + mBufferInfo.presentationTimeUs / 1000);
muxer.pumpStream(outputBuffer, mBufferInfo, true);
}
}
}
}
mVideoEncodec.releaseOutputBuffer(outputBufferIndex, false);
}
} while (outputBufferIndex >= 0);
音频流编码
与视频类似：
/**
* 对ACC音频进行编码
*/
public class AACEncodeConsumer extends Thread {
private static final String TAG = "EncodeAudio";
private static final String MIME_TYPE = "audio/mp4a-latm";
private static final int TIMES_OUT = 10000;
private static final int ACC_PROFILE = MediaCodecInfo.CodecProfileLevel.AACObjectLC;
private static final int BUFFER_SIZE = 3584;//1600;
private static final int AUDIO_BUFFER_SIZE = 1024;
/**
* 默认采样率
*/
public static final int DEFAULT_SAMPLE_RATE = 44100;
/**
* 通道数为1
*/
public static final int CHANNEL_COUNT_MONO = 1;
/**
* 通道数为2
*/
public static final int CHANNEL_COUNT_STEREO = 2;
/**
* 单声道
*/
public static final int CHANNEL_IN_MONO = AudioFormat.CHANNEL_IN_MONO;
/**
* 立体声
*/
public static final int CHANNEL_IN_STEREO = AudioFormat.CHANNEL_IN_STEREO;
/**
* 16位采样精度
*/
public static final int ENCODING_PCM_16BIT = AudioFormat.ENCODING_PCM_16BIT;
/**
* 8位采样精度
*/
public static final int ENCODING_PCM_8BIT = AudioFormat.ENCODING_PCM_8BIT;
/**
* 音频源为MIC
*/
public static final int SOURCE_MIC = MediaRecorder.AudioSource.MIC;
// 编码器
private boolean isExit = false;
private boolean isEncoderStarted = false;
private WeakReference<MediaMuxerUtil> mMuxerRef;
private EncoderParams mParams;
private MediaCodec mAudioEncoder;
private MediaFormat newFormat;
private long prevPresentationTimes = 0;
private long nanoTime = 0;//System.nanoTime();
synchronized void setTmpuMuxer(MediaMuxerUtil mMuxer, EncoderParams mParams) {
this.mMuxerRef = new WeakReference<>(mMuxer);
this.mParams = mParams;
MediaMuxerUtil muxer = mMuxerRef.get();
if (muxer != null && newFormat != null) {
muxer.addTrack(newFormat, false);
}
}
static class RawData {
byte[] buf;
int readBytes;
long timeStamp;
RawData() {
buf = new byte[BUFFER_SIZE];
}
void merge(ByteBuffer byteBuffer, int length) {
System.arraycopy(byteBuffer.array(), byteBuffer.arrayOffset(), buf, readBytes, length);
readBytes += length;
timeStamp = System.nanoTime();
}
boolean canMerge(int length) {
return readBytes + length < buf.length;
}
}
private LinkedBlockingQueue<RawData> queue = new LinkedBlockingQueue<>();
private RawData bigShip;
// queue数据没处理完时，先放到bigShip里，确保编码器消费速度
public void addData(ByteBuffer byteBuffer, int length) {
if(bigShip == null) {
bigShip = new RawData();
bigShip.merge(byteBuffer, length);
if(queue.isEmpty()) {
queue.offer(bigShip);
bigShip = null;
}
} else {
if(bigShip.canMerge(length)) {
bigShip.merge(byteBuffer, length);
} else {
queue.offer(bigShip);
bigShip = null;
}
}
}
private RawData removeData() {
return queue.poll();
}
@Override
public void run() {
startCodec();
while (!isExit) {
try {
RawData data = removeData();
if(data != null) {
Log.d("encode", "onWebRtcAudioRecording take data");
encoderBytes(data.buf, data.readBytes, data.timeStamp);
}
MediaCodec.BufferInfo mBufferInfo = new MediaCodec.BufferInfo();
int outputBufferIndex;
do {
outputBufferIndex = mAudioEncoder.dequeueOutputBuffer(mBufferInfo, TIMES_OUT);
if (outputBufferIndex == MediaCodec.INFO_TRY_AGAIN_LATER) {
// Log.i(TAG, "INFO_TRY_AGAIN_LATER");
} else if (outputBufferIndex == MediaCodec.INFO_OUTPUT_FORMAT_CHANGED) {
Log.i(TAG, "INFO_OUTPUT_FORMAT_CHANGED");
synchronized (AACEncodeConsumer.this) {
newFormat = mAudioEncoder.getOutputFormat();
if (mMuxerRef != null) {
MediaMuxerUtil muxer = mMuxerRef.get();
if (muxer != null) {
muxer.addTrack(newFormat, false);
}
}
}
} else {
if ((mBufferInfo.flags & MediaCodec.BUFFER_FLAG_CODEC_CONFIG) != 0) {
mBufferInfo.size = 0;
}
if ((mBufferInfo.flags & MediaCodec.BUFFER_FLAG_END_OF_STREAM) != 0) {
Log.i(TAG, "数据流结束，退出循环");
break;
}
ByteBuffer outputBuffer = mAudioEncoder.getOutputBuffer(outputBufferIndex);
if (mBufferInfo.size != 0) {
if (outputBuffer == null) {
throw new RuntimeException("encodecOutputBuffer" + outputBufferIndex + "was null");
}
if (mMuxerRef != null) {
MediaMuxerUtil muxer = mMuxerRef.get();
if (muxer != null) {
Log.i(TAG, "------编码混合音频数据------------" + mBufferInfo.presentationTimeUs / 1000);
muxer.pumpStream(outputBuffer, mBufferInfo, false);
}
}
}
mAudioEncoder.releaseOutputBuffer(outputBufferIndex, false);
}
} while (outputBufferIndex >= 0);
} catch (Exception e) {
e.printStackTrace();
}
}
stopCodec();
}
@SuppressLint("NewApi")
public void encoderBytes(byte[] audioBuf, int readBytes, long timeStamp) {
int inputBufferIndex = mAudioEncoder.dequeueInputBuffer(TIMES_OUT);
if (inputBufferIndex >= 0) {
ByteBuffer inputBuffer = mAudioEncoder.getInputBuffer(inputBufferIndex);
if (audioBuf == null || readBytes <= 0) {
mAudioEncoder.queueInputBuffer(inputBufferIndex, 0, 0, System.nanoTime() / 1000, MediaCodec.BUFFER_FLAG_END_OF_STREAM);
} else {
if(inputBuffer != null) {
inputBuffer.clear();
inputBuffer.put(audioBuf);
}
Log.e(TAG, "audio set pts-------" + timeStamp / 1000 / 1000);
mAudioEncoder.queueInputBuffer(inputBufferIndex, 0, readBytes, System.nanoTime() / 1000, 0);
}
}
}
private void startCodec() {
MediaCodecInfo mCodecInfo = selectSupportCodec(MIME_TYPE);
if (mCodecInfo == null) {
return;
}
try {
mAudioEncoder = MediaCodec.createByCodecName(mCodecInfo.getName());
MediaFormat mediaFormat = new MediaFormat();
mediaFormat.setString(MediaFormat.KEY_MIME, MIME_TYPE);
mediaFormat.setInteger(MediaFormat.KEY_BIT_RATE, mParams.getAudioBitrate());
mediaFormat.setInteger(MediaFormat.KEY_SAMPLE_RATE, mParams.getAudioSampleRate());
mediaFormat.setInteger(MediaFormat.KEY_AAC_PROFILE, ACC_PROFILE);
mediaFormat.setInteger(MediaFormat.KEY_CHANNEL_COUNT, mParams.getAudioChannelCount());
mediaFormat.setInteger(MediaFormat.KEY_MAX_INPUT_SIZE, BUFFER_SIZE);
if (mAudioEncoder != null) {
mAudioEncoder.configure(mediaFormat, null, null, MediaCodec.CONFIGURE_FLAG_ENCODE);
mAudioEncoder.start();
isEncoderStarted = true;
}
} catch (Exception e) {
Log.e(TAG, "startCodec" + e.getMessage());
e.printStackTrace();
}
}
private void stopCodec() {
try {
if (mAudioEncoder != null) {
mAudioEncoder.stop();
mAudioEncoder.release();
mAudioEncoder = null;
}
} catch (Exception e) {
// 捕获release()方法抛出异常
}
isEncoderStarted = false;
}
public void exit() {
isExit = true;
}
/**
* 遍历所有编解码器，返回第一个与指定MIME类型匹配的编码器
* 判断是否有支持指定mime类型的编码器
*/
private MediaCodecInfo selectSupportCodec(String mimeType) {
int numCodecs = MediaCodecList.getCodecCount();
for (int i = 0; i < numCodecs; i++) {
MediaCodecInfo codecInfo = MediaCodecList.getCodecInfoAt(i);
if (!codecInfo.isEncoder()) {
continue;
}
String[] types = codecInfo.getSupportedTypes();
for (int j = 0; j < types.length; j++) {
if (types[j].equalsIgnoreCase(mimeType)) {
return codecInfo;
}
}
}
return null;
}
}
MediaMuxer混合
使用MediaMuxer来封装编码后的视频流和音频流到mp4容器中。通常视频编码使用H.264(AVC)编码，音频编码使用AAC编码，在MediaFormat中我们可以看到各种编码格式，本例中编码格式如下：
private static final String MIME_TYPE = "video/avc";
private static final String MIME_TYPE = "audio/mp4a-latm";
指定输出路径和文件格式：
mMuxer = new MediaMuxer(path, MediaMuxer.OutputFormat.MUXER_OUTPUT_MPEG_4);
踩坑记录：
1.1440x1080size无法编码

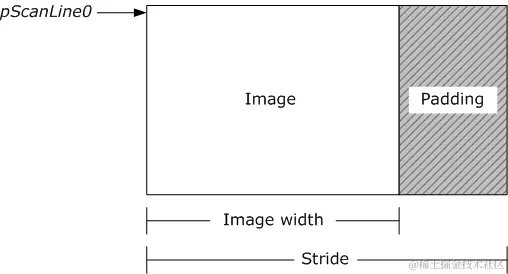

字节对齐，把数据复制一份去掉stride padding
2.1440x1080有绿边
uv数据少一个字节，需要手动填最后一个字节
3.画质模糊
比特率设置与系统相机动态照片保持一致：20000000
未完待续...
