准备工作

• android ndk（里面包含64位的addr2line执行文件） developer.android.google.cn/ndk/downloa…
• not stripped的so文件（带symbols信息） 路径：out/target/product/qssi_64/symbols/system/lib64/*.so

查看bin文件的tripped状态

我们可以使用 file <file path> 来查看 可以看到symbols路径下的bin文件为not stripped状态，不带symbols的路径下的bin文件为stripped状态。 注意：symbols lib库必须是与用来复现问题的bin在同一次build出来的才可以

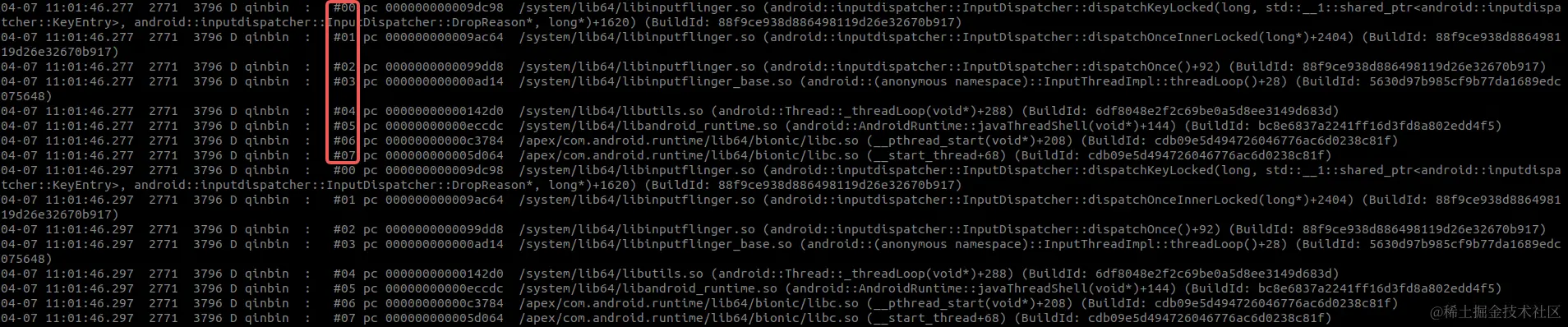

在执行文件中添加调用堆栈打印进行验证

1. 导入CallStack头文件
2. 调用CallStack::logStack方法打印堆栈

#include <utils/CallStack.h>
CallStack::logStack("qinbin");

使用方法

./android-ndk-r26c/toolchains/llvm/prebuilt/linux-x86_64/bin/llvm-addr2line -C -f -e <file path> <address>

llvm-addr2line -h

OVERVIEW: llvm-addr2line

USAGE: llvm-addr2line [options] addresses...

OPTIONS:
  --addresses           Show address before line information
  --adjust-vma=<offset> Add specified offset to object file addresses
  -a                    Alias for --addresses
  --basenames           Strip directory names from paths
  --build-id=<value>    Build ID used to look up the object file
  --cache-size=<value>  Max size in bytes of the in-memory binary cache.
  --color=<value>       Whether to use color when symbolizing log markup: always, auto, never
  --color               Use color when symbolizing log markup.
  -C                    Alias for --demangle
  --debug-file-directory=<dir>
                        Path to directory where to look for debug files
  --debuginfod          Use debuginfod to find debug binaries
  -demangle=false       Alias for --no-demangle
  -demangle=true        Alias for --demangle
  --demangle            Demangle function names
  --dia                 Use the DIA library to access symbols (Windows only)
  --dwp=<file>          Path to DWP file to be use for any split CUs
  -e=<file>             Alias for --obj
  --exe=<file>          Alias for --obj
  --exe <file>          Alias for --obj
  -e <file>             Alias for --obj
  -f=<value>            Alias for --functions=
  --fallback-debug-path=<dir>
                        Fallback path for debug binaries
  --filter-markup       Filter symbolizer markup from stdin.
  --functions=<value>   Print function name for a given address
  --functions           Print function name for a given address
  -f                    Alias for --functions
  --help                Display this help
  --inlines             Print all inlined frames for a given address
  --inlining=false      Alias for --no-inlines
  --inlining=true       Alias for --inlines
  --inlining            Alias for --inlines
  -i                    Alias for --inlines
  --no-debuginfod       Don't use debuginfod to find debug binaries
  --no-demangle         Don't demangle function names
  --no-inlines          Do not print inlined frames
  --no-untag-addresses  Remove memory tags from addresses before symbolization
  --obj=<file>          Path to object file to be symbolized (if not provided, object file should be specified for each input line)
  --output-style=style  Specify print style. Supported styles: LLVM, GNU, JSON
  --pretty-print        Make the output more human friendly
  --print-address       Alias for --addresses
  --print-source-context-lines=<value>
                        Print N lines of source file context
  -p                    Alias for --pretty-print
  --relative-address    Interpret addresses as addresses relative to the image base
  --relativenames       Strip the compilation directory from paths
  -s                    Alias for --basenames
  --verbose             Print verbose line info
  --version             Display the version
  -v                    Alias for --version

llvm-symbolizer Mach-O Specific Options:
  --default-arch=<value> Default architecture (for multi-arch objects)
  --dsym-hint=<dir>      Path to .dSYM bundles to search for debug info for the object files

Pass @FILE as argument to read options from FILE.
