前言
Retrofit在2019-06-05发布的2.6.0版本中就已经支持Kotlin 中的 suspend修饰符了，目前正准备在项目中使用 Kotlin，顺便替换一下网络库。这里先做一下调研和基础建设，方便后续的接入工作。 别问为啥，问就是15 年 16 年的老项目，之前并没有使用 Kotlin 的打算。
Retrofit已经在2024-03-28更新到2.11.0版本了，就用这个来做调研好了。
添加依赖
implementation 'com.squareup.retrofit2:retrofit:2.11.0'
implementation 'com.squareup.retrofit2:converter-gson:2.11.0'
implementation 'com.squareup.okhttp3:okhttp:4.12.0'
由于需要对 OKHttpClient 做一些操作和定制，这里添加了 okhttp 的依赖。实体类的转换使用了 gson，为啥用 gson，问就是项目里面就是用的 gson，后面再介绍一下其他的converter。
- Gson: com.squareup.retrofit2:converter-gson
- Jackson: com.squareup.retrofit2:converter-jackson
- Moshi: com.squareup.retrofit2:converter-moshi
- Protobuf: com.squareup.retrofit2:converter-protobuf
- Wire: com.squareup.retrofit2:converter-wire
- Simple XML: com.squareup.retrofit2:converter-simplexml
- JAXB: com.squareup.retrofit2:converter-jaxb
- Scalars (primitives, boxed, and String): com.squareup.retrofit2:converter-scalars
声明请求接口
interface MainPageApi{
@GET("app_interface/home_pag/")
fun getMainPageInfoWithRow():Call<MainPageInfo>
}
创建 Retrofit 对象
val retrofit = Retrofit.Builder()
.baseUrl(BASE_URL)
.addConverterFactory(GsonConverterFactory.create())
.build()
发送请求
val mainPageApi = retrofit.create(MainPageApi::class.java)
mainPageApi.getMainPageInfoWithCall().enqueue(object:retrofit2.Callback<MainPageInfo>{
override fun onResponse(
call: Call<MainPageInfo>,
response: retrofit2.Response<MainPageInfo>
) {
Log.e("KotlinActivity","getMainPageInfoWithCall onResponse")
}
override fun onFailure(call: Call<MainPageInfo>, t: Throwable) {
Log.e("KotlinActivity","getMainPageInfoWithCall onFailure")
}
})
到这里为止，我们还没有使用任何协程相关的特性，并且没有都得写回调，和 Java 写起来也没啥差别。
支持协程
我们对接口的声明加上suspend修饰
@GET("app_interface/home_pag/")
suspend fun getMainPageInfoWithRow():Call<MainPageInfo>

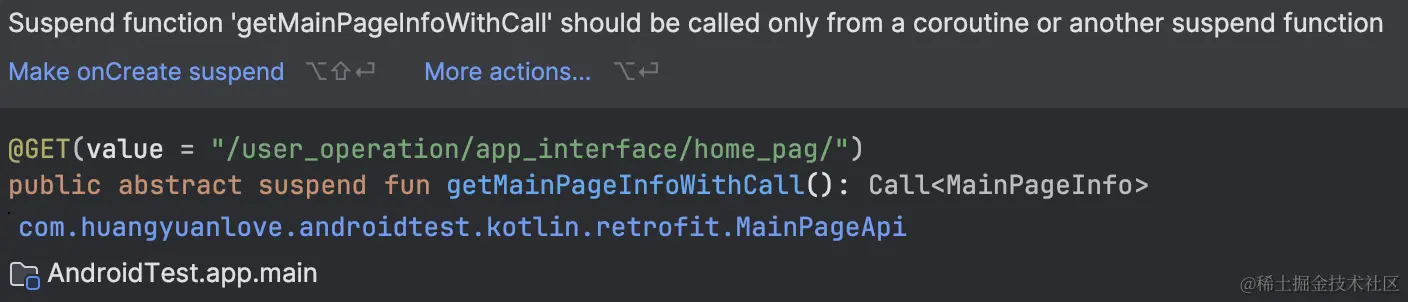

这时候上面直接发送请求的代码会报错：
提示我们需要在协程中调用，这也简单，kotlin 对 activity 有个扩展的
lifecycleScope成员变量，稍微修改一下：
lifecycleScope.launch(Dispatchers.IO) {
mainPageApi.getMainPageInfoWithCall().enqueue(.....)
}
不习惯这么写的话，可以将网络请求写在 ViewModel 中，通过 LiveData创建一个可观察对象实现数据绑定。
不出意外的出意外了，应用崩溃，错误信息
java.lang.IllegalArgumentException: Suspend functions should not return Call, as they already execute asynchronously.
Change its return type to class com.huangyuanlove.androidtest.kotlin.retrofit.MainPageInfo
意思是在协程中发起请求已经是异步的了，不需要再返回 Call 对象了，直接返回对应的实体即可。 简单，修改一下接口声明
@GET("app_interface/home_page/")
suspend fun getMainPageInfoWithRow():MainPageInfo
然后修改一下请求
lifecycleScope.launch(Dispatchers.IO) {
val mainPageInfo = mainPageApi.getMainPageInfo()
withContext(Dispatchers.Main) {
refreshUI(mainPageInfo)
}
}
运行一下，一切正常。我们修改一下接口，请求一个不存在的地址，会返回404，不出意外，应用还是崩溃
retrofit2.HttpException: HTTP 404
at retrofit2.KotlinExtensions$await$2$2.onResponse(KotlinExtensions.kt:53)
at retrofit2.OkHttpCall$1.onResponse(OkHttpCall.java:164)
at okhttp3.internal.connection.RealCall$AsyncCall.run(RealCall.kt:519)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1167)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:641)
at java.lang.Thread.run(Thread.java:929)
Suppressed: kotlinx.coroutines.internal.DiagnosticCoroutineContextException: [StandaloneCoroutine{Cancelling}@ffa6ad2, Dispatchers.IO]
哦~异常没有处理，粗暴点，直接 try-catch，kotlin 中还有runCatching这个语法糖
val mainPageInfoRow = runCatching { mainPageApi.getMainPageInfoWithRow() }
if (mainPageInfoRow.isFailure) {
ToastUtils.showToast("请求失败")
} else if (mainPageInfoRow.isSuccess) {
ToastUtils.showToast("请求成功")
withContext(Dispatchers.Main) {
if (mainPageInfoRow.getOrNull() == null) {
ToastUtils.showToast("请求结果为空")
} else {
refreshViewWithLaunch(mainPageInfoRow.getOrNull()!!)
}
}
}
但是有时候我们会用HTTP状态码来表示一些业务上逻辑错误，并且不同的状态码返回的 JSON 结构还可能不一样。 别问为啥要这么搞，应该是HTTP 状态码就应该表示网络请求的状态，业务状态应该放在返回的数据中约定字段来处理。问就是15年的老代码，之前就是这么搞的，并且大范围应用，涉及到的部门、业务占半数以上。
这时候我们需要自定义CallAdapter了
自定义 CallAdapter
这时候就应该翻一下源码了，在example有个ErrorHandlingAdapter.java,路径在samples/src/main/java/com/example/retrofit/ErrorHandlingAdapter.java。
还看到一篇文章有具体的实现：# Create Retrofit CallAdapter for Coroutines to handle response as states
我们来仿写一下，最关键的点在实现自己的 Call 类的时候，对callback 的处理。
定义不同的返回状态
第一步，创建密闭类，来表示不同的状态，这里暂且定义了三种情况
- Success:HTTP状态码在
[200,300)这个区间 - NetError:HTTP状态码不在
[200,300)这个区间 - UnknownError:其他错误
sealed class NetworkResponse<out T : Any, out U : Any> { data class Success(val body: T) : NetworkResponse<T, Nothing>() data class NetError(val httpCode:Int?,val errorMsg:String?,val exception: Throwable?) : NetworkResponse<Nothing, Nothing>() data class UnknownError(val error: Throwable?) : NetworkResponse<Nothing, Nothing>() }
创建自己的Call类
这里为了简化方便，除了enqueue之外必须重写的方法，都是直接调用delegate对应的方法
internal class NetworkResponseCall<S : Any, E : Any>(
private val delegate: Call<S>,
private val errorConverter: Converter<ResponseBody, E>
) : Call<NetworkResponse<S, E>> {
override fun clone(): Call<NetworkResponse<S, E>> {
return NetworkResponseCall(delegate.clone(), errorConverter);
}
override fun execute(): Response<NetworkResponse<S, E>> {
throw UnsupportedOperationException("NetworkResponseCall doesn't support execute")
}
override fun isExecuted(): Boolean {
return delegate.isExecuted;
}
override fun cancel() {
delegate.cancel()
}
override fun isCanceled(): Boolean {
return delegate.isCanceled
}
override fun request(): Request {
return delegate.request()
}
override fun timeout(): Timeout {
return delegate.timeout();
}
}
下面是关键的enqueue方法,在这里面，将所有的请求都用Response.success返回，不再走Response.error.并且根据不同的 HTTP 状态码，返回的数据等条件转成一开始定义的密闭类。
override fun enqueue(callback: Callback<NetworkResponse<S, E>>) {
return delegate.enqueue(object : Callback<S> {
override fun onResponse(call: Call<S>, response: Response<S>) {
val body = response.body()
val code = response.code()
val error = response.errorBody()
if (response.isSuccessful) {
if (body != null) {
callback.onResponse(
this@NetworkResponseCall,
Response.success(NetworkResponse.Success(body))
)
} else {
callback.onResponse(
this@NetworkResponseCall,
Response.success(NetworkResponse.UnknownError(null))
)
}
} else {
val errorBody = when {
error == null -> null
error.contentLength() == 0L -> null
else -> NetworkResponse.NetError(code, error.toString(), null)
}
if (errorBody != null) {
callback.onResponse(
this@NetworkResponseCall,
Response.success(errorBody)
)
} else {
callback.onResponse(
this@NetworkResponseCall,
Response.success(NetworkResponse.UnknownError(null))
)
}
}
}
override fun onFailure(call: Call<S>, t: Throwable) {
val networkResponse = when (t) {
is Exception -> NetworkResponse.NetError(null,null,t)
else -> NetworkResponse.UnknownError(t)
}
callback.onResponse(this@NetworkResponseCall, Response.success(networkResponse))
}
})
}
创建 CallAdapter
class NetworkResponseAdapter<S : Any, E : Any>(
private val successType: Type,
private val errorBodyConverter: Converter<ResponseBody, E>
) : CallAdapter<S, Call<NetworkResponse<S, E>>> {
override fun responseType(): Type = successType
override fun adapt(call: Call<S>): Call<NetworkResponse<S, E>> {
return NetworkResponseCall(call, errorBodyConverter)
}
}
创建CallAdapterFactory
class NetworkResponseAdapterFactory:CallAdapter.Factory(){
override fun get(
returnType: Type,
annotations: Array<out Annotation>,
retrofit: Retrofit
): CallAdapter<*, *>? {
// suspend functions wrap the response type in `Call`
if(Call::class.java != getRawType(returnType)){
return null
}
check(returnType is ParameterizedType){
"return type must be parameterized as Call<NetworkResponse<<Foo>> or Call<NetworkResponse<out Foo>>"
}
// get the response type inside the `Call` type
val responseType = getParameterUpperBound(0,returnType)
// if the response type is not ApiResponse then we can't handle this type, so we return null
if(getRawType(responseType) != NetworkResponse::class.java){
return null
}
// the response type is ApiResponse and should be parameterized
check(responseType is ParameterizedType) { "Response must be parameterized as NetworkResponse<Foo> or NetworkResponse<out Foo>" }
val successBodyType = getParameterUpperBound(0, responseType)
val errorBodyType = getParameterUpperBound(1, responseType)
val errorBodyConverter =
retrofit.nextResponseBodyConverter<Any>(null, errorBodyType, annotations)
return NetworkResponseAdapter<Any, Any>(successBodyType, errorBodyConverter)
}
}
构建 Retrofit 实例时添加该 Factory
val retrofit = Retrofit.Builder()
.baseUrl(BASE_URL)
.addCallAdapterFactory(NetworkResponseAdapterFactory())
.addConverterFactory(GsonConverterFactory.create())
.build()
使用typealias简化返回类型(可选)
data class HttpError(val httpCode:Int,val errorMsg:String?,val exception: Throwable?)
// before
interface DemoApiService {
suspend fun mainPageInfo(): NetworkResponse<MainPageInfo, HttpError>
}
// after
typealias GenericResponse<S> = NetworkResponse<S, HttpError>
interface ApiService {
suspend fun mainPageInfo(): GenericResponse<MainPageInfo>
}
使用
在 Activity 中直接使用lifecycleScope启动协程。
lifecycleScope.launch(Dispatchers.IO) {
Log.e("KotlinActivity", "lifecycleScope.launch -->>" + Thread.currentThread().name);
val mainPageInfo = mainPageApi.getMainPageInfo()
withContext(Dispatchers.Main) {
Log.e(
"KotlinActivity",
"withContext(Dispatchers.Main) -->>" + Thread.currentThread().name
);
when(mainPageInfo){
is NetworkResponse.NetError -> Log.e("KotlinActivity",
"NetError->$mainPageInfo"
)
is NetworkResponse.Success -> refreshViewWithLaunch(mainPageInfo.body)
is NetworkResponse.UnknownError -> Log.e("KotlinActivity","UnknownError->" + mainPageInfo.error)
}
}
}
或者在 ViewModel 中借助 LiveData 将返回值转化为可观察对象
class MainPageInfoViewModel:ViewModel() {
private val _mainPageInfo = MutableLiveData<MainPageInfo>()
val mainPageInfo: LiveData<MainPageInfo> get() = _mainPageInfo
fun getMainPageInfo(){
viewModelScope.launch(Dispatchers.IO){
val result = mainPageApi.getMainPageInfo()
withContext(Dispatchers.Main){
when(result){
is NetworkResponse.NetError -> Log.e("MainPageInfoViewModel",
"NetError->$result"
)
is NetworkResponse.Success -> _mainPageInfo.value = result.body
is NetworkResponse.UnknownError -> Log.e("MainPageInfoViewModel","UnknownError->" + result.error)
}
}
}
}
}
在 Activity 中使用
mainPageInfoModel = ViewModelProvider(this).get(MainPageInfoViewModel::class.java)
mainPageInfoModel.mainPageInfo.observe(this, Observer {
if (it != null) {
Log.e("KotlinActivity", "viewmodel获取结果成功")
refreshViewWithViewModelResult(it);
} else {
Log.e("KotlinActivity", "viewmodel获取结果为空")
}
})
mainPageInfoModel.getMainPageInfo()
暂时先这样吧，基本上够用了
以上
