树形结构 - 有向无环图
树是图的一种。
- 树形结构有一个根节点
- 树形结构没有回路
- 根节点：A
- 叶子节点：下边没有其他节点了
- 节点:既不是根节点,又不是叶子节点的普通节点
- 树的度:这棵树所有节点的度中，最多的度是几，这棵树的度就为多少
- 树的深度：最深有几层就是几

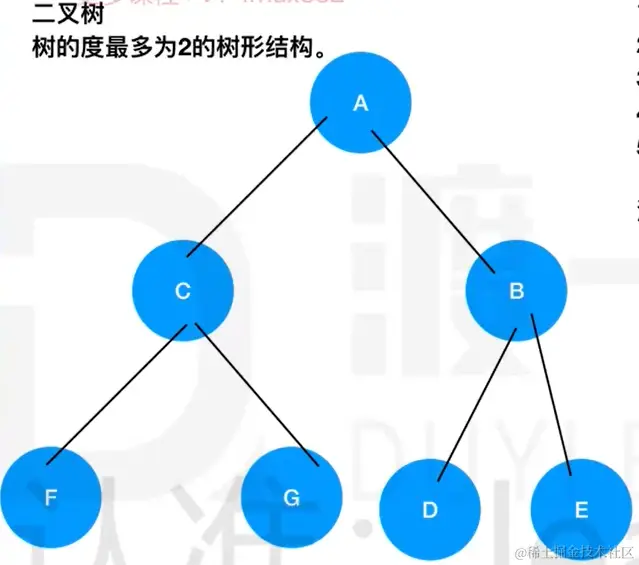

二叉树：
-
二叉树的根节点A
-
子节点:某个节点下面的节点
-
父节点：上级节点
-
叶子节点：CDE
-
节点：B
-
满二叉树：(1)所有的叶子节点都在最底层 (2)每个非叶子节点都有两个子节点
-
完全二叉树： (1)叶子节点都在最后一层或倒数第二层(2)叶子节点都向左聚拢

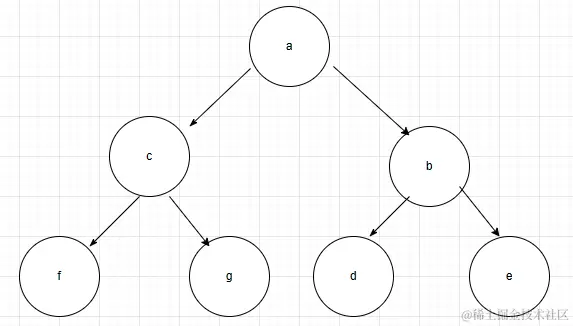

遍历二叉树
- 前序遍历：根左右
- 中序遍历：左根右
- 后序遍历：左右根
前序遍历
function Node(value) {
this.value = value
this.left = null
this.right = null
}
let a = new Node('a')
let b = new Node('b')
let c = new Node('c')
let d = new Node('d')
let e = new Node('e')
let f = new Node('f')
let g = new Node('g')
a.left = c
a.right = b
c.left = f
c.right = g
b.left = d
b.right = e
function preTraversal(root) {
if (root == null) return
console.log(root.value)
preTraversal(root.left)
preTraversal(root.right)
}
preTraversal(a)
中序遍历
function Node(value) {
this.value = value
this.left = null
this.right = null
}
let a = new Node('a')
let b = new Node('b')
let c = new Node('c')
let d = new Node('d')
let e = new Node('e')
let f = new Node('f')
let g = new Node('g')
a.left = c
a.right = b
c.left = f
c.right = g
b.left = d
b.right = e
function inTraversal(root) {
if (root == null) return
inTraversal(root.left)
console.log(root.value)
inTraversal(root.right)
}
inTraversal(a)
后序遍历
function Node(value) {
this.value = value
this.left = null
this.right = null
}
let a = new Node('a')
let b = new Node('b')
let c = new Node('c')
let d = new Node('d')
let e = new Node('e')
let f = new Node('f')
let g = new Node('g')
a.left = c
a.right = b
c.left = f
c.right = g
b.left = d
b.right = e
function postTraversal(root) {
if (root == null) return
postTraversal(root.left)
postTraversal(root.right)
console.log(root.value)
}
postTraversal(a)
还原二叉树
给出前中序还原二叉树
let preTraverse = ['a', 'c', 'f', 'g', 'b', 'd', 'e'];
let inTraverse = ['f', 'c', 'g', 'a', 'd', 'b', 'e'];
function Node(value) {
this.value = value
this.left = null
this.right = null
}
function binaryTree(preTraverse, inTraverse) {
if (preTraverse == null || inTraverse == null || preTraverse.length == 0 || inTraverse.length == 0 || preTraverse.length != inTraverse.length) return
let root = new Node(preTraverse[0])
// 找到根节点在中序遍历中的位置
let index = inTraverse.indexOf(root.value)
// 先序序遍的左子树
let preLeft = preTraverse.slice(1, 1 + index)
// 先序遍历的右子树
let preRight = preTraverse.slice(1 + index, preTraverse.length)
// 中序遍历的左子树
let inLeft = inTraverse.slice(0, index)
// 中序遍历的右子树
let inRight = inTraverse.slice(index + 1, inTraverse.length)
root.left = binaryTree(preLeft, inLeft)
root.right = binaryTree(preRight, inRight)
return root
}
let root = binaryTree(preTraverse, inTraverse)

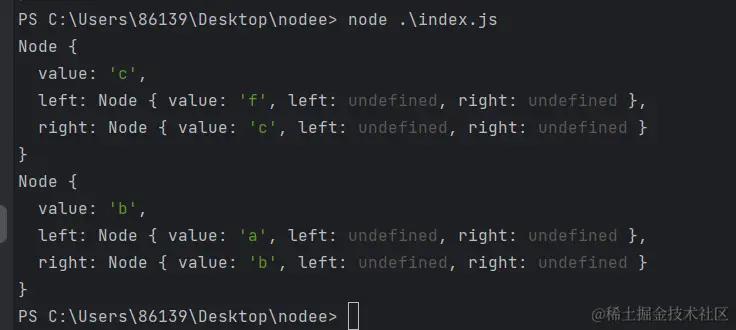

console.log(root.left)
console.log(root.right)
给出中后序还原二叉树
let postTraverse = ['f', 'g', 'c', 'd', 'e', 'b', 'a'];
let inTraverse = ['f', 'c', 'g', 'a', 'd', 'b', 'e'];
function Node(value) {
this.value = value
this.left = null
this.right = null
}
function binaryTree(postTraverse, inTraverse) {
if (postTraverse == null || inTraverse == null || postTraverse.length == 0 || inTraverse.length == 0 || postTraverse.length != inTraverse.length) return
let root = new Node(postTraverse[postTraverse.length - 1])
// 找到根节点在中序遍历中的位置
let index = inTraverse.indexOf(root.value)
// 后序序遍的左子树
let postLeft = postTraverse.slice(0, index)
// 后序遍历的右子树
let postRight = postTraverse.slice(index, postTraverse.length - 1)
// 中序遍历的左子树
let inLeft = inTraverse.slice(0, index)
// 中序遍历的右子树
let inRight = inTraverse.slice(index + 1, inTraverse.length)
root.left = binaryTree(postLeft, inLeft)
root.right = binaryTree(postRight, inRight)
return root
}
let root = binaryTree(postTraverse, inTraverse)

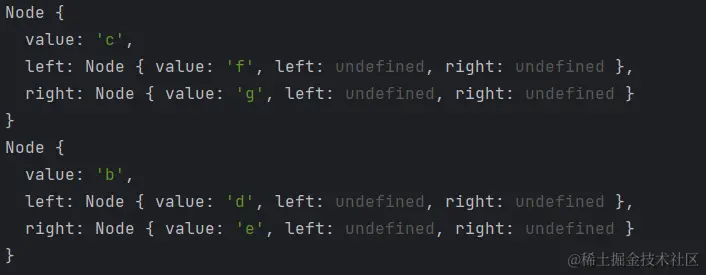

console.log(root.left)
console.log(root.right)
