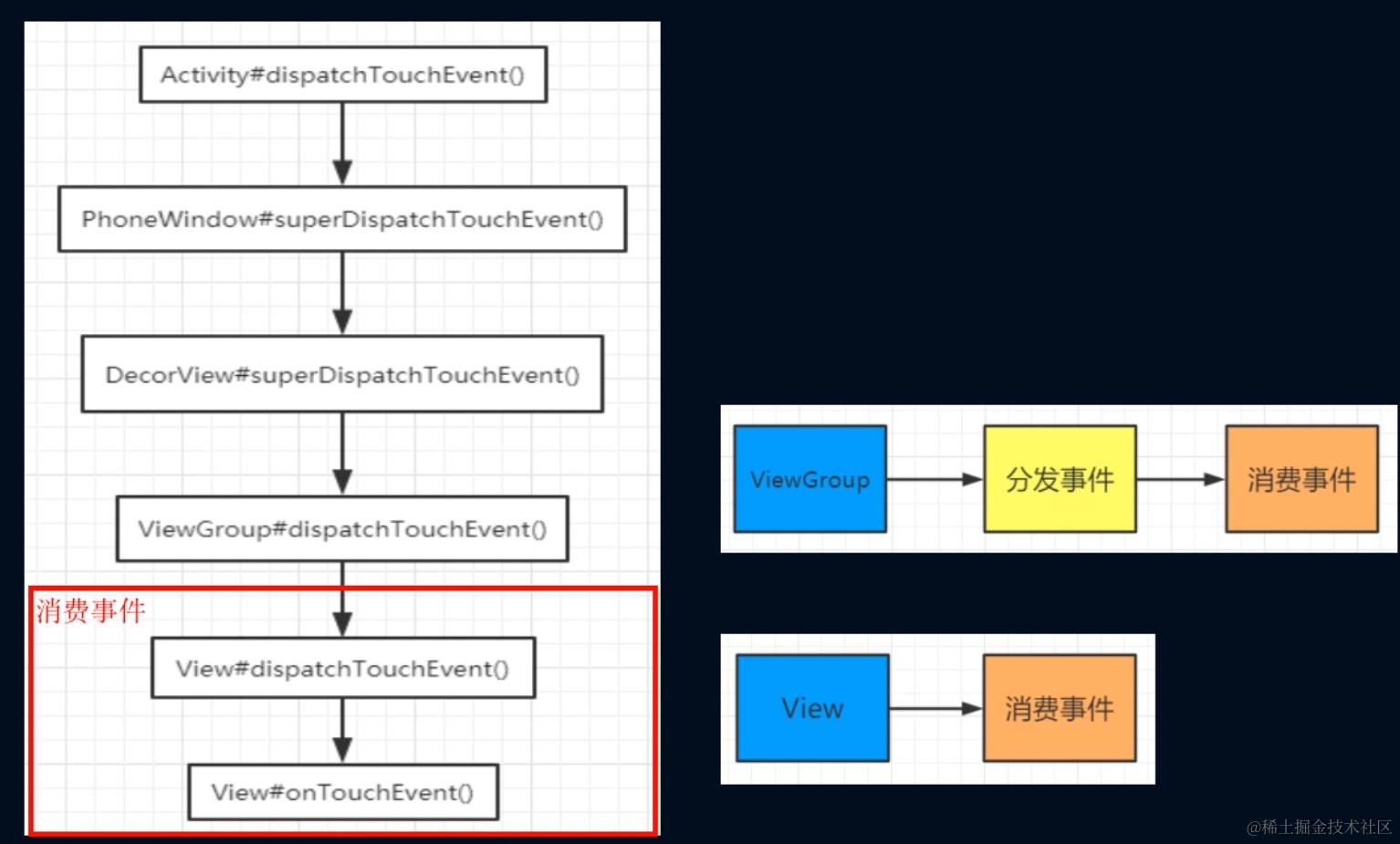

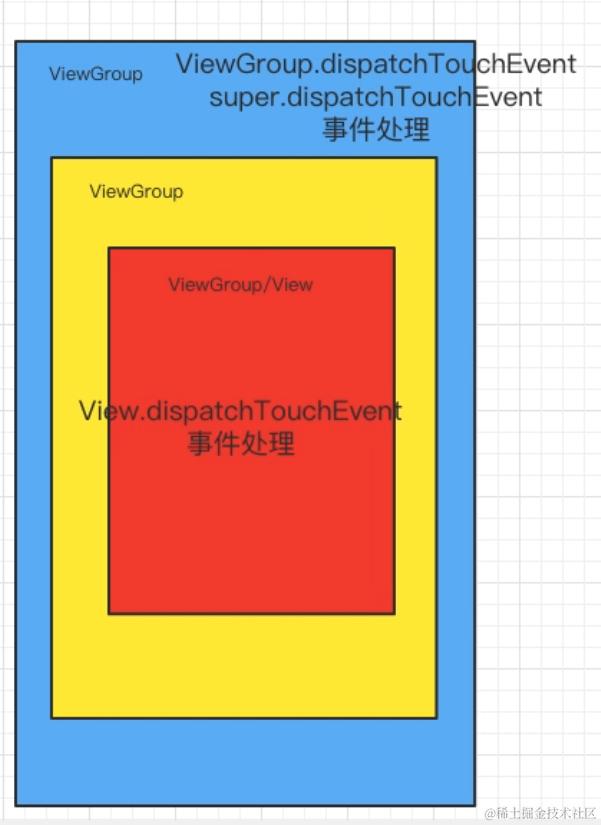

事件分发中,View和ViewGroup的功能区分
View.dispatchTouchEvent()---->事件的处理逻辑,
---> ViewGroup.dispatchTouchEvent()--->实现了分发流程的逻辑。

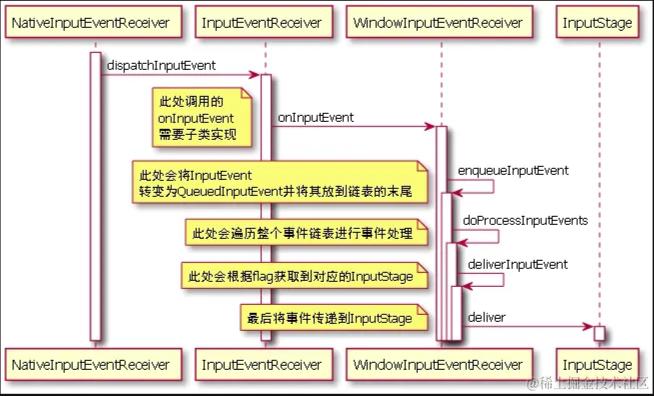

事件注册流程

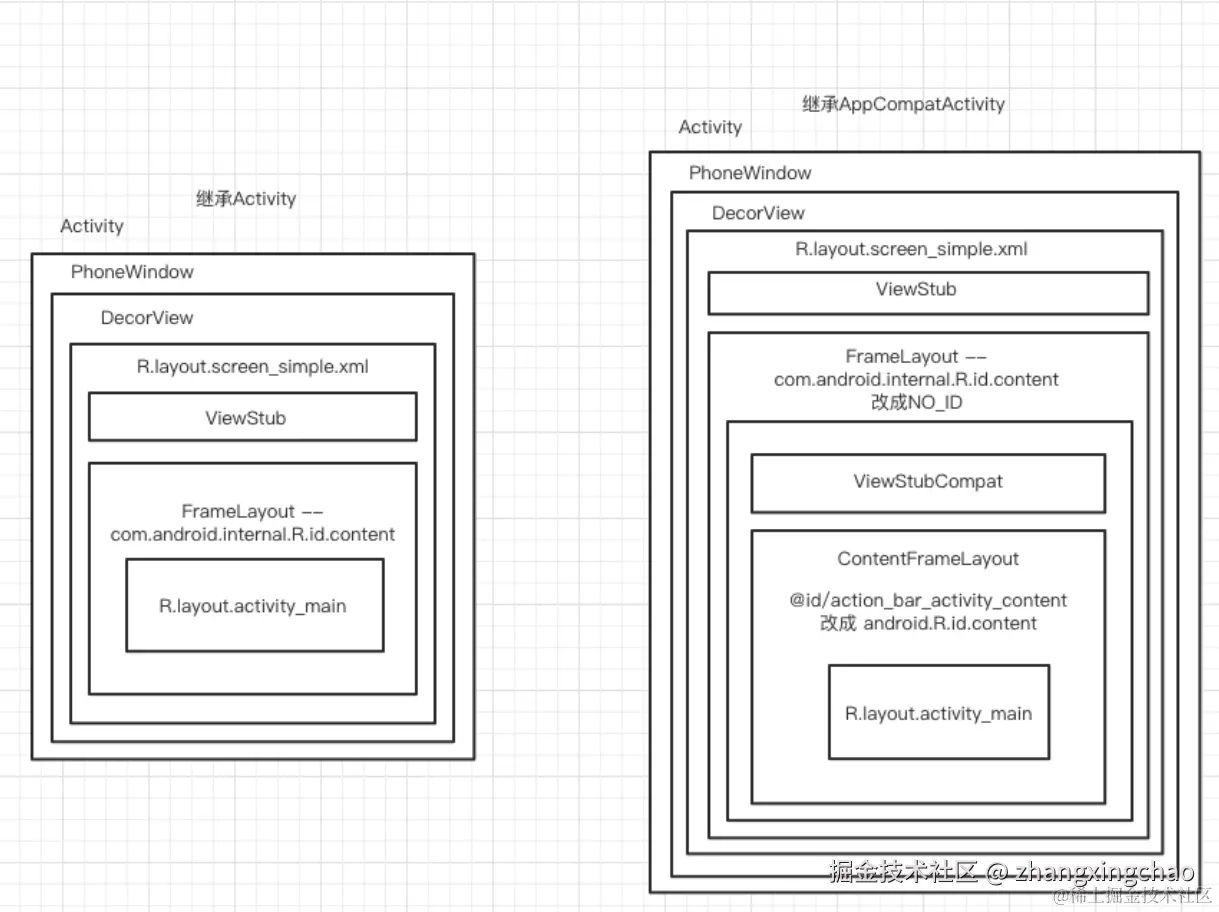

事件注册是在ViewRootImpl中实现的,一般的,每一个Activity的Window都有一个ViewRootImpl,这个是所有View的parent,内部会处理事件分发, 刷新,与sf通信,Canvas创建等。
setView@ViewRootImpl.java
--->mInputEventReceiver = new WindowInputEventReceiver(inputChannel, Looper.myLooper());
--->public void onInputEvent(InputEvent event) # WindowInputEventReceiver
--->doProcessInputEvents
--->deliverInputEvent
--->stage.deliver(q);@InputStage.java](mailto:--->stage.deliver(q);@InputStage.java)
--->ViewPostImeInputStage
--->onProcess
--->processKeyEvent
--->mView. dispatchTouchEvent(event) mView就是DecorView
--->final Window.Callback cb = mWindow.getCallback() // 进入Activity
final boolean handled = cb != null && mFeatureId < 0 ? cb.dispatchKeyEvent(event): super.dispatchKeyEvent(event);
if (handled) {
return true;
}
--->win.superDispatchTouchEvent(event) // PhoneWindow
--->mDecor.superDispatcTouchEvent(event)
---->super.dispatchTouchEvent(event)//mDecorView,
---->ViewGroup.dispatchTouchEvent() //最终到ViewGroup处理事件
---->View.dispatchTouchEvent()
---->View.onTouch()
---->View.onTouchEvent()
---->onClick()
---->onLongClick()// 这里是通过postdelay一个runnable实现的。
View.dispatchTouchEvent // 事件处理方法,事件的处理核心。
事件首先分发到DecorView,然后再到Activity
InputStage的一些执行,input事件(QueuedInputEvent)分为多阶段处理(InputStage),每个阶段对应一个stage,一个事件对应多个stage,当前阶段(stage)若是已经被处理,则跳过执行下一个阶段,否则先进行处理然后执行下一阶段
InputStage
mSyntheticInputStage = new SyntheticInputStage();
InputStage viewPostImeStage = new ViewPostImeInputStage(mSyntheticInputStage);
InputStage nativePostImeStage = new NativePostImeInputStage(viewPostImeStage,
"aq:native-post-ime:" + counterSuffix);
InputStage earlyPostImeStage = new EarlyPostImeInputStage(nativePostImeStage);
InputStage imeStage = new ImeInputStage(earlyPostImeStage,
"aq:ime:" + counterSuffix);
InputStage viewPreImeStage = new ViewPreImeInputStage(imeStage);
InputStage nativePreImeStage = new NativePreImeInputStage(viewPreImeStage,
"aq:native-pre-ime:" + counterSuffix);
事件处理机制的几个重要方法
dispatchTouchEvent, // 只要事件到View,View就会执行这个方法。
onInterceptTouchEvent,// 用于拦截事件。
onTouchEvent:
(1)onTouchEvent在哪里执行的-->在View的dispatchTouchEvent中。
(2)onTouch和onClick 执行的位置,onTouch先执行,onClick后执行。
(3)LongClick // ACTION_DOWN处理,removeLongPressCallback(); 按压时间<400,action_down处理
(4)按下移出view,为什么onClick不执行,不过long事件依然可以执行。 // if (!pointInView(x, y, touchSlop)) 原因如下:
if (!pointInView(x, y, touchSlop)) {
// Outside button
// Remove any future long press/tap checks
removeTapCallback();
removeLongPressCallback();
if ((mPrivateFlags & PFLAG_PRESSED) != 0) {
setPressed(false);
}
mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
}
上边这个这个代码是在Move里边执行的,会实时检测位置。
if (!pointInView(x, y, touchSlop)) {
// The default action here is to cancel long press. But instead, we
// just extend the timeout here, in case the classification
// stays ambiguous.
removeLongPressCallback();
long delay = (long) (ViewConfiguration.getLongPressTimeout()
* mAmbiguousGestureMultiplier);
// Subtract the time already spent
delay -= event.getEventTime() - event.getDownTime();
checkForLongClick(
delay,
x,
y,
TOUCH_GESTURE_CLASSIFIED__CLASSIFICATION__LONG_PRESS);
}
touchSlop *= mAmbiguousGestureMultiplier;
根据上边的代码,Long事件依然可以响应。
if ((mPrivateFlags & PFLAG_PRESSED) != 0 才能进入onClick,移除了点击与长按事件。
View.dispatchTouchEvent
--->onTouch // 设置setOnTouchListener()之后就会执行,返回值影响onClick执行,false才能继续执行。
--->!result && onTouchEvent(event) // 短路与,当result为true,onTouchEvent不执行。onClick在onTouchEvent里边。
// MotionEvent.ACTION_UP:
---->PerformClick
--->performClickInternal
--->performClick
--->onClick // 表示该事件被这个View消费了。
ViewGroup.dispatchTouchEvent
第一根手指按下:Action_down,第二根到第n根,action_point_down中间移动 ,Action_move多次调用。 抬起:倒数第n根到倒数第二根:Action_point_up,最后一根手指:Action_up。安卓手机最多能够识别32根手指,和int的位数相关。 位运算。一位表示一个手指:
int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex) : TouchTarget.ALL_POINTER_IDS;
事件分发解析
整体流程如下
ViewGroup事件分发源码解析
@Override
public boolean dispatchTouchEvent(MotionEvent ev) {
if (mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onTouchEvent(ev, 1);
}
// If the event targets the accessibility focused view and this is it, start
// normal event dispatch. Maybe a descendant is what will handle the click.
// 残障人士的辅助类,智能聊天
if (ev.isTargetAccessibilityFocus() && isAccessibilityFocusedViewOrHost()) {
ev.setTargetAccessibilityFocus(false);
}
boolean handled = false;
if (onFilterTouchEventForSecurity(ev)) {
final int action = ev.getAction();
final int actionMasked = action & MotionEvent.ACTION_MASK;
// Handle an initial down.
// 多指或者单指,只会执行一次。第二、三等手指按下,是Action_point_down
// 重置状态,
if (actionMasked == MotionEvent.ACTION_DOWN) {
// Throw away all previous state when starting a new touch gesture.
// The framework may have dropped the up or cancel event for the previous gesture
// due to an app switch, ANR, or some other state change.
cancelAndClearTouchTargets(ev);
resetTouchState();
}
// Check for interception.检测是否拦截,父容器的权利。
final boolean intercepted;
if (actionMasked == MotionEvent.ACTION_DOWN
|| mFirstTouchTarget != null) {
final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
// 决定onInterceptTouchEvent是否执行。
if (!disallowIntercept) {
intercepted = onInterceptTouchEvent(ev);
ev.setAction(action); // restore action in case it was changed
} else {
intercepted = false;
}
} else {
// There are no touch targets and this action is not an initial down
// so this view group continues to intercept touches.
intercepted = true;
}
// If intercepted, start normal event dispatch. Also if there is already
// a view that is handling the gesture, do normal event dispatch.
if (intercepted || mFirstTouchTarget != null) {
ev.setTargetAccessibilityFocus(false);
}
// Check for cancelation.
final boolean canceled = resetCancelNextUpFlag(this)
|| actionMasked == MotionEvent.ACTION_CANCEL;
// Update list of touch targets for pointer down, if needed.
final boolean isMouseEvent = ev.getSource() == InputDevice.SOURCE_MOUSE;
// split默认为true,是否可以多指。
final boolean split = (mGroupFlags & FLAG_SPLIT_MOTION_EVENTS) != 0
&& !isMouseEvent;
TouchTarget newTouchTarget = null;
boolean alreadyDispatchedToNewTouchTarget = false;
// 在if中分发事件。
if (!canceled && !intercepted) {
// If the event is targeting accessibility focus we give it to the
// view that has accessibility focus and if it does not handle it
// we clear the flag and dispatch the event to all children as usual.
// We are looking up the accessibility focused host to avoid keeping
// state since these events are very rare.
View childWithAccessibilityFocus = ev.isTargetAccessibilityFocus()
? findChildWithAccessibilityFocus() : null;
// 第一根手指按下时。
if (actionMasked == MotionEvent.ACTION_DOWN
// 只要有手指按下,第二根,第三根...
|| (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN)
// 鼠标
|| actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
// 如果事件是MotionEvent.ACTION_DOWN,actionIndex = 0;用来进行事件的计数,如果是第二根第三个手指,这个相应的就是1、2......
final int actionIndex = ev.getActionIndex(); // always 0 for down
// 手指的ID。这里是一个位运算,一位表示一根手指,int是32为,因此安卓手机最多能够识别32根手指
final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex)
: TouchTarget.ALL_POINTER_IDS;
// Clean up earlier touch targets for this pointer id in case they
// have become out of sync.
removePointersFromTouchTargets(idBitsToAssign);
// 有多少个子孩子。
final int childrenCount = mChildrenCount;
if (newTouchTarget == null && childrenCount != 0) {
final float x =
isMouseEvent ? ev.getXCursorPosition() : ev.getX(actionIndex);
final float y =
isMouseEvent ? ev.getYCursorPosition() : ev.getY(actionIndex);
// Find a child that can receive the event.
// Scan children from front to back.
// 将子View进行排序,确定谁来优先处理事件。
final ArrayList<View> preorderedList = buildTouchDispatchChildList();
final boolean customOrder = preorderedList == null
&& isChildrenDrawingOrderEnabled();
final View[] children = mChildren;
// 倒叙遍历。xml写在后边的先处理事件。
for (int i = childrenCount - 1; i >= 0; i--) {
final int childIndex = getAndVerifyPreorderedIndex(
childrenCount, i, customOrder);
final View child = getAndVerifyPreorderedView(
preorderedList, children, childIndex);
// 判断这个view是否能够处理点击事件。
if (!child.canReceivePointerEvents() // View可见或者Animation不为空
// 点击区域是否在View上边
|| !isTransformedTouchPointInView(x, y, child, null)) {
continue;
}
// 单指操作为空,多指不为空。
newTouchTarget = getTouchTarget(child);
if (newTouchTarget != null) {
// Child is already receiving touch within its bounds.
// Give it the new pointer in addition to the ones it is handling.
newTouchTarget.pointerIdBits |= idBitsToAssign;
break;
}
resetCancelNextUpFlag(child);
// 在询问child是否处理事件,如果child处理,则命中if--递归
if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) {
// Child wants to receive touch within its bounds.
mLastTouchDownTime = ev.getDownTime();
if (preorderedList != null) {
// childIndex points into presorted list, find original index
for (int j = 0; j < childrenCount; j++) {
if (children[childIndex] == mChildren[j]) {
mLastTouchDownIndex = j;
break;
}
}
} else {
mLastTouchDownIndex = childIndex;
}
mLastTouchDownX = ev.getX();
mLastTouchDownY = ev.getY();
// 创建了newTouchTarget,并且newTouchTarget = mFirstTouchTarget,如果是多指操作,那么addTouchTarget(里边是链表)会将这些target指向下一个目标,
newTouchTarget = addTouchTarget(child, idBitsToAssign);
// 后边会用到。
alreadyDispatchedToNewTouchTarget = true;
// 退出循环,事件已经处理完成,不在询问其他Child
break;
}
// The accessibility focus didn't handle the event, so clear
// the flag and do a normal dispatch to all children.
ev.setTargetAccessibilityFocus(false);
}
if (preorderedList != null) preorderedList.clear();
}
// 多指处理的情况
if (newTouchTarget == null && mFirstTouchTarget != null) {
// Did not find a child to receive the event.
// Assign the pointer to the least recently added target.
newTouchTarget = mFirstTouchTarget;
while (newTouchTarget.next != null) {
newTouchTarget = newTouchTarget.next;
}
newTouchTarget.pointerIdBits |= idBitsToAssign;
}
}
}
// Dispatch to touch targets.
// 没有child处理事件的时候,这个值才是空。
if (mFirstTouchTarget == null) {
// No touch targets so treat this as an ordinary view.
// 所有的Child都不处理,就询问自己是否处理
handled = dispatchTransformedTouchEvent(ev, canceled, null,
TouchTarget.ALL_POINTER_IDS);
} else {
// 有子View处理了事件
// Dispatch to touch targets, excluding the new touch target if we already
// dispatched to it. Cancel touch targets if necessary.
TouchTarget predecessor = null;
TouchTarget target = mFirstTouchTarget;
// while循环为单指操作时,只会执行一次。
while (target != null) {
// 单指操作next = null;
final TouchTarget next = target.next;
// 单指操作会直接命中if,直接返回,不做处理。
if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
handled = true;
} else {
final boolean cancelChild = resetCancelNextUpFlag(target.child)
|| intercepted;
// 询问target.child(前面保存的addTouchTarget())要不要处理这个事件
if (dispatchTransformedTouchEvent(ev, cancelChild,
target.child, target.pointerIdBits)) {
handled = true;
}
// 为true,取消child处理事件。
if (cancelChild) {
if (predecessor == null) {
// mFirstTouchTarget置为null
mFirstTouchTarget = next;
} else {
predecessor.next = next;
}
target.recycle();
target = next;
continue;
}
}
predecessor = target;
target = next;
}
}
// Update list of touch targets for pointer up or cancel, if needed.
if (canceled
|| actionMasked == MotionEvent.ACTION_UP
|| actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
resetTouchState();
} else if (split && actionMasked == MotionEvent.ACTION_POINTER_UP) {
final int actionIndex = ev.getActionIndex();
final int idBitsToRemove = 1 << ev.getPointerId(actionIndex);
removePointersFromTouchTargets(idBitsToRemove);
}
}
if (!handled && mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onUnhandledEvent(ev, 1);
}
return handled;
}
// 对View进行排列,用来处理事件。显示在最上边的优先处理事件。
ArrayList<View> buildOrderedChildList() {
final int childrenCount = mChildrenCount;
if (childrenCount <= 1 || !hasChildWithZ()) return null;
if (mPreSortedChildren == null) {
mPreSortedChildren = new ArrayList<>(childrenCount);
} else {
// callers should clear, so clear shouldn't be necessary, but for safety...
mPreSortedChildren.clear();
mPreSortedChildren.ensureCapacity(childrenCount);
}
final boolean customOrder = isChildrenDrawingOrderEnabled();
for (int i = 0; i < childrenCount; i++) {
// add next child (in child order) to end of list
final int childIndex = getAndVerifyPreorderedIndex(childrenCount, i, customOrder);
final View nextChild = mChildren[childIndex];
// 默认不设置,则为0
final float currentZ = nextChild.getZ();
// insert ahead of any Views with greater Z
int insertIndex = i;
while (insertIndex > 0 && mPreSortedChildren.get(insertIndex - 1).getZ() > currentZ) {
insertIndex--;
}
// 谁显示在最上边,xml中,布局靠后的放在集合后边。谁最先处理事件
mPreSortedChildren.add(insertIndex, nextChild);
}
return mPreSortedChildren;
}
private boolean dispatchTransformedTouchEvent(MotionEvent event, boolean cancel,
View child, int desiredPointerIdBits) {
final boolean handled;
// Canceling motions is a special case. We don't need to perform any transformations
// or filtering. The important part is the action, not the contents.
final int oldAction = event.getAction();
if (cancel || oldAction == MotionEvent.ACTION_CANCEL) {
event.setAction(MotionEvent.ACTION_CANCEL);
if (child == null) {
handled = super.dispatchTouchEvent(event);
} else {
handled = child.dispatchTouchEvent(event);
}
event.setAction(oldAction);
return handled;
}
// Calculate the number of pointers to deliver.
final int oldPointerIdBits = event.getPointerIdBits();
final int newPointerIdBits = oldPointerIdBits & desiredPointerIdBits;
// If for some reason we ended up in an inconsistent state where it looks like we
// might produce a motion event with no pointers in it, then drop the event.
if (newPointerIdBits == 0) {
return false;
}
// If the number of pointers is the same and we don't need to perform any fancy
// irreversible transformations, then we can reuse the motion event for this
// dispatch as long as we are careful to revert any changes we make.
// Otherwise we need to make a copy.
final MotionEvent transformedEvent;
if (newPointerIdBits == oldPointerIdBits) {
if (child == null || child.hasIdentityMatrix()) {
if (child == null) {
handled = super.dispatchTouchEvent(event);
} else {
final float offsetX = mScrollX - child.mLeft;
final float offsetY = mScrollY - child.mTop;
event.offsetLocation(offsetX, offsetY);
handled = child.dispatchTouchEvent(event);
event.offsetLocation(-offsetX, -offsetY);
}
return handled;
}
transformedEvent = MotionEvent.obtain(event);
} else {
transformedEvent = event.split(newPointerIdBits);
}
// Perform any necessary transformations and dispatch.
if (child == null) {
// Viewgroup的super就是View.dispatchTouchEvent(处理事件)
handled = super.dispatchTouchEvent(transformedEvent);
} else {
final float offsetX = mScrollX - child.mLeft;
final float offsetY = mScrollY - child.mTop;
transformedEvent.offsetLocation(offsetX, offsetY);
if (! child.hasIdentityMatrix()) {
transformedEvent.transform(child.getInverseMatrix());
}
// child是容器,ViewGroup.dispathTouchEvent。Child是View,View.dispatchTouchEvent(处理事件)
handled = child.dispatchTouchEvent(transformedEvent);
}
// Done.
transformedEvent.recycle();
return handled;
}
// 多指操作组合成链表。
private TouchTarget addTouchTarget(@NonNull View child, int pointerIdBits) {
final TouchTarget target = TouchTarget.obtain(child, pointerIdBits);
// 单指操作,target0->next为空。
target.next = mFirstTouchTarget;
mFirstTouchTarget = target;
return target;
}
View.dispatchTouchEvent负责完成事件的处理
public boolean dispatchTouchEvent(MotionEvent event) {
// If the event should be handled by accessibility focus first.
if (event.isTargetAccessibilityFocus()) {
// We don't have focus or no virtual descendant has it, do not handle the event.
if (!isAccessibilityFocusedViewOrHost()) {
return false;
}
// We have focus and got the event, then use normal event dispatch.
event.setTargetAccessibilityFocus(false);
}
boolean result = false;
if (mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onTouchEvent(event, 0);
}
final int actionMasked = event.getActionMasked();
if (actionMasked == MotionEvent.ACTION_DOWN) {
// Defensive cleanup for new gesture
stopNestedScroll();
}
if (onFilterTouchEventForSecurity(event)) {
if ((mViewFlags & ENABLED_MASK) == ENABLED && handleScrollBarDragging(event)) {
result = true;
}
//noinspection SimplifiableIfStatement
ListenerInfo li = mListenerInfo;
// 首先处理onTouch事件。
if (li != null && li.mOnTouchListener != null
&& (mViewFlags & ENABLED_MASK) == ENABLED
&& li.mOnTouchListener.onTouch(this, event)) {
result = true;
}
// 然后处理onTouchEvent事件,这个事件里边会处理长按事件和点击事件。
if (!result && onTouchEvent(event)) {
result = true;
}
}
if (!result && mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onUnhandledEvent(event, 0);
}
// Clean up after nested scrolls if this is the end of a gesture;
// also cancel it if we tried an ACTION_DOWN but we didn't want the rest
// of the gesture.
if (actionMasked == MotionEvent.ACTION_UP ||
actionMasked == MotionEvent.ACTION_CANCEL ||
(actionMasked == MotionEvent.ACTION_DOWN && !result)) {
stopNestedScroll();
}
return result;
}
public boolean onTouchEvent(MotionEvent event) {
// 这里可以实现拓展点击区域的操作
if (mTouchDelegate != null) {
if (mTouchDelegate.onTouchEvent(event)) {
return true;
}
}
if (clickable || (viewFlags & TOOLTIP) == TOOLTIP) {
switch (action) {
case MotionEvent.ACTION_UP:
mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
if ((viewFlags & TOOLTIP) == TOOLTIP) {
handleTooltipUp();
}
if (!clickable) {
removeTapCallback();
removeLongPressCallback();
mInContextButtonPress = false;
mHasPerformedLongPress = false;
mIgnoreNextUpEvent = false;
break;
}
boolean prepressed = (mPrivateFlags & PFLAG_PREPRESSED) != 0;
if ((mPrivateFlags & PFLAG_PRESSED) != 0 || prepressed) {
// take focus if we don't have it already and we should in
// touch mode.
boolean focusTaken = false;
if (isFocusable() && isFocusableInTouchMode() && !isFocused()) {
focusTaken = requestFocus();
}
if (prepressed) {
// The button is being released before we actually
// showed it as pressed. Make it show the pressed
// state now (before scheduling the click) to ensure
// the user sees it.
setPressed(true, x, y);
}
if (!mHasPerformedLongPress && !mIgnoreNextUpEvent) {
// This is a tap, so remove the longpress check
removeLongPressCallback();
// Only perform take click actions if we were in the pressed state
if (!focusTaken) {
// Use a Runnable and post this rather than calling
// performClick directly. This lets other visual state
// of the view update before click actions start.
if (mPerformClick == null) {
mPerformClick = new PerformClick();
}
// onClick 事件在Action_up才会触发,另外,如果在抬起手指的时候已经离开View的区域了,就不会触发了。
if (!post(mPerformClick)) {
performClickInternal();
}
}
}
if (mUnsetPressedState == null) {
mUnsetPressedState = new UnsetPressedState();
}
if (prepressed) {
postDelayed(mUnsetPressedState,
ViewConfiguration.getPressedStateDuration());
} else if (!post(mUnsetPressedState)) {
// If the post failed, unpress right now
mUnsetPressedState.run();
}
removeTapCallback();
}
mIgnoreNextUpEvent = false;
break;
case MotionEvent.ACTION_DOWN:
if (event.getSource() == InputDevice.SOURCE_TOUCHSCREEN) {
mPrivateFlags3 |= PFLAG3_FINGER_DOWN;
}
mHasPerformedLongPress = false;
if (!clickable) {
checkForLongClick(
ViewConfiguration.getLongPressTimeout(),
x,
y,
TOUCH_GESTURE_CLASSIFIED__CLASSIFICATION__LONG_PRESS);
break;
}
if (performButtonActionOnTouchDown(event)) {
break;
}
// Walk up the hierarchy to determine if we're inside a scrolling container.
boolean isInScrollingContainer = isInScrollingContainer();
// For views inside a scrolling container, delay the pressed feedback for
// a short period in case this is a scroll.
if (isInScrollingContainer) {
mPrivateFlags |= PFLAG_PREPRESSED;
if (mPendingCheckForTap == null) {
mPendingCheckForTap = new CheckForTap();
}
mPendingCheckForTap.x = event.getX();
mPendingCheckForTap.y = event.getY();
postDelayed(mPendingCheckForTap, ViewConfiguration.getTapTimeout());
} else {
// Not inside a scrolling container, so show the feedback right away
setPressed(true, x, y);
// 在Action_down事件里边检测和触发long事件。
checkForLongClick(
ViewConfiguration.getLongPressTimeout(),
x,
y,
TOUCH_GESTURE_CLASSIFIED__CLASSIFICATION__LONG_PRESS);
}
break;
case MotionEvent.ACTION_CANCEL:
if (clickable) {
setPressed(false);
}
removeTapCallback();
removeLongPressCallback();
mInContextButtonPress = false;
mHasPerformedLongPress = false;
mIgnoreNextUpEvent = false;
mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
break;
case MotionEvent.ACTION_MOVE:
if (clickable) {
drawableHotspotChanged(x, y);
}
final int motionClassification = event.getClassification();
final boolean ambiguousGesture =
motionClassification == MotionEvent.CLASSIFICATION_AMBIGUOUS_GESTURE;
int touchSlop = mTouchSlop;
if (ambiguousGesture && hasPendingLongPressCallback()) {
if (!pointInView(x, y, touchSlop)) {
// The default action here is to cancel long press. But instead, we
// just extend the timeout here, in case the classification
// stays ambiguous.
removeLongPressCallback();
long delay = (long) (ViewConfiguration.getLongPressTimeout()
* mAmbiguousGestureMultiplier);
// Subtract the time already spent
delay -= event.getEventTime() - event.getDownTime();
checkForLongClick(
delay,
x,
y,
TOUCH_GESTURE_CLASSIFIED__CLASSIFICATION__LONG_PRESS);
}
touchSlop *= mAmbiguousGestureMultiplier;
}
// Be lenient about moving outside of buttons
if (!pointInView(x, y, touchSlop)) {
// Outside button
// Remove any future long press/tap checks
removeTapCallback();
removeLongPressCallback();
if ((mPrivateFlags & PFLAG_PRESSED) != 0) {
setPressed(false);
}
mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
}
final boolean deepPress =
motionClassification == MotionEvent.CLASSIFICATION_DEEP_PRESS;
if (deepPress && hasPendingLongPressCallback()) {
// process the long click action immediately
removeLongPressCallback();
checkForLongClick(
0 /* send immediately */,
x,
y,
TOUCH_GESTURE_CLASSIFIED__CLASSIFICATION__DEEP_PRESS);
}
break;
}
return true;
}
return false;
}
整个流程其实就是在执行这个代码:
public boolean dispatchTouchEvent(MotionEvent ev) {
if (ev.getAction() == MotionEvent.ACTION_DOWN) {
onUserInteraction();
}
if (getWindow().superDispatchTouchEvent(ev)) {
return true;
}
return onTouchEvent(ev);
}
相比于View,ViewGroup不仅要做时间分发,还可能需要做事件响应处理。
一些问题
1、Down事件谁处理,move事件就由谁处理;
2、单指操作,不需要管链表问题。
3、继承Activity和AppcompatActivity的区别:
