Windows之defender防火墙

概述

• Windows系统自带的软件防火墙，实现按照特定的规则，允许和限制传输的数据流量通过;

• 可以配置其入栈规则和出栈规则来实现流量限制：

  • 入栈(入站):外部主机发送给当前主机的流量;
  • 出栈(出站):当前主机发送给外部主机的流量;

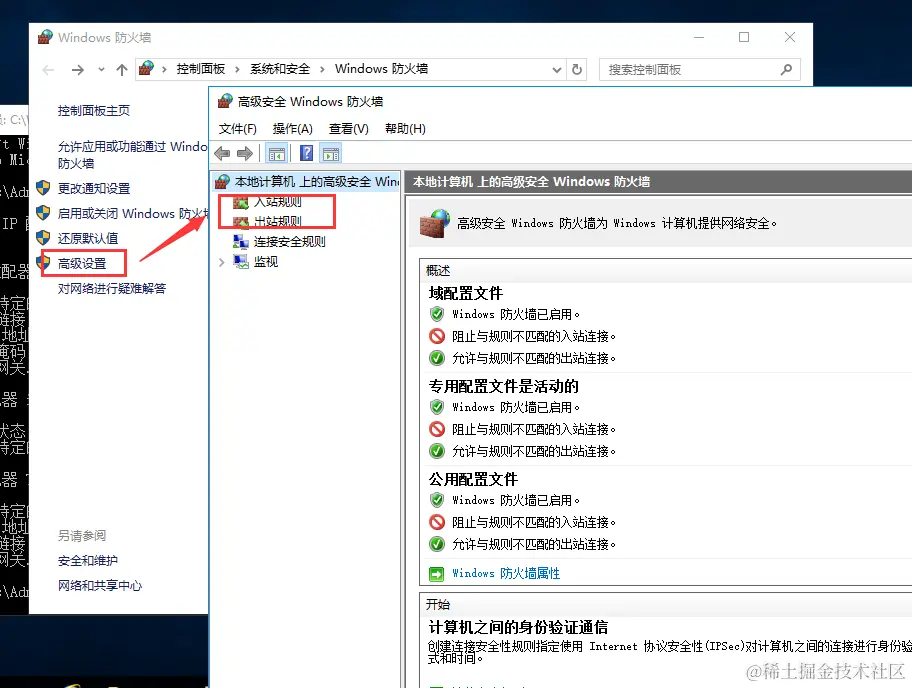

• 在运行窗口输入以下命令，打开防火墙界面

1. firewall.cpl

图形化界面配置案例

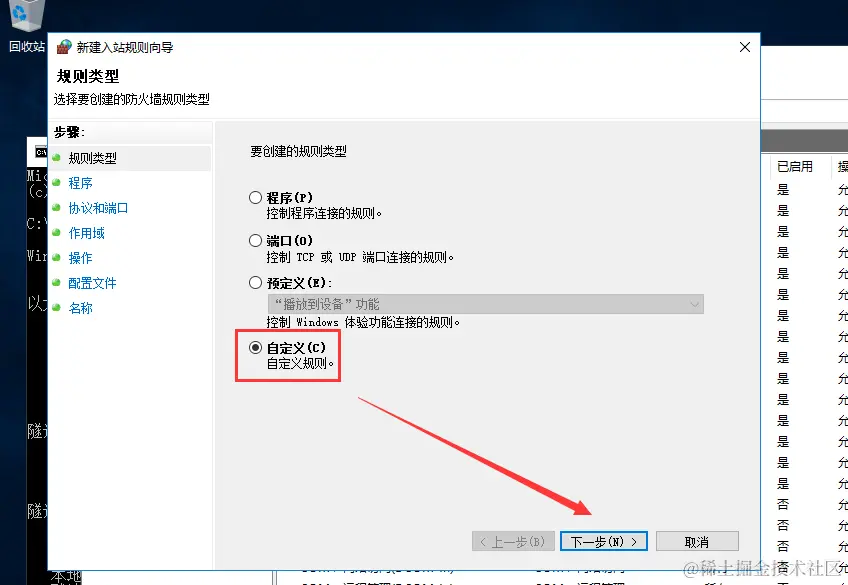

• 新建规则

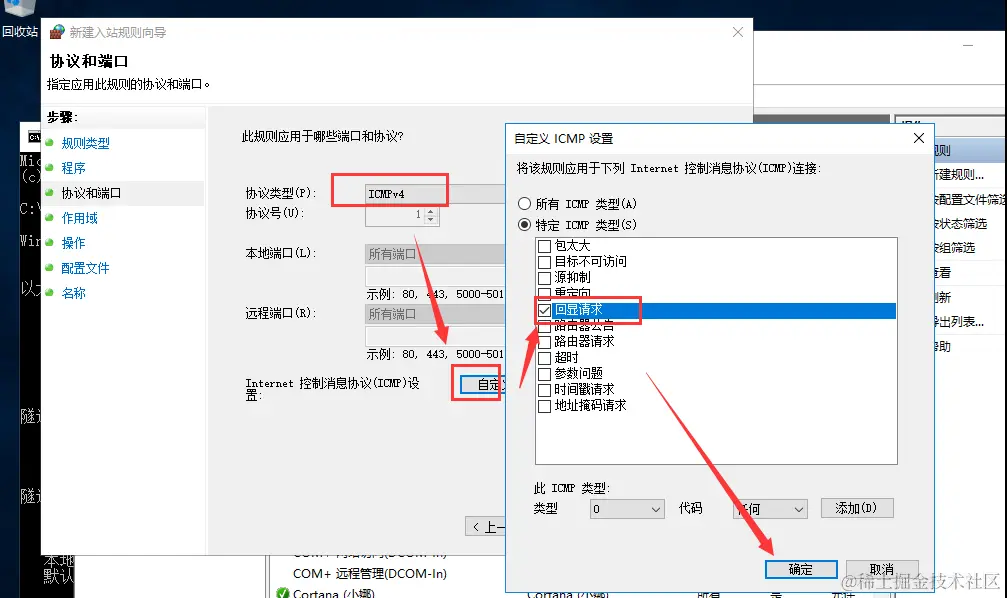

• 确定目标流量特征(协议类型)

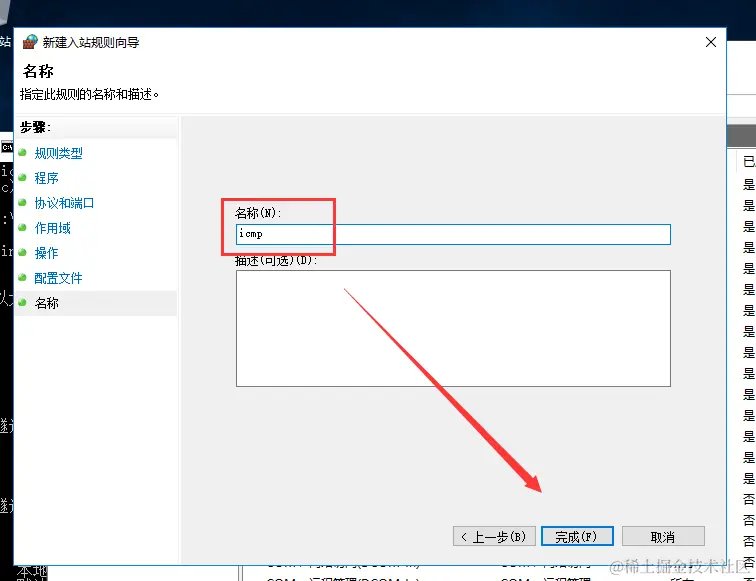

• 设置规则名称

命令

• netsh advfirewall firewall

1. add - 添加新入站或出站防火墙规则。
2. delete - 删除所有匹配的防火墙规则。
3. set - 为现有规则的属性设置新值。
4. show - 显示指定的防火墙规则。

添加

1. add rule name=<string> 规则名称
2. dir=in|out 流量方向:in表示入栈，out表示出栈
3. action=allow|block|bypass 执行动作:allow表示放行，block表示阻止
4. [program=<program path>] 程序类型
5. [service=<service short name>|any] 服务类型
6. [description=<string>] 描述信息
7. [enable=yes|no (default=yes)] 规则是否启用
8. [profile=public|private|domain|any[,...]] 配置文件(针对哪个网络)
9. [localip=any|<IPv4 address>|<IPv6 address>|<subnet>|<range>|<list>] 针对的本地IP地址
10. [remoteip=any|localsubnet|dns|dhcp|wins|defaultgateway| 针对的远程IP地址
11. <IPv4 address>|<IPv6 address>|<subnet>|<range>|<list>]
12. [localport=0-65535|<port range>[,...]|RPC|RPC-EPMap|IPHTTPS|any (default=any)] 针对的本地端口
13. [remoteport=0-65535|<port range>[,...]|any (default=any)] 针对的远程端口
14. [protocol=0-255|icmpv4|icmpv6|icmpv4:type,code|icmpv6:type,code| 针对的协议类型
15. tcp|udp|any (default=any)]

修改

1. set rule
2. group=<string> | name=<string>
3. [dir=in|out]
4. [profile=public|private|domain|any[,...]]
5. [program=<program path>]
6. [service=service short name|any]
7. [localip=any|<IPv4 address>|<IPv6 address>|<subnet>|<range>|<list>]
8. [remoteip=any|localsubnet|dns|dhcp|wins|defaultgateway|
9. <IPv4 address>|<IPv6 address>|<subnet>|<range>|<list>]
10. [localport=0-65535|<port range>[,...]|RPC|RPC-EPMap|IPHTTPS|any]
11. [remoteport=0-65535|<port range>[,...]|any]
12. [protocol=0-255|icmpv4|icmpv6|icmpv4:type,code|icmpv6:type,code|
13. tcp|udp|any]
14. new
15. [name=<string>]
16. [dir=in|out]
17. [program=<program path>
18. [service=<service short name>|any]
19. [action=allow|block|bypass]
20. [description=<string>]
21. [enable=yes|no]
22. [profile=public|private|domain|any[,...]]
23. [localip=any|<IPv4 address>|<IPv6 address>|<subnet>|<range>|<list>]
24. [remoteip=any|localsubnet|dns|dhcp|wins|defaultgateway|
25. <IPv4 address>|<IPv6 address>|<subnet>|<range>|<list>]
26. [localport=0-65535|RPC|RPC-EPMap|any[,...]]
27. [remoteport=0-65535|any[,...]]
28. [protocol=0-255|icmpv4|icmpv6|icmpv4:type,code|icmpv6:type,code|
29. tcp|udp|any]
30. [interfacetype=wireless|lan|ras|any]
31. [rmtcomputergrp=<SDDL string>]
32. [rmtusrgrp=<SDDL string>]
33. [edge=yes|deferapp|deferuser|no (default=no)]
34. [security=authenticate|authenc|authdynenc|notrequired]

查询

1. show rule name=<string>
2. [profile=public|private|domain|any[,...]]
3. [type=static|dynamic]
4. [verbose]

删除

1. delete rule name=<string>
2. [dir=in|out]
3. [profile=public|private|domain|any[,...]]
4. [program=<program path>]
5. [service=<service short name>|any]
6. [localip=any|<IPv4 address>|<IPv6 address>|<subnet>|<range>|<list>]
7. [remoteip=any|localsubnet|dns|dhcp|wins|defaultgateway|
8. <IPv4 address>|<IPv6 address>|<subnet>|<range>|<list>]
9. [localport=0-65535|<port range>[,...]|RPC|RPC-EPMap|any]
10. [remoteport=0-65535|<port range>[,...]|any]
11. [protocol=0-255|icmpv4|icmpv6|icmpv4:type,code|icmpv6:type,code|
12. tcp|udp|any]

案例

概述

• 添加入栈规则实现ICMP回显流量放行

命令配置

1. netsh advfirewall firewall add rule name="ICMP规则" dir=in action=allow profile=any protocol=icmpv4:8,0

图形化界面配置案例

• 新建规则

• 确定目标流量特征(协议类型)

• 设置规则名称
