Logstash输出到Doris

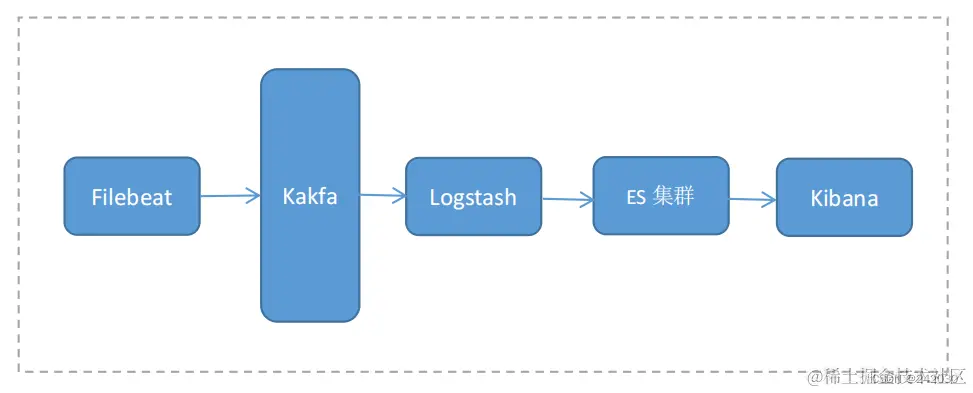

日志架构

可以看到日志最终都进入了ES里面，对于搜索非常方便， 但是对于统计还不能满足我们的需求

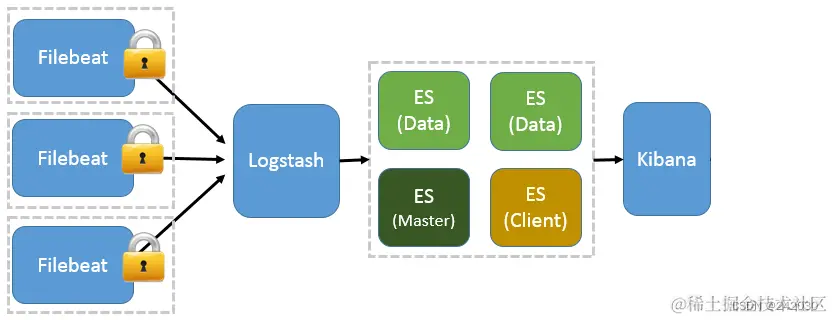

日志收集

Doris

这里就不多介绍了，性能非常强，和mysql语法基本一样，可以快速上手

方案对比

logback配置

<appender name="FEIGN_LOG" class="com.xy.FeignLogAppender"/>

<appender name="ASYNC_FEIGN_LOG" class="ch.qos.logback.classic.AsyncAppender">
    <discardingThreshold>0</discardingThreshold>
    <queueSize>500</queueSize>
    <appender-ref ref="FEIGN_LOG"/>
</appender>

<logger name="com.xy.controller" level="INFO">
    <appender-ref ref="ASYNC_FEIGN_LOG"/>
</logger>

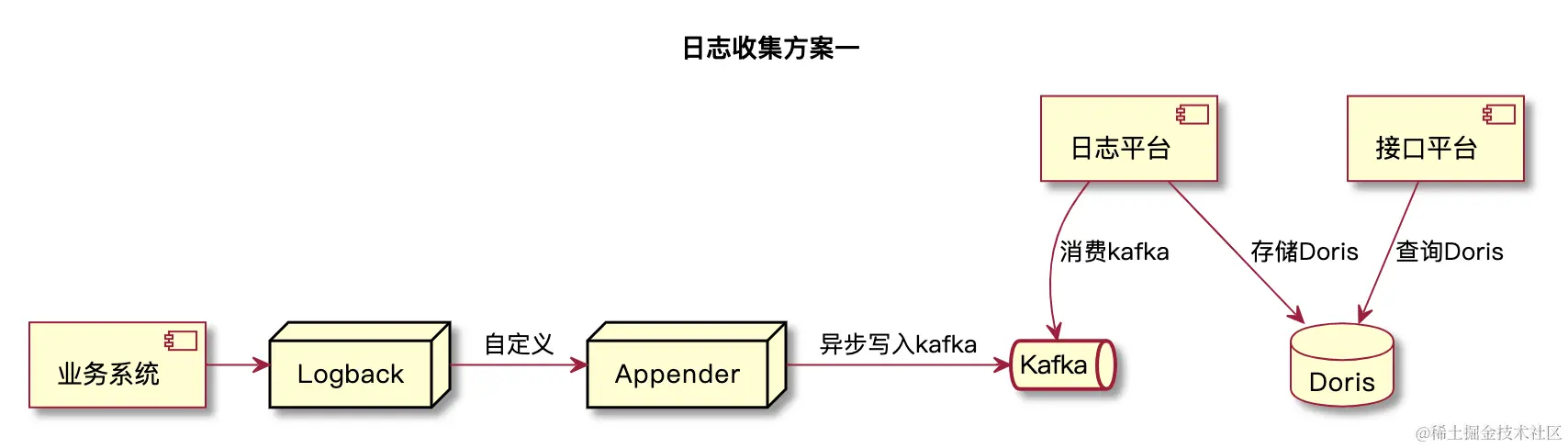

方案一：需要自定义Appender，过滤指定关键字的日志，把日志解析后写入kafka

优点：不需要运维支持

缺点：各个应用都需要强依赖kafka

logback无配置

logstash配置需要运维支持

input {
    tcp {
        mode => "server"
        port => 4567
        codec => json_lines
    }
}

filter {
    json {
        source => "message"
    }
    mutate {
        remove_field => [ "@version", "@timestamp", "message" ]
    }
}

output {
	stdout {
    	codec => rubydebug
	}
	jdbc {
        driver_jar_path => "/Users/xiongyan/Documents/fuchuang/logstash-8.12.2/mysql-connector-java-8.0.25.jar"
        driver_class => "com.mysql.cj.jdbc.Driver"
        connection_string => "jdbc:mysql://127.0.0.1:9030/xy?rewriteBatchedStatements=true"
        username => "xy"
        password => "123456"

        # 连接池配置
        max_pool_size => 100
        # 批量插入
        flush_size => 1000

        statement => ["INSERT INTO service_remote_log (op_time, request_id, env, from_name, to_name, method, path, protocol, content_type, status_code, cost) VALUES (?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?)", "%{optTime}", "%{requestId}", "%{env}", "%{from}", "%{to}", "%{method}", "%{path}", "%{protol}", "%{contentType}", "%{statusCode}", "%{cost}"]
    }
}

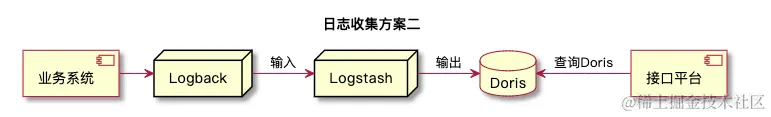

方案二：利用logstash自生的优势，通过logstash-output-jdbc插件 把日志写入doris

优点：各个应用无需强依赖kafka

缺点：需要运维支持

logback无配置

logstash配置需要运维支持

input {
    tcp {
        mode => "server"
        port => 4567
        codec => json_lines
    }
}

filter {
    json {
        source => "message"
    }
    mutate {
        remove_field => [ "@version", "@timestamp", "message"]
    }
}

output {
    stdout {
        codec => rubydebug
    }
    kafka {
        codec => json
        bootstrap_servers => "127.0.0.1:9001,127.0.0.1:9002,127.0.0.1:9003"
        topic_id => "%{topic}"
        security_protocol => "SASL_PLAINTEXT"
        sasl_mechanism => "PLAIN"
    }
}

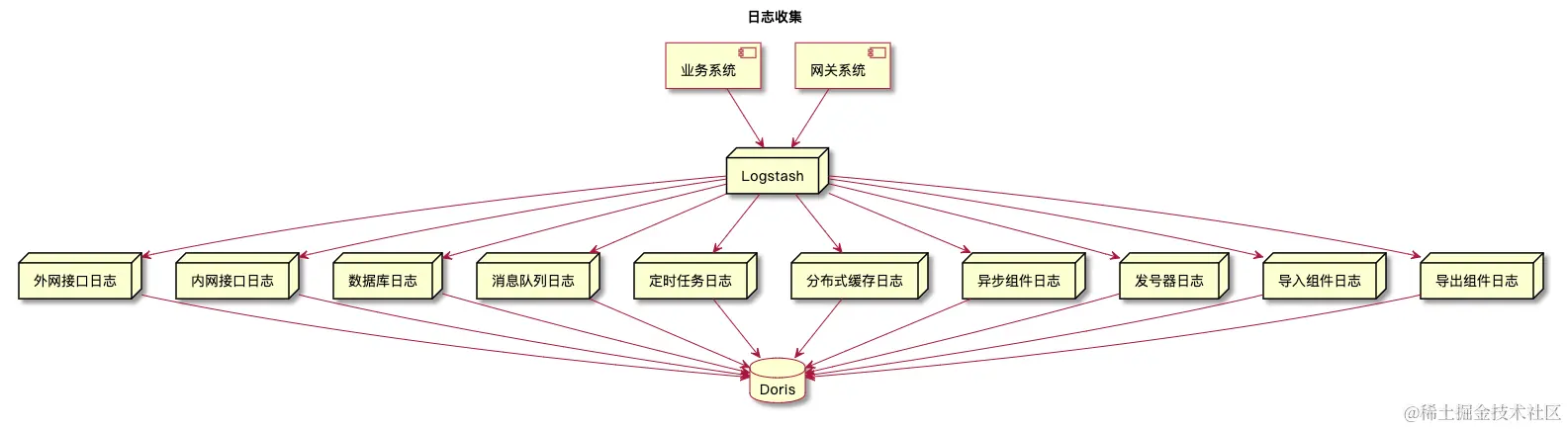

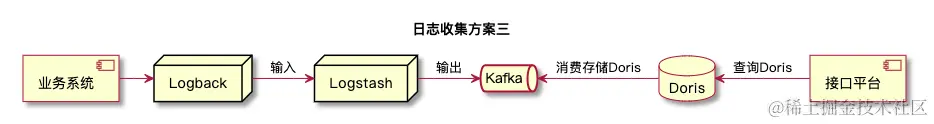

方案二：利用logstash自生的优势，通过logstash-output-kafka插件 把日志写入kafka，在doris配置任务直接消费kafka到表

优点：各个应用无需强依赖kafka

缺点：需要运维支持

Doris配置：

CREATE ROUTINE LOAD job_service_remote_log ON service_remote_log
COLUMNS(op_time, timestamp, trace_id, span_id, env, from_name, to_name, method, path, protocol, content_type, status_code, cost)
PROPERTIES
(
    "desired_concurrent_number" = "1",
    "max_error_number" = "1",
    "format" = "json",
    "strict_mode" = "false",
    "timezone" = "Asia/Shanghai",
    "max_batch_interval" = "10",
    "max_batch_rows" = "200000",
    "max_batch_size" = "209715200",
    "jsonpaths" = "[\"$.opTime\",\"$.timestamp\",\"$.traceId\",\"$.spanId\",\"$.env\",\"$.from\",\"$.to\",\"$.method\",\"$.path\",\"$.protocol\",\"$.contentType\",\"$.statusCode\",\"$.cost\"]"
)
FROM KAFKA
(
    "kafka_broker_list" = "127.0.0.1:9001,127.0.0.1:9002,127.0.0.1:9003",
    "kafka_topic" = "topic",
    "property.group.id" = "group"
);

日志查看

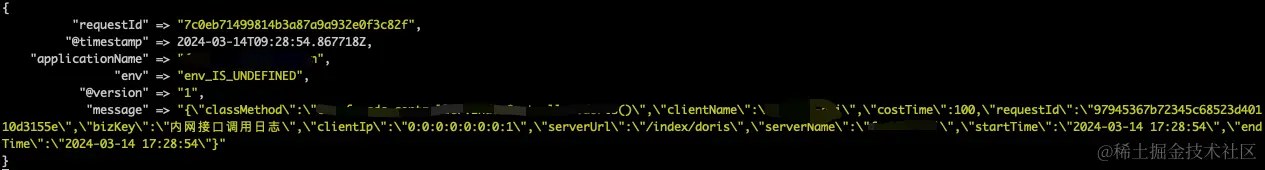

转json之前日志

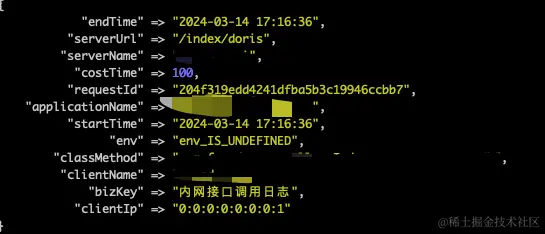

转json之后日志

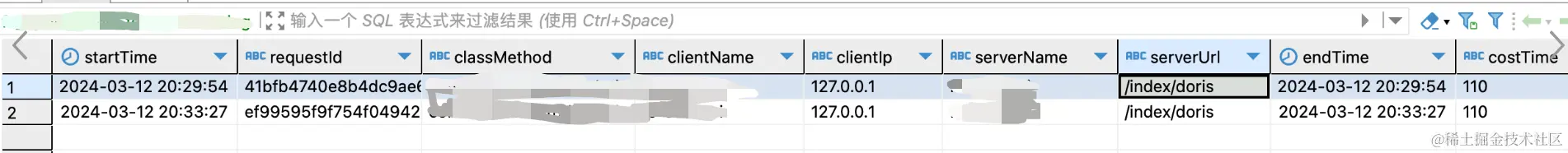

数据库日志

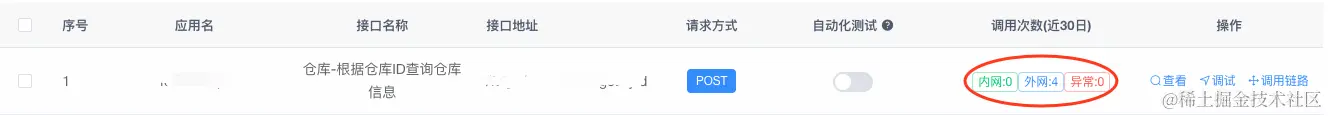

接口调用统计

总结

只需要在脚手架里面添加log.info(message)，就可以轻松实现业务的统计

对于不同的业务统计，在脚手架里面组装不同的数据结构就可以了
