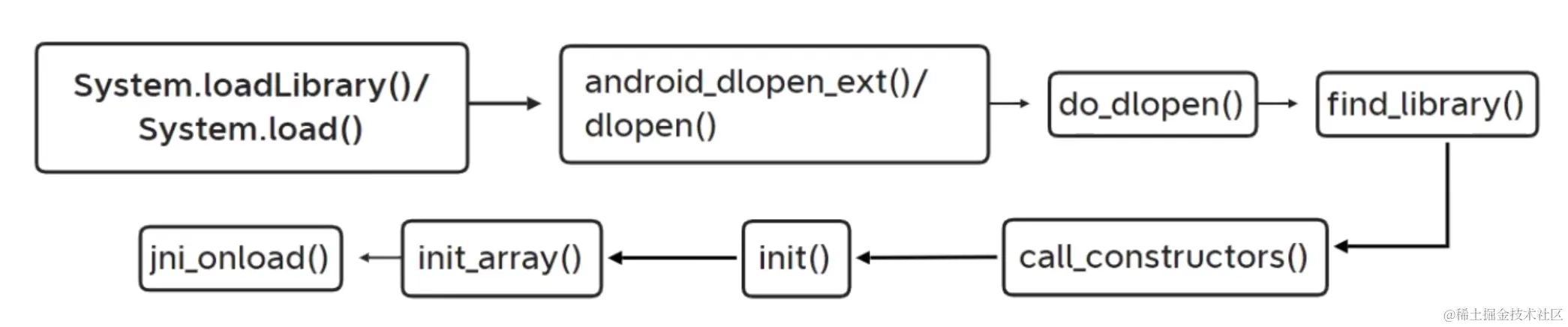

Android so 的加载流程

┌─ void loadLibrary(String libname) [java/java/lang/System.java]
┆
├─ void loadLibrary0(ClassLoader loader, String libname) [java/java/lang/Runtime.java]
┆
├─ String nativeLoad(String filename, ClassLoader loader) [java/java/lang/Runtime.java]
┆
├─ jstring Runtime_nativeLoad((JNIEnv* env, jclass ignored, jstring javaFilename, jobject javaLoader)[main/native/Runtime.c]
┆
├─ jstring JVM_NativeLoad(JNIEnv* env, jstring javaFilename, jobject javaLoader) [art/openjdkjvm/OpenjdkJvm.cc]
┆
├─ bool JavaVMExt::LoadNativeLibrary(JNIEnv* env, const std::string& path, jobject class_loader, std::string* error_msg) [art/runtime/java_vm_ext.cc]
┆
├─ void* OpenNativeLibrary(JNIEnv* env, int32_t target_sdk_version, const char* path, jobject class_loader, jstring library_path, bool* needs_native_bridge, std::string* error_msg) [libnativeloader/native_loader.cpp]
┆
├─ void* dlopen(const char* filename, int flag) [bionic/libdl/libdl.cpp]
┆
├─ void* do_dlopen(const char* name, int flags, const android_dlextinfo* extinfo, const void* caller_addr) [bionic/linker/linker.cpp]

各个版本 dlopen

void hook_dlopen() {
    void *symbol = NULL;

    if (find_symbol("__dl__Z9do_dlopenPKciPK17android_dlextinfoPKv", "linker", (unsigned long *)&symbol) == 0) {
        ZzHookReplace(symbol, (void*)&fake_dlopen_V24, (void**)&real_dlopen_V24);
    } else if (find_symbol("__dl__Z9do_dlopenPKciPK17android_dlextinfoPv", "linker", (unsigned long *)&symbol) == 0) {
        ZzHookReplace(symbol, (void*)&fake_dlopen_V24, (void**)&real_dlopen_V24);
    } else if (find_symbol("__dl__ZL10dlopen_extPKciPK17android_dlextinfoPv", "linker", (unsigned long *)&symbol) == 0) {
        ZzHookReplace(symbol, (void*)&fake_dlopen_V24, (void**)&real_dlopen_V24);
    } else if (find_symbol("__dl__Z20__android_dlopen_extPKciPK17android_dlextinfoPKv", "linker", (unsigned long *)&symbol) == 0) {
        ZzHookReplace(symbol, (void*)&fake_dlopen_V24, (void**)&real_dlopen_V24);
    } else if (find_symbol("__dl___loader_android_dlopen_ext", "linker", (unsigned long *)&symbol) == 0) {
        ZzHookReplace(symbol, (void*)&fake_dlopen_V24, (void**)&real_dlopen_V24);
    } else if (find_symbol("__dl__Z9do_dlopenPKciPK17android_dlextinfo", "linker", (unsigned long *)&symbol) == 0) {
        ZzHookReplace(symbol, (void*)&fake_dlopen_V19, (void**)&real_dlopen_V19);
    } else if (find_symbol("__dl__Z8__dlopenPKciPKv", "linker", (unsigned long *)&symbol) == 0) {
        ZzHookReplace(symbol, (void*)&fake_dlopen_V19, (void**)&real_dlopen_V19);
    } else if (find_symbol("__dl___loader_dlopen", "linker", (unsigned long *)&symbol) == 0) {
        ZzHookReplace(symbol, (void*)&fake_dlopen_V19, (void**)&real_dlopen_V19);
    } else if (find_symbol("__dl_dlopen", "linker", (unsigned long *)&symbol) == 0) {
        ZzHookReplace(symbol, (void*)&fake_dlopen, (void**)&real_dlopen);
    } else {
        ZzHookReplace((void*)dlopen, (void*)&fake_dlopen, (void**)&real_dlopen);
    }
}

do_dlopen

void* do_dlopen(const char* name, int flags,
                const android_dlextinfo* extinfo,
                const void* caller_addr) {
  std::string trace_prefix = std::string("dlopen: ") + (name == nullptr ? "(nullptr)" : name);
  ScopedTrace trace(trace_prefix.c_str());
  ScopedTrace loading_trace((trace_prefix + " - loading and linking").c_str());
  soinfo* const caller = find_containing_library(caller_addr);
  android_namespace_t* ns = get_caller_namespace(caller);

  LD_LOG(kLogDlopen,
         "dlopen(name="%s", flags=0x%x, extinfo=%s, caller="%s", caller_ns=%s@%p, targetSdkVersion=%i) ...",
         name,
         flags,
         android_dlextinfo_to_string(extinfo).c_str(),
         caller == nullptr ? "(null)" : caller->get_realpath(),
         ns == nullptr ? "(null)" : ns->get_name(),
         ns,
         get_application_target_sdk_version());

  auto purge_guard = android::base::make_scope_guard([&]() { purge_unused_memory(); });

  auto failure_guard = android::base::make_scope_guard(
      [&]() { LD_LOG(kLogDlopen, "... dlopen failed: %s", linker_get_error_buffer()); });

  if ((flags & ~(RTLD_NOW|RTLD_LAZY|RTLD_LOCAL|RTLD_GLOBAL|RTLD_NODELETE|RTLD_NOLOAD)) != 0) {
    DL_OPEN_ERR("invalid flags to dlopen: %x", flags);
    return nullptr;
  }

  if (extinfo != nullptr) {
    if ((extinfo->flags & ~(ANDROID_DLEXT_VALID_FLAG_BITS)) != 0) {
      DL_OPEN_ERR("invalid extended flags to android_dlopen_ext: 0x%" PRIx64, extinfo->flags);
      return nullptr;
    }

    if ((extinfo->flags & ANDROID_DLEXT_USE_LIBRARY_FD) == 0 &&
        (extinfo->flags & ANDROID_DLEXT_USE_LIBRARY_FD_OFFSET) != 0) {
      DL_OPEN_ERR("invalid extended flag combination (ANDROID_DLEXT_USE_LIBRARY_FD_OFFSET without "
          "ANDROID_DLEXT_USE_LIBRARY_FD): 0x%" PRIx64, extinfo->flags);
      return nullptr;
    }

    if ((extinfo->flags & ANDROID_DLEXT_USE_NAMESPACE) != 0) {
      if (extinfo->library_namespace == nullptr) {
        DL_OPEN_ERR("ANDROID_DLEXT_USE_NAMESPACE is set but extinfo->library_namespace is null");
        return nullptr;
      }
      ns = extinfo->library_namespace;
    }
  }

  // Workaround for dlopen(/system/lib/<soname>) when .so is in /apex. http://b/121248172
  // The workaround works only when targetSdkVersion < Q.
  std::string name_to_apex;
  if (translateSystemPathToApexPath(name, &name_to_apex)) {
    const char* new_name = name_to_apex.c_str();
    LD_LOG(kLogDlopen, "dlopen considering translation from %s to APEX path %s",
           name,
           new_name);
    // Some APEXs could be optionally disabled. Only translate the path
    // when the old file is absent and the new file exists.
    // TODO(b/124218500): Re-enable it once app compat issue is resolved
    /*
    if (file_exists(name)) {
      LD_LOG(kLogDlopen, "dlopen %s exists, not translating", name);
    } else
    */
    if (!file_exists(new_name)) {
      LD_LOG(kLogDlopen, "dlopen %s does not exist, not translating",
             new_name);
    } else {
      LD_LOG(kLogDlopen, "dlopen translation accepted: using %s", new_name);
      name = new_name;
    }
  }
  // End Workaround for dlopen(/system/lib/<soname>) when .so is in /apex.

  std::string asan_name_holder;

  const char* translated_name = name;
  if (g_is_asan && translated_name != nullptr && translated_name[0] == '/') {
    char original_path[PATH_MAX];
    if (realpath(name, original_path) != nullptr) {
      asan_name_holder = std::string(kAsanLibDirPrefix) + original_path;
      if (file_exists(asan_name_holder.c_str())) {
        soinfo* si = nullptr;
        if (find_loaded_library_by_realpath(ns, original_path, true, &si)) {
          PRINT("linker_asan dlopen NOT translating "%s" -> "%s": library already loaded", name,
                asan_name_holder.c_str());
        } else {
          PRINT("linker_asan dlopen translating "%s" -> "%s"", name, translated_name);
          translated_name = asan_name_holder.c_str();
        }
      }
    }
  }

  ProtectedDataGuard guard;
  soinfo* si = find_library(ns, translated_name, flags, extinfo, caller);
  loading_trace.End();

  if (si != nullptr) {
    void* handle = si->to_handle();
    LD_LOG(kLogDlopen,
           "... dlopen calling constructors: realpath="%s", soname="%s", handle=%p",
           si->get_realpath(), si->get_soname(), handle);
    si->call_constructors();
    failure_guard.Disable();
    LD_LOG(kLogDlopen,
           "... dlopen successful: realpath="%s", soname="%s", handle=%p",
           si->get_realpath(), si->get_soname(), handle);
    return handle;
  }

  return nullptr;
}

find_libraries

// add_as_children - add first-level loaded libraries (i.e. library_names[], but
// not their transitive dependencies) as children of the start_with library.
// This is false when find_libraries is called for dlopen(), when newly loaded
// libraries must form a disjoint tree.
bool find_libraries(android_namespace_t* ns,
                    soinfo* start_with,
                    const char* const library_names[],
                    size_t library_names_count,
                    soinfo* soinfos[],
                    std::vector<soinfo*>* ld_preloads,
                    size_t ld_preloads_count,
                    int rtld_flags,
                    const android_dlextinfo* extinfo,
                    bool add_as_children,
                    bool search_linked_namespaces,
                    std::vector<android_namespace_t*>* namespaces) {
  // Step 0: prepare.
  std::unordered_map<const soinfo*, ElfReader> readers_map;
  LoadTaskList load_tasks;

  for (size_t i = 0; i < library_names_count; ++i) {
    const char* name = library_names[i];
    load_tasks.push_back(LoadTask::create(name, start_with, ns, &readers_map));
  }

  // If soinfos array is null allocate one on stack.
  // The array is needed in case of failure; for example
  // when library_names[] = {libone.so, libtwo.so} and libone.so
  // is loaded correctly but libtwo.so failed for some reason.
  // In this case libone.so should be unloaded on return.
  // See also implementation of failure_guard below.

  if (soinfos == nullptr) {
    size_t soinfos_size = sizeof(soinfo*)*library_names_count;
    soinfos = reinterpret_cast<soinfo**>(alloca(soinfos_size));
    memset(soinfos, 0, soinfos_size);
  }

  // list of libraries to link - see step 2.
  size_t soinfos_count = 0;

  auto scope_guard = android::base::make_scope_guard([&]() {
    for (LoadTask* t : load_tasks) {
      LoadTask::deleter(t);
    }
  });

  ZipArchiveCache zip_archive_cache;

  // Step 1: expand the list of load_tasks to include
  // all DT_NEEDED libraries (do not load them just yet)
  for (size_t i = 0; i<load_tasks.size(); ++i) {
    LoadTask* task = load_tasks[i];
    soinfo* needed_by = task->get_needed_by();

    bool is_dt_needed = needed_by != nullptr && (needed_by != start_with || add_as_children);
    task->set_extinfo(is_dt_needed ? nullptr : extinfo);
    task->set_dt_needed(is_dt_needed);

    LD_LOG(kLogDlopen, "find_libraries(ns=%s): task=%s, is_dt_needed=%d", ns->get_name(),
           task->get_name(), is_dt_needed);

    // Note: start from the namespace that is stored in the LoadTask. This namespace
    // is different from the current namespace when the LoadTask is for a transitive
    // dependency and the lib that created the LoadTask is not found in the
    // current namespace but in one of the linked namespace.
    if (!find_library_internal(const_cast<android_namespace_t*>(task->get_start_from()),
                               task,
                               &zip_archive_cache,
                               &load_tasks,
                               rtld_flags,
                               search_linked_namespaces || is_dt_needed)) {
      return false;
    }

    soinfo* si = task->get_soinfo();

    if (is_dt_needed) {
      needed_by->add_child(si);
    }

    // When ld_preloads is not null, the first
    // ld_preloads_count libs are in fact ld_preloads.
    if (ld_preloads != nullptr && soinfos_count < ld_preloads_count) {
      ld_preloads->push_back(si);
    }

    if (soinfos_count < library_names_count) {
      soinfos[soinfos_count++] = si;
    }
  }

  // Step 2: Load libraries in random order (see b/24047022)
  LoadTaskList load_list;
  for (auto&& task : load_tasks) {
    soinfo* si = task->get_soinfo();
    auto pred = [&](const LoadTask* t) {
      return t->get_soinfo() == si;
    };

    if (!si->is_linked() &&
        std::find_if(load_list.begin(), load_list.end(), pred) == load_list.end() ) {
      load_list.push_back(task);
    }
  }
  bool reserved_address_recursive = false;
  if (extinfo) {
    reserved_address_recursive = extinfo->flags & ANDROID_DLEXT_RESERVED_ADDRESS_RECURSIVE;
  }
  if (!reserved_address_recursive) {
    // Shuffle the load order in the normal case, but not if we are loading all
    // the libraries to a reserved address range.
    shuffle(&load_list);
  }

  // Set up address space parameters.
  address_space_params extinfo_params, default_params;
  size_t relro_fd_offset = 0;
  if (extinfo) {
    if (extinfo->flags & ANDROID_DLEXT_RESERVED_ADDRESS) {
      extinfo_params.start_addr = extinfo->reserved_addr;
      extinfo_params.reserved_size = extinfo->reserved_size;
      extinfo_params.must_use_address = true;
    } else if (extinfo->flags & ANDROID_DLEXT_RESERVED_ADDRESS_HINT) {
      extinfo_params.start_addr = extinfo->reserved_addr;
      extinfo_params.reserved_size = extinfo->reserved_size;
    }
  }

  for (auto&& task : load_list) {
    address_space_params* address_space =
        (reserved_address_recursive || !task->is_dt_needed()) ? &extinfo_params : &default_params;
    if (!task->load(address_space)) {
      return false;
    }
  }

  // Step 3: pre-link all DT_NEEDED libraries in breadth first order.
  for (auto&& task : load_tasks) {
    soinfo* si = task->get_soinfo();
    if (!si->is_linked() && !si->prelink_image()) {
      return false;
    }
    register_soinfo_tls(si);
  }

  // Step 4: Construct the global group. Note: DF_1_GLOBAL bit of a library is
  // determined at step 3.

  // Step 4-1: DF_1_GLOBAL bit is force set for LD_PRELOADed libs because they
  // must be added to the global group
  if (ld_preloads != nullptr) {
    for (auto&& si : *ld_preloads) {
      si->set_dt_flags_1(si->get_dt_flags_1() | DF_1_GLOBAL);
    }
  }

  // Step 4-2: Gather all DF_1_GLOBAL libs which were newly loaded during this
  // run. These will be the new member of the global group
  soinfo_list_t new_global_group_members;
  for (auto&& task : load_tasks) {
    soinfo* si = task->get_soinfo();
    if (!si->is_linked() && (si->get_dt_flags_1() & DF_1_GLOBAL) != 0) {
      new_global_group_members.push_back(si);
    }
  }

  // Step 4-3: Add the new global group members to all the linked namespaces
  if (namespaces != nullptr) {
    for (auto linked_ns : *namespaces) {
      for (auto si : new_global_group_members) {
        if (si->get_primary_namespace() != linked_ns) {
          linked_ns->add_soinfo(si);
          si->add_secondary_namespace(linked_ns);
        }
      }
    }
  }

  // Step 5: Collect roots of local_groups.
  // Whenever needed_by->si link crosses a namespace boundary it forms its own local_group.
  // Here we collect new roots to link them separately later on. Note that we need to avoid
  // collecting duplicates. Also the order is important. They need to be linked in the same
  // BFS order we link individual libraries.
  std::vector<soinfo*> local_group_roots;
  if (start_with != nullptr && add_as_children) {
    local_group_roots.push_back(start_with);
  } else {
    CHECK(soinfos_count == 1);
    local_group_roots.push_back(soinfos[0]);
  }

  for (auto&& task : load_tasks) {
    soinfo* si = task->get_soinfo();
    soinfo* needed_by = task->get_needed_by();
    bool is_dt_needed = needed_by != nullptr && (needed_by != start_with || add_as_children);
    android_namespace_t* needed_by_ns =
        is_dt_needed ? needed_by->get_primary_namespace() : ns;

    if (!si->is_linked() && si->get_primary_namespace() != needed_by_ns) {
      auto it = std::find(local_group_roots.begin(), local_group_roots.end(), si);
      LD_LOG(kLogDlopen,
             "Crossing namespace boundary (si=%s@%p, si_ns=%s@%p, needed_by=%s@%p, ns=%s@%p, needed_by_ns=%s@%p) adding to local_group_roots: %s",
             si->get_realpath(),
             si,
             si->get_primary_namespace()->get_name(),
             si->get_primary_namespace(),
             needed_by == nullptr ? "(nullptr)" : needed_by->get_realpath(),
             needed_by,
             ns->get_name(),
             ns,
             needed_by_ns->get_name(),
             needed_by_ns,
             it == local_group_roots.end() ? "yes" : "no");

      if (it == local_group_roots.end()) {
        local_group_roots.push_back(si);
      }
    }
  }

  // Step 6: Link all local groups
  for (auto root : local_group_roots) {
    soinfo_list_t local_group;
    android_namespace_t* local_group_ns = root->get_primary_namespace();

    walk_dependencies_tree(root,
      [&] (soinfo* si) {
        if (local_group_ns->is_accessible(si)) {
          local_group.push_back(si);
          return kWalkContinue;
        } else {
          return kWalkSkip;
        }
      });

    soinfo_list_t global_group = local_group_ns->get_global_group();
    SymbolLookupList lookup_list(global_group, local_group);
    soinfo* local_group_root = local_group.front();

    bool linked = local_group.visit([&](soinfo* si) {
      // Even though local group may contain accessible soinfos from other namespaces
      // we should avoid linking them (because if they are not linked -> they
      // are in the local_group_roots and will be linked later).
      if (!si->is_linked() && si->get_primary_namespace() == local_group_ns) {
        const android_dlextinfo* link_extinfo = nullptr;
        if (si == soinfos[0] || reserved_address_recursive) {
          // Only forward extinfo for the first library unless the recursive
          // flag is set.
          link_extinfo = extinfo;
        }
        if (__libc_shared_globals()->load_hook) {
          __libc_shared_globals()->load_hook(si->load_bias, si->phdr, si->phnum);
        }
        lookup_list.set_dt_symbolic_lib(si->has_DT_SYMBOLIC ? si : nullptr);
        if (!si->link_image(lookup_list, local_group_root, link_extinfo, &relro_fd_offset) ||
            !get_cfi_shadow()->AfterLoad(si, solist_get_head())) {
          return false;
        }
      }

      return true;
    });

    if (!linked) {
      return false;
    }
  }

  // Step 7: Mark all load_tasks as linked and increment refcounts
  // for references between load_groups (at this point it does not matter if
  // referenced load_groups were loaded by previous dlopen or as part of this
  // one on step 6)
  if (start_with != nullptr && add_as_children) {
    start_with->set_linked();
  }

  for (auto&& task : load_tasks) {
    soinfo* si = task->get_soinfo();
    si->set_linked();
  }

  for (auto&& task : load_tasks) {
    soinfo* si = task->get_soinfo();
    soinfo* needed_by = task->get_needed_by();
    if (needed_by != nullptr &&
        needed_by != start_with &&
        needed_by->get_local_group_root() != si->get_local_group_root()) {
      si->increment_ref_count();
    }
  }


  return true;
}

这里有三个重要的阶段，

第一是创建了一个加载任务列表LoadTaskList load_tasks,里面仅包含了一个加载libmydemo的任务；

第二是遍历load_tasks，继续调用find_library_internal实现加载；

第三是遍历load_list(load_list是load_tasks的去重集合)并调用task->load()对task中指定的so进行真正的加载；

四、结论与解决方案

根据如上分析，Android的本地共享库命名空间默认设计为，当应用为系统应用时，优先共享链接使用系统内置的本地动态链接库，而作为三方应用时，仅允许共享有限的本地动态链接库（空）；

这个问题中，应用加载的libmydemo.so依赖的libcurl.so和libcrypto.so与系统内置库同名，当应用预置为系统APP启动时，libcrypto.so作为已加载的系统内置库被允许应用共享，从而不再加载应用目录下的同名库导致符号表匹配错误，为了解决问题，将与系统重名的libcurl.so、libcrypto.so重新编译为其他的名字，从而问题顺利解决
