Android13-Launcer3_Folder文件夹-16宫格效果

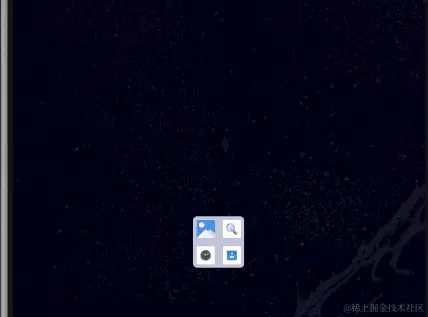

未修改前效果

ClippedFolderIconLayoutRule

//    public static final int MAX_NUM_ITEMS_IN_PREVIEW = 4;
    //文件夹打开可以显示的最大数目，该成16
    public static final int MAX_NUM_ITEMS_IN_PREVIEW = 16;

computePreviewItemDrawingParams()方法默认是2排2列的效果，现在改成4排4列的

    private float mTotalScal;

    public PreviewItemDrawingParams computePreviewItemDrawingParams(int index, int curNumItems,
            PreviewItemDrawingParams params) {
        float totalScale = scaleForItem(curNumItems);
        float transX;
        float transY;

//        if (index == EXIT_INDEX) {
//            // 0 1 * <-- Exit position (row 0, col 2)
//            // 2 3
//            getGridPosition(0, 2, mTmpPoint);
//        } else if (index == ENTER_INDEX) {
//            // 0 1
//            // 2 3 * <-- Enter position (row 1, col 2)
//            getGridPosition(1, 2, mTmpPoint);
//        } else if (index >= MAX_NUM_ITEMS_IN_PREVIEW) {
//            // Items beyond those displayed in the preview are animated to the center
//            mTmpPoint[0] = mTmpPoint[1] = mAvailableSpace / 2 - (mIconSize * totalScale) / 2;
//        } else {
//            getPosition(index, curNumItems, mTmpPoint);
//        }
//
//        transX = mTmpPoint[0];
//        transY = mTmpPoint[1];
//
//        if (params == null) {
//            params = new PreviewItemDrawingParams(transX, transY, totalScale);
//        } else {
//            params.update(transX, transY, totalScale);
//        }
//        return params;
        //上面原来的逻辑注释掉
        //计算某个图标在文件夹中的位置
        getCusPosition(index, mTmpPoint);
        transX = mTmpPoint[0];
        transY = mTmpPoint[1];

        if (params == null) {
            params = new PreviewItemDrawingParams(transX, transY, mTotalScal);
        } else {
            params.update(transX, transY, mTotalScal);
        }
        return params;
    }

    private void getCusPosition(int index, float[] result) {
        int sqrt = 4;
        //第几行
        int rowNum = index%4;
        //第几列
        int columnNum = index/4;
        //图标之间的间距
        float padding = 2;
        float iconSize = (mAvailableSpace - (sqrt+1)*padding)/sqrt;
        mTotalScal = iconSize/mIconSize;
        //x方向的坐标值
        result[0] = (iconSize + padding/2)*rowNum + padding;
        //y方向的坐标值
        result[1] = (iconSize + padding/2)*columnNum + padding;
    }

FolderGridOrganizer

   public FolderGridOrganizer(InvariantDeviceProfile profile) {
//        mMaxCountX = profile.numFolderColumns;
//        mMaxCountY = profile.numFolderRows;
        //改成4*4方式
        mMaxCountX = 4;
        mMaxCountY = 4;
        mMaxItemsPerPage = mMaxCountX * mMaxCountY;
    }

calculateGridSize()方法

    private void calculateGridSize(int count) {
        boolean done;
        int gridCountX = mCountX;
        int gridCountY = mCountY;

        if (count >= mMaxItemsPerPage) {
            gridCountX = mMaxCountX;
            gridCountY = mMaxCountY;
            done = true;
        } else {
            done = false;
        }

        while (!done) {
            int oldCountX = gridCountX;
            int oldCountY = gridCountY;
            if (gridCountX * gridCountY < count) {
                // Current grid is too small, expand it
                if ((gridCountX <= gridCountY || gridCountY == mMaxCountY)
                        && gridCountX < mMaxCountX) {
                    gridCountX++;
                } else if (gridCountY < mMaxCountY) {
                    gridCountY++;
                }
                if (gridCountY == 0) gridCountY++;
            } else if ((gridCountY - 1) * gridCountX >= count && gridCountY >= gridCountX) {
                gridCountY = Math.max(0, gridCountY - 1);
            } else if ((gridCountX - 1) * gridCountY >= count) {
                gridCountX = Math.max(0, gridCountX - 1);
            }
            done = gridCountX == oldCountX && gridCountY == oldCountY;
        }

//        mCountX = gridCountX;
//        mCountY = gridCountY;
        //添加多这个判断
        if(count <= 9){
            mCountX = 4;
            mCountY = count/4 + (count%4==0?0:1);
        }else {
            mCountX = gridCountX;
            mCountY = gridCountY;
        }
    }

isItemInPreview()方法注释掉一些内容

    public boolean isItemInPreview(int page, int rank) {
        // First page items are laid out such that the first 4 items are always in the upper
        // left quadrant. For all other pages, we need to check the row and col.
        //4*4布局注释掉
//        if (page > 0 || mDisplayingUpperLeftQuadrant) {
//            int col = rank % mCountX;
//            int row = rank / mCountX;
//            return col < 2 && row < 2;
//        }
        return rank < MAX_NUM_ITEMS_IN_PREVIEW;
    }

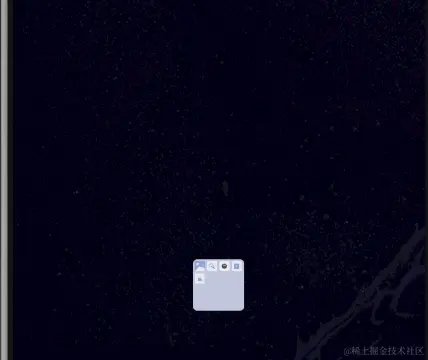

效果
