使用html+css+js 实现时间轮盘

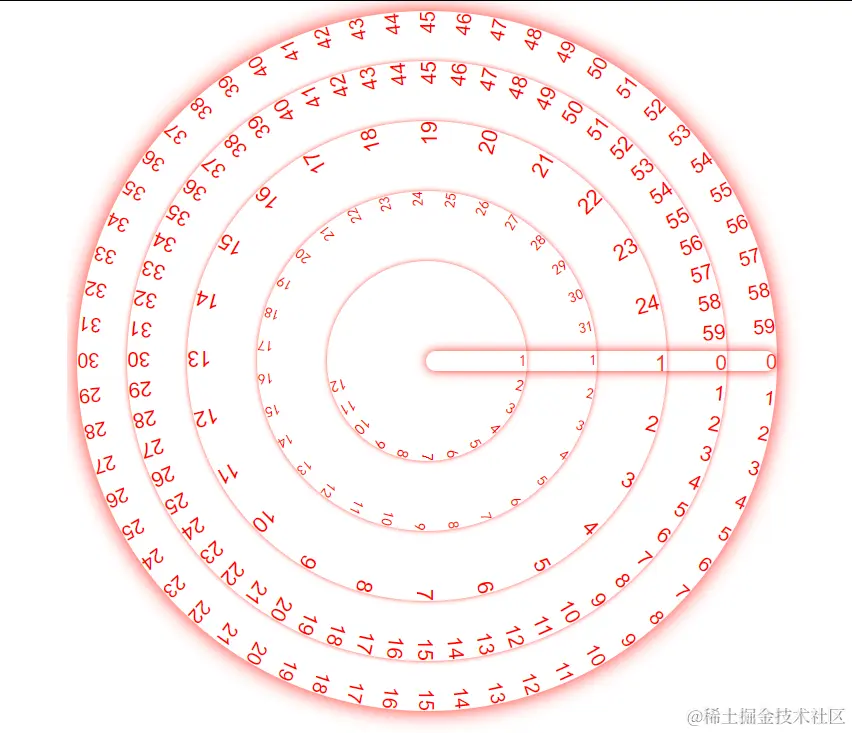

1.效果预览
2.实现代码
2.1 HTML文件
<body>
<div id="compass">
<div class="pointer"></div>
<div class="clock">
<div class="time"></div>
<div class="time"></div>
<div class="time"></div>
<div class="time"></div>
<div class="time"></div>
</div>
</div>
</body>
2.2 JS文件
var timeDiv = document.querySelectorAll('.time');
var numberString = ['0', '1', '2', '3', '4', '5', '6', '7', '8', '9']
var Months = [];
var Days = [];
var Hours = [];
var Minutes = [];
var Seconds = [];
var Numbers = [];
var secondCount = 60;
var minuteCount = 60;
var hourCount = 24;
var dayCount = getDaysInMonth();
var monthCount = 12;
function getDaysInMonth() {
const date = new Date();
const month = date.getMonth();
const year = date.getFullYear();
const daysInMonth = new Date(year, month + 1, 0).getDate();
return daysInMonth;
}
DrawDialPlate();
function DrawDialPlate() {
for(var i = 0; i < secondCount; i++){
var secondBox = document.createElement('div');
secondBox.className = "secondbox"
var rotate = 'rotate(' + i * (360 / secondCount) + 'deg)'
secondBox.style.transform = rotate;
secondBox.innerText = i;
secondBox.style.textAlign = 'right';
secondBox.style.font = '20px Arial';
timeDiv[0].appendChild(secondBox);
}
for(var i = 0; i < minuteCount; i++){
var minuteBox = document.createElement('div');
minuteBox.className = "minutebox"
var rotate = 'rotate(' + i * (360 / minuteCount) + 'deg)'
minuteBox.style.transform = rotate;
minuteBox.innerText = i;
minuteBox.style.textAlign = 'right';
minuteBox.style.font = '21px Arial';
timeDiv[1].appendChild(minuteBox);
}
for(var i = 1; i <= hourCount; i++){
var hourBox = document.createElement('div');
hourBox.className = "hourbox"
var rotate = 'rotate(' + (i-1) * (360 / hourCount) + 'deg)'
hourBox.style.transform = rotate;
hourBox.innerText = i;
hourBox.style.textAlign = 'right';
hourBox.style.font = '22px Arial';
timeDiv[2].appendChild(hourBox);
}
/* 日 */
for (var i = 1; i <= dayCount; i++) {
var daybox = document.createElement("div");
daybox.className = "daybox";
var rotate = 'rotate(' + (i - 1) * (360 / dayCount) + 'deg)';
daybox.style.transform = rotate;
daybox.innerText = i;
daybox.style.textAlign = "right";
daybox.style.font = "15px 楷体";
timeDiv[3].appendChild(daybox);
}
/* 月 */
for (var i = 1; i <= monthCount; i++) {
var monthbox = document.createElement("div");
monthbox.className = "monthbox";
var rotate = 'rotate(' + (i - 1) * (180 / monthCount) + 'deg)';
monthbox.style.transform = rotate;
monthbox.innerText = i;
monthbox.style.textAlign = "right";
monthbox.style.font = "16px 楷体";
timeDiv[4].appendChild(monthbox);
}
}
var oldsecond = 0;
var oldminute = 0;
var oldhour = 0;
var olddate = 0;
var oldmonth = 0;
setInterval(function () {
var timeNow = new Date();
var month = timeNow.getMonth();
var date = timeNow.getDate();
var hour = timeNow.getHours();
var minute = timeNow.getMinutes();
var second = timeNow.getSeconds();
if (oldsecond % 60 != second % 60) {
oldsecond = second;
}
timeDiv[0].style.transform = 'rotate(' + (-oldsecond * (360 / secondCount)) + 'deg)';
oldsecond++;
if (oldminute != minute) {
oldminute = minute;
timeDiv[1].style.transform = 'rotate(' + (-oldminute * (360 / minuteCount)) + 'deg)';
}
if (oldhour != hour) {
oldhour = hour;
timeDiv[2].style.transform = 'rotate(' + (-(oldhour - 1) * (360 / hourCount)) + 'deg)';
}
if (olddate != date) {
olddate = date;
timeDiv[3].style.transform = 'rotate(' + (-(olddate - 1) * (360 / dayCount)) + 'deg)';
}
if (oldmonth != month) {
oldmonth = month;
timeDiv[4].style.transform = 'rotate(' + (-oldmonth * (180 / monthCount)) + 'deg)';
}
}, 1000);
2.3 css文件
*{
margin: 0;
padding: 0;
overflow-x: hidden;
overflow-y: hidden;
}
body{
width: 100%;
height: 740px;
}
#compass{
position: absolute;
width: 100%;
height: 100%;
border: 1px solid #000;
color: red;
line-height: 20px;
}
#compass .pointer {
width: 350px;
height: 20px;
background: rgba(255, 255, 255, 10%);
position: absolute;
top: 350px;
left: 48.7%;
z-index: 999;
border-radius: 100px;
box-shadow: 0 0 10px red;
}
#compass .clock {
width: 100%;
height: 100%;
position: relative;
left: 30%;
}
#compass .clock .time {
width: 700px;
height: 700px;
position: absolute;
top: 10px;
left: 10px;
}
#compass .clock .time:nth-of-type(1) {
transition: 1s linear;
box-shadow: 0 0 20px red;
border-radius: 50%;
}
#compass .clock .time:nth-of-type(2) {
width: 600px;
height: 600px;
top: 60px;
left: 60px;
transition: 1s linear;
box-shadow: 0 0 5px red;
border-radius: 50%;
}
#compass .clock .time:nth-of-type(3) {
width: 480px;
height: 480px;
top: 120px;
left: 120px;
transition: 1s linear;
box-shadow: 0 0 5px red;
border-radius: 50%;
}
#compass .clock .time:nth-of-type(4) {
width: 340px;
height: 340px;
top: 190px;
left: 190px;
transition: 1s linear;
box-shadow: 0 0 5px red;
border-radius: 50%;
}
#compass .clock .time:nth-of-type(5) {
width: 200px;
height: 200px;
top: 260px;
left: 260px;
transition: 1s linear;
box-shadow: 0 0 5px red;
border-radius: 50%;
}
#compass .clock .time .secondbox {
width: 350px;
height: 20px;
position: absolute;
top: 340px;
left: 350px;
transform-origin: left center;
}
#compass .clock .time .minutebox {
width: 300px;
height: 20px;
position: absolute;
top: 290px;
left: 300px;
transform-origin: left center;
}
#compass .clock .time .hourbox {
width: 240px;
height: 20px;
position: absolute;
top: 230px;
left: 240px;
transform-origin: left center;
}
#compass .clock .time .daybox {
width: 170px;
height: 20px;
position: absolute;
top: 160px;
left: 170px;
transform-origin: left center;
}
#compass .clock .time .monthbox {
width: 100px;
height: 20px;
position: absolute;
top: 90px;
left: 100px;
transform-origin: left center;
}
谢谢您的阅读。
