mybatis源码学习mybatis源码学习，详细讲解启动、接口扫描、代理封装SqlSession、sql语句执行流程、

前言

引入依赖

<dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
    <version>2.3.0</version>
</dependency>

启动

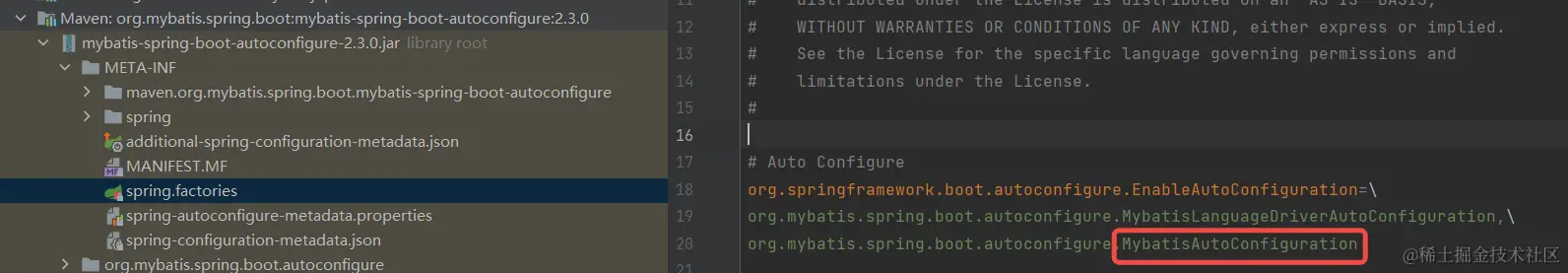

SpringBoot自动配置原理 MybatisAutoConfiguration启动时生成SqlSessionFactory、SqlSessionTemplate bean对象，将会注入到代理中作为成员

接口扫描到容器

自测最小示例

源码

public interface MyClass {
}
public class MyFactoryBean<T> implements FactoryBean<T> {
    private SqlSessionTemplate sqlSessionTemplate;
    private final Class<T> interfaceType;
    public MyFactoryBean(Class<T> interfaceType) {
        this.interfaceType = interfaceType;
    }
    public void setSqlSessionTemplate(SqlSessionTemplate sqlSessionTemplate){
        this.sqlSessionTemplate = sqlSessionTemplate;
    }
    @Override
    public T getObject() throws Exception {
        return (T) Proxy.newProxyInstance(interfaceType.getClassLoader(), new Class[]{interfaceType}, new InvocationHandler(){
            @Override
            public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
                if (Object.class.equals(method.getDeclaringClass())) {
                    return method.invoke(this, args);
                } else {
                    return "hello world";
                }
            }
        });
    }
    @Override
    public Class<?> getObjectType() {
        return this.interfaceType;
    }
}
@Configuration
@Import({MyClassRegistrar.class})
public class AppConfig {
    public AppConfig() {
        System.out.println("app config");
    }
}
public class MyClassRegistrar implements ImportBeanDefinitionRegistrar {
    @Override
    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
        BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(MyClass.class);
        AbstractBeanDefinition definition = builder.getBeanDefinition();
        String beanClassName = definition.getBeanClassName();
        definition.setBeanClass(MyFactoryBean.class);
        definition.getConstructorArgumentValues().addGenericArgumentValue(beanClassName);
        definition.getPropertyValues().add("sqlSessionTemplate",
                new RuntimeBeanReference("sqlSessionTemplate"));
        registry.registerBeanDefinition(beanClassName,definition);
    }
}

核心就几行代码

// 获取MyClass的Bean定义
BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(MyClass.class);
AbstractBeanDefinition definition = builder.getBeanDefinition();
String beanClassName = definition.getBeanClassName();
// 将MyClass的Class类型改为MyFactoryBean
definition.setBeanClass(MyFactoryBean.class);
// 给MyFactoryBean构造函数添加参数
definition.getConstructorArgumentValues().addGenericArgumentValue(beanClassName);
// 给MyFactoryBean属性设置sqlSessionTemplate引用，调用MyFactoryBean的set接口
definition.getPropertyValues().add("sqlSessionTemplate", new
RuntimeBeanReference("sqlSessionTemplate"));
// 注册BeanDefinition
registry.registerBeanDefinition(beanClassName,definition);
// 这里的registry是DefaultListableBeanFactory类型的实例，就是bean生命周期中操作bean的类

MyClass接口的所有调用都从代理进入invoke，且MyFactoryBean已拥有SqlSessionTemplate进行后续sql操作

mybatis扫描流程

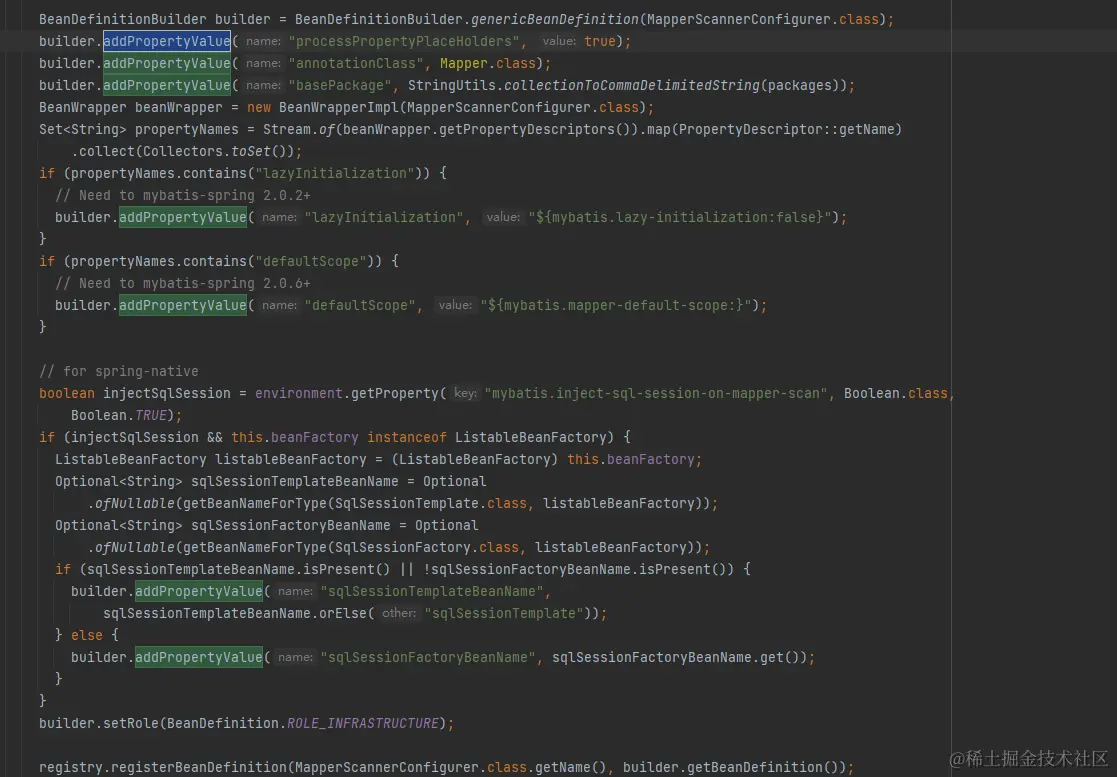

入口AutoConfiguredMapperScannerRegistrar手动将MapperScannerConfigurer类注入到容器

并通过addPropertyValue添加了很多属性，包括要扫描的注解@Mapper，传递yml文件中的配置，容器中SqlSessionTemplate示例的bean名称(不是传递的引用而是名称)，如该类名字在扫描Mapper注解前做好各种配置。

registry.registerBeanDefinition(MapperScannerConfigurer.class.getName(), builder.getBeanDefinition());
// 在这里问过自己一个很呆的问题，手动注册一个类到容器，为啥不直接添加@Component然后初始化各种变量呢？😂

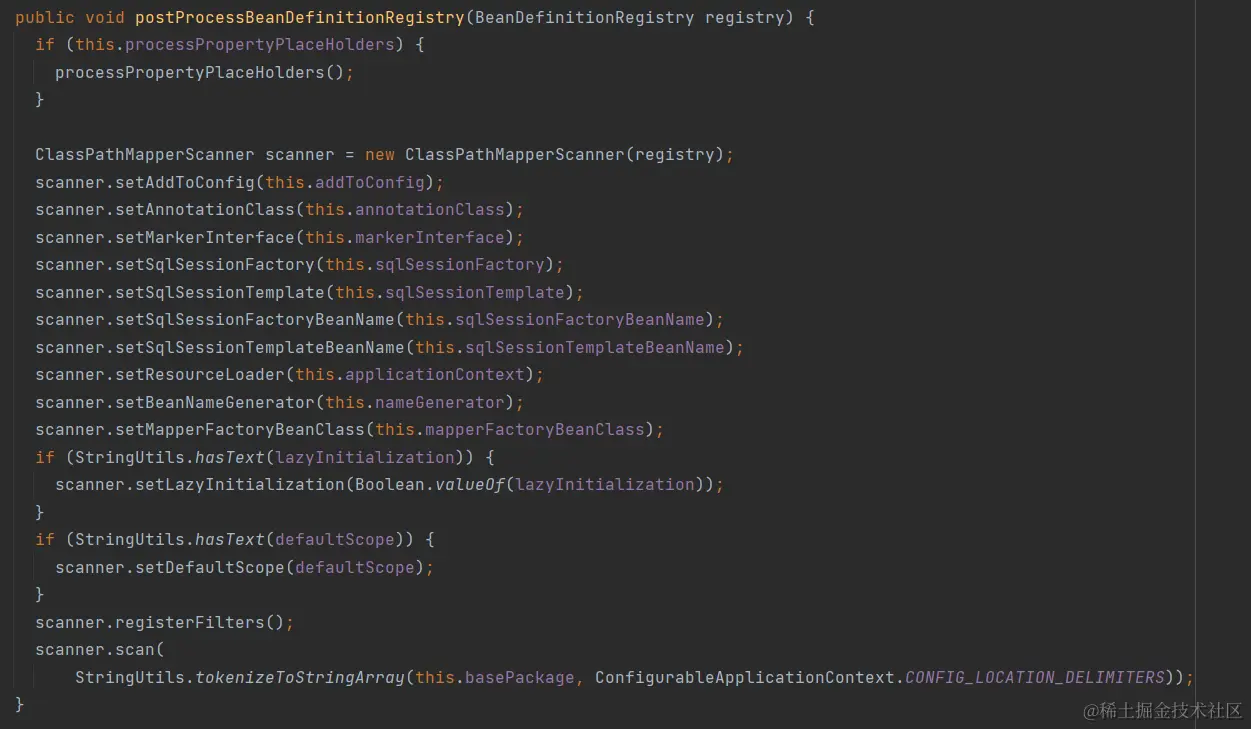

MapperScannerConfigurer传递配置与DefaultListableBeanFactory

可以看到配置都传递给了ClassPathMapperScanner，由该类进行真正的扫描和注册 MapperScannerConfigurer实现自BeanDefinitionRegistryPostProcessor，目的都是为了得到DefaultListableBeanFactory参数，如同AutoConfiguredMapperScannerRegistrar实现自ImportBeanDefinitionRegistrar 于是仿照MapperScannerConfigurer得到一种新的类或接口注册到容器的方式

public interface MyClassAnother {
}
@Component
public class MyClassRegistrarAnother implements BeanDefinitionRegistryPostProcessor {
    @Override
    public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {
        BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(MyClassAnother.class);
        AbstractBeanDefinition definition = builder.getBeanDefinition();
        String beanClassName = definition.getBeanClassName();
        definition.setBeanClass(MyFactoryBean.class);
        definition.getConstructorArgumentValues().addGenericArgumentValue(beanClassName);
        definition.getPropertyValues().add("sqlSessionTemplate",
                new RuntimeBeanReference("sqlSessionTemplate"));
        registry.registerBeanDefinition(beanClassName,definition);
    }
    @Override
    public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
    }
}

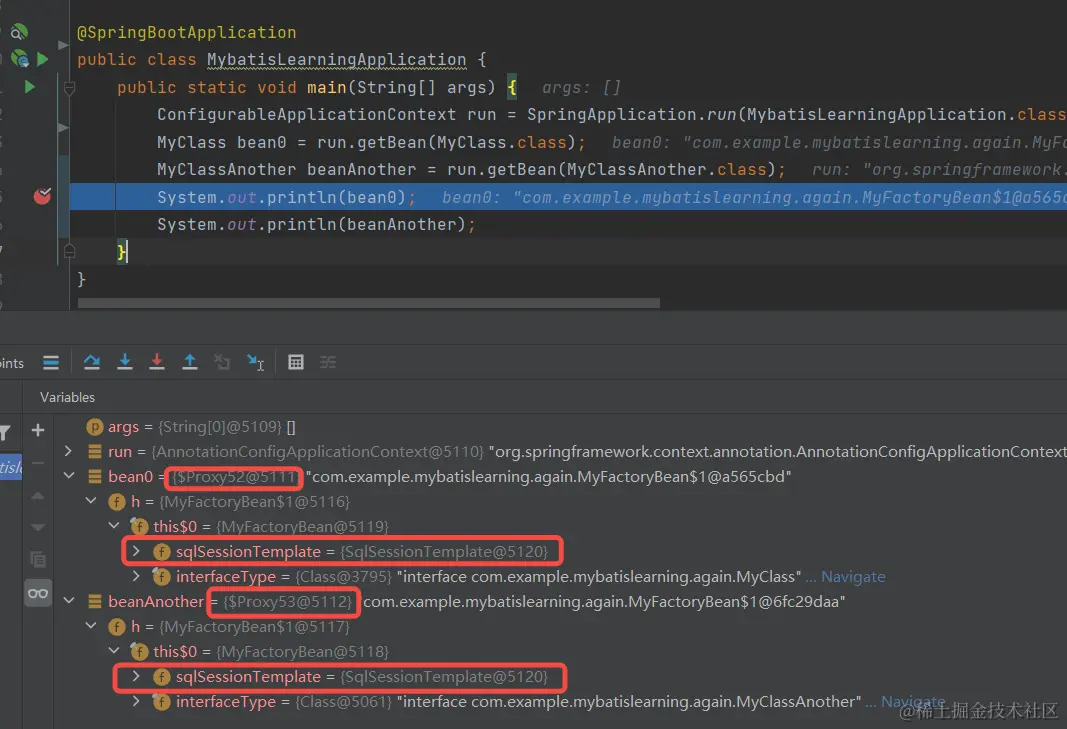

可以看到两个实例都指向了Proxy代理，代理都由MyFactoryBean生成，且都指向同一个SqlSessionTemplate

ClassPathMapperScanner扫描@Mapper标记接口

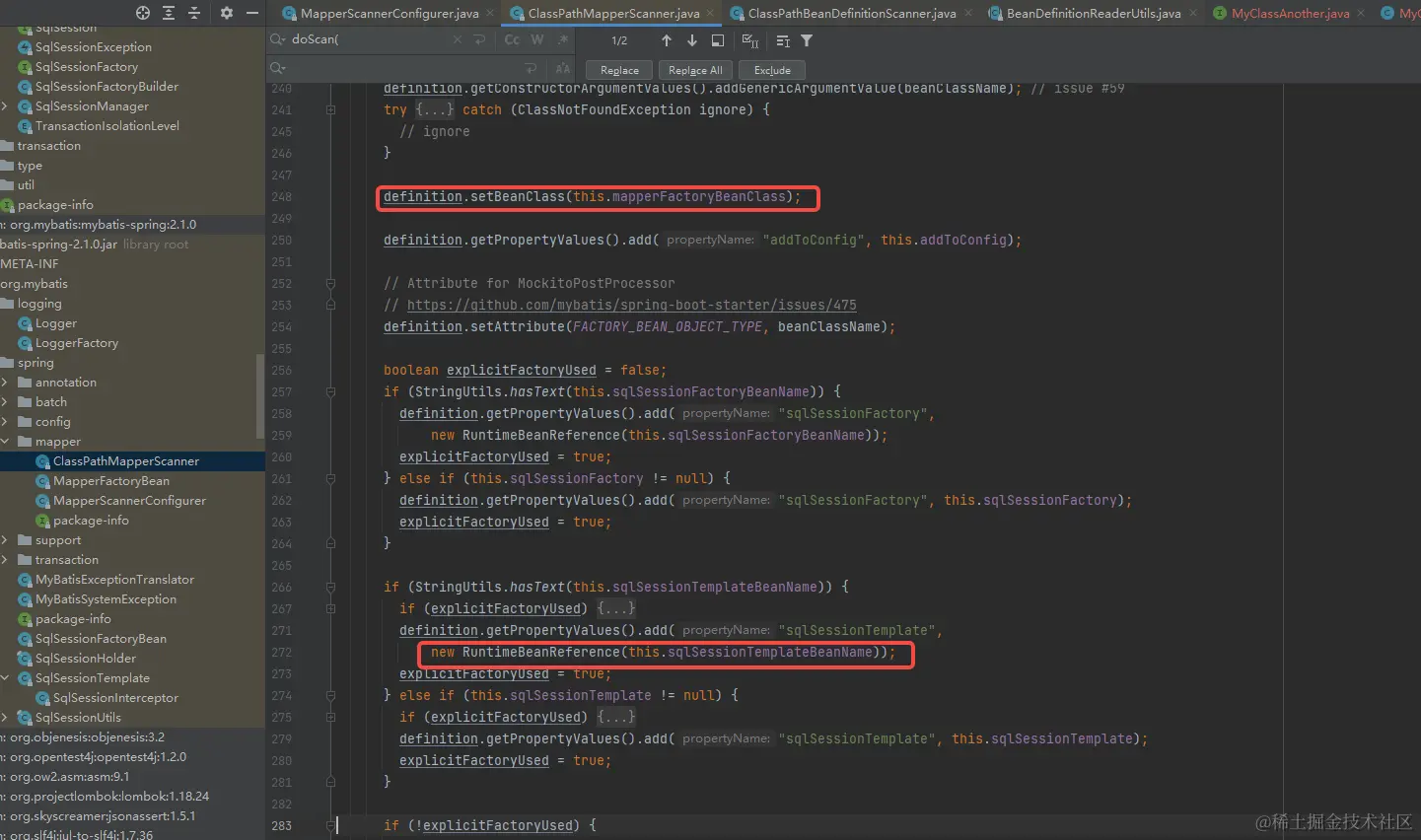

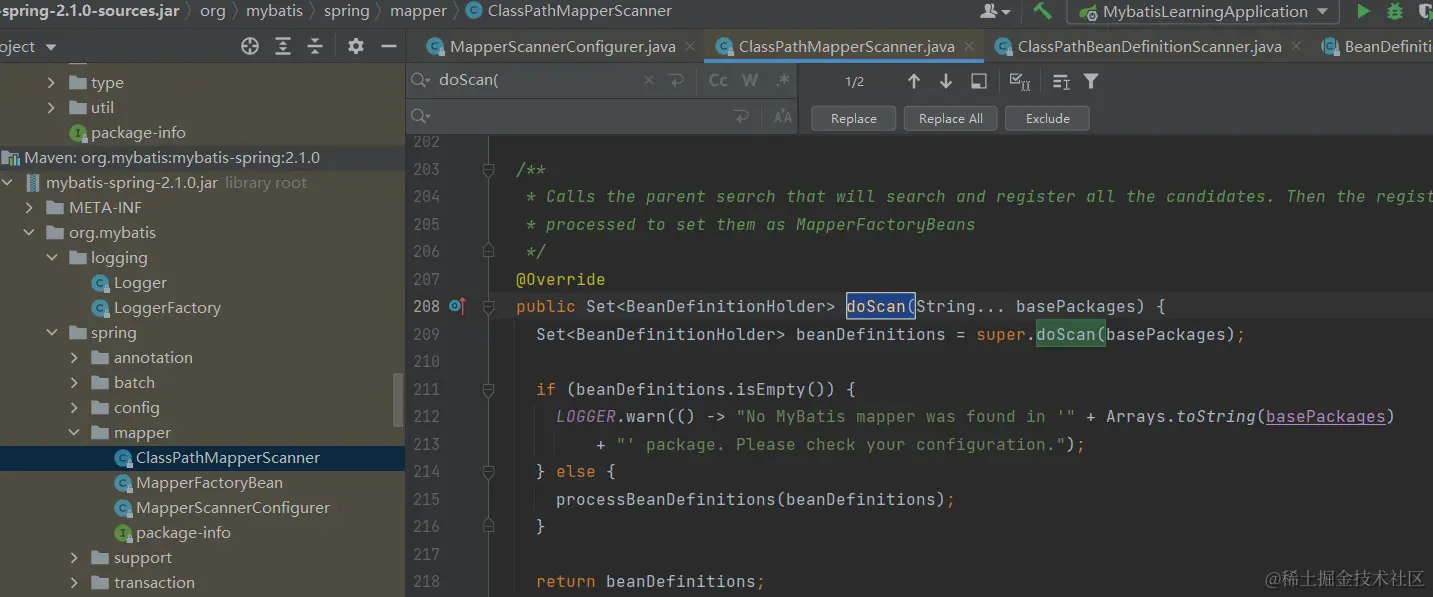

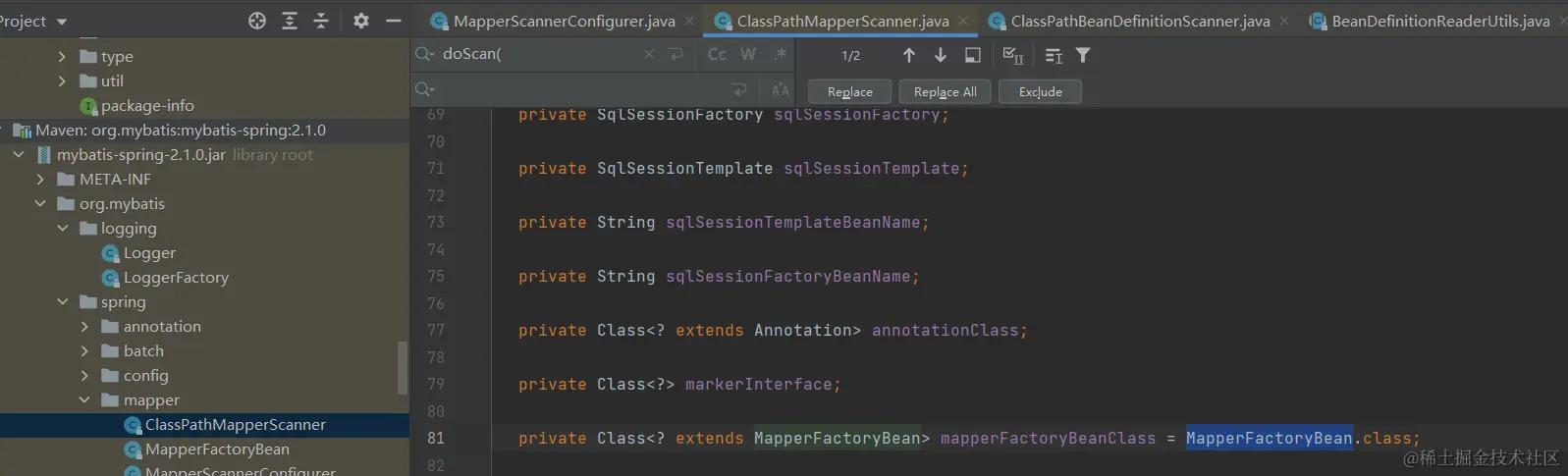

ClassPathMapperScanner继承自ClassPathBeanDefinitionScanner，调用父类的doScan时会自动扫描包路径下具有Mapper注解的接口，生成BeanDefinition进行注册，processBeanDefinitions再对BeanDefinition设置新的beanClass，并对新的beanClass设置参数，beanClass已初始化为MapperFactoryBean 从这里可以看到，所有Mapper标记的接口都转由MapperFactoryBean生成对象，所有需要的参数都传递到了MapperFactoryBean

代理包装SqlSession相关对象--核心MapperFactoryBean

@Override
public T getObject() throws Exception {
  return getSqlSession().getMapper(this.mapperInterface);
}

被@Mapper标记的接口在其他类中注入(生命中期Populate阶段讲过)或用上下文显示获取bean时getObject会被调用，以此为入口整理出相关类图ProcessOn mybatis-1 (2).png

SqlSessionTemplate、SqlSessionFactory、Configuration初始化时机,MybatisAutoConfiguration自启动时

@Bean
@ConditionalOnMissingBean
SqlSessionFactory sqlSessionFactory(DataSource dataSource){
    SqlSessionFactoryBean factory = new SqlSessionFactoryBean();
    Configuration configuration = this.properties.getConfiguration();
    factory.setConfiguration(configuration);
    return factory;
}
@Bean
@ConditionalOnMissingBean
SqlSessionTemplate sqlSessionTemplate(SqlSessionFactory sqlSessionFactory){
    return new SqlSessionTemplate(sqlSessionFactory)
}

MapperFactoryBean调用getObject()实际是调用Configuration的getMapper，因为Configuration会扫描xml，以Class类型为key，MapperProxyFactory为value注入到map中
MapperProxyFactory创建代理对象返回，代理类为MapperProxy
MapperProxy内部存在Map<Method, MapperMethodInvoker>方法与方法调用的映射
非default方法的执行交给PlainMethodInvoker的MapperMethod
MapperMethod内部通过类型分流交给SqlSession执行，此时的SqlSession为SqlSessionTemplate
SqlSessionTemplate的语句执行会交给sqlSessionProxy由SqlSessionInterceptor代理
SqlSessionInterceptor在执行指令之前创建DefaultSqlSession(内部配置了带有事务的执行器，事务负责管理连接，提交和回滚)
SqlSessionInterceptor负责简单逻辑：交给DefaultSqlSession指令执行，提交，关闭SqlSession
