0. 前言

致自己：从业12年了，这期间做过后端、做过前端、搞过实施、搞过运维，用过很多工具、写过很多脚本，遇到的问题不计其数。一直以来我都是一个麻木的看客——网上各种帖子找原因、找解决办法，自己从来没有贡献过什么。今天就从这里开始，把我的积累分享给需要的同行————改变从行动开始！

1. frp简介

frp 是一个专注于内网穿透的高性能的反向代理应用，支持 TCP、UDP、HTTP、HTTPS 等多种协议，且支持 P2P 通信。可以将内网服务以安全、便捷的方式通过具有公网 IP 主机的中转暴露到公网。

2. 为什么使用 frp

通过在具有公网 IP 的主机上部署 frp 服务端，可以轻松地将内网服务穿透到公网，同时提供诸多专业的功能特性，包括：

客户端服务端通信支持 TCP、QUIC、KCP 以及 Websocket 等多种协议。
采用 TCP 连接流式复用，在单个连接间承载更多请求，节省连接建立时间，降低请求延迟。
代理组间的负载均衡。
端口复用，多个服务通过同一个服务端端口暴露。
支持 P2P 通信，流量不经过服务器中转，充分利用带宽资源。
多个原生支持的客户端插件（静态文件查看，HTTPS/HTTP 协议转换，HTTP、SOCK5 代理等），便于独立使用 frp 客户端完成某些工作。
高度扩展性的服务端插件系统，易于结合自身需求进行功能扩展。
服务端和客户端 UI 页面。

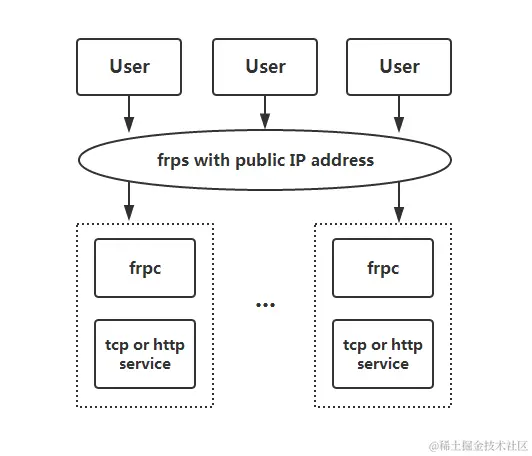

3. 产品架构

frp 属于c/s架构的软件程序，分为服务端程序和客户端程序。通常将服务端程序安装在持有公网IP的云主机上，将客户端程序安装在机房/办公室等局域网内的主机上。需要保证客户端可以连接到服务端。架构图如下图：

4. 用法示例

4.1 安装

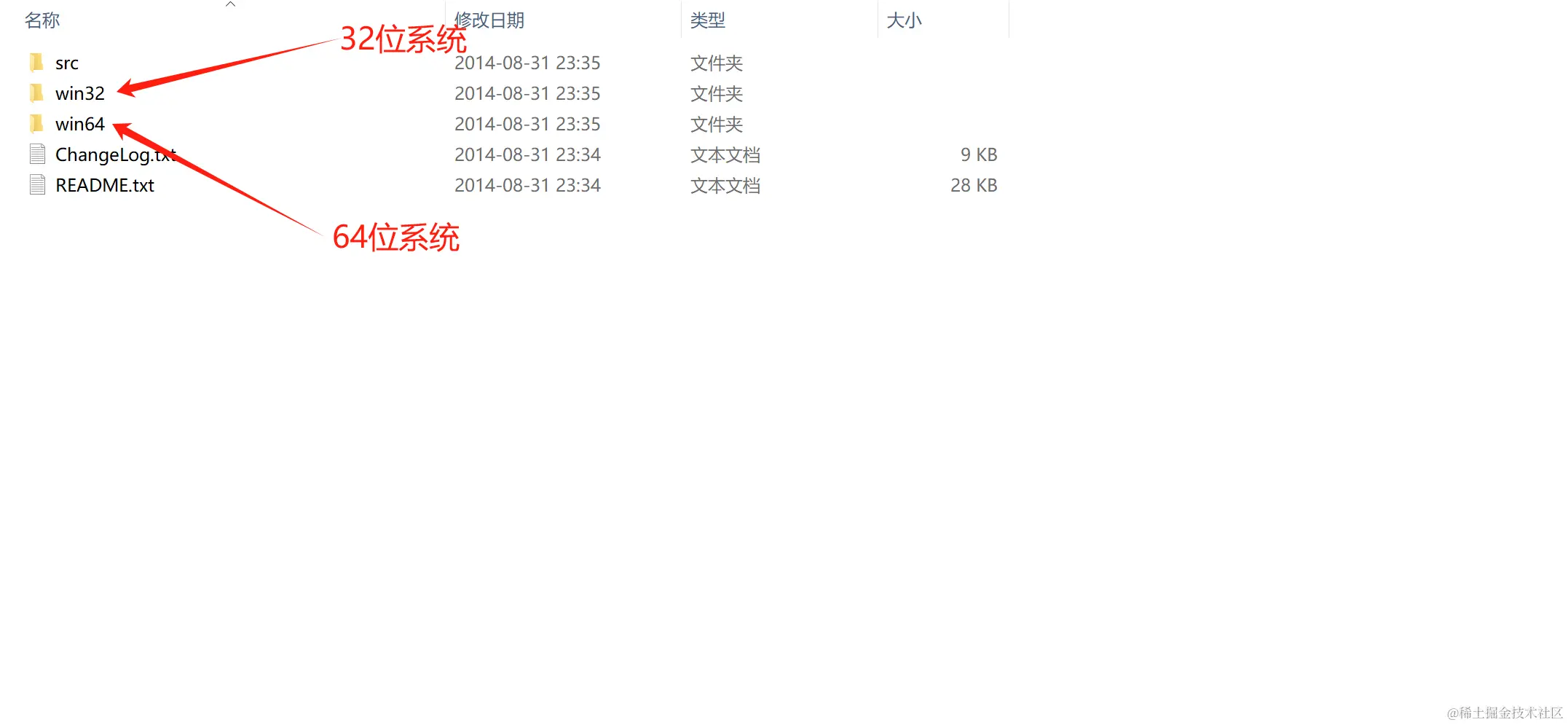

首先，从发布页面下载适合您的操作系统和体系架构的最新程序Windows 版本分为32位和64位程序。

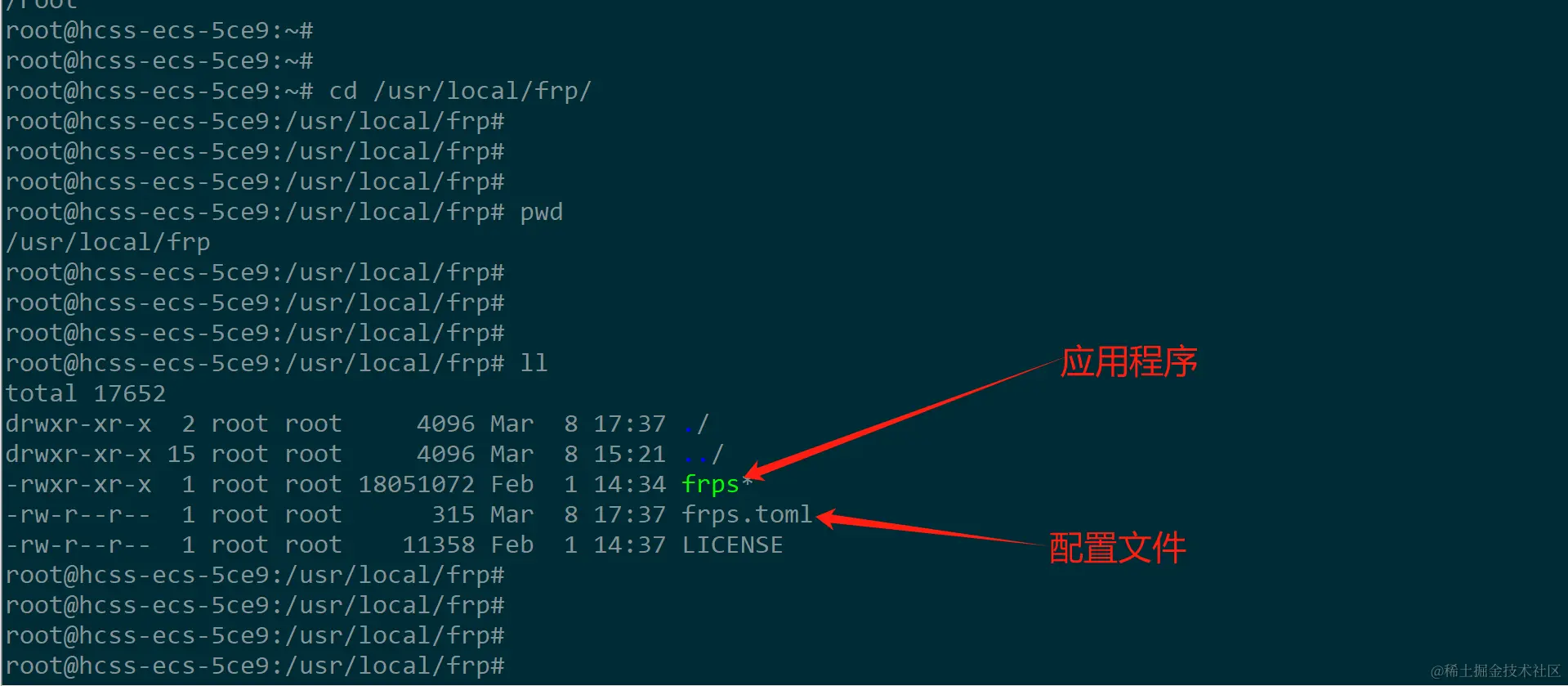

接下来，将frps二进制文件和服务器配置文件放置在具有公共 IP 地址的服务器 A 上。

最后，将frpc二进制文件和客户端配置文件放在服务器 B 上，该服务器位于无法从公共互联网直接访问的 LAN 上。

[!IMPORTANT]

1、一定要先安装并启动服务端，然后再启动客户端，否则客户端会连接失败。

2、一些防病毒软件错误地将客户端程序 frpc 标记为恶意软件并将其删除。这是因为 frp 是一种能够创建反向代理的网络工具。防病毒软件有时会标记反向代理，因为它们能够绕过防火墙端口限制。如果您使用防病毒软件，则可能需要在防病毒设置中将 frpc 列入白名单/排除，以避免意外隔离/删除。

4.2 应用场景

4.2.1 代理端口转发

TCP 和 UDP 是 frp 中两种最基础的代理类型，用于代理监听在 TCP 和 UDP 端口的服务。

在服务器 A 上修改frps.toml，设置bindPortfrp 客户端连接到指定端口

## /usr/local/frp/frps.toml
# common配置
bindPort = 5701
auth.method = "token"
auth.token = "W2CNsGbon4inn7CZSUriKlqpvLpkaWAPXXX"

# 日志配置
log.to = "/var/log/frps.log"
log.level = "debug"
log.maxDays = 10

# 开启服务端web功能
webServer.addr = "0.0.0.0"
webServer.port = 8092
webServer.user = "web"
webServer.password = "XXXXXXXXXXXX"

frps在服务器A上启动

# 启动frps服务
# 启动时需要指定配置文件路径
/usr/local/frp/frps -c /usr/local/frp/frps.toml

在服务器B上修改frpc.toml，将该serverAddr设置为你的frps服务器的公网IP地址

# "C:\Users\Administrator\frp_0.54.0_windows_amd64\frpc.toml"

serverAddr = "123.249.xxx.xxx"
serverPort = 5701
auth.method = "token"
auth.token = "W2CNsGbon4inn7CZSUriKlqpvLpkaWAPXXX"

[[proxies]]
name = "ssh"
type = "tcp"
localIP = "172.168.1.203"
localPort = 22
remotePort = 20322

[[proxies]]
name = "Nginx"
type = "tcp"
localIP = "172.168.1.203"
localPort = 80
remotePort = 20380

[[proxies]]
name = "tomcat8.5.96"
type = "tcp"
localIP = "172.168.1.203"
localPort = 8070
remotePort = 38070

[!IMPORTANT]

1、localPort(在客户端监听)和remotePort(在服务端暴露)用于进出frp系统的流量，而则serverPort用于frps和frpc之间的通信。

2、remotePort 端口不能重复。

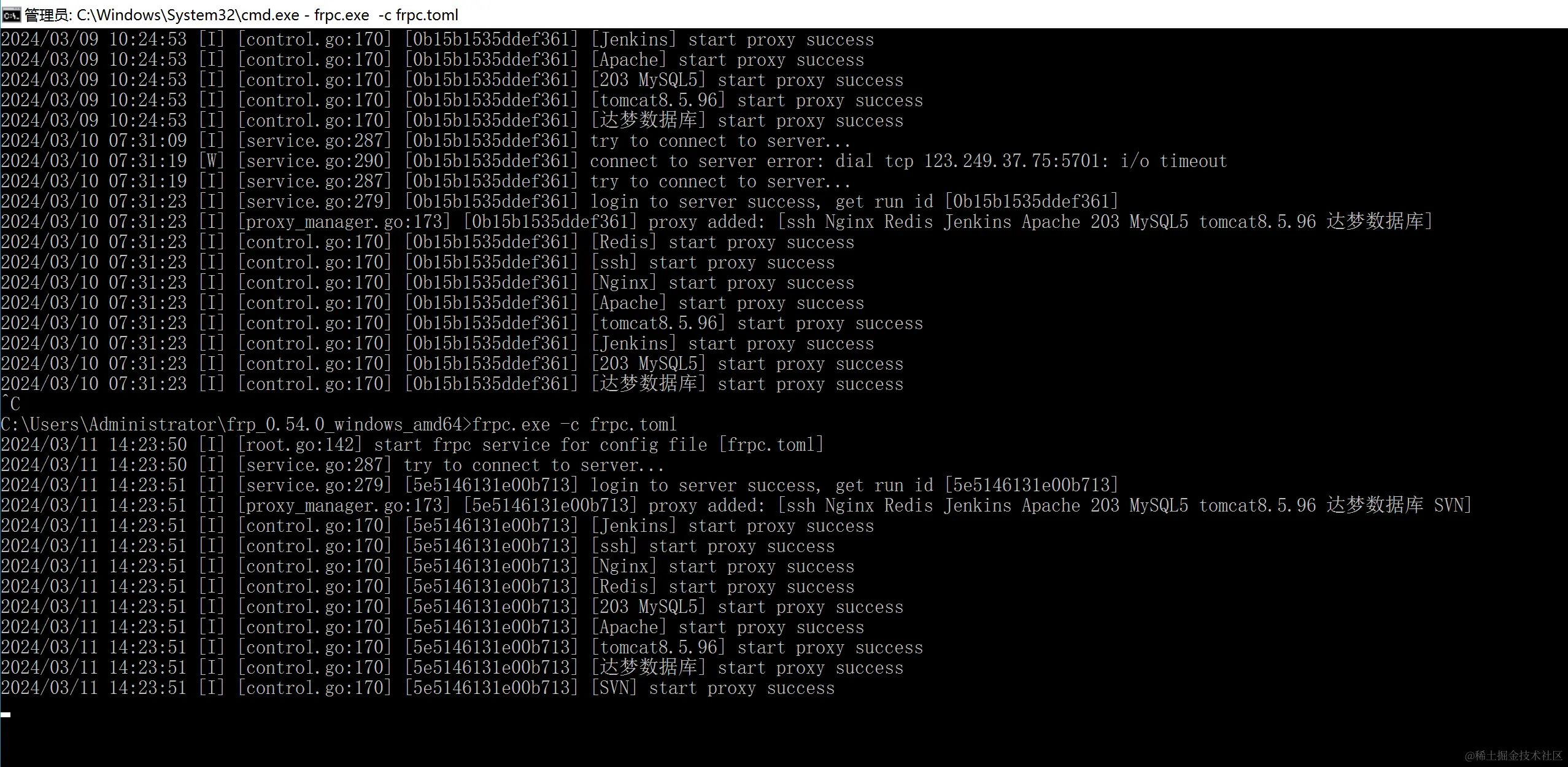

frpc在服务器B上启动

# Windows 下cmd终端启动
frpc.exe -c frpc.toml

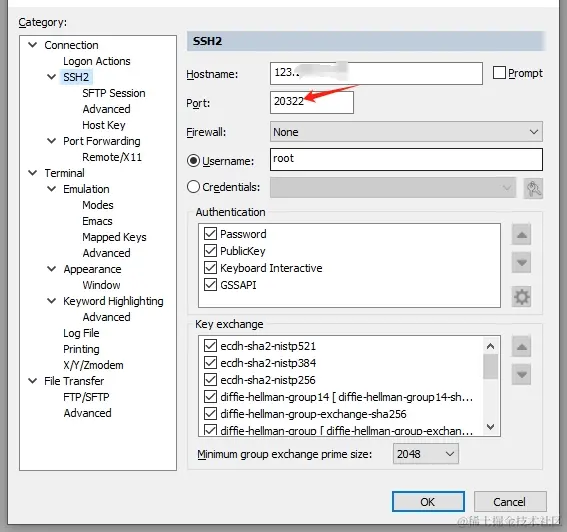

终端连接公网服务器 A 通过 SSH 访问内网服务器 B

5. 附录

5.1 服务端完整配置示例

来源：github.com/fatedier/fr…

# This configuration file is for reference only. Please do not use this configuration directly to run the program as it may have various issues.

# A literal address or host name for IPv6 must be enclosed
# in square brackets, as in "[::1]:80", "[ipv6-host]:http" or "[ipv6-host%zone]:80"
# For single "bindAddr" field, no need square brackets, like `bindAddr = "::"`.
bindAddr = "0.0.0.0"
bindPort = 7000

# udp port used for kcp protocol, it can be same with 'bindPort'.
# if not set, kcp is disabled in frps.
kcpBindPort = 7000

# udp port used for quic protocol.
# if not set, quic is disabled in frps.
# quicBindPort = 7002

# Specify which address proxy will listen for, default value is same with bindAddr
# proxyBindAddr = "127.0.0.1"

# quic protocol options
# transport.quic.keepalivePeriod = 10
# transport.quic.maxIdleTimeout = 30
# transport.quic.maxIncomingStreams = 100000

# Heartbeat configure, it's not recommended to modify the default value
# The default value of heartbeatTimeout is 90. Set negative value to disable it.
# transport.heartbeatTimeout = 90

# Pool count in each proxy will keep no more than maxPoolCount.
transport.maxPoolCount = 5

# If tcp stream multiplexing is used, default is true
# transport.tcpMux = true

# Specify keep alive interval for tcp mux.
# only valid if tcpMux is true.
# transport.tcpMuxKeepaliveInterval = 60

# tcpKeepalive specifies the interval between keep-alive probes for an active network connection between frpc and frps.
# If negative, keep-alive probes are disabled.
# transport.tcpKeepalive = 7200

# transport.tls.force specifies whether to only accept TLS-encrypted connections. By default, the value is false.
transport.tls.force = false

# transport.tls.certFile = "server.crt"
# transport.tls.keyFile = "server.key"
# transport.tls.trustedCaFile = "ca.crt"

# If you want to support virtual host, you must set the http port for listening (optional)
# Note: http port and https port can be same with bindPort
vhostHTTPPort = 80
vhostHTTPSPort = 443

# Response header timeout(seconds) for vhost http server, default is 60s
# vhostHTTPTimeout = 60

# tcpmuxHTTPConnectPort specifies the port that the server listens for TCP
# HTTP CONNECT requests. If the value is 0, the server will not multiplex TCP
# requests on one single port. If it's not - it will listen on this value for
# HTTP CONNECT requests. By default, this value is 0.
# tcpmuxHTTPConnectPort = 1337

# If tcpmuxPassthrough is true, frps won't do any update on traffic.
# tcpmuxPassthrough = false

# Configure the web server to enable the dashboard for frps.
# dashboard is available only if webServer.port is set.
webServer.addr = "127.0.0.1"
webServer.port = 7500
webServer.user = "admin"
webServer.password = "admin"
# webServer.tls.certFile = "server.crt"
# webServer.tls.keyFile = "server.key"
# dashboard assets directory(only for debug mode)
# webServer.assetsDir = "./static"

# Enable golang pprof handlers in dashboard listener.
# Dashboard port must be set first
webServer.pprofEnable = false

# enablePrometheus will export prometheus metrics on webServer in /metrics api.
enablePrometheus = true

# console or real logFile path like ./frps.log
log.to = "./frps.log"
# trace, debug, info, warn, error
log.level = "info"
log.maxDays = 3
# disable log colors when log.to is console, default is false
log.disablePrintColor = false

# DetailedErrorsToClient defines whether to send the specific error (with debug info) to frpc. By default, this value is true.
detailedErrorsToClient = true

# auth.method specifies what authentication method to use authenticate frpc with frps.
# If "token" is specified - token will be read into login message.
# If "oidc" is specified - OIDC (Open ID Connect) token will be issued using OIDC settings. By default, this value is "token".
auth.method = "token"

# auth.additionalScopes specifies additional scopes to include authentication information.
# Optional values are HeartBeats, NewWorkConns.
# auth.additionalScopes = ["HeartBeats", "NewWorkConns"]

# auth token
auth.token = "12345678"

# oidc issuer specifies the issuer to verify OIDC tokens with.
auth.oidc.issuer = ""
# oidc audience specifies the audience OIDC tokens should contain when validated.
auth.oidc.audience = ""
# oidc skipExpiryCheck specifies whether to skip checking if the OIDC token is expired.
auth.oidc.skipExpiryCheck = false
# oidc skipIssuerCheck specifies whether to skip checking if the OIDC token's issuer claim matches the issuer specified in OidcIssuer.
auth.oidc.skipIssuerCheck = false

# userConnTimeout specifies the maximum time to wait for a work connection.
# userConnTimeout = 10

# Only allow frpc to bind ports you list. By default, there won't be any limit.
allowPorts = [
  { start = 2000, end = 3000 },
  { single = 3001 },
  { single = 3003 },
  { start = 4000, end = 50000 }
]

# Max ports can be used for each client, default value is 0 means no limit
maxPortsPerClient = 0

# If subDomainHost is not empty, you can set subdomain when type is http or https in frpc's configure file
# When subdomain is test, the host used by routing is test.frps.com
subDomainHost = "frps.com"

# custom 404 page for HTTP requests
# custom404Page = "/path/to/404.html"

# specify udp packet size, unit is byte. If not set, the default value is 1500.
# This parameter should be same between client and server.
# It affects the udp and sudp proxy.
udpPacketSize = 1500

# Retention time for NAT hole punching strategy data.
natholeAnalysisDataReserveHours = 168

# ssh tunnel gateway
# If you want to enable this feature, the bindPort parameter is required, while others are optional.
# By default, this feature is disabled. It will be enabled if bindPort is greater than 0.
# sshTunnelGateway.bindPort = 2200
# sshTunnelGateway.privateKeyFile = "/home/frp-user/.ssh/id_rsa"
# sshTunnelGateway.autoGenPrivateKeyPath = ""
# sshTunnelGateway.authorizedKeysFile = "/home/frp-user/.ssh/authorized_keys"

[[httpPlugins]]
name = "user-manager"
addr = "127.0.0.1:9000"
path = "/handler"
ops = ["Login"]

[[httpPlugins]]
name = "port-manager"
addr = "127.0.0.1:9001"
path = "/handler"
ops = ["NewProxy"]

5.2 客户端完整配置示例

来源：[https://github.com/fatedier/frp/blob/dev/conf/frpc_full_example.toml](https://github.com/fatedier/frp/blob/dev/conf/frpc_full_example.toml)

# This configuration file is for reference only. Please do not use this configuration directly to run the program as it may have various issues.

# your proxy name will be changed to {user}.{proxy}
user = "your_name"

# A literal address or host name for IPv6 must be enclosed
# in square brackets, as in "[::1]:80", "[ipv6-host]:http" or "[ipv6-host%zone]:80"
# For single serverAddr field, no need square brackets, like serverAddr = "::".
serverAddr = "0.0.0.0"
serverPort = 7000

# STUN server to help penetrate NAT hole.
# natHoleStunServer = "stun.easyvoip.com:3478"

# Decide if exit program when first login failed, otherwise continuous relogin to frps
# default is true
loginFailExit = true

# console or real logFile path like ./frpc.log
log.to = "./frpc.log"
# trace, debug, info, warn, error
log.level = "info"
log.maxDays = 3
# disable log colors when log.to is console, default is false
log.disablePrintColor = false

auth.method = "token"
# auth.additionalScopes specifies additional scopes to include authentication information.
# Optional values are HeartBeats, NewWorkConns.
# auth.additionalScopes = ["HeartBeats", "NewWorkConns"]

# auth token
auth.token = "12345678"

# oidc.clientID specifies the client ID to use to get a token in OIDC authentication.
# auth.oidc.clientID = ""
# oidc.clientSecret specifies the client secret to use to get a token in OIDC authentication.
# auth.oidc.clientSecret = ""
# oidc.audience specifies the audience of the token in OIDC authentication.
# auth.oidc.audience = ""
# oidc.scope specifies the permissions of the token in OIDC authentication if AuthenticationMethod == "oidc". By default, this value is "".
# auth.oidc.scope = ""
# oidc.tokenEndpointURL specifies the URL which implements OIDC Token Endpoint.
# It will be used to get an OIDC token.
# auth.oidc.tokenEndpointURL = ""

# oidc.additionalEndpointParams specifies additional parameters to be sent to the OIDC Token Endpoint.
# For example, if you want to specify the "audience" parameter, you can set as follow.
# frp will add "audience=<value>" "var1=<value>" to the additional parameters.
# auth.oidc.additionalEndpointParams.audience = "https://dev.auth.com/api/v2/"
# auth.oidc.additionalEndpointParams.var1 = "foobar"

# Set admin address for control frpc's action by http api such as reload
webServer.addr = "127.0.0.1"
webServer.port = 7400
webServer.user = "admin"
webServer.password = "admin"
# Admin assets directory. By default, these assets are bundled with frpc.
# webServer.assetsDir = "./static"

# Enable golang pprof handlers in admin listener.
webServer.pprofEnable = false

# The maximum amount of time a dial to server will wait for a connect to complete. Default value is 10 seconds.
# transport.dialServerTimeout = 10

# dialServerKeepalive specifies the interval between keep-alive probes for an active network connection between frpc and frps.
# If negative, keep-alive probes are disabled.
# transport.dialServerKeepalive = 7200

# connections will be established in advance, default value is zero
transport.poolCount = 5

# If tcp stream multiplexing is used, default is true, it must be same with frps
# transport.tcpMux = true

# Specify keep alive interval for tcp mux.
# only valid if tcpMux is enabled.
# transport.tcpMuxKeepaliveInterval = 60

# Communication protocol used to connect to server
# supports tcp, kcp, quic, websocket and wss now, default is tcp
transport.protocol = "tcp"

# set client binding ip when connect server, default is empty.
# only when protocol = tcp or websocket, the value will be used.
transport.connectServerLocalIP = "0.0.0.0"

# if you want to connect frps by http proxy or socks5 proxy or ntlm proxy, you can set proxyURL here or in global environment variables
# it only works when protocol is tcp
# transport.proxyURL = "http://user:passwd@192.168.1.128:8080"
# transport.proxyURL = "socks5://user:passwd@192.168.1.128:1080"
# transport.proxyURL = "ntlm://user:passwd@192.168.1.128:2080"

# quic protocol options
# transport.quic.keepalivePeriod = 10
# transport.quic.maxIdleTimeout = 30
# transport.quic.maxIncomingStreams = 100000

# If tls.enable is true, frpc will connect frps by tls.
# Since v0.50.0, the default value has been changed to true, and tls is enabled by default.
transport.tls.enable = true

# transport.tls.certFile = "client.crt"
# transport.tls.keyFile = "client.key"
# transport.tls.trustedCaFile = "ca.crt"
# transport.tls.serverName = "example.com"

# If the disableCustomTLSFirstByte is set to false, frpc will establish a connection with frps using the
# first custom byte when tls is enabled.
# Since v0.50.0, the default value has been changed to true, and the first custom byte is disabled by default.
# transport.tls.disableCustomTLSFirstByte = true

# Heartbeat configure, it's not recommended to modify the default value.
# The default value of heartbeatInterval is 10 and heartbeatTimeout is 90. Set negative value
# to disable it.
# transport.heartbeatInterval = 30
# transport.heartbeatTimeout = 90

# Specify a dns server, so frpc will use this instead of default one
# dnsServer = "8.8.8.8"

# Proxy names you want to start.
# Default is empty, means all proxies.
# start = ["ssh", "dns"]

# Specify udp packet size, unit is byte. If not set, the default value is 1500.
# This parameter should be same between client and server.
# It affects the udp and sudp proxy.
udpPacketSize = 1500

# Additional metadatas for client.
metadatas.var1 = "abc"
metadatas.var2 = "123"

# Include other config files for proxies.
# includes = ["./confd/*.ini"]

[[proxies]]
# 'ssh' is the unique proxy name
# If global user is not empty, it will be changed to {user}.{proxy} such as 'your_name.ssh'
name = "ssh"
type = "tcp"
localIP = "127.0.0.1"
localPort = 22
# Limit bandwidth for this proxy, unit is KB and MB
transport.bandwidthLimit = "1MB"
# Where to limit bandwidth, can be 'client' or 'server', default is 'client'
transport.bandwidthLimitMode = "client"
# If true, traffic of this proxy will be encrypted, default is false
transport.useEncryption = false
# If true, traffic will be compressed
transport.useCompression = false
# Remote port listen by frps
remotePort = 6001
# frps will load balancing connections for proxies in same group
loadBalancer.group = "test_group"
# group should have same group key
loadBalancer.groupKey = "123456"
# Enable health check for the backend service, it supports 'tcp' and 'http' now.
# frpc will connect local service's port to detect it's healthy status
healthCheck.type = "tcp"
# Health check connection timeout
healthCheck.timeoutSeconds = 3
# If continuous failed in 3 times, the proxy will be removed from frps
healthCheck.maxFailed = 3
# Every 10 seconds will do a health check
healthCheck.intervalSeconds = 10
# Additional meta info for each proxy. It will be passed to the server-side plugin for use.
metadatas.var1 = "abc"
metadatas.var2 = "123"
# You can add some extra information to the proxy through annotations.
# These annotations will be displayed on the frps dashboard.
[proxies.annotations]
key1 = "value1"
"prefix/key2" = "value2"

[[proxies]]
name = "ssh_random"
type = "tcp"
localIP = "192.168.31.100"
localPort = 22
# If remotePort is 0, frps will assign a random port for you
remotePort = 0

[[proxies]]
name = "dns"
type = "udp"
localIP = "114.114.114.114"
localPort = 53
remotePort = 6002

# Resolve your domain names to [serverAddr] so you can use http://web01.yourdomain.com to browse web01 and http://web02.yourdomain.com to browse web02
[[proxies]]
name = "web01"
type = "http"
localIP = "127.0.0.1"
localPort = 80
# http username and password are safety certification for http protocol
# if not set, you can access this customDomains without certification
httpUser = "admin"
httpPassword = "admin"
# if domain for frps is frps.com, then you can access [web01] proxy by URL http://web01.frps.com
subdomain = "web01"
customDomains = ["web01.yourdomain.com"]
# locations is only available for http type
locations = ["/", "/pic"]
# route requests to this service if http basic auto user is abc
# routeByHTTPUser = abc
hostHeaderRewrite = "example.com"
requestHeaders.set.x-from-where = "frp"
healthCheck.type = "http"
# frpc will send a GET http request '/status' to local http service
# http service is alive when it return 2xx http response code
healthCheck.path = "/status"
healthCheck.intervalSeconds = 10
healthCheck.maxFailed = 3
healthCheck.timeoutSeconds = 3

[[proxies]]
name = "web02"
type = "https"
localIP = "127.0.0.1"
localPort = 8000
subdomain = "web02"
customDomains = ["web02.yourdomain.com"]
# if not empty, frpc will use proxy protocol to transfer connection info to your local service
# v1 or v2 or empty
transport.proxyProtocolVersion = "v2"

[[proxies]]
name = "tcpmuxhttpconnect"
type = "tcpmux"
multiplexer = "httpconnect"
localIP = "127.0.0.1"
localPort = 10701
customDomains = ["tunnel1"]
# routeByHTTPUser = "user1"

[[proxies]]
name = "plugin_unix_domain_socket"
type = "tcp"
remotePort = 6003
# if plugin is defined, localIP and localPort is useless
# plugin will handle connections got from frps
[proxies.plugin]
type = "unix_domain_socket"
unixPath = "/var/run/docker.sock"

[[proxies]]
name = "plugin_http_proxy"
type = "tcp"
remotePort = 6004
[proxies.plugin]
type = "http_proxy"
httpUser = "abc"
httpPassword = "abc"

[[proxies]]
name = "plugin_socks5"
type = "tcp"
remotePort = 6005
[proxies.plugin]
type = "socks5"
username = "abc"
password = "abc"

[[proxies]]
name = "plugin_static_file"
type = "tcp"
remotePort = 6006
[proxies.plugin]
type = "static_file"
localPath = "/var/www/blog"
stripPrefix = "static"
httpUser = "abc"
httpPassword = "abc"

[[proxies]]
name = "plugin_https2http"
type = "https"
customDomains = ["test.yourdomain.com"]
[proxies.plugin]
type = "https2http"
localAddr = "127.0.0.1:80"
crtPath = "./server.crt"
keyPath = "./server.key"
hostHeaderRewrite = "127.0.0.1"
requestHeaders.set.x-from-where = "frp"

[[proxies]]
name = "plugin_https2https"
type = "https"
customDomains = ["test.yourdomain.com"]
[proxies.plugin]
type = "https2https"
localAddr = "127.0.0.1:443"
crtPath = "./server.crt"
keyPath = "./server.key"
hostHeaderRewrite = "127.0.0.1"
requestHeaders.set.x-from-where = "frp"

[[proxies]]
name = "plugin_http2https"
type = "http"
customDomains = ["test.yourdomain.com"]
[proxies.plugin]
type = "http2https"
localAddr = "127.0.0.1:443"
hostHeaderRewrite = "127.0.0.1"
requestHeaders.set.x-from-where = "frp"

[[proxies]]
name = "secret_tcp"
# If the type is secret tcp, remotePort is useless
# Who want to connect local port should deploy another frpc with stcp proxy and role is visitor
type = "stcp"
# secretKey is used for authentication for visitors
secretKey = "abcdefg"
localIP = "127.0.0.1"
localPort = 22
# If not empty, only visitors from specified users can connect.
# Otherwise, visitors from same user can connect. '*' means allow all users.
allowUsers = ["*"]

[[proxies]]
name = "p2p_tcp"
type = "xtcp"
secretKey = "abcdefg"
localIP = "127.0.0.1"
localPort = 22
# If not empty, only visitors from specified users can connect.
# Otherwise, visitors from same user can connect. '*' means allow all users.
allowUsers = ["user1", "user2"]

# frpc role visitor -> frps -> frpc role server
[[visitors]]
name = "secret_tcp_visitor"
type = "stcp"
# the server name you want to visitor
serverName = "secret_tcp"
secretKey = "abcdefg"
# connect this address to visitor stcp server
bindAddr = "127.0.0.1"
# bindPort can be less than 0, it means don't bind to the port and only receive connections redirected from
# other visitors. (This is not supported for SUDP now)
bindPort = 9000

[[visitors]]
name = "p2p_tcp_visitor"
type = "xtcp"
# if the server user is not set, it defaults to the current user
serverUser = "user1"
serverName = "p2p_tcp"
secretKey = "abcdefg"
bindAddr = "127.0.0.1"
# bindPort can be less than 0, it means don't bind to the port and only receive connections redirected from
# other visitors. (This is not supported for SUDP now)
bindPort = 9001
# when automatic tunnel persistence is required, set it to true
keepTunnelOpen = false
# effective when keepTunnelOpen is set to true, the number of attempts to punch through per hour
maxRetriesAnHour = 8
minRetryInterval = 90
# fallbackTo = "stcp_visitor"
# fallbackTimeoutMs = 500
