1.画笔模式

    /**
    * Set the paint's style, used for controlling how primitives'
    * geometries are interpreted (except for drawBitmap, which always assumes
    * Fill).
    *
    * @param style The new style to set in the paint
    */
    public void setStyle(Style style) {
        nSetStyle(mNativePaint, style.nativeInt);
    }

• Paint.Style.STROKE 描边
• Paint.Style.FILL 填充
• Paint.Style.FILL_AND_STROKE 同时填充和描边

2.线冒样式

    /**
    * Set the paint's Cap.
    *
    * @param cap set the paint's line cap style, used whenever the paint's
    * style is Stroke or StrokeAndFill.
    */
    public void setStrokeCap(Cap cap) {
        nSetStrokeCap(mNativePaint, cap.nativeInt);
    }

• Paint.Cap.BUTT：笔画以小路为终点，不向外投射。
• Paint.Cap.SQUARE：笔画突出为一个正方形，中心位于路径的末端。
• Paint.Cap.ROUND： 笔画以半圆的形式伸出，中心位于路径的末端

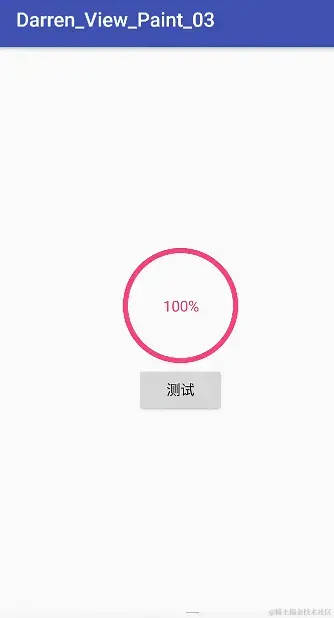

3.打造炫酷进度条

class CircleView @JvmOverloads constructor(
    context: Context,
    attr: AttributeSet? = null,
    defStyle: Int = 0
) :
    View(context, attr, defStyle) {

    override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec)
        val isWrap = (MeasureSpec.getMode(widthMeasureSpec) == MeasureSpec.AT_MOST ||MeasureSpec.getMode(heightMeasureSpec) == MeasureSpec.AT_MOST)
        val size = if (isWrap) {
            40
        } else {
            val width = MeasureSpec.getSize(widthMeasureSpec)
            val height = MeasureSpec.getSize(heightMeasureSpec)
            min(width, height)
        }
        setMeasuredDimension(size, size)
    }

    private val bluePaint by lazy {
        Paint().apply {
            color = Color.BLUE
            isAntiAlias = true
            strokeWidth = borderWith
            //设置画笔仅描边，不填充
            style = Paint.Style.STROKE
        }
    }

    private val redPaint by lazy {
        Paint().apply {
            color = Color.RED
            isAntiAlias = true
            strokeWidth = borderWith
            //设置画笔仅描边，不填充
            style = Paint.Style.STROKE
            //两端为圆形
            strokeCap = Paint.Cap.ROUND
        }
    }

    private val textPaint by lazy {
        Paint().apply {
            color = Color.BLUE
            isAntiAlias = true
            textSize = borderWith
        }
    }

    private val borderWith = 20F
    private val circleRectF by lazy {
        val leftAndTop = borderWith / 2
        val rightAndBottom = width - borderWith / 2
        RectF(leftAndTop, leftAndTop, rightAndBottom, rightAndBottom)
    }

    private val textRect by lazy {  Rect()  }

    private var currentProgress = 0.59F

    override fun draw(canvas: Canvas) {
        super.draw(canvas)
        val circleRange=360F
        canvas.drawArc(circleRectF, 0F, circleRange, false, bluePaint)
        val content = if (currentProgress in 0F..1F) {
            "${(currentProgress * 100).toInt()}"
        } else {
            "0"
        } + "%"
        textPaint.getTextBounds(content, 0, content.length, textRect)
        val x = (width / 2 - textRect.width() / 2).toFloat()
        val dy = with(textPaint.fontMetricsInt) {
            (bottom - top) / 2 - bottom
        }
        val baseLine = (height / 2 + dy).toFloat()
        canvas.drawText(content, x, baseLine, textPaint)
        canvas.drawArc(circleRectF, 0F, circleRange*currentProgress, false, redPaint)
    }

    fun refreshProgress(currentProgress:Float){
        this.currentProgress=currentProgress
        invalidate()
    }
}

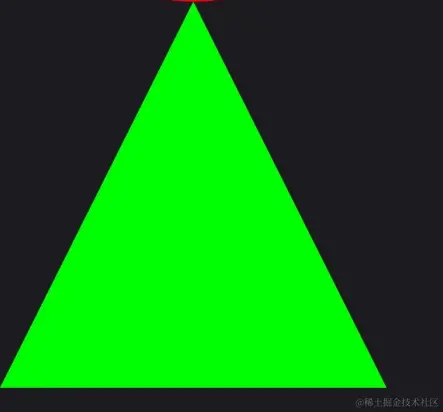

4.仿58同城数据加载效果（此处为等边三角形）

此处是真正的等边三角形三条边都相等

绝非是常见的，想当然的，网上流传甚广的这种情况

private val path by lazy {
    with(Path()) {
        moveTo((width / 2).toFloat(), 0F)
        lineTo(0F, height.toFloat())
        lineTo(width.toFloat(), height.toFloat())
        close()
        this
    }
}

class RandomView @JvmOverloads constructor(
    context: Context,
    attr: AttributeSet? = null,
    defStyle: Int = 0
) :
    View(context, attr, defStyle) {

    enum class RefreshType {
        Circle, Rect, Triangle
    }

    private var showType: RefreshType = RefreshType.Circle

    override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec)
        val isWrap = (MeasureSpec.getMode(widthMeasureSpec) == MeasureSpec.AT_MOST) || (MeasureSpec.getMode(heightMeasureSpec) == MeasureSpec.AT_MOST)
        val size = if (isWrap) {
            300
        } else {
            min(MeasureSpec.getSize(widthMeasureSpec), MeasureSpec.getSize(heightMeasureSpec))
        }
        setMeasuredDimension(size, size)
    }
    private val colorPaint by lazy { Paint() }

    private val rect by lazy { Rect(0, 0, width, height) }

    override fun onDraw(canvas: Canvas) {
        super.onDraw(canvas)
        when (showType) {
            RefreshType.Circle -> {
                colorPaint.color=Color.BLUE
                //画圆
                val center = (width / 2).toFloat()
                canvas.drawCircle(center, center, center, colorPaint)
            }
            //画正方形
            RefreshType.Rect -> {
                colorPaint.color=Color.RED
                canvas.drawRect(rect, colorPaint)
            }
            //画三角形
            RefreshType.Triangle -> {
                colorPaint.color=Color.GREEN
                canvas.drawPath(path, colorPaint)
            }
        }
    }

    /**
    * 根据直角三角形:a^2+b^=c^2(斜边)
    *
    * 等边三角形底边做垂直线可得到:
    *
    * 两个相等的30°，60°的RT(right triangle)直角三角形
    *
    * 斜边为等边三角形的边
    * 底边为(等边三角形的边/2)
    * 直角边为等边三角形的垂直线
    * */
    private val path by lazy {
        with(Path()) {
            moveTo((width / 2).toFloat(), 0F)
            //斜边的平方
            val hypotenuse= width.toDouble().pow(2)
            //底边的平方
            val bottom=(width/2).toDouble().pow(2)
            //直角边开平方
            val vertical=sqrt(hypotenuse-bottom).toFloat()
            lineTo(0F, vertical)
            lineTo(width.toFloat(),vertical)
            close()
            this
        }
    }


    /**
    * 内部切换更好
    * */
    fun refreshShowType() {
        showType=when(showType){
            RefreshType.Circle->RefreshType.Rect
            RefreshType.Rect->RefreshType.Triangle
            RefreshType.Triangle->RefreshType.Circle
        }
        invalidate()
    }
}
