设计模式实战01-模版模式

一.需求描述

我们在项目开发中经常碰到导入的需求,由于导入的逻辑通常比较复杂,涉及到一些业务上的校验等逻辑,每个人遇到这些需求可能会依据自己的习惯写很多代码, 导致项目冗长且没有规范, 不美观; 本文将基于一个导入需求,设计一个后端通用导入模版.提高代码的可读性与易维护性;

具体需求如下:

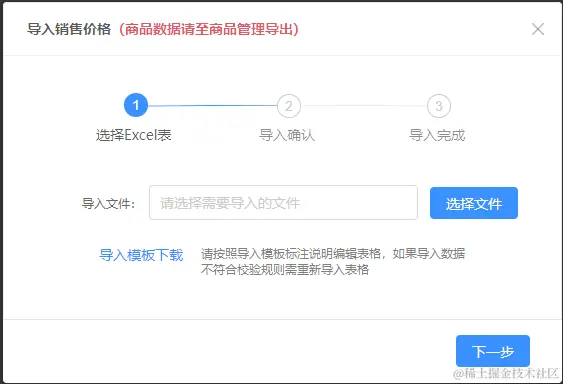

1.选择导入文件界面

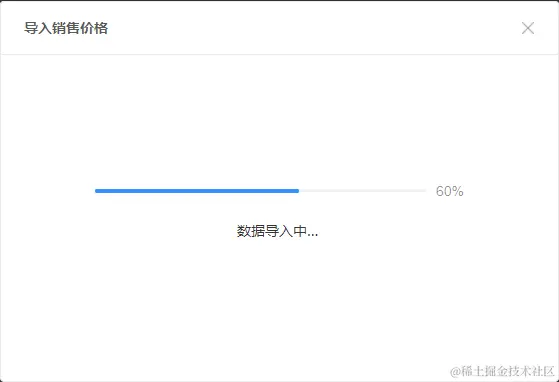

2.导入校验进度条

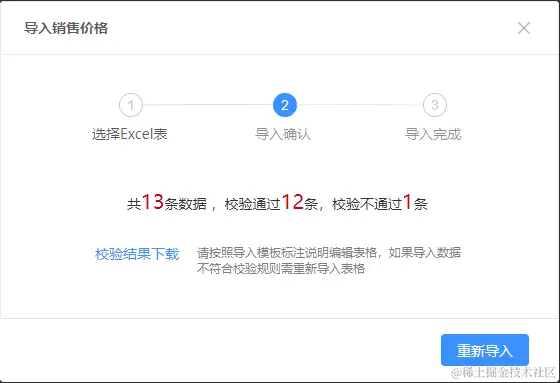

3.导入数据校验失败结果

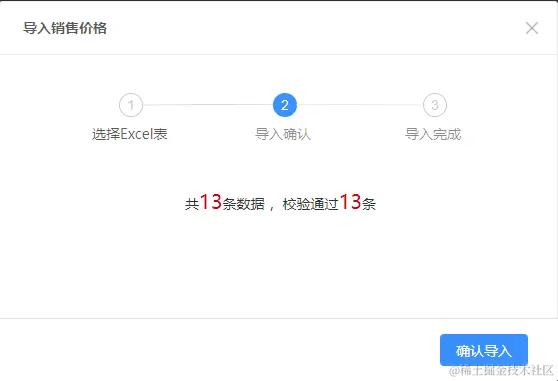

4.导入数据校验成功结果

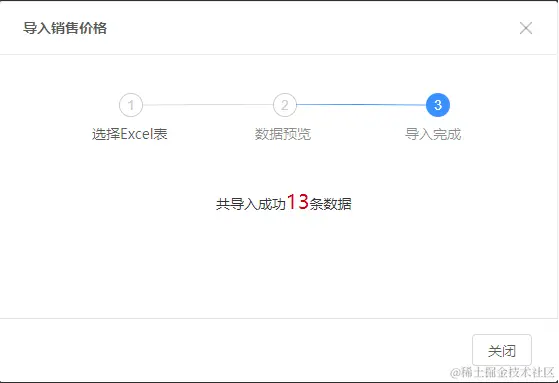

5.最终导入成功结果

二.代码实现

根据以上需求,我们提取到以下几点重要信息

• 导入数据校验及返回结果
• 实时查询导入的进度
• 最终执行导入

通过分析,确定了异步导入+redis方案,提前返回一个任务ID, 在异步导入的线程中实时生成进度信息放入redis,然后前端根据任务ID实时查询进度;

1.设计导入结果返回参数

@ApiModel("通用导入结果")
@Data
public class GeneralImportResultResp {

    /**
    * 导入总数
    */
    @ApiModelProperty("导入总数")
    private Integer totalCount;
    /**
    * 成功数量
    */
    @ApiModelProperty("成功数量")
    private Integer successCount;
    /**
    * 失败数量
    */
    @ApiModelProperty("失败数量")
    private Integer failedCount;
    /**
    * 导入结果excel
    */
    @ApiModelProperty("导入结果excel")
    private String failedXlsUrl;
    /**
    * 已完成数量
    */
    @ApiModelProperty("已完成数量")
    private Integer completed;
    /**
    * 任务是否已执行完成
    */
    @ApiModelProperty("任务是否已执行完成")
    private Boolean done;
    /**
    * 任务完成进度（百分比）
    */
    @ApiModelProperty("任务完成进度（百分比）")
    private Integer progress;
    @ApiModelProperty("任务执行中是否有异常")
    private Boolean hasError = false;
    /**
    * 导入确认信息
    */
    @ApiModelProperty("导入确认信息")
    private String confirmMessage;

    /**
    * 计算任务完成度
    */
    public void computeProgress(Integer completed) {
        this.completed = completed;
        if (this.totalCount == null || completed == null || completed <= 0) {
            this.done = false;
            this.progress = 0;
        return;
        }
        if (completed >= this.totalCount) {
            this.done = true;
            this.progress = 100;
            return;
        }
        this.done = false;
        this.progress = BigDecimal.valueOf(completed)
        .multiply(BigDecimal.valueOf(100))
        .divide(BigDecimal.valueOf(totalCount), 0, RoundingMode.DOWN)
        .intValue();
    }

    public boolean validateSuccess() {
        return failedCount == null || failedCount == 0;
    }
}

2.定义导入接口

public interface RedisImport {

    GeneralImportResultResp getImportResult(String taskId);
    /**
    *
    * @param 导入上下文
    * @return  返回导入任务ID
    */
    String importExcel(RedisImportContext context);
}

3.定义通用导入DTO

@Data
public class BaseImportDTO {

    @ExcelIgnore
    private Boolean success = Boolean.TRUE;
    @ExcelIgnore
    private String errorMsg;
    @ExcelIgnore
    private Boolean isConfirm = Boolean.FALSE;
}

4.定义导入上下文对象

@Data
@Builder
@AllArgsConstructor
@NoArgsConstructor
public class RedisImportContext {

    /**
    * excel文件
    */
    private MultipartFile excelFile;
    /**
    * excel文件名称
    */
    private String execiFileOriginalFileName;
    /**
    * 用户信息封装类
    */
    private ImportBaseUserReq baseUserReq;
    /**
    * 是excel文件检查操作还是导入操作
    */
    private Boolean isSave;
    /**
    * 如果excel过大，建议检查时进行分批检查，而不是整个excel文件检查
    */
    private int splitExcelDataSize;

    /**
    * 进度条计数 save操作需要额外的操作时间，因此从-1开始
    */
    public int getStartTaskCount() {
    return this.isSave ? -2 : -1;
    }
}

5.编写导入模版

@Slf4j
public abstract class RedisForEachImportTemplate<T extends BaseImportDTO, F> implements RedisImport {

    @Override
    public GeneralImportResultResp getImportResult(String taskId) {
        String json = RedisUtils.initInstance().redisGet(buildTaskKey(taskId));
        if (StringUtils.isEmpty(json)) {
            throw new ServiceException(BizErrorCodeEnum.OPERATION_FAILED.getCode(), "任务ID不存在");
        }

        GeneralImportResultResp resp = JacksonUtils.string2Obj(json, GeneralImportResultResp.class);
        if (resp.getHasError() != null && resp.getHasError()) {
            throw new ServiceException(BizErrorCodeEnum.OPERATION_FAILED.getCode(), "导入失败，excel内容可能不正确，请检查后重新导入");
        }
        return resp;
    }

    @Override
    public String importExcel(RedisImportContext context) {
        /* 1. 导入加锁 */
        String lockKey = addLock(context);

        /* 2. 读取excel （该方法貌似无法放在异步中执行，会抛出FileNotFoundException）*/
        List<T> excelDataList = readExcelDataWithLockKey(lockKey, context);

        /* 读取excel文件之后，将其置为null(因为对象过大，不易长时间设置为强引用) */
        context.setExcelFile(null);

        /* 3. 异步导入 */
        return asyncImportExcel(lockKey, excelDataList, context);
    }

    private String asyncImportExcel(String lockKey, List<T> excelDataList, RedisImportContext context) {
        String taskId = RandomStringUtils.randomAlphanumeric(12);
        CompletableFuture.runAsync(() -> {
        try {
            log.info("开始执行导入任务， 任务ID={}", taskId);

            /**
            * 初始化进度条
            * 由于check和save都累计了进度条，因此进度条总数是*2
            */
            GeneralImportResultResp resp = initTaskProgress(taskId, excelDataList.size(), context.getStartTaskCount());

            /* excel整体数据检查 */
            checkExcelSheetData(excelDataList);
            // 批量获取校验和导入需要的数据
            F importNeedData = getImportNeedData(context.getBaseUserReq(), excelDataList);
            // 计数器
            AtomicReference<Integer> count = new AtomicReference<>(context.getStartTaskCount());
            /* excel行数据检查 */
            for (List<T> dataList : Lists.partition(excelDataList, context.getSplitExcelDataSize())) {
                checkExcelRowData(dataList, context, importNeedData);
            }
            saveTaskProgress(taskId, resp, count.get() + 1);

            /* 初步返回导入校验结果 */
            resp = buildResp(excelDataList, context.getExeciFileOriginalFileName());
            /* 如果是保存操作，就执行save */

            if (context.getIsSave() && resp.validateSuccess()) {
                int successCount = 0;
                int failCount = 0;
                for (T t : excelDataList) {
                    try {
                        if (saveDO(t, context.getBaseUserReq(), importNeedData)) {
                            t.setSuccess(Boolean.TRUE);
                            successCount++;
                        } else {
                            t.setSuccess(Boolean.FALSE);
                            failCount++;
                        }
                        buildFailOrSuccessResp(t);
                        } catch (Exception ex) {
                            failCount++;
                            t.setSuccess(Boolean.FALSE);
                            t.setErrorMsg(ex.getMessage());
                            buildFailOrSuccessResp(t);
                        }
                        saveTaskProgress(taskId, resp, count.get() + 1);
                    }
                    resp = buildFinalResp(excelDataList, successCount, failCount, context.getExeciFileOriginalFileName());
                }
                saveTaskProgress(taskId, resp, resp.getTotalCount());
                log.info("导入任务结束，任务ID:{}，任务结果:{}", taskId, JacksonUtils.obj2String(resp));
            } catch (Exception ex) {
                log.error("导入任务报错：" + ex.getMessage(), ex);
                GeneralImportResultResp resp = buildErrorResp();
                saveTaskProgress(taskId, resp, 0);
            } finally {
                // 任务执行完毕后释放锁
                RedisUtils.initInstance().redisDel(lockKey);
            }
        });
        return taskId;
    }

    protected abstract void buildFailOrSuccessResp(T excelData);
    // 批量获取校验和导入需要的数据
    protected abstract F getImportNeedData(ImportBaseUserReq userReq, List<T> excelData);

    /**
    * 读取excel需要try catch， 因为读取文件的listener里也有校验，会抛出异常，此时必须释放锁
    */
    private List<T> readExcelDataWithLockKey(String lockKey, RedisImportContext context) {
        try {
            return readExcelData(context.getExcelFile());
        } catch (Exception ex) {
            log.error("读取excel报错：" + ex.getMessage(), ex);
            RedisUtils.initInstance().redisDel(lockKey);
            throw ex;
        }
    }

    private String addLock(RedisImportContext context) {
        String lockKey = buildLockKey(context);
        /* 调用setIfAbsent，保证原子性，不要先get再set */
        Object uuid = RedisUtils.initInstance().getAtomLock(lockKey, 60L);
        Assert.notNull(uuid, "已有其他用户在执行该操作，请稍后再试");
        return lockKey;
    }

    private GeneralImportResultResp buildErrorResp() {
        GeneralImportResultResp resp = new GeneralImportResultResp();
        resp.setFailedCount(0);
        resp.setSuccessCount(0);
        resp.setTotalCount(0);
        resp.setHasError(true);
        return resp;
    }

    private GeneralImportResultResp initTaskProgress(String taskId, int totalCount, int startTaskCount) {
        GeneralImportResultResp resp = new GeneralImportResultResp();
        resp.setFailedCount(0);
        resp.setSuccessCount(0);
        resp.setTotalCount(totalCount);
        /* 初始化redis进度条数据 */
        saveTaskProgress(taskId, resp, startTaskCount);
        return resp;
    }

    /**
    * 保存任务进度
    *
    * @param taskId 任务ID
    * @param resp 任务出参resp
    * @param computeProgress 已处理的数量
    */
    private void saveTaskProgress(String taskId, GeneralImportResultResp resp, Integer computeProgress) {
        resp.computeProgress(computeProgress);
        String json = JacksonUtils.obj2String(resp);
        RedisUtils.initInstance().redisSet(buildTaskKey(taskId), json, 10L, TimeUnit.MINUTES);
        log.info("导入保存任务进度,任务id:{},进度详情:{}", taskId, json);
    }

    /**
    * 构造唯一key
    */
    protected abstract String buildLockKey(RedisImportContext context);

    /**
    * 构造redis中任务key
    */
    protected abstract String buildTaskKey(String taskId);

    /**
    * 读取文件
    */
    protected abstract List<T> readExcelData(MultipartFile excelFile);

    /**
    * excel整体校验
    */
    protected abstract void checkExcelSheetData(List<T> excelDataList);

    /**
    * excel 行校验
    */
    protected abstract void checkExcelRowData(List<T> dataList, RedisImportContext context, F importNeedData);

    /**
    * 根据excel文件构造返回值
    */
    protected abstract GeneralImportResultResp buildResp(List<T> excelDataList, String originalFilename);

    protected abstract GeneralImportResultResp buildFinalResp(List<T> excelDataList, int successCount, int failCount,
    String originalFilename);
     /**
     * 执行真正导入
     */
    public abstract boolean saveDO(T excelData, ImportBaseUserReq userReq, F importNeedData);

三. 模版使用

本次导入模版需要提供给前端四个接口,如下:

1.前端接口

@PostMapping("/getImportTemplateUrl")
@ApiOperation("导入模板文件url")
public BaseResponse<String> getImportTemplateUrl() {
    return BaseResponseBuilder.successString(IMPORT_TEMPLATE_URL);
}

@NoRepeatSubmit
@PostMapping(value = "/importList/check", consumes = {MediaType.MULTIPART_FORM_DATA_VALUE})
@ApiOperation("导入数据检查")
public BaseResponse<String> importListCheck(@RequestPart("file") MultipartFile file) {
    BaseUserInfo user = BaseUserContextHolder.getUserInfo();
    Assert.notNull(user, "用戶信息不能为空");
    RedisImportContext context = buildImportContext(file, user, false);
    return BaseResponseBuilder.successString(couponListImportService.importExcel(context));
}

@NoRepeatSubmit
@PostMapping(value = "/doImport", consumes = {MediaType.MULTIPART_FORM_DATA_VALUE})
@ApiOperation("执行导入接口")
public BaseResponse<String> doImport(@RequestPart("file") MultipartFile file) {
    BaseUserInfo user = BaseUserContextHolder.getUserInfo();
    Assert.notNull(user, "用戶信息不能为空");
    RedisImportContext context = buildImportContext(file, user, true);
    return BaseResponseBuilder.successString(couponListImportService.importExcel(context));
}

@ApiOperation("导入结果查询")
@PostMapping("/import/result/{taskId}")
public BaseResponse<GeneralImportResultResp> getImportResult(@PathVariable("taskId") String taskId) {
    return BaseResponseBuilder.success(couponListImportService.getImportResult(taskId));
}

2.导入服务实现类

@Slf4j
@Service
public class CouponListImportServiceImpl extends RedisForEachImportTemplate<CouponImportDTO, CouponImportData> {
    private static final String IMPORT_LOCK_KEY = "coupon_info_import_lock:%s";
    private static final String IMPORT_PROGRESS_KEY = "coupon_info_import_progress:%s";

    @Override
    protected String buildLockKey(RedisImportContext context) {
        return String.format(IMPORT_LOCK_KEY, context.getBaseUserReq().getTenantId());
    }

    @Override
    protected List<CouponImportDTO> readExcelData(MultipartFile excelFile) {
        CouponInfoListImportListener importListener = new CouponInfoListImportListener(1000);
        try (InputStream is = excelFile.getInputStream()) {
            EasyExcel.read(is, CouponImportDTO.class, importListener).sheet().doRead();
        } catch (IOException e) {
            log.error("优惠券信息导入Excel读取失败", e);
            throw new ServiceException(BizErrorCodeEnum.OPERATION_FAILED.getCode(), "excel文件读取失败");
        }
        return importListener.getCouponInfoImports();
    }

    @Override
    protected void checkExcelSheetData(List<CouponImportDTO> excelDataList) {
        /* 校验 excel行不能有重复值 */
        HashSet<String> hashSet = new HashSet<>();
        excelDataList.forEach(dto -> {
            String item = dto.getIntegralAccount() + ":" + dto.getCouponTemplateId();
            if (hashSet.add(item)) {
                return;
            }
            dto.setFailReason("表格中存在相同的积分账号和优惠券模版");
        });
    }
    @Override
    protected void checkExcelRowData(List<CouponImportDTO> dataList, RedisImportContext context, CouponImportData couponImportData) {
        Map<String, List<SimpleUserResp>> userMap = couponImportData.getUserMap();
        Map<Long, DmsStoreBaseInfoResp> storeMap = couponImportData.getStoreMap();
        Map<Long, CouponTemplateBaseInfo> couponTemplateMap = couponImportData.getCouponTemplateMap();
        Map<String, CustomerCouponInfo> couponInfoMap = couponImportData.getCouponInfoMap();
        dataList.stream().filter(item -> StringUtils.isBlank(item.getFailReason())).forEach(item -> {
            List<SimpleUserResp> userRes = userMap.get(item.getIntegralAccount());
            if (CollectionUtils.isEmpty(userRes)) {
                item.setFailReason("积分账号不存在");
                return;
            }
            List<SimpleUserResp> enableList = userRes.stream()
            .filter(user -> YesNoEnum.YES.getCode().equals(user.getIsEnable()))
            .collect(Collectors.toList());
            if (CollectionUtils.isEmpty(enableList)) {
                item.setFailReason("易积分账号已禁用");
                return;
            }
        });
    }

    @Override
    protected GeneralImportResultResp buildResp(List<CouponImportDTO> excelDataList, String originalFilename) {
        GeneralImportResultResp resp = new GeneralImportResultResp();
        List<CouponImportDTO> failedImportDtoList = excelDataList.stream()
        .filter(dto -> StringUtils.isNotEmpty(dto.getFailReason()))
        .collect(Collectors.toList());
        if (CollectionUtils.isEmpty(failedImportDtoList)) {
            // 数据无问题
            resp.setFailedCount(0);
            resp.setSuccessCount(excelDataList.size());
            resp.setTotalCount(excelDataList.size());
        }else {
        /* 数据有问题，失败信息导出 */
            String exportFileName = Files.getNameWithoutExtension(originalFilename) + "_" + System.currentTimeMillis() + ".xlsx";
            EasyExcelUtils.export(exportFileName, "积分优惠券导入失败信息", CouponImportDTO.class, excelDataList,  new LongestMatchColumnWidthStyleStrategy());
            String excelDownUrl = uploadService.uploadExcel(exportFileName);
            resp.setFailedXlsUrl(excelDownUrl);
            resp.setFailedCount(failedImportDtoList.size());
            resp.setSuccessCount(excelDataList.size() - failedImportDtoList.size());
            resp.setTotalCount(excelDataList.size());
            return resp;
        }
    }

    @Override
    protected GeneralImportResultResp buildFinalResp(List<CouponImportDTO> excelDataList, int successCount, int failCount,  String originalFilename) {
        GeneralImportResultResp resp = new GeneralImportResultResp();
        if (failCount == 0) {
            /* 数据无问题 */
            resp.setFailedCount(0);
            resp.setSuccessCount(excelDataList.size());
            resp.setTotalCount(excelDataList.size());
            return resp;
        } else {
            /* 数据有问题，失败信息导出 */
            String exportFileName = Files.getNameWithoutExtension(originalFilename) + "_" + System.currentTimeMillis() + ".xlsx";
            EasyExcelUtils.export(exportFileName, "优惠券信息导入失败信息", CouponImportDTO.class, excelDataList,  new LongestMatchColumnWidthStyleStrategy());
            String excelDownUrl = uploadService.uploadExcel(exportFileName);
            resp.setFailedXlsUrl(excelDownUrl);
            resp.setFailedCount(failCount);
            resp.setSuccessCount(successCount);
            resp.setTotalCount(excelDataList.size());
            return resp;
        }
    }

    @Override
    @Transactional(rollbackFor = Exception.class)
    public boolean saveDO(CouponImportDTO excelData, ImportBaseUserReq userReq, CouponImportData importNeedData) {
        //保存导入数据....
    }
    @Override
    protected String buildTaskKey(String taskId) {
        return String.format(IMPORT_PROGRESS_KEY, taskId);
    }

    @Override
    protected void buildFailOrSuccessResp(CouponImportDTO excelData) {
        if (excelData.getSuccess()) {
            excelData.setIsSuccess("成功");
        } else {
            excelData.setIsSuccess("失败");
            excelData.setFailReason(excelData.getErrorMsg());
        }
    }

    /**
    *
    * @param 用户信息
    * @param 读取的excel数据
    * @return  返回导入或校验需要的数据
    */
    @Override
    protected CouponImportData getImportNeedData(ImportBaseUserReq userReq, List<CouponImportDTO> dataList) {
        ......
    }

}

三. 总结

如果需要规范代码行为, 抽取公共代码逻辑可以使用模版模式
