1.invalidate()源码分析

p.invalidateChild(this, damage);

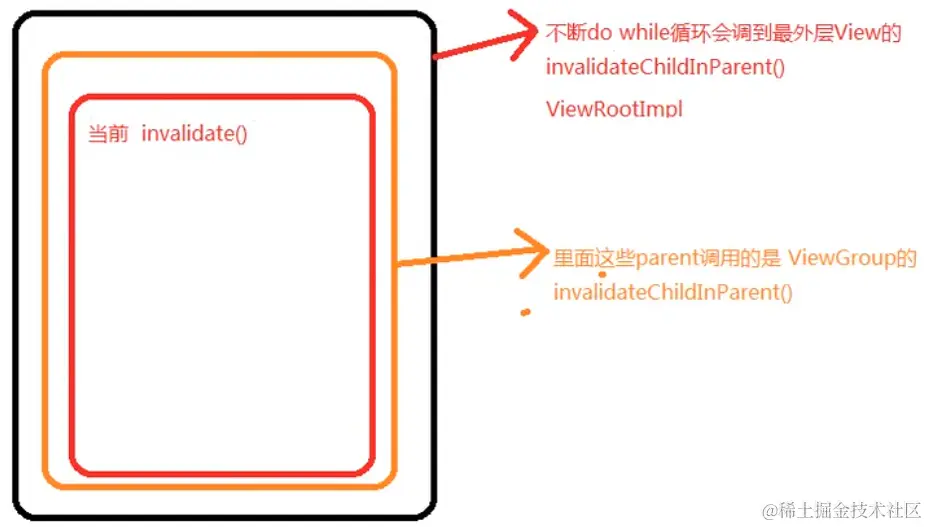

do{
    parent = parent.invalidateChildInParent(location, dirty);
    if (view != null) {
        // Account for transform on current parent
        Matrix m = view.getMatrix();
        if (!m.isIdentity()) {
            RectF boundingRect = attachInfo.mTmpTransformRect;
            boundingRect.set(dirty);
            m.mapRect(boundingRect);
            dirty.set((int) Math.floor(boundingRect.left),
                (int) Math.floor(boundingRect.top),
                (int) Math.ceil(boundingRect.right),
                (int) Math.ceil(boundingRect.bottom));
        }
    }
} while (parent != null);

mView.draw(canvas);

invlidate()流程 :一路往上跑，跑到最外层draw()-> dispatchDraw() 一路往下画最终画到当前调用invaldate的view的onDraw()方法

invlidate()牵连着整个layout布局中的view

为什么不能在子线程更新UI？开了线程，更新UI一般会调用setText()， setImageBitmap()，setVisibility最终调到这里面来ViewRootImpl #checkThread()

void checkThread() {
    Thread current = Thread.currentThread();
    if (mThread != current) {
        throw new CalledFromWrongThreadException(
            "Only the original thread that created a view hierarchy can touch its views."
                + " Expected: " + mThread.getName()
                + " Calling: " + current.getName());
    }
}

mThread在构造函数中初始化的，为主线程MainThread

public ViewRootImpl(@UiContext Context context, Display display, IWindowSession session,WindowLayout windowLayout) {
    mThread = Thread.currentThread();
}

UI的绘制流程performTraversals()，performMeasure()，performLayout(),performDraw() 测量，摆放，绘制，三大流程

2.如何像WX朋友圈一样优化过度渲染

看自己界面有没有过度渲染开发者选项打开调试GPU过度绘制

2.1 网上的解决方案

尽量不要嵌套

能不设置背景不要设置背景

2.2 最好的解决方案

获取到数据去设置 setText()，setlmageView其实 invalidate()

最好是自己画，不要用系统的嵌套布局，运行效率高，实现功能效率低(抉择问题）

3.仿QQ运动步数进度效果

3.1 流程

分析效果:
确定自定义属性，编写attrs.xml
在布局中使用
在自定义view中获取自定义属性
onMeasure()
画弧 (1.画外圆弧,2.画内圆弧,百分比,是使用者设置的,3.画文字)
其他写几个方法动起来

3.2 自定义属性

<declare-styleable name="StepView">
    <attr name="outCircleColor" format="color|reference" />
    <attr name="inCircleColor" format="color|reference" />
    <attr name="borderWidth" format="dimension" />
    <attr name="centerTextSize" format="dimension" />
    <attr name="centerTextColor" format="color|reference" />
</declare-styleable>

3.3 自定义View

StepView


class StepView @JvmOverloads constructor(
    context: Context,
    attributeSet: AttributeSet? = null,
    defStyleAttr: Int = 0
) :
    View(context, attributeSet, defStyleAttr) {
    private val outCircleColor: Int
    private val inCircleColor: Int
    private val borderWidth: Int
    private val centerTextSize: Int
    private val centerTextColor: Int

    /**
    * 总共步数
    * */
    private var stepMax = 100

    /**
    * 当前步数
    * */
    private var currentStep = 45

    init {
        val array = context.obtainStyledAttributes(attributeSet, R.styleable.StepView)
        inCircleColor = array.getColor(R.styleable.StepView_inCircleColor, Color.RED)
        outCircleColor = array.getColor(R.styleable.StepView_outCircleColor, Color.BLUE)
        centerTextColor = array.getColor(R.styleable.StepView_centerTextColor, Color.BLUE)
        borderWidth = array.getDimension(R.styleable.StepView_borderWidth, 20F).toInt()
        centerTextSize = array.getDimensionPixelSize(R.styleable.StepView_centerTextSize, context.sp2px(15))
        array.recycle()
    }

    /**
    * 5.onMeasure()
    * */
    override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec)
        //调用者在布局中可能warp_content,
        val isWrap = (MeasureSpec.getMode(widthMeasureSpec) == MeasureSpec.AT_MOST) ||
            (MeasureSpec.getMode(heightMeasureSpec) == MeasureSpec.AT_MOST)
        val size = if (isWrap) {
            40
        } else {
            val width = MeasureSpec.getSize(widthMeasureSpec)
            val height = MeasureSpec.getSize(heightMeasureSpec)
            //宽高不一致,取最小值，确保是个正方形
            min(width, height)
        }
        setMeasuredDimension(size, size)
    }

    /**
    * 区域
    * */
    private val arcRectF by lazy {
        //半圆边缘没显示完整的原因？：描边有宽度
        //中心点
        // val center = width / 2
        // val radius = center - borderWidth/2
        // val leftAndTop = (center - radius).toFloat()
        val leftAndTop = (borderWidth / 2).toFloat()
        // val rightAndBottom = (center + radius).toFloat()
        val rightAndBottom = (width - borderWidth / 2).toFloat()
        RectF(leftAndTop, leftAndTop, rightAndBottom, rightAndBottom)
    }
    private val inCirclePaint by lazy {
        Paint().apply {
            isAntiAlias = true
            strokeWidth = borderWidth.toFloat()
            color = inCircleColor
            style = Paint.Style.STROKE
            strokeCap = Paint.Cap.ROUND
        }
    }
    private val outCirclePaint by lazy {
        Paint().apply {
            isAntiAlias = true
            strokeWidth = borderWidth.toFloat()
            color = outCircleColor
            //画笔实心
            style = Paint.Style.STROKE
            strokeCap = Paint.Cap.ROUND
        }
    }
    private val textPaint by lazy {
        Paint().apply {
            isAntiAlias = true
            color = centerTextColor
            textSize = centerTextSize.toFloat()
        }
    }

    /**
    * 文字的区域
    * */
    private val textRect by lazy { Rect() }

    /**
    * 6.画弧
    * */
    override fun onDraw(canvas: Canvas) {
        super.onDraw(canvas)
        // 6.1 画外圆弧
        canvas.drawArc(arcRectF, 135F, 270F, false, outCirclePaint)
        // 6.2 画内圆弧,百分比,是使用者设置的
        val sweepAngle = if ((stepMax < currentStep) || stepMax == 0) {
            0F
        } else {
            (currentStep.toFloat() / stepMax.toFloat()) * 270F
        }
        canvas.drawArc(arcRectF, 135F, sweepAngle, false, inCirclePaint)
        // 6.3 画文字
        val centerText = "${currentStep}/${stepMax}"
        textPaint.getTextBounds(centerText, 0, centerText.length, textRect)
        val dx = (width / 2 - textRect.width() / 2).toFloat()
        val dy = with(textPaint.fontMetricsInt) {
            (bottom - top) / 2 - bottom
        }
        val baseLine = (height / 2 + dy).toFloat()
        canvas.drawText(centerText, dx, baseLine, textPaint)
    }

    // 7.其他 写几个方法动起来
    @Synchronized
    fun inflateStepMax(stepMax: Int) {
        this.stepMax = stepMax
    }

    @Synchronized
    fun inflateCurrentStep(currentStep: Int) {
        this.currentStep = currentStep
        //不断绘制onDraw()
        invalidate()
    }
}

3.4 界面调用

val view = findViewById<StepView>(R.id.step_view).apply {
    inflateStepMax(4000)
}
//属性动画,后面的内容
val anim = with(ObjectAnimator.ofFloat(0f, 3000f)) {
    duration = 1000
    start()
    interpolator = DecelerateInterpolator()
    addUpdateListener {
        val currentStep = (it.animatedValue as Float).toInt()
        view.inflateCurrentStep(currentStep)
    }
    this
}
