ViewGroup与View的onDraw()异同

原本extends View的自定义控件改为extends ViewGroup后不正常显示，设置background后正常

原因：默认的ViewGroup不会调用onDraw()

画的其实是public void draw(@NonNull Canvas canvas) {}，模板设计模式

if (!verticalEdges && !horizontalEdges) {
    // Step 3, draw the content
    onDraw(canvas);
}

// Step 4, draw the children
dispatchDraw(canvas);

// Step 6, draw decorations (foreground, scrollbars)
onDrawForeground(canvas);

mPrivateFlags到底怎么赋值的 ，在View的构造函数中调用computeOpaqueFlags()

/**
* @hide
*/
@UnsupportedAppUsage
protected void computeOpaqueFlags() {
    // Opaque if:
    // - Has a background
    // - Background is opaque
    // - Doesn't have scrollbars or scrollbars overlay

    if (mBackground != null && mBackground.getOpacity() == PixelFormat.OPAQUE) {
        mPrivateFlags |= PFLAG_OPAQUE_BACKGROUND;
    } else {
        mPrivateFlags &= ~PFLAG_OPAQUE_BACKGROUND;
    }

    final int flags = mViewFlags;
    if (((flags & SCROLLBARS_VERTICAL) == 0 && (flags & SCROLLBARS_HORIZONTAL) == 0) ||
        (flags & SCROLLBARS_STYLE_MASK) == SCROLLBARS_INSIDE_OVERLAY ||
        (flags & SCROLLBARS_STYLE_MASK) == SCROLLBARS_OUTSIDE_OVERLAY) {
        mPrivateFlags |= PFLAG_OPAQUE_SCROLLBARS;
    } else {
        mPrivateFlags &= ~PFLAG_OPAQUE_SCROLLBARS;
    }
}

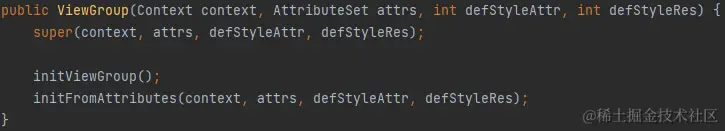

ViewGroup为什么出不来-->initViewGroup();

private void initViewGroup() {
    // ViewGroup doesn't draw by default
    if (!isShowingLayoutBounds()) {
        setFlags(WILL_NOT_DRAW, DRAW_MASK);
    }
}

导致mPrivateFlags会重新赋值

问题解决：思路：就是改变mPrivateFlags的状态

• onDraw(canvas: Canvas)改为dispatchDraw(canvas: Canvas)
• 设置透明背景
• setWillNotDraw(false)

完整的自定义TextView代码如下 attrs.xml

<!-- 名字最好是自定义控件 的名字-->
<declare-styleable name="TextView">
    <!--
    name属性名称
    format格式
        string 文字
        color 颜色
        dimension 宽高，字体大小
        integer数字
        reference资源(drawable)
    -->
    <attr name="darrenText" format="string" />
    <attr name="darrenTextColor" format="color" />
    <attr name="darrenTextSize" format="dimension" />
    <attr name="darrenMaxLength" format="integer" />
    <!-- 枚举-->
    <attr name="darrenInputType">
        <enum name="number" value="1" />
        <enum name="text" value="2" />
        <enum name="password" value="3" />
    </attr>
</declare-styleable>

TextView.kt

class TextView @JvmOverloads constructor(
    context: Context,
    attrs: AttributeSet? = null,
    defStyleAttr: Int = 0
) : View(context, attrs, defStyleAttr) {
    private val text: String
    private val textSize: Int
    private val textColor: Int
    private val paint: Paint
    private val bounds by lazy { Rect() }

    init {
    //获取自定义属性
    val array = context.obtainStyledAttributes(attrs, R.styleable.TextView)
    text = array.getString(R.styleable.TextView_darrenText).toString()
    textColor = array.getColor(R.styleable.TextView_darrenTextColor, Color.BLACK)
    textSize =  array.getDimensionPixelSize(R.styleable.TextView_darrenTextSize, context.sp2px(15))
    //回收
    array.recycle()
    paint = with(Paint()) {
            //抗锯齿
            isAntiAlias = true
            //设置字体大小，颜色
            textSize = this@TextView.textSize.toFloat()
            color = textColor
            this
        }
    }


    /**
    * 自定义view的测量方法
    * */
    override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec)
        //布局的宽高都是由这个方法指定
        //指定控件的宽高，需要测量
        //获取宽高的模式
        val widthMode = MeasureSpec.getMode(widthMeasureSpec)
        val heightMode = MeasureSpec.getMode(heightMeasureSpec)


        val widthSize = measureWidth(widthMeasureSpec, heightMeasureSpec, true)
        val heightSize = measureWidth(widthMeasureSpec, heightMeasureSpec)
        setMeasuredDimension(widthSize, heightSize)
    }

    /**
    * @param isWidth 是否计算宽度
    * */
    private fun measureWidth(
        widthMeasureSpec: Int,
        heightMeasureSpec: Int,
        isWidth: Boolean = false
    ): Int {
        val widthMode = MeasureSpec.getMode(widthMeasureSpec)
        return if (widthMode == MeasureSpec.AT_MOST) {
            //2.给的是 wrap_content 需要计算
            //计算的宽度与字体的长度，大小有关，用画笔测量
            paint.getTextBounds(text, 0, text.length, bounds)
            if (isWidth) {
                bounds.width() + paddingLeft + paddingRight
            } else {
                bounds.height() + paddingTop + paddingBottom
            }
        } else {
            //1.确定的值，这个时候不需要计算，给的多少就是多少
            val widthSize = MeasureSpec.getSize(widthMeasureSpec)
            val heightSize = MeasureSpec.getSize(heightMeasureSpec)
            if (isWidth) {
                widthSize
            } else {
                heightSize
            }
        }
    }

    override fun dispatchDraw(canvas: Canvas) {
        super.dispatchDraw(canvas)
        //x 开始的位置
        //y 基线 baseLine
        //dy 代表的是高度的一半到baseLine的距离
        val dy = with(paint.fontMetricsInt) {
            (bottom - top) / 2 - bottom
        }
        val baseLine = (height / 2).toFloat() + dy
        val x = paddingLeft
        canvas.drawText(text, x.toFloat(), baseLine, paint)
    }
}
