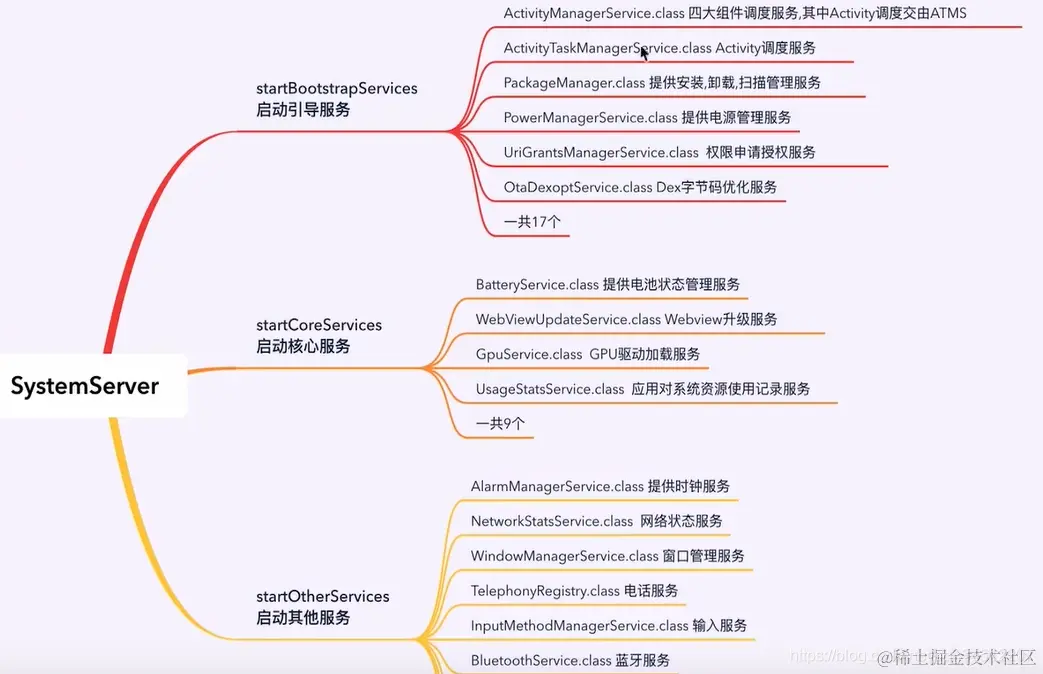

SystemServer
SystemServer进程的核心是SystemServer类，它是Android系统启动后的第一个Java进程。SystemServer类 负责启动系统的各种服务，它通过Binder机制提供各种服务接口:
(1)PowerManagerService：电源管理服务
(2) BatteryService：电池服务
(3) PackageManagerService：包管理服务
(4) ActivityManagerService：activity管理服务
(5) NetworkStatsService：网络状态服务
(6) WindowManagerService: 窗口管理服务
SystemServer.main：
\build\android\frameworks\base\services\java\com\android\server\SystemServer.java
从Zygote进程fork而来的系统进程，当运行时重启或者手机重启时，标记mRuntimeRestart
public static void main(String[] args) {
new SystemServer().run();
}
public SystemServer() {
// Check for factory test mode.
mFactoryTestMode = FactoryTest.getMode();
// Record process start information.
// Note SYSPROP_START_COUNT will increment by *2* on a FDE device when it fully boots;
// one for the password screen, second for the actual boot.
mStartCount = SystemProperties.getInt(SYSPROP_START_COUNT, 0) + 1;
mRuntimeStartElapsedTime = SystemClock.elapsedRealtime();
mRuntimeStartUptime = SystemClock.uptimeMillis();
// Remember if it's runtime restart(when sys.boot_completed is already set) or reboot
// We don't use "mStartCount > 1" here because it'll be wrong on a FDE device.
// TODO: mRuntimeRestart will *not* be set to true if the proccess crashes before
// sys.boot_completed is set. Fix it.
mRuntimeRestart = "1".equals(SystemProperties.get("sys.boot_completed"));
}
private void run() {
try {
traceBeginAndSlog("InitBeforeStartServices"); //在android.log输出:"I SystemServer: InitBeforeStartServices"
// 保证系统时间大于1970，部分API在时间小于此时会崩溃
// Record the process start information in sys props.
SystemProperties.set(SYSPROP_START_COUNT, String.valueOf(mStartCount));
SystemProperties.set(SYSPROP_START_ELAPSED, String.valueOf(mRuntimeStartElapsedTime));
SystemProperties.set(SYSPROP_START_UPTIME, String.valueOf(mRuntimeStartUptime));
EventLog.writeEvent(EventLogTags.SYSTEM_SERVER_START,
mStartCount, mRuntimeStartUptime, mRuntimeStartElapsedTime);
// If a device's clock is before 1970 (before 0), a lot of
// APIs crash dealing with negative numbers, notably
// java.io.File#setLastModified, so instead we fake it and
// hope that time from cell towers or NTP fixes it shortly.
if (System.currentTimeMillis() < EARLIEST_SUPPORTED_TIME) {
Slog.w(TAG, "System clock is before 1970; setting to 1970.");
SystemClock.setCurrentTimeMillis(EARLIEST_SUPPORTED_TIME);
}
//
// Default the timezone property to GMT if not set.
// 如果没有设置时区,统一设置为GMT
String timezoneProperty = SystemProperties.get("persist.sys.timezone");
if (timezoneProperty == null || timezoneProperty.isEmpty()) {
Slog.w(TAG, "Timezone not set; setting to GMT.");
SystemProperties.set("persist.sys.timezone", "GMT");
}
// If the system has "persist.sys.language" and friends set, replace them with
// "persist.sys.locale". Note that the default locale at this point is calculated
// using the "-Duser.locale" command line flag. That flag is usually populated by
// AndroidRuntime using the same set of system properties, but only the system_server
// and system apps are allowed to set them.
//
// NOTE: Most changes made here will need an equivalent change to
// core/jni/AndroidRuntime.cpp
// 设置系统语言，只有SystemServer进程和系统app允许修改
if (!SystemProperties.get("persist.sys.language").isEmpty()) {
final String languageTag = Locale.getDefault().toLanguageTag();
SystemProperties.set("persist.sys.locale", languageTag);
SystemProperties.set("persist.sys.language", "");
SystemProperties.set("persist.sys.country", "");
SystemProperties.set("persist.sys.localevar", "");
}
// The system server should never make non-oneway calls
Binder.setWarnOnBlocking(true);
// The system server should always load safe labels
PackageItemInfo.forceSafeLabels();
// Default to FULL within the system server.
SQLiteGlobal.sDefaultSyncMode = SQLiteGlobal.SYNC_MODE_FULL;
// Deactivate SQLiteCompatibilityWalFlags until settings provider is initialized
SQLiteCompatibilityWalFlags.init(null);
// Here we go!
// 正式进入Android SystemServer
Slog.i(TAG, "Entered the Android system server!");
int uptimeMillis = (int) SystemClock.elapsedRealtime();//开机时间
EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_SYSTEM_RUN, uptimeMillis);
if (!mRuntimeRestart) {
//非runtime重启或者手机重启进入
//在event.log里输出:"sysui_histogram: [boot_system_server_init,11663]"
MetricsLogger.histogram(null, "boot_system_server_init", uptimeMillis);
}
// In case the runtime switched since last boot (such as when
// the old runtime was removed in an OTA), set the system
// property so that it is in sync. We can | xq oqi't do this in
// libnativehelper's JniInvocation::Init code where we already
// had to fallback to a different runtime because it is
// running as root and we need to be the system user to set
// the property. http://b/11463182
//设置运行时属性，防止如OTA更新导致运行时不同步
//也就是设置虚拟机库文件
SystemProperties.set("persist.sys.dalvik.vm.lib.2", VMRuntime.getRuntime().vmLibrary());
// Mmmmmm... more memory!
// 清除vm内存增长上限，由于启动过程需要较多的虚拟机内存空间
VMRuntime.getRuntime().clearGrowthLimit();
// The system server has to run all of the time, so it needs to be
// as efficient as possible with its memory usage.
// 系统服务会一直运行，所以设置内存的可能有效使用率为0.8，也就是增强程序堆内存的处理效率
VMRuntime.getRuntime().setTargetHeapUtilization(0.8f);
// Some devices rely on runtime fingerprint generation, so make sure
// we've defined it before booting further.
// 针对部分设备依赖于运行时就产生指纹信息，因此需要在开机完成前已经定义
Build.ensureFingerprintProperty();
// Within the system server, it is an error to access Environment paths without
// explicitly specifying a user.
// 访问环境变量前，需要明确指定用户
Environment.setUserRequired(true);
// Within the system server, any incoming Bundles should be defused
// to avoid throwing BadParcelableException.
// 系统服务中拒绝接收任何Bundle以避免抛出BadParcelableException
BaseBundle.setShouldDefuse(true);
// Within the system server, when parceling exceptions, include the stack trace
Parcel.setStackTraceParceling(true);
// Ensure binder calls into the system always run at foreground priority.
// 确保系统Binder运行在前台优先级
BinderInternal.disableBackgroundScheduling(true);
// Increase the number of binder threads in system_server
// 设置系统服务的最大Binder线程数为31
BinderInternal.setMaxThreads(sMaxBinderThreads);
// Prepare the main looper thread (this thread).
// 设置当前进程的优先级为前台优先级，且不允许转为后台优先级
android.os.Process.setThreadPriority(
android.os.Process.THREAD_PRIORITY_FOREGROUND);
android.os.Process.setCanSelfBackground(false);
Looper.prepareMainLooper();
Looper.getMainLooper().setSlowLogThresholdMs(
SLOW_DISPATCH_THRESHOLD_MS, SLOW_DELIVERY_THRESHOLD_MS);
// Initialize native services.
// 初始化本地服务，也就是加载库文件: android_servers.so
// 该库包含的源码在frameworks/base/services/目录下
System.loadLibrary("android_servers");
// Debug builds - allow heap profiling.
if (Build.IS_DEBUGGABLE) {
initZygoteChildHeapProfiling();
}
// Check whether we failed to shut down last time we tried.
// This call may not return.
// 检测上次关机过程是否失败，该方法可能不会返回[2.7.1]
performPendingShutdown();
// Initialize the system context.
// 创建系统上下文,详细见Application创建流程
createSystemContext();
// Create the system service manager.
mSystemServiceManager = new SystemServiceManager(mSystemContext);
mSystemServiceManager.setStartInfo(mRuntimeRestart,
mRuntimeStartElapsedTime, mRuntimeStartUptime);
LocalServices.addService(SystemServiceManager.class, mSystemServiceManager);
// Prepare the thread pool for init tasks that can be parallelized
// 为可以并行化的init任务准备线程池
SystemServerInitThreadPool.get();
} finally {
traceEnd(); // InitBeforeStartServices
}
// Start services.
//启动各类服务
try {
traceBeginAndSlog("StartServices");
startBootstrapServices(); //启动引导服务
startCoreServices(); //启动核心服务
startOtherServices(); //启动其他服务
SystemServerInitThreadPool.shutdown(); // 关闭SystemServerInitThreadPool
} catch (Throwable ex) {
Slog.e("System", "******************************************");
Slog.e("System", "************ Failure starting system services", ex);
throw ex;
} finally {
traceEnd();
}
StrictMode.initVmDefaults(null);
if (!mRuntimeRestart && !isFirstBootOrUpgrade()) { // 非重启且非第一次开机或者更新时进入
int uptimeMillis = (int) SystemClock.elapsedRealtime();
MetricsLogger.histogram(null, "boot_system_server_ready", uptimeMillis);
final int MAX_UPTIME_MILLIS = 60 * 1000;
if (uptimeMillis > MAX_UPTIME_MILLIS) {
Slog.wtf(SYSTEM_SERVER_TIMING_TAG,
"SystemServer init took too long. uptimeMillis=" + uptimeMillis);
}
}
// Diagnostic to ensure that the system is in a base healthy state. Done here as a common
// non-zygote process.
if (!VMRuntime.hasBootImageSpaces()) {
Slog.wtf(TAG, "Runtime is not running with a boot image!");
}
// Loop forever.
// 正常情况下，无限循环等待消息
Looper.loop();
throw new RuntimeException("Main thread loop unexpectedly exited");
}
private boolean isFirstBootOrUpgrade() {
return mPackageManagerService.isFirstBoot() || mPackageManagerService.isDeviceUpgrading();
}
private void reportWtf(String msg, Throwable e) {
Slog.w(TAG, "***********************************************");
Slog.wtf(TAG, "BOOT FAILURE " + msg, e);
}
private void performPendingShutdown() {
final String shutdownAction = SystemProperties.get(
ShutdownThread.SHUTDOWN_ACTION_PROPERTY, "");
if (shutdownAction != null && shutdownAction.length() > 0) {
boolean reboot = (shutdownAction.charAt(0) == '1');
final String reason;
if (shutdownAction.length() > 1) {
reason = shutdownAction.substring(1, shutdownAction.length());
} else {
reason = null;
}
// If it's a pending reboot into recovery to apply an update,
// always make sure uncrypt gets executed properly when needed.
// If '/cache/recovery/block.map' hasn't been created, stop the
// reboot which will fail for sure, and get a chance to capture a
// bugreport when that's still feasible. (Bug: 26444951)
if (reason != null && reason.startsWith(PowerManager.REBOOT_RECOVERY_UPDATE)) {
File packageFile = new File(UNCRYPT_PACKAGE_FILE);
if (packageFile.exists()) {
String filename = null;
try {
filename = FileUtils.readTextFile(packageFile, 0, null);
} catch (IOException e) {
Slog.e(TAG, "Error reading uncrypt package file", e);
}
if (filename != null && filename.startsWith("/data")) {
if (!new File(BLOCK_MAP_FILE).exists()) {
Slog.e(TAG, "Can't find block map file, uncrypt failed or " +
"unexpected runtime restart?");
return;
}
}
}
}
Runnable runnable = new Runnable() {
@Override
public void run() {
synchronized (this) {
ShutdownThread.rebootOrShutdown(null, reboot, reason);
}
}
};
startBootstrapServices()：
\build\android\frameworks\base\services\java\com\android\server\SystemServer.java

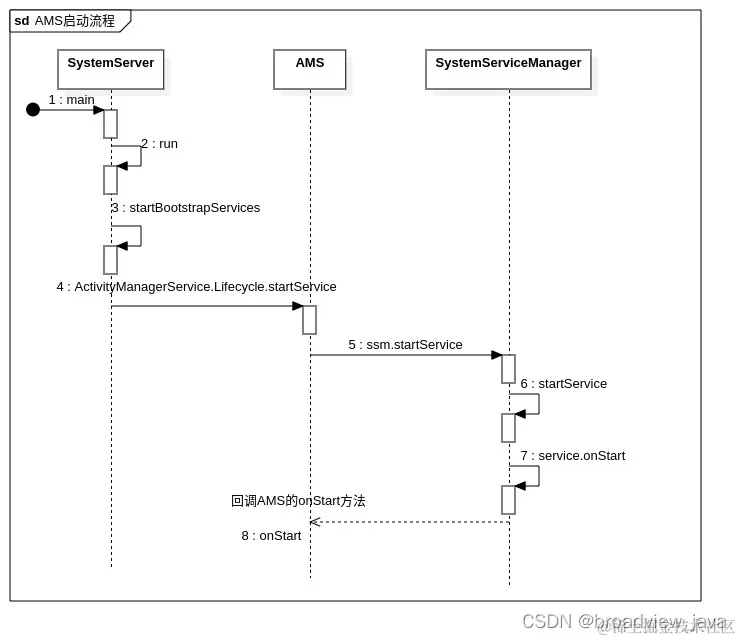

ActivityManagerService是Android系统中一个特别重要的系统服务，也是我们上层APP打交道最多的系统服务之一。ActivityManagerService（以下简称AMS） 主要负责四大组件的启动、切换、调度以及应用进程的管理和调度工作。所有的APP应用都需要与AMS打交道. 符合C/S通信模式.
Client：由ActivityManager封装一部分服务接口供Client调用 Server:由ActivityManagerService实现，提供Server端的系统服务
private void startBootstrapServices() {
// Start the watchdog as early as possible so we can crash the system server
// if we deadlock during early boot
traceBeginAndSlog("StartWatchdog");
final Watchdog watchdog = Watchdog.getInstance();
watchdog.start();
traceEnd();
Slog.i(TAG, "Reading configuration..."); // 在android.log输出:"I SystemServer: Reading configuration..."
final String TAG_SYSTEM_CONFIG = "ReadingSystemConfig";
traceBeginAndSlog(TAG_SYSTEM_CONFIG);
SystemServerInitThreadPool.get().submit(SystemConfig::getInstance, TAG_SYSTEM_CONFIG);
traceEnd();
// Wait for installd to finish starting up so that it has a chance to
// create critical directories such as /data/user with the appropriate
// 等待installd完成启动，以便它有机会创建具有适当权限的关键目录，如/ data / user。
// 在初始化其他服务之前，需要完成这个工作。
// permissions. We need this to complete before we initialize other services.
traceBeginAndSlog("StartInstaller");
Installer installer = mSystemServiceManager.startService(Installer.class);
traceEnd();
// In some cases after launching an app we need to access device identifiers,
// therefore register the device identifier policy before the activity manager.
// 在某些情况下，启动应用程序后，我们需要访问设备标识符，因此在活动管理器之前注册设备标识符策略服务。
traceBeginAndSlog("DeviceIdentifiersPolicyService");
mSystemServiceManager.startService(DeviceIdentifiersPolicyService.class);
traceEnd();
// Uri Grants Manager.
traceBeginAndSlog("UriGrantsManagerService");
mSystemServiceManager.startService(UriGrantsManagerService.Lifecycle.class);
traceEnd();
// Activity manager runs the show.
// 启动AMS
traceBeginAndSlog("StartActivityManager");
// TODO: Might need to move after migration to WM.
ActivityTaskManagerService atm = mSystemServiceManager.startService(
ActivityTaskManagerService.Lifecycle.class).getService();
mActivityManagerService = ActivityManagerService.Lifecycle.startService(
mSystemServiceManager, atm);
mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
mActivityManagerService.setInstaller(installer);
mWindowManagerGlobalLock = atm.getGlobalLock();
traceEnd();
// Power manager needs to be started early because other services need it.
// Native daemons may be watching for it to be registered so it must be ready
// to handle incoming binder calls immediately (including being able to verify
// the permissions for those calls).
// 电源管理器需要尽早启动，因为其他服务需要它。
// 本地守护进程可能正在注册，因此它必须准备好立即处理传入的绑定程序调用（包括能够验证这些调用的权限）。
traceBeginAndSlog("StartPowerManager");
mPowerManagerService = mSystemServiceManager.startService(PowerManagerService.class);
traceEnd();
traceBeginAndSlog("StartThermalManager");
mSystemServiceManager.startService(ThermalManagerService.class);
traceEnd();
// Now that the power manager has been started, let the activity manager
// initialize power management features.
// 现在PowerManagerService已经启动，将其传入AMS
traceBeginAndSlog("InitPowerManagement");
mActivityManagerService.initPowerManagement();
traceEnd();
// Bring up recovery system in case a rescue party needs a reboot
// 启动recovery系统服务
traceBeginAndSlog("StartRecoverySystemService");
mSystemServiceManager.startService(RecoverySystemService.class);
traceEnd();
// Now that we have the bare essentials of the OS up and running, take
// note that we just booted, which might send out a rescue party if
// we're stuck in a runtime restart loop.
// OS启动的基础已经搭好，但是接来下的启动可能会陷入死循环，这里检测预防这种情况
RescueParty.noteBoot(mSystemContext);
// Manages LEDs and display backlight so we need it to bring up the display.
// 启动灯光管理服务
traceBeginAndSlog("StartLightsService");
mSystemServiceManager.startService(LightsService.class);
traceEnd();
traceBeginAndSlog("StartSidekickService");
// Package manager isn't started yet; need to use SysProp not hardware feature
if (SystemProperties.getBoolean("config.enable_sidekick_graphics", false)) {
mSystemServiceManager.startService(WEAR_SIDEKICK_SERVICE_CLASS);
}
traceEnd();
// Display manager is needed to provide display metrics before package manager
// starts up.
// 启动显示管理服务，该服务需要在包管理服务前启动以提供相关服务
traceBeginAndSlog("StartDisplayManager");
mDisplayManagerService = mSystemServiceManager.startService(DisplayManagerService.class);
traceEnd();
// We need the default display before we can initialize the package manager.
// 等待显示管理服务启动完毕
// mCurrentPhase = -1
// Phase 100: 在初始化package manager之前，需要默认的显示.
traceBeginAndSlog("WaitForDisplay");
// 逐个调用已启动的服务的onBootPharse()方法,也就是等待mServices中各个服务启动完毕
mSystemServiceManager.startBootPhase(SystemService.PHASE_WAIT_FOR_DEFAULT_DISPLAY);
traceEnd();
// Only run "core" apps if we're encrypting the device.
// 判断设备是否正在加密，是则仅运行核心
String cryptState = VoldProperties.decrypt().orElse("");
if (ENCRYPTING_STATE.equals(cryptState)) {
Slog.w(TAG, "Detected encryption in progress - only parsing core apps");
mOnlyCore = true;
} else if (ENCRYPTED_STATE.equals(cryptState)) {
Slog.w(TAG, "Device encrypted - only parsing core apps");
mOnlyCore = true;
}
// Start the package manager.
// 初始化包管理服务PMS
if (!mRuntimeRestart) {
MetricsLogger.histogram(null, "boot_package_manager_init_start",
(int) SystemClock.elapsedRealtime());
}
traceBeginAndSlog("StartPackageManagerService");
// 启动PackageManagerService
try {
Watchdog.getInstance().pauseWatchingCurrentThread("packagemanagermain");
mPackageManagerService = PackageManagerService.main(mSystemContext, installer,
mFactoryTestMode != FactoryTest.FACTORY_TEST_OFF, mOnlyCore);
} finally {
Watchdog.getInstance().resumeWatchingCurrentThread("packagemanagermain");
}
mFirstBoot = mPackageManagerService.isFirstBoot();
mPackageManager = mSystemContext.getPackageManager();
traceEnd();
if (!mRuntimeRestart && !isFirstBootOrUpgrade()) {
MetricsLogger.histogram(null, "boot_package_manager_init_ready",
(int) SystemClock.elapsedRealtime());
}
// Manages A/B OTA dexopting. This is a bootstrap service as we need it to rename
// A/B artifacts after boot, before anything else might touch/need them.
// Note: this isn't needed during decryption (we don't have /data anyways).
if (!mOnlyCore) {
boolean disableOtaDexopt = SystemProperties.getBoolean("config.disable_otadexopt",
false);
if (!disableOtaDexopt) {
traceBeginAndSlog("StartOtaDexOptService");
try {
Watchdog.getInstance().pauseWatchingCurrentThread("moveab");
OtaDexoptService.main(mSystemContext, mPackageManagerService);
} catch (Throwable e) {
reportWtf("starting OtaDexOptService", e);
} finally {
Watchdog.getInstance().resumeWatchingCurrentThread("moveab");
traceEnd();
}
}
}
traceBeginAndSlog("StartUserManagerService");
mSystemServiceManager.startService(UserManagerService.LifeCycle.class);
traceEnd();
// Initialize attribute cache used to cache resources from packages.
// 初始化属性缓存，用于缓存来自包的资源
traceBeginAndSlog("InitAttributerCache");
AttributeCache.init(mSystemContext);
traceEnd();
// Set up the Application instance for the system process and get started.
// 设置系统进程的应用程序实例
traceBeginAndSlog("SetSystemProcess");
mActivityManagerService.setSystemProcess();
traceEnd();
// Complete the watchdog setup with an ActivityManager instance and listen for reboots
// Do this only after the ActivityManagerService is properly started as a system process
traceBeginAndSlog("InitWatchdog");
watchdog.init(mSystemContext, mActivityManagerService);
traceEnd();
// DisplayManagerService needs to setup android.display scheduling related policies
// since setSystemProcess() would have overridden policies due to setProcessGroup
// 因为AMS.setSystemProcess() 会覆盖策略,所以
// DisplayManagerService需要设置android.display调度相关的策略
mDisplayManagerService.setupSchedulerPolicies();
// Manages Overlay packages
// 启动OverlayManagerService，管理覆盖包
traceBeginAndSlog("StartOverlayManagerService");
mSystemServiceManager.startService(new OverlayManagerService(mSystemContext, installer));
traceEnd();
traceBeginAndSlog("StartSensorPrivacyService");
mSystemServiceManager.startService(new SensorPrivacyService(mSystemContext));
traceEnd();
if (SystemProperties.getInt("persist.sys.displayinset.top", 0) > 0) {
// DisplayManager needs the overlay immediately.
mActivityManagerService.updateSystemUiContext();
LocalServices.getService(DisplayManagerInternal.class).onOverlayChanged();
}
// The sensor service needs access to package manager service, app ops
// service, and permissions service, therefore we start it after them.
// Start sensor service in a separate thread. Completion should be checked
// before using it.
// 传感器服务需要访问PackageManagerService，AppOps和Permissions Service，因此我们在它们之后启动它
// 启动传感器服务在一个单独的线程中，使用前应检查完成情况。
mSensorServiceStart = SystemServerInitThreadPool.get().submit(() -> {
TimingsTraceLog traceLog = new TimingsTraceLog(
SYSTEM_SERVER_TIMING_ASYNC_TAG, Trace.TRACE_TAG_SYSTEM_SERVER);
traceLog.traceBegin(START_SENSOR_SERVICE);
startSensorService();
traceLog.traceEnd();
}, START_SENSOR_SERVICE);
}
public static ActivityManagerService startService(
SystemServiceManager ssm, ActivityTaskManagerService atm) {
sAtm = atm;
return
//传入的是ActivityManagerService.Lifecycle.class对象
ssm.startService(ActivityManagerService.Lifecycle.class).getService();
}
Lifecycle：
\build\android\frameworks\base\services\core\java\com\android\server\am\ActivityManagerService.java
Life实例是AMS中的一个静态内部类，并且继承于SystemService
public static final public static final class Lifecycle extends SystemService {
private final ActivityManagerService mService;
private static ActivityTaskManagerService sAtm;
public Lifecycle(Context context) {
super(context);
mService = new ActivityManagerService(context, sAtm);
}
public static ActivityManagerService startService(
SystemServiceManager ssm, ActivityTaskManagerService atm) {
sAtm = atm;
//传入的是ActivityManagerService.Lifecycle.class对象
return ssm.startService(ActivityManagerService.Lifecycle.class).getService();
}
@Override
public void onStart() {
mService.start();
}
@Override
public void onBootPhase(int phase) {
mService.mBootPhase = phase;
if (phase == PHASE_SYSTEM_SERVICES_READY) {
mService.mBatteryStatsService.systemServicesReady();
mService.mServices.systemServicesReady();
} else if (phase == PHASE_ACTIVITY_MANAGER_READY) {
mService.startBroadcastObservers();
} else if (phase == PHASE_THIRD_PARTY_APPS_CAN_START) {
mService.mPackageWatchdog.onPackagesReady();
}
}
@Override
public void onCleanupUser(int userId) {
mService.mBatteryStatsService.onCleanupUser(userId);
}
public ActivityManagerService getService() {
return mService;
}
} extends SystemService {
private final ActivityManagerService mService;
private static ActivityTaskManagerService sAtm;
public Lifecycle(Context context) {
super(context);
mService = new ActivityManagerServiceEx(context, sAtm);
}
....
}
startService()：
\build\android\frameworks\base\services\core\java\com\android\server\SystemServiceManager.java
AMS是通过SystemServiceManager.startService去启动的，参数是ActivityTaskManagerService.Lifecycle.class
用传入进来的ActivityManagerService.Lifecycle.class作为参数, 通过反射方式创建对应的service服务. 所以创建的是Lifecycle的实例, 然后通过startService来启动服务
public <T extends SystemService> T startService(Class<T> serviceClass) {
try {
final String name = serviceClass.getName();
Slog.i(TAG, "Starting " + name);
Trace.traceBegin(Trace.TRACE_TAG_SYSTEM_SERVER, "StartService " + name);
// Create the service.
if (!SystemService.class.isAssignableFrom(serviceClass)) {
throw new RuntimeException("Failed to create " + name
+ ": service must extend " + SystemService.class.getName());
}
final T service;
try {
//获取AMS.Lifecycle类中 带context参数的构造方法
Constructor<T> constructor = serviceClass.getConstructor(Context.class);
//通过构造器的newInstance方法
//实际上就是 new一个 AMSEx对象 而 AMSEx 是继承 AMS
service = constructor.newInstance(mContext);
} catch (InstantiationException ex) {
throw new RuntimeException("Failed to create service " + name
+ ": service could not be instantiated", ex);
} catch (IllegalAccessException ex) {
throw new RuntimeException("Failed to create service " + name
+ ": service must have a public constructor with a Context argument", ex);
} catch (NoSuchMethodException ex) {
throw new RuntimeException("Failed to create service " + name
+ ": service must have a public constructor with a Context argument", ex);
} catch (InvocationTargetException ex) {
throw new RuntimeException("Failed to create service " + name
+ ": service constructor threw an exception", ex);
}
startService(service);
return service;
} finally {
Trace.traceEnd(Trace.TRACE_TAG_SYSTEM_SERVER);
}
}
public void startService(@NonNull final SystemService service) {
// Register it.
mServices.add(service);
// Start it.
long time = SystemClock.elapsedRealtime();
try {
//执行AMS中的onStart()方法, 服务真正的启动起来
service.onStart();
} catch (RuntimeException ex) {
throw new RuntimeException("Failed to start service " + service.getClass().getName()
+ ": onStart threw an exception", ex);
}
warnIfTooLong(SystemClock.elapsedRealtime() - time, service, "onStart");
}
mService.start()：
\build\android\frameworks\base\services\core\java\com\android\server\am\ActivityManagerService.java
最后执行到AMS中的start方法
private void start() {
removeAllProcessGroups();
mProcessCpuThread.start();
mBatteryStatsService.publish();
mAppOpsService.publish(mContext);
Slog.d("AppOps", "AppOpsService published");
LocalServices.addService(ActivityManagerInternal.class, new LocalService());
mActivityTaskManager.onActivityManagerInternalAdded();
mUgmInternal.onActivityManagerInternalAdded();
mPendingIntentController.onActivityManagerInternalAdded();
// Wait for the synchronized block started in mProcessCpuThread,
// so that any other access to mProcessCpuTracker from main thread
// will be blocked during mProcessCpuTracker initialization.
try {
//等待mProcessCpuThread完成初始化后， 释放锁，初始化期间禁止访问
mProcessCpuInitLatch.await();
} catch (InterruptedException e) {
Slog.wtf(TAG, "Interrupted wait during start", e);
Thread.currentThread().interrupt();
throw new IllegalStateException("Interrupted wait during start");
}
}
PkMS
-
遍历/data/app和/system/app文件夹，找到apk文件
-
解压apk文件
-
dom解析AndroidManifest.xml文件，将xml信息存储起来提供给AMS使用
开机，内核进程启动init进程，init进程启动SeriviceManager进程和启动Zygote进程，Zygote进程启动SystemServer，SystemServer进程启动AMS、PMS，并注册到ServiceManager。 PMS被SystemServer初始化后，开始扫描/data/app/和/system/app/目录下的所有apk文件，获取每个apk文件的AndroidManifest.xml文件，并进行dom解析。 解析AndroidManifest.xml将应用信息、权限、四大组件等数据信息转换为Java Bean缓存到内存中。 当AMS需要获取apk数据信息时，通过ServiceManager获取到PMS的Binder代理通过Binder通信获取。
startBootstrapServices()：
\build\android\frameworks\base\services\java\com\android\server\SystemServer.java
// Start the package manager.
if (!mRuntimeRestart) {
MetricsLogger.histogram(null, "boot_package_manager_init_start",
(int) SystemClock.elapsedRealtime());
}
traceBeginAndSlog("StartPackageManagerService");
// 启动PackageManagerService
try {
// Watchdog 是 Android 系统中的一种机制，用于监控应用程序的运行状态，以防止出现长时间的无响应或卡顿情况。当 Watchdog 检测到某个线程长时间没有响应时，它可以采取一些措施来保护系统的稳定性，例如终止该线程或者进行其他的故障处理
// 暂停对当前线程进行监控，允许线程继续执行,getInstance外部接口
Watchdog.getInstance().pauseWatchingCurrentThread("packagemanagermain");
//调用PackageManagerService.main()方法，在main()方法中创建PMS的对象，并向ServiceManager注册Binder
mPackageManagerService = PackageManagerService.main(mSystemContext, installer,
mFactoryTestMode != FactoryTest.FACTORY_TEST_OFF, mOnlyCore);
} finally {
Watchdog.getInstance().resumeWatchingCurrentThread("packagemanagermain");
}
mFirstBoot = mPackageManagerService.isFirstBoot();
// 初始化PackageManager对象.
mPackageManager = mSystemContext.getPackageManager();
traceEnd();
if (!mRuntimeRestart && !isFirstBootOrUpgrade()) {
MetricsLogger.histogram(null, "boot_package_manager_init_ready",
(int) SystemClock.elapsedRealtime());
}
PackageManagerService.main：
\build\android\frameworks\base\services\core\java\com\android\server\pm\PackageManagerService.java
public static PackageManagerService main(Context context, Installer installer,
boolean factoryTest, boolean onlyCore) {
// Self-check for initial settings.
// 检查Package编译相关系统属性
PackageManagerServiceCompilerMapping.checkProperties();
// 创建PMS对象
PackageManagerService m = new PackageManagerService(context, installer,
factoryTest, onlyCore);
//启用部分应用服务于多用户场景
m.enableSystemUserPackages();
// 注册PMS对象到ServiceManager中
ServiceManager.addService("package", m);
// 创建PMN对象，内部使用的类，在底层实现了与应用程序包管理相关的功能，包括应用安装、卸载、版本管理等
final PackageManagerNative pmn = m.new PackageManagerNative();
// 注册PMN对象
ServiceManager.addService("package_native", pmn);
return m;
}
PackageManagerService：
\build\android\frameworks\base\services\core\java\com\android\server\pm\PackageManagerService.java
private static final File sAppInstallDir =
// data/app目录
new File(Environment.getDataDirectory(), "app");
public PackageManagerService(Context context, Installer installer,boolean factoryTest, boolean onlyCore) {
Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "create package manager");
//第一阶段boot_progress_pms_start PMS开始扫描安装的应用
EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_PMS_START,
SystemClock.uptimeMillis());
// 第二阶段boot_progress_pms_system_scan_start 扫描system/app目录
long startTime = SystemClock.uptimeMillis();
EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_PMS_SYSTEM_SCAN_START,
startTime);
// Collect ordinary system packages.
// 扫描system/app目录
final File systemAppDir = new File(Environment.getRootDirectory(), "app");
scanDirTracedLI(systemAppDir,
mDefParseFlags
| PackageParser.PARSE_IS_SYSTEM_DIR,
scanFlags
| SCAN_AS_SYSTEM,
0);
......
final long systemScanTime = SystemClock.uptimeMillis() - startTime;
final int systemPackagesCount = mPackages.size();
Slog.i(TAG, "Finished scanning system apps. Time: " + systemScanTime
+ " ms, packageCount: " + systemPackagesCount
+ " , timePerPackage: "
+ (systemPackagesCount == 0 ? 0 : systemScanTime / systemPackagesCount)
+ " , cached: " + cachedSystemApps);
if (mIsUpgrade && systemPackagesCount > 0) {
FrameworkStatsLog.write(FrameworkStatsLog.BOOT_TIME_EVENT_DURATION_REPORTED,
BOOT_TIME_EVENT_DURATION__EVENT__OTA_PACKAGE_MANAGER_SYSTEM_APP_AVG_SCAN_TIME,
systemScanTime / systemPackagesCount);
}
// 对于不仅仅解析核心应用的情况下，还处理data目录的应用信息，及时更新，去除不必要的数据
if (!mOnlyCore) {
//第三阶段boot_progress_pms_data_scan_start 扫描data/app目录
EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_PMS_DATA_SCAN_START,
SystemClock.uptimeMillis());
scanDirTracedLI(sAppInstallDir, 0, scanFlags | SCAN_REQUIRE_KNOWN, 0,
packageParser, executorService);
}
......
// Now that we know all the packages we are keeping,
// read and update their last usage times.
mPackageUsage.read(mPackages);
mCompilerStats.read();
//第四阶段boot_progress_pms_scan_end PMS扫描结束
EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_PMS_SCAN_END,
SystemClock.uptimeMillis());
Slog.i(TAG, "Time to scan packages: "
+ ((SystemClock.uptimeMillis()-startTime)/1000f)
+ " seconds");
......
// Uncompress and install any stubbed system applications.
// This must be done last to ensure all stubs are replaced or disabled.
// 安装APK
installSystemStubPackages(stubSystemApps, scanFlags);
......
// can downgrade to reader
//第五阶段boot_progress_pms_ready PMS就绪
Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "write settings");
mSettings.writeLPr();
Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
EventLog.writeEvent(EventLogTags.BOOT_PROGRESS_PMS_READY,
SystemClock.uptimeMillis());
......
}

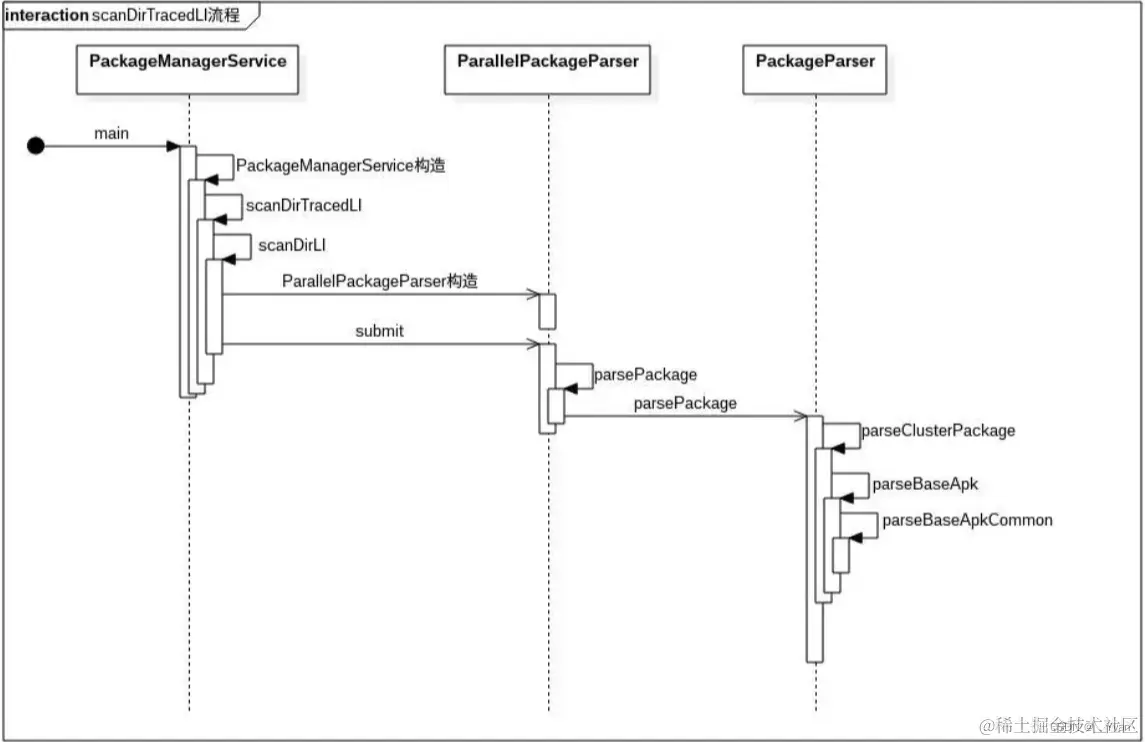

scanDirLI()：
\build\android\frameworks\base\services\core\java\com\android\server\pm\PackageManagerService.java
扫描某个目录的apk文件
private void scanDirLI(File scanDir, int parseFlags, int scanFlags, long currentTime) {
final File[] files = scanDir.listFiles();
if (ArrayUtils.isEmpty(files)) {
Log.d(TAG, "No files in app dir " + scanDir);
return;
}
if (DEBUG_PACKAGE_SCANNING) {
Log.d(TAG, "Scanning app dir " + scanDir + " scanFlags=" + scanFlags
+ " flags=0x" + Integer.toHexString(parseFlags));
}
// parallelPackageParser是一个队列，收集系统 apk 文件， 进行多线程扫描apk
// 然后从这个队列里面一个个取出 apk 调用PackageParser 解析
try (ParallelPackageParser parallelPackageParser = new ParallelPackageParser(
mSeparateProcesses, mOnlyCore, mMetrics, mCacheDir,
mParallelPackageParserCallback)) {
// Submit files for parsing in parallel
int fileCount = 0;
for (File file : files) {
// 是Apk文件，或者是目录
final boolean isPackage = (isApkFile(file) || file.isDirectory())
&& !PackageInstallerService.isStageName(file.getName());
if (!isPackage) {
// Ignore entries which are not packages
// 过滤掉非apk文件，如果不是则跳过继续扫描
continue;
}
// 把APK信息存入parallelPackageParser中的对象 mQueue，PackageParser()函数赋给了队列中的pkg成员
// 遍历完/data/app和/system/app文件夹，找到apk文件，然后通过submit()方法进行了apk的解析
parallelPackageParser.submit(file, parseFlags);
fileCount++;
}
// Process results one by one
// 从parallelPackageParser中取出队列apk的信息
for (; fileCount > 0; fileCount--) {
ParallelPackageParser.ParseResult parseResult = parallelPackageParser.take();
Throwable throwable = parseResult.throwable;
int errorCode = PackageManager.INSTALL_SUCCEEDED;
if (throwable == null) {
// TODO(toddke): move lower in the scan chain
// Static shared libraries have synthetic package names
if (parseResult.pkg.applicationInfo.isStaticSharedLibrary()) {
renameStaticSharedLibraryPackage(parseResult.pkg);
}
// 调用 scanPackageChildLI 方法扫描一个特定的 apk 文件
// 该类的实例代表一个APK文件，所以它就是和apk文件对应的数据结构。
try {
scanPackageChildLI(parseResult.pkg, parseFlags, scanFlags,
currentTime, null);
} catch (PackageManagerException e) {
errorCode = e.error;
Slog.w(TAG, "Failed to scan " + parseResult.scanFile + ": " + e.getMessage());
}
} else if (throwable instanceof PackageParser.PackageParserException) {
PackageParser.PackageParserException e = (PackageParser.PackageParserException)
throwable;
errorCode = e.error;
Slog.w(TAG, "Failed to parse " + parseResult.scanFile + ": " + e.getMessage());
} else {
throw new IllegalStateException("Unexpected exception occurred while parsing "
+ parseResult.scanFile, throwable);
}
//如果是非系统 apk 并且解析失败
// Delete invalid userdata apps
if ((scanFlags & SCAN_AS_SYSTEM) == 0 &&
errorCode != PackageManager.INSTALL_SUCCEEDED) {
logCriticalInfo(Log.WARN,
"Deleting invalid package at " + parseResult.scanFile);
// 非系统 Package 扫描失败，删除文件
removeCodePathLI(parseResult.scanFile);
}
}
}
}
submit()：
\build\android\frameworks\base\services\core\java\com\android\server\pm\ParallelPackageParser.java
将上面找到的apk文件路径传入PackageParser对象的parsePackage()进行apk的解析
class ParallelPackageParser implements AutoCloseable {
private static final int QUEUE_CAPACITY = 10; // 多线程队列容量
private static final int MAX_THREADS = 4; // 最大线程数
private final String[] mSeparateProcesses;
private final boolean mOnlyCore;
private final DisplayMetrics mMetrics;
private final File mCacheDir;
private final PackageParser.Callback mPackageParserCallback;
private volatile String mInterruptedInThread;
// 存储解析结果
private final BlockingQueue<ParseResult> mQueue = new ArrayBlockingQueue<>(QUEUE_CAPACITY);
// 线程池
private final ExecutorService mService = ConcurrentUtils.newFixedThreadPool(MAX_THREADS,
"package-parsing-thread", Process.THREAD_PRIORITY_FOREGROUND);
ParallelPackageParser(String[] separateProcesses, boolean onlyCoreApps,
DisplayMetrics metrics, File cacheDir, PackageParser.Callback callback) {
mSeparateProcesses = separateProcesses;
mOnlyCore = onlyCoreApps;
mMetrics = metrics;
mCacheDir = cacheDir;
mPackageParserCallback = callback;
}
static class ParseResult {
PackageParser.Package pkg; // Parsed package
File scanFile; // File that was parsed
Throwable throwable; // Set if an error occurs during parsing
@Override
public String toString() {
return "ParseResult{" +
"pkg=" + pkg +
", scanFile=" + scanFile +
", throwable=" + throwable +
'}';
}
}
/**
* Take the parsed package from the parsing queue, waiting if necessary until the element
* appears in the queue.
* @return parsed package
*/
public ParseResult take() {
try {
if (mInterruptedInThread != null) {
throw new InterruptedException("Interrupted in " + mInterruptedInThread);
}
return mQueue.take();
} catch (InterruptedException e) {
// We cannot recover from interrupt here
Thread.currentThread().interrupt();
throw new IllegalStateException(e);
}
}
/**
* Submits the file for parsing
* @param scanFile file to scan
* @param parseFlags parse falgs
*/
public void submit(File scanFile, int parseFlags) {
// 提交到线程池
mService.submit(() -> {
ParseResult pr = new ParseResult();
Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "parallel parsePackage [" + scanFile + "]");
try {
PackageParser pp = new PackageParser();
pp.setSeparateProcesses(mSeparateProcesses);
pp.setOnlyCoreApps(mOnlyCore);
pp.setDisplayMetrics(mMetrics);
pp.setCacheDir(mCacheDir);
pp.setCallback(mPackageParserCallback);
// 需要解析的apk路径,赋值给ParseResult()
pr.scanFile = scanFile;
// 获取 PackageParser.Package 对象，通过PackageParser对apk进行解析
pr.pkg = parsePackage(pp, scanFile, parseFlags);
} catch (Throwable e) {
pr.throwable = e;
} finally {
Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
}
try {
// 把解析出的apk内容放入mQueue队列
mQueue.put(pr);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
// Propagate result to callers of take().
// This is helpful to prevent main thread from getting stuck waiting on
// ParallelPackageParser to finish in case of interruption
mInterruptedInThread = Thread.currentThread().getName();
}
});
}
@VisibleForTesting
protected PackageParser.Package parsePackage(PackageParser packageParser, File scanFile,
int parseFlags) throws PackageParser.PackageParserException {
return packageParser.parsePackage(scanFile, parseFlags, true /* useCaches */);
}
@Override
public void close() {
List<Runnable> unfinishedTasks = mService.shutdownNow();
if (!unfinishedTasks.isEmpty()) {
throw new IllegalStateException("Not all tasks finished before calling close: "
+ unfinishedTasks);
}
}
}
parsePackage：
\build\android\frameworks\base\core\java\android\content\pm\PackageParser.java
@UnsupportedAppUsage
public Package parsePackage(File packageFile, int flags, boolean useCaches)
throws PackageParserException {
Package parsed = useCaches ? getCachedResult(packageFile, flags) : null;
if (parsed != null) {
// 直接返回缓存
return parsed;
}
long parseTime = LOG_PARSE_TIMINGS ? SystemClock.uptimeMillis() : 0;
// 如果是目录，执行parseClusterPackage()
if (packageFile.isDirectory()) {
parsed = parseClusterPackage(packageFile, flags);
} else {
// apk文件非目录，执行parseMonolithicPackage()解析
parsed = parseMonolithicPackage(packageFile, flags);
}
......
return parsed;
}
parseClusterPackage：
\build\android\frameworks\base\core\java\android\content\pm\PackageParser.java
解析给定目录中包含的所有apk，将它们视为单个包。这还可以执行完整性检查，比如需要相同的包名和版本代码、单个基本APK和惟一的拆分名称
对目录下的apk文件进行初步分析，主要区别是核心应用还是非核心应用。核心应用只有一个，非核心应用可以没有，或者多个，非核心应用的作用主要用来保存资源和代码。然后对核心应用调用parseBaseApk分析并生成Package。对非核心应用调用parseSplitApk，分析结果放在前面的Package对象中
private Package parseClusterPackage(File packageDir, int flags) throws PackageParserException {
//获取应用目录的PackageLite对象，这个对象分开保存了目录下的核心应用以及非核心应用的名称
final PackageLite lite = parseClusterPackageLite(packageDir, 0);
//如果lite中没有核心应用，退出
if (mOnlyCoreApps && !lite.coreApp) {
throw new PackageParserException(INSTALL_PARSE_FAILED_MANIFEST_MALFORMED,
"Not a coreApp: " + packageDir);
}
// Build the split dependency tree.
//构建分割的依赖项树
SparseArray<int[]> splitDependencies = null;
final SplitAssetLoader assetLoader;
if (lite.isolatedSplits && !ArrayUtils.isEmpty(lite.splitNames)) {
try {
splitDependencies = SplitAssetDependencyLoader.createDependenciesFromPackage(lite);
assetLoader = new SplitAssetDependencyLoader(lite, splitDependencies, flags);
} catch (SplitAssetDependencyLoader.IllegalDependencyException e) {
throw new PackageParserException(INSTALL_PARSE_FAILED_BAD_MANIFEST, e.getMessage());
}
} else {
assetLoader = new DefaultSplitAssetLoader(lite, flags);
}
try {
final AssetManager assets = assetLoader.getBaseAssetManager();
final File baseApk = new File(lite.baseCodePath);
//对核心应用解析
final Package pkg = parseBaseApk(baseApk, assets, flags);
if (pkg == null) {
throw new PackageParserException(INSTALL_PARSE_FAILED_NOT_APK,
"Failed to parse base APK: " + baseApk);
}
if (!ArrayUtils.isEmpty(lite.splitNames)) {
final int num = lite.splitNames.length;
pkg.splitNames = lite.splitNames;
pkg.splitCodePaths = lite.splitCodePaths;
pkg.splitRevisionCodes = lite.splitRevisionCodes;
pkg.splitFlags = new int[num];
pkg.splitPrivateFlags = new int[num];
pkg.applicationInfo.splitNames = pkg.splitNames;
pkg.applicationInfo.splitDependencies = splitDependencies;
pkg.applicationInfo.splitClassLoaderNames = new String[num];
for (int i = 0; i < num; i++) {
final AssetManager splitAssets = assetLoader.getSplitAssetManager(i);
//对非核心应用的处理
parseSplitApk(pkg, i, splitAssets, flags);
}
}
pkg.setCodePath(packageDir.getCanonicalPath());
pkg.setUse32bitAbi(lite.use32bitAbi);
return pkg;
} catch (IOException e) {
throw new PackageParserException(INSTALL_PARSE_FAILED_UNEXPECTED_EXCEPTION,
"Failed to get path: " + lite.baseCodePath, e);
} finally {
IoUtils.closeQuietly(assetLoader);
}
}
parseMonolithicPackage：
\build\android\frameworks\base\core\java\android\content\pm\PackageParser.java
public Package parseMonolithicPackage(File apkFile, int flags) throws PackageParserException {
final PackageLite lite = parseMonolithicPackageLite(apkFile, flags);
if (mOnlyCoreApps) {
if (!lite.coreApp) {
throw new PackageParserException(INSTALL_PARSE_FAILED_MANIFEST_MALFORMED,
"Not a coreApp: " + apkFile);
}
}
final SplitAssetLoader assetLoader = new DefaultSplitAssetLoader(lite, flags);
try {
// apk解析方法parseBaseApk()
final Package pkg = parseBaseApk(apkFile, assetLoader.getBaseAssetManager(), flags);
pkg.setCodePath(apkFile.getCanonicalPath());
pkg.setUse32bitAbi(lite.use32bitAbi);
return pkg;
} catch (IOException e) {
throw new PackageParserException(INSTALL_PARSE_FAILED_UNEXPECTED_EXCEPTION,
"Failed to get path: " + apkFile, e);
} finally {
IoUtils.closeQuietly(assetLoader);
}
}
parseBaseApk：
\build\android\frameworks\base\core\java\android\content\pm\PackageParser.java
主要是对AndroidManifest.xml进行解析，解析后所有的信息放在Package对象中
private Package parseBaseApk(File apkFile, AssetManager assets, int flags)
throws PackageParserException {
final String apkPath = apkFile.getAbsolutePath();
String volumeUuid = null;
if (apkPath.startsWith(MNT_EXPAND)) {
final int end = apkPath.indexOf('/', MNT_EXPAND.length());
volumeUuid = apkPath.substring(MNT_EXPAND.length(), end);
}
mParseError = PackageManager.INSTALL_SUCCEEDED;
mArchiveSourcePath = apkFile.getAbsolutePath();
if (DEBUG_JAR) Slog.d(TAG, "Scanning base APK: " + apkPath);
// 开始 dom 解析 AndroidManifest.xml
XmlResourceParser parser = null;
try {
final int cookie = assets.findCookieForPath(apkPath);
if (cookie == 0) {
throw new PackageParserException(INSTALL_PARSE_FAILED_BAD_MANIFEST,
"Failed adding asset path: " + apkPath);
}
//获得一个 XML 资源解析对象，该对象解析的是 APK 中的 AndroidManifest.xml 文件
parser = assets.openXmlResourceParser(cookie, ANDROID_MANIFEST_FILENAME);
final Resources res = new Resources(assets, mMetrics, null);
final String[] outError = new String[1];
//再调用重载函数parseBaseApk()最终到parseBaseApkCommon()，解析AndroidManifest.xml 后得到一个Package对象
final Package pkg = parseBaseApk(apkPath, res, parser, flags, outError);
if (pkg == null) {
throw new PackageParserException(mParseError,
apkPath + " (at " + parser.getPositionDescription() + "): " + outError[0]);
}
pkg.setVolumeUuid(volumeUuid);
pkg.setApplicationVolumeUuid(volumeUuid);
pkg.setBaseCodePath(apkPath);
pkg.setSigningDetails(SigningDetails.UNKNOWN);
return pkg;
} catch (PackageParserException e) {
throw e;
} catch (Exception e) {
throw new PackageParserException(INSTALL_PARSE_FAILED_UNEXPECTED_EXCEPTION,
"Failed to read manifest from " + apkPath, e);
} finally {
IoUtils.closeQuietly(parser);
}
}
// 解析AndroidManifest.xml
@UnsupportedAppUsage(maxTargetSdk = Build.VERSION_CODES.P, trackingBug = 115609023)
private Package parseBaseApk(String apkPath, Resources res, XmlResourceParser parser, int flags,
String[] outError) throws XmlPullParserException, IOException {
final String splitName;
final String pkgName;
try {
// 解析包名
Pair<String, String> packageSplit = parsePackageSplitNames(parser, parser);
pkgName = packageSplit.first;
splitName = packageSplit.second;
......
}
......
// 将解析的信息（四大组件、权限等）存储到Package
final Package pkg = new Package(pkgName);
.....
return parseBaseApkCommon(pkg, null, res, parser, flags, outError);
}
......
/**
* Representation of a full package parsed from APK files on disk. A package
* consists of a single base APK, and zero or more split APKs.
*/
public final static class Package implements Parcelable {
......
// 包名
@UnsupportedAppUsage
public String packageName;
// 应用信息
@UnsupportedAppUsage
public ApplicationInfo applicationInfo = new ApplicationInfo();
// 权限相关信息
@UnsupportedAppUsage
public final ArrayList<Permission> permissions = new ArrayList<Permission>(0);
@UnsupportedAppUsage
public final ArrayList<PermissionGroup> permissionGroups = new ArrayList<PermissionGroup>(0);
// 四大组件相关信息
@UnsupportedAppUsage
public final ArrayList<Activity> activities = new ArrayList<Activity>(0);
@UnsupportedAppUsage
public final ArrayList<Activity> receivers = new ArrayList<Activity>(0);
@UnsupportedAppUsage
public final ArrayList<Provider> providers = new ArrayList<Provider>(0);
@UnsupportedAppUsage
public final ArrayList<Service> services = new ArrayList<Service>(0);
......
}
parseBaseApkCommon：
\build\android\frameworks\base\core\java\android\content\pm\PackageParser.java
从AndroidManifest.xml中获取标签名，解析标签中的各个item的内容，存入Package对象中
private Package parseBaseApkCommon(Package pkg, Set<String> acceptedTags, Resources res,
XmlResourceParser parser, int flags, String[] outError) throws XmlPullParserException,
IOException {
TypedArray sa = res.obtainAttributes(parser,
com.android.internal.R.styleable.AndroidManifest);
//拿到AndroidManifest.xml 中的sharedUserId, 一般情况下有“android.uid.system”等信息
String str = sa.getNonConfigurationString(
com.android.internal.R.styleable.AndroidManifest_sharedUserId, 0);
while ((type = parser.next()) != XmlPullParser.END_DOCUMENT
&& (type != XmlPullParser.END_TAG || parser.getDepth() > outerDepth)) {
//从AndroidManifest.xml中获取标签名
String tagName = parser.getName();
//如果读到AndroidManifest.xml中的tag是"application",执行parseBaseApplication()进行解析
if (tagName.equals(TAG_APPLICATION)) {
if (foundApp) {
...
}
foundApp = true;
//解析"application"的信息，赋值给pkg
if (!parseBaseApplication(pkg, res, parser, flags, outError)) {
return null;
}
...
//如果标签是"permission"
else if (tagName.equals(TAG_PERMISSION)) {
//进行"permission"的解析
if (!parsePermission(pkg, res, parser, outError)) {
return null;
}
....
}
}
}
}
parseBaseApplication：
\build\android\frameworks\base\core\java\android\content\pm\PackageParser.java
解析Application标签
private boolean parseBaseApplication(Package owner, Resources res,
XmlResourceParser parser, int flags, String[] outError)
while ((type = parser.next()) != XmlPullParser.END_DOCUMENT
&& (type != XmlPullParser.END_TAG || parser.getDepth() > innerDepth)) {
//获取"application"子标签的标签内容
String tagName = parser.getName();
//如果标签是"activity"
if (tagName.equals("activity")) {
//解析Activity的信息，把activity加入Package对象
Activity a = parseActivity(owner, res, parser, flags, outError, cachedArgs, false,
owner.baseHardwareAccelerated);
if (a == null) {
mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
return false;
}
hasActivityOrder |= (a.order != 0);
owner.activities.add(a);
} else if (tagName.equals("receiver")) {
//如果标签是"receiver"，获取receiver信息，加入Package对象
Activity a = parseActivity(owner, res, parser, flags, outError, cachedArgs,
true, false);
if (a == null) {
mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
return false;
}
hasReceiverOrder |= (a.order != 0);
owner.receivers.add(a);
}else if (tagName.equals("service")) {
//如果标签是"service"，获取service信息，加入Package对象
Service s = parseService(owner, res, parser, flags, outError, cachedArgs);
if (s == null) {
mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
return false;
}
hasServiceOrder |= (s.order != 0);
owner.services.add(s);
}else if (tagName.equals("provider")) {
//如果标签是"provider"，获取provider信息，加入Package对象
Provider p = parseProvider(owner, res, parser, flags, outError, cachedArgs);
if (p == null) {
mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
return false;
}
owner.providers.add(p);
}
...
}
}
安装apk
APK拷贝完成后，进入真正的安装

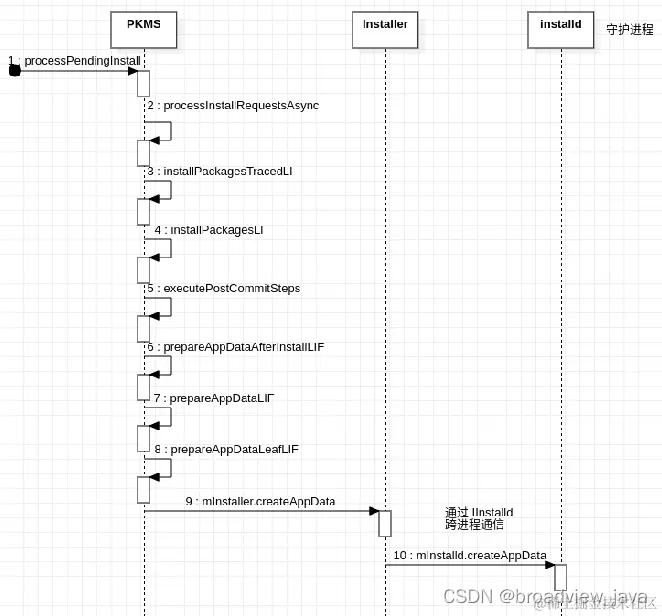

processPendingInstall：
\build\android\frameworks\base\services\core\java\com\android\server\pm\PackageManagerService.java
主要是post了一个消息，这样安装过程将以异步的方式继续执行。
private void processPendingInstall(final InstallArgs args, final int currentStatus) {
if (args.mMultiPackageInstallParams != null) {
args.mMultiPackageInstallParams.tryProcessInstallRequest(args, currentStatus);
} else {
// 1. 设置安装参数
PackageInstalledInfo res = createPackageInstalledInfo(currentStatus);
// 2. 创建一个新线程，处理安装参数，进行安装
processInstallRequestsAsync(
res.returnCode == PackageManager.INSTALL_SUCCEEDED,
Collections.singletonList(new InstallRequest(args, res)));
}
}
private void processInstallRequestsAsync(boolean success,
List<InstallRequest> installRequests) {
mHandler.post(() -> {
if (success) {
for (InstallRequest request : installRequests) {
// 1. 如果之前安装失败，清除无用信息
request.args.doPreInstall(request.installResult.returnCode);
}
synchronized (mInstallLock) {
// 2. installPackagesTracedLI是安装过程的核心方法
// 然后调用installPackagesLI进行安装
installPackagesTracedLI(installRequests);
}
for (InstallRequest request : installRequests) {
// 3. 如果安装失败，清除无用信息
request.args.doPostInstall(
request.installResult.returnCode, request.installResult.uid);
}
}
for (InstallRequest request : installRequests) {
restoreAndPostInstall(request.args.user.getIdentifier(), request.installResult,
new PostInstallData(request.args, request.installResult, null));
}
});
}
int doPreInstall(int status) {
if (status != PackageManager.INSTALL_SUCCEEDED) {
// 清除无用信息
cleanUp();
}
return status;
}
int doPostInstall(int status, int uid) {
// 安装失败也会调用这个
if (status != PackageManager.INSTALL_SUCCEEDED) {
// 调用cleanUp清除无用信息
cleanUp();
}
return status;
}
installPackagesLI：
\build\android\frameworks\base\services\core\java\com\android\server\pm\PackageManagerService.java
在installPackagesLI方法中，以原子的方式安装一个或多个包。此操作分为四个阶段：
1）Prepare准备：分析任何当前安装状态，分析包并对其进行初始验证。
2）Scan 扫描：扫描分析准备阶段拿到的包
3） Reconcile 协调：包的扫描结果，用于协调可能向系统中添加的一个或多个包
4） Commit 提交：提交所有扫描的包并更新系统状态，这是安装流程中唯一可以修改系统状态的地方放，必须在此阶段之前确定所有的可预测的错误
5）完成APK的安装
private void installPackagesLI(List<InstallRequest> requests) {
.....
// 1. Prepare 准备：分析任何当前安装状态，分析包并对其进行初始验证
prepareResult = preparePackageLI(request.args, request.installResult);
.....
// 2. Scan 扫描：扫描分析准备阶段拿到的包
final ScanResult result = scanPackageTracedLI(
prepareResult.packageToScan, prepareResult.parseFlags,
prepareResult.scanFlags, System.currentTimeMillis(),
request.args.user, request.args.abiOverride);
....
// 3. Reconcile 协调：包的扫描结果，用于协调可能向系统中添加的一个或多个包
ReconcileRequest reconcileRequest = new ReconcileRequest(preparedScans, installArgs,
installResults,
prepareResults,
mSharedLibraries,
Collections.unmodifiableMap(mPackages), versionInfos,
lastStaticSharedLibSettings);
......
// 4. Commit 提交：提交所有扫描的包并更新系统状态。这是安装流程中唯一可以修改系统状态的地方，
// 必须在此阶段之前确定所有的可预测的错误
commitPackagesLocked(commitRequest);
.....
// 5. 完成APK的安装
executePostCommitSteps(commitRequest);
}
executePostCommitSteps：
\build\android\frameworks\base\services\core\java\com\android\server\pm\PackageManagerService.java
安装APK，并为新的代码路径准备应用程序配置文件，并在此检查是否需要dex优化。
如果是直接安装新包，会为新的代码路径准备应用程序配置文件；如果是替换安装，其主要过程为更新设置，清除原有的某些APP数据，重新生成相关的app数据目录等步骤，同时要区分系统应用替换和非系统应用替换。而安装新包，则直接更新设置，生成APP数据即可
private void executePostCommitSteps(CommitRequest commitRequest) {
for (ReconciledPackage reconciledPkg : commitRequest.reconciledPackages.values()) {
......
// 1) 进行安装
prepareAppDataAfterInstallLIF(pkg);
// 2) 如果需要替换安装，则需要清除原有的App数据
if (reconciledPkg.prepareResult.clearCodeCache) {
clearAppDataLIF(pkg, UserHandle.USER_ALL, FLAG_STORAGE_DE | FLAG_STORAGE_CE
| FLAG_STORAGE_EXTERNAL | Installer.FLAG_CLEAR_CODE_CACHE_ONLY);
}
...
// 3) 为新的代码路径准备应用程序配置文件。这需要在调用dexopt之前完成，以便任何安装时配置文件都可以用于优化
mArtManagerService.prepareAppProfiles(
pkg,
resolveUserIds(reconciledPkg.installArgs.user.getIdentifier()),
/* updateReferenceProfileContent= */ true);
// 4) 检查是否需要优化dex文件
final boolean performDexopt =
(!instantApp || Global.getInt(mContext.getContentResolver(),
Global.INSTANT_APP_DEXOPT_ENABLED, 0) != 0)
&& !pkg.isDebuggable()
&& (!onIncremental);
if (performDexopt) {
// 5) 执行dex优化
mPackageDexOptimizer.performDexOpt(pkg, realPkgSetting,
null /* instructionSets */,
getOrCreateCompilerPackageStats(pkg),
mDexManager.getPackageUseInfoOrDefault(packageName),
dexoptOptions);
}
BackgroundDexOptService.notifyPackageChanged(packageName);
notifyPackageChangeObserversOnUpdate(reconciledPkg);
}
}
prepareAppDataAfterInstallLIF：
\build\android\frameworks\base\services\core\java\com\android\server\pm\PackageManagerService.java
通过一系列的调用，最终会调用到Installer.java的createAppData()方法进行安装，交给installed进程进行APK的安
private void prepareAppDataAfterInstallLIF(AndroidPackage pkg) {
.....
for (UserInfo user : mUserManager.getUsers(false /*excludeDying*/)) {
......
if (ps.getInstalled(user.id)) {
// TODO: when user data is locked, mark that we're still dirty
prepareAppDataLIF(pkg, user.id, flags);
}
}
}
private void prepareAppDataLIF(AndroidPackage pkg, int userId, int flags) {
if (pkg == null) {
Slog.wtf(TAG, "Package was null!", new Throwable());
return;
}
// 调用prepareAppDataLeafLIF方法
prepareAppDataLeafLIF(pkg, userId, flags);
}
private void prepareAppDataLeafLIF(AndroidPackage pkg, int userId, int flags) {
......
try {
// 调用Install守护进程的入口
ceDataInode = mInstaller.createAppData(volumeUuid, packageName, userId, flags,
appId, seInfo, pkg.getTargetSdkVersion());
} catch (InstallerException e) {
if (pkg.isSystem()) {
destroyAppDataLeafLIF(pkg, userId, flags);
try {
ceDataInode = mInstaller.createAppData(volumeUuid, packageName, userId,
flags,appId, seInfo, pkg.getTargetSdkVersion());
} catch (InstallerException e2) {
......
}
}
}
}
Installer.java：
\build\android\frameworks\base\services\core\java\com\android\server\pm\Installer.java
public long createAppData(String uuid, String packageName, int userId, int flags, int
appId,String seInfo, int targetSdkVersion) throws InstallerException {
if (!checkBeforeRemote()) return -1;
try {
// mInstalld为Install的对象，即通过Binder调用到进程installd,
// 最终调用installd的createAppData()
return mInstalld.createAppData(uuid, packageName, userId, flags, appId, seInfo,
targetSdkVersion);
} catch (Exception e) {
throw InstallerException.from(e);
}
}
APK的安装主要分为以下四步：
1）将APK的信息通过IO流的形式写入到 PackageInstaller.Session中
2）调用PackageInstaller.Session的commit方法，将APK的信息交由PKMS处理。
3）拷贝APK
4）最后进行安装
system_server以system用户的身份运行，PMS运行在system_server中，所以PMS也是system用户。installd是root用户，system用户并没有访问应用程序目录的权限。但是作为root用户的installd却可以访问data/data/下的目录，这就是installd存在的原因
最终是交给Installd守护进程进行真正的安装操作
PackageManagerService通过套接字的方式访问installd服务进程，在Android启动脚本init.rc中通过服务配置启动了installd服务进程。
service installd /system/bin/installd
class main
socket installd stream 600 system system
struct cmdinfo cmds[] = { // { 命令名称， 参数个数，命令执行函数} { "ping", 0, do_ping }, { "install", 3, do_install }, { "create_app_data", 7, do_create_app_data }, { "dexopt", 3, do_dexopt }, { "movedex", 2, do_move_dex }, { "rmdex", 1, do_rm_dex }, { "remove", 2, do_remove }, { "rename", 2, do_rename }, { "fixuid", 3, do_fixuid }, { "freecache", 1, do_free_cache }, { "rmcache", 1, do_rm_cache }, { "protect", 2, do_protect }, { "getsize", 4, do_get_size }, { "rmuserdata", 2, do_rm_user_data }, { "movefiles", 0, do_movefiles }, { "linklib", 2, do_linklib }, { "unlinklib", 1, do_unlinklib }, { "mkuserdata", 3, do_mk_user_data }, { "rmuser", 1, do_rm_user }, { "cloneuserdata", 3, do_clone_user_data }, };
int install(const char *pkgname, uid_t uid, gid_t gid)
{
char pkgdir[PKG_PATH_MAX];//程序目录路径最长为256
char libdir[PKG_PATH_MAX];//程序lib路径最长为256
//权限判断
if ((uid < AID_SYSTEM) || (gid < AID_SYSTEM)) {
ALOGE("invalid uid/gid: %d %d\n", uid, gid);
return -1;
}
//组合应用程序安装目录pkgdir=/data/data/应用程序包名
if (create_pkg_path(pkgdir, pkgname, PKG_DIR_POSTFIX, 0)) {
ALOGE("cannot create package path\n");
return -1;
}
//组合应用程序库目录libdir=/data/data/应用程序包名/lib
if (create_pkg_path(libdir, pkgname, PKG_LIB_POSTFIX, 0)) {
ALOGE("cannot create package lib path\n");
return -1;
}
//创建目录pkgdir=/data/data/应用程序包名
if (mkdir(pkgdir, 0751) < 0) {
ALOGE("cannot create dir '%s': %s\n", pkgdir, strerror(errno));
return -errno;
}
//修改/data/data/应用程序包名目录的权限
if (chmod(pkgdir, 0751) < 0) {
ALOGE("cannot chmod dir '%s': %s\n", pkgdir, strerror(errno));
unlink(pkgdir);
return -errno;
}
//创建目录libdir=/data/data/应用程序包名/lib
if (mkdir(libdir, 0755) < 0) {
ALOGE("cannot create dir '%s': %s\n", libdir, strerror(errno));
unlink(pkgdir);
return -errno;
}
//修改/data/data/应用程序包名/lib目录的权限
if (chmod(libdir, 0755) < 0) {
ALOGE("cannot chmod dir '%s': %s\n", libdir, strerror(errno));
unlink(libdir);
unlink(pkgdir);
return -errno;
}
//修改/data/data/应用程序包名目录的所有权限
if (chown(libdir, AID_SYSTEM, AID_SYSTEM) < 0) {
ALOGE("cannot chown dir '%s': %s\n", libdir, strerror(errno));
unlink(libdir);
unlink(pkgdir);
return -errno;
}
//修改/data/data/应用程序包名/lib目录的所有权限
if (chown(pkgdir, uid, gid) < 0) {
ALOGE("cannot chown dir '%s': %s\n", pkgdir, strerror(errno));
unlink(libdir);
unlink(pkgdir);
return -errno;
}
return 0;
}
