彻底弄懂IntersectionObserver

152 阅读1分钟

最近vue3在开发一个页面懒加载组件,使用到的核心API就是IntersectionObserver,虽然之前也了解用过,但是还是不够理解,本文就用于记录自己的学习理解过程

核心逻辑

  1. IntersectionObserver中的callback触发
  • 当IntersectionObserver指定的root窗口元素 与 observe入参所指向的监听dom元素之间的intersctionRadio大于等于IntersectionObserver中指定的threshold时,会触发callback

  • intersectionRadion = 被监听元素在视图中出现的高度 / 被监听元素的总高度intersectionRectboundingClientRect 的比例值,返回的值并不总是恰好符合公式,会存在少许误差

case 1 不触发callback

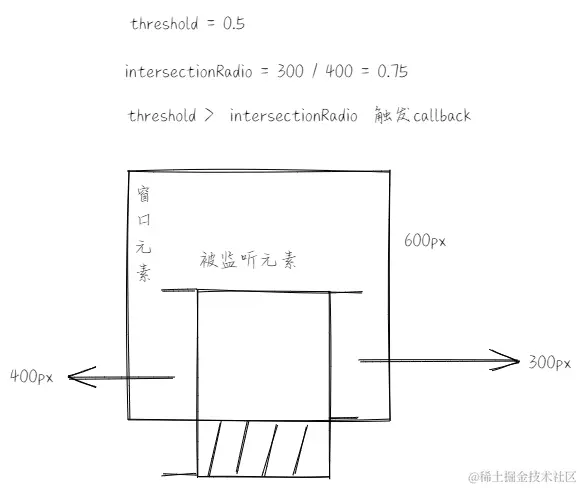

case 2 触发callback

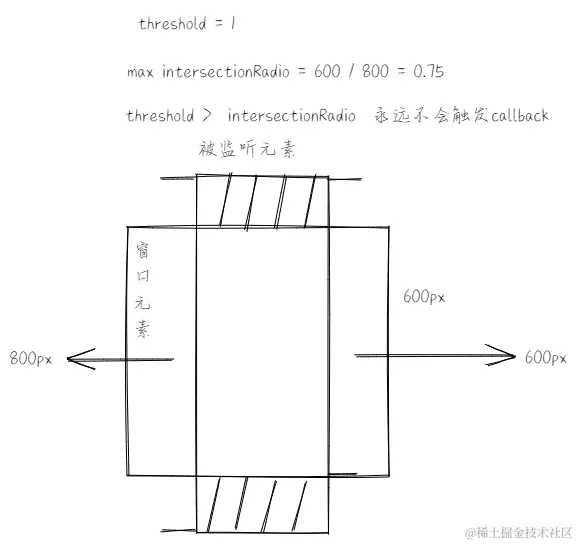

2. 设置threshold需要注意,能触发callback的最大threshold并不总是为1

  • 当被监听元素的大小大于窗口元素,最大threshold = 窗口元素的高 / 被监听元素的总高

用法

  1. 创建IntersectionObserver实例intersectionObserverInstance

  2. 参数

  3. callback(entries, observer)

  4. options

  5. root

  6. rootMargin

  7. threshold

  8. 通过intersectionObserverInstance.observe(dom)对希望监听的dom对象与窗口元素交叉程度进行监听

    // vue3 demo

参考资料

  1. developer.mozilla.org/zh-CN/docs/…
