.net日志框架log4net使用方法

log4net

文本日志

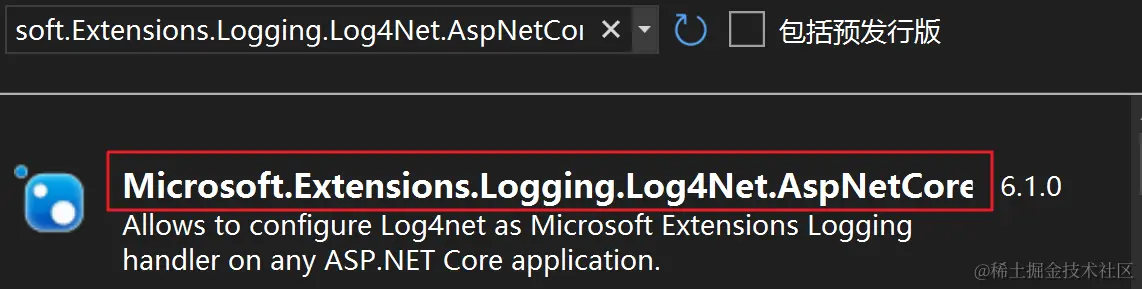

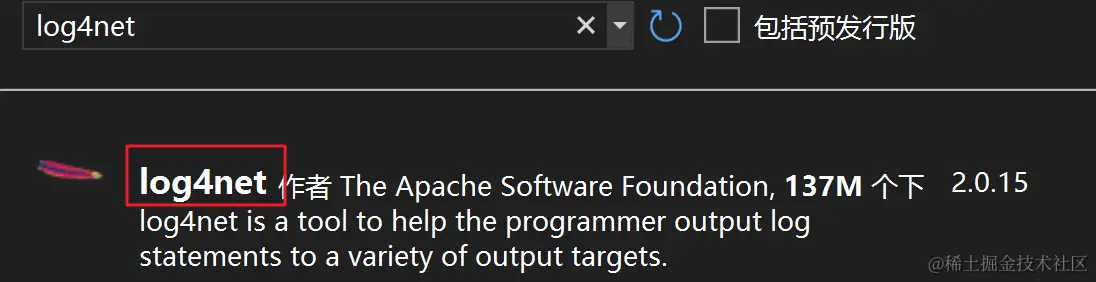

1、nuget引入两个程序包

//引入log4net 程序包

log4net

Microsoft.Extensions.Logging.Log4Net.AspNetCore

2、添加日志输出

注意，需要配置文件，如果不写，会在当前路径去寻找

builder.Logging.AddLog4Net("CfgFile/log4net.Config");

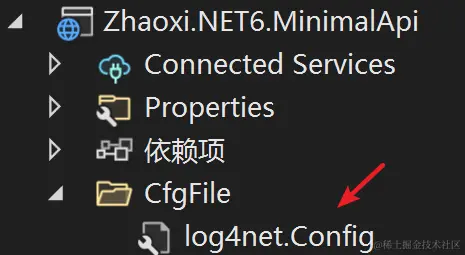

3、添加配置文件

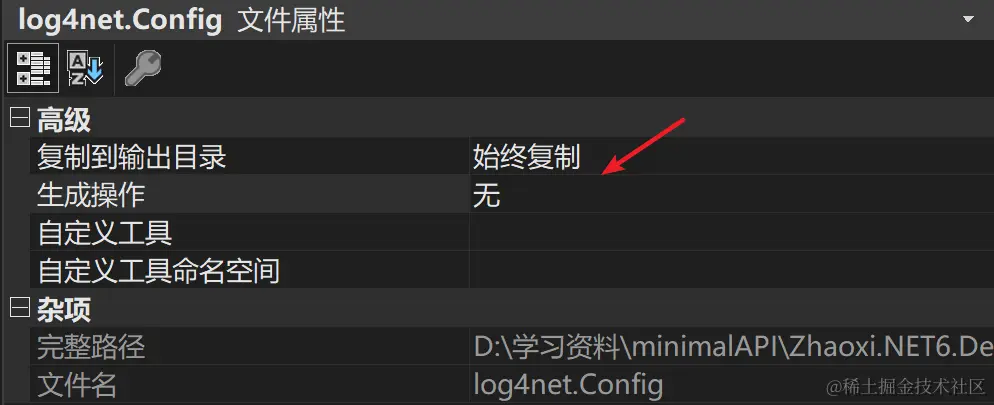

并将属性改为始终复制（这样才能编译时将文件编译到执行目录中去，但是minimalapi好像不需要复制）

4、使用时，和记录控制台日志的用法一样

app.Logger.LogInformation("文件已上传到服务器");

日志会记录在执行目录--log4--log.txt文件中

配置文件

<?xml version="1.0" encoding="utf-8"?>
<log4net>
  <!-- Define some output appenders -->
  <!--文本日志-->
  <appender name="rollingAppender" type="log4net.Appender.RollingFileAppender">
    <file value="log4\log.txt" />
    <!--追加日志内容-->
    <appendToFile value="true" />

    <!--防止多线程时不能写Log,官方说线程非安全-->
    <lockingModel type="log4net.Appender.FileAppender+MinimalLock" />

    <!--可以为:Once|Size|Date|Composite-->
    <!--Composite为Size和Date的组合-->
    <rollingStyle value="Composite" />

    <!--当备份文件时,为文件名加的后缀-->
    <datePattern value="yyyyMMdd.TXT" />

    <!--日志最大个数,都是最新的-->
    <!--rollingStyle节点为Size时,只能有value个日志-->
    <!--rollingStyle节点为Composite时,每天有value个日志-->
    <maxSizeRollBackups value="20" />

    <!--可用的单位:KB|MB|GB-->
    <maximumFileSize value="3MB" />

    <!--置为true,当前最新日志文件名永远为file节中的名字-->
    <staticLogFileName value="true" />

    <!--输出级别在INFO和ERROR之间的日志-->
    <filter type="log4net.Filter.LevelRangeFilter">
      <param name="LevelMin" value="ALL" />
      <param name="LevelMax" value="FATAL" />
    </filter>
    <layout type="log4net.Layout.PatternLayout">
      <conversionPattern value="%date [%thread] %-5level %logger - %message%newline"/>
    </layout>
  </appender>


  <!--SqlServer形式 数据库日志-->
  <!--log4net日志配置：http://logging.apache.org/log4net/release/config-examples.html -->
  <appender name="AdoNetAppender_SqlServer" type="log4net.Appender.AdoNetAppender">
    <bufferSize value="0" />
    <connectionType value="System.Data.SqlClient.SqlConnection,System.Data.SqlClient, Version=4.6.1.3, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a" />
    <connectionString value="Data Source=PC-202206030027;Initial Catalog=LogManager;Persist Security Info=True;User ID=sa;Password=sa123" />
    <commandText value="INSERT INTO Log4Net ([Date],[Thread],[Level],[Logger],[Message],[Exception]) VALUES (@log_date, @thread, @log_level, @logger, @message, @exception)" />
    <parameter>
      <parameterName value="@log_date" />
      <dbType value="DateTime" />
      <layout type="log4net.Layout.RawTimeStampLayout" />
    </parameter>
    <parameter>
      <parameterName value="@thread" />
      <dbType value="String" />
      <size value="255" />
      <layout type="log4net.Layout.PatternLayout">
        <conversionPattern value="%thread" />
      </layout>
    </parameter>
    <parameter>
      <parameterName value="@log_level" />
      <dbType value="String" />
      <size value="50" />
      <layout type="log4net.Layout.PatternLayout">
        <conversionPattern value="%level" />
      </layout>
    </parameter>
    <parameter>
      <parameterName value="@logger" />
      <dbType value="String" />
      <size value="255" />
      <layout type="log4net.Layout.PatternLayout">
        <conversionPattern value="%logger" />
      </layout>
    </parameter>
    <parameter>
      <parameterName value="@message" />
      <dbType value="String" />
      <size value="4000" />
      <layout type="log4net.Layout.PatternLayout">
        <conversionPattern value="%message" />
      </layout>
    </parameter>
    <parameter>
      <parameterName value="@exception" />
      <dbType value="String" />
      <size value="2000" />
      <layout type="log4net.Layout.ExceptionLayout" />
        </parameter>
        </appender>

        <root>
        <!--控制级别，由低到高: ALL|DEBUG|INFO|WARN|ERROR|FATAL|OFF-->
        <!--OFF:0-->
        <!--FATAL:FATAL-->
        <!--ERROR: ERROR,FATAL-->
        <!--WARN: WARN,ERROR,FATAL-->
        <!--INFO: INFO,WARN,ERROR,FATAL-->
        <!--DEBUG: INFO,WARN,ERROR,FATAL-->
        <!--ALL: DEBUG,INFO,WARN,ERROR,FATAL-->
        <priority value="ALL"/>

        <level value="INFO"/>
          <!--文本日志生效-->
        <appender-ref ref="rollingAppender" />
          <!--数据库日志生效-->
        <appender-ref ref="AdoNetAppender_SqlServer" />
        </root>
        </log4net>

数据库日志

其实，就是连接数据库，执行插入语句插入相关信息

1、修改配置文件，启用AdoNetAppender_SqlServer节点

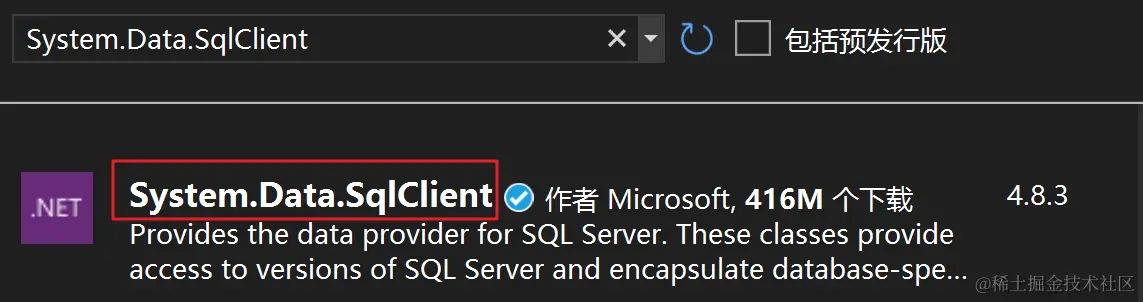

2、引入程序集

System.Data.SqlClient

数据库脚本

复制到数据库运行即可

这段脚本是干嘛的暂时不知道

USE [master]
GO
/****** Object: Database [LogManager]   Script Date: 2022/6/20 16:32:18
******/
CREATE DATABASE [LogManager]
GO
ALTER DATABASE [LogManager] SET COMPATIBILITY_LEVEL = 150
GO
IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))
begin
EXEC [LogManager].[dbo].[sp_fulltext_database] @action = 'enable'
end
GO
ALTER DATABASE [LogManager] SET ANSI_NULL_DEFAULT OFF
GO
ALTER DATABASE [LogManager] SET ANSI_NULLS OFF
GO
ALTER DATABASE [LogManager] SET ANSI_PADDING OFF
GO
ALTER DATABASE [LogManager] SET ANSI_WARNINGS OFF
GO
ALTER DATABASE [LogManager] SET ARITHABORT OFF
GO
ALTER DATABASE [LogManager] SET AUTO_CLOSE OFF
GO
ALTER DATABASE [LogManager] SET AUTO_SHRINK OFF
GO
ALTER DATABASE [LogManager] SET AUTO_UPDATE_STATISTICS ON
GO
ALTER DATABASE [LogManager] SET CURSOR_CLOSE_ON_COMMIT OFF
GO
ALTER DATABASE [LogManager] SET CURSOR_DEFAULT GLOBAL
GO
ALTER DATABASE [LogManager] SET CONCAT_NULL_YIELDS_NULL OFF
GO
ALTER DATABASE [LogManager] SET NUMERIC_ROUNDABORT OFF
GO
ALTER DATABASE [LogManager] SET QUOTED_IDENTIFIER OFF
GO
ALTER DATABASE [LogManager] SET RECURSIVE_TRIGGERS OFF
GO
ALTER DATABASE [LogManager] SET DISABLE_BROKER
GO
ALTER DATABASE [LogManager] SET AUTO_UPDATE_STATISTICS_ASYNC OFF
GO
ALTER DATABASE [LogManager] SET DATE_CORRELATION_OPTIMIZATION OFF
GO
ALTER DATABASE [LogManager] SET TRUSTWORTHY OFF
GO
ALTER DATABASE [LogManager] SET ALLOW_SNAPSHOT_ISOLATION OFF
GO
ALTER DATABASE [LogManager] SET PARAMETERIZATION SIMPLE
GO
ALTER DATABASE [LogManager] SET READ_COMMITTED_SNAPSHOT OFF
GO
ALTER DATABASE [LogManager] SET HONOR_BROKER_PRIORITY OFF
GO
ALTER DATABASE [LogManager] SET RECOVERY FULL
GO
ALTER DATABASE [LogManager] SET MULTI_USER
GO
ALTER DATABASE [LogManager] SET PAGE_VERIFY CHECKSUM
GO
ALTER DATABASE [LogManager] SET DB_CHAINING OFF
GO
ALTER DATABASE [LogManager] SET FILESTREAM( NON_TRANSACTED_ACCESS = OFF )
GO
ALTER DATABASE [LogManager] SET TARGET_RECOVERY_TIME = 60 SECONDS
GO
ALTER DATABASE [LogManager] SET DELAYED_DURABILITY = DISABLED
GO
ALTER DATABASE [LogManager] SET ACCELERATED_DATABASE_RECOVERY = OFF
GO
EXEC sys.sp_db_vardecimal_storage_format N'LogManager', N'ON'
GO
ALTER DATABASE [LogManager] SET QUERY_STORE = OFF
GO
USE [LogManager]
GO
/****** Object: Table [dbo].[Log4Net]   Script Date: 2022/6/20 16:32:18
******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
CREATE TABLE [dbo].[Log4Net](
 [Id] [int] IDENTITY(1,1) NOT NULL,
 [Date] [datetime] NOT NULL,
 [Thread] [varchar](255) NOT NULL,
 [Level] [varchar](50) NOT NULL,
 [Logger] [varchar](255) NOT NULL,
 [Message] [varchar](4000) NOT NULL,
 [Exception] [varchar](2000) NULL
) ON [PRIMARY]
GO
/****** Object: Table [dbo].[NLog]   Script Date: 2022/6/20 16:32:18 ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
CREATE TABLE [dbo].[NLog](
 [Id] [int] IDENTITY(1,1) NOT NULL,
 [Application] [nvarchar](50) NOT NULL,
 [Logged] [datetime] NOT NULL,
 [Level] [nvarchar](50) NOT NULL,
 [Message] [nvarchar](max) NOT NULL,
 [Logger] [nvarchar](250) NULL,
 [Callsite] [nvarchar](max) NULL,
 [Exception] [nvarchar](max) NULL,
 CONSTRAINT [PK_dbo.Log] PRIMARY KEY CLUSTERED
(
 [Id] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF,
ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON, OPTIMIZE_FOR_SEQUENTIAL_KEY = OFF)
ON [PRIMARY]
) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]
GO
USE [master]
GO
ALTER DATABASE [LogManager] SET READ_WRITE
GO
