1.AQS原理:
- Abstract:因为它并不知道上锁。模板方法设计模式即可,暴露出上锁逻辑
- Queue:线程阻塞队列
- Synchronizer:同步
- CAS+state:完成多线程抢锁逻辑
- Queue:完成抢不到锁的线程排队
AQS核心代码
获取锁的代码:
public final void acquire(int arg) {
if (!tryAcquire(arg) && //子类判定获取锁失败,那么这里取反,表示为true
acquireQueued(addWaiter(Node.EXCLUSIVE), arg)) //获取失败后添加到阻塞队列
selfInterrupt();
}
//子类实现获取锁的逻辑,AQS并不知道你怎么用这个state来上锁的
protected boolean tryAcquire(int arg) {
throw new UnsupportedOperationException();
}
释放锁的代码
public final boolean release(int arg) {
if (tryRelease(arg)) {
//检查阻塞队列唤醒即可
Node h = head;
if (h != null && h.waitStatus != 0)
unparkSuccessor(h);
return true;
}
return false;
}
//子类实现获取锁的逻辑,AQS并不知道你怎么用这个state来上锁的
protected boolean tryRelease(int arg) {
throw new UnsupportedOperationException();
}
总结:子类只需要实现自己的获取锁逻辑和释放锁逻辑即可,至于排队阻塞等待、唤醒机制均有AQS来完成。
2.ReentrantLock原理
概念:基于AQS实现的可重入锁实现类
核心变量和构造器
public class ReentrantLock() implements Lock, java.io.Serializable {
private final Sync sync;
public ReentrantLock() {
sync = new NonfairSync();
}
public ReentrantLock(boolean fair) {
//由fair变量来表明选择锁类型
sync = fair ? new FairSync() : new NonfairSync();
}
static final class NonfairSync extends Sync {
private static final long serialVersionUID = 7316153563782823691L;
//由ReentrantLock调用获取锁
final void lock() {
//非公平锁,直接抢锁,不管有没有现成排队
if (compareAndSetState(0, 1))
//上锁成功,那么标识当前线程为获取锁的线程
setExclusiveOwnerThread(Thread.currentThread());
else
//抢锁失败,进入AQS标准获取锁的流程
acquire(1);
}
protected final boolean tryAcquire(int acquires) {
//使用父类提供的获取非公平锁的方法获取锁
return nonfairTryAcquire(acquires);
}
}
abstract static class Sync extends AbstractQueuedSynchronizer {
abstract void lock();
//非公平锁获取锁方法
final boolean nonfairTryAcquire(int acquires) {
final Thread current = Thread.currentThread();
int c = getState();
//当执行到这里时,正好获取所得线程释放了锁,那么可以尝试抢锁
if (c == 0) {
//继续抢锁,不看有没有线程排队
if (compareAndSetState(0, acquires)) {
setExclusiveOwnerThread(current);
return true;
}
}
//当前线程就是持有锁的线程,表明锁重入
else if (current == getExclusiveOwnerThread()) {
//利用state整形变量进行次数记录
int nextc = c + acquires;
//如果超过了int表示范围,表明符号溢出,所以抛出异常
if (nextc < 0) // overflow
throw new Error("Maximum lock count exceeded");
setState(nextc);
return true;
}
//返回false,表明需要AQS来将当前线程放入阻塞队列,然后进行阻塞操作等待唤醒获取锁
return false;
}
//公平锁和非公平锁公用方法,因为在释放锁而对时候,并不区分是否公平
protected final boolean tryRelease(int releases) {
int c = getState() - releases;
//如果当前线程不是上锁的线程,这是一个错误的决定,抛出异常
if (Thread.currentThread() != getExclusiveOwnerThread())
throw new IllegalMonitorStateException();
boolean free = false;
//不是重入锁,那么当前线程一定是释放锁了,然后我们把当前AQS用于保存当前锁对象的变量
//ExclusiveOwnerThread设置为null,表示释放锁成功
if (c == 0) {
free = true;
setExclusiveOwnerThread(null);
}
//注意:此时state全局变量没有改变,也就是意味着在setState()之前,没有别的线程能够获取锁
//这时保证了以上的操作原子性
setState(c);
//告诉AQS,我释放锁成功了,你可以去唤醒正在等待锁的线程了
return free;
}
protected final boolean isHeldExclusively() {
return getExclusiveOwnerThread() == Thread.currentThread();
}
final ConditionObject newCondition() {
return new ConditionObject();
}
final Thread getOwner() {
return getState() == 0 ? null : getExclusiveOwnerThread();
}
final int getHoldCount() {
return isHeldExclusively() ? getState() : 0;
}
final boolean isLocked() {
return getState() != 0;
}
private void readObject(java.io.ObjectInputStream s)
throws java.io.IOException, ClassNotFoundException {
s.defaultReadObject();
setState(0); // reset to unlocked state
}
}
static final class FairSync extends Sync {
//由ReentrantLock调用
final void lock() {
//没有尝试抢锁,直接进入AQS标准所流程
acquire(1);
}
//AQS调用,子类自己实现获取锁的流程
protected final boolean tryAcquire(int acquires) {
final Thread current = Thread.currentThread();
int c = getState();
//此时正好获取锁的线程释放了锁
if (c == 0) {
//注意:这里和非公平锁的区别在于:hasQueuedPredecessors()看看队列是否有线程正在排队
//没有的话再通过CAS抢锁
if (!hasQueuedPredecessors() &&
compareAndSetState(0, acquires)) {
setExclusiveOwnerThread(current);
return true;
}
}
//当前线程就是获取锁的线程,那么这里是锁重入,和非公平锁操作一模一样
else if (current == getExclusiveOwnerThread()) {
int nextc = c + acquires;
if (nextc < 0)
throw new Error("Maximum lock count exceeded");
setState(nextc);
return true;
}
return false;
}
}
}
公平锁和非公平锁
公平锁会比非公平锁花更多的时间。
核心方法
1.获取锁操作
public void lock(){
//直接通过sync同步器上锁
sync.lock();
}
2.释放锁操作
public void unlock() {
sync.release(1);
}
3.ReentrantWriteLock原理
用例:

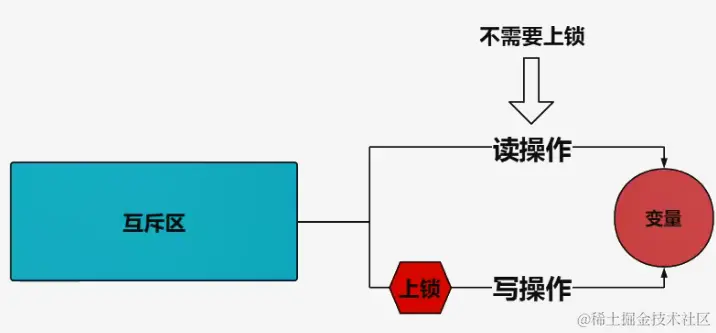

将原来的锁,分割为两把锁:读锁、写锁。适用于读多写好的场景,读锁可以并发,写锁与其他锁互斥。写写互斥,写读互斥,读读兼容
public class ThreadDemo {
static volatile int a;
public static void readA(){
System.out.println(a);
}
public static void writeA(){
a++;
}
public static void main(String[] args) {
ReentrantReadWriteLock reentrantReadWriteLock = new ReentrantReadWriteLock();
ReentrantReadWriteLock.ReadLock readLock = reentrantReadWriteLock.readLock();
ReentrantReadWriteLock.WriteLock writeLock = reentrantReadWriteLock.writeLock();
Thread readThread = new Thread(() -> {
readLock.lock();
try {
readA();
} finally {
readLock.unlock();
}
});
Thread readThread2 = new Thread(() -> {
readLock.lock();
try {
readA();
} finally {
readLock.unlock();
}
});
Thread writeThread = new Thread(() -> {
readLock.lock();
try {
writeA();
} finally {
readLock.unlock();
}
});
readThread.start();
readThread2.start();
writeThread.start();
}
}
核心变量和构造器

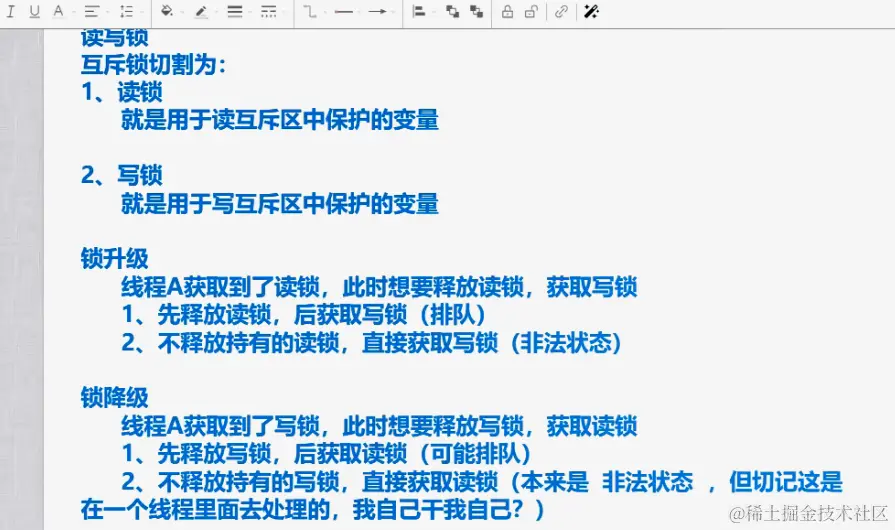

为什么不能进行锁升级。
- 读锁为什么不能升级为写锁
- 写锁为什么能升级为降级
- 在Java中，读锁不能升级为写锁是为了保证数据的一致性和避免死锁的发生。如果读锁能够升级为写锁，那么就有可能带来数据的不一致性。因为读锁是允许多个线程同时获取的，如果一个线程在持有读锁的情况下升级为写锁，那么其他线程可能还在持有读锁并在读取数据，这时候如果进行写操作就可能导致数据被错误地修改。
- 另外，允许读锁升级为写锁也会增加死锁的风险。如果一个线程在持有读锁的情况下等待获取写锁，而其他线程正在持有写锁，那么就会导致死锁的发生。
- 写锁能够升级为降级是因为写锁是一种排它锁，在持有写锁的情况下，不允许其他线程同时持有读锁或写锁。当一个线程已经获取到写锁后，如果需要执行读操作，可以将写锁降级为读锁，然后其他线程可以获取读锁进行读操作。这样可以避免写锁的频繁获取和释放，提高了并发性能。
readLock和writeLock变量用于支撑以上描述的ReadWriteLock接口的读锁和写锁方法。通过构造方法的得知,读写锁对象的创建和用例均依赖于公平锁或者非公平锁同步器。
public class ReentrantReadWriteLock
implements ReadWriteLock, java.io.Serializable {
//读锁对象
private final ReentrantReadWriteLock.ReadLock readerLock;
//写锁对象
private final ReentrantReadWriteLock.WriteLock writerLock;
//同步器
final Sync sync;
//默认构造器,创建了非公平锁
public ReentrantReadWriteLock() {
this(false);
}
//根据fair变量,来选择创建不同的锁
public ReentrantReadWriteLock(boolean fair) {
sync = fair ? new FairSync() : new NonfairSync();
//用同步器来创建读写锁对象
readerLock = new ReadLock(this);
writerLock = new WriteLock(this);
}
public ReentrantReadWriteLock.WriteLock writeLock() { return writerLock; }
public ReentrantReadWriteLock.ReadLock readLock() { return readerLock; }
核心内部类
1.Sync类
核心变量和构造器
我们说读锁可以多个线程同时持有,而写锁只允许一个线程持有。此时我们称读锁--共享锁,写锁--互斥锁(排他锁)。然后我们在AQS中了解到一个变量state,它是32位的值,那么我们这里将其切割为高16位和低16位。
读锁和写锁二进制位怎么操作的
abstract static class Sync extends AbstractQueuedSynchronizer {
//高16位用于表示读锁
static final int SHARED_SHIFT = 16;
//用于高16位操作,加1,减1
static final int SHARED_UNIT = (1 << SHARED_SHIFT);
//最大多锁量 11111111
static final int MAX_COUNT = (1 << SHARED_SHIFT) - 1;
//用于获取低16位的值,0000 0000 1111 1111
static final int EXCLUSIVE_MASK = (1 << SHARED_SHIFT) - 1;
//获取当前持有读锁的线程数量
static int sharedCount(int c) { return c >>> SHARED_SHIFT; }
//获取当前持有写锁的线程数量
static int exclusiveCount(int c) { return c & EXCLUSIVE_MASK; }
//高16位为所有读锁获取,那么我想知道每个线程对于读锁重入的次数?
//采用ThreadLocal进行统计,每个线程自己统计自己的。
static final class HoldCounter {
int count = 0;
final long tid = getThreadId(Thread.currentThread());
}
static final class ThreadLocalHoldCounter
extends ThreadLocal<HoldCounter> {
public HoldCounter initialValue() {
return new HoldCounter();
}
}
//创建ThreadLocal对象
private transient ThreadLocalHoldCounter readHolds;
//
private transient HoldCounter cachedHoldCounter;
private transient Thread firstReader = null;
private transient int firstReaderHoldCount;
Sync() {
readHolds = new ThreadLocalHoldCounter();
setState(getState()); // ensures visibility of readHolds
}
}
核心方法
tryAcquire获取写锁的流程
//有AQS调用,用于子类实现自己的上锁逻辑,和原有获取互斥锁保持一致
protected final boolean tryAcquire(int acquires) {
//获取当前线程
Thread current = Thread.currentThread();
//获取当前状态值和互斥锁的数量
int c = getState();
//w:写锁的数量
int w = exclusiveCount(c);
if (c != 0) {
//有线程获取到了读锁或者当前线程不是持有互斥锁的线程
if (w == 0 || //有线程获取到了读锁
current != getExclusiveOwnerThread()) //有其他线程获取了写锁
//返回false,让AQS执行阻塞操作
return false;
//走到这一定是current = getExclusiveOwnerThread()
//处理写锁重入逻辑,而又由于写锁的数量保存在低16位,所以直接加就行了
if (w + exclusiveCount(acquires) > MAX_COUNT)
throw new Error("Maximum lock count exceeded");
// Reentrant acquire
setState(c + acquires);
return true;
}
//既没有读锁,也没有写锁
if (writerShouldBlock() || //由子类实现判断当前线程是否应该获取写锁
!compareAndSetState(c, c + acquires)) //通过CAS抢写锁
return false;
//获取写锁成功,那么将当前线程标识位获取互斥锁的线程对象
setExclusiveOwnerThread(current);
return true;
}
tryAcquireShared获取读锁的流程
protected final int tryAcquireShared(int unused) {
//获取到当前线程对象
Thread current = Thread.currentThread();
//获取到当前状态值
int c = getState();
if (exclusiveCount(c) != 0 && //有没有线程持有写锁
getExclusiveOwnerThread() != current) //如果有现成获取到了互斥锁,那么进一步看看是不是当前线程
//不是当前线程,那么直接返回-1,告诉AQS获取共享锁失败
return -1;
int r = sharedCount(c);
if (!readerShouldBlock() &&
r < MAX_COUNT &&
compareAndSetState(c, c + SHARED_UNIT)) {
if (r == 0) {
firstReader = current;
firstReaderHoldCount = 1;
} else if (firstReader == current) {
firstReaderHoldCount++;
} else {
HoldCounter rh = cachedHoldCounter;
if (rh == null || rh.tid != getThreadId(current))
cachedHoldCounter = rh = readHolds.get();
else if (rh.count == 0)
readHolds.set(rh);
rh.count++;
}
return 1;
}
return fullTryAcquireShared(current);
}
tryRelease释放写锁的流程
protected final boolean tryRelease(int releases) {
if (!isHeldExclusively())
throw new IllegalMonitorStateException();
int nextc = getState() - releases;
boolean free = exclusiveCount(nextc) == 0;
if (free)
setExclusiveOwnerThread(null);
setState(nextc);
return free;
}
releaseShared释放读锁的流程
protected final boolean tryReleaseShared(int unused) {
Thread current = Thread.currentThread();
if (firstReader == current) {
// assert firstReaderHoldCount > 0;
if (firstReaderHoldCount == 1)
firstReader = null;
else
firstReaderHoldCount--;
} else {
HoldCounter rh = cachedHoldCounter;
if (rh == null || rh.tid != getThreadId(current))
rh = readHolds.get();
int count = rh.count;
if (count <= 1) {
readHolds.remove();
if (count <= 0)
throw unmatchedUnlockException();
}
--rh.count;
}
for (;;) {
int c = getState();
int nextc = c - SHARED_UNIT;
if (compareAndSetState(c, nextc))
return nextc == 0;
}
}
private IllegalMonitorStateException unmatchedUnlockException() {
return new IllegalMonitorStateException(
"attempt to unlock read lock, not locked by current thread");
}
final int fullTryAcquireShared(Thread current) {
HoldCounter rh = null;
for (;;) {
int c = getState();
if (exclusiveCount(c) != 0) {
if (getExclusiveOwnerThread() != current)
return -1;
} else if (readerShouldBlock()) {
if (firstReader == current) {
} else {
if (rh == null) {
rh = cachedHoldCounter;
if (rh == null || rh.tid != getThreadId(current)) {
rh = readHolds.get();
if (rh.count == 0)
readHolds.remove();
}
}
if (rh.count == 0)
return -1;
}
}
if (sharedCount(c) == MAX_COUNT)
throw new Error("Maximum lock count exceeded");
if (compareAndSetState(c, c + SHARED_UNIT)) {
if (sharedCount(c) == 0) {
firstReader = current;
firstReaderHoldCount = 1;
} else if (firstReader == current) {
firstReaderHoldCount++;
} else {
if (rh == null)
rh = cachedHoldCounter;
if (rh == null || rh.tid != getThreadId(current))
rh = readHolds.get();
else if (rh.count == 0)
readHolds.set(rh);
rh.count++;
cachedHoldCounter = rh; // cache for release
}
return 1;
}
}
}
final boolean tryWriteLock() {
Thread current = Thread.currentThread();
int c = getState();
if (c != 0) {
int w = exclusiveCount(c);
if (w == 0 || current != getExclusiveOwnerThread())
return false;
if (w == MAX_COUNT)
throw new Error("Maximum lock count exceeded");
}
if (!compareAndSetState(c, c + 1))
return false;
setExclusiveOwnerThread(current);
return true;
}
final boolean tryReadLock() {
Thread current = Thread.currentThread();
for (;;) {
int c = getState();
if (exclusiveCount(c) != 0 &&
getExclusiveOwnerThread() != current)
return false;
int r = sharedCount(c);
if (r == MAX_COUNT)
throw new Error("Maximum lock count exceeded");
if (compareAndSetState(c, c + SHARED_UNIT)) {
if (r == 0) {
firstReader = current;
firstReaderHoldCount = 1;
} else if (firstReader == current) {
firstReaderHoldCount++;
} else {
HoldCounter rh = cachedHoldCounter;
if (rh == null || rh.tid != getThreadId(current))
cachedHoldCounter = rh = readHolds.get();
else if (rh.count == 0)
readHolds.set(rh);
rh.count++;
}
return true;
}
}
}
protected final boolean isHeldExclusively() {
return getExclusiveOwnerThread() == Thread.currentThread();
}
final ConditionObject newCondition() {
return new ConditionObject();
}
final Thread getOwner() {
// Must read state before owner to ensure memory consistency
return ((exclusiveCount(getState()) == 0) ?
null :
getExclusiveOwnerThread());
}
final int getReadLockCount() {
return sharedCount(getState());
}
final boolean isWriteLocked() {
return exclusiveCount(getState()) != 0;
}
final int getWriteHoldCount() {
return isHeldExclusively() ? exclusiveCount(getState()) : 0;
}
final int getReadHoldCount() {
if (getReadLockCount() == 0)
return 0;
Thread current = Thread.currentThread();
if (firstReader == current)
return firstReaderHoldCount;
HoldCounter rh = cachedHoldCounter;
if (rh != null && rh.tid == getThreadId(current))
return rh.count;
int count = readHolds.get().count;
if (count == 0) readHolds.remove();
return count;
}
private void readObject(java.io.ObjectInputStream s)
throws java.io.IOException, ClassNotFoundException {
s.defaultReadObject();
readHolds = new ThreadLocalHoldCounter();
setState(0); // reset to unlocked state
}
final int getCount() { return getState(); }
