k8s集群部署

cgroup 驱动

在 Linux 上，控制组（CGroup）用于限制分配给进程的资源。

kubelet 和底层容器运行时都需要对接控制组来强制执行为 Pod 和容器管理资源并为诸如 CPU、内存这类资源设置请求和限制。 kubelet 和容器运行时需使用相同的 cgroup 驱动并且采用相同的配置。

可用的 cgroup 驱动有两个：

cgroupfs：cgroupfs 驱动是 kubelet 中默认的 cgroup 驱动。当使用 cgroupfs 驱动时， kubelet 和容器运行时将直接对接 cgroup 文件系统来配置 cgroup。当 systemd 是初始化系统时，不推荐使用 cgroupfs 驱动，因为 systemd 期望系统上只有一个 cgroup 管理器。此外，如果你使用 cgroup v2，则应用 systemd cgroup 驱动取代 cgroupfs。
systemd：使用 systemd 作为其初始化系统时，初始化进程会生成并使用一个 root 控制组（cgroup），并充当 cgroup 管理器。同时使用 cgroupfs 驱动，将造成系统中针对可用的资源和使用中的资源出现两个视图，节点将在资源压力增大时变得不稳定。如果你使用 cgroup v2，则推荐 systemd cgroup 驱动，使用 cgroup v2 的推荐方法是使用一个默认启用 cgroup v2 的 Linux 发行版。

kubelet设置systemd

kubelet 编辑 KubeletConfiguration 的 cgroupDriver 选项，并将其设置为 systemd

在版本 1.22 中，如果用户没有在 KubeletConfiguration 中设置 cgroupDriver 字段， kubeadm 会将它设置为默认值 systemd

apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
...
cgroupDriver: systemd

查看cgroupDriver

$ kubectl get cm kubelet-config -n kube-system -o yaml|grep cgroupDriver
    cgroupDriver: systemd

containerd设置systemd

containerd 结合runc 使用 systemd cgroup 驱动，在 /etc/containerd/config.toml 中设置：

[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
  ...
  [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
    SystemdCgroup = true

重启containerd

systemctl restart containerd

转发 IPv4 并让 iptables 看到桥接流量

cat <<EOF | tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF

modprobe overlay
modprobe br_netfilter

# 设置所需的 sysctl 参数，参数在重新启动后保持不变
cat <<EOF | tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward                 = 1
EOF

# 应用 sysctl 参数而不重新启动
sysctl --system

# [WARNING SystemVerification]: missing optional cgroups: hugetlb
mount -t cgroup -o hugetlb none /sys/fs/cgroup

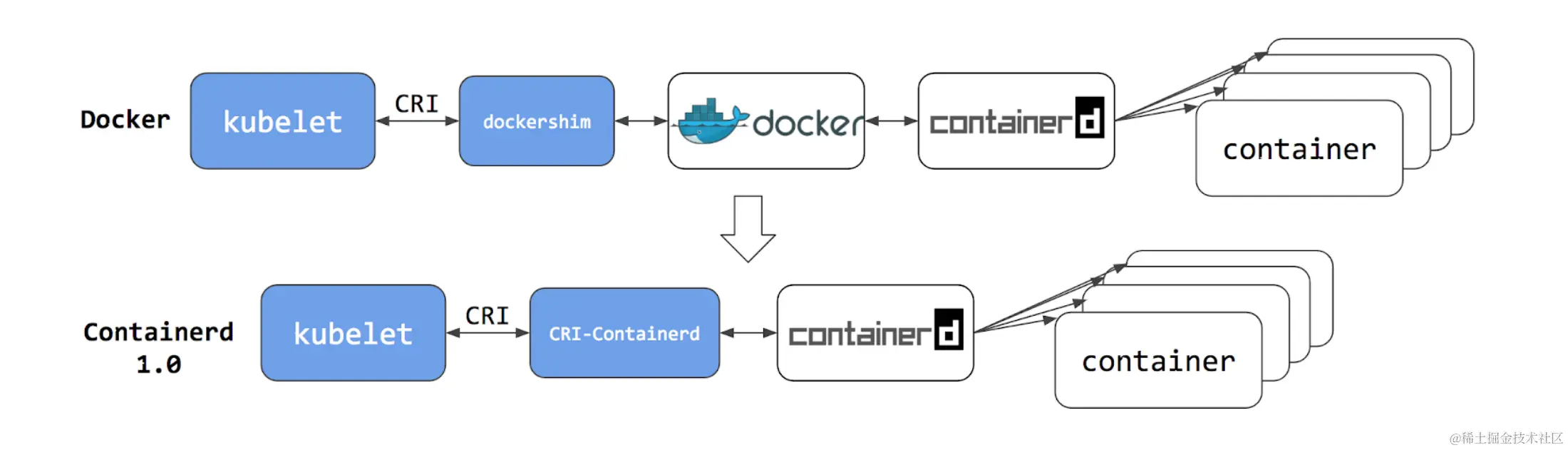

容器运行时

自 1.24 版起，Dockershim 已从 Kubernetes 项目中移除

在 Kubernetes 中几个常见的容器运行时的用法。

安装containerd

github.com/containerd/…

安装containerd

wget https://github.com/containerd/containerd/releases/download/v1.6.17/containerd-1.6.17-linux-amd64.tar.gz
tar Cxzvf /usr/local containerd-1.6.17-linux-amd64.tar.gz
mkdir -p /usr/local/lib/systemd/system/
curl https://raw.githubusercontent.com/containerd/containerd/main/containerd.service > /usr/local/lib/systemd/system/containerd.service
systemctl daemon-reload
systemctl enable --now containerd

安装runc

wget https://github.com/opencontainers/runc/releases/download/v1.1.4/runc.amd64
install -m 755 runc.amd64 /usr/local/sbin/runc

安装CNI

wget https://github.com/containernetworking/plugins/releases/download/v1.2.0/cni-plugins-linux-amd64-v1.2.0.tgz
mkdir -p /opt/cni/bin
tar Cxzvf /opt/cni/bin cni-plugins-linux-amd64-v1.2.0.tgz

配置cgroup

$ containerd config default > /etc/containerd/config.toml
SystemdCgroup = true
$ systemctl restart containerd

查看

$ ctr  -v
ctr github.com/containerd/containerd v1.6.17

安装crictl

VERSION="v1.26.0" # check latest version in /releases page
wget https://github.com/kubernetes-sigs/cri-tools/releases/download/$VERSION/crictl-$VERSION-linux-amd64.tar.gz
sudo tar zxvf crictl-$VERSION-linux-amd64.tar.gz -C /usr/local/bin
rm -f crictl-$VERSION-linux-amd64.tar.gz

如果你的容器运行时，已经换成了containerd，则换成containerd的

unix:///var/run/dockershim.sock
unix:///run/containerd/containerd.sock
unix:///run/crio/crio.sock
unix:///var/run/cri-dockerd.sock # kubernetes 1.24+ 之后，dockershim已经变成了cri-docker

crictl config runtime-endpoint unix:///var/run/containerd/containerd.sock

继续使用docker作为cri

kubernetes1.24+正式移除dockershim，kubernetes正式拥抱纯净的CRI。如果我们想继续使用在k8s中使用docker，就必须使用cri-dockerd作为适配器，它让我们可以通过CRI来使用docker engine。

docs.docker.com/engine/inst…

# 安装 docker
apt-get update
mkdir /etc/apt/keyrings
apt-get install -y ca-certificates curl gnupg lsb-release
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/debian \
  $(lsb_release -cs) stable" | tee /etc/apt/sources.list.d/docker.list > /dev/null
curl -fsSL https://download.docker.com/linux/debian/gpg | gpg --dearmor -o /etc/apt/keyrings/docker.gpg
apt-get update
apt-get install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

github.com/Mirantis/cr…

# 直接安装deb包
$ wget https://github.com/Mirantis/cri-dockerd/releases/download/v0.3.9/cri-dockerd_0.3.9.3-0.debian-bullseye_amd64.deb
$ sudo dpkg -i cri-dockerd_0.3.9.3-0.debian-bullseye_amd64.deb
# 安装cri-dockerd后，为cri-docker.service，和cri-docker.socket创建了软链接
Created symlink /etc/systemd/system/multi-user.target.wants/cri-docker.service → /lib/systemd/system/cri-docker.service.
Created symlink /etc/systemd/system/sockets.target.wants/cri-docker.socket → /lib/systemd/system/cri-docker.socket.
$ crictl config runtime-endpoint unix:///var/run/cri-dockerd.sock

创建集群的准备

10.x.159.238  kube-api-vip
10.x.159.58   kube-master58
10.x.159.65   kube-master65
10.x.159.66   kube-master66

配置docker、kubelet目录

data目录

数据盘挂载目录为/data

将盘挂载到/data目录上，并固化到/etc/fstab

UUID=30d7dad7-35c6-4e83-aa80-d89dc155c1f1 /data ext4 relatime,prjquota 0 0

配置systemd service 文件，debian一般在/lib/systemd/system/下，redhat一般在/usr/lib/systemd/system/下

data-make-private.service

[Unit]
Description=Make /data mount progagation be private
DefaultDependencies=false
After=data.mount
Before=local-fs.target

[Service]
Type=oneshot
ExecStart=/bin/mount --make-private /data

[Install]
WantedBy=local-fs.target

执行systemctl daemon-reload && systemctl enable --now data-make-private.service，重启机器生效

docker目录

docker rootfs目录为/var/lib/docker，数据盘挂载目录为/data

mkdir -p /var/lib/docker /data/docker
配置systemd service 文件，debian一般在/lib/systemd/system/下，redhat一般在/usr/lib/systemd/system/下

var-lib-docker.mount

[Unit]
Description=Bind mount /data/docker to /var/lib/docker
Requires=var-lib-docker-make-slave.service
After=data-make-private.service
Before=local-fs.target

[Mount]
What=/data/docker
Where=/var/lib/docker
Type=none
Options=defaults,rbind

[Install]
WantedBy=local-fs.target

var-lib-docker-make-slave.service

[Unit]
Description=Make /var/lib/docker mount propagation be slave
DefaultDependencies=false
After=var-lib-docker.mount
Before=local-fs.target

[Service]
Type=oneshot
ExecStart=/bin/mount --make-rslave /var/lib/docker

执行systemctl daemon-reload && systemctl enable var-lib-docker.mount，重启机器生效

kubelet目录

kubelet rootfs目录为/var/lib/kubelet，数据盘挂载目录为/data

mkdir -p /var/lib/kubelet /data/kubelet
配置systemd service 文件，debian一般在/lib/systemd/system/下，redhat一般在/usr/lib/systemd/system/下

var-lib-kubelet.mount

[Unit]
Description=Bind mount /data/kubelet to /var/lib/kubelet
After=data-make-private.service
Before=local-fs.target

[Mount]
What=/data/kubelet
Where=/var/lib/kubelet
Type=none
Options=defaults,rbind

[Install]
WantedBy=local-fs.target

执行systemctl daemon-reload && systemctl enable var-lib-kubelet.mount，重启机器生效

安装 kubelet kubeadm kubectl

apt-get install -y apt-transport-https ca-certificates curl
mkdir /etc/apt/keyrings/
curl -fsSLo /etc/apt/keyrings/kubernetes-archive-keyring.gpg https://packages.cloud.google.com/apt/doc/apt-key.gpg
echo "deb [signed-by=/etc/apt/keyrings/kubernetes-archive-keyring.gpg] https://apt.kubernetes.io/ kubernetes-xenial main" | tee /etc/apt/sources.list.d/kubernetes.list
apt-get update
apt-get install -y kubelet kubeadm kubectl
apt-mark hold kubelet kubeadm kubectl

【可选】配置 kubelet 的 cgroup 驱动，在初始化的时候带上kubeadm init --config kubeadm-config.yaml

kind: ClusterConfiguration
apiVersion: kubeadm.k8s.io/v1beta3
kubernetesVersion: v1.21.0 # 可以自定义k8s版本
---
kind: KubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
cgroupDriver: systemd # 这个

为 kube-apiserver 创建负载均衡器

创建一个名为 kube-apiserver 的负载均衡器解析 DNS，或者可以部署负载均衡器：github.com/kubernetes/…

我们这边使用静态pod来部署keepalived和haproxy

keepalived

/etc/keepalived/keepalived.conf

global_defs {
    router_id LVS_DEVEL
}
vrrp_script check_apiserver {
  script "/etc/keepalived/check_apiserver.sh"
  interval 3
  weight -2
  fall 10
  rise 2
}

vrrp_instance VI_1 {
    state master # 要求1台master，其他slave
    interface eth0
    virtual_router_id 238
    priority 101
    authentication {
        auth_type PASS
        auth_pass passkube
    }
    virtual_ipaddress {
        10.x.159.238
    }
    track_script {
        check_apiserver
    }
}

/etc/keepalived/check_apiserver.sh

#!/bin/sh

errorExit() {
    echo "*** $*" 1>&2
    exit 1
}

curl --silent --max-time 2 --insecure https://localhost:6443/ -o /dev/null || errorExit "Error GET https://localhost:6443/"
if ip addr | grep -q 10.x.159.238; then
    curl --silent --max-time 2 --insecure https://10.x.159.238:6443/ -o /dev/null || errorExit "Error GET https://10.x.159.238:6443/"
fi

/etc/kubernetes/manifests/keepalived.yaml

apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  name: keepalived
  namespace: kube-system
spec:
  containers:
  - image: osixia/keepalived:2.0.17
    name: keepalived
    resources: {}
    securityContext:
      capabilities:
        add:
        - NET_ADMIN
        - NET_BROADCAST
        - NET_RAW
    volumeMounts:
    - mountPath: /usr/local/etc/keepalived/keepalived.conf
      name: config
    - mountPath: /etc/keepalived/check_apiserver.sh
      name: check
  hostNetwork: true
  volumes:
  - hostPath:
      path: /etc/keepalived/keepalived.conf
    name: config
  - hostPath:
      path: /etc/keepalived/check_apiserver.sh
    name: check
status: {}

haproxy

/etc/haproxy/haproxy.cfg

#---------------------------------------------------------------------
# Global settings
#---------------------------------------------------------------------
global
    log /dev/log local0
    log /dev/log local1 notice
    daemon

#---------------------------------------------------------------------
# common defaults that all the 'listen' and 'backend' sections will
# use if not designated in their block
#---------------------------------------------------------------------
defaults
    mode                    http
    log                     global
    option                  httplog
    option                  dontlognull
    option http-server-close
    option forwardfor       except 127.0.0.0/8
    option                  redispatch
    retries                 1
    timeout http-request    10s
    timeout queue           20s
    timeout connect         5s
    timeout client          20s
    timeout server          20s
    timeout http-keep-alive 10s
    timeout check           10s

#---------------------------------------------------------------------
# apiserver frontend which proxys to the control plane nodes
#---------------------------------------------------------------------
frontend apiserver
    bind *:16443
    mode tcp
    option tcplog
    default_backend apiserver

#---------------------------------------------------------------------
# round robin balancing for apiserver
#---------------------------------------------------------------------
backend apiserver
    option httpchk GET /healthz
    http-check expect status 200
    mode tcp
    option ssl-hello-chk
    balance     roundrobin
        server kube-master58 10.x.159.58:6443 check
        server kube-master65 10.x.159.65:6443 check
        server kube-master66 10.x.159.66:6443 check

/etc/kubernetes/manifests/haproxy.yaml

apiVersion: v1
kind: Pod
metadata:
  name: haproxy
  namespace: kube-system
spec:
  containers:
  - image: haproxy:2.1.4
    name: haproxy
    livenessProbe:
      failureThreshold: 8
      httpGet:
        host: localhost
        path: /healthz
        port: 16443
        scheme: HTTPS
    volumeMounts:
    - mountPath: /usr/local/etc/haproxy/haproxy.cfg
      name: haproxyconf
      readOnly: true
  hostNetwork: true
  volumes:
  - hostPath:
      path: /etc/haproxy/haproxy.cfg
      type: FileOrCreate
    name: haproxyconf
status: {}

初始化master节点

初始化控制平面

# --pod-network-cidr=192.168.0.0/16 为calico方案
kubeadm init --control-plane-endpoint "10.x.159.238:16443" --upload-certs \
--image-repository registry.aliyuncs.com/google_containers \
--service-cidr=10.140.0.0/16 --pod-network-cidr=192.168.0.0/16 \
--kubernetes-version v1.19.0 # 高版本的kubeadm有特定的kubernetes版本支持
# Found multiple CRI endpoints on the host. Please define which one do you wish to use by setting the 'criSocket' field in the kubeadm configuration file: unix:///var/run/containerd/containerd.sock, unix:///var/run/cri-dockerd.sock
# 添加
--cri-socket unix:///var/run/cri-dockerd.sock
# 设置
crictl config runtime-endpoint unix:///var/run/cri-dockerd.sock

国内获取k8s所需镜像

$ kubeadm config images list
registry.k8s.io/kube-apiserver:v1.26.1
registry.k8s.io/kube-controller-manager:v1.26.1
registry.k8s.io/kube-scheduler:v1.26.1
registry.k8s.io/kube-proxy:v1.26.1
registry.k8s.io/pause:3.9
registry.k8s.io/etcd:3.5.6-0
registry.k8s.io/coredns/coredns:v1.9.3
# 生成配置文件
$ kubeadm config print init-defaults > kubeadm.conf
# 指定阿里云下载地址
$ sed -i "s/imageRepository: .*/imageRepository: registry.aliyuncs.com\/google_containers/g" kubeadm.conf

直接拉取的脚本

#!/bin/bash
KUBE_VERSION=v1.18.0
KUBE_PAUSE_VERSION=3.2
ETCD_VERSION=3.4.3-0
DNS_VERSION=1.6.7
username=registry.cn-hangzhou.aliyuncs.com/google_containers

images=(kube-proxy:${KUBE_VERSION}
kube-scheduler:${KUBE_VERSION}
kube-controller-manager:${KUBE_VERSION}
kube-apiserver:${KUBE_VERSION}
pause:${KUBE_PAUSE_VERSION}
etcd:${ETCD_VERSION}
coredns:${DNS_VERSION}
    )

for image in ${images[@]}
do
    docker pull ${username}/${image}
    docker tag ${username}/${image} k8s.gcr.io/${image}
    docker rmi ${username}/${image}
done

修改tag脚本

#!/bin/bash

# 从docker images输出中获取旧的镜像仓库
OLD_IMAGES=$(docker images | grep 'registry.aliyuncs.com' | awk '{print $1 ":" $2}')

# 新的镜像仓库
NEW_REGISTRY="registry.k8s.io"

# 循环处理每个镜像
for image in $OLD_IMAGES; do
  # 从旧仓库标记镜像
  tag=`echo $image|awk -F ':' '{print $2}'`
  new_image=$NEW_REGISTRY:$tag
  docker tag "$image" "$new_image"
done

kubctl获取权限，不设置会出现如下报错

The connection to the server localhost:8080 was refused - did you specify the right host or port?

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

#启用 kubectl 命令的自动补全功能
echo "source <(kubectl completion bash)" >> ~/.bashrc

# 添加master
kubeadm join 10.x.159.238:16443 --token 4vg9bh.65dk2vfy20r2i238 \
        --discovery-token-ca-cert-hash sha256:3e59e39ff671bdd7349c73a939f80396e2b7c2e5a872f8d23389820f5235fe87 \
        --control-plane --certificate-key 3a47ffe9bc24db9b97ebfb3efc791600801f17370db02bfa12566f2faa454ddd
# 添加node
kubeadm join 10.x.159.238:16443 --token 4vg9bh.65dk2vfy20r2i238 \
        --discovery-token-ca-cert-hash sha256:3e59e39ff671bdd7349c73a939f80396e2b7c2e5a872f8d23389820f5235fe87

如果有遇到/etc/kubernetes/pki/ca.key,/etc/kubernetes/pki/ca.crt等找不到的情况，需要从第一个节点拷贝过来。原因是init的时候没有添加--upload-certs参数

查看token

$ kubeadm token list
TOKEN                     TTL         EXPIRES                USAGES                   DESCRIPTION                                                EXTRA GROUPS
4vg9bh.65dk2vfy20r2i238   22h         2023-02-16T03:42:04Z   authentication,signing   The default bootstrap token generated by 'kubeadm init'.   system:bootstrappers:kubeadm:default-node-token
dc6fvn.9wax0v3wjmhil6f8   59m         2023-02-15T05:42:04Z   <none>                   Proxy for managing TTL for the kubeadm-certs secret        <none>
# 创建一个不过期的token
$ kubeadm token create --ttl 0

把其余2台master也加入集群，查看etcd已经是3副本了

$ kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE                         ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-0               Healthy   {"health":"true","reason":""}
$ kubectl get pod -n kube-system -o wide
NAME                                    READY   STATUS    RESTARTS      AGE    IP              NODE            NOMINATED NODE   READINESS GATES
coredns-5bbd96d687-bd4fx                0/1     Pending   0             136m   <none>          <none>          <none>           <none>
coredns-5bbd96d687-nrssm                0/1     Pending   0             136m   <none>          <none>          <none>           <none>
etcd-kube-master58                      1/1     Running   0             136m   10.x.159.58   kube-master58   <none>           <none>
etcd-kube-master65                      1/1     Running   0             71m    10.x.159.65   kube-master65   <none>           <none>
etcd-kube-master66                      1/1     Running   0             71m    10.x.159.66   kube-master66   <none>           <none>
haproxy-kube-master58                   1/1     Running   0             136m   10.x.159.58   kube-master58   <none>           <none>
haproxy-kube-master65                   1/1     Running   0             70m    10.x.159.65   kube-master65   <none>           <none>
haproxy-kube-master66                   1/1     Running   0             71m    10.x.159.66   kube-master66   <none>           <none>
keepalived-kube-master58                1/1     Running   0             136m   10.x.159.58   kube-master58   <none>           <none>
keepalived-kube-master65                1/1     Running   0             71m    10.x.159.65   kube-master65   <none>           <none>
keepalived-kube-master66                1/1     Running   0             70m    10.x.159.66   kube-master66   <none>           <none>
kube-apiserver-kube-master58            1/1     Running   0             136m   10.x.159.58   kube-master58   <none>           <none>
kube-apiserver-kube-master65            1/1     Running   0             71m    10.x.159.65   kube-master65   <none>           <none>
kube-apiserver-kube-master66            1/1     Running   0             71m    10.x.159.66   kube-master66   <none>           <none>
kube-controller-manager-kube-master58   1/1     Running   0             136m   10.x.159.58   kube-master58   <none>           <none>
kube-controller-manager-kube-master65   1/1     Running   0             71m    10.x.159.65   kube-master65   <none>           <none>
kube-controller-manager-kube-master66   1/1     Running   0             71m    10.x.159.66   kube-master66   <none>           <none>
kube-proxy-5cmxw                        1/1     Running   0             71m    10.x.159.66   kube-master66   <none>           <none>
kube-proxy-9bmth                        1/1     Running   0             71m    10.x.159.65   kube-master65   <none>           <none>
kube-proxy-plx45                        1/1     Running   0             136m   10.x.159.58   kube-master58   <none>           <none>
kube-scheduler-kube-master58            1/1     Running   0             136m   10.x.159.58   kube-master58   <none>           <none>
kube-scheduler-kube-master65            1/1     Running   0             71m    10.x.159.65   kube-master65   <none>           <none>
kube-scheduler-kube-master66            1/1     Running   0             71m    10.x.159.66   kube-master66   <none>           <none>

下载etcdctl，查看集群状态

ETCD_VER=v3.5.7
# choose either URL
GOOGLE_URL=https://storage.googleapis.com/etcd
GITHUB_URL=https://github.com/etcd-io/etcd/releases/download
DOWNLOAD_URL=${GOOGLE_URL}

rm -f /tmp/etcd-${ETCD_VER}-linux-amd64.tar.gz
rm -rf /tmp/etcd-download-test && mkdir -p /tmp/etcd-download-test

curl -L ${DOWNLOAD_URL}/${ETCD_VER}/etcd-${ETCD_VER}-linux-amd64.tar.gz -o /tmp/etcd-${ETCD_VER}-linux-amd64.tar.gz
tar xzvf /tmp/etcd-${ETCD_VER}-linux-amd64.tar.gz -C /tmp/etcd-download-test --strip-components=1
rm -f /tmp/etcd-${ETCD_VER}-linux-amd64.tar.gz
mv /tmp/etcd-download-test/etcdctl /usr/bin/

ETCDCTL_API=3 etcdctl \
--cert /etc/kubernetes/pki/etcd/peer.crt \
--key /etc/kubernetes/pki/etcd/peer.key \
--cacert /etc/kubernetes/pki/etcd/ca.crt \
--endpoints https://${HOST0}:2379 member list

没有部署cni，节点状态异常

$ kubectl get no
NAME            STATUS     ROLES           AGE   VERSION
kube-master58   NotReady   control-plane   62m   v1.26.1
$ journalctl -f -u kubelet
Feb 15 04:44:31 kube-master58 kubelet[531]: E0215 04:44:31.568226     531 kubelet.go:2475] "Container runtime network not ready" networkReady="NetworkReady=false reason:NetworkPluginNotReady message:Network plugin returns error: cni plugin not initialized"

【可选】去掉污点

kubectl taint no --all node-role.kubernetes.io/control-plane-

安装网络组件

caclico

docs.tigera.io/calico/late…

Kubernetes API 数据存储选项超过 50 个节点使用Typha 守护程序提供扩展。Typha 不包含在 etcd 中，因为 etcd 已经处理了许多客户端，所以使用 Typha 是多余的，不推荐使用。

50节点以下

curl https://raw.githubusercontent.com/projectcalico/calico/v3.25.0/manifests/calico.yaml -O
# 如果有自定义cidr需要修改
            - name: CALICO_IPV4POOL_CIDR
              value: "192.168.0.0/16"
kubectl apply -f calico.yaml

查看node已经Ready，且coredns也Running

$ kubectl get no
NAME            STATUS   ROLES           AGE    VERSION
kube-master58   Ready    control-plane   3h2m   v1.26.1
kube-master65   Ready    control-plane   116m   v1.26.1
kube-master66   Ready    control-plane   116m   v1.26.1

部署metrics

实现node和pod的监控

kubectl apply -f https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/high-availability-1.21+.yaml
# 因为证书问题导致探活失败
# https://github.com/kubernetes-sigs/metrics-server/issues/767
kubectl edit deployment.apps/metrics-server -n kube-system
--kubelet-insecure-tls

添加node

部署好容器、kubelet等

# 添加worker
# master生成添加worker命令
$ kubeadm token create --print-join-command
 kubeadm join 192.168.1.10:6443 –token 42ojpt.z2h5ii9n898tzo36 –discovery-token-ca-cert-hash sha256:7cf14e8cb965d5eb9d66f3707ba20deeadc90bd36b730ce4c0e5d9db80d3625b

# master上生成用于新master加入的证书
$ kubeadm init phase upload-certs --experimental-upload-certs
 [upload-certs] Storing the certificates in Secret “kubeadm-certs” in the “kube-system” Namespace
 [upload-certs] Using certificate key:
 e799a655f667fc327ab8c91f4f2541b57b96d2693ab5af96314ebddea7a68526
# 添加master
 kubeadm join 192.168.1.10:6443 –token 42ojpt.z2h5ii9n898tzo36 –discovery-token-ca-cert-hash sha256:7cf14e8cb965d5eb9d66f3707ba20deeadc90bd36b730ce4c0e5d9db80d3625b \
 –experimental-control-plane –certificate-key e799a655f667fc327ab8c91f4f2541b57b96d2693ab5af96314ebddea7a68526

k8s生产集群部署

k8s集群部署

cgroup 驱动

kubelet设置systemd

containerd设置systemd

转发 IPv4 并让 iptables 看到桥接流量

容器运行时

安装containerd

继续使用docker作为cri

创建集群的准备

配置docker、kubelet目录

data目录

docker目录

kubelet目录

安装 kubelet kubeadm kubectl

为 kube-apiserver 创建负载均衡器

keepalived

haproxy

初始化master节点

安装网络组件

caclico

部署metrics

添加node
