Electron 入门实战 03:实现一个截图功能

2,423 阅读4分钟

实现效果


实现思路

  1. 创建两个window,一个叫mainWindow,一个叫cutWindow
  2. mainWindow:主界面用来展示截图结果
  3. cutWindow:截图窗口,加载截图页面和截图交互逻辑
  4. mainWindow 页面点击截图,让cutWIndow 来实现具体截图逻辑
  5. cutWindow:截图完后把截图send给mainWindow页面

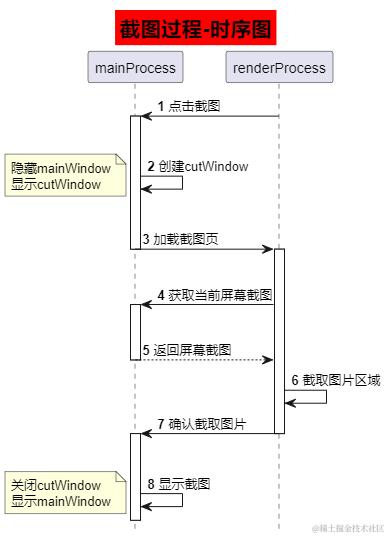

截图过程-时序图


创建项目

我在网上找了一大圈,没有找到一个合适的模板,要么环境太老、要么配置各种缺失不完善、要么打包出来各种问题等等,说实话坑还真不少,无意间找到一个特别好的脚手架,它简单又完善。推荐给大家:electron-vite ,所以接下来直接用创建命令

yarn create @quick-start/electron

安装依赖

  • vue-router:切换加载首页和截图页面
  • konva:完成截图交互的库
yarn add konva vue-router

核心代码

为了更好的展示添加的内容,提供如下目录结构图方便理解

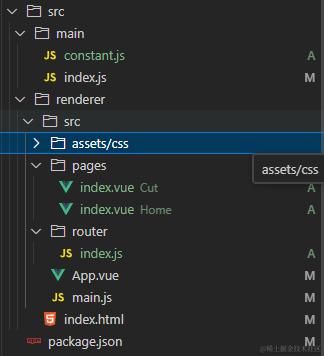

目录结构


主进程

  • src/main/index.js

    import {
      app,
      shell,
      BrowserWindow,
      ipcMain,
      screen,
      desktopCapturer,
      globalShortcut
    } from 'electron'
    import { join } from 'path'
    import { electronApp, optimizer, is } from '@electron-toolkit/utils'
    import icon from '../../resources/icon.png?asset'

    let mainWindow
    let cutWindow

    function closeCutWindow() {
      cutWindow && cutWindow.close()
      cutWindow = null
    }

    function createMainWindow() {
      mainWindow = new BrowserWindow({
        width: 900,
        height: 670,
        show: false,
        autoHideMenuBar: true,
        ...(process.platform === 'linux' ? { icon } : {}),
        webPreferences: {
          preload: join(__dirname, '../preload/index.js'),
          sandbox: false
        }
      })

      mainWindow.on('ready-to-show', () => {
        mainWindow.show()
      })

      mainWindow.webContents.setWindowOpenHandler((details) => {
        shell.openExternal(details.url)
        return { action: 'deny' }
      })

      console.log('loadURL:', process.env['ELECTRON_RENDERER_URL'])

      if (is.dev && process.env['ELECTRON_RENDERER_URL']) {
        mainWindow.loadURL(process.env['ELECTRON_RENDERER_URL'])
      } else {
        mainWindow.loadFile(join(__dirname, '../renderer/index.html'))
      }

      mainWindow.on('closed', () => {
        closeCutWindow()
      })
    }

    function registerShortcut() {
      //! 截图快捷键
      globalShortcut.register('CommandOrControl+Alt+C', () => {
        openCutScreen()
      })
      globalShortcut.register('Esc', () => {
        closeCutWindow()
        mainWindow.show()
      })
      globalShortcut.register('Enter', sendFinishCut)
    }

    app.whenReady().then(() => {
      // Set app user model id for windows
      electronApp.setAppUserModelId('com.electron')

      // Default open or close DevTools by F12 in development
      // and ignore CommandOrControl + R in production.
      // see https://github.com/alex8088/electron-toolkit/tree/master/packages/utils
      //! 开发模式:win 环境F12 和 mac os 环境:CommandOrControl + R 打开 DevTools
      app.on('browser-window-created', (_, window) => {
        optimizer.watchWindowShortcuts(window)
      })

      createMainWindow()
      registerShortcut()
      openMainListener()

      app.on('activate', function () {
        if (BrowserWindow.getAllWindows().length === 0) createMainWindow()
      })
    })

    app.on('window-all-closed', () => {
      if (process.platform !== 'darwin') {
        globalShortcut.unregisterAll()
        app.quit()
      }
    })

    function getSize() {
      const { size, scaleFactor } = screen.getPrimaryDisplay()
      return {
        width: size.width * scaleFactor,
        height: size.height * scaleFactor
      }
    }

    function createCutWindow() {
      const { width, height } = getSize()
      cutWindow = new BrowserWindow({
        width,
        height,
        autoHideMenuBar: true,
        useContentSize: true,
        movable: false,
        frame: false,
        resizable: false,
        hasShadow: false,
        transparent: true,
        fullscreenable: true,
        fullscreen: true,
        simpleFullscreen: true,
        alwaysOnTop: false,
        webPreferences: {
          preload: join(__dirname, '../preload/index.js'),
          nodeIntegration: true,
          contextIsolation: false
        }
      })

      console.log('createCutWindow:', is.dev, process.env['ELECTRON_RENDERER_URL'])

      if (is.dev && process.env['ELECTRON_RENDERER_URL']) {
        let url = process.env['ELECTRON_RENDERER_URL'] + '/#/cut'
        console.log('createCutWindow: loadURL=', url)
        cutWindow.loadURL(url)
      } else {
        cutWindow.loadFile(path.join(__dirname, '../renderer/index.html'))
      }

      cutWindow.maximize()
      cutWindow.setFullScreen(true)
    }

    function sendFinishCut() {
      cutWindow && cutWindow.webContents.send('FINISH_CUT')
    }

    function openCutScreen() {
      closeCutWindow()
      mainWindow.hide()
      createCutWindow()
      cutWindow.show()
    }

    function openMainListener() {
      ipcMain.on('OPEN_CUT_SCREEN', openCutScreen)
      ipcMain.on('SHOW_CUT_SCREEN', async (e) => {
        let sources = await desktopCapturer.getSources({
          types: ['screen'],
          thumbnailSize: getSize()
        })
        cutWindow && cutWindow.webContents.send('GET_SCREEN_IMAGE', sources[0])
      })
      ipcMain.on('FINISH_CUT_SCREEN', async (e, cutInfo) => {
        closeCutWindow()
        mainWindow.webContents.send('GET_CUT_INFO', cutInfo)
        mainWindow.show()
      })
      ipcMain.on('CLOSE_CUT_SCREEN', async (e) => {
        closeCutWindow()
        mainWindow.show()
      })
    }


渲染器

  • scr/main.js

    import { createApp } from 'vue'
    import App from './App.vue'
    import router from './router'

    const app = createApp(App)
    app.use(router)
    app.mount('#app')

  • src/router/index.js

    import { createRouter, createWebHashHistory } from 'vue-router'

    const routes = [
      { path: '/', redirect: '/home' },
      {
        path: '/home',
        name: 'home',
        component: () => import('../pages/Home/index.vue')
      },
      {
        path: '/cut',
        name: 'cut',
        component: () => import('../pages/Cut/index.vue')
      }
    ]

    const router = createRouter({
      history: createWebHashHistory(),
      routes
    })

    export default router

  • src/App.vue

    <template>
      <router-view>
      </router-view>
    </template>

    <script setup>
    </script>

    <style lang="less">
    @import './assets/css/styles.less';
    </style>

  • src/pages/index.vue:首页

    <template>
    	<div class="container">
    		<button @click="handleCutScreen">截屏</button>
    		<div>
    			<img :src="previewImage"
    					 style="max-width: 100%" />
    		</div>
    	</div>
    </template>

    <script setup>
    import { ref } from "vue";
    const { ipcRenderer } = window.electron;
    const previewImage = ref("");

    async function handleCutScreen() {
    	await ipcRenderer.send("OPEN_CUT_SCREEN");
    	ipcRenderer.removeListener("GET_CUT_INFO", getCutInfo);
    	ipcRenderer.on("GET_CUT_INFO", getCutInfo);
    }

    function getCutInfo(event, pic) {
    	previewImage.value = pic;
    }
    </script>

  • src/pages/cut.vue:截图界面

    <template>
    	<div class="container"
    			 :style="'background-image:url(' + bg + ')'"
    			 ref="container"
    			 @mousedown="onMouseDown"
    			 @mousemove="onMouseMove"
    			 @mouseup="onMouseUp">
    	</div>
    </template>
    <script setup>
    import Konva from "konva";
    import { ref, onMounted } from "vue";

    const { ipcRenderer } = window.electron;
    let container = ref(null);
    let bg = ref("");
    let stage, layer, rect, transformer;

    onMounted(() => {
    	ipcRenderer.send("SHOW_CUT_SCREEN");
    	ipcRenderer.removeListener("GET_SCREEN_IMAGE", getSource);
    	ipcRenderer.on("GET_SCREEN_IMAGE", getSource);
    	ipcRenderer.on("FINISH_CUT", confirmCut);
    });

    async function getSource(event, source) {
    	const { thumbnail } = source;
    	const pngData = await thumbnail.toDataURL("image/png");
    	bg.value = pngData;
    	render();
    }

    function render() {
    	stage = createStage();
    	layer = createLayer(stage);
    }

    function createStage() {
    	return new Konva.Stage({
    		container: container.value,
    		width: window.innerWidth,
    		height: window.innerHeight,
    	});
    }

    function createLayer(stage) {
    	let layer = new Konva.Layer();
    	stage.add(layer);
    	layer.draw();
    	return layer;
    }

    function createRect(layer, x, y, width, height, alpha, draggable) {
    	let rect = new Konva.Rect({
    		x,
    		y,
    		width,
    		height,
    		fill: `rgba(0,0,255,${alpha})`,
    		draggable
    	});
    	layer.add(rect);
    	return rect;
    }

    let isDown = false;
    let rectOption = {};
    function onMouseDown(e) {
    	if (rect || isDown) {
    		return;
    	}
    	isDown = true;
    	const { pageX, pageY } = e;
    	rectOption.x = pageX || 0;
    	rectOption.y = pageY || 0;
    	rect = createRect(layer, pageX, pageY, 0, 0, 0.25, false);
    	rect.draw();
    }

    function onMouseMove(e) {
    	if (!isDown) return;
    	const { pageX, pageY } = e;
    	let w = pageX - rectOption.x;
    	let h = pageY - rectOption.y;
    	rect.remove();
    	rect = createRect(layer, rectOption.x, rectOption.y, w, h, 0.25, false);
    	rect.draw();
    }

    function onMouseUp(e) {
    	if (!isDown) {
    		return;
    	}
    	isDown = false;
    	const { pageX, pageY } = e;
    	let w = pageX - rectOption.x;
    	let h = pageY - rectOption.y;
    	rect.remove();
    	rect = createRect(layer, rectOption.x, rectOption.y, w, h, 0, true);
    	rect.draw();
    	transformer = createTransformer(rect);
    	layer.add(transformer);
    }

    function createTransformer(rect) {
    	let transformer = new Konva.Transformer({
    		nodes: [rect],
    		rotateAnchorOffset: 60,
    		enabledAnchors: ['top-left', 'top-right', 'bottom-left', 'bottom-right']
    	});
    	return transformer
    }

    /**
     * 根据选择区域生成图片
     * @param {*} info
     */
    async function getCutImage(info) {
    	const { x, y, width, height } = info;
    	let img = new Image();
    	img.src = bg.value;
    	let canvas = document.createElement("canvas");
    	let ctx = canvas.getContext("2d");
    	canvas.width = ctx.width = width;
    	canvas.height = ctx.height = height;
    	ctx.drawImage(img, -x, -y, window.innerWidth, window.innerHeight);
    	return canvas.toDataURL("image/png");
    }

    /**
     * 确认截图
     */
    async function confirmCut() {
    	const { width, height, x, y, scaleX = 1, scaleY = 1 } = rect.attrs;
    	let _x = width > 0 ? x : x + width * scaleX;
    	let _y = height > 0 ? y : y + height * scaleY;
    	let pic = await getCutImage({
    		x: _x,
    		y: _y,
    		width: Math.abs(width) * scaleX,
    		height: Math.abs(height) * scaleY,
    	});
    	ipcRenderer.send("FINISH_CUT_SCREEN", pic);
    }

    /**
     * 关闭截图
     */
    function closeCut() {
    	ipcRenderer.send("CLOSE_CUT_SCREEN");
    }
    </script>

    <style lang="scss" scoped>
    .container {
    	position: fixed;
    	top: 0;
    	bottom: 0;
    	left: 0;
    	right: 0;
    	width: 100%;
    	height: 100%;
    	overflow: hidden;
    	background-color: transparent;
    	background-size: 100% 100%;
    	background-repeat: no-repeat;
    	border: 2px solid blue;
    	box-sizing: border-box;
    }
    </style>


总结

虽然实现了核心功能,但是仅支持主屏幕截图,不支持多屏幕截图,下一篇:Electron 入门实战 04:支持多屏截图

完整demo :传送门,顺便帮忙点个star,感谢~
