弱网条件下管理台系统首次加载性能优化

34 阅读2分钟

背景: 中台管理系统,在生产环境上偶尔会出现用户首次访问登录页,页面加载时间超过长,甚至加载不出来的情况。

优化一:gzip静态文件打包压缩。

在nginx.conf文件内,对gzip进行配置

gzip_static on;

在webpack中添加插件

new CompressionPlugin({
          test: /.js$|.html$|.css/, // 匹配文件名
          threshold: 10240, // 对超过10kb的数据进行压缩
          deleteOriginalAssets: false // 是否删除原文件
        })

优化二:限制单个静态资源文件大小

在webpack配置中添加插件,build生成的bundle包进行代码分割,实现单个文件大小变得更小。

config.optimization.splitChunks({
        chunks: 'all',
        cacheGroups: {
          libs: {
            name: 'chunk-libs',
            test: /[\/]node_modules[\/]/,
            priority: 10,
            chunks: 'initial', // only package third parties that are initially dependent
            maxSize: 200000,
            minSize: 100000
          },
          elementUI: {
            name: 'chunk-elementUI', // split elementUI into a single package
            priority: 20, // the weight needs to be larger than libs and app or it will be packaged into libs or app
            test: /[\/]node_modules[\/]_?element-ui(.*)/, // in order to adapt to cnpm
            maxSize: 300000,
            minSize: 100000
          },
          commons: {
            name: 'chunk-commons',
            test: resolve('src/components'), // can customize your rules
            minChunks: 3, //  minimum common number
            priority: 5,
            reuseExistingChunk: true
          }
        }

效果测试

在浏览器上开启停用缓存的模式下,模拟首次加载场景

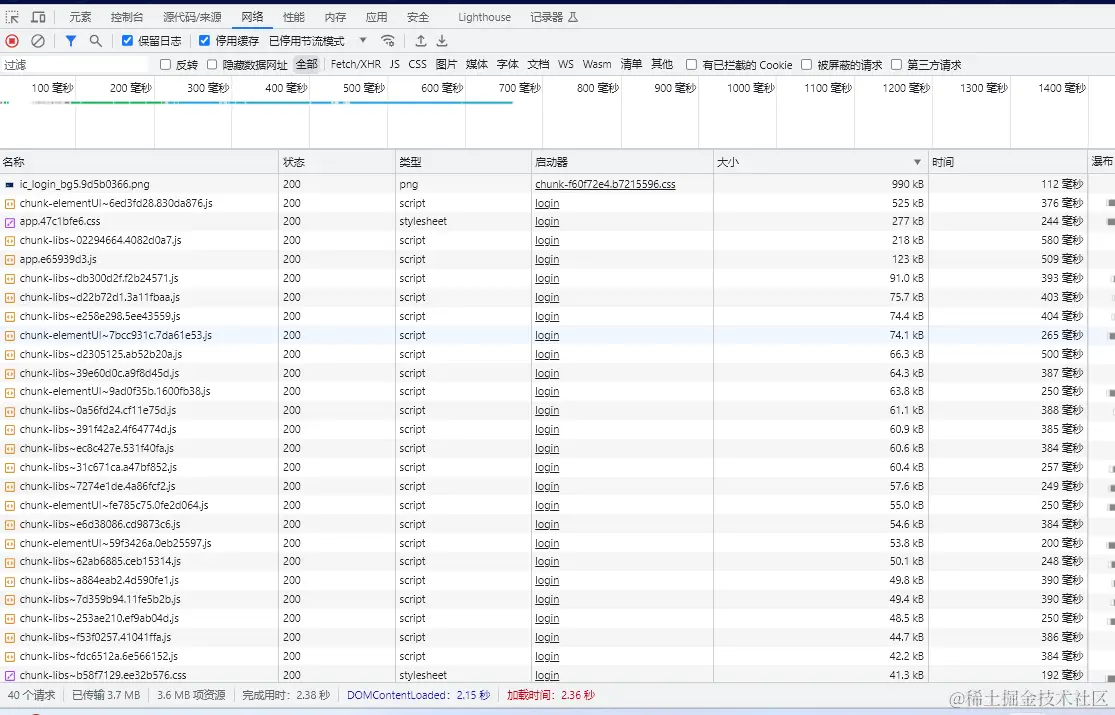

优化之前下载的资源文件大小合计:传输文件3.7M

完成时间平均值为如下

正常模式- 2.3s

低速3G- 100s

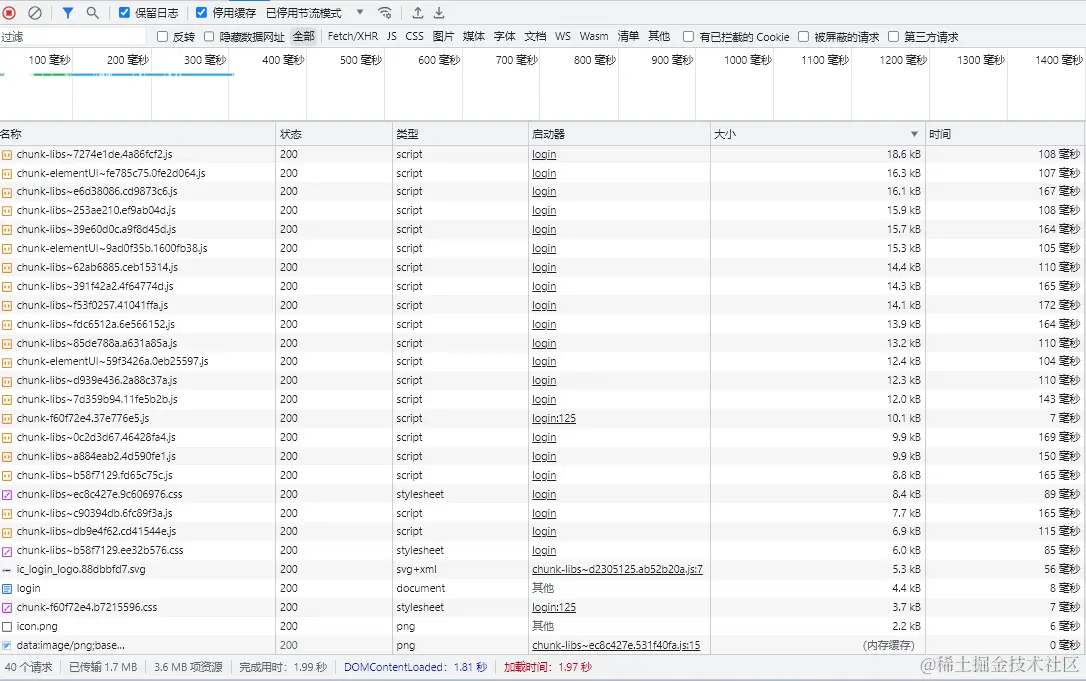

优化之后下载的资源文件大小合计:传输文件1.7M (解压后3.6M)

时间平均值为如下

正常模式- 2s

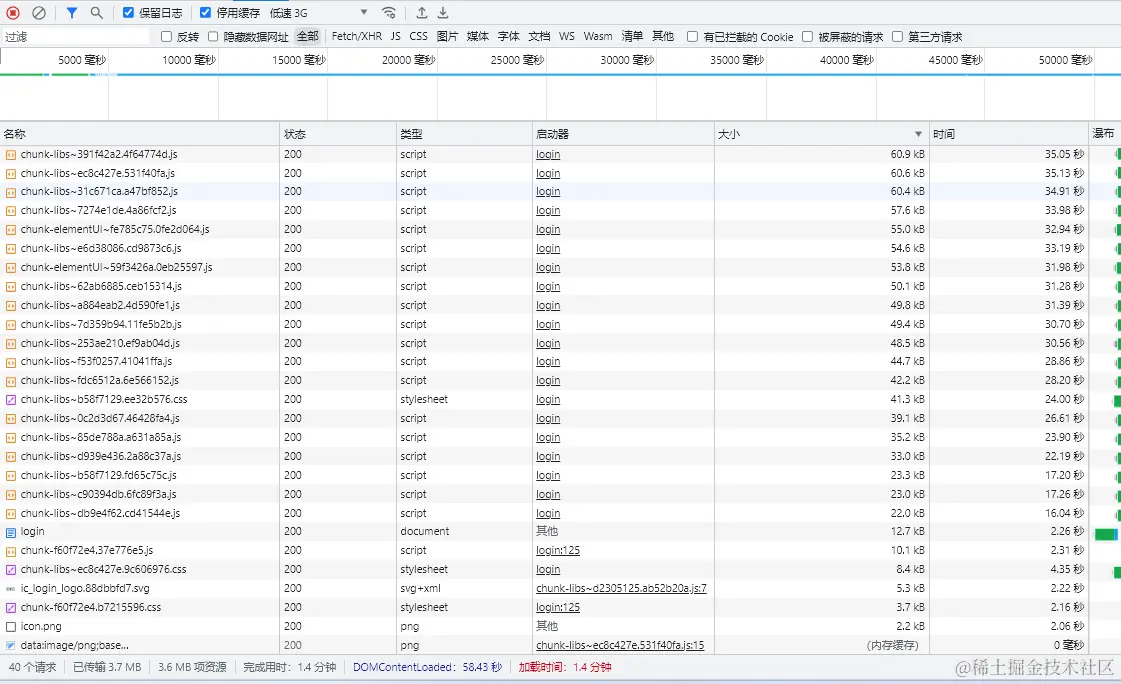

低速3G- 45s

结论:

在正常或者高速的带宽网速的情况下,提升效果不明显(2.3s -> 2s)

在弱网或者网络波动的情况下,页面首次加载的时间大幅缩短,节省了一半的加载耗时。 (100s -> 45s)

同时在传输文件的大小合计上,从原来的3.7M 减少 到 1.7M
