[Go数据结构与算法]2. 栈与队列的结构与实现

栈的定义

栈是一种基于线性表实现的数据结构，特性是先进后出。先进入栈的元素后出来。

结构体定义

先定义栈的接口 Stack：

// 栈的接口
type Stack[T any] interface {

    // 判空
    IsEmpty() bool

    // 返回大小
    Size() int

    // 压栈
    Push(e T)

    // 弹栈
    Pop() T

    // 返回栈顶
    Peek() T
}

Stack 接口定义了栈有关的操作的方法。

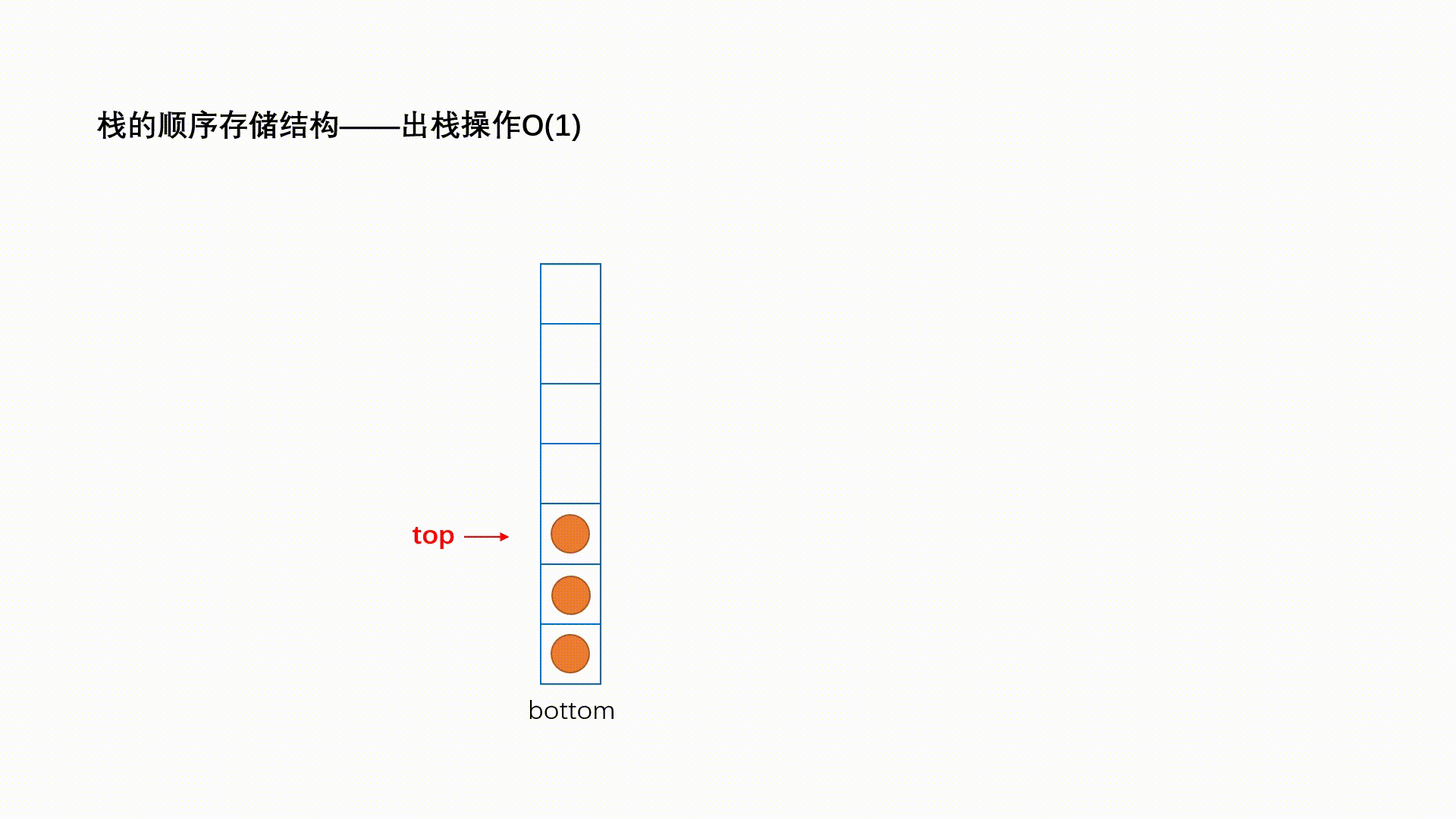

顺序栈

ArrayStack 结构体是基于切片，其实也就是数组实现的栈。

package stack

import (
    "fmt"
    "strings"
)

// 使用数组实现的栈
type ArrayStack[T any] struct {
    values []T
}

func NewArrayStack[T any]() *ArrayStack[T] {
    return &ArrayStack[T]{values: make([]T, 0, 10)}
}

func (a *ArrayStack[T]) String() string {
    if l.head == nil {
        return "<nil>"
    }
    var ans strings.Builder
    ans.WriteString("[")
    for i, value := range a.values {
        if i+1 == len(a.values) {
            ans.WriteString(fmt.Sprintf("%v", value))
            break
        }
        ans.WriteString(fmt.Sprintf("%v, ", value))
    }
    ans.WriteString("]")
    return ans.String()
}

func (a *ArrayStack[T]) IsEmpty() bool {
    return len(a.values) == 0
}

func (a *ArrayStack[T]) Size() int {
    return len(a.values)
}

func (a *ArrayStack[T]) Push(e T) {
    a.values = append(a.values, e)
}

func (a *ArrayStack[T]) Pop() T {
    i := len(a.values) - 1
    ans := a.values[i]
    a.values = a.values[:i]
    return ans
}

func (a *ArrayStack[T]) Peek() T {
    return a.values[len(a.values)-1]
}

写一个测试用例：

func TestArrayStack(t *testing.T) {
    stack := NewArrayStack[int]()
    fmt.Printf("stack is empty: %v\n", stack.IsEmpty())
    fmt.Println(stack)
    stack.Push(5)
    stack.Push(4)
    stack.Push(3)
    stack.Push(2)
    stack.Push(1)
    fmt.Println(stack)
    fmt.Printf("stack is empty: %v\n", stack.IsEmpty())
    fmt.Printf("stack's peek is: %v\n", stack.Peek())
    fmt.Printf("stack's size is: %v\n", stack.Size())
    fmt.Println("stack pops:")
    for !stack.IsEmpty() {
        fmt.Println(stack.Pop())
    }
}

结果如下：

链式栈

LinkedStack 结构体是基于链表实现的栈。

package stack

import (
    "fmt"
    "strings"

    "github.com/code-art/algorithm-go/list"
)

// 链式栈
type LinkedStack[T any] struct {
    head *list.ListNode[T]
    size int
}

func NewLinkedStack[T any]() *LinkedStack[T] {
    return &LinkedStack[T]{}
}

func (l *LinkedStack[T]) String() string {
    var ans strings.Builder
    for p := l.head; p != nil; p = p.Next {
        if p.Next == nil {
            ans.WriteString(fmt.Sprintf("%v", p.Val))
            break
        }
        ans.WriteString(fmt.Sprintf("%v->", p.Val))
    }
    return ans.String()
}

func (l *LinkedStack[T]) IsEmpty() bool {
    return l.size == 0
}

func (l *LinkedStack[T]) Size() int {
    return l.size
}

// 链式栈入栈操作相当于链表头插入
func (l *LinkedStack[T]) Push(e T) {
    oldHead := l.head
    l.head = &list.ListNode[T]{Val: e}
    l.head.Next = oldHead
    l.size++
}

func (l *LinkedStack[T]) Pop() T {
    ans := l.head.Val
    l.head = l.head.Next
    l.size--
    return ans
}

func (l *LinkedStack[T]) Peek() T {
    return l.head.Val
}

写一个测试用例：

func TestLinkedStack(t *testing.T) {
    stack := NewLinkedStack[int]()
    fmt.Printf("stack is empty: %v\n", stack.IsEmpty())
    fmt.Println(stack)
    stack.Push(5)
    stack.Push(4)
    stack.Push(3)
    stack.Push(2)
    stack.Push(1)
    fmt.Println(stack)
    fmt.Printf("stack is empty: %v\n", stack.IsEmpty())
    fmt.Printf("stack's peek is: %v\n", stack.Peek())
    fmt.Printf("stack's size is: %v\n", stack.Size())
    fmt.Println("stack pops:")
    for !stack.IsEmpty() {
        fmt.Println(stack.Pop())
    }
}

结果如下：

队列的定义

队列是是一种先入先出的数据结构，先进入的元素先出去。

结构体定义

定义队列的接口 Queue：

// 队列的接口
type Queue[T any] interface {
    IsEmpty() bool

    Size() int

    // 入队
    Enqueue(e T)

    // 出队
    Dequeue() T

    // 返回队头
    Peek() T
}

顺序队列

package queue

import (
    "fmt"
    "strings"
)

type ArrayQueue[T any] struct {
    values []T
}

func NewArrayQueue[T any]() *ArrayQueue[T] {
    return &ArrayQueue[T]{values: make([]T, 0, 10)}
}

func (a *ArrayQueue[T]) String() string {
    var ans strings.Builder
    ans.WriteString("[")
    for i, value := range a.values {
        if i+1 == len(a.values) {
            ans.WriteString(fmt.Sprintf("%v", value))
            break
        }
        ans.WriteString(fmt.Sprintf("%v, ", value))
    }
    ans.WriteString("]")
    return ans.String()
}

func (a *ArrayQueue[T]) IsEmpty() bool {
    return len(a.values) == 0
}

func (a *ArrayQueue[T]) Size() int {
    return len(a.values)
}

func (a *ArrayQueue[T]) Enqueue(e T) {
    a.values = append(a.values, e)
}

func (a *ArrayQueue[T]) Dequeue() T {
    ans := a.values[0]
    a.values = a.values[1:]
    return ans
}

func (a *ArrayQueue[T]) Peek() T {
    return a.values[0]
}

单元测试：

func TestArrayQueue(t *testing.T) {
    queue := NewArrayQueue[int]()
    fmt.Println("queue is empty: ", queue.IsEmpty())
    queue.Enqueue(5)
    queue.Enqueue(4)
    queue.Enqueue(3)
    queue.Enqueue(2)
    queue.Enqueue(1)
    fmt.Println(queue)
    fmt.Println("queue's peek is: ", queue.Peek())
    fmt.Println("queue's size is: ", queue.Size())
    fmt.Println("queue dequeues:")
    for !queue.IsEmpty() {
        fmt.Println(queue.Dequeue())
    }
}

链式队列

package queue

import (
    "fmt"
    "strings"

    "github.com/code-art/algorithm-go/list"
)

type LinkedQueue[T any] struct {
    head *list.ListNode[T]
    tail *list.ListNode[T]
    size int
}

func NewLinkedQueue[T any]() *LinkedQueue[T] {
    return &LinkedQueue[T]{}
}

func (l *LinkedQueue[T]) String() string {
    var ans strings.Builder
    for p := l.head; p != nil; p = p.Next {
        if p.Next == nil {
            ans.WriteString(fmt.Sprintf("%v", p.Val))
            break
        }
        ans.WriteString(fmt.Sprintf("%v->", p.Val))
    }
    return ans.String()
}

func (l *LinkedQueue[T]) IsEmpty() bool {
    return l.size == 0
}

func (l *LinkedQueue[T]) Size() int {
    return l.size
}

func (l *LinkedQueue[T]) Enqueue(e T) {
    newNode := &list.ListNode[T]{Val: e}
    if l.head == nil {
        l.head = newNode
        l.tail = newNode
    } else {
        l.tail.Next = newNode
        l.tail = newNode
    }
    l.size++
}

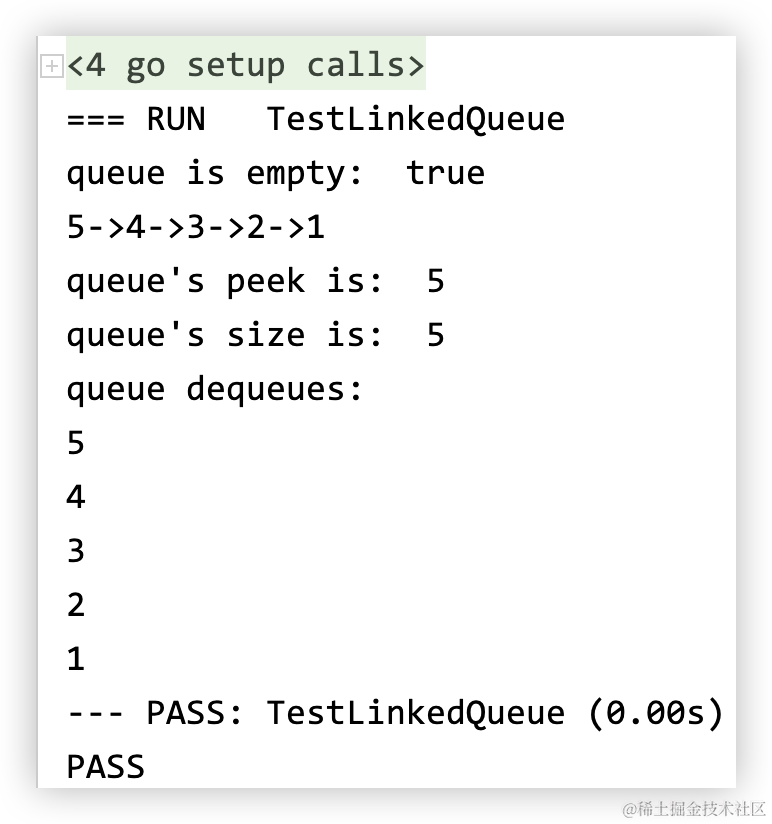

单元测试：

func TestLinkedQueue(t *testing.T) {
    queue := NewLinkedQueue[int]()
    fmt.Println("queue is empty: ", queue.IsEmpty())
    queue.Enqueue(5)
    queue.Enqueue(4)
    queue.Enqueue(3)
    queue.Enqueue(2)
    queue.Enqueue(1)
    fmt.Println(queue)
    fmt.Println("queue's peek is: ", queue.Peek())
    fmt.Println("queue's size is: ", queue.Size())
    fmt.Println("queue dequeues:")
    for !queue.IsEmpty() {
        fmt.Println(queue.Dequeue())
    }
}

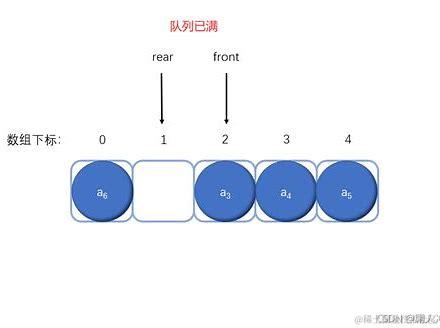

环形队列

// 环形队列
type CircularQueue[T any] struct {
    values   []T
    capacity int
    size     int
    start    int
    end      int
}

func NewCircularQueue[T any](values []T, capacity int) *CircularQueue[T] {
    return &CircularQueue[T]{values: values, capacity: capacity}
}

func (c *CircularQueue[T]) IsEmpty() bool {
    return c.size == 0
}

func (c *CircularQueue[T]) IsFull() bool {
    return c.size == c.capacity
}

func (c *CircularQueue[T]) Size() int {
    return c.size
}

func (c *CircularQueue[T]) Enqueue(e T) {
    if c.IsFull() {
       fmt.Println("Queue is full, can't enqueue.")
    } else {
       c.values[c.end] = e
       if c.end == c.capacity-1 {
          c.end = 0
       } else {
          c.end++
       }
       c.size++
    }
}

func (c *CircularQueue[T]) Dequeue() T {
    if c.IsEmpty() {
       fmt.Println("Queue is empty, can't dequeue.")
       return *new(T)
    } else {
       ans := c.values[c.start]
       if c.start == c.capacity-1 {
          c.start = 0
       } else {
          c.start++
       }
       c.size--
       return ans
    }
}

func (c *CircularQueue[T]) Peek() T {
    if c.IsEmpty() {
       fmt.Println("Queue is empty.")
       return *new(T)
    } else {
       return c.values[c.start]
    }
}

双端队列

// 双端队列
type Deque[T any] struct {
    head *list.DoubleListNode[T]
    tail *list.DoubleListNode[T]
    size int
}

func NewDeque[T any](values []T) *Deque[T] {
    node := list.CreateDoubleListNode(values)
    p := node
    for p.Next != nil {
       p = p.Next
    }
    return &Deque[T]{head: node, tail: p, size: len(values)}
}

func (d *Deque[T]) String() string {
    return d.head.String()
}

func (d *Deque[T]) IsEmpty() bool {
    return d.size == 0
}

func (d *Deque[T]) Size() int {
    return d.size
}

func (d *Deque[T]) Enqueue(e T) {
    d.EnqueueTail(e)
}

func (d *Deque[T]) Dequeue() T {
    return d.DequeueHead()
}

func (d *Deque[T]) Peek() T {
    return d.PeekHead()
}

func (d *Deque[T]) EnqueueHead(e T) {
    newNode := &list.DoubleListNode[T]{Val: e}
    if d.head == nil {
       d.head = newNode
       d.tail = newNode
    } else {
       d.head.Prev = newNode
       newNode.Next = d.head
       d.head = newNode
    }
    d.size++
}

func (d *Deque[T]) EnqueueTail(e T) {
    newNode := &list.DoubleListNode[T]{Val: e}
    if d.head == nil {
       d.head = newNode
       d.tail = newNode
    } else {
       d.tail.Next = newNode
       newNode.Prev = d.tail
       d.tail = newNode
    }
    d.size++
}

func (d *Deque[T]) DequeueHead() T {
    ans := d.head.Val
    if d.head == d.tail {
       d.head, d.tail = nil, nil
    } else {
       d.head = d.head.Next
       d.head.Prev = nil
    }
    d.size--
    return ans
}

func (d *Deque[T]) DequeueTail() T {
    ans := d.tail.Val
    if d.head == d.tail {
       d.head, d.tail = nil, nil
    } else {
       d.tail = d.tail.Prev
       d.tail.Next = nil
    }
    d.size--
    return ans
}

func (d *Deque[T]) PeekHead() T {
    return d.head.Val
}

func (d *Deque[T]) PeekTail() T {
    return d.tail.Val
}

参考源码地址

algorithm-go: algorithm in go (gitee.com)
